Product type	Bottle warmer and baby food jar warmer
Brand	Babymoov
Model	Nutri Smart A002032
Mains power supply	220-240 V, 50/60 Hz, 500 W
Car power supply	12 V DC, 100 W (via included cigarette lighter adapter)
Heating modes	Steam (bottles, baby food jars) and bain-marie (breast milk, defrosting)
Maximum tank capacity	45 ml (steam), 120 ml (bain-marie)
Maximum bottle width	80 mm
Heating time (example home)	2 min 20 for a 250 ml bottle (steam mode)
Programming	Digital with screen, quantity adjustment (60/90/120/180/250 ml/g) and temperature
Delayed start function	Yes, from 15 min to 12 h (not available in car mode)
Keep warm	Automatic for 1 h after heating in bain-marie mode (temperature maintained at 37 °C)
Low water indicator	Yes (5 beeps and indicator light)
Recommended descaling	Mix of 100 ml hot water and 100 ml white vinegar, let it sit for 30 min
Cleaning	Damp cloth (inside and outside). Adaptor ring and basket dishwasher-safe
Safety	Do not immerse, automatic shut-off in case of overheating, hot surface after use
Included accessories	Adaptor ring, baby food jar basket, cigarette lighter adapter
Compatibility	Universal: all types of bottles and baby food jars (plastic and glass)
Warranty	Lifetime warranty under conditions (registration on www.service-babymoov.com within 2 months)

Frequently Asked Questions - Nutri Smart A002032 BABYMOOV

How to use the Nutri Smart in steam mode?

Fill the tank with 45 ml of water (steam graduation). Place the bottle or baby food jar in the basket with the adaptor ring. Turn on the device, select steam mode (1), then adjust the quantity (mL/g) and temperature with the arrows. Confirm with OK. Heating starts after pressing OK twice. Caution: splashing may occur, keep away.

How to use the bain-marie mode for breast milk?

Fill the tank up to the bain-marie graduation (120 ml max). Select bain-marie mode (2) on the interface. Adjust the quantity (mL) and temperature. Bain-marie mode is recommended for breast milk and defrosting. Keep warm (37 °C) automatically activates for 1 hour after heating.

What to do if the bottle warmer does not heat?

First check that the device is plugged in and that the power switch at the back is in home or car position. Make sure you have confirmed the program by pressing OK twice. If the problem persists, descaling may be necessary (see descaling question).

How to clean and descale the device?

Always unplug the device and let it cool down. Clean the inside and outside with a slightly damp cloth. Never immerse the device in water. The adaptor ring and basket are dishwasher-safe. To descale, pour 100 ml hot water + 100 ml white vinegar into the tank, let it sit for 30 minutes, empty and rinse with a damp cloth.

Can I use the device in the car?

Yes, use the provided cigarette lighter adapter. Plug it into the car socket (f) of the device and into the cigarette lighter. Set the switch to car position. Caution: do not use while driving, let the engine run to avoid draining the battery. Bain-marie mode is not recommended in the car as it is too slow.

How to program a delayed start?

After setting the heating mode, quantity and temperature, press the delayed start button (7) which blinks. Use the arrows to choose a delay from 15 min to 12 h, then confirm with OK. Heating will start at the programmed time. To cancel, press the delayed start button for 5 seconds.

What is the keep warm function?

Keep warm activates automatically after heating in bain-marie mode. It maintains the temperature at 37 °C for 1 hour. You can pause it by pressing OK and resume it the same way. This function is not available in car mode.

Is the device suitable for glass bottles?

Yes, glass bottles are compatible. However, reduce heating time by 20% compared to the times given for plastic bottles. For example, for 60 ml, go from 1 min 25 to 1 min 10 (rounded to 1 min 20).

What does the low water indicator mean?

If the water level in the tank is too low, 5 beeps sound and the light (9) turns on. Add water according to the selected mode (45 ml for steam, 120 ml for bain-marie). Press OK to stop the beeps, then restart heating. Change the water every 24 hours to avoid bacteria.

How to activate the lifetime warranty?

The lifetime warranty is subject to conditions. Go to www.service-babymoov.com within 2 months of purchase. Fill in the registration form and attach your proof of purchase (receipt or invoice). You will receive a confirmation email to keep.

USER MANUAL Nutri Smart A002032 BABYMOOV

Line drawing of a portable air conditioner unit with control panel and buttons (no text or symbols)

1 - DÉMARRAGE DU NUTRISMART

Line drawing of a portable air fryer device with attached ports and cable (no text or symbols)

2 - REMPLISSAGE DE LA CUVE

10 min 888 mL 9 X O 3 * OK ① ✓ ▼

BIP Outst smart 888 mL 9 X OK B *

5 - MAINTIEN AU CHAUD

Nutri smart 888 mL 9 X OK

GUIDE D'ENTRETIEN

IMPORTANT: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

These instructions can be viewed online at:

www.babymoov.com

WARNINGS

WARNING:

- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- The measurements shown in the table are given as a guideline. If you feel that the temperatures are too hot or too cold for your baby, feel free to reduce or increase the quantities of water. N.B.: the thickness of the bottle, the material from which it is made and any removable base can all affect the temperature of the bottle.

- CAUTION: always check the temperature of the food before giving it to your baby, to avoid any risk of burning. When using bottles, shake them well to ensure the milk is thoroughly mixed. Pour a drop onto the inside of your wrist to check the temperature. For baby food jars, stir the contents and taste the food to ensure it is not too hot.

• If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to prevent a hazard.
• This appliance may be used by children over 3 provided they are supervised, or that they have been told how the appliance works so that it can be used safely with full awareness of any risks.
• This appliance must not be cleaned and maintained by unless they are older than 8 and supervised.
• Keep the appliance and its power cord out of the reach of children under 3.
• Electrical and electronic equipment must be disposed of separately from household waste. Do not discard electrical and electronic appliances in with your general council waste. Make sure they are disposed of at a separate waste collection point.

This symbol indicates that, throughout the European Union, this product must not be thrown away

or mixed with household waste but disposed of at a separate waste collection point.

PLEASE COMPLY WITH THESE SAFETY INSTRUCTIONS

• Do not leave your child unsupervised while the appliance is in use.
• Check that the voltage of your electrical system is compatible with the appliance (see the values indicated below the appliance).
• Only use the appliance for heating baby bottles and baby food jars. Any other use may be hazardous.
• Never switch on the appliance before adding sufficient water.
• Do not add any other substances (salt water, medicinal products, detergents) to the water as this could damage the appliance.
• Do not use the bottle warmer under damp conditions and do not place it directly in water. Never immerse the appliance in water or any other liquid.
• Do not leave the appliance near heat sources such as radiators, windows in direct sunlight, etc.
• Use the bottle warmer on a completely flat and dry surface, out of the reach of children.
• Do not use the bottle warmer outdoors.
• Always use the baskets for heating baby bottles and baby food jars to avoid damaging the appliance.
• Do not leave the baby bottle or baby food jar to heat up for too long, as this could encourage microbes to develop in the milk or food.
• Bottles are very hot when they are removed from the bottle warmer. Remove them carefully.

• Never move the appliance during use or if it contains hot water.

• The appliance may become very hot during operation. Touch the switch only.

• Allow the bottle warmer to cool for 15 minutes before using it again. Never touch the inside of the water tank whilst the appliance is in use or immediately after use
• Always unplug the appliance before cleaning or filling it, and after each use.
• Do not allow the power cable to trail over the edge of the table or worktop. Do not place it on a hot surface. Keep the power cable out of the reach of children.
• For your safety, only use Babymoov accessories and spare parts and never dismantle the appliance.
• Do not use your appliance if it stops working correctly or is damaged. If this happens, contact your Babymoov after-sales service.
• Avoid spillage on the connector.
• Heating element surface is subject to residual heat after use.
• If you will not be using your NutriSmart for a while, empty it and rinse it out to prevent water from stagnating which may cause bacteria to develop.

For use in the car:

• Never use the bottle warmer whilst the vehicle is moving. When using the bottle warmer, leave your vehicle engine running to avoid draining your battery.
• The cigarette lighter adapter is especially designed for this bottle warmer: do not use it with other appliances. Regularly check your vehicle's cigarette lighter. Clean it if required. If you have just used your cigarette lighter, allow it to cool for five minutes in the open position before plugging in the bottle warmer.

COMPOSITION

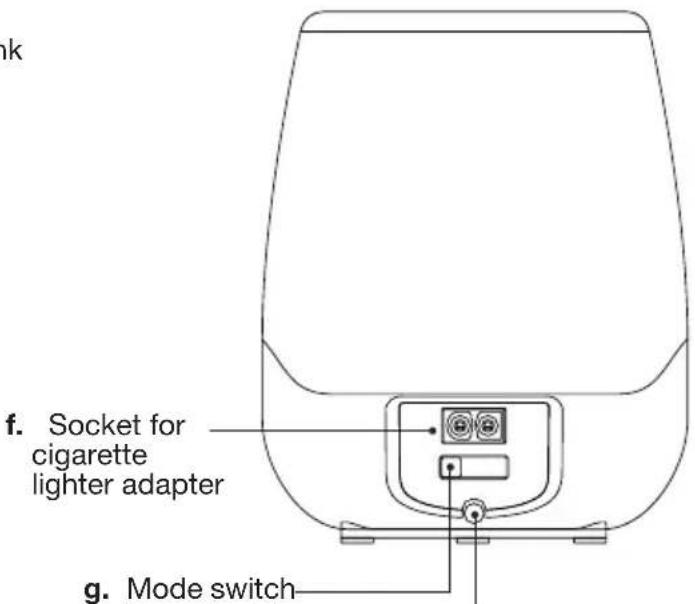

GENERAL DIAGRAM

b. Heating tank a. Control interface f.

c. Adapter ring

d. Basket

f. Socket for cigarette lighter adapter g. Mode switch

g. Mode switch (home/car) / OFF button
h. Power cable

e. Cigarette lighter adapter

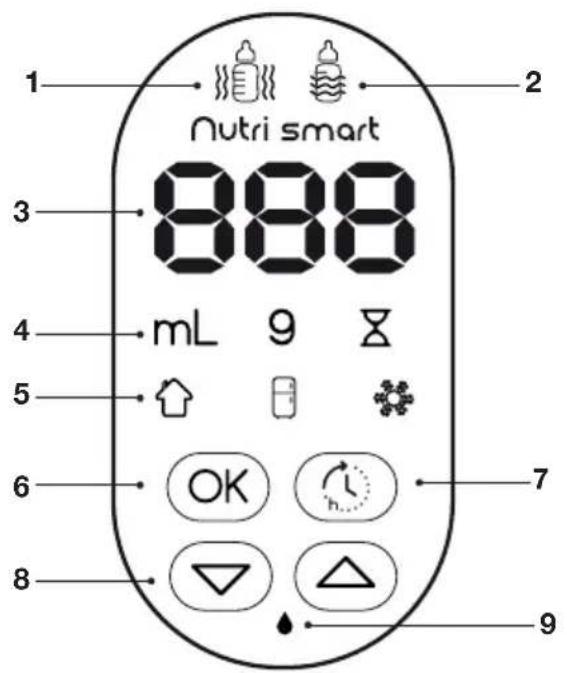

CONTROL INTERFACE

1. Steam heating

2. Heating time

3. ml/g setting

4. Temperature setting

5. OK confirmation button

6. Arrows for changing the heating mode, ml/g and temperatures

Nutri smart 888 mL 9 X OK

1. Bain-marie heating

2. Programmable start

3. Low water level indicator

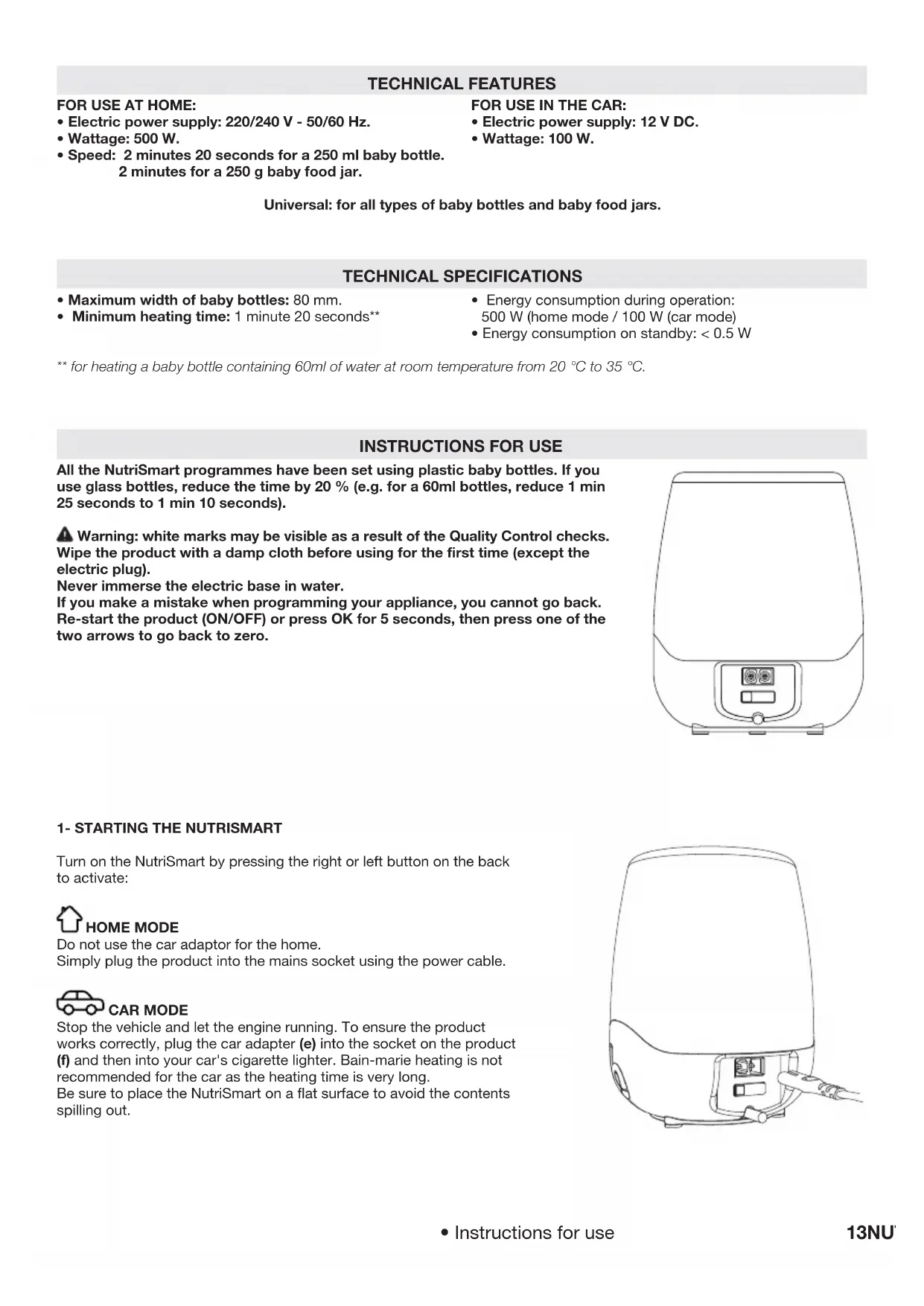

TECHNICAL FEATURES

FOR USE AT HOME:

• Electric power supply: 220/240 V - 50/60 Hz.
- Wattage: 500 W.
- Speed: 2 minutes 20 seconds for a 250 ml baby bottle. 2 minutes for a 250 g baby food jar.

FOR USE IN THE CAR:

• Electric power supply: 12 V DC.
- Wattage: 100 W.

Universal: for all types of baby bottles and baby food jars.

TECHNICAL SPECIFICATIONS

• Maximum width of baby bottles: 80 mm.
• Minimum heating time: 1 minute 20 seconds**

• Energy consumption during operation: 500 W (home mode / 100 W (car mode))
• Energy consumption on standby: < 0.5 W

** for heating a baby bottle containing 60ml of water at room temperature from 20 °C to 35 °C.

INSTRUCTIONS FOR USE

All the NutriSmart programmes have been set using plastic baby bottles. If you use glass bottles, reduce the time by 20 % (e.g. for a 60ml bottles, reduce 1 min 25 seconds to 1 min 10 seconds).

⚠ Warning: white marks may be visible as a result of the Quality Control checks. Wipe the product with a damp cloth before using for the first time (except the electric plug).

Never immerse the electric base in water.

If you make a mistake when programming your appliance, you cannot go back. Re-start the product (ON/OFF) or press OK for 5 seconds, then press one of the two arrows to go back to zero.

Line drawing of a portable air conditioner unit with control panel and buttons (no text or symbols)

1- STARTING THE NUTRISMART

Turn on the NutriSmart by pressing the right or left button on the back to activate:

HOME MODE

Do not use the car adaptor for the home.

Simply plug the product into the mains socket using the power cable.

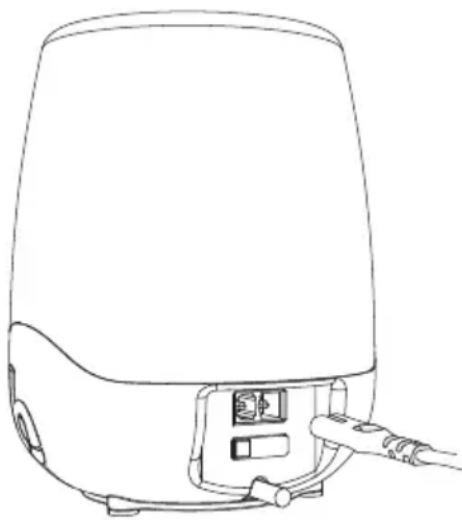

CAR MODE

Stop the vehicle and let the engine running. To ensure the product works correctly, plug the car adapter (e) into the socket on the product (f) and then into your car's cigarette lighter. Bain-marie heating is not recommended for the car as the heating time is very long. Be sure to place the NutriSmart on a flat surface to avoid the contents spilling out.

Line drawing of a portable air fryer device with attached ports and cable (no text or symbols)

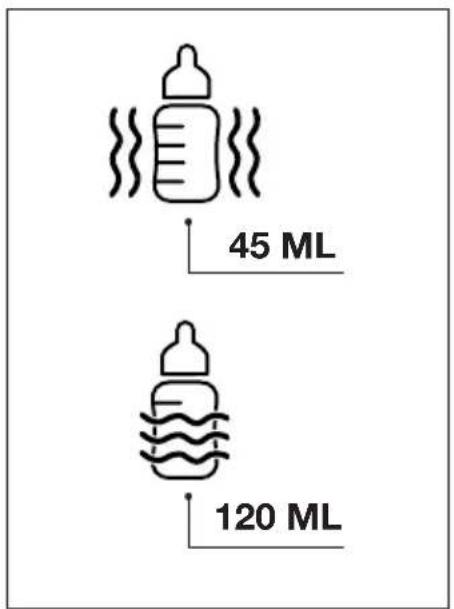

2 - FILLING THE TANK

- Place warm water (around 20°C) into the tank according to the required heating method and the following graduation marks in the tank:

Steam (45 ml max)

: Bain-marie (120 ml max)

Exception

Baby food jars containing less than 120ml: fill to the level of the contents in the jar and disregard the graduation marks.

45 ML 120 ML

"BEEP" x5

10 mins 888 mL 9 X O 3 + OK ✓ ✓

BEEP Outri smart 888 mL 9 X OK H * ✓

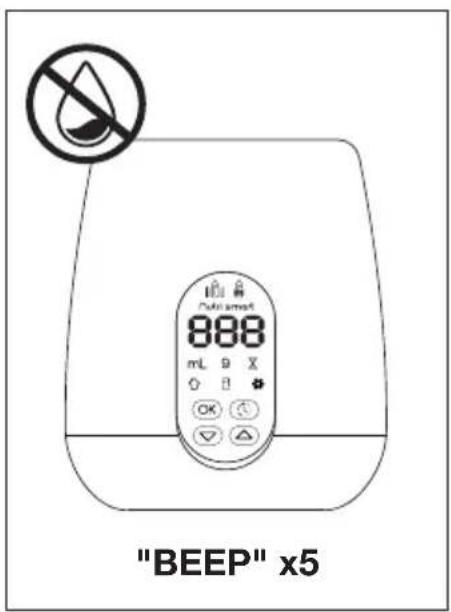

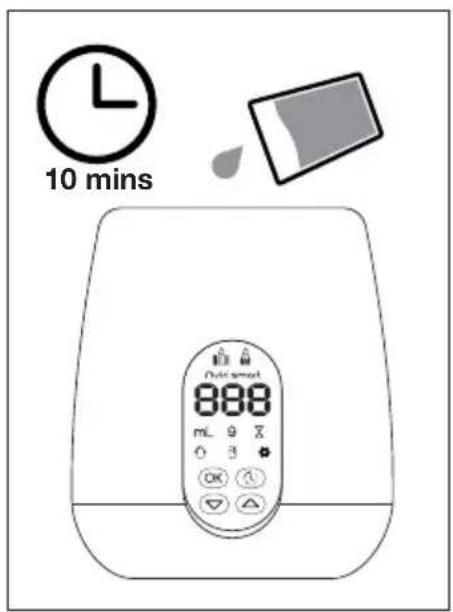

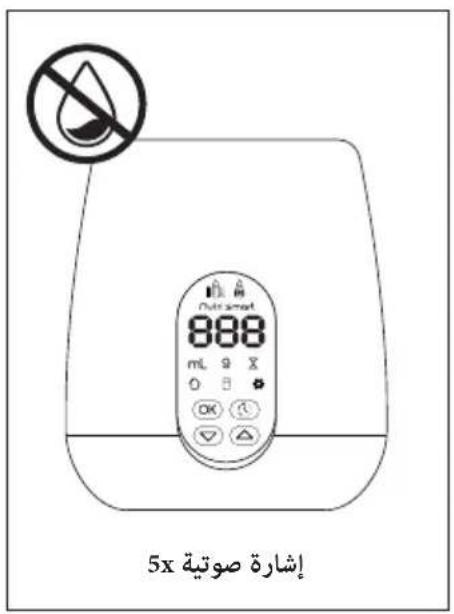

• If there is not enough water, 5 beeps will sound. Fill the tank according to the required heating method and wait 10 mins.

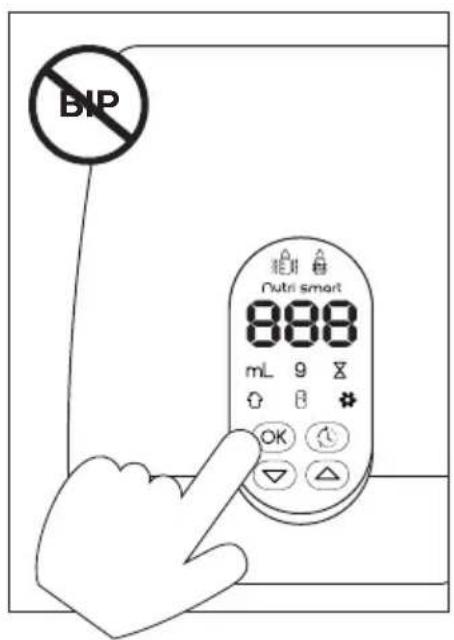

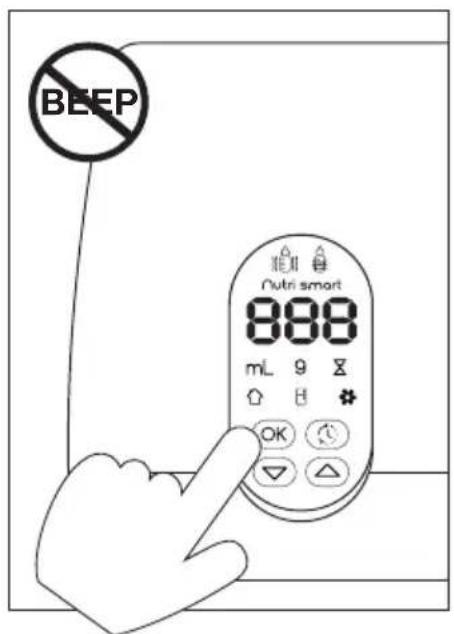

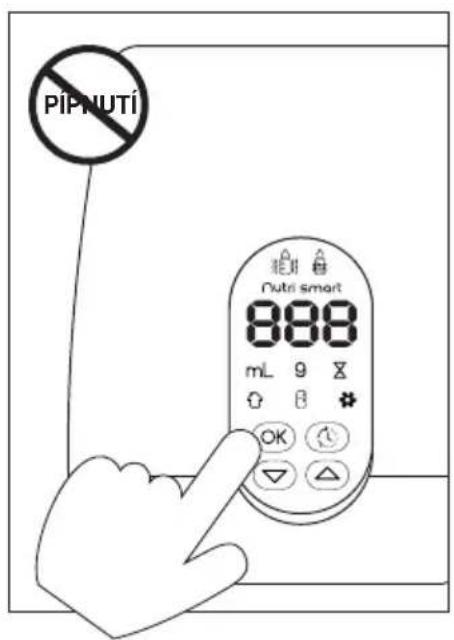

• Cancel the beeps by pressing the OK button.
• Press OK again to restart the heating process.
• Change the water every 24 hours to prevent the build-up of bacteria.

1 Nutri smart 2 3 888 4 mL 9 X 5 6 OK 7 8 9

INTELLIGENT!

The NutriSmart automatically calculates the required heating time according to the heating method, ml/g and required temperature. It memorises your latest programme settings! You can alter these at any time using the arrows.

3 - HEATING BABY BOTTLES, CONTAINERS AND BREAST MILK POUCHES

- Whether you are using the steam heating method (1) (baby bottles/baby food jars) or bain-marie method (2) (breast milk/defrosting), you will need to use the arrows (8) to specify:

mL 9: the amount of milk/food in your container (60 / 90 / 120 / 180 or 250) (4).

: the temperature of the container (5).

= room temperature: 20 °C. = temperature having been refrigerated: 4 °C.

= frozen temperature approx. -18 °C (available for bain-marie mode only).

888: heating time (this is pre-set according to the quantity and required temperature, but you can change it at any time) (3).

• To move between steps and confirm, simply press OK (6).

- To start the heating process once you have completed all the steps, press OK twice until you hear a beep (optional programmable start, see part 4).

• The heating process is finished when you hear 3 beeps.

- To restart the heating process, press the top arrow and select your new programme.

- 如果：if you do not take any action within 1 hour after heating, the bottle warmer will automatically go into standby.

- To deactivate the standby mode, press the OK button so that the bottle warmer turns back on and suggests the previously used heating time. Press the OK button once again, and the product will start heating up.

Caution: the steam heating mode may cause splashes. Move away from the bottle warmer to avoid any risk of scalding. Also always check the temperature of the milk/food before serving it to your child. Wait 15 mins between each bottle or reduce your heating time.

Note: if the quantity to be heated is not pre-programmed, we recommend choosing the lower quantity to avoid overheating.

4 - PROGRAMMABLE START (NOT AVAILABLE IN CAR MODE)

• You can choose to delay the heating process (15 mins, 30 mins, 45 mins, 1hr, 2hrs... 12hrs).
• Once the heating steps are complete, the programmable start button flashes (7).

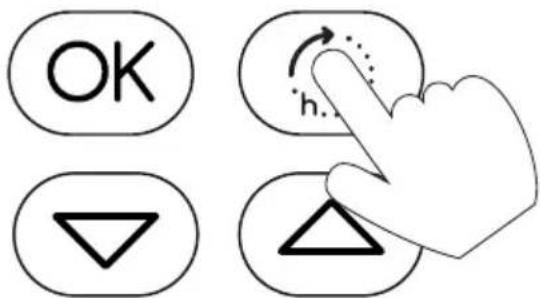

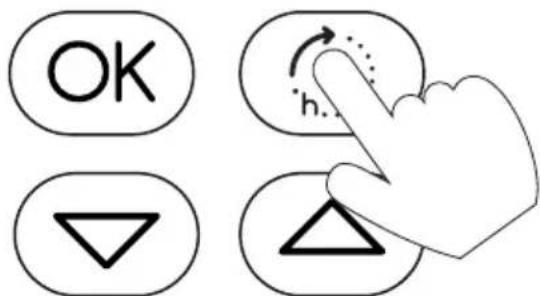

• Press the programmable start button (7).
• Change the timer by pressing the arrows.

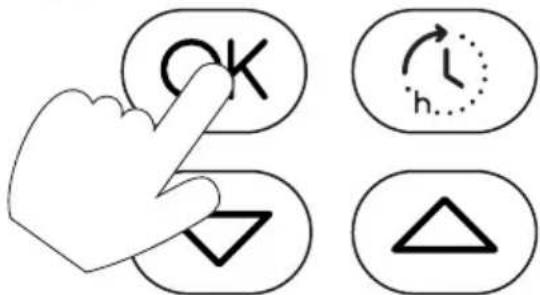

• Press OK to confirm. The heating process will start at the selected time.
• To cancel the programmable start and start the heating process immediately, press the programmable start button (7) for 5 secs.

OK h.

1

15 min → 12 hrs

OK h...

Hand cursor clicking a button with an arrow icon (no text or symbols)

2

Hand-drawn icons showing hand, circular buttons with 'OK', a clock with 'h', and two triangle symbols

3

3 secs

OK h...

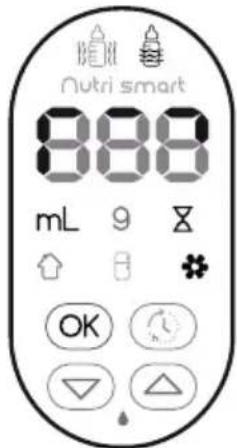

5 - KEEP WARM FUNCTION

IMPORTANT: the KEEP WARM function operates in bain-marie mode only (and is not recommended for use in the car).

• Activates automatically for 1 hour after the heating process is finished.
• Press the OK button to pause the keep warm function.
• Press the OK button once again to restart the keep warm function (keeps the temperature at 37°C).
• Once the keep warm period is finished, the bottle warmer will automatically go into standby.
• To deactivate the standby mode, press the OK button so that the bottle warmer turns back on and suggests the previously used heating time.

Press the OK button once again, and the product will start heating up.

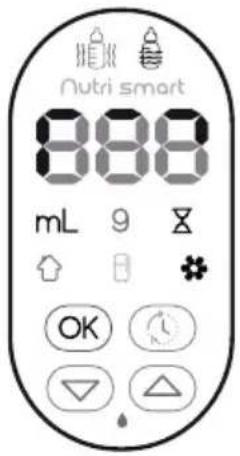

Nutri smart 888 mL 9 X OK

CARE GUIDE

Cleaning the bottle warmer:

• Wait until the bottle warmer is cold before cleaning it.
  • Always unplug the appliance before cleaning it.
• Never immerse the appliance in water and do not fill completely with water.
• Do not use detergent to clean the appliance.
• Use a slightly damp cloth to clean the inside and outside.
• The adapter ring, measuring cup and basket for baby food jars are all dishwasher-safe.

Descaling:

• Do not use descaling products.
  • After repeated use, and depending on the amount of water used, a layer of limescale may build up inside the tank.
• Descale the tank regularly to ensure the appliance works correctly. Note that the low water level indicator (9) lights up when the appliance needs descaling.

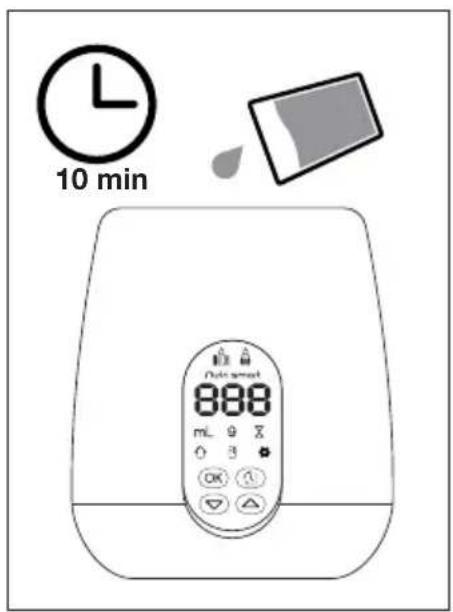

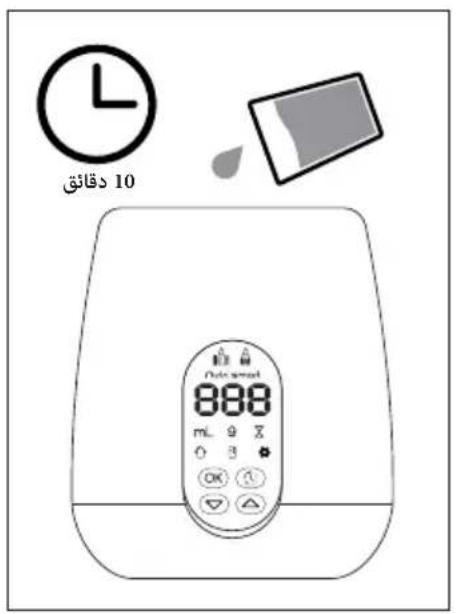

• Descale the appliance as follows: mix 100 ml of hot water with 100 ml of white vinegar and pour the solution into the tank. Leave for 30 minutes and empty the appliance. Clean with a damp cloth.

TROUBLESHOOTING

PROBLEMS POSSIBLE CAUSES SOLUTION
Does not heat up enough or not at all	Limescale build-up	See the "CARE GUIDE" section in the instruction manual for how to descale the product.
	Water is too cold	Increase the heating time.
	Action not finalised	Check that the OK button has been pressed to confirm the heating process.
Does not turn on	Start button badly positioned	Check that the start button is correctly activated: home or car.
	Not plugged in properly Check that the appliance is plugged in.

MEASUREMENTS CHART

FOR USE AT HOME
		ml minutes
		60 1.25
		90 1.40
		120 2.15
		180 2.20
		250 2.40
		60 2.25
		90 2.40
		120 3
		180 3.40
		250 4.20
		60	7
		90 11
		120 12
		180 12
		250 15
		60 10
		90 12
		120 13
		180 26
		250 28
		60 26
		90 32
		120 33
		180 35
		250 40

FOR USE IN THE CAR
		ml minutes
		60	5
		90	6
		120 7
		180 9
		250 11
		60	8
		90 11
		120 14
		180 18
		250 25
		60	9
		90 12
		120 10
		180 12
		250 17
		60 16
		90 20
		120 25
		180 30
		250 40

Nutri smart 888 mL 9 X OK

1. Wasserbad-Modus

Line drawing of a portable air conditioner unit with control panel and buttons (no text or symbols)

Line drawing of a portable air fryer with control panel and indicator lights (no text or symbols)

2 - WASSERBEHÄLTER BEFÜLLEN

Piepton Outst smart 888 mL 9 X

B *

OK

Nutri smart 888 mL 9 X OK

PFLEGEANWEISUNG

Nutri smart 888 mL 9 X OK

1. Bain marie verwarmen

Line drawing of a portable air fryer with control panel and buttons (no text or symbols)

1 - DE NUTRISMART STARTEN

Line drawing of a portable air fryer with control panel and indicator lights (no text or symbols)

2 - HET VULLEN VAN HET WATERBAKJE

"PIEPTOON" x 5

10 min 888 mL 9 X O 3 + OK

PIEPTOON Outst smart 888 mL 9 X OK B * OK

Nutri smart 888 mL 9 X OK

ONDERHOUDSGIDS

Line drawing of a portable air fryer with control panel and buttons (no text or symbols)

Line drawing of a laboratory pipette with a handle and spout (no text or symbols)

d. Cesta

Line drawing of a portable air conditioner unit with control panel and buttons (no text or symbols)

1 - PUESTA EN MARCHA DEL NUTRISMART

Line drawing of a portable air fryer device with attached ports and cable (no text or symbols)

2 - LLENADO DEL RECIPIENTE

10 min 888 mL 9 X O 3 + OK ✓ ✓

BIP Outri smart 888 mL 9 X OK B *

Nutri smart 888 mL 9 X OK

Line drawing of a portable air fryer with control panel and buttons (no text or symbols)

Line drawing of a portable air fryer with control panel and indicator lights (no text or symbols)

2 - RIEMPIMENTO DELLA VASCHETTA

10 min 888 mL 9 X O 3 + OK ✓

BIP Outst smart 888 mL 9 X

B *

OK

Nutri smart 888 mL 9 X OK

TABELLA DEI PROBLEMI

Nutri smart 888 mL 9 X OK

Line drawing of a portable air fryer with control panel and buttons (no text or symbols)

1 - A NUTRISMART ELINDÍTÁSA

Line drawing of a portable air fryer device with control panel and cable (no text or symbols)

2 - A TARTÁLY FELTÖLTÉSE

BIP Outst smart 888 mL 9 X OK B *

Nutri smart 888 mL 9 X OK

KARBANTARTÁSI ÚTMUTATÓ

Line drawing of a portable air fryer with control panel and buttons (no text or symbols)

Line drawing of a portable air fryer device with attached ports and cable (no text or symbols)

NUTRISMART 1-because Photoshop الجهاز

E-commerce cosmetics 888 mL 9 X OK OK Δ Δ

10 دقائق 888 mL 9 X 0 3 * OK 21 ✓ ▼ ▲

Hand-drawn interface buttons with checkmark, function keys, clock, triangle, and arrow symbols

Nutri smart 888 mL 9 X OK

Nutri smart 888 mL 9 X OK

Line drawing of a portable air conditioner unit with control panel and buttons (no text or symbols)

1 - INICIAR O NUTRISMART

Line drawing of a portable air fryer device with a cable inserted (no text or symbols)

BIP Outst smart 888 mL 9 X OK B *

✓ OK h... 3

3 seg OK h. △

5 - MANTER QUENTE

Nutri smart 888 mL 9 X OK

GUIA DE MANUTENÇÃO

Nutri smart 888 mL 9 X OK

Line drawing of a portable air conditioner unit with control panel and buttons (no text or symbols)

1 - SPUŠTĚNÍ PŘÍSTROJE NUTRISMART

Line drawing of a portable air fryer device with a cable inserted, showing no text or symbols

2 - NAPLNĚNÍ OHŘÍVACÍ NÁDOBY

"PÍPNUTÍ" x 5

10 min 888 mL 9 X O 3 + OK ✓

PIP NUTÍ OUTR smart 888 mL 9 X

B *

OK

h 3 s OK h Δ

5 - UDRŽOVÁNÍ V TEPLE

Nutri smart 888 mL 9 X OK

NÁVOD K ÚDRŽBĚ

Nutri smart 888 mL 9 X OK

Line drawing of a portable air fryer with control panel and buttons (no text or symbols)

1 - PORNIREA DISPOZITIVULUI NUTRISMART

Line drawing of a portable air fryer device with a cable inserted, showing no text or symbols

2 - UMPLEREA CUVEI

"BIP" x 5

10 min 888 mL 9 X O 3 + OK

BIP Outst smart 888 mL 9 X OK B *

Nutri smart 888 mL 9 X OK

GHID DE ÎNTRETINERE

Line drawing of a portable air fryer with control panel and buttons (no text or symbols)

1 - URUCHAMIANIE URZĄDZENIA NUTRISMART

Line drawing of a portable air fryer with a cable inserted, showing front panel and control buttons (no text or symbols)

2 - NAPEŁNIANIE ZBIORNIKA

10 min 888 mL 9 X O 3 + OK ✓ ✓

SIGNAL DZWIĘTOWY Outri smart 888 mL 9 X OK

Nutri smart 888 mL 9 X OK

INSTRUKCJA KONSERWACJI

Nutri smart 888 mL 9 X OK

Line drawing of a portable air conditioner unit with control panel and buttons (no text or symbols)

1 - OPSTART AF NUTRISMART

Line drawing of a portable air fryer device with attached ports and cable (no text or symbols)

2 - OPFYLDNING AF BEHOLDEREN

BIP Outst smart 888 mL 9 X OK B *

Nutri smart 888 mL 9 X OK

VEDLIGEHOLDELSESVEJLEDNING

* Lifetime warranty. Warranty subject to terms and conditions. List of countries involved, activation timescales and information available online at the following address: www.service-babymoov.com

NL.
