Nutribaby One - Food Processor BABYMOOV - Free user manual and instructions

Product type	Steam cooker and blender for baby
Brand	Babymoov
Model	Nutribaby One
Power supply	220-240 V, 50-60 Hz
Cooking power	500 W
Blending power	250 W
Color	White and green (or depending on variant)
Cooking bowl capacity	Approximately 800 ml (estimated)
Blending bowl capacity	Approximately 600 ml (estimated)
Main functions	Steaming, blending, reheating, defrosting
Safety	Blending lid lock, automatic shut-off at end of cooking, motor overheat protection
Materials	Stainless steel (blades), BPA-free plastic (bowls, basket)
Care and cleaning	Wipe base with damp cloth; bowls, lids and basket dishwasher safe (top rack)
Descaling	Cooking tank: mixture of hot water and white vinegar
Spare parts	Blending bowl, blending lid, blade, steam bowl, basket, juice collector, steam lid
Warranty	Lifetime warranty under conditions (online registration within 2 months of purchase)
Dimensions (L x W x H)	Approximately 25 x 20 x 30 cm (estimated)
Weight	Approximately 2.5 kg (estimated)
Use	Household, for preparing baby meals
Included accessories	Blending bowl, lid, blade, steam bowl, separator basket, juice collector, steam lid

Frequently Asked Questions - Nutribaby One BABYMOOV

What are the main functions of the Nutribaby One?

The Nutribaby One allows you to steam, blend, reheat and defrost baby food.

How to use the steam cooking mode?

Fill the cooking tank with water according to the dosage indicated (see table), place the food in the steam bowl or basket, close the lid and press the cooking button. The indicator light turns on and off at the end of the cycle.

Can I blend hot food directly?

Yes, but use short presses of 5 seconds maximum to avoid motor overheating. Let it cool down if necessary.

How to clean the blender blades?

Disassemble the blades by turning towards the open lock symbol, wash them by hand, then reassemble by locking towards the closed lock.

Can I wash the parts in the dishwasher?

Yes, the blending bowl, its lid, the steam bowl, the basket and the juice collector can go in the dishwasher (top rack). The base must never be immersed.

What to do if the appliance stops during use?

It is probably a thermal protection due to blending for too long. Let the appliance cool down for at least 15 minutes before using it again.

How to descale the cooking tank?

Pour a mixture of 100 ml hot water and 100 ml white vinegar into the tank. Let it sit for 1 to 2 hours, then rinse thoroughly with clear water.

Is the Nutribaby One suitable for all babies?

Yes, it allows you to prepare smooth purees for the first months, then thicker textures for dietary diversification.

How to activate the lifetime warranty?

Go to www.service-babymoov.com within 2 months of purchase, fill out the form and attach the proof of purchase. You will receive a confirmation email.

What types of containers can I use for reheating?

Use small glass or plastic jars that withstand high temperatures (heat-resistant). Remove the jar lid before placing it in the steam bowl.

USER MANUAL Nutribaby One BABYMOOV

Line drawing of a modern kitchen appliance with a labeled 'nutribaby one' component (no text or symbols beyond branding)

nutribaby one

Réf.: A001133

Notice d'utilisation • Instructions for use • Bedienungsanleitung • Gebruikshandleiding Manual de instrucciones • Istruzioni d'uso • Instruções de uso • Návod k použití Használati útmutató • Instructiuni de utilizare • Instrukcja użytkowania • تعليمات للاستخدام

300 ml 200 ml 100 ml N. K. H. O. C. G.F. A.L.J.I. B. E. D. M.

K. = 6 x 120 ml

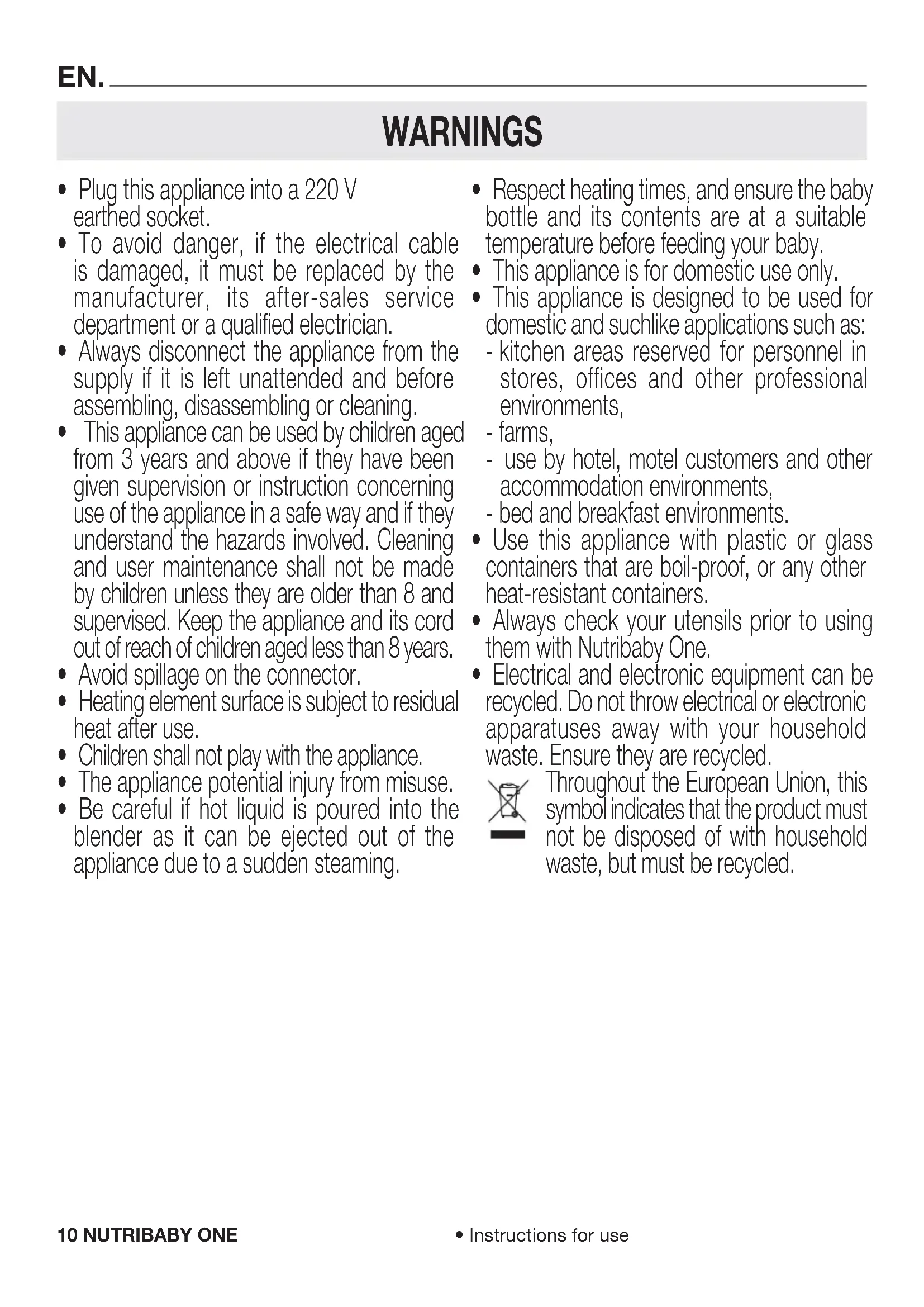

AVERTISSEMENTS

Hand pouring liquid into a black beverage container with a small device attached (no text or symbols visible)

Two-panel image showing a hand placing a lid onto a black blender jar, with no visible text or symbols.

Hand using a water filter to press or clean the dish into a second wash bottle (no text or symbols visible)

Two-panel photo showing food being poured into a blender with a lid, no text or symbols visible

Hand holding a clear glass coffee maker with a knife inside, showing a kitchen handle and lid (no text or symbols visible)

Close-up of a hand holding a ceramic kettle with a lid, showing liquid and a handle (no text or symbols visible)

Hand holding a glass coffee maker with liquid, no visible text or symbols

Black-and-white photo of a kitchen setup with a hand pouring food into a steamer and a blender, next to a plate of food items (no visible text or symbols)

• Plug this appliance into a 220 V earthed socket.
• To avoid danger, if the electrical cable is damaged, it must be replaced by the manufacturer, its after-sales service department or a qualified electrician.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This appliance can be used by children aged from 3 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Avoid spillage on the connector.
• Heating element surface is subject to residual heat after use.
  • Children shall not play with the appliance.
• The appliance potential injury from misuse.

• Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

• Respect heating times, and ensure the baby bottle and its contents are at a suitable temperature before feeding your baby.
  • This appliance is for domestic use only.

• This appliance is designed to be used for domestic and suchlike applications such as:
• kitchen areas reserved for personnel in stores, offices and other professional environments,
• farms,
• use by hotel, motel customers and other accommodation environments,
• bed and breakfast environments.
• Use this appliance with plastic or glass containers that are boil-proof, or any other heat-resistant containers.
• Always check your utensils prior to using them with Nutribaby One.
• Electrical and electronic equipment can be recycled. Do not throw electrical or electronic apparatuses away with your household waste. Ensure they are recycled.
  Throughout the European Union, this symbol indicates that the product must not be disposed of with household waste, but must be recycled.

SAFETY INSTRUCTIONS

READ ALL THE INSTRUCTIONS BELOW CAREFULLY BEFORE USING NUTRIBABY ONE.

• Read all the instructions carefully and familiarise yourself with your baby food preparation appliance before using it for the first time.
• To prevent the risk of electric shock, do not immerse the apparatus or its electrical cord in water or any other liquid.
• Use the apparatus only to cook/heat/blend or thaw. Any other use may be dangerous.
• Take care when handling the blender blades, especially when removing the blades from the bowl, and emptying or washing the bowl.
• The apparatus contains no parts useful to the user for repairs. Do not disassemble the apparatus.

• Monitor the apparatus when in use with children nearby. Keep the apparatus out of reach of children.

• This apparatus is for indoor use only. Do not use outdoors.

• Do not allow electrical cord to hang over the edge of the table or counter. Do not place near hot surfaces.
• Use the apparatus on a flat, stable and dry surface.
• Do not place the apparatus on a hot surface or near an oven or gas burner, or any other heat source.
• Do not touch the hot surfaces on the apparatus (heating chamber).
• Do not move the apparatus during use, once it has been plugged in, or if it contains hot water.
• Warning: stains may appear on the baskets or blending jug if you use strongly coloured foods, particular those which are orange and red.

CLEANING

• Always unplug the appliance and ensure it is cool before cleaning.
- Nutibaby One base (G): wipe the external surface and the inside of the cooking tank (H) with a damp cloth or sponge with mild liquid detergent. Rinse with water.

Let dry. Do not immerse in water or any other liquid. Do not wash or rinse under running water. Do not use abrasive products.

• The liquid collector (I), the basket (J), the bowl (K), steamer cover (L), blending bowl lid (A), blending bowl (C) can all be washed with a sponge and hot water and a mild liquid detergent. Rinse with water and let dry. They can also be washed on the top rack of the dishwasher.
• Do not use abrasive sponges or cleaning solvents. They may damage the appliance and its surfaces.

CLEANING THE BLENDER BLADES

For thorough cleaning, you can remove the blades from the blender by turning them to the «open padlock» symbol. They should then be washed by hand. When replacing the blades, lock them into place by turning them to the «closed padlock» symbol.

REMOVING SCALE FROM THE HEATING TANK

After a certain time of use, mineral deposits may form on the inside surfaces of the heating tank (H) and damage the Nutribaby One.

You should regularly remove the scale on your appliance by pouring 100 ml of hot water and 100 ml of white vinegar in the heating tank (H). Let sit for an hour or two (or longer if necessary). Pour out the liquid and rinse with tap water several times. Do not immerse the Nutribaby One in water. Wipe with a dry cloth or let dry.

WARNING: If you unplug the food processor's power cord during a warming cycle, the cycle will resume when the product is plugged back in.

INSTRUCTIONS FOR USE OF THE BOTTLE HEATER

Hand pouring liquid into a black cylindrical container with a small device attached (no text or symbols visible)

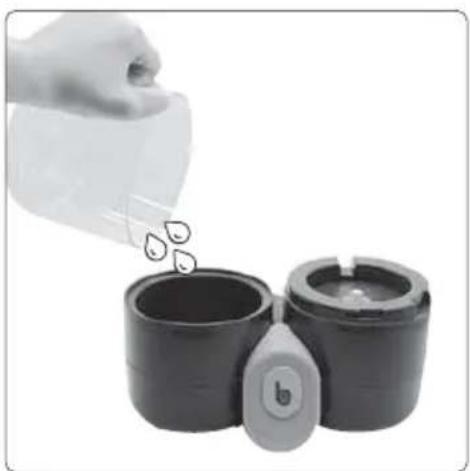

1. Use the blending bowl (C) to pour the water in the heating tank (H). Fill the tank with the amount of water indicated in the cooking guide.

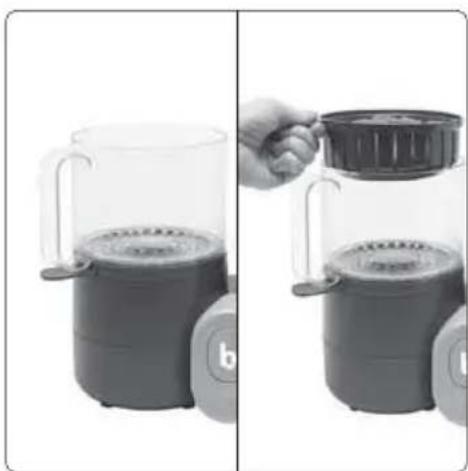

Two-panel image showing a hand placing a lid onto a black blender jar, with no visible text or symbols.

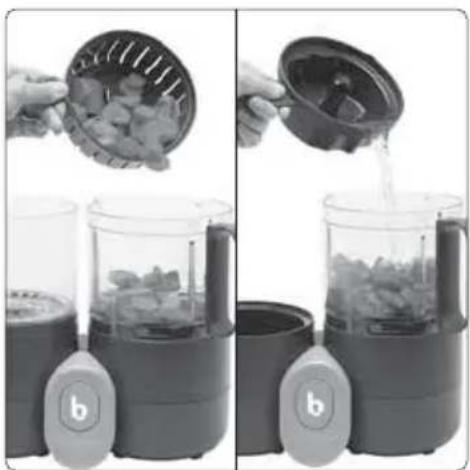

1. Place the diced foods in the main bowl (K) with or without the basket (J).

Hand using a water filter to press or clean the dish into a second wash bottle (no text or symbols visible)

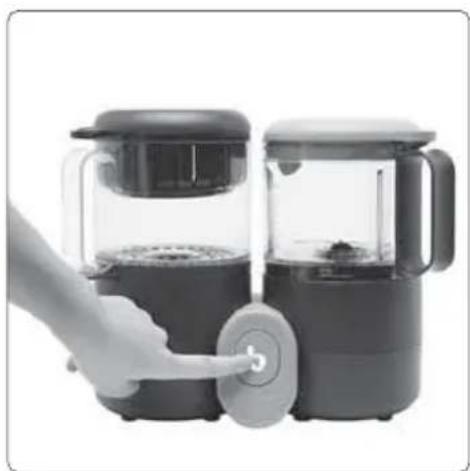

1. Press the cooking button (F) to start cooking.

Two-panel photo showing food being poured into a blender with a lid, no text or symbols visible

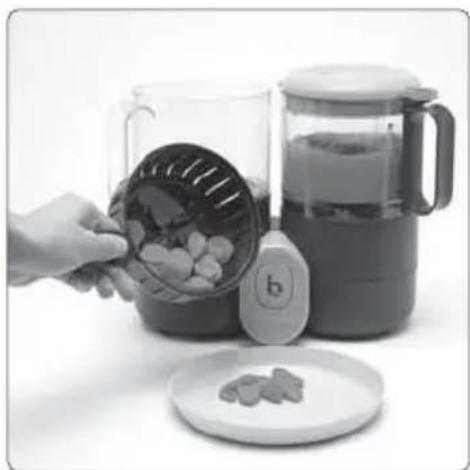

1. Once cooking is complete, pour the foods in the blending bowl (C). Remember to also pour the cooking liquid from the liquid collector (I) into the blending bowl for added flavour and vitamins.

Hand holding a clear glass coffee maker with a knife inside, showing a kitchen handle and lid (no text or symbols visible)

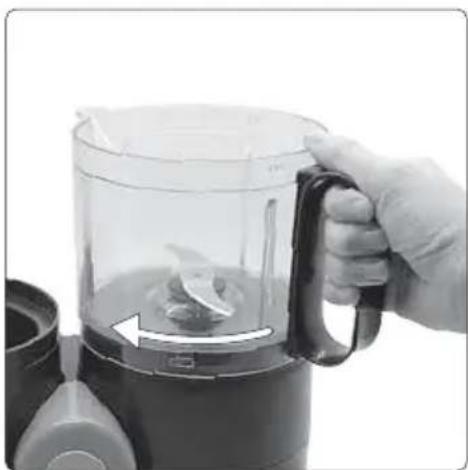

1. Turn the blending bowl (C) clockwise to lock it.

Close-up of a hand holding a ceramic kettle with a lid, showing liquid and a handle (no text or symbols visible)

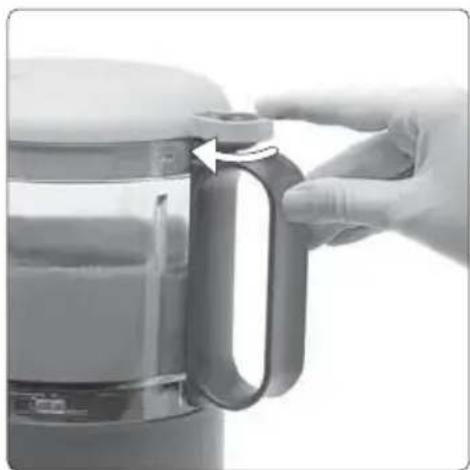

1. Turn the locking system (B) clockwise to close and lock the lid. The lid is closed properly when the locking system is snapped securely in its slot. You will hear a click, indicating that the blending bowl is ready to be used.

Hand holding a glass coffee maker with a lid, showing liquid and a small object (no visible text or symbols)

12 NUTRIBABY ONE

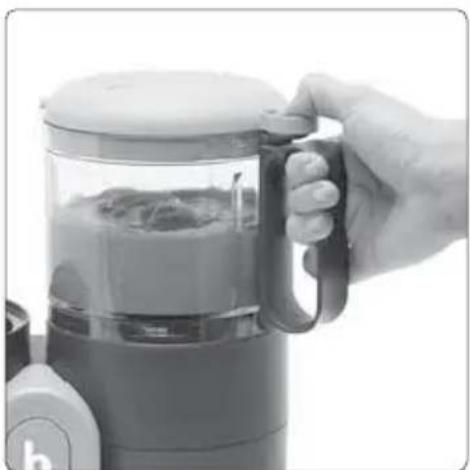

1. Press the blending button (E) to blend. ATTENTION: press the button for short bursts of 5 seconds to prevent overheating. Stop if the blending blade (D) spins without any resistance (otherwise, refer to point 15 of the instructions for use).


Black-and-white photo of a kitchen setup with a hand pouring food into a steamer and a blender, next to a plate of food items (no visible text or symbols)

1. Pour the food into a dish. Baby's meal is ready! Be careful, it's hot!

- Instructions for use

COMPONENTS

A. Blending bowl lid
B. Lid locking system
C. Blending bowl
D. Blending blade
E. Blending button
F. Central button

G. Nutribaby One base
H. Cooking tank
I. Cooking liquid collector
J. Food separator basket
K. Steamer bowl
L. Steamer lid

L.- Power cord
N. Water level indicators
L. ON/OFF button

· Power cord:10 A - 250 V
· 220-240 V / 50-60 Hz
- Steamer: 500 W
- Blender: 250 W

INSTRUCTIONS FOR USE

A. MEAL PREPARATION

1. Place the appliance on a flat, stable surface. Ensure the appliance and the power cord (M) are out of children's reach.
2. Ensure the mains power is suitable for the appliance. If it is, plug the appliance in to the wall outlet.
3. Remove the steamer lid (L), the main bowl (K), the basket (J) and the cooking water vessel (I) from the apparatus.

4. Remove the blending bowl (C). Fill it with water as per the quantities shown in the table on page 4.

5. Add the appropriate amount of water to the heating tank (H).

6. Replace the cooking water vessel (I), the main bowl (K). Place the food into the bowl (K) or into the basket (J). You can use the basket (J) to cook different foods separately. Put the first food items into the bottom of the main bowl (K), and then insert the basket (J) with the other food items in it.

7. Replace the steamer lid (L). Warning: the steamer lid has no locking system, so avoid touching it when it is heating.

8. Press the cooking button (F) once. An indicator light inside the button turns on, indicating that cooking has started. Warning: during cooking, the steamer cover (K) may become very hot and steam will exit the hole on top of the cover. Keep hands away to avoid burning yourself.

9. When the cooking cycle is complete, the indicator light turns off and the appliance turns off automatically.

10. Remove the lid (L). Warning: it is very hot, handle it with care.

11. Allow the bowl (K) to cool for 1 or 2 minutes.

12. Transfer the steamed food to the blending bowl (C). Remove the liquid collector (I) using the handle and pour the cooking liquid in the blending bowl (C), see page 5. This will add flavour and vitamins to baby's food. Warning: the liquid collector (I) is hot. Handle with care. For better cooking results, we recommend cooking cereals at the same time as other foods.

13. Replace the blending bowl (C) in the housing. Align and turn the blending bowl (C) clockwise until it locks in the Nutribaby One base (G).

14. Replace the blending jug (C) on the food processor base (G). Align and turn the blending bowl cover (A) clockwise, until it locks into place. The lid is closed properly when the locking system is snapped securely in its slot. You will hear a click, indicating that the blending bowl is ready to be used. You will not be able to blend anything until the lid is properly locked into position.

15. Press the blending switch (E).

Warning: do not blend continuously, but in short bursts of 5 seconds, to avoid overheating the motor. Failure to follow the blending instructions above may cause the product to stop working as a safety measure. If the appliance stops, please let the product cool down for a few moments.

1. When the food is ready, release the blending button (E) and blending will stop.

2. Unlock the mixing bowl cover (A) and remove the blending bowl (C) from the base of the Nutribaby One (G).

3. You can now feed your baby the freshly prepared meal. Warning: always test food temperature before feeding baby. Warning: never blend without food or liquids in the blending bowl (C). Allow the Nutribaby One to cool for at least 15 minutes before using it to cook again.

B. REHEATING

1. Place food to be reheated in a small glass or plastic jar able to withstand high temperatures. Remove the lid of the jar.
2. Place the small jar in the main bowl (K) and attach and close the lid (L).
3. Depending on the quantity to be heated, put between 10 to 20 mL of water (2 to 4 teaspoons) into the cooking tank (H).
4. Press the cooking button (F).
5. When reheating is complete, the indicator light will turn off. Carefully remove the jar to avoid burning yourself.
6. Pour the food in a dish, stir the contents well to ensure an even temperature, baby's meal is ready!

WARNING: always test food temperature before feeding baby.

C. THAWING

Follow the same instructions as for reheating.

- For a 120 ml jar, put 140 ml into the cooking tank (H) during about fifteen minutes. Then, mix and wait a few minutes so that the jar cools down to the right temperature.

- For a 240 ml jar, put 180ml into the cooking tank (H). Then, mix and wait a few minutes so that the jar cools down to the right temperature.

HINWEISE

Hand pouring liquid into a black cylindrical container with a small device attached (no text or symbols visible)

Two-panel image showing a hand holding a lid above a black blender jar, with no visible text or symbols.

Hand using a water filter to press or clean the dish into a second wash bottle (no text or symbols visible)

Two-panel photo showing food being poured into a blender with a lid, no text or symbols visible

Hand holding a clear glass coffee maker with a knife inside, showing internal components (no text or symbols visible)

Close-up of a hand holding a ceramic kettle with a lid, showing liquid and a handle (no text or symbols visible)

Hand holding a glass coffee maker with a lid, showing liquid and a small object (no visible text or symbols)

Black-and-white photo of a kitchen setup with a hand pouring food into a steamer and a blender, next to a plate of food items (no visible text or symbols)

Hand pouring liquid into a black cylindrical container with a small device attached (no text or symbols visible)

Two-panel image showing a hand placing a lid onto a black blender jar, with no visible text or symbols.

Hand using a water filter to press or clean the dish into a second wash bottle (no text or symbols visible)

Two-panel photo showing food being poured into a blender with a lid, no text or symbols visible

Hand holding a clear glass coffee maker with a knife inside, showing a kitchen handle and lid (no text or symbols visible)

Close-up of a hand holding a ceramic kettle with a lid, showing liquid and a handle (no text or symbols visible)

Hand holding a glass coffee maker with a lid, showing liquid and a small object (no visible text or symbols)

20 NUTRIBABY ONE

Black-and-white photo of a kitchen setup with a hand pouring food into a steamer and a blender, next to a plate of food items (no visible text or symbols)

Hand pouring liquid into a black cylindrical container with a small device attached (no text or symbols visible)

Two-panel image showing a hand placing a lid onto a black blender jar, with no visible text or symbols.

Hand using a water filter to press or clean the dish into a second wash bottle (no text or symbols visible)

Two-panel photo showing food being poured into a blender oven, with no visible text or symbols.

Hand holding a clear container with a knife inside, next to a blender (no visible text or symbols)

Close-up of a hand holding a glass kettle with a lid, showing liquid being poured into it (no text or symbols visible)

Hand holding a glass coffee maker with a lid, showing liquid and a small object (no visible text or symbols)

Black-and-white photo of a kitchen setup with a hand pouring food into a steamer and a blender, next to a plate of food items (no visible text or symbols)

Hand pouring liquid into a black cylindrical container with a small device attached (no text or symbols visible)

Two-panel image showing a hand placing a lid onto a black plastic blender jar, with no visible text or symbols.

Hand operating a portable food blender with a water dispenser (no visible text or symbols)

Two-panel photo showing food being poured into a blender with a lid, no visible text or symbols

Close-up of a hand holding a transparent container with a knife inside, next to a black blender (no visible text or symbols)

Close-up of a hand holding a glass kettle with a handle, showing liquid and a white lid (no text or symbols visible)

Hand holding a glass tea maker with a lid, pouring liquid from a white cup (no visible text or symbols)

28 NUTRIBABY ONE

Black-and-white photo of a hand pouring food into a steamer with a lid, next to a glass pitcher and a plate of food items (no visible text or symbols)

Hand pouring liquid into a black cylindrical container with a small device attached (no text or symbols visible)

Two-panel image showing a hand placing a lid onto a black blender in a clear glass container, with no visible text or symbols.

Hand using a water filter to press or lift a coffee maker (no visible text or symbols)

Two-panel photo showing food being poured into a blender oven, with no visible text or symbols.

Hand holding a clear container with a knife inside, next to a blender (no text or symbols visible)

Close-up of a hand holding a glass kettle with a lid, showing liquid being poured into it (no text or symbols visible)

Hand holding a glass coffee maker with a lid, showing liquid and a small object (no visible text or symbols)

32 NUTRIBABY ONE

Black-and-white photo of a kitchen setup with a hand pouring food into a steamer and a blender, next to a plate of food items (no visible text or symbols)

Hand pouring liquid into a black cylindrical container with a small device attached (no text or symbols visible)

Two-panel image showing a hand placing a lid onto a black blender jar, with no visible text or symbols.

Hand using a water heater to press or lift a coffee maker (no visible text or symbols)

Two-panel photo showing food being poured into a blender with a lid, no text or symbols visible

Hand holding a clear glass coffee maker with a knife inside, showing a kitchen handle and lid (no text or symbols visible)

Close-up of a hand holding a ceramic kettle with a lid, showing liquid and a handle (no text or symbols visible)

Hand holding a glass coffee maker with a lid, showing liquid and a small object (no visible text or symbols)

Black-and-white photo of a kitchen setup with a hand pouring food into a steamer and a blender, next to a plate of food items (no visible text or symbols)

Hand pouring liquid into a black cylindrical container with a small device attached (no text or symbols visible)

Two-panel image showing a hand placing a lid onto a black blender in a clear glass container, with no visible text or symbols.

Hand using a water filter device to press or interact with a digital kitchen (no visible text or symbols)

Two-panel photo showing food being poured into a blender oven, with no visible text or symbols.

Hand holding a clear container with a knife inside, next to a blender (no text or symbols visible)

Close-up of a hand holding a glass kettle with a lid, showing liquid being poured into it (no text or symbols visible)

Hand holding a glass coffee maker with a lid, showing liquid and a small object (no visible text or symbols)

Black-and-white photo of a kitchen setup with a hand pouring food into a steamer and a blender, next to a plate of food items (no visible text or symbols)

Hand pouring liquid into a black cylindrical container with a small device attached (no text or symbols visible)

Two-panel image showing a hand placing a lid onto a black blender jar, with no visible text or symbols.

Hand using a water heater to press or lift a coffee maker (no visible text or symbols)

Two-panel photo showing food being poured into a blender with a lid, no text or symbols visible

Hand holding a clear glass coffee maker with a knife inside, showing a kitchen handle and lid (no text or symbols visible)

Close-up of a hand holding a ceramic kettle with a lid, showing liquid and a handle (no text or symbols visible)

Hand holding a glass coffee maker with a lid, showing liquid and a small object (no visible text or symbols)

44 NUTRIBABY ONE

Black-and-white photo of a kitchen setup with a hand pouring food into a steamer and a blender, next to a plate of food items (no visible text or symbols)

Hand pouring liquid into a black cylindrical container with a small device attached (no text or symbols visible)

Two-panel image showing a hand holding a lid above a black blender jar, with no visible text or symbols.

Hand using a water filter to press or clean the dish into a second wash bottle (no text or symbols visible)

Two-panel photo showing food being poured into a blender with a lid, no visible text or symbols

Hand holding a clear glass coffee maker with a knife inside, showing internal components (no text or symbols visible)

Close-up of a hand holding a ceramic kettle with a lid, showing liquid and a handle (no text or symbols visible)

Hand holding a glass coffee maker with a lid, showing liquid and a small object (no visible text or symbols)

48 NUTRIBABY ONE

Black-and-white photo of a kitchen setup with a hand pouring food into a steamer and a blender, next to a plate of food items (no visible text or symbols)

Hand operating a kitchen blender with a water dispenser (no visible text or symbols)

Two-panel image showing a hand placing a lid onto a black plastic cup, with no visible text or symbols.

Hand pouring liquid into a black cylindrical container with a small labeled tag (no text or symbols visible)

Close-up of a hand holding a transparent container with a handle, showing liquid being poured into it (no text or symbols visible)

Hand holding a transparent container with a lid, showing internal components and a small object inside (no text or symbols visible)

Two-panel photo showing food being poured into a blender with a lid, no visible text or symbols

Black-and-white photo of a hand pouring food into a glass pitcher with a lid, next to a plate of food items (no visible text or symbols)

Hand holding a glass tea maker with a lid, pouring liquid into it (no visible text or symbols)

A. manufacturers wogbe

www.service-babymoov.com

* Lifetime warranty. Warranty subject to terms and conditions. List of countries involved, activation timescales and information available online at the following address: www.service-babymoov.com

NL.
