Litetrax Pro - Stroller Joie - Free user manual and instructions

Product type	Stroller
Brand	Joie
Model	Litetrax Pro
Recommended age	From birth to 4 years (up to 22 kg)
Maximum child weight	22 kg
Maximum basket weight	4.5 kg
Maximum parent tray weight	1.36 kg
Number of seat recline positions	4
Leg rest positions	2
Front wheels type	Swivel with lock
Rear wheels type	Fixed with brake
Brake	Brake lever on rear wheels
Harness	5-point, height adjustable
Canopy	Extensible with viewing window
Fold	One-hand, stands when folded
Included accessories	Safety bar, rain cover (on some models), parent tray (on some models)
Compatible accessories	Joie ramble & ramble XL carrycot, Joie gemm, i-Gemm 3, i-Level Recline, i-Snug 2 car seats
Seat maintenance	Cold water wash, drip dry
Chassis cleaning	Household soap and warm water
Wheel lubrication	Light oil (silicone, anti-rust or sewing machine oil)
Safety standard	EN 1888-2:2018

Frequently Asked Questions - Litetrax Pro Joie

How to open the Litetrax Pro stroller?

Release the storage latch from the storage bracket, then lift the handle upward until you hear a click. Check that the stroller is fully locked before proceeding.

How to fold the stroller?

First, fold the canopy. Then, press the fold button and pull the folding canvas upward. The frame automatically folds backward and the storage latch attaches to the bracket. The stroller can stand upright when folded.

How to adjust the harness height?

For taller children, use the shoulder harness anchor point A and the highest slots. For smaller children, use anchor point B. To change the height, remove the harness eyelet and pass it through the slot corresponding to the child's shoulder height.

How to recline the seat?

Press the recline handle at the back of the seat and pull backward to recline. To raise, push the seat back upward. There are 4 recline positions.

How to lock the front wheels?

Use the swivel locks on the front wheels. Push the lever down to lock (prevent swiveling) and up to unlock. It is recommended to lock on uneven surfaces.

How to use the brake?

To lock the rear wheels, press the brake lever. To unlock, press again. Always apply the brake when the stroller is stopped.

How to install the rain cover?

Place the rain cover over the stroller and secure the eight pairs of hooks and loops. Before use, make sure the seat is in the lowest position and the harness is fastened. Do not fold the stroller with the cover installed and do not use it in hot weather.

How to clean the stroller?

The removable seat pad can be washed in cold water and drip dried. For the chassis, use household soap and warm water. Do not use bleach or harsh detergent. If the wheels squeak, apply a light oil (silicone, anti-rust or sewing machine oil).

What accessories are compatible with the Litetrax Pro?

It is compatible with the Joie ramble and ramble XL carrycots, as well as the Joie gemm, i-Gemm 3, i-Level Recline and i-Snug 2 car seats. Accessories like the parent tray and rain cover may be included or sold separately depending on the region.

What is the maximum weight supported by the storage basket?

The storage basket can hold up to 4.5 kg. Do not place heavy loads on the handle or canopy to avoid compromising stability.

USER MANUAL Litetrax Pro Joie

Line drawing of a baby stroller with decorative frame and wheels (no text or symbols)

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Stroller Assembly

Illustration of a hand holding a baby bottle with a yellow arrow pointing to it (no text or symbols)

Line drawing of a baby car seatbelt with a pink bandage and orange arrow indicating rotation (no text or symbols)

Line drawing of a baby stroller with a circular badge showing number 10 (no text or symbols on the device itself)

Line drawing of a scooter interior showing seat, roof, and exhaust pipe (no text or symbols)

Illustration of a hand pressing a button on a vertical panel, with no text or symbols present.

Illustration of a hand holding a pink object over a surface with water, no text or symbols present

Diagram of a dental implant or implant device with no visible text or symbols

Illustration of a person wearing a hat with a bandage and orange arrows indicating movement or force (no text or symbols)

Diagram of a car interior showing a seatbelt with a hand near the seat, no text or symbols present

Line drawing of a wheelchair seat with a red belt, no text or symbols present

Accessories (May not be included in purchase)

Accessories may be sold separately or may not be available depending on region.

Two line drawings of a stroller with front and side views, labeled 32 and 33 (no text or symbols on the devices themselves)

Line drawing of a stroller with a 'CLICK' button and orange badge (no text or symbols on the diagram itself)

Line drawing of a baby stroller with four wheels and a back cover (no text or symbols)

Line drawing of a bicycle seat with red accents and a 'CLICK' button (no text or symbols on the diagram itself)

Welcome to Joie ^TM

Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your little one. While traveling with the Joie litetrax pro / litetrax pro air you are using a high quality, fully certified stroller, approved to European safety standards EN 1888-2:2018. This product is suitable for children up to 22kg or 4 years whichever comes first. Please carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Visit us at jolebaby.com to download manuals and see more exciting Jole products!

For warranty information, please visit our website at joiebaby.com

Emergency

In case of emergency or accident, it is most important to have your child taken care of with first aid and medical treatment immediately.

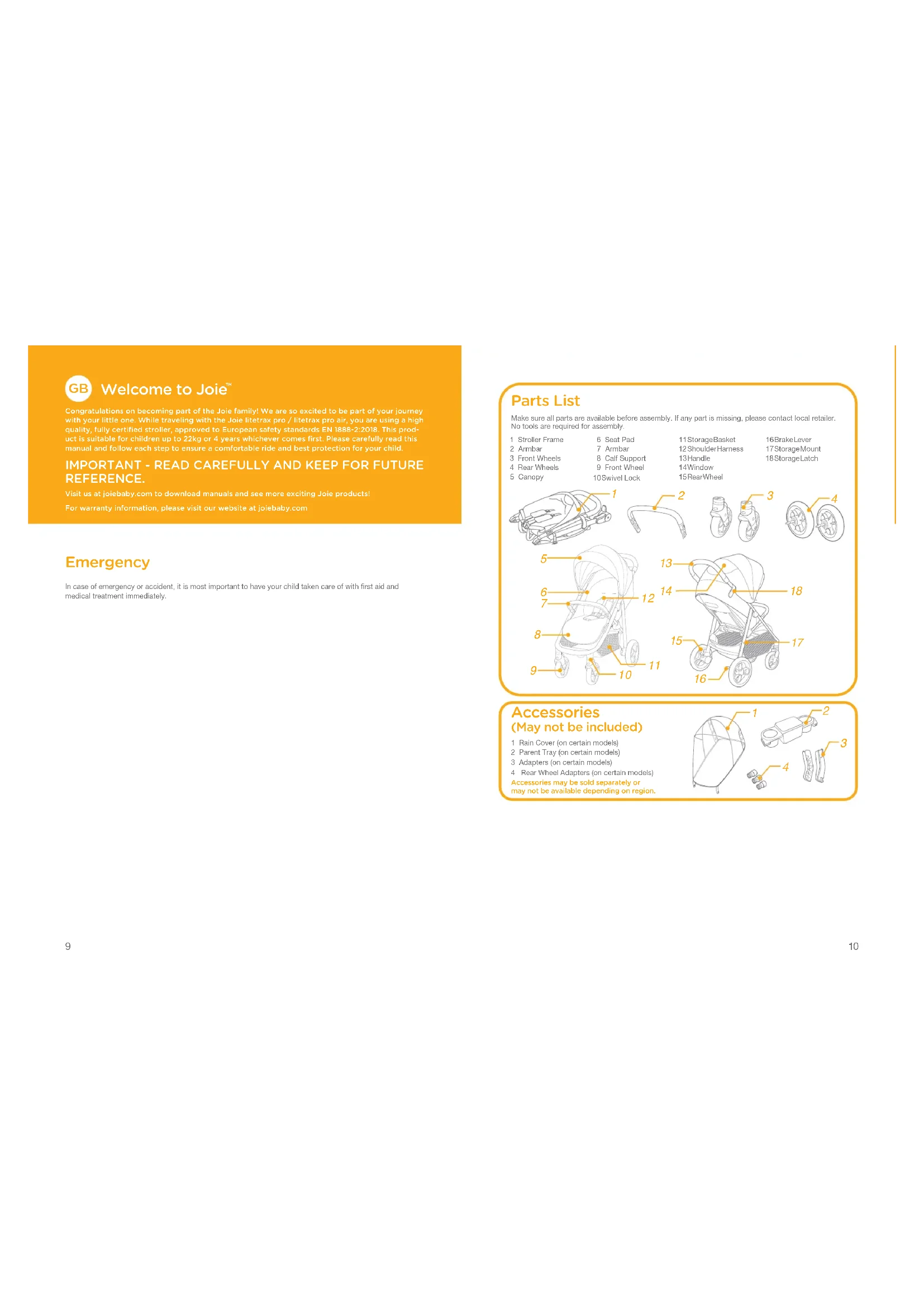

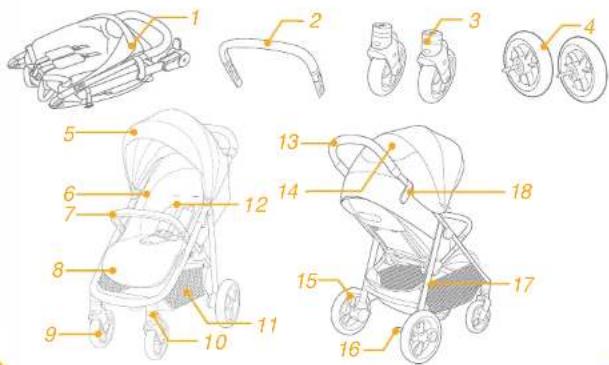

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

1 Stroller Frame

2 Ambar

3 Front Wheels

4 Rear Wheels

5 Canopy

6 Seat Pad

7 Armbar

8 Calf Support

9 Front Wheel

DSwivel Lock

11 Storage Basket

12ShoulderHarness

13Handle

14Window

15RearWheel

16 Brake Lever

17 Storage Mount

18 StorageLatch

Accessories

(May not be included)

1 Rain Cover (on certain models)

1. Parent Tray (on certain models)

3 Adapters (on certain models)

4 Rear Wheel Adapters (on certain models)

Accessories may be sold separately or

may not be available depending on region.

WARNING

! Always use the restraint system.
! Ensure that all the locking devices are engaged before use.
! Do not let the child play with this product.
! Check that the pram body or car seat attachment devices are correctly engaged before use.
! Adult assembly required.
! This product is suitable for children up to 22kg or 4 years whichever comes first.
! To prevent a hazardous, unstable condition, do not place more than 4.5kg in the storage basket.
! Never leave the child unattended.
! Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or canopy.
! Accessories which are not approved by the manufacturer shall not be used.
! Only replacement parts supplied or recommended by the manufacturer shall be used.
! To avoid injury ensure that the child is kept away when unfolding and folding this product.
! This product is not suitable for running or skating.
! Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.
! The parking device shall be engaged when placing and removing the children.
! For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
! Carry cot shall not be used, as soon as the child is able to sit by himself, roll over and can push itself up on its hands and knees. Maximum weight of the child: 9kg.
! No additional mattress shall be added unless recommended by the manufacturer.
! Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.

! The maximum recommended weight of the parent tray is 1.36kg.

Stroller Assembly

Please read all the instructions in this manual before assembling and using this product.

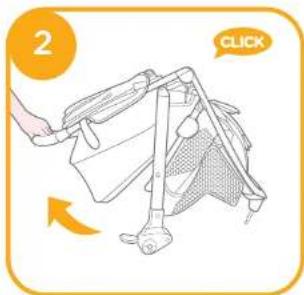

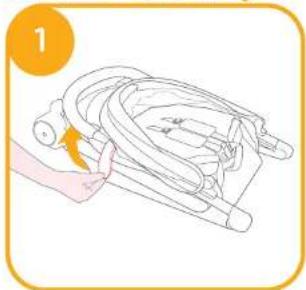

Open Stroller

see images 1 - 2

Separate storage latch from storage mount ①, and then lift the handle upwards ②, a click sound means the stroller is open completely.

! Check that the stroller is completely latched before continuing to use.

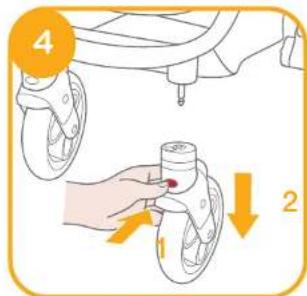

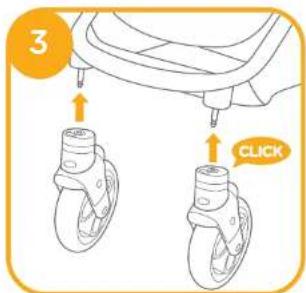

Assemble & Detach Front Wheel

see images ③ - ④

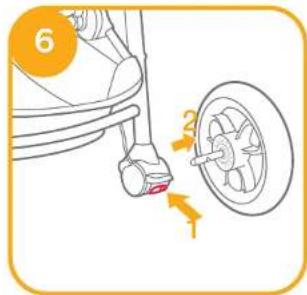

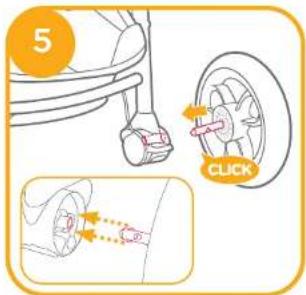

Assemble & Detach Rear Wheels

see images 5 - 6

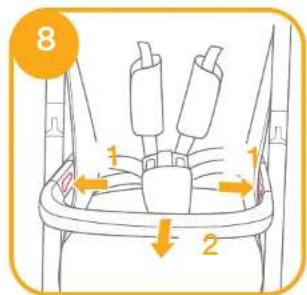

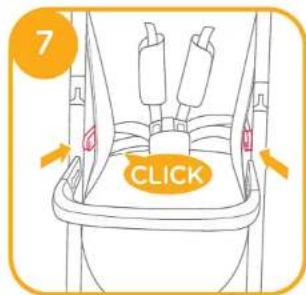

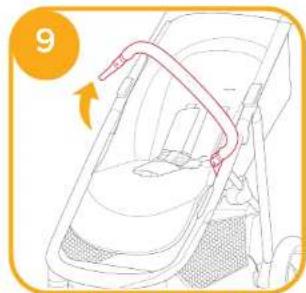

Assemble & Detach Armbar

see images 7 - 9

Armbar can be opened one side for easy seating and unseating of child.

! Always secure the child with the harness. The armbar is not a restraint device.

The completely assembled stroller is shown as 10

Stroller Operation

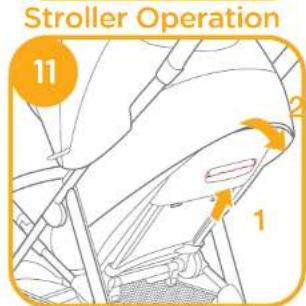

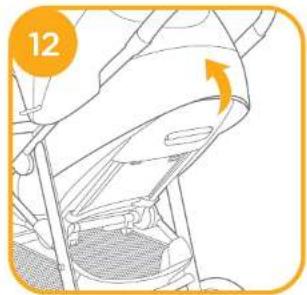

Adjust Backrest

see images 11 - 12

There are 4 recline angles for the backrest.

Recline Backrest

To recline the backrest, squeeze the recline handle on the back of the seat, pull down on the backrest. Raise Backrest

To raise the backrest, push up.

! Make sure the recline is set properly for use.

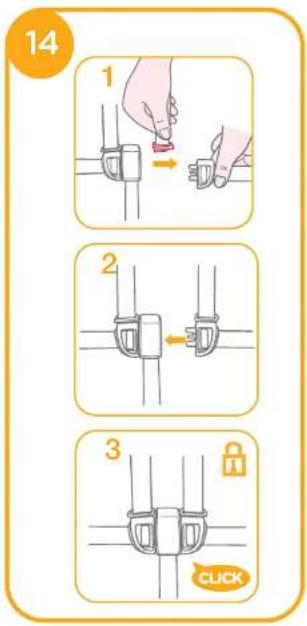

Use Buckle

see images 13 - 14

Release Buckle

Press the center button to release the buckle.

Lock Buckle

Match the waist belt buckle with the shoulder buckle 1 - 1, and click into the center buckle. 2

A "click" sound means the buckle is locked completely.

To avoid serious injury from falling or sliding out, always secure your child with harness.
Make sure your child is snugly secured. The space between the child and the shoulder harness is about the thickness of one hand.
Do not cross the shoulder belts. This will cause pressure on a child's neck.

Use Shoulder & Waist Harnesses

see images -

In order to protect your child from falling out, after your child is placed into the seat, check whether the shoulder and waist harnesses are at proper height and length.

15 - 1 Shoulder

harness

anchor

A

-2 Shoulder harness anchor B
b - 3 Slide.adjuster

For larger child, use shoulder harness anchor A and the highest shoulder slots. For smaller child, use shoulder harness anchor B and the lowest shoulder slots.

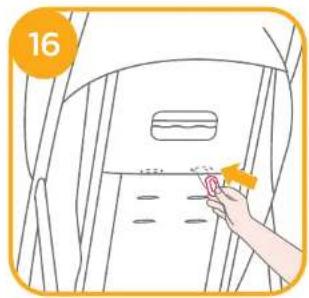

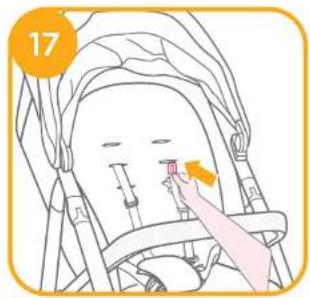

To adjust the position of the shoulder harness anchor, turn the anchor to be level with the side facing forward. Thread it through the shoulder harness slot from back to front. ⑬ Retread it through the slot that is closest to child's shoulder height.

Use slide adjuster to change the harness length. 14 - 1
Press the button 18 -2, while pulling the waist harness to proper length. 18 -3

Adjust Calf Support

see image

The calf support has 2 positions.

To raise the calf support, push it upwards. A "click" sound means the calf is locked completely.

To lower calf support, press the adjustment buttons on both sides of the calf support ⏻ - 1, and rotate the calf support downwards. ⏻ - 2

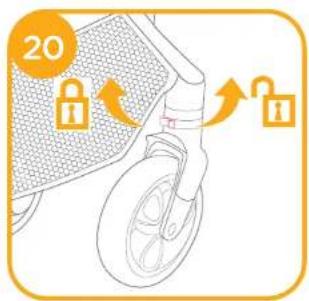

Use Front Swivel Lock

see image

Front wheel locked or unlocked status as

Tip It is recommended to use swivel locks on uneven surfaces.

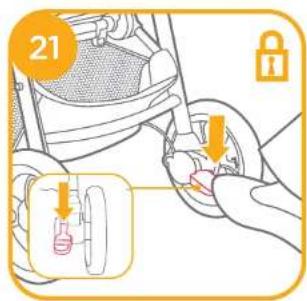

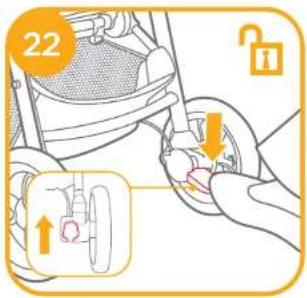

Use Brake

see images

To lock the rear wheels, step down on the brake lever.
To unlock the rear wheels, step down the brake lever again.
Tip Always set the parking brake when stroller is not moving.

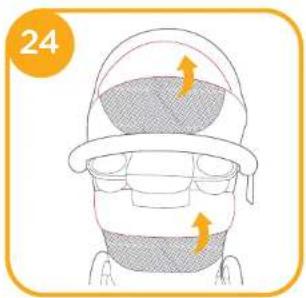

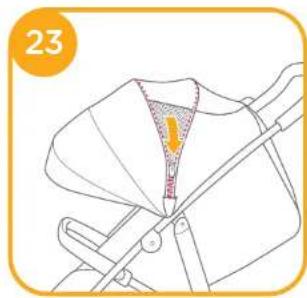

Use Canopy

see image

The canopy can be opened or folded, pull it toward front or back.

The canopy can be opened completely to protect your child from the sun uttermostly, just unzip the hook, and then pull the canopy toward front.

Through the windows you can view your baby.

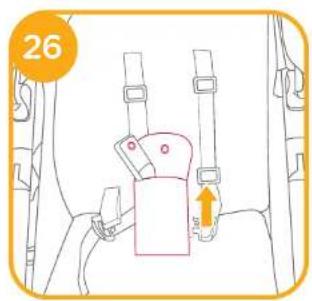

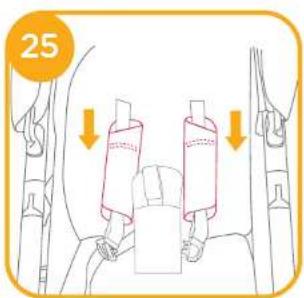

Use Shoulder Harness Cover and Crotch Harness Cover see images 😊.

The shoulder harness cover or crotch harness cover can be removed from the webbing.

To assemble shoulder harness cover and crotch harness cover in reverse steps.

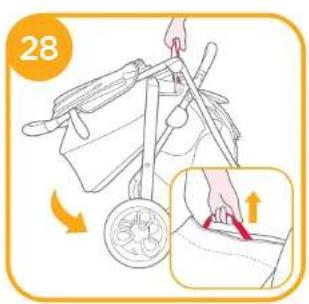

Fold Stroller

see images ② . ②

Please fold the canopy before folding the stroller.
1. Press the folding button.
2. Pull the folding webbing upward, the frame will automatically fold backward.
3. The storage latch will automatically hook onto the storage mount, then the stroller is folded and looked completely. The stroller can stand when folded.

Use Accessories

Accessories may be sold separately or may not be available depending on region.

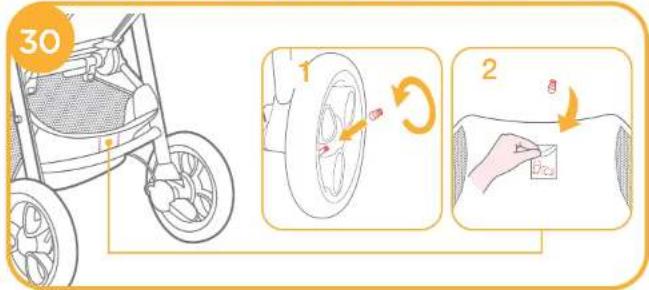

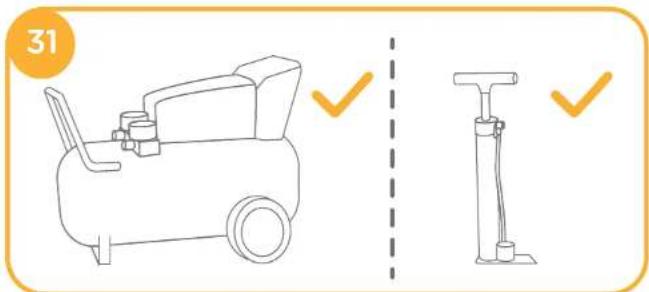

Inflate Rear Wheels

see images

Operating rear wheel adapters for turning Dunlop valve to Shrader valve is shown as 🔒. Store the rear wheel adapters shown as 🔒 - 2 if not use them.

CHECK the tire pressure before using the stroller. DO NOT INFLATE above the maximum recommended inflation pressure that is written on the side of the tire.
Over-inflation may cause wheel and/or tire to blowout and could result in serious injury.

Use with Joie Carry Cot

see image

When using with Jolie carry cot Ramble & Ramble XL, please refer to the following instructions.

If you have any problems about using the carry cot, please refer to their own instruction manuals.
Always use the mattress when using the carry cot.
Please don't fold stroller when attaching the carry cot.

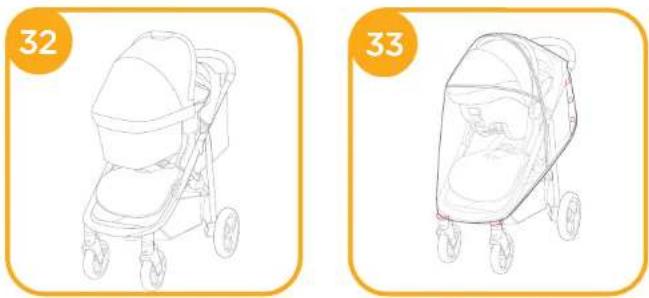

Use Rain Cover

see image 33

To assemble the rain cover, place it over the stroller, and then attach the 8 pairs of hook and loop fasteners on the rain cover.

Before using the rain cover, please make sure the backrest has been adjusted to the lowest position and the infant child restraint has been fastened.
! When using the rain cover, please always check its ventilation.
! When not in use, please check that the rain cover has been cleaned and dried before folding.
! Do not fold the stroller after assembling the rain cover.
! Do not place your child into the stroller assembled with rain cover during hot weather.

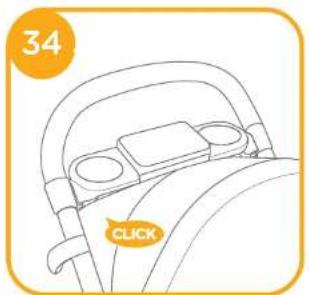

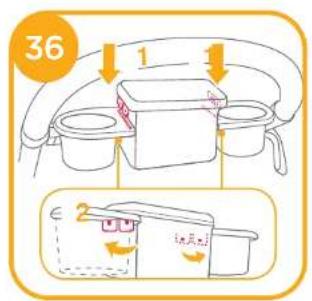

Use Parent Tray

see images 34 - 36

! Do not place any item that may do harm to the baby and stroller in the parent tray.

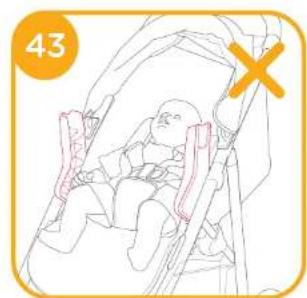

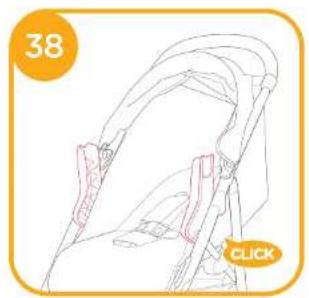

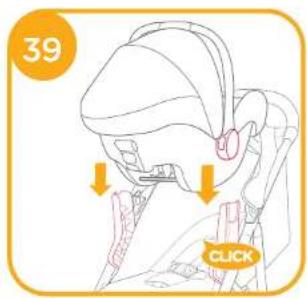

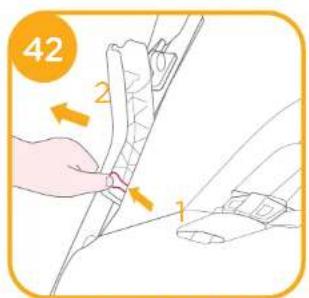

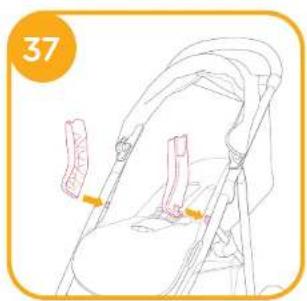

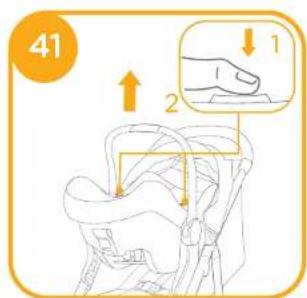

Use with Joie Child restraint

see images 37 - 43

When using with Joie child restraint Gemm, i-Gemm 3 & i-Level Recline & i-Snug 2, please refer to the following instructions.

Before using the infant child restraint, please make sure the backrest has been adjusted to the lowest position and the infant child restraint has been fastened.
If you have any problems about using the infant child restraint, please refer to their own instruction manuals.
! Please don't fold stroller when attaching the child restraint.

Care and Maintenance

see image

Removable seat pad may be washed in cold water and drip-dried. No bleach.
To clean stroller frame, use only household soap and warm water. No bleach or detergent.
! From time to time, check your stroller for loose screws, worn parts, torn material or stitching. Replace or repair the parts as needed.
! Excessive exposure to sun or heat could cause fading or warping of parts.
! If stroller becomes wet, open canopy and allow to dry thoroughly before storing.
! If wheels squeak, use a light oil (e.g., Silicon Spray, antirust oil, or sewing machine oil). It is important to get the oil into the axle and wheel assembly.
When using your stroller at the beach, completely clean your stroller after use to remove sand and salt from mechanisms and wheel assemblies.

NOTE

Accessoires

AVERTISSEMENT

Zubehör

WARNUNG

Accessori

AVVERTENZA

Accesorios

ADVERTENCIA

• 1.2.3.2.3.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100

تحذير

WAARSCHUWING

Acessórios

AVISO

Encher as rodas traseiras

ver imagens Ⓞ - Ⓢ

Akcesoria

OSTRZEŻENIE

Příslušenství

VAROVÁNÍ

Príslušenstvo

(nemusi byt zahrnuté)

VÝSTRAHA

Dodatna oprema (Morda ni priložena)

OPOZORILO

Принадлежности

ПРЕДУПРЕЖДЕНИЯ

Tilbehør

ADVARSEL

Tartozékok

FIGYELEM

AVERTISMENT

Εξαρτήματα

ΠΡΟΕΙΔΟΠΟΙΗΣΗ

Aksesuarlar

(Dâhil olmayabilir)

UYARI

Dodatna oprema

UPOZORENJE

Tillbehör

WARNING

Tilbehør

ADVARSEL

Lisävarusteet

VAROITUS

Allison Baby UK Ltd, Venture Point, Towers Business Park Rugeley, Staffordshire, WS15 1UZ

NUNA International B.V. Van der Valk Bourmanweg 178 C, 2352 JD Leiderdorp, The Netherlands
