Product type	Cordless drill driver
Brand	Ferm
Model	CDM1141P
Rated voltage	20 V
Chuck capacity	1,5 - 13 mm
No-load speed (position 1)	0 - 450 rpm
No-load speed (position 2)	0 - 1700 rpm
Max torque	50 N.m
Number of torque settings	21 + drilling mode
Weight (without battery)	1,24 kg
Sound pressure level (LpA)	92 dB(A), K=3 dB(A)
Sound power level (LwA)	103 dB(A), K=3 dB(A)
Vibration	2,93 m/s², K=1,5 m/s²
Compatible battery type	Lithium-Ion 20 V (CDA1132P 2 Ah, CDA1133P 4 Ah)
Recommended charger	CDA1131P (input 100-240 V AC, 50/60 Hz, output 20 V, 2 A)
Charging time battery 2 Ah	60 minutes
Charging time battery 4 Ah	120 minutes
Intended use	Screwing/unscrewing screws, drilling wood, metal, plastic
Double insulation	Yes (Class II)
Safety functions	Overload protection, switch lock, electronic variable speed
Maintenance	Clean with a soft, slightly damp cloth (mild soap). Do not use solvents.
Warranty	See provided warranty certificate
Included accessories	Belt hook, battery and charger (depending on version)

Frequently Asked Questions - CDM1141P Ferm

How to remove the battery from the drill?

Hold the machine firmly, push the battery release button (3) downwards and slide the battery (2) towards the back of the machine.

What type of battery to use?

Use exclusively 20 V Lithium-Ion batteries from the Ferm FI20V platform: models CDA1132P (2 Ah) or CDA1133P (4 Ah).

How long does it take to charge the battery?

Approximately 60 minutes for a 2 Ah battery and 120 minutes for a 4 Ah battery with the CDA1131P charger.

How to check the battery charge level?

Press the battery button (4) briefly. The three LEDs indicate the charge level: the more LEDs illuminated, the higher the charge.

How to adjust the speed?

Use the speed selector switch (9): position 1 for slow speed (0-450 rpm) and position 2 for fast speed (0-1700 rpm). Never change speed while the motor is running.

How to change the rotation direction?

Set the rotation direction switch (10) to '←' for screwing or drilling, and to '→' for unscrewing. The center position locks the switch.

What is the torque setting ring for?

It allows preset torque for driving screws to a consistent depth. Turn the ring (12): low numbers for small screws, high numbers for large screws. The drilling mode (drill icon) releases maximum torque.

What to do if the machine stops suddenly?

The electronic overload protection has been activated. Wait at least 5 seconds for automatic reset before using the machine again.

How to clean and maintain the drill?

Before any cleaning, remove the battery. Clean the body with a soft, slightly damp cloth with soapy water. Do not use solvents. Ensure that ventilation openings are not blocked.

How to insert or change a drill bit?

First remove the battery. Open the chuck (7) by turning the sleeve clockwise, insert the drill bit, then tighten by turning counterclockwise. Check centering by briefly pressing the switch.

USER MANUAL CDM1141P Ferm

Black FERM Industrial electric drill with two battery units (no visible text or symbols on the main body)

CDM1141P

EN Original instructions 04
DE Übersetzung der Originalbetriebsanleitung 09
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 16
FR Traduction de la notice originale 22
ES Traducción del manual original 28
IT Traduzione delle istruzioni originali 34
SV Översättning av bruksanvisning i original 40
FI Alkuperäisten ohjeiden käännös 46
DA Oversættelse af den originale brugsanvisning 51
HU Eredeti használati utasítás fordítása 57
CS Překlad původního návodu k používání 63
SK Preklad pôvodného návodu na použitie 69

SL Prevod izvirnih navodil 75
PL Tłumaczenie instrukcji oryginalnej 80
LT Originalios instrukcijos vertimas 86
LV Instrukciju tulkojums no originālvalodas 92
RO Traducere a instructiunilor originale 97
BG Оригинални инструкции 103
RU Перевод исходных инструкций 110
EL Μετάφραση του πρωτοτύπου των οδηγιών χρήσης 116
AR تعليمات للاستخدام 123

FERM INDUSTRIAL 7 12 9 10 11 1 14 13 3 4 FI20V FI20V 2.0Ah 2 Fig. A

1 3 2 FI20V 2.0Ah Fig. B

Flow 2.04V Fig. C

Cordless Li-Ion Drill 20V CDM1141P

Thank you for buying this Ferm product. By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Risk of electric shock.

Variable electronic speed.

Rotation, left/right.

Do not use in rain.

Indoor use only.

Class II machine - Double insulation - You don't need any earthed plug.

Max temperature 40°C.

Do not throw the battery into fire.

Do not throw the battery into water.

Do not dispose of the product in unsuitable containers.

Separate collection for Li-ion battery.

Time-lag miniature fuse-link.

The product is in accordance with the applicable safety standards in the European directives.

Additional safety warnings for drills and screw drivers Drill safety warnings

a) Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
b) Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
c) Brace the tool properly before use. This tool produces a high output torque and without properly bracing the tool during operation, loss of control may occur resulting in personal injury.

Safety instructions when using long drill bits

a) Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
b) Always start drilling at low speed and with the bit tip in contact with the workpiece.

At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

c) Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.

Safety warnings for battery

a) Do not open the battery. Danger of shortcircuiting.
b) Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
c) In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
d) Use the battery only in conjunction with your Ferm Industrial product. This measure alone protects the battery against dangerous overload.
e) The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

Safety warnings for charger Intended use

Charge only CDA1132P and CDA1133P type rechargeable Battery packs with the charger.

Only use the following batteries of the Ferm Industrial FI20V battery platform. Using any other batteries could cause serious injury or damage the tool.

CDA1132P 20V, 2Ah Lithium-Ion

CDA1133P 20V, 4Ah Lithium-Ion

The following charger of the can be used to charge these batteries.

CDA1131P Quick charger

The batteries of the Ferm Industrial FI20V battery platform are interchangeable with all the Ferm Industrial FI20V battery platform tools.

Residual risks

Even when the power tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the power tool's construction and design:

a) Health defects resulting from vibration emission if the power tool is being used over longer period of time or not adequately managed and properly maintained.
b) Injuries and damage to property to due to broken accessories that are suddenly dashed.

Warning! This power tool produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this power tool.

Power cord replacement

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. MACHINE INFORMATION

Intended use

This cordless drill is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic.

Technical specifications

Machine CDM1141P
Voltage 20V
Chuck capacity 1.5-13mm
No load speed
Position 1:	0-450/min
Position 2:	0-1700/min
Max torque 50 Nm
Torque settings 21 + drill mode
Weight (without battery pack)	1.24 kg
Sound pressure level	L_pA 92 dB(A), K=3dB(A)
Sound power level	L_wA 103 dB(A), K=3dB(A)
Vibration	2.93 m/s ^2 K=1.5 m/s ^2

Charger CDA1131P

Charger input 100-240VAC 50-60Hz, 50W

Charger output 20V 2A

Charging time 2Ah battery 60 minutes

Charging time 4Ah battery 120 minutes

Recommended batteries CDA1132P, CDA1133P

Weight 0.36 kg

Battery CDA1132P

Battery Type Lithium-Ion

Voltage 20V

Capacity 2.0 Ah

Recommended charger CDA1131P

Weight 0.38 kg

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardized test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

- Using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.

- The times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

Description

The numbers in the text refer to the diagrams on pages 2-3

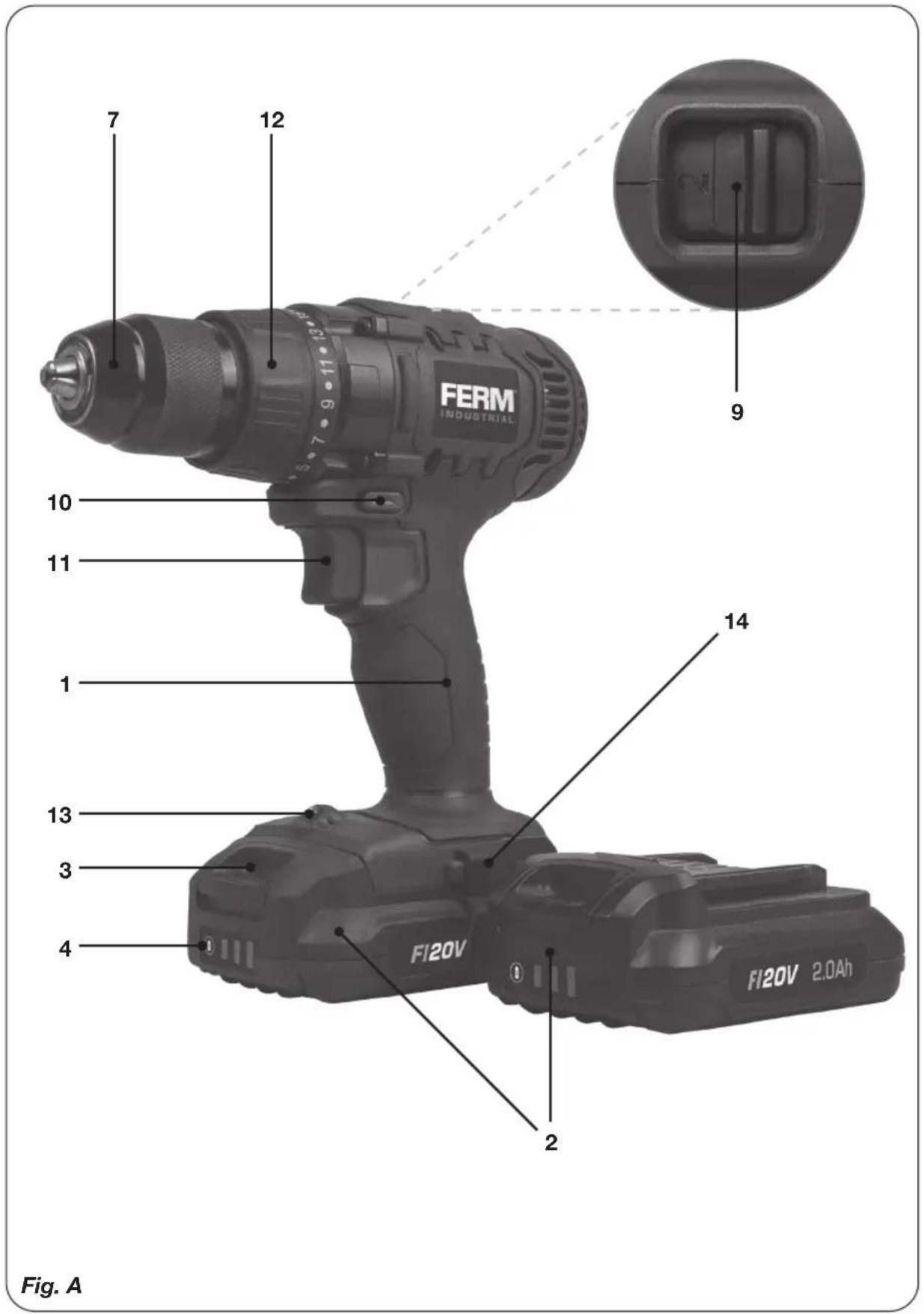

Fig. A

1. Machine
2. Battery
3. Battery unlock button
4. Battery charge indication
5. Charger
6. Charger LED indicators
7. Chuck

8. Gear selection switch

9. Direction switch

10. On / off switch
11. Torque adjustment ring
12. Work light
13. Belt hook

3. OPERATING

The battery must be charged before first use.

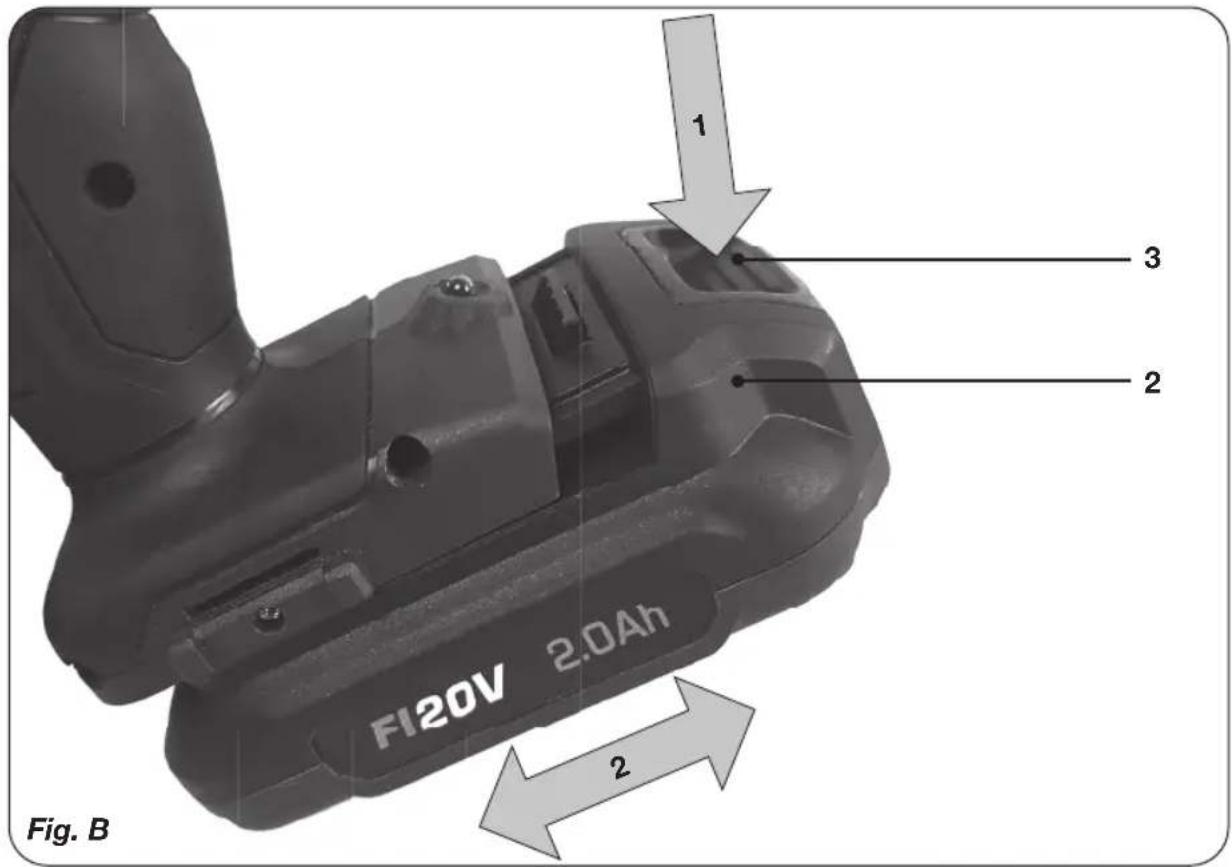

Removing the battery from the machine Fig. B

• Hold the machine (1) firmly with one hand
• Push down the battery unlock button (3) located on the rear side of the battery (2) with the other hand.
• Keep pushing this button (3) down and slide the battery backwards out of the machine, like shown in Fig. B.

Inserting the battery into the machine Fig. B

Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

• Hold the machine (1) firmly with one hand
• Insert the battery (2) into the base of the machine as shown in Fig. B.
• Push the battery further forward until it clicks into place.

Checking the battery charging status

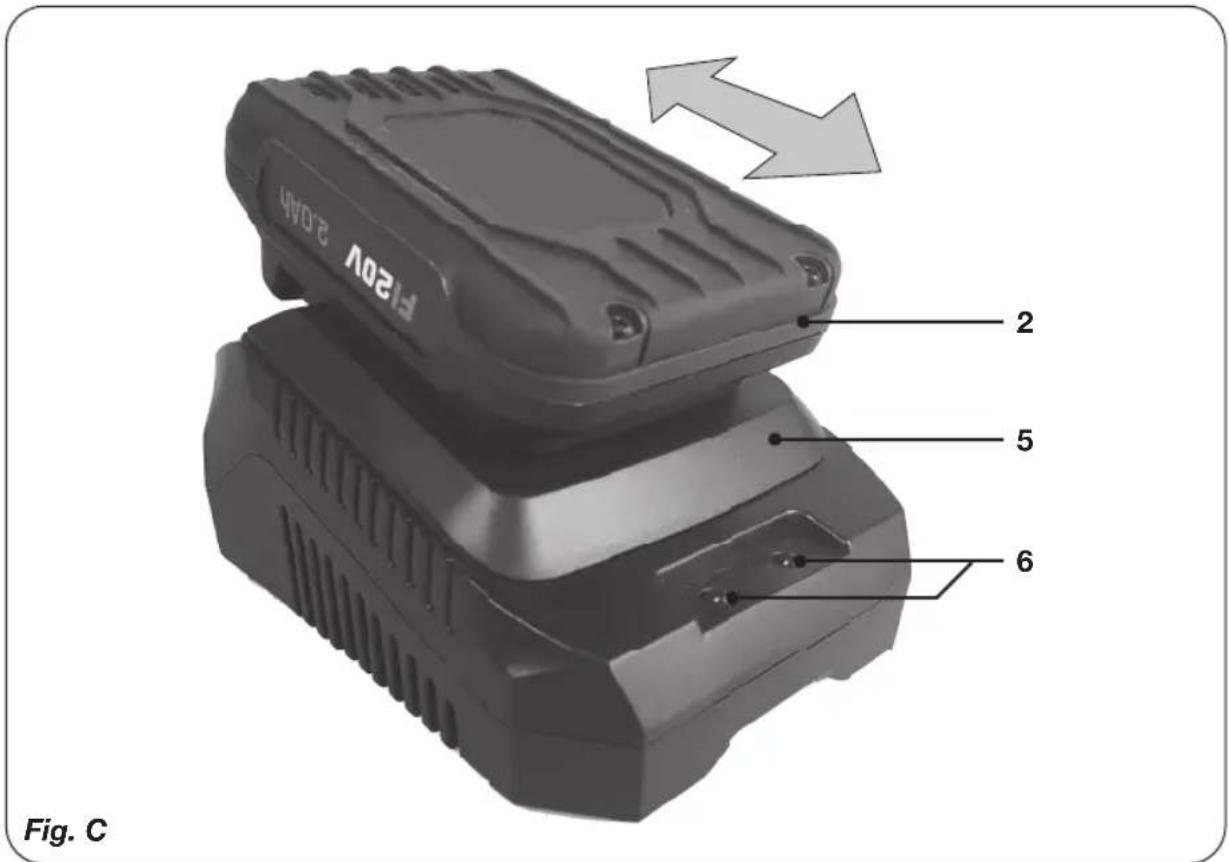

Fig. C

The included battery is delivered in partly charged condition.

• To check the battery charge status, push the button (4) on battery shortly.
• The battery has 3 lights indicating the charge level, the more lights that burn, the more charge the battery has left.

Charging the battery (with the charger) Fig. C

• Take the battery (2) from the machine
- Turn the battery (2) to upside down position and slide it onto the charger (5) as shown in Fig. C.
- Push the battery until it is fully pushed into the slot.

- Plug the charger plug into an electrical outlet and wait for a while. The LED indicators on the charger (6) will lighten up and show the charger status.

LED indicators (6)

Fig.C

The charger has 2 LED indicators (6) which indicate the status of the charging process:

Red LED status:	Green LED status:	Charger status
Off Off No power
On Off		Standby mode:-No battery is inserted or,-Battery inserted but charging has finished more then 2 hours ago
Blinking Blinking Defective battery
On Blinking Battery charging in progress
On On		Battery charging finished, battery fully charged
Blinking Off		Battery is too hot, charging progress is on hold. Charging will start automatically after the battery has cooled down.

• Fully charging the battery may take up to 60 minutes.
• After the battery is fully charged remove the charger plug from the outlet and remove the battery from the charger.
• The battery can be stored or directly installed on the machine.

Lithium-Ion cells can be stored for a long period without losing much of their charge. When the machine is not being used over a longer period of time it is best to store the battery in charged condition.

Fitting and removing drills or screwdriver bits Fig. A

Always remove the battery before mounting an accessory.

The drill chuck (7) is suitable for drills and screwdriver bits with round shaft as well as hexagonal shaft.

• Hold the machine firmly with one hand
• Open the drill chuck (7) by rotating the chuck

sleeve with your other hand in clockwise direction until it is opened far enough for the bit to slide in.

• Insert the shaft of the drill or screwdriver bit
• Tighten the drill chuck again by firmly rotating the chuck sleeve counterclockwise.
• Check if the bit is centered well by shortly activating the machine's on/off switch.

Adjusting the gears

Fig. A

Never switch gears when the motor is running, this will damage your machine.

Never put switch in the middle between both positions, this will damage your machine.

The machine has 2 drill speeds, which can be adjusted by sliding the gear switch (9) forward or backwards. The number on the gear switch (9) shows which position is chosen.

• Position 1: For slow drilling, large drilling diameter or screw driving. The machine has high power at a low speed.
• Position 2: For fast drilling or small drilling diameter.

Adjusting the direction of rotation

Fig. A

• Set the direction switch (10) to position “←” in order to drive screws or to use it for drilling.
• Set the direction switch (10) to position “→” in order to remove screws

Switching the machine on and off

Fig. A

The on/off switch (11) is used for activating the machine and adjusting rotation speed.

• Pressing the on/off switch (11) will activate the machine, the further the switch is being pushed, the faster the drill will turn.
• Releasing the on/off switch (11) will stop the machine.
• Move the direction reversing switch (10) to the middle position to lock the movement of the on/off switch. It cannot be activated in this position.

Only lay down the machine when it has stopped running completely. Do not place it on a dusty surface as particles of dust could get into the mechanism.

Adjusting the torque

Fig. A

The machine has different torque settings and a special drill mode to set the power being transmitted to the chuck.

By rotating the torque adjustment ring (12), screws can be driven to a predetermined depth, which is ideal for repetitive work. The higher the number, the more torque will be transmitted.

• Select a low setting for small screws or soft work material.
• Select a high setting for large screws, hard work materials and when removing screws.
• You should preferably choose a setting as low as possible when driving screws. Select a higher setting if the motor slips before the screw is fully tightened.
• For drilling, turn the torque adjustment ring (12) to the setting for drilling by fully turning it counterclockwise.

Ensure that the direction switch (10) is always set to ← during drilling.

The machine is equipped with electronic overload protection function. When the machine gets overloaded it will shut down automatically. When this happens, please wait for at least 5 seconds to let the overload protection reset itself.

Work light (13)

Fig. A

The machine is equipped with a work light to illuminate the work location.

• It automatically switches on when the on/off switch is being pressed.
• It automatically switches off when the on/off switch is released again.

Belt hook (14)

Fig. A

The machine is equipped with a belt hook for hanging the machine to your belt during use.

Always switch the direction switch (10) to middle position to avoid accidental startup of the machine.

• When delivered, the belt hook (14) is assembled to the left side of the machine.
• It can easily be removed by removing the screw on the hook and taking it off.
• It can be assembled on the right side of the machine when this is preferred.

User tips

When driving screws into wood, metal and other materials:

• Before using the appliance check if the drill or screw bit is properly fitted and centered inside the drill chuck.
• Screw bits are available in several shapes and dimensions. When unsure, always try if the bit fits on the screw head without any free play before using the machine.
• Make sure the machine is not running when it contacts the screw. A rotating bit may slip. This could result in damage to the work piece.

When drilling into wood, metal and other materials:

• With small diameter drills use a high drill speed. For large diameter drills use a low drill speed.
• For hard materials, select a low drill speed, for soft materials select a high drill speed.
• Fix the work piece properly, preferably by using a clamp or vice.
• During drilling draw back the drill out of the hole frequently so swarf or drill dust will be removed.

When drilling in metal:

• Use a metal drill (HSS). For the best results you should cool the bit with oil.
• Metal (HSS) drills can also be used drilling into plastic.

4. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia,

etc. Chemicals such as these will damage the synthetic components.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

The warranty conditions can be found on the separately enclosed warranty card.

The product and the user manual are subject to change. Specifications can be changed without further notice.

Exploded view diagram of a mechanical assembly with numbered components and exploded views

CE

DECLARATION OF CONFORMITY

CDM1141P - CORDLESS LI-ION DRILL

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht, den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilidade de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardt ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päivätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak: je v souladu se směrnící 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.
(CS) Na nášivlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.

(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi: Je v súlade s normou 2011/65/EÚ Európske ho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronikom vybavení.
(SL) S polno odgovornostjo izjavljamo, da je taizdelek v skladu in da odgovarja naslednjim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe določenih nevarnih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach; jest zgodny z Dyrektywą 2011/65/UE Parła mentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisiimdami visą atsakomybę deklaruojame, kad śis gaminys atitinka żemiau paminėtus standartus arba nuostatus: atitinka 2011 m. birželio 8 d. Europos Parlamento ir Tarybos direktyvą 2011/65/EB dėl tam tikrų pavojingų medžiagų naudojimo elektros ir elektroninėje jrangoje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņa un atbilst sekojošiem standartiem un nolikumiem: ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(HR) Izjavljujemo pod vlastitom odgovornoLšu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 2011/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SRL) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8.juna.2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Европейского парламента и совета от 8 июня 2011 г. по ограничению использования определенных опасных веществ в электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявляемо, що дане обладнання відповідає наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα ότι το προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμούς και πρότυπα: συμμορφώνεται με την Οδηγία 2011/65/ΕΕ του Ευρωπαϊκού Κοινοβουλίου και του Συμβουλίου της 8ης Ιουνίου 2011 για τον περιορισμό της χρήσης ορισμένουν επικίνδυνων ουσιών σε ηλεκτρικό και ηλεκτρονικό εξοπλισμό.
(AR) إعلن على م-storeita وحدنا أن هذا المنتج يتوافق مع المعاير والترجمة herاتية
(TR) Tek sorumlusu biz olarak bu ürünün aşağıdaki standart ve yönergelere uygun olduğunu beyan ederiz.

EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, EN 62233

EN 62841-1, EN 62841-2-1, EN 60335-1, EN 60335-2-29,

2006/42/EC, 2011/65/EU, 2012/19/EU, 2014/35/EU, 2014/30/EU

Zwolle, 01-02-2021

H.G.F Rosberg

CEO FERM

FERM - Lingenstraat 6 - 8028 PM - Zwolle - The Netherlands
