USER MANUAL Regulus Aqua PowerVac Pro Leifheit

Scope of supply Leifheit cordless Vac & Wipe Operating instructionsCheck the contents against the parts list for completeness and for any damage during shipping. If you discover any shipping damage, do not use the appliance and contact Customer Service immediately. [1] On / Off button [2] Vacuum mode button I/II [3] Water lever [4] Handle [5] Fresh water tank release lever [6] Fresh water tank [7] Dirty water tank [8] Ventilation cover [9] Floor head [10] Operating display [11] Dirty water tank release lever [12] Cleaning roller cover [13] Charger adapter [14] Charger hollow connector [15] Charge socket [16] Vacuum Channel [17] Transport wheels [18] Water outlet nozzles [19] Cleaning roller holder [20] Cleaning roller [21] Cleaning roller cover release button [22] Park station [23] Fresh water tank cover [24] Fresh water tank handle [25] Sponge lter holder [26] Sponge lter [27] Dirty water tank cover [28] Float [29] Dirty water tank handle [30] Spilling protection adapter [31] Cleaning brush [32] Accessory holder [33] Edge cleaner [34] Wiper cover for the edge cleaner

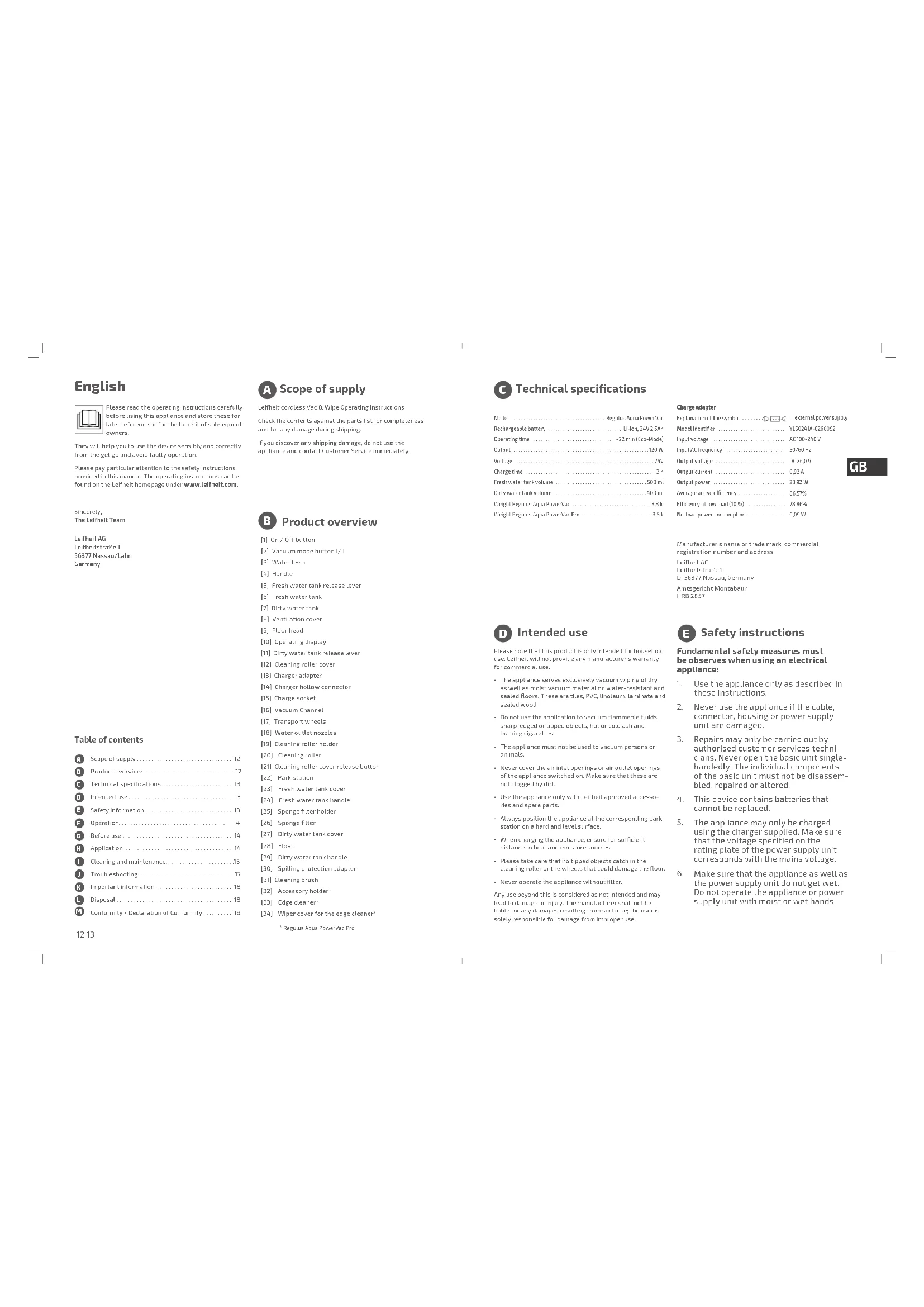

English Please read the operating instructions carefully before using this appliance and store these for later reference or for the benet of subsequent owners. They will help you to use the device sensibly and correctly from the get go and avoid faulty operation. Please pay particular attention to the safety instructions provided in this manual. The operating instructions can be found on the Leifheit homepage under www.leifheit.com.Sincerely, The Leifheit TeamLeifheit AG Leifheitstraße 1 56377 Nassau/Lahn Germany

Fundamental safety measures must be observes when using an electrical appliance:

Use the appliance only as described in these instructions.

Never use the appliance if the cable, connector, housing or power supply unit are damaged.

Repairs may only be carried out by authorised customer services techni- cians. Never open the basic unit single- handedly. The individual components of the basic unit must not be disassem- bled, repaired or altered.

This device contains batteries that cannot be replaced.

The appliance may only be charged using the charger supplied. Make sure that the voltage specified on the rating plate of the power supply unit corresponds with the mains voltage.

Make sure that the appliance as well as the power supply unit do not get wet. Do not operate the appliance or power supply unit with moist or wet hands. Technical specications

Please note that this product is only intended for household use. Leifheit will not provide any manufacturer’s warranty for commercial use. The appliance serves exclusively vacuum wiping of dry as well as moist vacuum material on water-resistant and sealed oors. These are tiles, PVC, linoleum, laminate and sealed wood. Do not use the application to vacuum ammable uids, sharp-edged or tipped objects, hot or cold ash and burning cigarettes. The appliance must not be used to vacuum persons or animals. Never cover the air inlet openings or air outlet openings of the appliance switched on. Make sure that these are not clogged by dirt. Use the appliance only with Leifheit approved accesso-ries and spare parts. Always position the appliance at the corresponding park station on a hard and level surface. When charging the appliance, ensure for sufcient distance to heat and moisture sources. Please take care that no tipped objects catch in the cleaning roller or the wheels that could damage the oor. Never operate the appliance without lter.Any use beyond this is considered as not intended and may lead to damage or injury. The manufacturer shall not be liable for any damages resulting from such use; the user is solely responsible for damage from improper use. Intended use

Figure 7To switch on the appliance, press the On / Off button (1) once.The operating display illuminates green after switching on.Optional: Press the vacuum mode button (2) once in order to the turbo mode if tiled / stone oors have more stubborn dirt. Then the operating display ashes green slowly. Switch back to Eco mode by pressing the vacuum button again. Figure 8Tilt the appliance to the rear to release it from the stand position.Figure 9Press the water lever (3) to moisten the cleaning roller (20) as neededBefore starting to clean the floor, keep the water lever pressed for several seconds without moving the appliance in order to quickly and evenly moisten the roller in advance.To clean the floor, push the appliance back and forth in steady and equal movements. If the moisture of the cleaning roller reduces, press the water lever again and keep it pressed until the desired moisture is reached again.The fill level of the dirty water tank (7) must not exceed the maximum fill level.Figure 10During cleaning breaks, always place the appliance at the corresponding park station (22) in order to avoid the formation of water stains to the floor from the residual water in the appliance.Figure 11Once the dirty water tank (7) is filled to the Max. line, a notification system (

Tank Control Technology) is activated. As a result, the operating display (10) flashes orange and the cleaning roller stops 3 times for a few seconds and then the roller stops completely.Now the dirty water tank must be emptied at the latest.

Do not store, charge or use the appliance outdoors or in wet rooms such as bathrooms or similar, but always at room temperature and in a dry location.

Do not use the application in the vicinity of flammable gases.

Protect the appliance against intensive heat and do not expose it to direct sun- light.

This appliance is only suitable for users (also children aged 8 years and above) with limited physical, sensory or physical abilities or with lack of experience or knowledge if they are supervised appro priately or have been instructed in the use of the appliance by a responsible person.

Make sure that children do not play with the appliance.

Do not leave children unattended with the appliance.

Unplug the appliance from the power outlet before cleaning or maintenance.

Do not touch the rotating cleaning roller when the appliance is switched on.

Make sure that the running cleaning roller does not make contact with body parts (e.g. hair, fingers) or items of clothing.

During cleaning, make sure that no body parts (e.g. fingers) are trapped or crushed by the floor head.

Make sure that no objects (e.g. cables, long fringes) catch in the cleaning roller otherwise there is a risk that this or the appliance are damaged.

Store the appliance out of reach of children. Do not leave the appliance unattended when it is switched on.

Keep packaging material such as plastic bags and similar away from children. There is a risk of suffocation. Figure 1Insert the handle (4) and cable into the appliance until they engage. CHARGINGDuring charging, do not clean or maintain the appliance. Fully charge the appliance before the rst use and after each use.Figure 2Insert the hollow connector of the charger (14) supplied into the charging socket (15) of the appliance.Insert the adapter of the charger (13) in the socketFigure 3Operating display (10) ashes green slowly during the charging process.The appliance is fully charged after 3 hours. Then the operating display illuminates continuously for 2 minutes, then the light goes out. Before use

FILLING THE FRESH WATER TANKFigure 4Press release button (5) to remove the fresh water tank (6) on the handle (24).Open the cover of the fresh water tank (23).Figure 5Fill the fresh water tank with max. 60°C hot water.If required, add non-foaming cleaning agent with low dosage. CAUTION: Observe the dosing specications of the cleaning agent. Do not use aggressive cleaning agents or disinfectants. We recom- mend Leifheit universal cleaner. Figure 6Close the tank cover (23) and insert the fresh water tank (6) until you hear it engaging. Application

The appliance combines vacuuming and wiping in one work step. It is equipped with a 2-tank system with a separate fresh and dirty water tank.By actuating the water lever, the fresh water is spread over the cleaning roller. This allows the amount of water to be set for every oor type. The rotating cleaning roller removes dust, dry and moist dirt as well as dried stains. The vacuum function sucks on the cleaning roller and trans-ports the dirt into the dirty water tank. This allows you to always wipe with a clean cleaning roller and fresh water. Operation F16 17 REMOVING AND CLEANING THE CLEANING ROLLERFigure 19Remove roller cover (12) in order to remove the cleaning roller (20).To remove the cover, press release button (21) and remove the cover.Figure 20Using the roller holder (19), remove the cleaning roller (20) at the edge.For this purpose, pull the holder upwards out of the guide.Figure 21Rinse the cleaning roller (20) and, if necessary, the cleaning roller cover (12) under running water.Allow the roller to completely dry before using again.When necessary, allow to dry and then store in the accesso-ry holder (32). CAUTION: To avoid the formation of odour, remove the cleaning roller after use and rinse out. Insert only the completely dried cleaning roller back in the appliance. CLEANING THE VACUUM CHANNELFigure 22When the cleaning roller is taken out, remove any soiling on the nozzles (18) and vacuum channel (16) using a moist cloth.INSERTING THE CLEANING ROLLER AND CLOSING THE ROLLER COVERFigure 23Make sure that the appliance is switched off and is not charging.First insert the cleaning roller (20) in the round mount and then insert the roller holder (19) in the guide.Figure 24Insert the tabs of the roller cover (12) at the bottom end in the matching mount and close the cover until you hear it engagingAUTO-WASH PROGRAMIn addition to cleaning your appliance, also use the AUTO-WASH PROGRAM at regular intervals. When using the program, some vinegar or vinegar cleaner can also be added to the fresh water tank.Before using the AUTO-WASH PROGRAM, always empty the dirty water tank and put it tank back in. (7).Figure 25Fill the fresh water tank (6) with water up to the AUTO-WASH MAX line.Close the tank cover (23) and insert the fresh water tank until you hear it engaging.Figure 26Place the appliance on the corresponding park position (22).Keep the On / Off button (1) pressed together with the Vacuum mode button I/II (2) for 3 seconds and then let go as soon as the appliance starts the AUTO-WASH PROGRAM. Then the operating display ashes green.Figure 27After 60 seconds, the program ends and the appliance switches off.Then remove the dirty water tank (7) and cleaning roller (20) and wash-out.DISASSEMBLING THE HANDLEAfter assembling, do not remove the handle. Disassembly of the handle is only intended if the appliance has to be sent in for service purposes.Figure 28Loosen and remove the screw on the rear side of the appli-ance.Insert the screwdriver in the opening of the screw hole.By applying slight pressure, the locking mechanism of the handle can be released and the handle can be pulled out.Malfunction Possible cause / SolutionThe appliance does not start. The rechargeable battery has not been charged. Charge the rechargeable battery.The operating dis-play ashes orange. The cleaning roller (20) is blocked. Please remove the roller and solve the blockage The rechargeable battery is empty; recharge the appliance. The operating dis-play ashes orange and the cleaning roller stops 3 times for a few seconds and then the roller stops completely. Tank Control Technology: The dirty water tank (7) is full. Please empty the dirty water tank.The dirty water tank cannot be reinserted in the appliance. Check if the cover (27) and the sponge lter (25) have been inserted correctly.The oat (28) has been tightened, the appliance has stopped suction, but the Tank Control Technology does not start The sponge lter (25) is blocked by excessive moisture or dirt particles. Please clean and dry the sponge lter. The oat (28) has been tightened and the appliance has been switched off and on too quickly. Please switch off the appliance for a moment and wait until the oat is in the initial position before starting the appliance again.The Tank Control Technology starts even though the waste water tank (7) is not yet full. T he Tank Control Technology may react inadvertently in the event of jerky movements (e.g. strong bumping against furniture). Please switch off the appliance for a moment and wait until the oat (28) is back in its original position before starting the appliance again. Take care not to bump too hard against furniture or other objects.Malfunction Possible cause / SolutionWater is running out of the ventilation cover. The dirty water (7) tank is full. Please empty the tank.Little or no water can be added using the water lever. The fresh water (6) tank is empty. Rell with water. The nozzles (18) are blocked. Please remove the stuck pro-tection in front of the nozzles. Lime deposits can be carefully removed using a paper clip by inserting it through the openings. Please use the AUTO-WASH PROGRAM at regular intervals in order to keep the channels and nozzles inside the appliance clean.Foam remains on the oor. Please add less cleaning agent or use the Leifheit universal cleaner especially for the Regulus Aqua PowerVac.The appliance does not absorb water from the oor The dirty water (7) tank is full. Please empty the tank.The appliance swit-ches off automati-cally after approx. 60 seconds. The AUTO-WASH PROGRAM has been started. Restart the appliance by briey pressing the on / off button.Other faults Please contact Leifheit Service. TROUBLESHOOTING

CUSTOMER SERVICES If you have any questions or suggestions, our Leifheit Service is at your disposal:Mon – Fri: 08:00 - 17:00(tall-free)Service hotline: [phone] (D/F/NL/CZ/E/I/PL)(liable for costs) International phone number: 0049 2604 977 0Internet: www.leifheit.com18 19 Disposal Conformity / Declaration of Conformity The symbol on the product or its packaging indicates that in accordance with Directive 2012/19 EU, this product and the integrated rechargeable battery must not be treated as normal household waste but should be handed over to a collection point for recycling electrical and electronic devices.

Leifheit hereby declares that this appliance is in conformity with the basic requirements of the German Product Safety Act and other applicable provisions and Directives. he EU Declaration of Conformity can be found under www.leifheit.com.You can receive additional information from your muni-cipality, municipal waste disposal company or the shop where you bought the product

• The rechargeable battery must only be charged with the charger provided. The charger should only be used in conjunction with the Leifheit cordless Vac & Wipe.

• Fully charge the appliance before the rst use and again directly after each use.

• Do not store the appliance after fully discharging the rechargeable battery unused over a period longer than 6 months. Cleaning the lter

• Clean the cleaning roller, the sponge lter and other lter parts regularly after use.

• Allow the cleaning roller and all parts the lter to dry completely before reinserting them back into the cordless Vac & Wipe. Cleaning the appliance

• The appliance contains electrical components. Never clean under running water!

• Clean the appliance with a moist cloth.

• Do not immerse the appliance in water under any circumstances. Parking the appliance

• Only place the appliance on a at and rm sur- face underground.

• To protect sensitive oors against remaining wa- ter running out of the appliance, always place the cordless Vac & Wipe on the park station during cleaning breaks and after cleaning. Use of cleaning agents

• Where required, use only non-foaming cleaning agent with low dosage.

• Observe the dosing specications of the cleaning agent. Do not use aggressive cleaning agents or disinfectants. We recommend Leifheit universal cleaner. CAUTION The following instructions must always be observed with lithium-ion batteries: The rechargeable battery must not be damaged or opened; doing so can cause a short circuit. There is risk of re. Toxic substances hazardous to health can escape. The rechargeable battery must not be put in a re as well as exposed to direct, strong sun radiation and heat. WARNING! NEVER USE THE APPLIANCE IN ONLY PARTI- ALLY ASSEMBLED CONDITION!
