| Product Type | Soldering machine (soldering iron) |
| Brand | Weller |
| Model | WXMP MS |
| Power Supply | 12 V / AC |
| Power Consumption | 40 W (55 W) |
| Temperature Range | 100 °C - 450 °C (200 °F - 850 °F) |
| Rise Time | 5 s (from 50 °C to 350 °C) |
| Tip Series | RT, RTM, RT MS |
| Compatible Power Unit | WX / WXD / WXA / WXR |
| Intended Use | Soldering and desoldering under specified conditions |
| Main Functions | Automatic shut-off (standby) via usage sensor, antistatic |
| Authorized User Groups | Trained specialists, electricians, supervised apprentices |
| Safety Instructions | Protection against electric shock, burns, fire; use original tips |
| Maintenance | Check cables and hoses, replace filters, use original parts |
| Tip Replacement | Only when cold, after at least 3 minutes of cooling |
| Safety Rest | Safety rest plate mandatory when not in use |
| Warranty | 12 months after delivery for manufacturing defects |
| Repairability | Repairs only by Weller-trained personnel, original parts |
| Waste Disposal | Do not dispose of with household waste, recycling according to WEEE |
| Ambient Operating Temperature | Closed rooms, protected from humidity and sunlight |
Frequently Asked Questions - WXMP MS Weller
User questions about WXMP MS Weller
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Welding machine in PDF format for free! Find your manual WXMP MS - Weller and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WXMP MS by Weller.
USER MANUAL WXMP MS Weller
www.weller-tools.com
MANUAL FAQ
VIDEO
Firmware Update

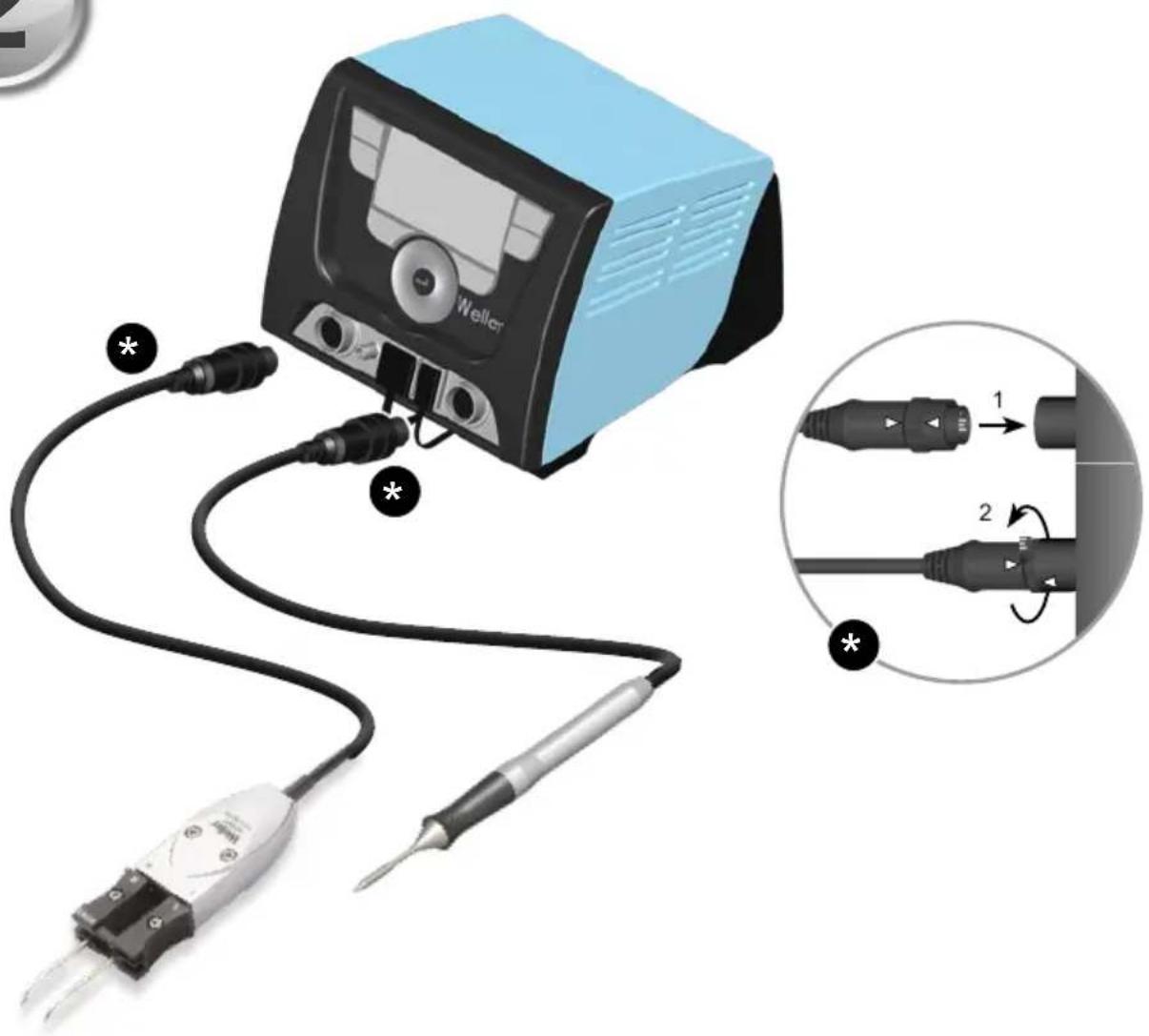

WXPP
WXPP MS
WXUP MS
3
WXPP
WXUP MS
WXMP MS
WXPP MS
WXMP / WXMP MS
RTM
RTM ...MS
Set
- WSR 200 T0051517499N
RTP
RTP ...MS
- WSR 208 T0051518299
WXUP MS
RTU ...MS
- WSR 205 T0051517999
OFF
WXMP
WXMP MS
WXPP
WXPP MS
WXUP MS
WXMT (MS)
WXMT / WXMT MS
Set
+ WSR 204 T0051517899
RTW
RTW ...MS
^ C ^ F
OFF
RTW
| DE Deutsch | Sicherheitshinweise | Bestimmungsgemäße Verwendung | Benutzergruppen | Pflege und Wartung | Garantie | Technische Daten | Symbole | Original Konformitätserklärung | 8 |
| EN English | Safety information | Specified Conditions Of Use | User groups | Care and maintenance | Warranty | Technical Data | Symbols | Original declaration of conformity | 11 |
| ES Español | Advertencias de seguridad | Aplicación De Acuerdo A La Finalidad | Grupo de usuarios | Cuidado y mantenimiento | Garantía | Datos Técnicos | Símbolos | Declaración de conformidad original | 14 |
| FR Français | Consignes de sécurité | Utilisation Conforme Aux Prescriptions | Groupes d'utilisateurs | Entretien et maintenance | Garantie | Caractéristiques Techniques | Symboles | Déclaration de conformité d'origine | 18 |
| IT Italiano | Avvertenze per la sicurezza | Utilizzo Conforme | Gruppi utenti | Cura e manutenzione | Garanzia | Dati Tecnici | Simboli | Dichiarazione di Conformità originale | 20 |
| PT Portugues | Indicações de segurança | Utilização Autorizada | Grupos de utilizadores | Conservação e manutenção | Garantia | Características Técnicas | Símbolos | Original da declaração de conformidade | 23 |
| NL Nederlands | Veiligheidsinstructies | Voorgeschreven Gebruik Van Het Systeem | Gebruikersgroepen | onderhouden | Garantie | Technische Gegevens | Symbolen | Origineel conformiteitsverklaring | 26 |
| SV Svenska | Säkerhetsanvisningar | Använd Maskinen Enligt Anvisningarna | Användarkategorier | skötsel och underhåll | Garanti | Tekniska Data | Symboler | Ursprunglig försäkran om överensstämmelse | 29 |
| DK Dansk | Sikkerhedsanvisninger | Tiltænkt Formål | Brugergrupper | Pleje og vedligeholdelse | Garanti | Tekniske Data | Symboler | Original overensstemmelseserklæring | 32 |
| FI Suomi | Turvallisuusohjeet | Tarkoituksenmukainen Käyttö | Käyttäjäryhmät | aseman hoito ja huolto | Takuu | Tekniset Arvot | Symbolit | Alkuperäinen vaatimustenmukaisuusvakuutus | 35 |
| GR Ελληνικα | Υποδείξεις ασφαλείας | Xρήση σύμφωνα με το σκοπό προορισμού | Ομάδες χρηστών | Φροντίδα και συντήρηση της συσκευής | Εγγύηση | Τεχνικά στοιχεία | Σύμβολα | Γνήσια Δήλωση πιστότητας | 38 |
| TR Türkçe | Güvenlik uyarıları | Kullanim | Kullanıcı grupları | temizliği ve bakımı | Garanti | Teknik Veriler | Semboller | Orijinal uygunluk beyanı | 41 |
| CZ Český | Bezpečnostní pokyny | Použití v souladu s určením | Uživatelské skupiny | Údržba a servisní práce ohledně | Záruka | Technické údaje | Symboly | Originální prohlásení o shodě | 44 |
| PL Polski | Bezpieczeństwo | Użytkowanie | Grupy użytkowników | Pielęgnacja i konserwacja urządzenia | Gwarancja | Dane Techniczne | Symbole | Oryginalna deklaracja zgodności | 47 |
| HU Magyar | Biztonsági utasítások | Rendeltetésszerű használat | Felhasználói csoportok | Ápolás és karbantar-tás | Garancia | Můszaki Adatok | Szimbólumok | Eredeti megfelelőségi nyilatkozat | 50 |
| SK Slovensky | Bezpečnostné pokyny | Používanie v súlade s určeným účelom použitia | Skupiny používatel’ov | Ošetrovanie a údržba | Záruka | Technické údaje | Symboly | Originálne vyhlásenie o zhode | 53 |
| SL Slovenščina | Varnostna navodila | Uporaba v skladu s predpisi | Skupine uporabnikov | Nega in vzdrževanje | Garancija | Tehnični Podatki | Simboli | Originalna Izjava o skladnosti | 56 |
| EE Eesti | Ohutusjuhised | Kasutusotstarbele vastav käitamine | Kasutajarühmad | Hooldamine ja teenindami-ne | Garantii | Tehnilised Andmed | Sümbol | Originaal-vastavusdeklaratsioon | 59 |
| LV Latviski | Saugos taisyklés | Naudojimas pagal paskirtį | Naudotoju grupės | |prastinė ir techninė priežiūra | Garantija | Techniniai duomenys | Simboliai | Atitikties deklaracijos originalas | 62 |
| LT Lietuviškai | Drošības norādes | Atbilstoša lietošana | Lietotāju grupas | Apkope un kopšana | Garantija | Tehniskie dati | Simboli | Originālā atbilstības deklarācija | 65 |
| BG Български | Инструкции за безопасна работа | Използване по предназначение | Потребителски групи | Обслужване и поддържане | Гаранция | Технически данни | Символи | Оригинална Декларация за съответствие | 68 |
| RO Român | Indicații de securitate | Utilizarea conformă cu destinația | Grupe de utilizatori | Іngrijirea și întreținerea curentă | Garantia pentru produs | Date tehnice | Simboluri | Declarație de conformitate originală | 72 |
| HR Hrvatski | Sigurnosna upozorenja | Namjenska uporaba | Skupine korisnika | Njega i servisiranje | Jamstvo | Tehnički podaci | Simboli | Originalna izjava o sukladnosti | 74 |
| RU Русский | Указания по технике безопасности | Использование по назначению | Группы пользователей | Уход и техническое обслуживание | Гарантия | Технические характеристики | Символы | Оригинальная декларация о соответствии | 77 |
| CN 中文 | 安全信息 | 规定的使用条件 | 用户群体 | 小心维护 | 保修 | 技术资料 | 符号/标志 | 符合标准说明原件 | 80 |
| KO 한국어 | 안전정보 | 규정된 사용조건 | 사용자 그룹 | 관리 및 유지보수 | 보증 | 기술자료 | 표지 | 표준설명 부품에 부합되어야 한다. | 83 |
| JP 日本語 | 安全に関する情報 | 指定の使用条件 | ユーザーグループ | 保守及びメンテナンス | 保証規定証 | 仕様諸元 | シンボル | オリジナルの適合宣言書 | 86 |

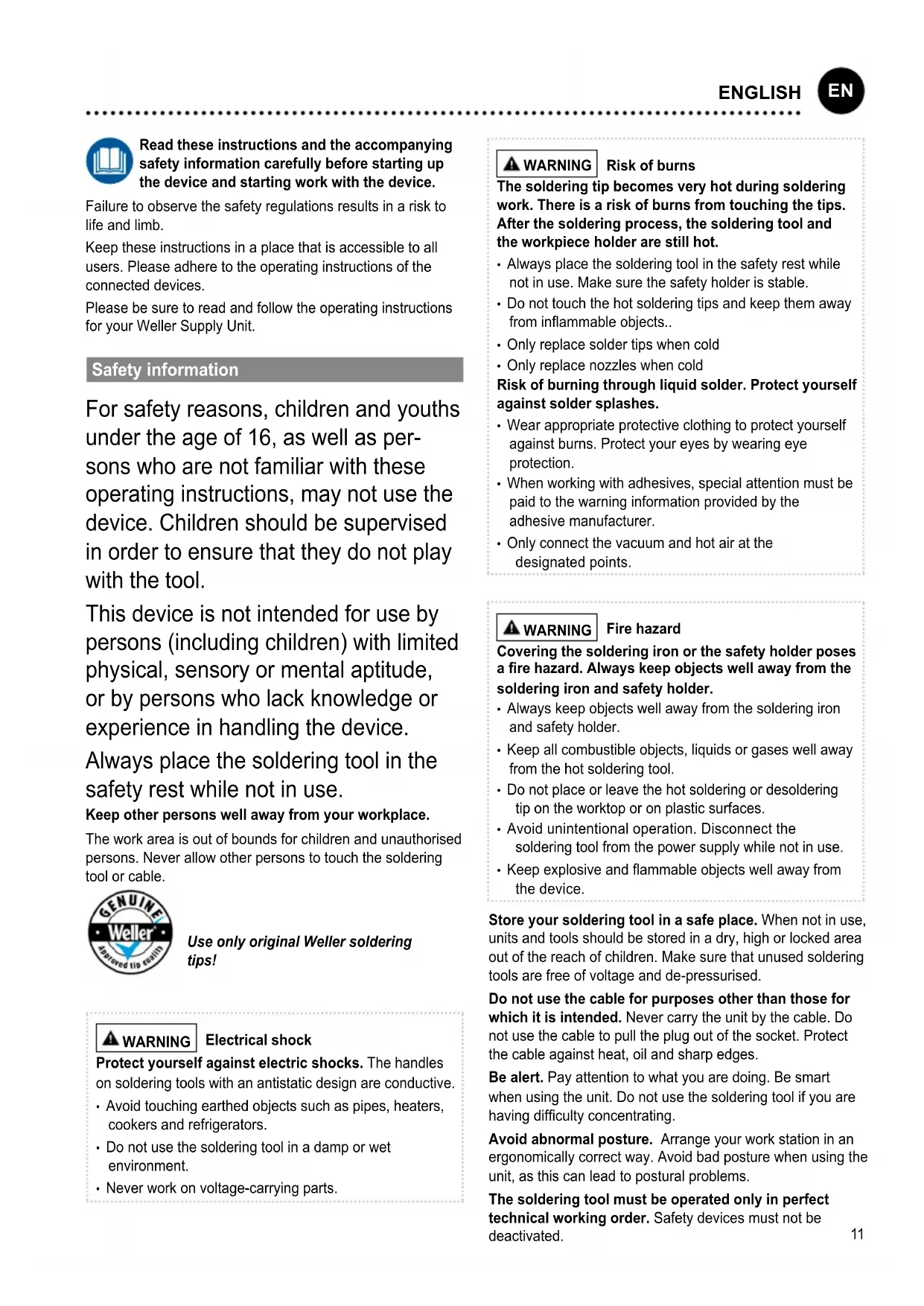

Read these instructions and the accompanying safety information carefully before starting up the device and starting work with the device.
Failure to observe the safety regulations results in a risk to life and limb.
Keep these instructions in a place that is accessible to all users. Please adhere to the operating instructions of the connected devices.
Please be sure to read and follow the operating instructions for your Weller Supply Unit.
Safety information
For safety reasons, children and youths under the age of 16, as well as persons who are not familiar with these operating instructions, may not use the device. Children should be supervised in order to ensure that they do not play with the tool.
This device is not intended for use by persons (including children) with limited physical, sensory or mental aptitude, or by persons who lack knowledge or experience in handling the device.

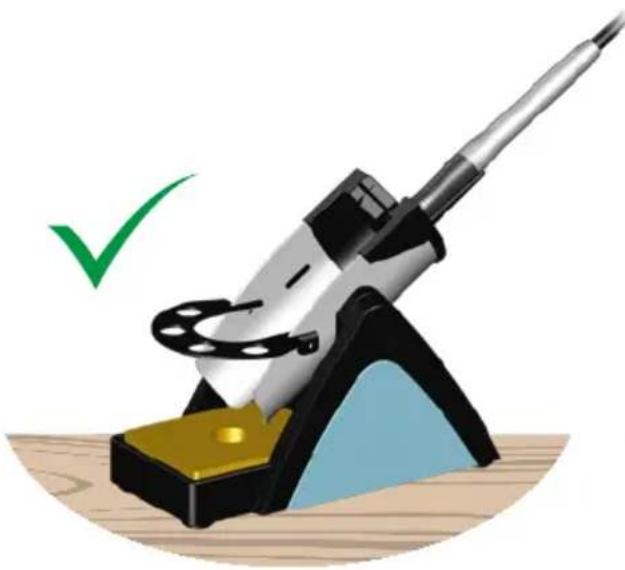

Always place the soldering tool in the safety rest while not in use.
Keep other persons well away from your workplace.
The work area is out of bounds for children and unauthorised persons. Never allow other persons to touch the soldering tool or cable.
Use only original Weller soldering tips!
WARNING
Electrical shock
Protect yourself against electric shocks. The handles on soldering tools with an antistatic design are conductive.
- Avoid touching earthed objects such as pipes, heaters, cookers and refrigerators.
- Do not use the soldering tool in a damp or wet environment.
- Never work on voltage-carrying parts.
WARNING
Risk of burns
The soldering tip becomes very hot during soldering work. There is a risk of burns from touching the tips. After the soldering process, the soldering tool and the workpiece holder are still hot.
• Always place the soldering tool in the safety rest while not in use. Make sure the safety holder is stable.
- Do not touch the hot soldering tips and keep them away from inflammable objects..
- Only replace solder tips when cold
- Only replace nozzles when cold
Risk of burning through liquid solder. Protect yourself against solder splashes.
- Wear appropriate protective clothing to protect yourself against burns. Protect your eyes by wearing eye protection.
- When working with adhesives, special attention must be paid to the warning information provided by the adhesive manufacturer.
- Only connect the vacuum and hot air at the designated points.
WARNING
Fire hazard
Covering the soldering iron or the safety holder poses a fire hazard. Always keep objects well away from the soldering iron and safety holder.
• Always keep objects well away from the soldering iron and safety holder.
- Keep all combustible objects, liquids or gases well away from the hot soldering tool.

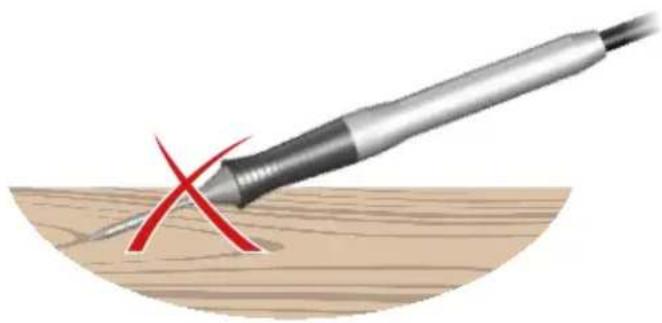

- Do not place or leave the hot soldering or desoldering tip on the worktop or on plastic surfaces.
- Avoid unintentional operation. Disconnect the soldering tool from the power supply while not in use.
- Keep explosive and flammable objects well away from the device.
Store your soldering tool in a safe place. When not in use, units and tools should be stored in a dry, high or locked area out of the reach of children. Make sure that unused soldering tools are free of voltage and de-pressurised.
Do not use the cable for purposes other than those for which it is intended. Never carry the unit by the cable. Do not use the cable to pull the plug out of the socket. Protect the cable against heat, oil and sharp edges.
Be alert. Pay attention to what you are doing. Be smart when using the unit. Do not use the soldering tool if you are having difficulty concentrating.
Avoid abnormal posture. Arrange your work station in an ergonomically correct way. Avoid bad posture when using the unit, as this can lead to postural problems.
The soldering tool must be operated only in perfect technical working order. Safety devices must not be deactivated.
Faults and defects must be repaired immediately.
Before using the unit / tool, safety devices must be carefully checked to make sure that they are functioning properly and in the manner intended. Check that moving parts are functioning properly and are not sticking, and whether parts are damaged. All parts must be correctly fitted and must satisfy all the requirements necessary to guarantee troublefree operation of the unit.
Use the correct tool. Use only accessories or auxiliary devices which are included in the list of accessories or approved for use by the manufacturer. Use WELLER accessories or auxiliary devices on original WELLER equipment only. The use of other tools and other accessories can cause injury.
Secure the tool. Use clamping fixtures to hold the workpiece.
Use a solder fume extraction unit. If appliances for connecting solder fume extraction units are available, ensure that they are connected and used properly.
Specified Conditions Of Use
Use the soldering iron exclusively for the purpose indicated in the Operating Instructions of soldering and desoldering under the conditions specified here.

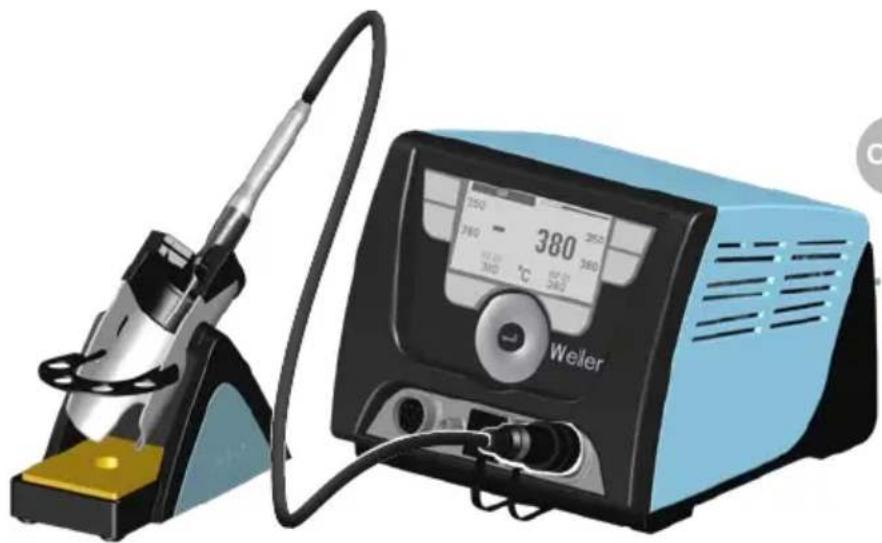

The soldering iron may only be used in combination with Weller Supply Units.
This device may only be used at room temperature and indoors. Protect against moisture and direct sunlight.
User groups
Due to differing degrees of risk and potential hazards, several work steps may only be performed by trained experts.
| Work step User groups | |
| Default soldering parameters | Specialist personnel with technical training |
| Replacing electrical replacement parts | Electricians |
| Default maintenance intervals | Safety expert |
| Operation Filter change | Non-specialists |
| Operation Filter change | Technical trainees under the guidance and supervision of a trained expert |
| Replacing electrical replacement parts |
Care and maintenance
WARNING
Before doing any work on the machine, pull the plug out of the socket. Leave the unit to cool down.
Check all connected cables and hoses on a regular basis. If power tools are damaged, they must be immediately removed from use.
Do not use blocked nozzles.
Repairs must always be referred to a Weller-trained specialist.
Use original replacement parts only.
WARNING
Risk of burns

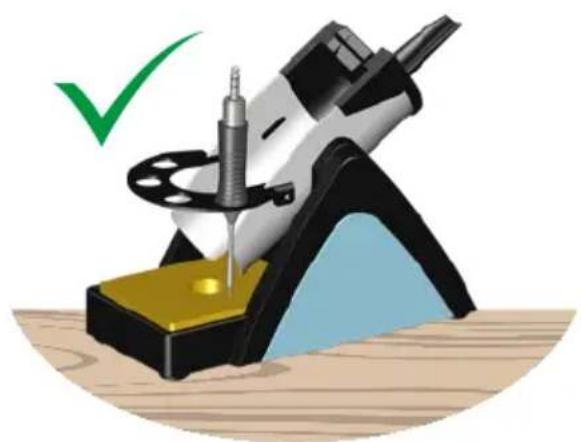

- Only replace the soldering tips when they are cold.
The soldering tool must be left switched off in the safety rest for at least 3 minutes until the soldering tip has cooled down. The LED status indicator must be at „OFF“.
Temperature performance
The soldering tool has an internal usage sensor which can be used to set an automatic switch-off function (Stand-by). The settings can be found in the station's operating instructions.
Warranty
Claims by the buyer for physical defects are time-barred after a period of one year from delivery to the buyer. This does not apply to claims by the buyer for indemnification in accordance with §§ 478, 479 BGB (German Federal Law Gazette).
We shall only be liable for claims arising from a warranty furnished by us if the quality or durability warranty has been furnished by use in writing and using the term „Warranty“.
The warranty shall be void if damage is due to improper use and if the device has been tampered with by unauthorised persons.
For more information please visit www.weller-tools.com.
Symbols
Caution!
Warning! Risk of burns
Read the operating instructions!
ESD-compatible design and ESD-compatible workstation
CE mark of conformity
Disposal
Do not dispose of electric tools together with household waste material! In observance of European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.
Technical Data
| Micro Pico Ultra | |||||
| Soldering iron WXMP WXMP MS WXPP | WXPP MS WX | UP MS | |||
| Temperature range °C | 100 - 450 | 100 - 450 | 100 - 450 | 100 - 450 | 100 - 450 |
| Temperature range °F | 200 - 850 | 200 - 850 | 200 - 850 | 200 - 850 | 200 - 850 |
| Power consumption 40 W | (55 W) | 40 W(55 W) | 40 W 40 W | 150 W | |
| Mains supply voltage 12 V / AC 12 V / AC | 12 V / AC 12 V | / AC 24 V / AC | |||
| Heat-up time(50°C to 350°C) (120°F to 660°F) | 5 s 5 s | 3 s 3 s 7 s | |||
| Tip type series | RTRTM | RT MSRTM MS | RTP | RTP MS | RTU MS |
| Supply unit | WX / WXD / WXA / WXR | ||||
| Desoldering tweezers / Desoldering iron | WXMTWXMT (MS) |
| Temperature range °C | 100 - 450 |
| Temperature range °F | 200 - 850 |
| Power consumption | 80 W (2x40 W) |
| Mains supply voltage | 12 V / AC |
| Heat-up time(50°C to 350°C) (120°F to 660°F) | 5 s |
| Tip type series | RTW / RTW (MS) |
| Supply unit | WX / WXD / WXA / WXR |
Subject to technical alterations and amendments.
