ActiveFinder XP - Measuring equipment Laserliner - Free user manual and instructions

Product Type	Non-contact voltage detector
Brand	Laserliner
Model	ActiveFinder XP
Category	Measuring equipment
Voltage Range	12 VAC to 1000 VAC
Frequency	50 to 60 Hz
Overvoltage Category	CAT IV - 1000 V
Protection Rating	IP 67
Power Supply	2 AAA 1.5 V batteries (LR03)
Dimensions (L x W x H)	160 x 24 x 30 mm
Weight (including batteries)	66 g
Operating Temperature	0 °C to 50 °C
Storage Temperature	-10 °C to 60 °C
Relative Humidity	Max. 80% RH, non-condensing
Indicator	LED
Main Functions	Voltage detection, ZOOM function, flashlight, audible and vibration signals
Safety	Protection class II, CAT IV, reinforced insulation
Care and Cleaning	Clean with a slightly damp cloth, no solvents, store dry
Included Accessories	Pocket clip
Warranty	Refer to the booklet "Additional remarks and warranty notes"

Frequently Asked Questions - ActiveFinder XP Laserliner

How to detect an electrical voltage with the ActiveFinder XP?

Place the tip of the detector on the area to check (cable, socket, etc.). If voltage is present, the tip lights up red and a rapid audible signal sounds. Always check all three phases (L1, L2, L3).

What does the color of the detector tip mean?

The tip lights up green when turning on. In normal operation, it turns red when voltage is present. In ZOOM mode, it lights up orange, and becomes red if voltage is detected.

How to use the ZOOM function?

Hold down the ZOOM button to increase sensitivity (12 VAC to 1000 VAC). The tip lights up orange. Move the device over the area to check; if voltage is present, the tip turns red and a signal sounds every second.

How to replace the batteries?

Open the battery compartment and insert two AAA 1.5 V batteries (LR03) observing polarity. Replace the batteries if the audible signal becomes weak or if the flashlight loses power.

What is the protection rating of the device?

The ActiveFinder XP has a protection rating of IP 67, meaning it is dust-tight and can be temporarily immersed in water (up to 1 meter for 30 minutes).

Can voltage be detected behind a wall or metal covering?

No, it is impossible to detect voltage behind metal panels and coverings. Differences in insulation (thickness and type) may also affect detection.

What to do if the device does not detect voltage when it should?

First check proper operation on a known source (e.g., 230 V socket). Make sure the batteries are charged. If the problem persists, stop using the device and contact customer service.

How to disable the audible signal?

Device off: hold the On/Off switch until the tip lights up green. Device on: hold the switch until the tip flashes green. To reactivate the sound, repeat the operation until a beep sounds.

What safety precautions should be observed?

Use the device only within specifications. Do not work on live circuits in damp conditions. Ensure the device is clean and dry. Observe overvoltage categories and do not exceed 600 V between the device and ground in CAT III.

How to clean and maintain the ActiveFinder XP?

Clean all components with a slightly damp cloth. Do not use cleaning agents, abrasives, or solvents. Store the device in a dry and clean place.

USER MANUAL ActiveFinder XP Laserliner

Close-up of a Laserliner digital writing tool with black and white body, no visible text or symbols on the device itself.

DE	02
EN	07
NL	12
DA	17
FR	22
ES	27
IT	32
PL	37
FI	42
PT	47
SV	52
NO	57
TR	62
RU
UK
CS
ET
LV
LT
RO
BG
EL
SL
HU
SK

Laserliner®

!

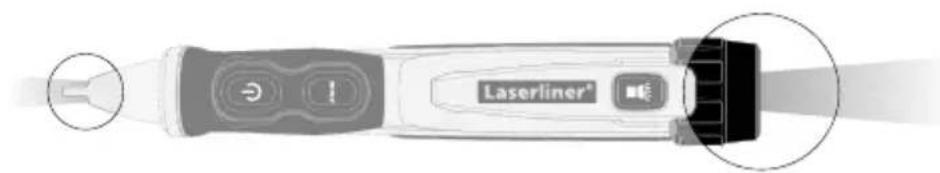

Illustration of a Laserliner flashlight with two buttons and a handle, showing no text or symbols on the device itself.

Illustration of a flashlight with a curved arrow indicating rotation (no text or symbols)

Close-up of a mechanical component with a close-up inset showing a magnified view of a circular component (no text or symbols visible)

Diagram showing a device interacting with a circular object, no text or symbols present

1 432 5 6

Close-up of a wall-mounted electrical socket connected to a power tool, showing wiring and a button (no text or symbols visible)

Electrical socket with a plug inserted, next to a warning symbol (no readable text or labels)

Diagram showing brick wall corner with concentric circular patterns and a tool emitting arrows (no text or symbols)

Illustration of a mechanical assembly with a tool and warning symbol (no readable text or labels)

Read the operating instructions and the enclosed brochure „Guarantee and additional notices“ completely. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function/Application

Non-contact tester for locating electrical voltage (230 VAC) in cables, sockets, bulb sockets, fuses, control cabinet and system components. Visual and acoustic signals as well as vibration indicate whether a voltage is present.

Safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
• If you are working with voltages higher than 24 V/AC / 60 V/DC, exercise extreme caution. Touching the electrical conductors at such voltages poses a risk of life-threatening electric shocks.
• If the device comes into contact with moisture or other conductive-residue, work must not be carried out under voltage. At and above voltages of 24 V/AC / 60 V/DC, the presence of moisture creates the risk of life-threatening electric shocks.
• Clean and dry the device before use.
• When using the device outdoors, make sure that the weather conditions are appropriate and/or that suitable protection measures are taken.
• In overvoltage category IV (CAT IV - 1000 V), the voltage between the test device and earth must not exceed 1000 V.
• Before taking any measurements, make sure that both the area to be tested (e.g. a line), the test device and the accessories used (e.g. connection cable) are in proper working order. Test the device by connecting it to known voltage sources (e.g. a 230 V socket in the case of AC testing).
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• Observe the safety precautions of local and national authorities relating to the correct use of the device and any prescribed safety equipment (e.g. electrician's safety gloves).
• Do not work alone in the vicinity of hazardous electrical installations and only under the guidance of a qualified electrician.
• The measuring device must not be used as a substitute for a two-pole zero potential test.

Laserliner®

Additional information on use

Observe the technical safety regulations for working on electrical systems, especially: 1. Safely isolating from power supply, 2. Securing to prevent system being switched on again, 3. Checking zero potential, two-pole, 4. Earthing and short-circuiting, 5. Securing and covering adjacent live components.

Safety instructions

Using artificial, optical emission (OStrV)

LED outlet

• The device works with LEDs of risk group RG 0 (exempt, no risk) in accordance with the latest versions of applicable standards relating to photobiological safety (EN 62471:2008-09ff / IEC/TR 62471:2006-07ff).
• Radiation power: Peak wavelength equals 453 nm. Mean radiance is below the limit values of risk group RG 0.
• When used for the intended purpose and under reasonably foreseeable conditions, the accessible radiation of the LEDs is safe for the human eye and skin.
• Temporary, irritating optical effects (e.g. dazzling, flash blindness, afterimages, colour vision impairment) cannot be completely ruled out, especially under low ambient light conditions.
• Do not intentionally look directly into the radiation source for longer periods of time.
• Special safety precautions are not necessary.
• No specific measures are required to ensure the limit values of risk group RG 0 are maintained.

Safety instructions

Dealing with electromagnetic radiation

- The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.

- Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. There is a possibility of a dangerous impact on – or interference with – electronic devices.

Symbols

Warning about hazardous electrical voltage: Unprotected live components inside the device housing are capable of posing a risk of electric shock.

Protection class II: The test device has reinforced or double insulation.

CAT IV

Overvoltage category IV: Devices such as electricity meters, overcurrent circuit breakers and ripple-control units, which are intended for use at or near the infeed into the electrical installation of buildings, and specifically from the main distribution to the supply system.

1 Insertion of batteries

Open the battery compartment and insert batteries according to the symbols. Be sure to pay attention to polarity.

Close-up of a black and white handheld device with a curved arrow indicating rotation (no text or symbols)

Close-up of a mechanical component with a close-up inset showing internal components (no text or symbols visible)

Diagram showing a camera lens interacting with a human head silhouette (no text or symbols present)

1 432 5 6

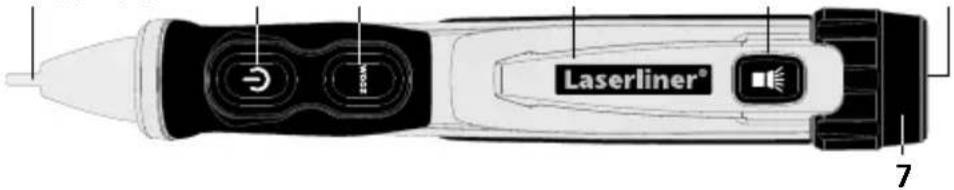

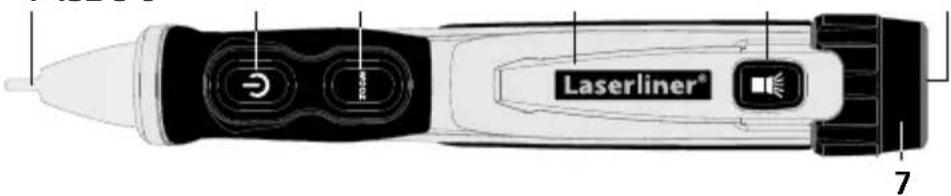

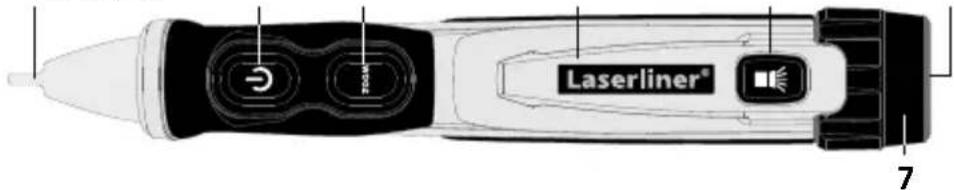

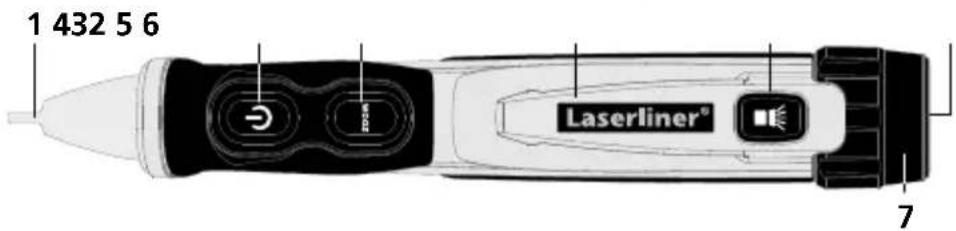

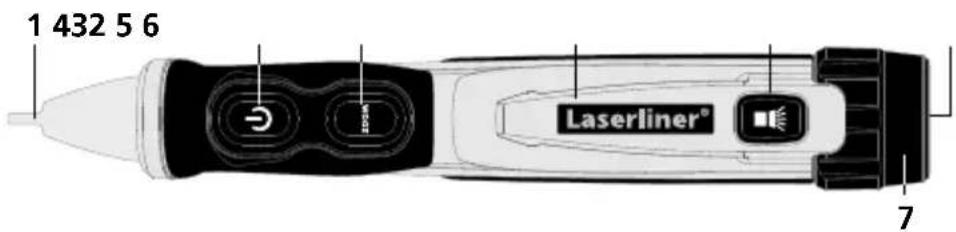

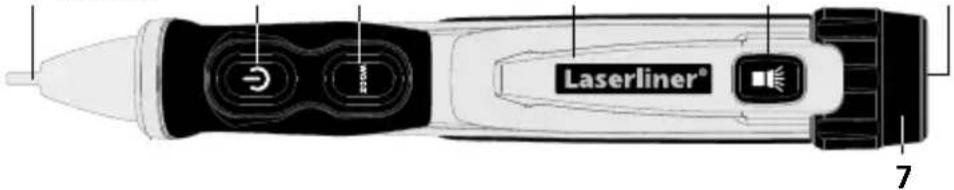

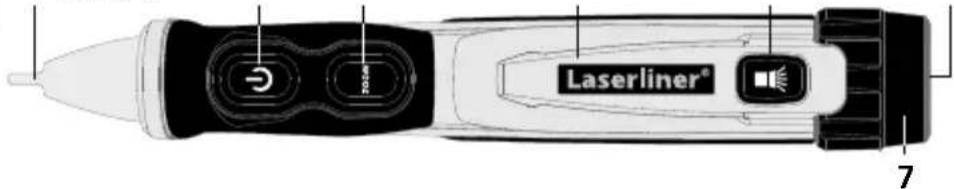

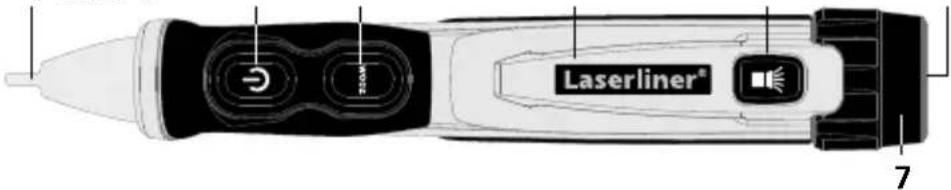

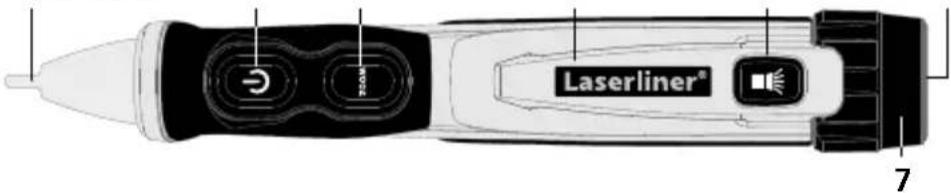

1 Detector tip with working light
2 ON/OFF button
3 ZOOM function ON/OFF

4 Pocket clip
5 Battery lamp ON/OFF

6 Battery lamp
7 Battery compartment

!

Before using the device, you should always test it on a main circuit you know to be operational within the specified voltage range.

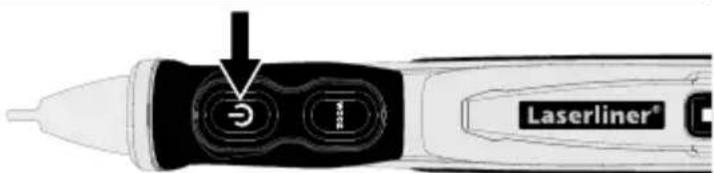

2 ON / OFF

Laserliner®

3 Localising electrical voltages

Close-up of a wall socket with a power tool inserted, showing internal wiring (no text or symbols visible)

Position the detector tip in the area to be tested (e.g. cable, socket etc.).

Electrical wall socket with a switch and warning symbol (no readable text or labels)

When voltage is present, the detector tip lights red and a rapid signal sounds.

For safety, check all three phase conductors (L1, L2, L3) for the presence of voltage!

If the acoustic signal is weak or the battery lamp is not as bright as it should be, replace the batteries.

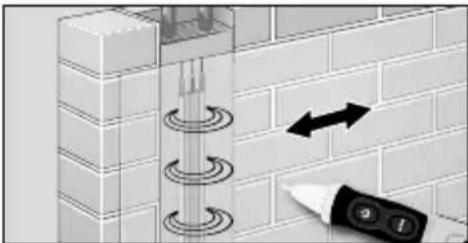

4 ZOOM function

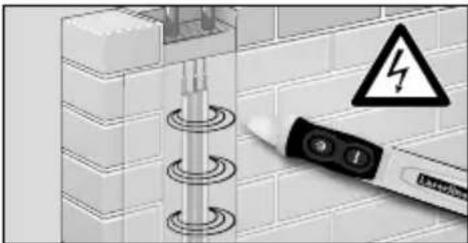

Diagram showing brick wall corner with circular arrows indicating flow or movement, and a tool labeled '2' and '1' nearby (no text or symbols on the diagram itself)

Press the ZOOM button to increase the sensitivity of the device (12 V AC to 1000 V AC). This enables voltage fields to be located at significant distance by moving the device over the area to be tested.

Illustration of a screwdriver and warning symbol on a brick wall (no text or labels)

The detector tip lights orange when the ZOOM button is pressed.

When voltage is present, the detector tip lights red and a signal sounds at 1-second intervals.

!

Please be aware that even if a visual signal is not displayed, voltage may still be present. Differences in the design of the connection socket or the nature of the insulation (thickness and type) can affect functionality. Voltage cannot be detected behind panels and metal covers.

5 Battery lamp

Press button 5 to switch the flashlight on and off.

6 Acoustic signal

To switch off acoustic signal:

Device is off: Press and hold ON/OFF button (2) until the detector tip lights green.

Device is on: Press and hold ON/OFF button (2) until the detector tip flashes green.

To switch on acoustic signal:

Press and hold ON/OFF button (2) until the detector tip flashes green and a signal sounds.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Store the device in a clean and dry place.

Technical data Subject to technical alterations. 02.2017
Indicator	LED
Voltage range	12 VAC ~ 1000 VACFrequency 50 ... 60Hz
Overvoltage category	CAT IV - 1000 V(non-condensing)Pollution degree 2
Degree of protection	IP 67
Power supply	2 x 1,5 AAA (NEDA 24A/IEC LR 03)
Operating conditions	0°C ... 50°C, Max. humidity80% rH, no condensation,max. altitude 2000 m
Storage conditions	-10°C ... 60°C, Max. humidity80% rH
Dimensions (W x H x D)	160 x 24 x 30 mm
Weight (incl. batteries)	66 g

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=acfixp
