| Product Type | Cordless Stapler |
| Brand | Metabo |
| Model | NFR 18 LTX 90 BL |
| Battery Voltage | 18 V (Li-Ion) |
| Nailing Capacity | Up to 90 nails |
| Trigger Modes | Full sequential trigger and contact trigger |
| Depth Adjustment | Yes, via wheel |
| Trigger Lock | Yes |
| Trigger Safety | Yes |
| Weight (with smallest battery) | Approximately 2.5 kg |
| Power Source | 18 V Li-Ion battery (cordless) |
| Compatible Nail Type | Strip nails, angle 30°-34°, smooth or ring shank |
| Operating Temperature | 0 °C to 40 °C |
| Noise Level | Greater than 80 dB(A) – wear hearing protection |
| Routine Maintenance | Cleaning the magazine and trigger safety |
| Included Accessories | End cap, instruction manual |
| Battery and Charger | Sold separately (CAS compatible) |
| Intended Use | Nailing into wood and soft materials |
| Warranty | Consult your Metabo dealer |
Frequently Asked Questions - NFR 18 LTX 90 BL METABO
User questions about NFR 18 LTX 90 BL METABO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Stapler in PDF format for free! Find your manual NFR 18 LTX 90 BL - METABO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. NFR 18 LTX 90 BL by METABO.
USER MANUAL NFR 18 LTX 90 BL METABO
| U V 18 | ||
| N_D | mm (in) 6,8 - 7,7 | |
| N_d | mm (in) 2,9 - 3,3 | |
| N_L | mm (in) 50 - 90 | |
| N_W | ° 30 - 34 | |
| N_A | - 47 | |
| Z 1/s 2 | ||
| m kg (lbs) 4,7 (10.4) | ||
| a_h/k_h | m/s2 | 3,7 / 1,5 |
| L_pA/k_pA | dB(A) 87 / 3 | |
| L_WA/K_WA | dB(A) 98 / 3 | |
Original instructions
1. Declaration of Conformity
We declare and accept sole responsibility for ensuring: these cordless nailers, identified by their type and serial number *1), conform to all relevant provisions of the directives *2) and standards *3), Technical Documents for *4)- see page 4.
For UK only:
UK We as manufacturer and authorized person to CA compile the technical file, see *4) on page 4, hereby declare under sole responsibility that these cordless nailers, identified by type and serial number *1) on page 4, fulfill all relevant provisions of following UK Regulations S.I. 2016/1091,S.I. 2008/1597, S.I. 2012/3032 and Designated Standards EN 62841-1:2015, prEN 62841-2-16:2022, EN IEC 63000:2018
2. Specified Conditions of Use
This cordless nailer is intended for driving in nails into wood (or similar soft materials).
The cordless nailer is used in different areas: floor and wall frames, half-timbered superstructures, window superstructures, substructure for floor covering and roof covering, wall panelling and modular house construction.
The tool is not intended for driving in staples into hard surfaces such as steel and concrete.
The machine is not suitable for fixing electrical lines.
The user bears sole responsibility for any damage caused by inappropriate use.
Generally accepted accident prevention regulations and the enclosed safety information must be observed.
3. General Safety Information
For your own protection and for the protection of your power tool, pay attention to all parts of the text that are marked with this symbol!
WARNING – Read the operating instructions to reduce the risk of injury.
WARNING – Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Always include these documents when passing on your power tool.
4. Special safety instructions
4.1 Fastener driving tool safety warnings
a) Always assume that the tool contains fasteners. Careless handling of the tool may result in unexpected firing of fasteners and personal injury.
b) Disconnect the tool from the power source when loading and unloading fasteners, making adjustments or changing accessories. The tool may be accidentally activated if it is connected to the power source, which may result in personal injury.
c) Be careful when handling fasteners, especially when loading and unloading. The fasteners have sharp points which may result in personal injury.
d) Do not point the tool towards yourself or anyone nearby. Unexpected triggering will discharge a fastener, which may result in personal injury.
e) Keep fingers away from the trigger when not operating the tool and when moving from one operating position to another. Unexpected triggering will discharge a fastener, which may result in personal injury.
f) Hold the tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. A fastener contacting a "live" wire may make exposed metal parts of the tool "live" and could give the operator an electric shock.
g) Hold the tool with a firm grasp during operation. Uncontrolled recoil of the tool may result in unintended activation, which may result in personal injury.
h) Keep all body parts such as hands and legs, etc. away from the firing direction of the tool. The fastener may penetrate the workpiece as well as any object behind it, which may result in personal injury.
i) When using the tool, keep all body parts such as hands and legs, etc. away from the area where the fastener is driven into the workpiece. The fastener could deflect and exit the workpiece, which may result in personal injury.
j) Do not actuate the tool unless the tool is placed firmly against the workpiece. If the tool is not in contact with the workpiece, the fastener may be deflected away from the workpiece, which may result in personal injury.
k) Do not use this tool for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables, thereby causing electric shock or fire hazards.
I) Disconnect the tool from the power source if a fastener jams in the tool. While removing a jammed fastener, the tool may be accidentally
activated if it is connected to the power source, which may result in personal injury.
m) Use caution while removing a jammed fastener. The mechanism may be under compression and the fastener may be forcefully discharged, which may result in personal injury.
4.2 Additional Safety Instructions:
CAUTION! Keep away from children and frail persons. When not in use, keep the tool out of the reach of children and frail persons.
Safe operation through correct use. This tool is intended for driving in nails into wood or similar soft materials. Use is only for its intended purpose.
Protect yourself from fires and explosions. As sparks might fly around during the nailing process, it is dangerous to use the tool near varnishes, paints, petrol, thinners, fuels, gas, adhesives or similar flammable substances as they might ignite or explode. For this reason, the tool must not be used near such flammable materials under any circumstances.
Protect your eyes with safety goggles.
When working with the tool, always wear protective goggles and make sure that persons in your vicinity also wear protective goggles. Parts of nails that have not been driven in properly can enter the eyes and destroy your eyesight. Protective goggles are available in any specialised shop. Always wear safety eye protection, either safety glasses or a wide-angle safety mask with the prescribed lenses. Employers must always prescribe the wearing of eye protection.
Protect your ears and your head. Wear hearing protection and safety helmets while nailing. Depending on the conditions, people in the vicinity should also wear noise protection and safety helmets.
Pay attention to people working in your
vicinity. It can be dangerous if nails that have not been driven in properly injure other people. For this reason, pay attention to the safety of the people in your vicinity when using this tool. Ensure that the mouth of the tool does not get anywhere persons, hands or feet.
Do not point the mouth of the tool at
people. Always assume that there are nails in the tool. If the mouth of the tool is pointed at people, serious accidents may occur if the tool is accidentally triggered. When inserting and removing the battery pack, during nail reloading or similar operations, make sure that the nail outlet is not directed at any person (including yourself). Even if there are no nails in the tool, it is dangerous to trigger the tool while is it pointed at someone. Therefore, never try this. The tool is not a toy. Consider the tool exclusively as a working tool and handle it accordingly.
Check the trigger safety lock before use. Ensure that the trigger safety lock works properly. (The trigger safety lock can be referred to as “safety device”.) Never use the tool if the trigger safety lock is not working properly, otherwise the tool could unexpectedly fire a nail. Do not change the trigger safety lock and do not remove it, otherwise the trigger safety lock can no longer be operated.
The selection of the triggering method is important. Read and understand the instructions in chapter 8.1.
Before using the tool, make sure that it is working properly. Carry out the tests in chapter 7.4.
Use only the prescribed nails. Only the nails specified in the operating instructions may be used.
Be careful when inserting the battery pack.
When inserting the battery pack and filling the tool with nails make sure that you do not accidentally trigger the tool.
- Under any circumstances, do not touch the trigger.
- Ensure that the mouth does not get in contact with any object.
- Keep the mouth pointing downwards. It is important that you follow the above instructions and make sure that no body parts, hands or feet are in front of the mouth of the tool.
Never touch the trigger carelessly. Only touch the trigger with your finger when nailing. If your finger is on the trigger while carrying the tool or handing it to someone, you may unintentionally fire a shot and cause an accident.
Firmly press the mouth against the material to be nailed. When driving in nails, press the mouth firmly against the material to be nailed. If this is not done carefully, the nails may recoil.
Keep hands and feet away from the mouth while working. It is very dangerous if a nail enters the hands or feet through a fee.
Protect yourself from tool kickback. Do not approach the top of the tool with your head or any other part of your body while working. This is dangerous because the tool can kickback violently if a nail hits a previously driven in nail or a hard branch in the wood.
Protect yourself from double shots due to tool kickback. If the trigger safety lock accidentally comes again into contact with the workpiece after kickback, a nail may fired unintentionally. To avoid these unintentional double shots, pay attention to the following:
a) Working with "fully sequential triggering" operating mode
- Pull the trigger fast and hard (4).
b) Working with "contact release" operating mode - Do not press the tool with excessive force against the wood.
- Detach the tool from the wood when kickback starts after nailing.
Be careful when nailing thin boards or wooden edges. When nailing thin boards, the nails can be fired through the boards, as it can also happen when nailing on wooden edges due to ricochets. In such cases, make sure that no-one (including no hands, feet etc.) is behind the board or near the wood you are working on.
ENGLISHen
Simultaneous nailing on both sides of a wall is dangerous. Under no circumstances nail simultaneously on both sides of a wall. This would be dangerous because the nails could be fired through the wall and thus cause injuries.
Do not use the tool in the “contact release (continuous operation)” operating mode on scaffolding or ladders. The tool must not be used for particular applications, e.g.
- if changing the driving in location involves the use of scaffolding, stairs, ladders or ladder-like structures, e.g. roof battens.
- Closing of boxes or crates,
- appropriate transport safety systems, e.g. on vehicles and trolleys.
Remove all remaining nails and the battery pack from the tool, when:
1) you are carrying out maintenance and inspection work,
2) your are checking the proper function of the trigger safety lock and trigger,
3) you are clearing a jam,
4) the tool is not in use,
5) you are leaving the working area,
6) you are taking the tool to a different location,
7) you are handing the tool to another person.
Never try to remove a jam or repair the tool without first having removed the battery pack and all remaining nails from the tool.
Never leave the tool unattended, since people who are not familiar with the tool could use it and injure themselves.
Remove the battery pack from the tool when:
1) you are refilling nails,
2) you are setting the nailing depth.
The permissible operating temperature of this tool is between 0^ C and 40^ C. Therefore, make sure to operate the tool only within this temperature range. It may happen that the tool no longer functions below 0^ C or above 40^ C.
NEVER allow magnets (or similar magnetic parts) to be next to the tool as the tool has a magnetic sensor inside. This can lead to failure or risk of injury caused by the malfunction.
Allow the tool to rest after continuous operation.
The tool is equipped with a temperature protection casing to protect the motor. Continuous work can cause the temperature of the tool to rise, which activates the temperature protection circuit and automatically stops operation. If this is the case, allow the tool to cool down before using it again.
Do not subject the keypad to strong vibrations or damage it. This may lead to a malfunction
4.3 Icons
Do not use on scaffolds or ladders.
Wear ear protectors.
WARNING – Always wear protective goggles.
Do not point the mouth of the tool at people. Keep hands and feet away from the mouth while working.
4.4 Use only suitable nails
Choose suitable nails according to the figure and the technical data on page 3.
- Other types of nails may not be used. They may cause the tool to malfunction and/or the nails to break, which may result in serious injury.
- Use only smooth nails, barbed nails or ring-type nails.
- Do not use threaded nails.

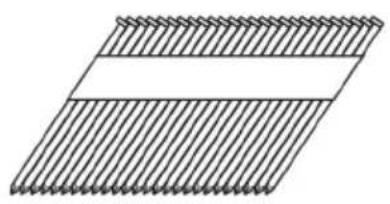

- Use paper-connected nail strips (angle: 30^-34^ , clipped nails).
- Handle nails and their packaging with care. If nails are dropped, the connecting strip can tear, resulting in faulty feeding of the nails and jams thereof.
- Never use nail strips with more than 10 nails.
- Use intact nail strips with nails of uniform length.
4.5 Special safety instructions for cordless machines:
Remove the battery pack from the machine before making any adjustments, changing tools, maintaining or cleaning.
Protect battery packs from water and moisture!
Do not expose battery packs to fire!
Do not use faulty or deformed battery packs! Do not open battery packs! Do not touch or short circuit battery pack contacts!
A slightly acidic, flammable fluid may leak from defective Li-Ion battery packs!
If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out
and comes into contact with your eyes, wash them with clean water and seek medical attention immediately!
If the machine is defective, remove the battery pack from the machine.
Transport of Li-Ion battery packs:
The shipping of Li-Ion battery packs is subject to laws related to the carriage of hazardous goods (UN 3480 and UN 3481). Inform yourself of the currently valid specifications when shipping Li-Ion battery packs. If necessary, consult your freight forwarder. Certified packaging is available from Metabo.
Only send the battery pack if the housing is intact and no fluid is leaking. Remove the battery pack from the machine for sending. Prevent the contacts
from short-circuiting (e.g. by protecting them with adhesive tape).
4.6 Reducing dust exposure:
WARNING - Some dust created by power sanding, sawing, grinding, drilling, and other truction activities contains chemicals known to the cancer, birth defects or other reproductive risk. Some examples of these chemicals are:
- Lead from lead-based paints,
- crystalline silica from bricks and cement and other masonry products, and
- arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals, work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
This also applies to dust from other materials, such as some timber types (like oak or beech dust), metals, asbestos. Other known diseases are e.g. allergic reactions, respiratory diseases. Do not let dust enter the body.
Observe the relevant guidelines and national regulations for your material, staff, application and place of application (e.g. occupational health and safety regulations, disposal).
Collect the particles generated at the source, avoid deposits in the surrounding area.
Use suitable accessories for special work. In this way, fewer particles enter the environment in an uncontrolled manner.
Use a suitable extraction unit.
Reduce dust exposure with the following measures:
- do not direct the escaping particles and the exhaust air stream towards yourself or nearby persons or towards dust deposits,
- use an extraction unit and/or an air purifier,
- ensure good ventilation of the workplace and keep it clean using a vacuum cleaner. Sweeping or blowing stirs up dust.
- Vacuum or wash protective clothing. Do not blow, beat or brush protective gear.
5. Overview
See pages 2 and 3.
1 Mouth, shooting head, nail outlet, firing area
2 Trigger safety lock

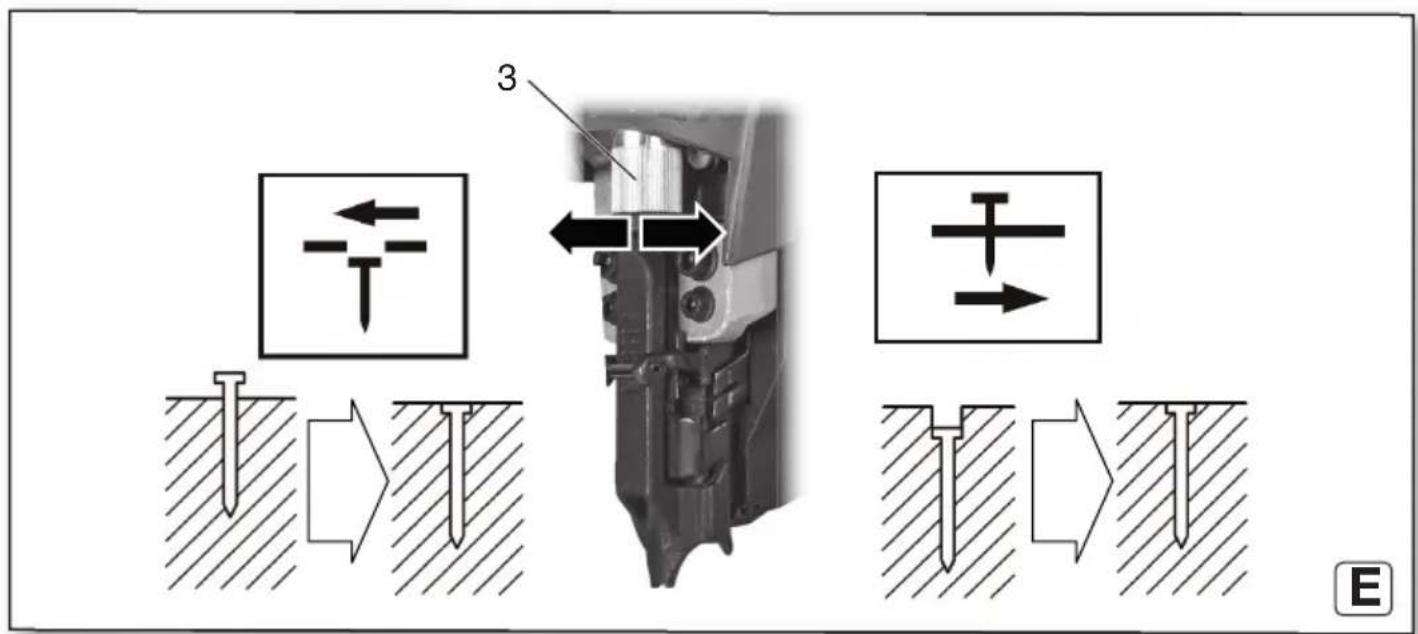

3 Setting knob (nailing depth)
4 Trigger
5 Handle
6 Upper part of the tool
7 Trigger safety lock
8 Battery pack release button
9 Battery pack *
10 Capacity and signal indicator *
11 Capacity indicator button *

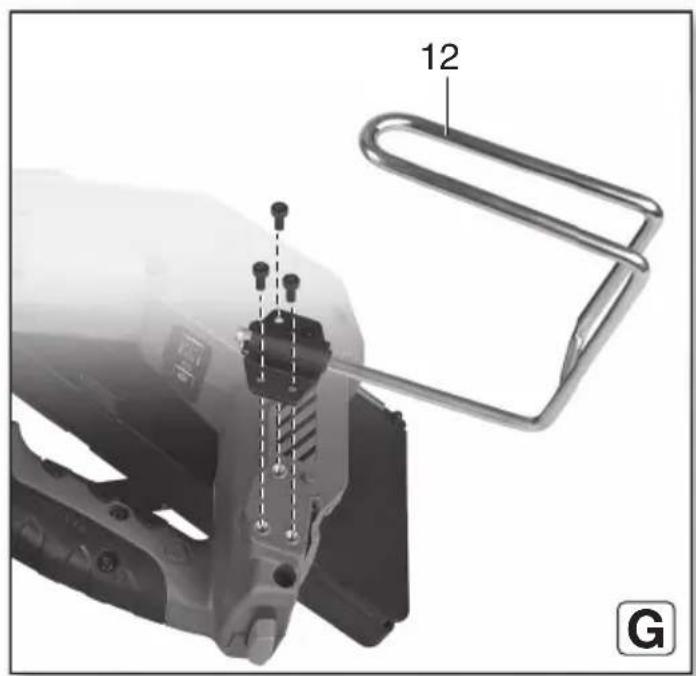

12 Hook
13 Magazine

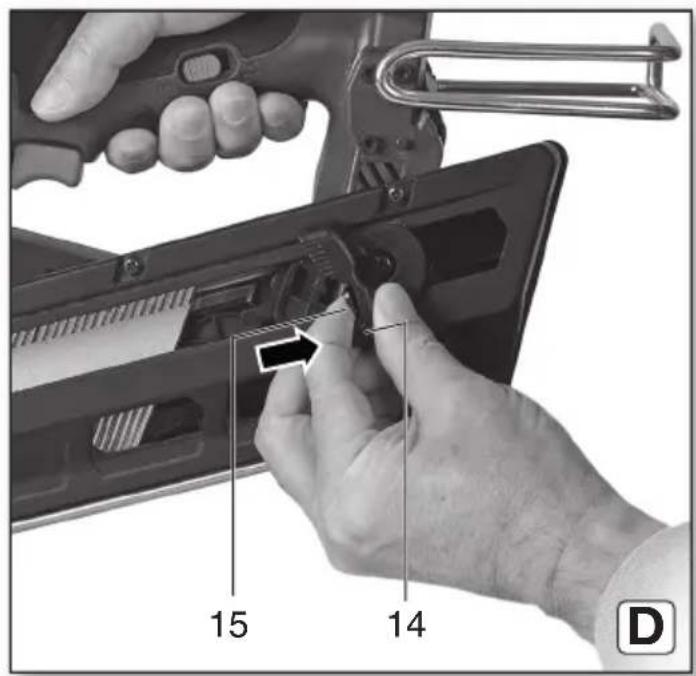

14 Feed slide
15 Locking
16 On/Off button
17 Operation indicator
18 Operating mode indicator
19 Operating mode button
20 Nose cover
21 Nails, nail strips
* depending on equipment/not included in scope of delivery
6. Initial Operation
6.1 Battery pack
Charge the battery pack (9) before use.
Recharge the battery pack if performance diminishes.
Instructions on charging the battery pack can be found in the operating instructions of the Metabo charger.
Battery packs have a capacity and signal indicator (10) (depends on design variant):
- Press the button (11), the LEDs indicate the charge level.
- The battery pack is almost empty and must be recharged if one LED is flashing.
Removing and inserting the battery pack
WARNING! The trigger safety lock (2) and trigger (4) must not be used during insertion
removal.
Removing:
Press the battery pack release (8) button and remove the battery pack (9).
Inserting:
Slide in the battery pack (9) until it engages.
7. Tool details, testing the tool, Initial operation
7.1 Switching on and off
WARNING! Never leave the tool switched on to avoid accidents.
Switching on
Press and hold the on/off button (16) for more than once second: Power indicator (17) lights up.
Note: Do not operate the trigger safety lock (2) and do not pull the trigger (4) while switching on the tool. Switching on is otherwise prevented.
Note: Automatic shut-down: If a switched-on tool is not use for 30 minutes, it switches off automatically.
Switching off:
Press and hold the on/off button (16) for more than one second: the power indicator (17) goes off.
7.2 Setting the operating mode
Press the button (19) to switch between the operating modes.
ENGLISHen
Fully sequential triggering (single shot) → operating mode indicator (18) lights up continuously
Contact release (continuous operation) → operating mode indicator (18) flashes
Note: After switching on the operating mode “fully sequential triggering” is automatically active. The indicator (18) lights up continuously.
Pay attention to chapter 8.1.
7.3 Setting the trigger safety lock
WARNING! The locking mechanism prevents nails from being fired. If the tool is not used, sys set the trigger safety lock (7) to "locked".
Shift the trigger safety lock (7).
Trigger (4) is locked.
Trigger (4) is unlocked. Nails can be fired.
7.4 Testing the function of the tool
WARNING! Always set the trigger safety lock (7) to the "locked" position if you are not
nailin
WARNING! Never use the tool if the trigger safety lock (2) is not working properly.
A protective mechanism prevents operation without nails: The trigger safety lock cannot be pushed upwards if the magazine is empty or if the remaining number of nails becomes less than 7 to 9. Pay attention not to knock the tip of the trigger safety lock against the wood if the trigger safety lock cannot be pushed upwards.
Test the tool according to the following checklist before you start the nailing application. Carry out the tests in the following sequence. If there is an unusual operating condition, stop using the tool and contact Metabo customer service immediately, see "Repairs" chapter.
Test 1:
-
Remove battery pack (9). Remove all nails from the magazine.
-
All too screws must be tightened.
-
The triggers safety lock (2) and the trigger (4) must move easily when the feed slide (14) is retracted.
Test 2:
- Inserting the battery pack (9).
- Control the battery pack capacity: Press button (11). The battery pack must be charged.
- Switch on the tool. Make sure that the power indicator (17) lights up and the operating mode indicator (18) lights up continuously (not flashing).
Test 3:
-
Remove the finger from the trigger (4) and press the trigger safety lock (2) against the workpiece while pulling back the feed slide (14).
-
The tool must not trigger.
Test 4:
- Remove the trigger safety lock (2) from the workpiece. Next, aim the tool downwards, retract the feed slide (14), pull the trigger (4) and
wait at less 5 seconds in this position.
- The tool must not trigger.
Test 5:
- Remove the finger from the trigger (4). Retract the feed slide (14) and press the trigger safety lock (2) against the workpiece. Next pull the trigger (4).
- The tool must trigger.
- Keep the trigger (4) pulled and press the trigger safety lock (2) once again against the workpiece.
- The tool must not trigger.
- Remove the finger from the trigger (4). Retract the feed slide (14) and press the trigger safety lock (2) against the workpiece. Next pull the trigger (4).
- The tool must trigger.
Test 6:
-
Remove the trigger safety lock (2) from the workpiece and then pull the trigger (4). Press the trigger safety lock (2) against the workpiece within 2 seconds while retracting the feed slide (14).
-
The tool must not trigger.
Test 7:
-
Set operating mode to contact trigger. Make sure that the operating mode indicator (18) flashes. Remove the trigger safety lock (2) from the workpiece and then pull the trigger (4). Press the trigger safety lock (2) against the workpiece within 2 seconds while retracting the feed slide (14).
-
The tool must trigger.
Test 8:
- When all tests have been passed successfully, you can load nails into the magazine, see chapter 7.6.
- Drive the nails into a workpiece that corresponds to the actual application.
- The tool must function properly.
7.5 Check function of the trigger safety lock
WARNING! Put trigger safety lock (7) into "locked" position. Remove battery pack (9).
- Check that the trigger safety lock (2) can be activated easily.
- Clean the sliding area if the trigger safety lock (2) cannot be activated without any problems.
7.6 Filling in nails, removing
WARNING! Switch off the tool, remove battery pack (9). Do not pull the trigger (4). Do not s in the trigger safety lock (2). Aim the tool onwards.
Use only suitable nails. See chapter 4.4. Filling in the nails
See fig. C + D
- Insert the nail strip (21) at the rear of the magazine (13).
- Push the nail strip in the magazine forward (by hand).
-
Press the lock (15) in the direction of the arrow (keep pressed) and pull the feed slide (14) all the way back and hold it.
-
Release the lock (15) and slowly move the feed slide (14) forwards until the nails are pushed forwards.
- The tool can now be used.
Note: Do not release the feed slide (14) but guide it slowly forwards to avoid damaging the nail strip.
Removing nails
See fig. D
- Pull the feed slide (14) backwards
- Press and keep pressed the lock (15). Slowly guide the feed slide (14) all the way forwards.
- Pull out the nails (21) from the rear of the magazine (13). (See fig. C)
8. Use
WARNING!
Keep your fingers away from the trigger (4) if you are not nailing to prevent accidental triggering.
Never hold your face, your hands or feet close to the shooting head during operation.
Do not fire nails at other nails and do not hold the tool at too flat an angle. The nails can bounce off and hurt someone.
Never use a defective tool or one that is not functioning normally.
Do not use the tool as a hammer.
Remove all remaining nails and the battery pack (9) from the tool, if:
- you are carrying out maintenance and inspection work,
- you are checking the proper function of the trigger safety lock (2) and trigger (4),
- you are clearing a jam,
- the tool is not in use,
- you are leaving the working area,
- you are taking the tool to a different location,
- you are handing the tool to another person.
8.1 Inserting nails with "fully sequential triggering" or with "contact triggering"
Press the button (19) to switch the operating modes.
Working with "fully sequential triggering" operating mode (single shot)
To avoid double shooting or accidental triggering caused by kickback: Pull the trigger and hard (4).
- Set the "fully sequential triggering" operating mode by pressing the button (19). See chapter 7.2.
- Press the machine with the trigger safety lock (2) against the workpiece.
- Next, pull the trigger (4) to fire the nail.
- Remove the finger from the trigger (4).
- Lift the machine completely off the wood surface.
Using the same procedure, shoot more nails.
Note: Step 2 and 3 should be carried out within 2 seconds. If more than 2 seconds pass, the tool is not working properly. If this happens, start again from step 2.
Working with "contact release" (continuous operation) operating mode
To avoid double shooting or accidental triggering caused by kickback: Do not press the tool against the wood with excessive force. Detach the tool from the wood when kickback starts after nailing.
Contact triggering can be done according to two different procedures (a, b), depending on your application.
a) To fire several nails:
- Set the "contact triggering" operating mode by pressing the button (19). See chapter 7.2.
- Keep the trigger (4) pulled while the tool is not touching the workpiece.
- Press the trigger safety lock (2) against the wood to fire the nail.
- If the trigger (4) is held, a nail is fired every time the trigger safety lock (2) is pressed against the wood. Move the tool with "bouncing" movements along the workpiece. A nail is fired each time the trigger safety lock (2) is pressed in.
- Once the desired number of nails has been fired, remove your finger from the trigger (4).
Note: Step 2 and 3 should be carried out within 2 seconds. If more than 2 seconds pass, the tool is not working properly. If this happens, start again from step 2.
WARNING! Keep your fingers away from the trigger (4), except when nailing, as serious injury can occur if the trigger safety lock (2) accidentally comes into contact with you or other persons in the working area.
WARNING! Keep hands and body away from the firing area. The tool may kickback from firing a nail and another nail may come loose, causing injury.
b) To fire a single nail:
- Press the safety trigger lock (2) against the wood.
- Pull the trigger (4) to fire the nail.
- Remove your finger from the trigger (4) and remove the tool from the workpiece.
8.2 After nailing
- Remove the battery pack (9) from the tool.
- Remove all nails from the tool.
CAUTION! Pay attention not to knock the tip of the trigger safety lock (2) against the wood if the trigger safety lock cannot be pushed upwards.
8.3 Adjusting the nailing depth
To ensure that all nails penetrate to the same depth, make sure that the tool is always held firmly against the workpiece. If the nail penetration is too deep or too shallow, adjust the nailing depth in the following sequence.
ENGLISHen
- Remove the battery pack (9) from the tool.
- Turn the setting knob (3) half a turn to the left or right (see fig. E).
- Test the new setting: Insert the battery pack into the tool. Carry out another nailing test.
- If necessary, change the setting again by starting with step 1.
8.4 Using the nose cover
WARNING! When attaching or removing the nose cover (20) always remove your finger from the trigger (4), remove all nails, remove the battery pack (9).
To protect sensitive workpiece surfaces, attach the nose cover (20) to the trigger safety lock.
See fig. B.
- Remove the battery pack (9) from the tool.
- Remove all nails from the tool.
- Put the nose cover (20) onto the tip of the trigger safety lock (2).
- The nose cover has a mark where the nail exits to facilitate alignment.
Note: The nose cover can reduce the nailing depth.
The nailing depth must be readjusted. See chapter 7.2.
8.5 Clearing a nail jam / removing, attaching the magazine
If the nails jam in the shooting head, remove it and restore function in the following sequence.
- Remove the battery pack (9) from the tool.
- Remove all nails from the tool.

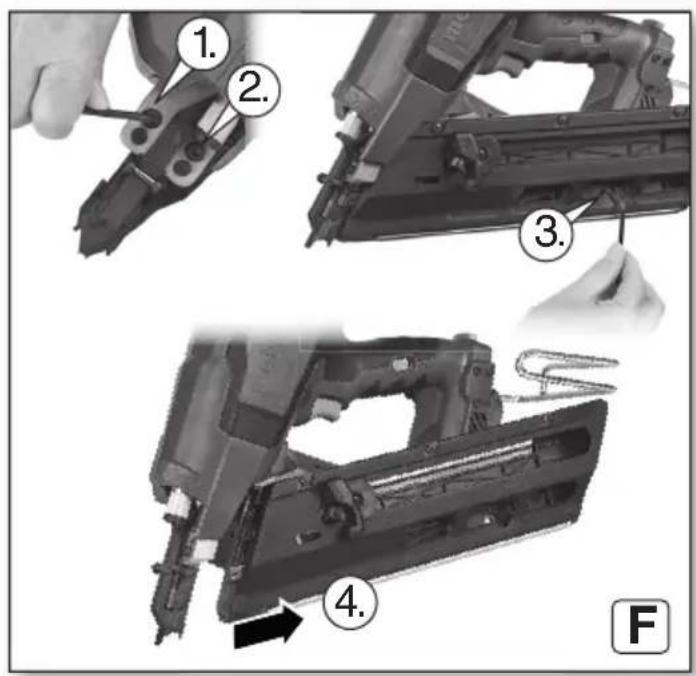

- Remove the M5 screws with the wrench. (See fig. F)
- Pull the magazine away from the shooting head and clear the jam. (See fig. F)
CAUTION!
- Never hit the driver blade.
- Never aim the tool at yourself or another person to avoid the risk of injury from a false shot.
Even when the battery pack is removed from the unit, there is still some energy inside due to the compressed air.
- Reattach the magazine to the shooting head and fix it by tightening the M5 screws. (See fig. F)
Note: In the event of frequent nail jams contact Metabo's after-sales service, see "Repairs" chapter.
9. Troubleshooting
Carry out the following checks if the tool is not functioning normally. If the problem cannot be remedied, refer to the “Repairs” chapter.
The tool cannot be switched on. Switches on once, but automatically turns off again.
- Battery pack charge too low. Charge battery pack.
- Internal electronics damaged. See the chapter on Repairs.
- Trigger safety lock and/or trigger in "ON" state? Put the trigger safety lock and the trigger in the "OFF" position.
Tool does not work, although it is switched on from the On/Off switch.
- The tool is not pressed hard enough against the workpiece. → Hold the tool and press it completely onto the workpiece.
- The trigger has not been pulled hard enough. → Pull the trigger hard.
- More than 2 seconds have passed between ON of the trigger safety lock and ON of the trigger (or ON trigger to trigger safety lock ON). → Ensure that less than 2 seconds pass between trigger safety lock ON and trigger ON (or between trigger ON and trigger safety lock ON).
- Protective mechanism is activated. (No nails or insufficient number of nails in the magazine). → Refill nails in magazine.
- Trigger safety lock (7) is on “locked”. → Put the trigger safety lock (7) to the “unlocked” position.
- The tool is too cold (below -5 °C) or too hot. → Leave the tool to cool down or heat it to a suitable temperature.
- Internal electronics damaged. → See “Repairs” chapter.
The tool works, but no nail is fired.
- Magazine is dirty. → Blow and wipe the ma clean.
- Check if there is a nail jam. → Remove the nail jam. See chapter 8.5.
- Driver blade worn or damaged? → See "Repairs" chapter.
- Band spring weakened or damaged? → Replace band spring. See the chapter on Repairs.
- Nail feed damaged? → Replace nail feed. See the chapter on Repairs.
- Check if the right nails are used. → Use only recommended nails.
Weak drive, slow cycle.
- Check the nailing depth setting.→ Set as described in chapter 8.3.
- Driver blade worn? → See “Repairs” chapter.
- Internal electronics damaged.→ See “Repairs” chapter.
The nails are driven in too deep.
→ Set nailing depth. See chapter 8.3.
Nails are skipped. Interrupted feed.
- Check if the right nails are used. → Use only recommended nails.
- Nail feed damaged? → Replace nail feed. See the chapter on Repairs.
- Band spring weakened or damaged? → Replace band spring. See the chapter on Repairs.
- Driver blade worn or damaged? → See “Repairs” chapter.
Nail jam. The fired nail is bent.
- Check if the right nails are used.→ Use only recommended nails.
- Driver blade worn or damaged? → See “Repairs” chapter.
Remove nail jam → see chapter 8.5.
10. Maintenance and inspection
CAUTION! Before performing any
maintenance or inspection, always remove
the battery pack and all nails.
Inspection of the magazine
Remove battery pack (9).
Clean the magazine. Remove any dust and wood chips that have accumulated in the magazine.
CAUTION! Check if the feed slide (14) glides
smoothly by pulling it with your finger. If this is
not the case, the nails can exit at an unusual angle and injure someone.
Clean the trigger safety lock (2) and maintain smooth running.
Inspection of the fixing screws
Regularly inspect all fixing screws and ensure that they are properly tightened.
If any of the screws become loose, tighten them again immediately. Failure to do so could lead to serious danger.
Exterior cleaning
If the tool is dirty, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chlorine solvent, petrol or paint thinner as these soften plastics.
11. Accessories
Use only original Metabo or CAS (Cordless Alliance System) battery packs and accessories.
Use only accessories that fulfil the requirements and specifications listed in these operating instructions.
Chargers: ASC 145, etc.
Battery packs with different capacities. Buy battery packs only with voltage suitable for your power tool.
4.0 Ah (LiHD), order no.: 625367000
5.5 Ah (LiHD), order no.: 625368000 etc.
5.2 Ah (Li-Ion), order no.: 625028000 etc.
For a complete range of accessories, see www.metabo.com or the catalogue.
12. Repairs
Repairs to electrical tools must ONLY be carried out by qualified electricians!
Contact your local Metabo representative if you have Metabo power tools requiring repairs. For addresses see www.metabo.com.
You can download a list of spare parts from www.metabo.com.
13. Environmental Protection
Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.
Packaging materials must be disposed of according to their labelling in accordance with municipal guidelines. Further information can be found at www.metabo.com in the “Service” section.
Battery packs may not be disposed of with regular waste. Return faulty or used battery packs to your Metabo dealer!
Do not allow battery packs to come into contact with water!
Only for EU countries: never dispose of power tools in your household waste!
According to European Directive 2012/19/EU
on Waste from Electric and Electronic Equipment and implementation in national law, used power tools must be collected separately and recycled in an environmentally-friendly manner.
Discharge the battery pack in the power tool before disposal. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape).
14. Technical Data
Explanatory notes on the specifications on page 3. Subject to change in accordance with technical progress.
U = Voltage of battery pack
N_D = Suitable nails: head diameter
N_d = Suitable nails: diameter
N_L = Suitable nails: length
N_W = nail strips angle
N_A = Nail capacity (pieces)
Z = C y c l e ( n a i l
m = Weight with smallest battery pack
Measured values determined in conformity with EN 62841.
Permitted ambient temperature during operation: 0 ^ (-4°F) to 40 ^ (120°F) (limited performance with temperatures below 0 ^ (32°F)). Permitted ambient temperature for storage: 0 ^ (32°F) to 30 ^ (86°F).
Recommended ambient temperature when charging: 0 °C to 40 °C
= direct current
The technical specifications quoted are subject to tolerances (in compliance with relevant valid standards).
Emission values
These values make it possible to assess the emissions from the power tool and to compare different power tools. The actual load may be higher or lower depending on operating conditions, the condition of the power tool or the accessories used. Please allow for breaks and periods when the load is lower for assessment purposes. Arrange protective measures for the user, such as organisational measures based on the adjusted estimates.
ENGLISHen
Vibration total value (vector sum of three directions) determined in accordance with EN 62841:
_h & = vibration emission value K_h & = uncertainty (vibration)
Typical A-weighted sound levels:
_pA & = & s & o & u & n & d & p & r & e & s & s & u & r & e & l & e & v & e & l L_WA & = & a & c & o & u & s & t & i & c & p & o & w & e & r & l & e & v & e & l
K_pA, K_WA = Uncertainty
The noise level can exceed 80 dB(A) during operation.
Wear ear protectors!
Notice originale
Transport van Li-ion-occupacks:
WAARSCHUWING! Activeringsbeveiliging (7) op stand "vergrendeld" zetten. Accupack (9)
verwijderen.
--- Corriente continua
--- Corrente contínua
4,0 Ah (LiHD), best.nr: 625367000
5,5 Ah (LiHD), best.nr: 625368000 osv.
5,2 Ah (li-jon), best.nr: 625028000
OSV.
Vårt kompletta tillbehörssortiment hittar du på www.metabo.com eller i katalogen.
12. Reparation
spikere settes for dypt.
→ Juster settedybden. Se kapittel 8.3.
Noen spikere hoppes over. Avbrutt innmating.
K_n = Usikkerhed (vibration)
Metabo-Allee 1
72622 Nuertingen
Germany
www.metabo.com
metabo®
PROFESSIONAL POWER TOOL SOLUTIONS
