| Product Type | Pneumatic Stapler (23 gauge pin nailer) |
| Brand | Metabo (HPT) |
| Model | NP35A |
| Dimensions (L × H × W) | 238 mm × 162 mm × 47 mm (9-3/8" × 6-3/8" × 1-27/32") |
| Weight | 0.9 kg (2.0 lbs) |
| Power Source | Clean, dry, regulated compressed air |
| Operating Pressure | 64 – 100 psi (4.4 – 6.9 bar / 4.5 – 7 kgf/cm²) |
| Maximum Pressure | Do not exceed 100 psi (6.9 bar / 7 kgf/cm²) |
| Magazine Capacity | 100 nails (staples) |
| Air Consumption | 0.018 ft³/cycle at 100 psi (0.5 l/cycle at 6.9 bar) |
| Air Inlet | 1/4 NPT Thread |
| Nail Lengths | 15 mm to 35 mm (23 gauge, pin staples) |
| Main Functions | Nailing by pulling the lock lever then trigger; depth adjustment; scratch-resistant nose cap |
| Applications | Installation of decorative plywood, baseboards, moldings |
| Safety | Lock lever preventing accidental firing; eye protection mandatory; never use gas other than compressed air |
| Lubrication | Metabo HPT pneumatic tool oil; use an in-line oiler |
| Maintenance and Cleaning | Drain air filter daily; clean magazine; lubricate after use |
| Spare Parts and Repairability | Repairs only by Metabo HPT authorized service center; use genuine parts |

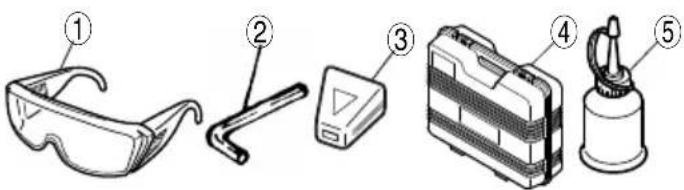

| Included Accessories | Safety glasses, hex key, nose caps (×2), case, oiler |
| General Information | Complies with safety standards; instruction manual included |
Frequently Asked Questions - NP35A METABO
User questions about NP35A METABO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Stapler in PDF format for free! Find your manual NP35A - METABO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. NP35A by METABO.
USER MANUAL NP35A METABO
Instruction and safety manual
Improper use of this Nailer can result in death or serious injury!
This Manual contains important information about product safety.
Read and understand this Manual before operating the Nailer.
Never allow anyone who has not reviewed this manual to use the tool.
This manual should be stored in safe place.
DANGER
ADJUSTING THE NAILING DEPTH 15
USING THE NOSE CAP 15
REMOVING THE NAILS. 16
HANDLING THE NAILS 16
MAINTENANCE
MAINTENANCE AND INSPECTION 17
SERVICE AND REPAIRS 18
PARTS LIST 54
TABLE DES MATIÈRES
François
Page Page
INFORMATION IMPORTANTE 20
DEFINITION DES MOTS DE SIGNALISATION ....20
SECURITE
CONSIGNES DE SECURITE IMPORTANTES POUR L'UTILISATION DU CLOUEUR. 21
RESPONSABILITES DE L'EMPLOYEUR, DU PROPRIÉTAIRE DE L'OUTIL ET DE L'OPÉRATEUR DE L'OUTIL 25
UTILISATION
NOM DES PIECES 26
SPECIFICATIONS 26
SELECTION DES CLOUS 27
ACCESSIONES 27
ACCESSIONS STANDARD 27
ACCESSIONS EN OPTION 27
APPLICATIONS 27
Read and understand tool labels and all of the operating instructions, safety precautions and warnings in this manual before operating or maintaining this Nailer. Failure to follow warnings could result in DEATH or SERIOUS INJURY
Most accidents that result from the operation and maintenance of Nailers are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.
Basic safety precautions are outlined in the "SAFETY" section of this Manual and in the sections which contain the operation and maintenance instructions.
Hazards that must be avoided to prevent bodily injury or machine damage are identified by DANGERS and WARNINGS on the Nailer and in this Manual.
NEVER use this Nailer for applications other than those specified in this Manual.

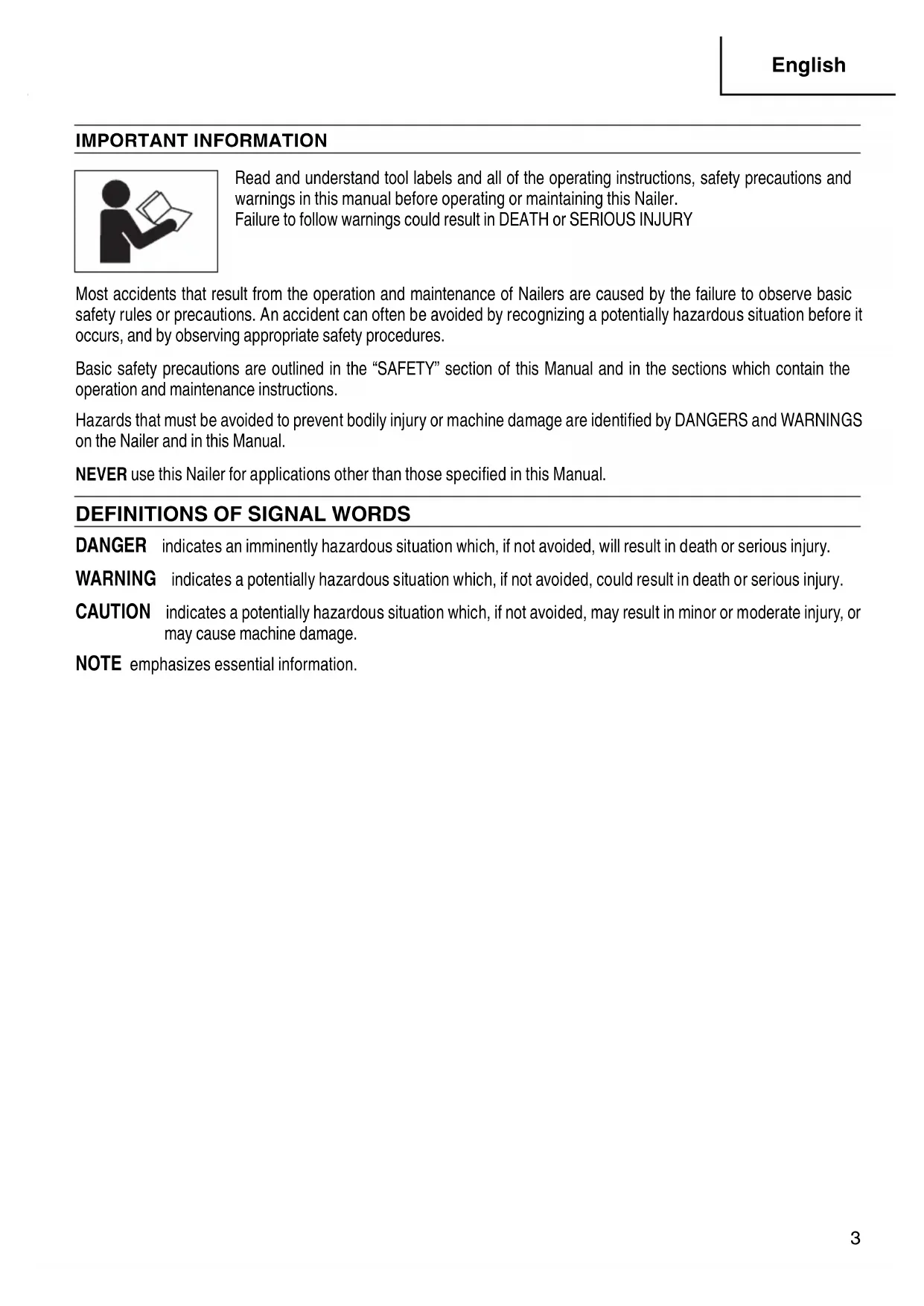

DEFINITIONS OF SIGNAL WORDS
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury, or may cause machine damage.
NOTE emphasizes essential information.
SAFETY
IMPORTANT SAFETY INSTRUCTIONS - FOR USING NAILERS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS
General
To reduce the risks of electric shock, fire, and injury to persons, READ ALL THE INSTRUCTIONS BEFORE USING THE TOOL.
DANGER
- OPERATORS AND OTHERS IN WORK AREA MUST WEAR EYE PROTECTION (SAFETY GLASSES WITH SIDE SHIELDS).
When operating the Nailer, always wear safety glasses with side shields, and make sure others in worn safety glasses, too.
Safety glasses must conform to the requirements of American National
Standards Institute, ANSI Z87.1 and provide protection against flying particles both from the front and side.
Ordinary eyeglasses do not provide adequate protection.
The employer must enforce the use of safety glasses by the Nailer operator and others in work area.
- NEVER USE REACTIVE GASES OR OTHER BOTTLED GASES. EXPLOSION MAY OCCUR.
Never use reactive gases such as oxygen, combustible gases or any other bottled gases as a power source for the Nailer.
Use of the above gases is dangerous, as the Nailer will explode.
Use only clean, dry, regulated compressed air.
WARNING
- NEVER POINT TOOL AT YOURSELF OR OTHERS IN WORK AREA.
Always assume that the Nailer contains fasteners.
Never point the Nailer toward yourself or others, whether it contains fasteners or not.
If fasteners are mistakenly driven, it can lead to severe injuries.
Never engage in horseplay with the Nailer.
Respect the Nailer as a working implement.
- DO NOT PLACE FINGER ON DOUBLE TRIGGER (TRIGGER AND LOCK LEVER) AND KEEP FINGERS AWAY FROM DOUBLE TRIGGER WHEN NOT DRIVING FASTENERS TO AVOID ACCIDENTAL DISCHARGE.
Never carry the Nailer with finger on double trigger since you could drive a fastener unintentionally and injure yourself or someone else.
Always carry the Nailer by the handle only.
- KNOW AND UNDERSTAND WHAT TRIGGER SYSTEM YOU ARE USING.
Read and understand section titled "METHODS OF OPERATION." (page 14)
- DO NOT MAKE CONTACT WITH SAFETY TIP (PUSH LEVER) WHEN NOT DRIVING FASTENERS.
SAFETY — Continued
WARNING
When using tools, basic precautions should always be followed, Including the following:
1. Work area
(1) Keep the work area clean and well lighted.
Cluttered benches and dark areas increase the risks of electric shock, fire, and injury to persons.
(2) Do not operate the Nailer in explosive atmospheres, such as in the presence of flammable liquids, gases, or combustible dust.
The Nailer is able to create sparks resulting ignition of the dust or fumes.
(3) Keep bystanders, children, and visitors away while operating the Nailer. Distractions are able to result in the loss of control of the Nailer.
2. Personal safety
(1) Stay alert. Focus on your work and use common sense when working with the Nailer. Do not use the Nailer while tired, after having consumed drugs or alcohol, or while under the influence of medication.
A moment of inattention while operating the Nailer increases the risk of injury to persons.
(2) Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep hair, clothing, and gloves away from moving parts.
Loose clothes, jewelry, or long hair increases the risk of injury to persons as a result of being caught in moving parts.
(3) Avoid unintentional starting. Be sure the switch is off before connecting to the air supply. Do not carry the Nailer with your finger on the switch or connect the Nailer to the air supply with the switch on.
(4) - Disconnect the Nailer from the air source before making adjustments, doing Nailer maintenance, clearing jams, attaching or removing the nose cap, when leaving work area, leaving the Nailer outside of the operator's supervision or control, loading, or unloading the Nailer, handing it to another person, elevating, lowering or otherwise moving the Nailer to a new location. Never attempt to clear a jam or repair the Nailer unless you have disconnected air hose from the Nailer and removed all remaining fasteners from the Nailer. The Nailer should never be left unattended since people who are not familiar with the Nailer might handle it and injure the themselves.
Such precautionary measures reduce the risk of injury to persons.
(5) Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the Nailer in unexpected situations.
(6) Use safety equipment. A dust mask, non-skid g safety shoes and a hard hat must be used for the applicable conditions.
(7) - Risk of hearing loss. Wear hearing protection.
Hearing protection shall have a Noise Reduction Rating (NRR) determined in accordance Environmental Protection Agency rules that is appropriate for noise exposure.
(8) Always wear head protection.
Always wear head protection to head from flying objects.
(9) Do not attach the hose or Nailer to your body.
Attach the hose to the structure to reduce the risk of loss of balance if the hose shifts.
(10) - Drive Nails into proper work surface only. Do not drive nail into other nails. This is able to cause the fastener to be deflected and hit someone, or cause the Nailer to react and result in a risk of injury to persons.
3. Nailer use and care
(1) Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against the body is unstable and is able to lead to loss of control.
(2) Do not force the Nailer. Use the correct Nailer for the application. The correct Nailer will do the job better and safer at the rate for which the Nailer is designed.
(3) Do not use the Nailer if the switch does not turn the Nailer on or off. Any Nailer that cannot be controlled with the switch is dangerous and must be repaired.
Never use Nailer which is defective or operating abnormally. If the Nailer appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center. 5
SAFETY — Continued
WARNING
(4) Disconnect the Nailer from the air source before making any adjustments, changing accessories, or storing the Nailer. Such preventive safety measures reduce the risk of unintentionally.
(5) Store the Nailer when it is idle out of reach of children and other untrained persons. A Nailer is dangerous in the hands of untrained users.
(6) Maintain the Nailer with care. Keep the Nailer Clean and lubricated for better and safer performance.
(7) Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the Nailer's operation.
If damaged, have the Nailer serviced before using. Because of high air pressure in the Nailer, cracks in the surface are dangerous. To avoid this, do not drop the Nailer or strike the Nailer against hard surfaces; and do not scratch or engrave signs on the Nailer. Many accidents are caused by poorly maintained Nailers. There is a risk of bursting if the Nailer is damaged.
(8) Do not use the Nailer that is not in proper working order. Tags and physical segregation shall be used for control.
(9) Use only accessories that are identified by metabo HPT for the specific Nailer. Use of an accessory not intended for use with the specific Nailer, increases the risk of injury to persons.
(10) Use only those fasteners listed in the Accessories section of this manual. Fasteners not identified for use with this Nailer by metabo HPT are able to result in a risk of injury to persons damage when used in this Nailer.
4. Service
(1) Tool service must be performed only by qualified repair personnel.
(2) When servicing a Nailer, use only identical replacement parts. Use only authorized parts.
(3) Use only the lubricants supplied with the Nailer or specified by metabo HPT.
5. Air source
(1) Never connect to an air source that is capable of exceeding 200 psi (13.7 bar 14kgf/cm^2 ) if a regulator fails.
Over pressurizing the Nailer is able to result in bursting, abnormal operation, breakage of the Nailer or serious injury to persons.
starting

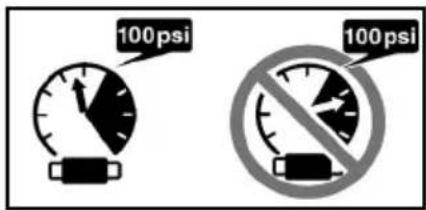

DO NOT EXCEED 100 psi (6.9 bar 7kgf/cm^2 ).
Use only clean, dry, regulated compressed air at the rated pressure or within the rated pressure range as marked on the Nailer.
Always verify prior to using the Nailer that the air source has been adjusted to the rated air pressure or within the rated air-pressure range.
(2) Never use reactive gases such as oxygen, carbon dioxide, combustible gases or any bottled gas as an air source for the Nailer. Such gases are capable of explosion and serious injury to persons.
6. Others
(1) Be careful of unwanted ejection or being hit by the Nailer due to spring back ("recoil").
After driving a nail, the Nailer may recoil causing it to move away from the work surface.
To reduce risk of injury always manage recoil by:
1) always maintaining control of the Nailer.
2) allowing recoil to move the Nailer away from work surface.
3) not resisting recoil such that the Nailer will be forced back into the work surface.
or Na pulling the trigger rapidly and firmly, and releasing it QUICKLY.
5) keeping face and body parts away from the Nailer.
(2) Never Use NON relieving coupler on Nailer. If a non relieving coupler is used on the Nailer, the Nailer can remain charged with air after disconnecting and thus will be able to drive a fastener even after disconnecting. The Nailer and air hose must have a hose coupling such that all pressure is removed from the Nailer when the coupling joint is disconnected.
(3) Check double trigger before use.
The Nailer will not operate unless you pull the lock lever before you pull the trigger.
SAFETY — Continued
WARNING
Make sure the lock lever operates properly, and is not inoperable, disconnected, or altered. (The lock lever may be called "Safety".) Never use the Nailer unless the lock lever is operating properly, otherwise the Nailer could drive a fastener unexpectedly. Do not tamper with or remove the lock lever, cause the lock lever to become inoperable.
With no nails loaded in the Nailer, connect the air hose and check the following.
There is no operating noise from the piston inside the Nailer when the trigger is pulled without first pulling the lock lever.
Using the Nailer when it is not operating normally may lead to injury. If any abnormality occurs, contact the dealer where the Nailer was purchased or your nearest metabo HPT authorized service center and arrange for repairs.
(4) Keep all screws and covers tightly in place. Keep all screws and covers tightly mounted.
Check their condition periodically. Never use the Nailer if parts are missing or damaged.
(5) Do not load fasteners with trigger or lock lever pulled. When loading fasteners into the Nailer or when connecting the air hose,
1) do not pull the trigger;
2) do not pull the lock lever; and
3) keep the Nailer pointed downward.
(6) Keep hands and body away from fi ring head during use. Never place your hands or feet closer than 8 inches (200 mm) from the fi ring head. A serious injury can result if the fasteners are deflected by the workpiece, or are driven away from the point of entry.
(7) When working close to an edge of a workpiece or at steep angles, or driving fasteners into thin workpiece use care to minimize chipping, splitting or splintering, or free flight, ricochet or piercing of fasteners, which may cause injury.
(8) Never drive fasteners from both sides of a wall at the same time. The fasteners can be driven into and through the wall and hit a person on the opposite side.
(9) Use extra caution when driving the Nailer into existing walls or other blind areas to prevent contact with hidden objects or persons on other side (eg., wires, pipes).
(10) Check for live wires. Avoid the risk of severe electrical shock by checking for live electrical wires that may be hidden by walls, floors or ceilings. Turn off the breaker switch to ensure there are no live wires.
(1) Demotsit, pull or lower the Nailer by the hose.
(12) Do not disconnect air hose from Nailer with finger on Trigger. The Nailer can fire when reconnected to An air supply.
(13) Handle Nailer correctly. Operate the Nailer according to this Manual. Never allow the Nailer to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.
(14) Never use Nailer for applications other than those specified in this manual.
(15) Never modify or alter a Nailer. Doing so may cause it to malfunction and personal injuries may result.
SAFETY — Continued
WARNING
RESPONSIBILITIES OF EMPLOYER, TOOL OWNER AND TOOL OPERATOR
- Ensure that this MANUAL is available and personnel performing maintenance.
- Train the operator in the safe use of the Nailer as described in this MANUAL.
- Ensure that only persons who have read and understand this MANUAL operate the Nailer.
-
Ensure that Nailers are used only when operators and others in work area are wearing EYE PROTECTION, and other appropriate personal protective equipment such as HEAD, HEARING, FOOT PROTECTION.
-
ofense use of EYE PROTECTION by operators and others in work area.
- Ensure that Nailers are kept in safe working order as described in this MANUAL.
- Maintain Nailers properly.
- Ensurer that only qualified personnel Nailers.
- Ensure that Nailers that require repair are removed from service and that tags and physical segregation are used as a means of control.
SAVE THIS MANUAL AND KEEP IT AVAILABLE FOR OTHERS!
OPERATION
NOTE: The information contained in this Manual is designed to assist you in the safe operation of the Nailer. Some illustrations in this Manual may show details or attachments that differ from those on your own Nailer.

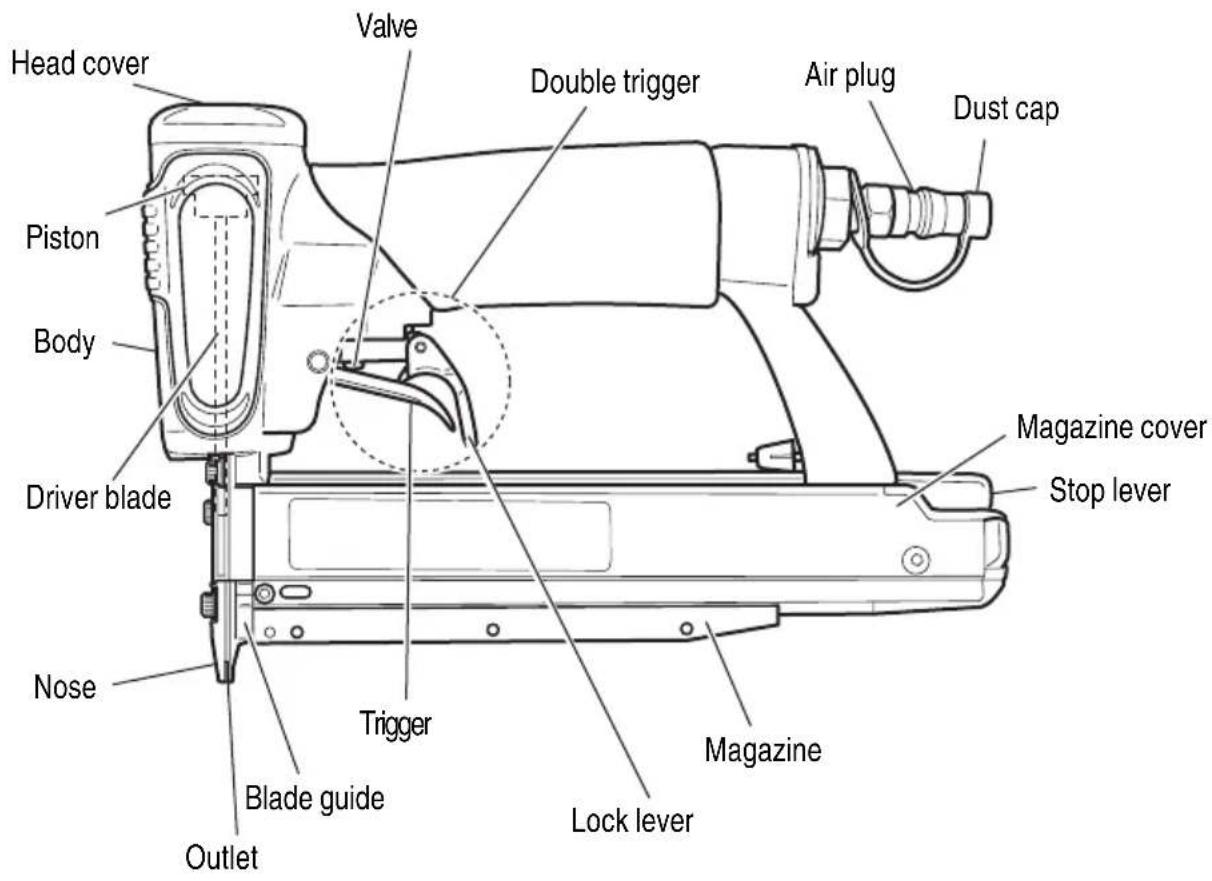

NAME OF PARTS
SPECIFICATIONS
| Operating pressure 64 - 100 psi (4.4 - 6.9 bar | 4.5 - 7 kgf/cm |
| Dimensions Length × Height × Width | 9-3/8" × 6-3/8" × 1-27/32" (238 mm × 162 mm × 47 mm) |
| Weight 2.0 lbs. (0.9 kg) | |
| Nail capacity 100 nails | |
| Air consumption | .018 ft3/cycle at 100 psi (.5 ltr/cycle at 6.9 bar) (.5 ltr/cycle at 7 kgf/cm2) |
| Air inlet 1/4 NPT Thread |
NAIL SELECTION
WARNING
Be sure to use only the genuine metabo HPT nails for the NP35A. The use of any other nails can result in tool malfunction and/or nail breakdown, leading to serious injuries.
Only nails shown in the Table below can be driven with this Nailer.
| 23 Gauge pin nails | |
| Min. Max. | |
| .024" (0.6 mm) | 5/8" (15 mm) |
| .024" (0.6 mm) | |
| 1-3/8" (35 mm) | |
ACCESSIONS
WARNING
Accessories other than those shown below can lead to malfunction and resulting injuries.
STANDARD ACCESSORIES
| ① Eye protection 1 | |
| ② Allen wrench for M4 screw 1 | |
| ③ Nose cap (A) 2 | |
| ④ Case 1 | |
| ⑤ Lubricant oiler 1 |
OPTIONAL ACCESSORIES ...sold separately
OPneumatic tool lubricant
1 oz. (30 cc) oil feeder (Code No. 877153)
4 oz. (120 cc) oil feeder (Code No. 874042)
1 quart (1ltr) can (Code No. 876212)
NOTE
Accessories are subject to change without any obligation on the part of metabo HPT.
APPLICATIONS
Constallation of decorated plywood such as baseboards and edgings in interiors of buildings.
BEFORE OPERATION
Read section titled "SAFETY" (pages 4-8).
Make sure of the followings before operation.
WORKING ENVIRONMENT
WARNING
No flammable gas, liquid or other flammable objects at worksite.
Clear the area of children or unauthorized personnel.
AIR SUPPLY
DANGER
NEVER use reactive
or other
bottled gases.
Explosion may occur.
WARNING
Never connect Nailer to pressure which potentially exceeds 200 psi (13.7 bar 14 kgf/cm²) if a regulator fails.
Never use non relieving coupler on Nailer.
1. Power source
Use only clean, dry, regulated compressed air as a power source for this Nailer.
Air compressors used to supply compressed air to this Nailer must comply with the requirements of the latest version of ANSI Standard B 19.3 "Safety Standard For Compressors For Process Industries".
Moisture or oil in the air compressor may accelerate wear and corrosion in the Nailer. Drain daily.

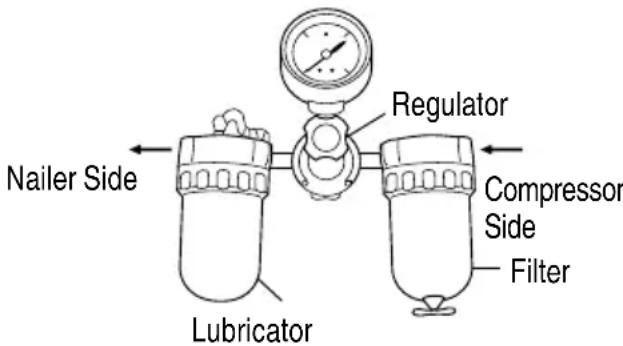

2. Filter-Regulator-Lubricator
Use a regulator with a pressure range of 0 - 100 psi (0 - 6.9 bar 0 - 7 kgf/cm²).
Filter-regulator-lubricator units supply an optimum condition for the Nailer and extend the Nailer life.
These units should always be used.
Filter . The filter removes moisture and dirt mixed in compressed air.
Drain daily unless fitted with an automatic drain.
Keep the fi iter clean by regular maintenance.
Regulator .... The regulator controls the operating pressure for safe operation of the Nailer.
Inspect the regulator before operation to be sure it operates properly.
Lubricator .... The lubricator supplies an oil mist to the Nailer.
Inspect the lubricator before operation to be sure the supply of lubricant is adequate.
Use metabo HPT pneumatic tool lubricant.
3. Air hose
Compressed air supply hoses shall have a minimum working pressure rating equal to or greater than the pressure from the power source if a regulator fails, or 150 psi (10.4 bar 10.6kgf/cm^2 ), whichever is greater.
4. Air consumption
Using the Air consumption table and the Air compressor size formula, find a correct compressor size.
Air consumption table
| Operating pressure | psi(bar) (kgf/cm2) | 80(5.5)(5.6) | 90(6.2)(6.3) | 100(6.9)(7) |
| Air consumption | ft3/cycle(ltr/cycle) | .011(.3) | .015(.4) | .018(.5) |
Air compressor size formula
Amount of air required
= number of Nailers
× average nails driven each minute per Nailer
× air consumption at given air pressure
× safety factor (always 1.2)
Example: 3 Nailers operating at 100 psi driving 30 nails per minute
Amount of air required
$$ = 3 \times 3 0 \times . 0 1 8 (. 5) \times 1. 2 $$
= 1.9 CFM (ft 3 / ) (94 ltr/min)
After making the calculations as shown above, you should find a compressor providing 1.9 CFM of air that is required.
LUBRICATION
It is important that the Nailer be properly lubricated.
Without proper lubrication, the Nailer will not work properly and parts will wear prematurely.
Use metabo HPT pneumatic tool lubricant.
Do not use detergent oil or additives. These lubricants will harm the O-rings and other rubber parts. This will cause the Nailer to malfunction.
Filter-regulator-lubricator units should always be used. Keep the lubricator filled with metabo HPT pneumatic tool lubricant.
Of a lubricator is not available, supply 5 - 10 drops of metabo HPT pneumatic tool lubricant into the air plug on the Nailer twice a day.
COLD WEATHER CARE
Do not store the Nailer in a cold weather environment. Keep the Nailer in a warm area until beginning the work.
Of the Nailer is already cold, bring it in a warm area and allow the Nailer to warm up before use.
① Reduce the air pressure to 64 psi (4.4 bar kgf/cm²).
② Remove all nails from the Nailer.
③ Connect the air hose and free-fire (blank-fire) the Nailer.
The lowered air pressure will be enough to free fi re the Nailer.
Slow speed operation tends to warm up the moving part. 11
CAUTION
Do not free-fi re the Nailer at high pressure.
TESTING THE NAILER
DANGER
Operators and others in workar wear safety glappes with side shields which conforms to ANSI Z87.1 specifi cations.
Ordinary eyeglasses do not provide adequate protection.
WARNING
- lever use Nailer unless lock lever is operating properly.
Before actually beginning the nailing work, test the Nailer by using the checklist below. Conduct the tests in the following order.
If abnormal operation occurs, stop using the Nailer and contact a metabo HPT authorized service center immediately.
(1) Disconnect air hose from Nailer.
Remove all nails from Nailer.
All crews must be tightened.
If any screws are loose, tighten them.
The lock lever and trigger must move smoothly.
(2) Adjust the air pressure to 64 psi (4.4 bars 4.5kgf/cm^2 ).
Connect the air hose.
Do not load any nails in the Nailer.
The Nailer must not leak air.
Hold the Nailer downward, without touching the lock lever and pull the trigger.
The Nailer must not operate.
(3) If no abnormal operation is observed, you may load nails in the Nailer.
Drive nails into the workpiece that is the same type to be used in the actual application.
The Nailer must operate properly.
ADJUSTING AIR PRESSURE
WARNING
Do not exceed 100 psi (6.9 bars 7kgf/cm^2 ).
Adjust the air pressure at recommended operating pressure 64 - 100 psi (4.4 - 6.9 bar 4.5 - 7kgf / cm^2 according to the length of nails and the hardness of workpiece.
The correct air pressure is the lowest pressure which will do the job. Using the Nailer at a higher than required air pressure unnecessarily over stresses the Nailer.
LOADING NAILS
WARNING
When loading nails into Nailer,
1) disconnect air hose
2) do not pull trigger and lock lever; and
3) keep Nailer pointed downward.
NOTE
Use 5 or more connected nails.

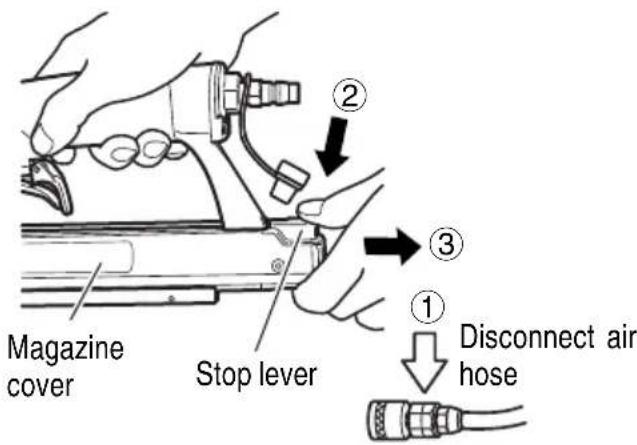

(1) ① Disconnect air hose from Nailer.
② Lightly depress the stop lever.
③ Pull out the magazine cover slowly.

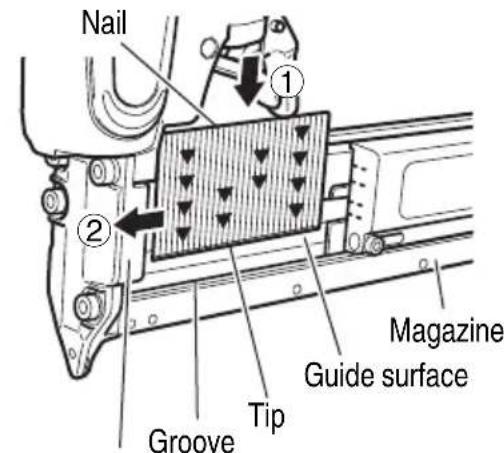

(2) ① Place the nails against the magazine guide surface and insert the tips of the nails as far as they will go into the groove in the magazine.
② Feed the nails in the magazine into the blade guide with your fingers.
Blade guide
(3) Push the back-end of the magazine cover forward and check that the nails do not protrude from the magazine guide surface before closing the magazine.
NOTE

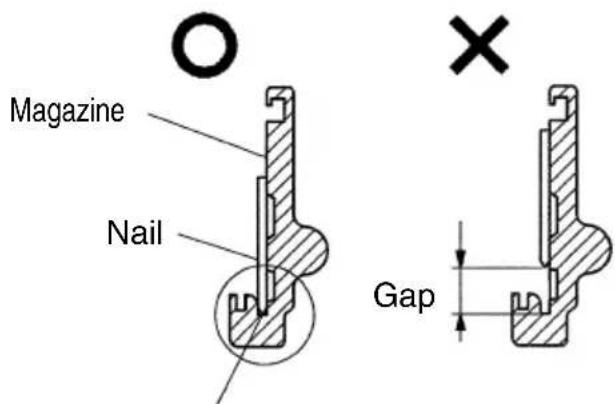

Load the nails with the tips facing toward the groove in the magazine.
Do not load nails of different lengths.
Nails between 15 mm and 35 mm long can be used in this Nailer without any adjustment, but whatever length they are, make sure that the tips of the nails are inserted as far as they will go into the groove in the magazine.
Bottom of groove
The Nailer is now ready to operate.
NAILER OPERATION
Read section titled "SAFETY" (pages 4-8).
DANGER
Operators and others in work area must wear safety glasses with side shields which conforms to ANSI Z87.1 specifications.
Ordinary eyeglasses do not provide adequate protection.
WARNING
-Only person who have read and understand this MANUAL should operate the Nailer.
Never point tool at yourself or others in work area.
-
Keep fingers AWAY from trigger and lock lever when not driving nails to avoid accidental discharge.
-
Know and understand what trigger system you are using.
Please read and understand "Methods of operation" found below.
- Never place your hands or body closer than 8 inches (200 mm) from fi ring head when using.
Do not drive nails into other nails; nails can ricochet and hurt someone.
Do not actuate Nailer unless Nailer is placed firmly against the workpiece.
On order to avoid unwanted ejection of a nail due to bouncing of the Nailer,
1) release trigger quickly when performing trigger fire.
When working close to an edge of a workpiece or at steep angles, or driving fasteners into thin workpiece use care to minimize chipping, splitting or splintering, or free flight, ricochet or piercing of fasteners, which may cause injury.
-
Never drive nails from both sides of a wall at the same time. Nails can be driven into and through the wall and hit a person on the opposite side.
-
Never use Nailer which is defective or operating abnormally.
Do not use Nailer as hammer.
Disconnect air hose from Nailer when:
1) it is not in use;
2) leaving work area;
3) elevating, lowering or otherwise moving it to another location;
4) handing it to another person;
5) performing any maintenance or repairs;
6) clearing a jam;
7) Nailer is outside of the operator's supervision or control;
8) removing nails from the magazine;
9) adjusting nailing depth; and
10) attaching or removing the nose cap.
METHODS OF OPERATION
WARNING

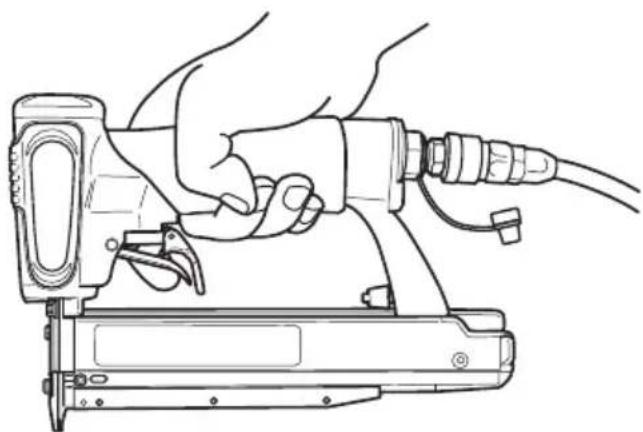

After the lock lever has been pulled, nails can be driven simply by pulling the trigger. Do not touch the trigger or the lock lever other than when driving nails.
Do not drive one nail on top of another.
NOTE
When using the Nailer in low temperatures, operation may be affected.

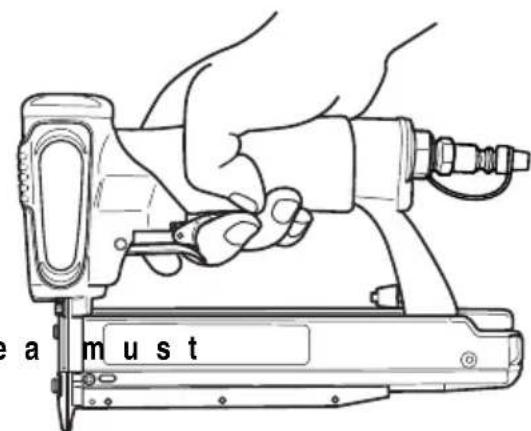

- Using the trigger and lock lever In addition to the usual trigger, this Nailer is equipped with a lock lever that acts as a safety device. Nails are driven by pulling the lock lever and then pulling the trigger.
Trigger
level
Trigger
2. Driving nails

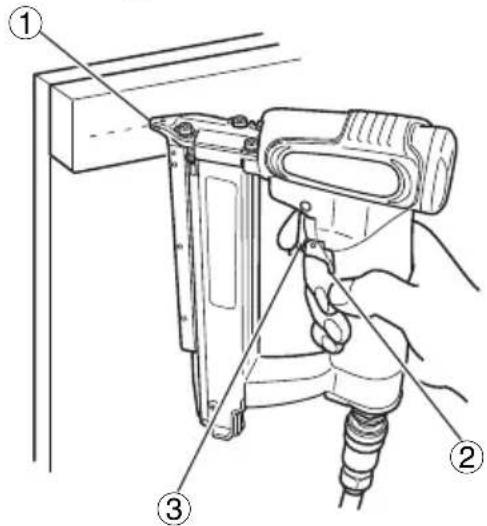

① Press the nail exit lightly against the position where you want to drive the nail.
② Pull the lock lever.
(3) Pull the trigger.
ADJUSTING THE NAILING DEPTH
WARNING

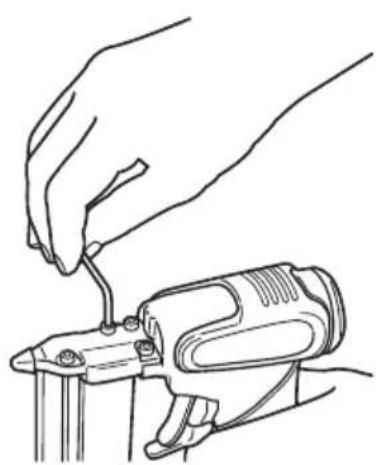

When adjusting the nose, be sure to remove your finger from the trigger and lock lever, and disconnect the air hose from the Nailer.
To assure that each nail penetrates to the same depth, be sure that:
1) the air pressure to the Nailer remains constant (regulator is installed and working properly), and
2) the Nailer is always held firmly against the workpiece. If nails are driven too deep or shallow into the workpiece, adjust the nailing in the following order.

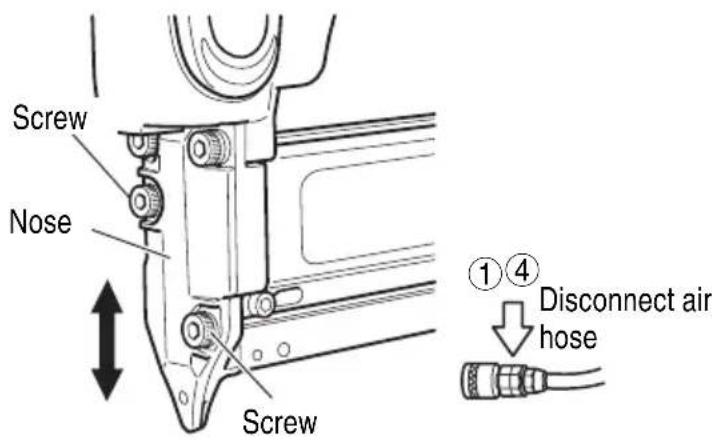

① Disconnect air hose from Nailer.
② To adjust the driven-in depth of a nail, loosen the screw that secures a nose.

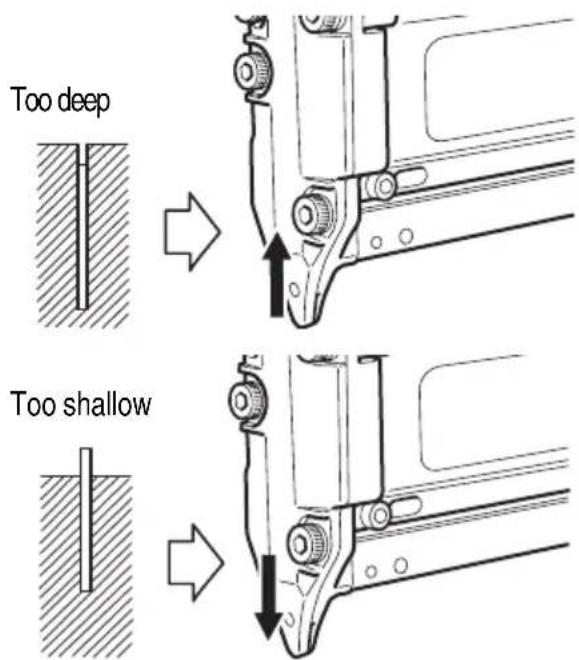

If the nail is driven in deeply, adjust the nose to "up", thickness. Re-adjustment of nailing depth is required. and if it's driven in shallowly, adjust the nose to "down".
③ Tighten the screw to fasten the nose when a suitable position is reached for a nailing test.
4 Connect the air hose. Always wear eye protector. Perform a nailing test.
⑤ Disconnect air hose from Nailer.
Choose a suitable position for the nose.
USING THE NOSE CAP
WARNING
When attaching or detaching the nose cap, be sure to remove your fi nger from the trigger and lock lever, and disconnect the air hose from the Nailer.
If you like to protect the surface of workpiece against scratches or markings made by the nose, attach the accessory nose cap to the nose.
① Disconnect air hose from Nailer.

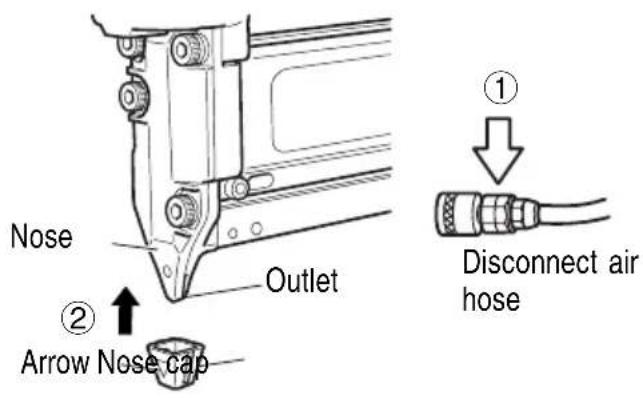

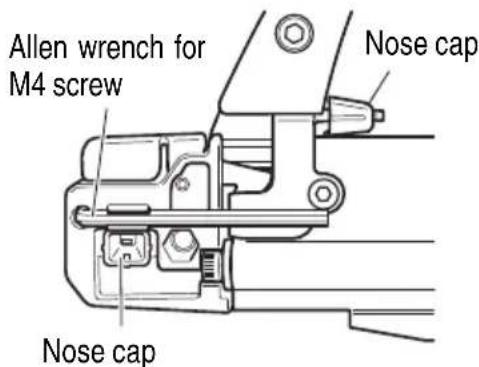

② Attach the nose cap to the nose with the arrow mark on the cap facing toward the front.
③ When not using the nose cap, secure in the storage compartment located on the reverse side of the magazine.
NOTE
The nose cap may reduce nailing depth due to its thickness. Re-adjustment of nailing depth is required. Just the nose to
REMOVING THE NAILS
WARNING
Before removing the nails, be sure to remove your finger from the trigger and lock lever, and disconnect the air hose.
(1) When 15 or more nails remain
Depress the stop lever and pull out the magazine cover.
Remove the nails from the magazine.
(2) When fewer than 15 nails remain

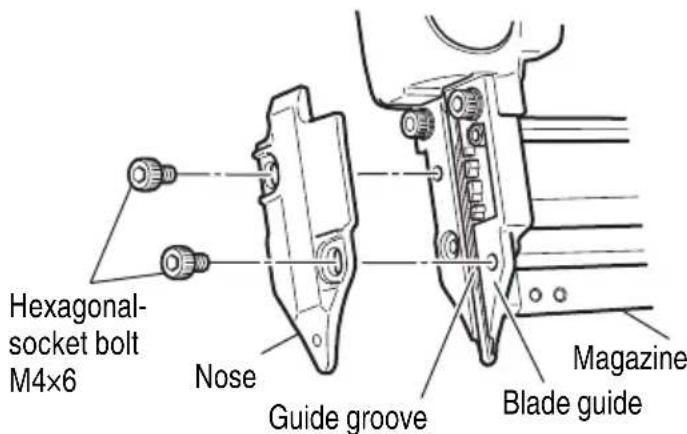

ORemove the nose using the 3 mm Allen wrench stored in the back-end of the magazine.
ORemove the nails from the guide surface of the blade guide.
(See section 1 of "MAINTENANCE AND INSPECTION" on page 17)
NOTE
When fewer than 15 nails remain, use caution as it is hard to see the remaining nails in the blade guide.
HANDLING THE NAILS
NOTE
OHandle the nails carefully.
If nails are dropped, the connection may break. Using nails in this condition may cause mis-feeding and jamming.
Do not expose the nails to the outside air or to direct sunlight for long periods as this may lead to rusting or faulty connection of the nails. When not in use, keep the nails in the box.
MAINTENANCE
NOTE: The information contained in this Manual is designed to assist you in the safe maintenance of the Nailer. Some illustrations in this Manual may show details or attachments that differ from those on your own Nailer.
MAINTENANCE AND INSPECTION
Read section titled "SAFETY" (pages 4-8).
WARNING
Disconnect air hose, remove your finger from the trigger and lock lever, and remove all nails from Nailer when:
1) doing maintenance and inspection; and 2) clearing a jam.
- Clearing a jam
Remove a jammed nail in the following order:
① Disconnect air hose.
② Remove all nails.
③ Remove the nose with the Allen wrench stored in the rear of the magazine.
Disconnect air hose
④ Remove the jammed nail with a slotted-head screwdriver.
⑤ Install the nose.
In case of frequent jam, contact a metabo authorized service center.
- Storing
When not in use for an extended period, apply a thin coat of the lubricant to the steel parts to avoid rust.
Do not store the Nailer in a cold weather environment. Keep the Nailer in a warm area.
When not in use, the Nailer should be stored in a warm and dry place.
Keep out of reach children.

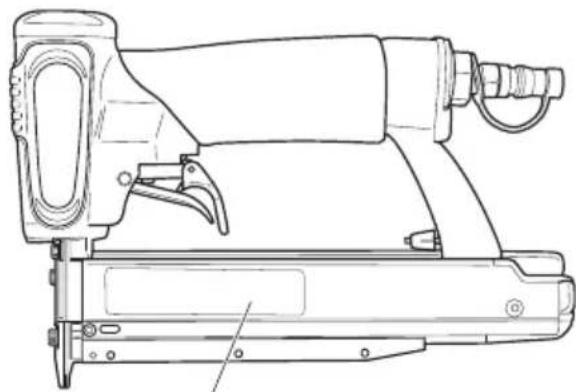

- Warning label
Do not use the Nailer with missing or damaged WARNING LABEL.
A new warning label is available from a metabo HPT authorized service center.
Warning label
- Maintenance chart (page 18)
- Operator troubleshooting (page 19)
- Service parts list
CAUTION
Repair, modification and inspection of metabo HPT Power Tools must be carried out by a metabo HPT Authorized Service Center.
This Parts List will be helpful if presented with the tool to the metabo HPT Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
MODIFICATIONS
metabo HPT Power Tools are constantly being improved and modified to incorporate the latest technological advancements.
Accordingly, some parts may be changed without prior notice.
SERVICE AND REPAIRS
WARNING
- Only service personnel trained by metabo HPT, distributor or employer shall repair the Nailer.
- Use only parts supplied or recommended by metabo HPT for repair.
All quality Nailers will eventually require servicing or replacement of parts because of wear from normal use.
NOTE
Specifications are subject to change without any obligation on the part of metabo HPT.
Maintenance chart
| ACTION WHY HOW | ||
| Drain air line filter daily. | Prevent accumulation of moisture and dirt. | Open manual petcock. |
| Keep lubricator filled. | Keep the Nailer lubricated. | Fill with metabo HPT pneumatic tool lubricant. |
| Clean fi liter element and blow air through fi liter in direction opposite to normal fl ow daily. | Prevent clogging of filter with dirt. | Follow manufacturer's instructions. |
| Clean magazine and feeder mechanism. | Prevent a jam. Blow clean daily. | |
| Keep lock lever working properly. | Promote operator safety and efficient Nailer operation. | Blow clean daily. |
| Lubricate the Nailer after nailing. Extend the Nailer life. Supply 5-10 drops of lubricant into the Nailer. | ||
| Drain air compressor daily. | Keep the Nailer operated properly. | Open petcock on air compressor tank. |
Most minor problems can be resolved quickly and easily using the table below. If problems persist, contact a metabo HPT authorized service center for assistance.
Operator troubleshooting
| PROBLEM CHECK METHOD | ||
| Nailer operates, but no nail is driven. Check for a jam. Clear a jam page 17. | ||
| Nailer feeder damaged? Replace nail feeder. | ||
| Pushing spring awake or damaged? | Replace pushing spring. | |
| Check for proper nails. Use only recommended nails. | ||
| Weak drive.Slow to cycle. | Check air pressure. Increase air pressure. | (Do not exceed 100 psi (6.9 bar 7 kgf/cm2)) |
| Check position of nailing depth adjuster. | Readjust per page 15. | |
| —— | Use metabo HPT pneumatic tool lubricant. | |
| Driver blade worn? Contact metabo HPT for replacement. | ||
| Piston O-ring worm or damaged? | ||
| Drives too deep. Check air pressure. Reduce air pressure. | (Adjust 64 - 100 psi (4.4 - 6.9 bar 4.5 - 7 kgf/cm2)) | |
| Check position of nailing depth adjuster. | Readjust per page 15. | |
| Skipping nails.Interrittent feed. | Check for proper nails. Use only recommended nails. | |
| Nailer feeder damaged? Replace nail feeder. | ||
| Pushing spring awake or damaged? | Replace pushing spring. | |
| Piston O-ring worn or damaged? Contact metabo HPT for replacement. | ||
| Nails jam.Driven nail is bent. | Check for proper nails. Use only recommended nails. | |
| Driven blade worn? | Contact metabo HPT for replacement. | |
| Drives properly during normal operation, but does not drive fully at faster nailing speeds. | Check inside diameter of air hose. | Use larger air hose. |
INFORMATION IMPORTANTE
ACCESSIONES EN OPTION
Minato-ku, Tokyo 108-6020, Japan
Distributed by
Koki Holdings America Ltd.
1111 Broadway Ave,
Braselton, Georgia, 30517
Koki Holdings America Ltd. Canadian Branch
3405 American Drive, Units 9-10,
Mississauga, ON, L4V 1T6
809
Code No.C99127163 O
Printed in Taiwan
