Product Type	LED projector with external Powerbank battery
Brand	Parkside
Model	PFLA 4400 B1
Light source	LED COB 20 W
Lighting modes	100%, 50%, SOS, flashing
Battery	Lithium-ion 3.7 V, 4400 mAh, 16.28 Wh (non-replaceable)
Battery life (100%)	Approx. 2.5 hours
Charging time	Approx. 6.5 hours
Charging input	USB Type-C, 5 V 1 A
Powerbank output	USB, 5 V 1 A (1400 mAh)
Protection rating	IP54 (with protective cap closed)
Protection class	III
Dimensions (folded)	24.5 x 22.5 x 3.5 cm
Weight	695 g
Projection surface	14.8 x 11.0 cm
Minimum distance to illuminated object	0.1 m
Operating ambient temperature	0°C to +45°C
Usage	Private, dry indoor or outdoor without electrical connection
Warranty	3 years
Maintenance	Dry or slightly damp cloth, cap closed, do not immerse
Repairability	LED and battery not user-replaceable, repair by manufacturer or customer service

Frequently Asked Questions - PFLA 4400 B1 PARKSIDE

How to charge the Parkside PFLA 4400 B1 projector?

Open the protective cap, connect the supplied USB cable to the USB Type-C input port and to a 5 V 1 A power adapter (not included). Full charging time is approximately 6.5 hours. The charge indicator shows the level.

What is the battery life?

At full brightness (100%), battery life is approximately 2.5 hours. In 50% mode, it is longer. The 4400 mAh lithium-ion battery also powers the powerbank function.

What lighting modes are available?

Four modes are accessible by pressing the switch several times: 100%, 50%, SOS (distress signal) and flashing. A fifth press turns off the light.

Can I use the projector to charge my phone?

Yes, thanks to the Powerbank function. Connect your device to the USB output port with the supplied USB cable. The charging capacity is 1400 mAh at 5 V 1 A. Make sure the battery of the device to be charged has a capacity lower than 4400 mAh.

Is the projector waterproof?

It has a protection rating of IP54 only when the protective cap is properly closed. This means it is protected against dust and splashes of water. During charging or use as a Powerbank, use it only indoors.

How to clean the projector?

Before any cleaning, turn off the device, disconnect the USB cable, and close the protective cap. Use a dry or slightly damp cloth. Never use corrosive products and never immerse the device in water.

Can I replace the battery or LEDs?

No. The LEDs and lithium-ion battery are built-in and not user-replaceable. At end of life, the entire product must be recycled. For any issues, contact customer service.

What is the minimum distance to be maintained between the projector and the illuminated object?

To avoid any fire hazard, maintain a distance of at least 0.1 meter between the projector and the illuminated material. Do not direct the light towards flammable surfaces.

What to do if the projector does not turn on?

First check the battery charge by pressing the switch. If no LED lights up, recharge the device for at least 6.5 hours. If the problem persists, contact Parkside customer service.

What is the warranty for the Parkside PFLA 4400 B1?

The product has a warranty of 3 years from the date of purchase. Keep the receipt as proof. The warranty covers material and manufacturing defects, but not normal wear or damage due to misuse.

USER MANUAL PFLA 4400 B1 PARKSIDE

LED-STRAHLER MIT POWERBANK / LED WORK LIGHT WITH POWER BANK / PROJECTEUR LED AVEC BATTERIE EXTERNE POWERBANK PFLA 4400 B1

DE AT CH

LED-STRAHLER MIT POWERBANK

Operation and safety notes

FR BE

PROJECTEUR LED AVEC BATTERIE EXTERNE POWERBANK

LED REFLEKTOR S POWERBANKOU

LED REFLEKTOR S POWERBANKOU

Pokyny pre obsluhu a bezpečnostné pokyny

ES

FOCO LED CON BATERÍA EXTERNA

Technical diagram of a mechanical component with threaded ends and internal structure (no text or symbols)

9 8 7

3 2 6 4 5

B

10

360° 360°

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

Warnings and symbols used ...... Page 21

Introduction Page 22

Intended use.... Page 22

Description of parts ...... Page 22

Technical data Page 23

Scope of delivery. Page 24

Safety instructions.... Page 24

Safety instructions for batteries / rechargeable batteries .... Page 26

Before use ...... Page 27

Charging the product. Page 27

Checking the battery capacity....Page 29

Operation...... Page 29

Using as a LED light.... Page 30

Using as a charger.... Page 30

Maintenance and cleaning Page 31

Disposal Page 32

Warranty Page 33

Warranty claim procedure.... Page 34

Service Page 34

Warnings and symbols usedThe following warnings are used in this user manual and on the packaging:
	Direct current/voltage		Alternating current/voltage
	Protection class III USB connec symbol
	Read user manual before use.		Minimum distance to illuminated material
IP54	IP54 (dust protected and splash-proof)	[HY50]	Maximum rated ambient temperature
	Product designed to withstand severe mechanical handling		CE mark indicates conformity with relevant EU directives applicable for this product.

LED WORK LIGHT WITH POWER BANK

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is intended for normal use.

This product is only suitable for private use in dry indoor locations or outdoor areas without electrical connection (e.g. storerooms or camping sites).

This product is not intended for commercial use or for use in other applications.

This product is not suitable for household room illumination.

● Description of parts

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the product.

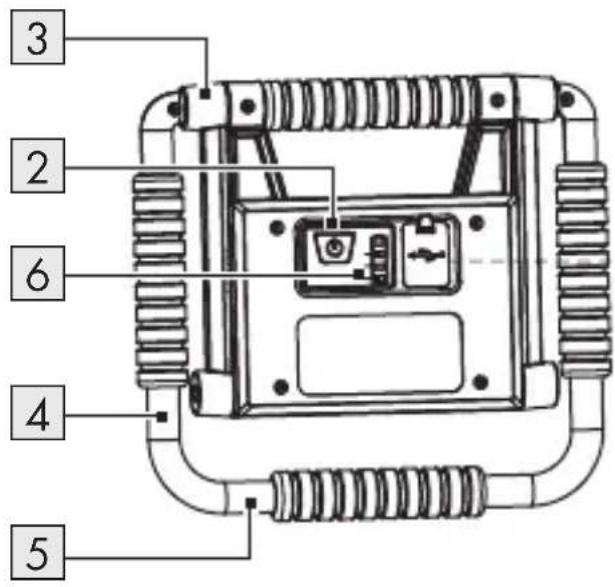

(Fig. A, B)

1 LED light
2 ON/OFF switch
3 Hinge joint
4 Adjustable foot / hand grip
5 Cushioned feet

6 Charging indicator
7 Protective cap
8 USB input socket (Type C)
9 USB output socket

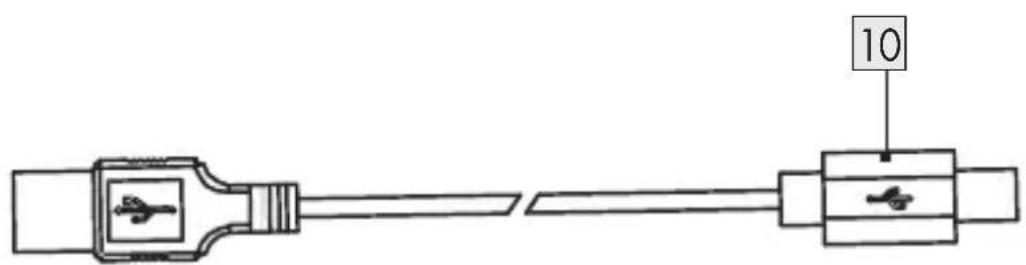

10 USB cable

- Technical data

COB LED: 1 x 20 W

Charging socket: USB (Type C)

Rechargeable battery: Lithium-ion rechargeable battery, 3.7 V, 4400 mAh, 16.28 Wh (not interchangeable)

Power bank rated capacity: 1400 mAh, at 5 V, 1 A

Charging time for drained battery: approx. 6.5 hours

Light duration (white light, with fully loaded rechargeable battery): approx. 2.5 hours

Protection class: III /

Protection type: IP54 (While charging or when using as a power bank: Use only in indoor areas. This product is only splash-proof (IP54) with the protective cap 7 attached to it)

USB input voltage / current: 5 V, 1 A ---

USB output voltage / current: 5 V = ±A

Dimensions:	approx. 24.5 x 22.5 x 3.5 cm (folded)
Weight:	approx. 695 g
Projected area:	approx. 14.8 x 11.0 cm
Operating position:	The product can only be used as shown in figures C, D.

NOTE: An AC power adapter is not included. Use a SELV power supply of maximum working output voltage 5 V = (U_out), 1 A.

- Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use.

1 LED work light with power bank
1 USB cable
1 Instructions for use

Safety instructions

BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, ALSO INCLUDE ALL THE DOCUMENTS!

WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. Always keep children away from the packaging material.

This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and / or knowledge provided they are supervised or instructed in the safe use of the product and they understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.
This product is not a toy and should be kept out of the reach of children. Children are not aware of the dangers associated with handling electrical products.

- Do not use the product if you detect any type of damage.

■ Never immerse the product in water or other liquids!

• Only connect the product to a properly installed USB socket. The voltage must comply with information given in the section “Technical data”.
• Do not carry out any modifications or repairs to the product yourself. The LEDs cannot and must not be replaced.
  ■ The LEDs are not replaceable.
  If the LEDs fail at the end of their lives, the entire product must be replaced.

CAUTION! DANGER OF BURN INJURIES! To prevent burns, verify the product is switched off and has cooled down for at least 15 minutes before touching it. The product can become very hot.

The accessible surface, especially heat shrink, is very hot when the lamp is operating.

D - 0.1m

FIRE HAZARD! Fit the product so that it is at least 0.1 metre away from the material to be illuminated. Excessive heat can result in a fire.

WARNING! Do not turn on the light when the product is facing down to a combustible surface. The exposed surface may be overheated or ignited.
- Do not place burning candles or open fire on or near the product.
- Do not use the product near heat sources such as radiators or devices emitting heat.
■ Dispose of the product if product or USB cable 10 are damaged.
■ Ensure the USB cable 10 cannot become damaged by sharp edges or hot objects. Unwind the USB cable completely before use.

Immediately switch the product off and remove the charging cable from the product if you smell burning or see smoke. Have the product examined by a qualified technician before using it again.
If you use a USB power supply, the socket used must always be easily accessible so that the USB power supply can be quickly removed from the socket in the case of emergency. Please also refer to the manufacturer's instruction manual.
- Observe the usage restrictions and prohibitions of use for battery-operated products in situations which may be hazardous such as at petrol stations, airports, hospitals, etc.
WARNING! Do not cover the product while charging. There is a risk of warming and overheating.

Safety instructions for batteries / rechargeable batteries

DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries / rechargeable batteries into fire or water.
- Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
  If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES! Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

This product has a built-in rechargeable battery which cannot be replaced by the user. The removal or replacement of the rechargeable battery may only be carried out by the manufacturer or his customer service or by a similarly qualified person in order to avoid hazards. When disposing of the product, it should be noted that this product contains a rechargeable battery.

Before use

● Charging the product

NOTES:

■ Remove all packaging materials from the product.

In order to use the product without a USB cable 10, you need to recharge the rechargeable battery before use. The charging process takes about 6.5 hours. The rechargeable battery is firmly integrated into the base of the product.

■ Fully charge the rechargeable battery prior to first use.

- Charge the battery if it becomes empty (only 1 LED of the charging indicator 6 is flashing).

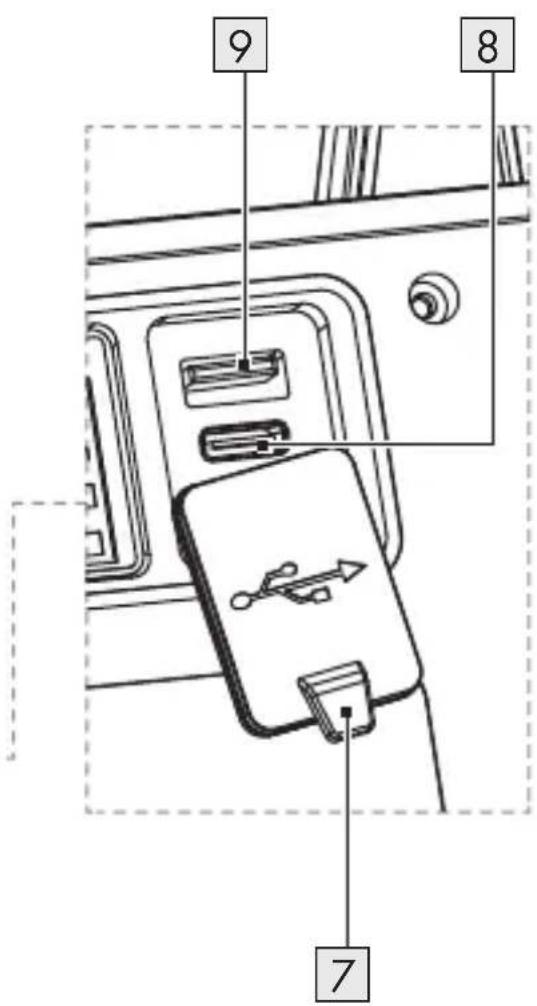

■ Open the protective cap 7.
■ Connect the USB plug of the USB cable 10 to the USB input socket 8 on the product.

NOTES:

The battery charging status is shown by the charging indicator 6:

Charging indicator 6 status	Battery charging status
1 LED flashes 0–24 %
1 LED lights up, 1 LED flashes 25–49 %
2 LEDs light up, 1 LED flashes 50–74 %
3 LEDs light up, 1 LED flashes 75–99 %
4 LEDs light up 100 %

The charging time is approximately 6.5 hours when the battery was drained.

NOTE: The product has an overcharging protection system. Nevertheless, you should disconnect the product from the mains once the charging process is complete.

• Disconnect the USB cable 10 from the product to prevent the batteries discharging themselves.
• Close the protective cap 7 before you start to use the product again. Otherwise water could enter to the product when it is used outdoors.
  The product is not working at temperatures below 0 °C and above +45 °C due to its battery protection.

- Checking the battery capacity

When product is not charged: Press the ON/OFF switch 2 to check the battery capacity. The blue charging indicator 6 shows the capacity* of the battery inside the product.

1 LED lights up = 24 %*
2 LEDs light up = 49 %*
3 LEDs light up = 74 %*
4 LEDs light up = 100 %*

* This is the approximate percentage of battery capacity but not actual measurement.

Operation

⚠️ RISK OF ACCIDENT! Do not use the product whilst driving the vehicle. When using the product in a vehicle, be sure this does not endanger the driver or the passengers. Always store and secure the product so that even full braking does not pose a risk of injury from the product or product damage.

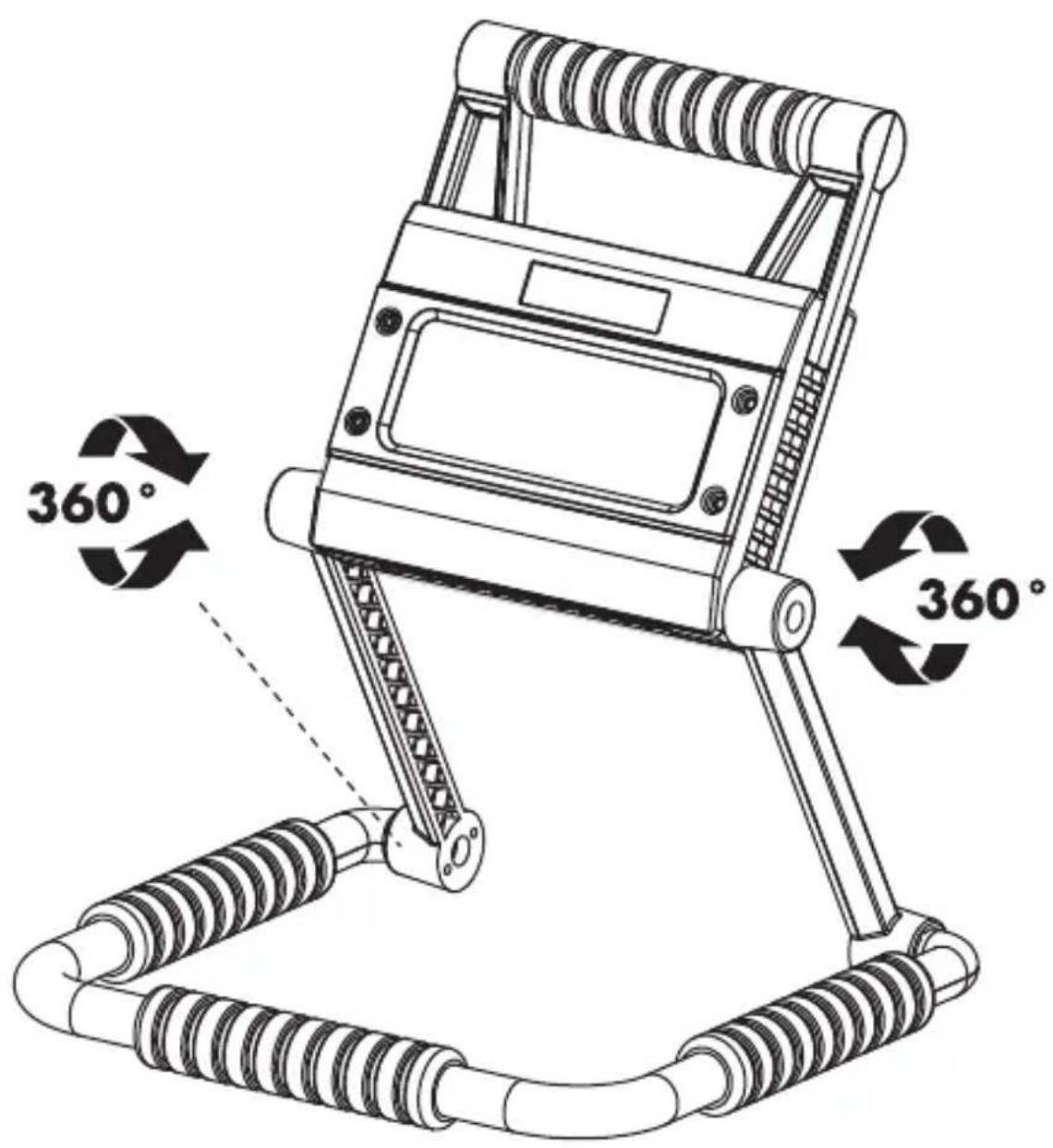

■ Turn the adjustable foot / hand grip 4 and fix the product at desired position. The adjustable foot / hand grip can also be turned up and used as a hand grip (Fig. C).

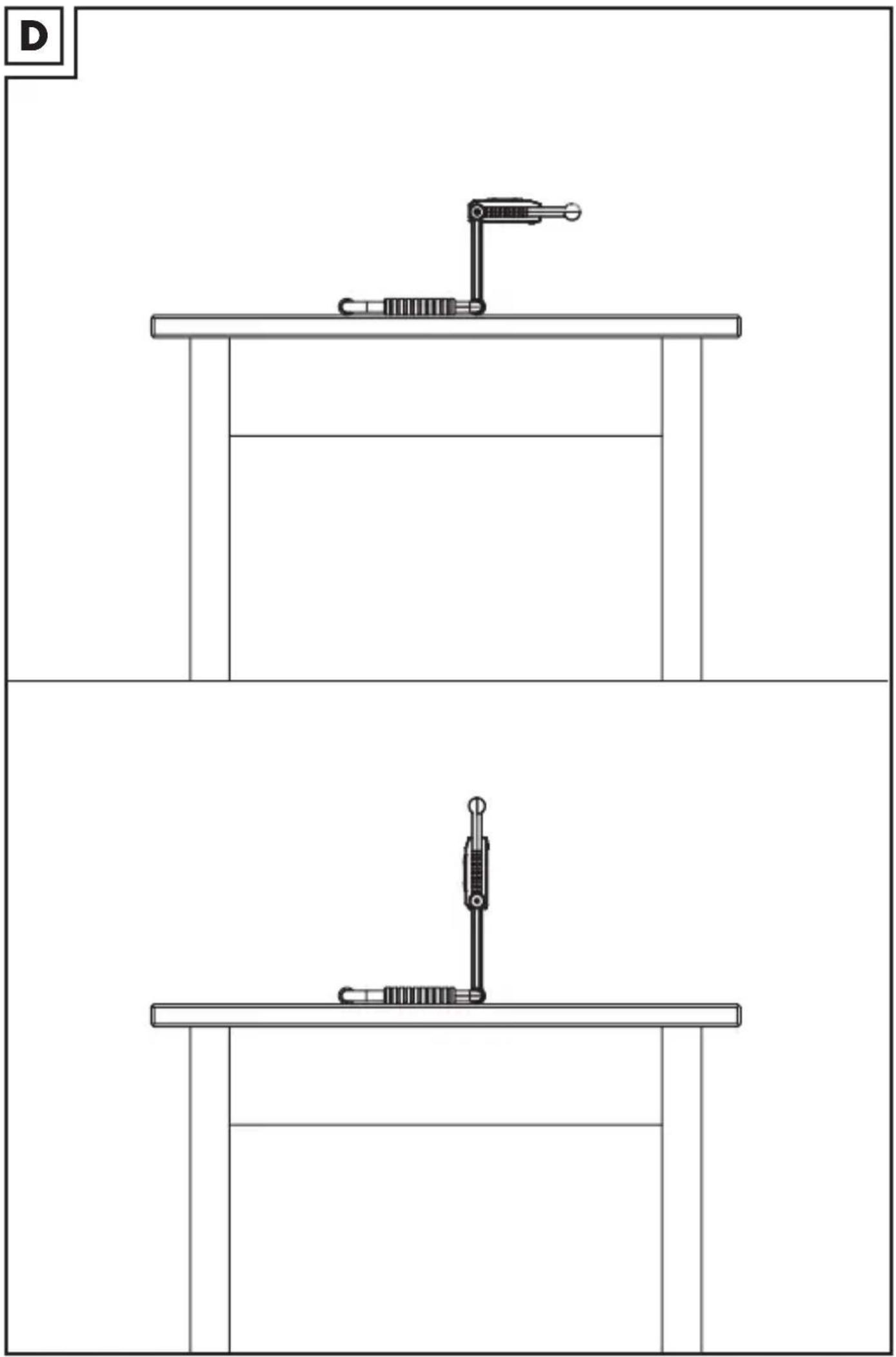

■ Use and operate the product on a stable surface without any angle.

⚠️ CAUTION! Please note the position of your hands whilst turning the adjustable foot / hand grip 4 to prevent pinching your fingers.

The product may be used as a light and a charger. Both functions can also be used simultaneously.

NOTE: The energy stored in the rechargeable batteries power both the LED light and the charging station. Using the product as a charger therefore reduces the operating time and brightness in lighting mode.

Using as a LED light

• Fully charge the product as described in the section "Charging the product".
  The product can be operated in 4 different modes. Select these by repeatedly pressing the ON/OFF switch 2.

ON/OFF switch Mode

Press 1x: 100 % brightness

Press 2x: 50 % brightness

Press 3x: SOS signal

Press 4x: Flashing

Press 5x: Switch off the light

- Using as a charger

When used with the USB cable 10 , the product may be used to charge small electronics devices with USB socket (Type C) for charging (e.g. mobiles or digital cameras).

The charging current the device requires may not exceed 2 A. Carefully read the instructions for use of the device you wish to charge.

ATTENTION! Charging a device which requires a higher charging current may cause a defect in both devices.

The battery of the device you wish to charge must have a significantly smaller capacity than the total capacities of the rechargeable batteries inside the product (4400 mAh). Otherwise charging may not complete.
■ Open the protective cap 7.
- Insert the USB plug of the USB cable 10 into the USB output socket 9.
- Insert the USB plug of the USB cable 10 into the small electronic devices you wish to charge. The blue charging indicator 6 lights up, indicating the battery capacity.
■ Remove the USB cable 10 as soon as charging is complete.
■ Close the protective cap 7.

● Maintenance and cleaning

The product requires no maintenance. The LEDs cannot be replaced.

Before cleaning:

- Switch off the product.

• Disconnect the USB cable 10 from the USB socket.
• Close the protective cap 7 on the USB input socket 8 and USB output socket 9.

■ Never immerse the product in water or other liquids.
■ Never use caustic cleaners.

- Regularly clean the product with a dry, lint-free cloth. Use a slightly moist cloth to remove any stubborn dirt.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

For this product, rechargeable battery is also covered by warranty.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 380758_2110) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

Gooi batterijen/accu's nooit in vuur of water.

LED REFLEKTOR S POWERBANKOU

• Úvod

LED REFLEKTOR S POWERBANKOU

• Úvod

pribl. 14,8 × 11,0 cm

Položaj delovanja:

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA
