Product type	Dimmer for aquarium lighting
Brand	EHEIM
Model	Dimmer Day & Night
Category	Lighting
Power supply	24 V
Max. power	36 W
Protection rating	IPX4 (protected against water splashes)
Protection class	III (low voltage)
Use	Indoor, for aquarium
Main functions	Day/night variation, simulated sunrise and sunset, 30 brightness levels day, 4 levels night
Adjustable lighting duration	Yes, starting from 12 h by default, adjustable in 1 h increments
Factory setting	Day phase 12 h, night phase 12 h
Compatible lamps	EHEIM classicLED only
Maintenance	Clean with a slightly damp soft cloth
Safety	Do not open, use only with intact power supplies, disconnect before maintenance
Warranty	Not specified in the manual

Frequently Asked Questions - Dimmer Day & Night EHEIM

How to set a custom lighting duration?

Press and hold both buttons until the red LED blinks rapidly. Press C to extend by 1 h or D to reduce by 1 h. Wait 20 seconds without touching any button to confirm.

How to reset to factory settings?

Press and hold both buttons until the red LED blinks rapidly. Do not touch any button for 20 seconds. The dimmer resets to factory settings (12 h day / 12 h night) and starts with sunrise.

Which lamps are compatible with this dimmer?

This dimmer is designed exclusively for EHEIM classicLED lamps.

Is the dimmer waterproof?

Yes, it has an IPX4 protection rating, which protects against water splashes. It must not be submerged.

Can I use the dimmer with a lamp from another brand?

No, use is exclusively reserved for EHEIM classicLED lamps. Use with other lamps may damage the device or pose a risk.

How to adjust brightness during day or night phase?

During the desired phase, press C to increase brightness or D to decrease it. The setting is automatically saved.

What to do if the dimmer stops working?

First check that the power supply is plugged in and in good condition. If the device is defective, it must be replaced entirely. Do not open it.

How to clean the dimmer?

First disconnect the power supply. Wipe the device with a slightly damp soft cloth. Do not use harsh chemicals or the dishwasher.

What is the maximum supported power?

The dimmer can support a maximum load of 36 W.

Can I program the sunrise start time?

No, the day/night cycle starts automatically when power is turned on. The lighting duration can be adjusted, but the start time is not programmable.

USER MANUAL Dimmer Day & Night EHEIM

Translation of the original operating manual

Dimmer Day & Night

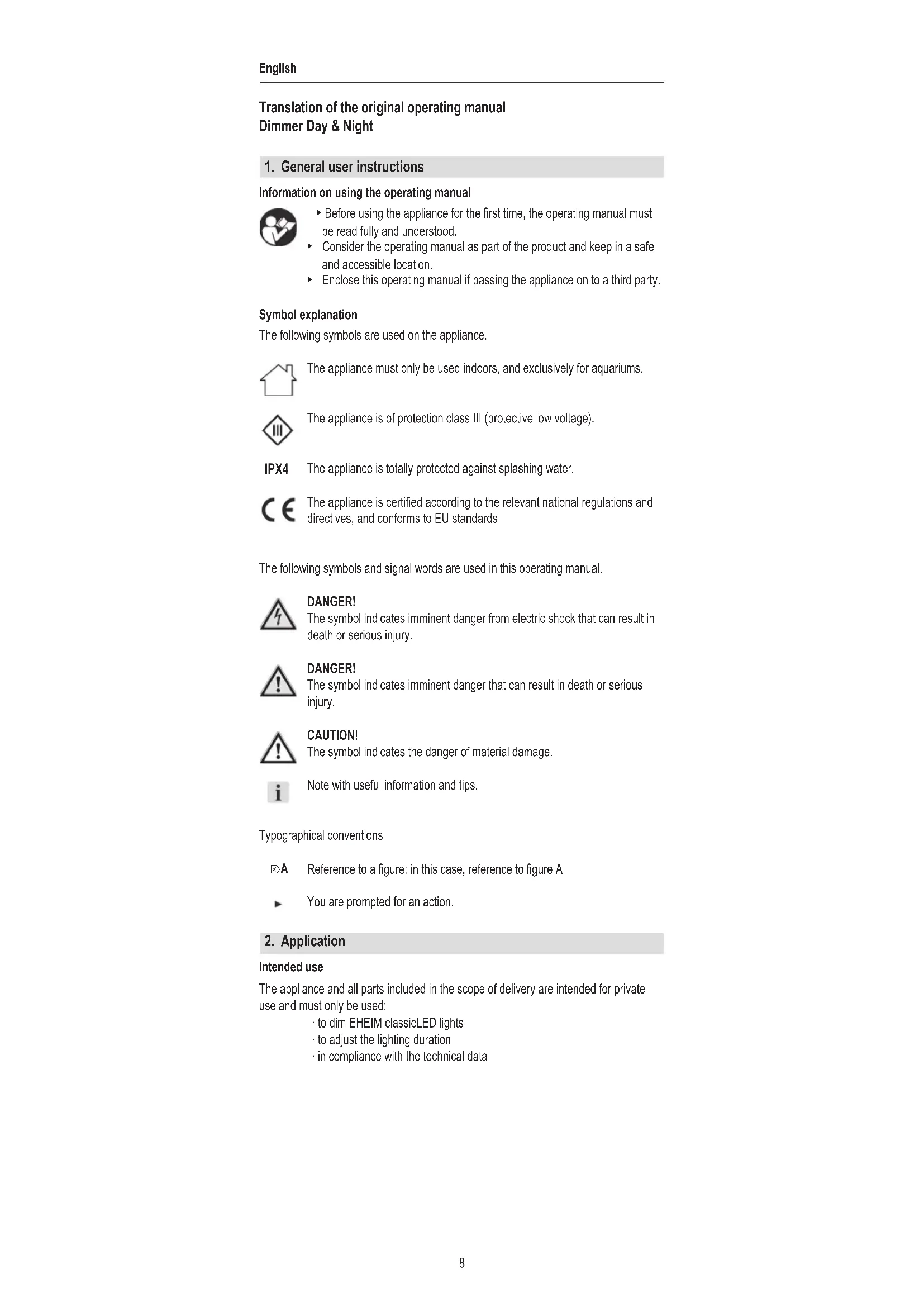

1. General user instructions

Information on using the operating manual

Before using the appliance for the first time, the operating manual must be read fully and understood.
- Consider the operating manual as part of the product and keep in a safe and accessible location.
Enclose this operating manual if passing the appliance on to a third party.

Symbol explanation

The following symbols are used on the appliance.

The appliance must only be used indoors, and exclusively for aquariums.

The appliance is of protection class III (protective low voltage).

IPX4 The appliance is totally protected against splashing water.

The appliance is certified according to the relevant national regulations and directives, and conforms to EU standards

The following symbols and signal words are used in this operating manual.

DANGER!

The symbol indicates imminent danger from electric shock that can result in death or serious injury.

DANGER!

The symbol indicates imminent danger that can result in death or serious injury.

CAUTION!

The symbol indicates the danger of material damage.

Note with useful information and tips.

Typographical conventions

A Reference to a figure; in this case, reference to figure A

You are prompted for an action.

2. Application

Intended use

The appliance and all parts included in the scope of delivery are intended for private use and must only be used:

• to dim EHEIM classicLED lights
  to adjust the lighting duration
  in compliance with the technical data

3. Safety instructions

Risks for persons and property can arise from this appliance if the appliance is improperly used or not used as intended or if the safety instructions are not heeded.

For your safety

• This appliance can be used by children from the age of 8 and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in the safe use of the appliance and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.
• The appliance is operated in conjunction with EHEIM classicLED lights. Heed the operating manual for the lights, especially the chapters on safety, commissioning, operation and maintenance!
• Before use, carry out a visual inspection to ensure that the appliance, especially the power supply unit and plug, are undamaged.
• Never use the appliance with a damaged power supply unit.
• The appliance must not be opened. A defective appliance must be completely replaced.
• Never make technical modifications to the appliance.
• Only use original spare parts and accessories for the appliance.

• In the event of water leakage or when the residual current protection device is triggered, immediately disconnect all devices in the aquarium from the power supply.

• If they are not being used, always disconnect all devices in the aquarium from the power supply before you install/remove any parts and before all cleaning and maintenance work.

• The appliance must not be placed on or within the aquarium cover.

• The electrical data of the appliance must match the data of the power mains. This data is found on the type plate, the packaging and in these instructions.

4. Commissioning

Before commissioning, remove any timers that may be included!

Electrical connection ()

1. Disconnect the power supply unit of the EHEIM classicLED light from the mains.
2. Disconnect the EHEIM classicLED light from the power supply unit.
3. Connect the dimmer to the corresponding connections of the EHEIM classicLED light and the power supply unit.
4. Insert the power supply unit in the mains socket.

5. Operation

Term definitions

• Lighting phases

The dimmer has a day phase and a night phase. Both phases run automatically one after the other and are repeated every 24 hours. The day phase begins with sunrise, and ends with sunset.

Dimming levels

During the day phase, the lighting can be set to 30 different levels. During the night phase, the lighting can be set to four different levels. In the lowest level, the light in the day and night phase is out. Please note that not all changes in brightness can be perceived by the human eye!

Lighting duration

The lighting duration corresponds with the duration of the day phase, from the start at sunrise until the end at sunset.

Reverting to the factory setting ()

Factory setting

Day phase: 12 hours incl. sunrise and sunset
Night phase: 12 hours

1. Hold the buttons and down simultaneously until the red control light ① flashes quickly.
2. Do not hold either button for 20 seconds.
3. The dimmer activates the factory setting and starts with sunrise.

Setting an individual lighting duration

1. Hold the buttons and down simultaneously until the red control light ① flashes quickly.
2. Set the duration of the lighting phase: Increase the lighting phase of the factory setting (12 hours) by an hour at a time with each actuation of the button C). Decrease the lighting phase by an hour at a time with each actuation of the button D).

A few seconds after the last actuation of a button, the control light will display the duration of the lighting phase by flashing (1× flash equals 1 hour).
3. Do not hold either button for 20 seconds. The dimmer starts with sunrise.

The maximum sunrise brightness level will be reached after 45 minutes.
The duration of sunset is also 45 minutes.
- You will subsequently no longer be able to change the lighting duration.
To change the lighting duration, you must start again at point 1 of the setting of the individual lighting durations.

Setting the brightness/dimming level

The dimming level for the day phase can only be set during the day phase, while the dimming level for the night phase can only be set during the night phase.
The last selected dimming level will be automatically saved, without additional saving, until it is next changed.

1. Set the brightness of the day or night phase: Increase the brightness by actuating the button (区) (区C). Decrease the brightness by actuating the button (区) D).

• You have reached the maximum brightness when the red control light blinks quickly several times upon each additional actuation of the button.
  The LED confirms each actuation of the button by flashing once.

6. Maintenance

Attention! Electrocution!

• Before maintenance work, remove the mains plug of the power supply unit.

Caution! Material damage.

• Do not use hard objects or aggressive cleaning agents for cleaning.
  Do not clean the appliance in the dishwasher.

Cleaning the dimmer

1. Wipe the dimmer with a soft and slightly damp cloth as necessary.

7. Decommissioning

Disposal

When disposing of the appliance, heed the respective statutory regulations. Information on the disposal of electrical and electronic appliances in the European Union:

Within the European Union, disposal of electrically operated appliances is governed by national regulations that are based on the EU Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).

The appliance may no longer be disposed of with the municipal or household waste. The appliance will be accepted free of charge at municipal collection points or recycling centres. The product packaging is made up of recyclable materials. Dispose of them in an environmentally responsible manner and take them for recycling.

8. Technical data

Power supply 24 V
Capacity max. 36 W

Raccordement electrique (E)

Élimination/destruction

1.Obune yka3aHnI dnn noB3oBaTeJIa

HΦopmaunno HcnoIb3oBaHnIO pykoBoCTBa no 06cnyKmbaHNO

Ipeed npBbIM BBOOM yCTPOINCTBA B 3KcPnYatauHKO HxHNO NIOHOCTbIO npOHTaB NHORr pyKOBOCTBO NO 3KcNpyataun.

PykoBODCTBO NO 3KcPnIyataaun CneIeYet paccMatpNBaTb KaK Yactb npodykTA n AkkypaTHO xpaHNTb B DOCTyINOM MecTe.

DaHHoe pykoBcTBo NO 3KcNpyataaun CnEyET npNKpAdbBaTb KycTpoCTBy np erO daJIbeHneu nepeaue TpeTbe CTopoHE.

06bXcHHe cHMBOJOB

Ha yctpoaCTBe HcnoIb3ayIOCTcIe dyIOJIe CMMBOJIb.

YCTPOCTBO NOIINKNT NCIIOB3OBAHNO TONbKO DnA ZENeA KBApNMMCTNK BHYTPN NOMEUEHNI.

YcTPOCTBO npHnAeNkKKnaccy 3aunTbI lll (6e3onacHe cBepxHn3Koe HapnxKeHne).

IPX4 YcTPOIcTBo CO BEx CTOpOH 3aUmUeHO OTo 6pb13r.

YcTPOCTBO pa3peIeHKe IICnOJIb3OBAHmIO COrnaCHO COOTBETCTByUoIIM HauHOJIbHbIM PpeIINCAHm IM DnpeKTHBaM IN COOTBETCTByE TcaHapTaM EC

YcTPOCTBO COOTBETCTBYET INPMMEHMbIM Tpe6oBaHnM 6e3OaCHOCTN INTEXHNueCKMM PERIAMHTAM EBpa3MCKORO 3KOHOMuYeCKORO CO03a.

B daHHOM pykoBOcTBe no 06cnykBaHIO nCnOJIb3yIOTcra CneDyIOUne CmBObln CnIHbHbIe cNoBA.

OTACHOCTb!

CIMBOI yka3bBaet Ha yrpoKaIOUyIO ONAChOCTb ydapa TOKOM, KOTOPAR MOKET NOBNeHb 3a CObO CMepTb HIN TReKeJIbe TpaMbI.

OTACHOCTb!

CIMBOI yka3bBaet Ha yrpoKaIOyO onaCHOCTb, KOtOpA MOKeT NOBHe 3a co60i CmepTb HIN TReKeJIe TpaBMbl.

OCTOPOXHOI

CIMBOI yka3bBaet Ha onaCHOCTb MaTePnAaHOro yuepe6a.

Yka3aHmecnoe3HOHnHOpmaueHnCOBtAM.

PnHmbltoObpaKeHHa

A CbInka Ha 306paKeHHe, 3dec CbInka Ha pncyHok A

Yka3aHHe Ha BbInoJIHeHne DeIeCTBnI.

2.ObnaTb npMHeHn

IcnoIb3OBAHne no Ha3HaueHnIO

YCTPOINCTBO INBCEDETAJINBXOJAUNIE B KOMPNEKT NOCTABKNIPEDYCMTPEHbI DnI PIMMEHENBAACTHOINMOYNTNCOJ3OBATCBNCKIOHTENBOHO

ДпгулmpobкняркocTиCBetинкOB EHEIM classicLED
ДагиНасторкDNITENBHOCTNOCBESEHNA
-ПИМСOBЛДЕНТХИЧЕСКИХХAPAKTERTMCTNK

Ipeepncnoj3oBAHnEM o6raTeNbHO ydaJIte TaMepb,ecNI TaKne HMeOTcI

3JNeKTPoNoDKHIOUHeHNE (E A)

1. OToeDInHHe 6NoK NITaHnCBeTnBnKa EHEIM classicLED ot ceTN.
2. OToeDnHnTe CBeTnJIbHnK EHEIM classicLED ot 6noka nmtanHa.
3. CoeHnHTe dMMep c COOTBETCTBYIOUIMM pa3bEMAMN CBETINbHNk classicLED n 6nOKOM nTuHaH.
   4.BCTaBbTe BUNKy 6noka nHTaHnBa Bpo3eTky.

5. UnpaBJIeHne

3HaueHnTepMnHOB

ФаьblOБсевеня

Dmmep MeeT HBeHyO HocHyO pa3bl. Obe pa3bl cpa6aTaBbAot AB TOMaTHueCKn Onda 3a Dpyro N NOBTOpHOTc KaKdIe 24 caca. HEBHae p3aHaHHaETc C BOCXoOM COJHua N 3akAHuBaETc ERO 3axoDM.

CtynenHnN3MeHeHHaRkoCTn

BoBpMa dHeBHOJ p3bMoXHO yCTaHOBnTb 30 cTyneHepKpOCTn.Bo BpMa HOHHO p3bMoXHO yCTaHOBnTb YeTbpe cTyneHepKpOCTn.Ha CamoH HxKeH CTyNEH B oEnx p3ax CBET BkHIOaETc. YHTbBaTe, YTO HeOBeckm Tla3 HE B COCTOHMH BOCPINHMMatb BCE N3MeHHeN RPKOCTn!

IINTEbHOCToCBeueHn

IINITeNbHOCTOCEBUEHMA COOTBETCTBYETIINTEbHOCTNHEBHOIΦa3bl OT Hauana BOCXODa CONHua DO ero nonHoro 3axOda.

Date Starttime Lighthting time
.20: hours
.20: hours
.20: hours
.20: hours
.20: hours
.20: hours
.20: hours
.20: hours
.20: hours
.20: hours
.20: hours
.20: hours .20: hours
.20: hours .20: hours
.20: hours .20: hours

Reproduction or copying - even parts thereof - only with the express permission of the producer.
