| Product type | Aquarium |
| Brand | EHEIM |
| Model | aquaclass 30 |
| Water volume | 30 liters |
| Dimensions (L × W × H) | 42.5 × 26.5 × 33 cm |
| Total weight when filled | approx. 50 kg |
| LED lamp power supply | 24 V (via power supply unit) |
| LED lamp power | 4.9 W |
| Luminous flux | 570 lm |
| Color temperature (CCT) | 6600 K |
| Color rendering index (CRI) | 89 |
| Energy efficiency class (EEI) | F |
| Lamp protection | IPX7 (temporary immersion) |
| Internal filter included | EHEIM aqua 60 (ref. 2206020) |
| Heater included | EHEIM thermopreset 50 (ref. 3652010) |
| LED programming | Day/night cycle with programmable sunrise/sunset |
| Minimum lamp/water distance | 15 mm |
| Max. water level | 2 mm above the lower edge of the trim frame |
| Max. water temperature | 35 °C |
| Aquarium warranty | 36 months (bonding and assembly) |
| LED lamp warranty | 24 months |
Frequently Asked Questions - aquaclass 30 EHEIM
User questions about aquaclass 30 EHEIM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Aquarium in PDF format for free! Find your manual aquaclass 30 - EHEIM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. aquaclass 30 by EHEIM.
USER MANUAL aquaclass 30 EHEIM

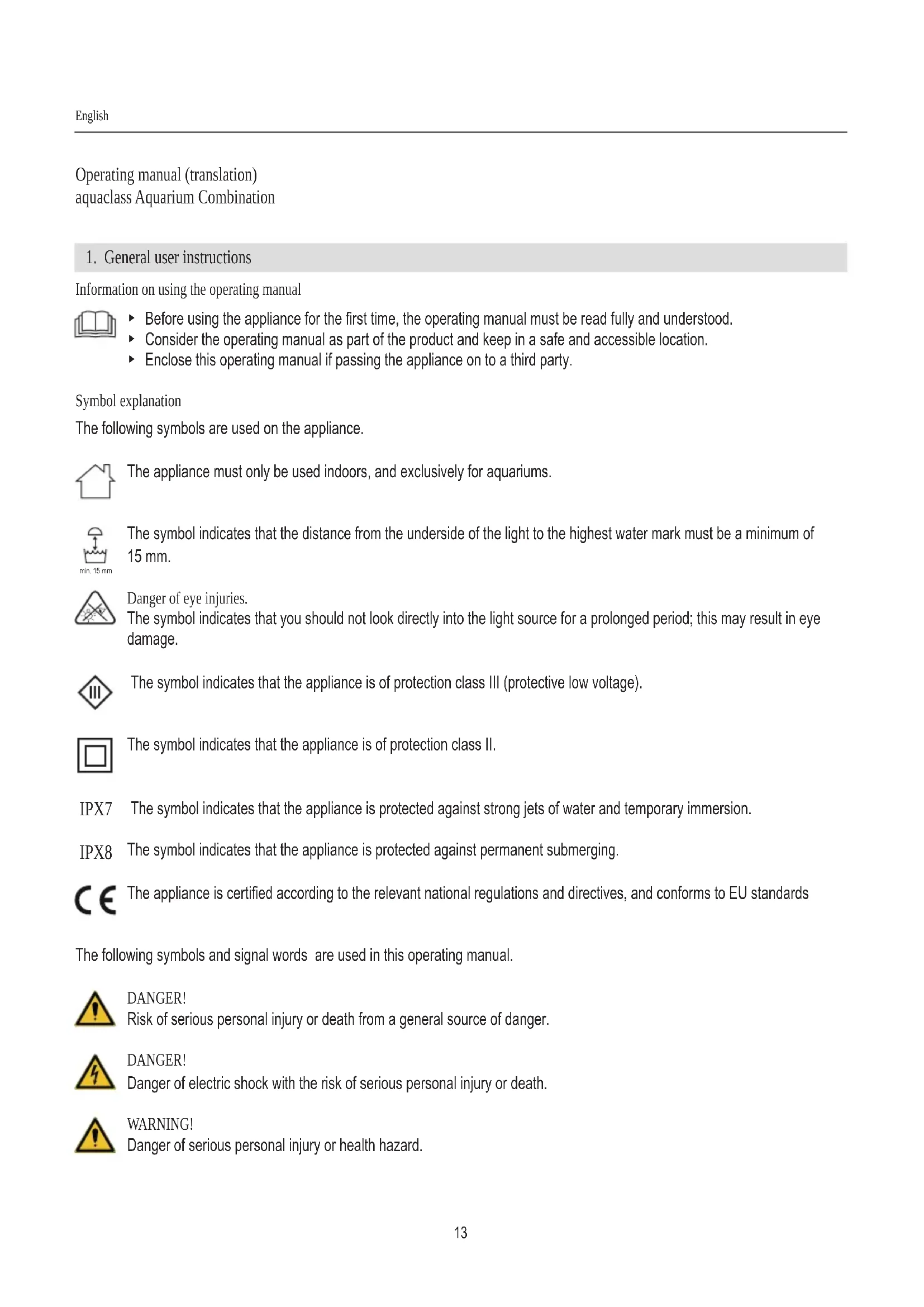

Operating manual (translation)
aquaclass Aquarium Combination
1. General user instructions
Information on using the operating manual
Before using the appliance for the first time, the operating manual must be read fully and understood.
Consider the operating manual as part of the product and keep in a safe and accessible location.
Enclose this operating manual if passing the appliance on to a third party.
Symbol explanation
The following symbols are used on the appliance.
The appliance must only be used indoors, and exclusively for aquariums.
The symbol indicates that the distance from the underside of the light to the highest water mark must be a minimum of 15mm .
Danger of eye injuries.
The symbol indicates that you should not look directly into the light source for a prolonged period; this may result in eye damage.
The symbol indicates that the appliance is of protection class III (protective low voltage).
The symbol indicates that the appliance is of protection class II.
IPX7 The symbol indicates that the appliance is protected against strong jets of water and temporary immersion.
IPX8 The symbol indicates that the appliance is protected against permanent submerging.
The appliance is certified according to the relevant national regulations and directives, and conforms to EU standards
The following symbols and signal words are used in this operating manual.
DANGER!
Risk of serious personal injury or death from a general source of danger.
DANGER!
Danger of electric shock with the risk of serious personal injury or death.
WARNING!
Danger of serious personal injury or health hazard.
CAUTION!
Note on the risk of material damage.
Note with useful information and tips.
Typographical conventions
A Reference to a figure, in this case, reference to figure A
You are prompted for an action.
2. Application
The appliance and all parts included in the scope of delivery are intended for private use and must only be used:
for aquarium-related purposes
with fresh water
·indoors
with attachment parts that are recommended by the manufacturer
in compliance with the technical data
The following limitations apply to the appliance:
do not use for commercial or industrial purposes
caustic, inflammable, aggressive or explosive substances, food or drinking water may not be used
the water temperature may not exceed 35^
3. Safety instructions
Risks for persons and property can arise from this appliance if the appliance is improperly used or not used as intended or if the safety instructions are not heeded.
For your safety
Do not let the appliance packaging get into the hands of children as hazards can arise (danger of suffocation!).
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are under the supervision of someone responsible for their safety or have received instruction on usage of the appliance from said person. Children should be supervised to ensure that they do not play with the appliance.
- Only for European markets:
This appliance can be used by children from the age of 8 and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in the safe use of the appliance and have understood the resulting dangers. Children must not play with the appliance.
Cleaning and user maintenance must not be carried out by children unless they are supervised.
-
Before use, carry out a visual inspection to ensure that the appliance, especially the mains cable and plug, are undamaged.
Do not look directly into the light source for a prolonged period; this may result in eye damage. -
Repairs must only be carried out by an EHEIM service centre.
- Only carry out the work described in these instructions.
- Only use original spare parts and accessories for the appliance.
- The appliance must be protected by a residual current protection device with a maximum rated residual current of 30mA . Please contact an electrician if there are any questions or problems.
- In the event of leakage or when the residual current protection device is triggered, immediately disconnect all devices in the aquarium from the power supply.
- If they are not being used, always disconnect all devices in the aquarium from the power supply before you install/remove any parts and before all cleaning and maintenance work.
Heed the operating manuals for the EHEIM thermopreset aquarium heater and the EHEIM aqua interior filter, especially the chapters on safety, commissioning, operation and maintenance! - Protect the mains socket and mains plug against moisture and wetness. A drip loop must be formed with the mains cable. This prevents any water running along the cable to the mains socket, which would result in a short-circuit.
- The electrical data of the appliance must match the data of the power mains. This data is found on the type plate, the packaging and in these instructions.
- Note the distance from the underside of the light to the highest water mark. The aquarium must be filled to a maximum of 2mm above the lower edge of the cover frame (aquaclass 30 × F) or up to the water level indicator (aquaclass 66 × G).
4. Preparation
Unpacking
- Carefully remove all components from the packaging and make sure that nothing is missing or damaged.
Accessories
The scope of delivery contains the following accessories:
aquaclass 30
- Avoid direct sunlight and not too much daylight!
- Keep the aquarium away from heat sources.
- Keep the aquarium away from electrical equipment.
- Be aware of any nearby mains connections.
CAUTION! Material damage.
Ensure that the surface is level and stable.
- Ensure that the base cabinet is sufficiently stable.
- Be mindful of the floor load provided by the entire weight.
Setting up and aligning the base cabinet ( A)
- Place the base cabinet in the desired position.
- Align the base cabinet horizontally using a spirit level.
A stand can be used underneath for horizontal alignment. Ensure that the stand fully supports the surface.
Setting up the aquarium (B)
WARNING! Personal injury or material damage.
The aquarium must not be transported or carried when it is filled.
CAUTION! Material damage.
No foreign bodies, mats or bases must be placed between the aquarium and base cabinet.
Thoroughly clean the top side of the base cabinet and the lower side of the aquarium base.
- Remove any foreign bodies, mats or bases.
- Place the empty aquarium incl. lower frame ① on the base cabinet.
6. Commissioning
DANGER! Personal injury or material damage.
Heed the operating manual for the EHEIM aqua interior filter and the EHEIM thermopreset aquarium heater, especially the chapters on safety, commissioning and operation!
- Prepare the appliances as described in the relevant operating manual.
- Open the cover and remove both bolts ③ from the hinges (B C).
- Remove the cover from the hinges.
- Install the appliances on the inner side of the aquarium as described in the relevant operating manual (D).
Laying the cables (E)
- Connect the connecting cable to the LED light.
- Lay the cables of the LED light ⑦ , the interior filter ④ and the aquarium heater ⑤ in the terminals on the underside of the cover. Feed the cables through the openings ⑥ in the cover to the outside.
- Place the cover in the hinges and insert the bolts ③ into both hinges.
DANGER! Electric shock due to penetrating water!
The power supply unit is not protected against penetrating water!
- Never mount the power supply unit on or in the cover frame.
Filling the aquarium
CAUTION! Material damage.
Do not use hard objects or cleaning agents for cleaning.
- Before filling, thoroughly clean the aquarium with warm water and a soft, clean sponge.
- Decorate the aquarium with sand, stones, plants, etc.
DANGER! Electric shock due to penetrating water!
The LED light is only protected against penetrating water if immersed temporarily.
Note the distance from the underside of the LED light to the highest water mark.
- Fill the aquarium with water aquaclass 30:
to a maximum of 2mm above the lower edge of the cover frame 8 (区 F) aquaclass 66: up to the water level indicator 9 (区 G)
7. Operation
Switching the EHEIM aqua interior filter d and the EHEIM thermopreset aquarium heater e on and off
DANGER! Personal injury or material damage.
Heed the operating manual for the EHEIM aqua interior filter and the EHEIM thermopreset aquarium heater, especially the chapters on safety, commissioning and operation!
Switching the LED light ⑥ on and off
- Insert the LED light plug into the power supply unit.
- Insert the power supply unit's mains plug into the mains socket.
- Using the button , switch the LED light on or off (H).
8. Programming the LED light
Function of the buttons (H)
ON/OFF button 10
- Switching on/off
The program starts with the daylight phase (100%) when it is switched on - Customer-specific programming: Reduces the pre-set time by one hour with each push of the button
+/-Button ②
- Dimmer function: Increases or reduces the light intensity
- Customer-specific programming: Increases the pre-set time by one hour with each push of the button
- Switching on
Upon switching it on, the program restarts at the point on the timer at which the LED light was switched off.
The duration of the sunrise and sunset phases cannot be changed.
Dimming is not possible during the sunrise and sunset phases.
In the event of a power failure, the customer-specific program will be saved for 40 minutes. If the power supply is disconnected for longer than 40 minutes, the LED light will start in the pre-set program.
Pre-set program
The program has the following pre-set day/night cycle:
Day phase = 12 hours
Sunrise phase 40 minutes
Daylight phase (100%) 10 hours and 40 minutes
Sunset phase 40 minutes
Night phase = 12 hours
Example: If you would like to start the daylight phase at 8 o'clock, the LED light must be switched on at 8 o'clock.
Customer-speci c program
To create a customer-specific day/night cycle, proceed as follows:
- Start the programming. Press the ON/OFF and +/- buttons simultaneously for approx. 2 seconds. The red LED ⑪ will flash.
- Increase the day phase by 1 hour by pressing the + / - button. Reduce the day phase by 1 hour by pressing ON/ OFF button.
The red LED will briefly illuminate for confirmation of this.
The duration of the sunrise and sunset phases cannot be changed.
- End the programming. Do not press any buttons for approx. 15 seconds.
The red LED will go out for several seconds. The programmed total number of hours for the day phase will be indicated by the LED flashing accordingly
9. Maintenance
DANGER! Electric shock!
All appliances must be disconnected from the power supply before any maintenance work is carried out.
CAUTION! Material damage.
Do not use hard objects or aggressive cleaning agents for cleaning.
The appliance components are not dishwasher-proof! Do not clean the appliance or appliance parts in the dishwasher.
The following sections describe maintenance work necessary for optimum and fault-free operation. Regular maintenance prolongs the service life and assures functionality of the appliance over a long period.
- Regularly remove lime scale deposits from the cover, the glass and the LED light with a soft, damp cloth.
- Carry out the specified maintenance work for EHEIM aqua interior filter and the EHEIM thermopreset aquarium heater. For this, heed the pertinent device operating manuals.
Changing the LED light (区I)
DANGER! Electric shock!
All appliances must always be disconnected from the power supply before any repair work is carried out.
- Remove the fastening screws.of the LED light.
- Remove the LED light.
- Install the new LED light in reverse order.
10. Clearing faults
DANGER! Electric shock!
All devices must always be disconnected from the power supply before clearing faults.
Fault Possible cause Remedy
| LED light | Mains plug is not inserted | Insert the mains plug in the mains socket |
| Plug of LED light not connected to power supply unit. | Connect the plug to the socket and tighten the union nut | |
| LED at touch pad switched off | Push the ON/OFF button | |
| EHEIM aqua interior filter | see separate operating manual | |
| EHEIM thermopreset aquarium heater | see separate operating manual |
For other faults, please contact EHEIM Service.
11. Decommissioning and disposal
Storage
CAUTION! Material damage.
Do not subject the appliance to adverse weather conditions or temperatures below freezing.
- Clean the appliance
- Store the appliance in a dry, frost-proof place.
Disposal
An appliance that can no longer be used should not be disposed of as a unit, but rather disassembled into individual parts according to the type of material and then recycled. For this, heed the pertinent device operating manuals.
WARNING! Danger of cutting injuries. Eye injuries due to splinters of flying glass
Shattering the glass panes of the aquarium can lead to eye injuries caused by splinters of flying glass, as well as cutting injuries.
To dispose of the glass planes with the household waste, do not shatter them.
When disposing of the appliance, pay attention to the relevant statutory regulations.
The appliance may no longer be disposed of with the municipal or household waste. The appliance will be accepted free of charge at municipal collection points or recycling centres. The product packaging is made up of recyclable materials. Dispos of them in an environmentally responsible manner and take them for recycling.
- Technical data
| Aquarium aquaclass 30 aquaclass 66 | ||
| Water volume 30 l 66 l | ||
| Total weight, when filled approx. 50 kg approx. 85 kg | ||
| Dimensions (L×W×H) | 42.5×26.5×33 cm | 62.5×32.5×39.5 cm |
| LED light | ||
| Item no. | 0585139 | 058140 |
| Item no. on type plate | 7239730 | 7239740 |
| Power supply 24 V 24 V | ||
| Lamp length 370 mm 575 mm | ||
| Φuse, 360° 570 lm 1083 lm | ||
| P on 4.9 W 11.0 W | ||
| Efficacy 117 lm/W 98 lm/W | ||
| EEI class 2019/2015 F F | ||
| EPREL | ® | ® |
| CCT 6600 K 7900 K | ||
| CRI | 89 | 92 |
| R9 | 41 | 91 |
| L70B50 | >35000 h | >35000 h |
| Survival factor 1.00 | 1.00 | |
| Lumen maintenance factor | 0.96 | 0.96 |
| Colour consistency (McAdam ellipses) | 3 | 3 |
| P sb | 0.00 W 0.00 W | |
| P st LM | 0.01 | 0.01 |
| SVM | 0.00 | 0.00 |
The technical data of the EHEIM aqua interior filter and the EHEIM thermopreset aquarium heater are found in the associated operating manuals.
13. Guarantee
Starting from the date of purchase, we will assume a guarantee period of 24 months for your aquarium lights. This covers all defects on any installed electrical parts. This does not include damage due to interventions by the purchaser himself.
Starting from the date of purchase, we will assume a guarantee period of 36 months for the bonding and processing of your aquarium. However, this shall not include glass damage. As a prerequisite for this, the specified installation instructions must be observed. Even during the guarantee period, no liability will be assumed for fish, plants and accessories; this also applies to damage and consequential damage in the home. Please do not remove the labelling under the glass base, otherwise the guarantee will be declared void.
Throughout the guarantee period, we will carry out repairs free of charge. For the guarantee to be acknowledged, a dated purchase receipt must be presented to your specialist dealer and the operating manual must also be complied with.
WAARSCHUWING! Letsels of materielle schade.
Konvension for visiting
Forhandssinnstilt program
Vymena LED svetla (I)
NEBEZPEc! Nebezpeci urazu elektrickym proudem!
Yka3aHHe Ha BbINOnHeHHe DeIcTBnA.
2. 06naCTb npImeHnra
YcTPOIcTBO N BCE DeTaTI, BXOJaUe B KOMJIeKT NOCTaBKn, IpeDyCMOTpeHbI DnA npIMHeHnB YacTHoN Cfepe n MOrTy NcNoJIb-3OBaTbCRA NCKJIIOHTeJIbHO:
ДяцелakВариMuNTKIN
CnpeschoBdoi;
B NOMELUJEHNIX;
C npimeHeHm HabeChbix YacTei, peKOMeHIOBaHHbIX npON3BOUNTEJIem;
-при соблюдени Тхнческх ХаразКерпстИК.
IyCTBDAeCTBYOT CneDyIOune OrpaHHeHnA:
- He npedha3NaeHo IyKOMMepueckoro IINI npomblJeHHoro IpimHeHn
HeIb3a IcNoB3OBA Tb eKne, IerKOBocnnaMeHraIOuNecr, arpeccNBhie NIN B3pbIBoONaChbE BeUeCTBa, NIIuY INITbeByIO BOy
TeMnepaTpa BODbI He DoJnxHa npeBbIaTb 35°C
3. Yka3aHnI NO TexHnke 6e3onacHOCTN
3TO yCTPOIcTBO MOKET CTaTb NCTOUYHKOM ONaCHOCTN DnI NEpCOHaNA NmMyUeCTBa, ECNI OHO NcNoB3yETcR HeHaJNeXaUIM 6oPa3OM N He No Ha3NaYeHnIO, UIN ECNI HcO6nIOJaOTcY kA3aHnI NO TEXHnke 6e3OnaCHOCTN.
Mekdy aKBapnymom n Tymbooyko He doJxho 6bItb HnKaNX NocTOPOHHX IppeMeTOB, KOBpNKOB INI NOkJaOK.
TtateBho OoHCTnTe BepXHOIO YacTb TymboOuKN HNXHOIO CTOpOH DHHUa akBapNyMa.
- Y6epeIte IIObIe NocToPOHHne PpeMeTbI, KOBpIKN I NOkKnAIDK.
- Pa3mecnte nycToaAkbapymc HnHexHe paMoI ① Ha Tym6OyKe.
6. BBoD B 3KcnnyatauHIO
ONACHO! TpaBMnpoBaHne nepcoHaJa nn MaTePnaJbHbI yuepe6.
CobnoaTe pykoOCTBa no 3KcNpyatauBnHytpenHero pInbTpa EHEIM aqua n aKBapmyHoro harpebaTeI EHEIM thermopreset, B uactHOCTn rnaBbl no texnke 6e3oNaCHOCTn, BBOy B 3KcNpyatauHIO n IcNoB3OBAHIO!
HnB Koem cnyuae He yctaHaBnBaIe 6nok nITaHnHa paMy KpbIiKN.
3anonHeHne akBapyma
OCTOPOXHO! MaTePnaJIbHbI yUepe6.
He nCnoJIb3yIe IJI OUHCTK TBePdbI ppeMeTb IIN NcTAAIe CpeCTBa.
KhoNka ON/OFF (Bkn./Bbikn.) 10
BkIIOueHne/BbIKIOueHne
10. UcTpaHHeH HeNCnPaBHOCTeI
ONACHO! Onachoctb ydapa 3Jektpnueckm TOKOM!
- Pered yctpaenHem HecnpabHocTe o63aTeBHO OTCoeDHNHe BCE yCTpoiCtBA OT 3JKeTPOcETN.
HencnpaBHOCTb Bo3MOxHa npuHa YctpaHeHne
| СbvETOДIOДБИ CBETNЛБИКВиILka cTeBOrO kaБелЯ He NOДcoEДиЕнa Kpo3eТke | ВbvITOБу TE BИЛКу cTeBOrO kaБелЯВpo3eТky |
| CoeДиНITeNBы I StTeKeR cBVToДиОДHOroCBETNЛБИКa He BVCTaВЛeH Bpo3eTky | ВbvITOБу COeДиНITeNBы I StTeKeR bIgHe3do I 3aФИКсИpyIte erO NaKiДиOHraIkoI |
| СbvETOДIOД Na ceHcOрHо PaHelen BvIKLIOUeH | HaxMITE KhoIpy «ON/OFF» |
| ВbvTpENHnФиЛьТр EHEIM aqua | Сm. OTděNBHoe ryKOBODSTBO nOЗкПлуаTUaQU |
| АкварUMнБИ HarpeBaTeNbEHEIM thermopreset | Сm. OTděNBHoe ryKOBODSTBO nOЗкПлуаTUaQU |
PnpnoH HenCpabHOCTX 6paTbB C cepBnchyO cnjx6y KOMnaHn EHEIM.
11. BbIbO n3 3KcPnyatauHn yTnIn3aun
Xpahenne
OCTOPOXHO! MaTePnaJIbHbI yUepe6.
He noDBeBraTe ycTpoiCTBO Bo3deIcTBIO NOrOaHbIX fakTopoB INJN OTPuCaTeNbHbIX TempepaTyp.
1.OuInCTnTe yctpoiCTBO
2. Pa3MecTInTe yCtpoNCTBO Ha xpaHHeHne B CyXOM MecTe, 3aunuENHom OT Mopo3OB.
YTNIN3aun
He ytni3npyte HeucnoIb3yeMoE ycTpoiCTBO kaK eINHoe ueo, pa36epnte erHa OTdIbHbIe Yactn I nepeaTe Ha BTOpUHyIO nepepaBcOTky B VnDE OTdIbHbIX MaTePuaNoB. Pn 3ToM co6IouJaTe Tpe6OBaHn COOTBeTCTByuOux pyKOBoDCTB IO 3Kcnnyataun yCtpoiCTB.
PENyIPEXDEHNE! Onacnoctb nope3OB. NObpeJeHnra paaTaeuumncs ockolkamn.
Pa36bAHne cTeKJIaHHbIX naHeIe aKBapnUma MoKeT npNBecTu K NOBpeXdEHnA M rla3 pa3NeTaIOuIMMUCr OCKoJIkAMN I nope3am.
HnB Koem cnyae He pa36nBaTe CTeknHbIe naHeIaKbApuMa IyTnN3aUIN IX C 6bITOBbIMN OTXoamn.
B cnyae ytnnnaun yctpojctba co6liouaite COOTBeTCTByuune npabOBbIe npedncaHn.
YcTPOIcTBO HeJIb3a YtINJIN3HIOBaTb BMeCTe C 6blTOBbIMN OTXoAMn. YcTPOIcTBO 6ecnlaTHO pInHMmaETcRyNHKTAMn c6opa KOMMyHaJIbHbIX CnyK6 IIN NpyHKTaMn c6opa BTOPCbIPb.y. NaKOBka COCTOIT n3 npriOdHbIX dIЯ nepepa60TKI IN BTOPNUHOrO IcNOJIb3OBAHm MaTePnaIOn. Ee CneJeYet YtINJIN3HIOBaTb DONyCTHMbIMN C 3KOJIOnHeCKoT OUYKn 3peHnA cnOC6aMn HAnpAbTb Ha nepepa60TKy.
12. TexHHueckne xapaKTepeNCTNKn
| Аквар氨 aquaclass 30 aquaclass 66 | ||
| Оьем вodь 30 п 66 п | ||
| Оьmic BEС В наолноном состаяни рпбл. 50 кг рпбл. 85 кг | ||
| Габаши (Д × Ш × В) 42,5 × 26,5 × 33 cm 62,5 × 32,5 × 39,5 cm | ||
| Светоюдный с Bretиньник | ||
| Арт. № 0585139 058140 | ||
| Арт. № на т升学ов табличke 7239730 | 7239740 | |
| Источник пітанія | 24 B | 24 B |
| Длina на памсы | 370 мм | 575 мм |
| Ф use, 360° | 570 мm | 1083 мm |
| Rn | 4,9ВТ | 11,0ВТ |
| Efficacy | 117 пМ/ВТ | 98 пМ/ВТ |
| EEI class 2019/2015 | F | F |
| Акварей м aquaclass 30 aquaclass 66 | ||
| EPREL | ©盗版© | ©盗版© |
| ©盗版© | ©盗版© | |
| CCT 6600 K 7900 K | ||
| CRI 89 92 | ||
| R9 41 91 | ||
| L70B50 > 35000 у > 35000 у | ||
| Survival factor 1,00 1,00 | ||
| Lumen maintenance factor 0,96 0,96 | ||
| Colour consistency (McAdam ellipses) 3 3 | ||
| Psb 0,00 кВт 0,00 кВт | ||
| Pst LM | 0,01 0,01 | |
| SVM | 0,00 0,00 |
Texnueckne xapaKtepcntkn BnytpenHero fNbTpa EHEIM aqua n akBapmHoro harpeBaTeIe HEIM thermopreset npBedeHb I COOTBeTCTByOuXpyKOBoDCTBax no EkCnnyataun.
13. TapaHTnA
TapaHTnHa aKbapnMhIe CBeTnBnKn DeiCTByET B TeueHn 24 MecaeB C DaTbI NOKynK. OHa pacpOcTpahReTc HBa BCE BO3MOxHbIE HeNCnPabHOCTN BCTPoeHHbIX 3JNEKTpoTeaJIe.NckIIOUeHNEm RAJIOTc IOBpeJDeHn, BbI3BaHHbIe BMeaTeJIbCTBOM IOnlb3OBAteJI.
Mbl npedocabnem rapaHTno 36 MeceB Ha KaeeCTBO CKneBaHnI N o6pa6OTKn BaWero aKbapnyMa c MOMeHa nokyKn, 3a NCKLIOUeHNEM NOBpeKdEHH CTekNa. Heo6xoDmblm YcNOBEm RaJIeTcO6NIDeHne BblIepNBedeHHbIX yKa3AHN No yCTaHOBKe. rapaHTnHe paCnpoctpaHReTc H a pb6, pacteHn I npHaNDexXHoCTN, a TAKKe H na PpAmOn I KocBeHHbI yUePb6 KBAPtpe, B TOM uCSeB TeueHne rapaTHnHoro Cpoka. He ydaJIte MapKnpoBky co CTekNa Ha dHe, nHaue rapaHTn noTepeRET cnly.
B TeueHne rapaHTnHoro cpoKa Mbl ocUyecTBnEe pEmoHT 6ecnnaTHo. Dn np3HaHnra rapaHTnHbIX o63aTeNbCTB pe7aOuCe 3NaueHne IMeet PpeIOCTabHe BauEMy CneuaHm3NpOBaHHOMy Mara3nHy Yekc C daToN NOKyn, a TaKke co6IooHe nonoJxHn pykoBODCTBa no 3Kcnnyataun.
Reproduction or copying - even parts thereof only with the express permission of the producer.
