Translation of the original operating manual proxima Aquarium Combination

1. General user instructions

Information on using the operating manual

▶ Before using the appliance for the first time, the operating manual must be read fully and understood.
- Consider the operating manual as part of the product and keep in a safe and accessible location.
- Enclose this operating manual if passing the appliance on to a third party.

Symbol explanation

The following symbols are used on the LED light:

The appliance must only be used indoors, and exclusively for aquariums.

Danger of eye injuries

The symbol indicates that you should not look directly into the light source for a prolonged period; this may result in eye damage.

The symbol indicates that the distance from the underside of the light to the highest water mark must be a minimum of 15 mm.

The LED light has protection class III (protective low voltage).

The power supply unit of the LED light has protection class II.

The LED light fulfils the requirements of the EN 60598-1/-2 standard.

The following symbols and signal words are used in this operating manual:

DANGER!

The symbol indicates imminent danger from electric shock that can result in death or serious injury.

DANGER!

The symbol indicates imminent danger that can result in death or serious injury.

WARNING!

The symbol indicates imminent danger that can result in moderate to minor injury or a health risk.

CAUTION!

The symbol indicates the danger of material damage.

Note with useful information and tips.

Typographical conventions:

☒A Reference to a figure, in this case, reference to figure A

▶ You are prompted for an action.

2. Application

The appliance and all parts included in the scope of delivery are intended for private use and must only be used:

· for aquarium-related purposes
· with fresh water
· indoors
· with attachment parts that are recommended by the manufacturer
· in compliance with the technical data

The following limitations apply to the appliance:

· Do not use for commercial or industrial purposes
- Not suitable for salt water

3. Safety instructions

Risks for persons and property can arise from this appliance if the appliance is improperly used or not used as intended or if the safety instructions are not heeded.

For your safety

- Do not let the appliance packaging get into the hands of children as hazards can arise (danger of suffocation!).

- This appliance can be used by children from the age of 8 and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in the safe use of the appliance and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.

• Before use, carry out a visual inspection to ensure that the appliance, especially the mains cable and plug, are undamaged.
• Do not look directly into the light source for a prolonged period; this may result in eye damage.

· Repairs must only be carried out by an EHEIM service centre.
- Only carry out the work described in these instructions.
- Only use original spare parts and accessories for the appliance.

• The appliance must be protected by a residual current protection device with a maximum rated residual current of 30 mA. Please contact an electrician if there are any questions or problems.
• In the event of leakage or when the residual current protection device is triggered, immediately disconnect all devices in the aquarium from the power supply.
• If they are not being used, always disconnect all devices in the aquarium from the power supply before you install/remove any parts and before all cleaning and maintenance work.
• Heed the operating manuals for the supplied LEDs, especially the chapters on safety, commissioning, operation and maintenance.
• Protect the mains socket and mains plug against moisture. It is recommended to form a drip loop with the mains cable to prevent any water running along the cable to the mains socket.
• The electrical data of the LED light must match the data of the power mains. This data is found on the type plate, the packaging and in these instructions.
• The distance from the underside of the light to the highest water mark must be a minimum of 15 mm.

4. Preparation

Unpacking

1. Carefully remove all components from the packaging and make sure that nothing is missing or damaged.
2. Remove the protective film from the furniture.

5. Assembly

Location

• Avoid direct sunlight and not too much daylight!
• Keep the aquarium away from heat sources.
• Keep the aquarium away from electrical equipment.
• Be aware of any nearby mains connections.

CAUTION! Material damage.

▶ Ensure that the surface is level and stable.
▶ Be mindful of the floor load provided by the entire weight.

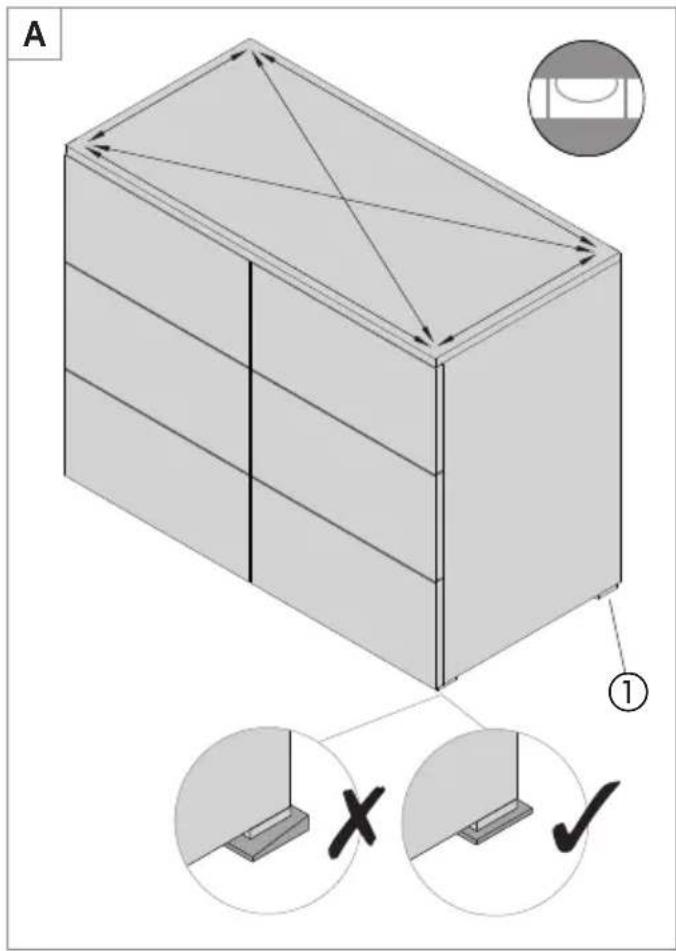

Setting up and aligning the base cabinet (☒A)

1. Place the base cabinet in the desired position.
2. Align the base cabinet horizontally using a spirit level.

A stand can be used underneath for horizontal alignment. Ensure that the stand fully supports the surface.

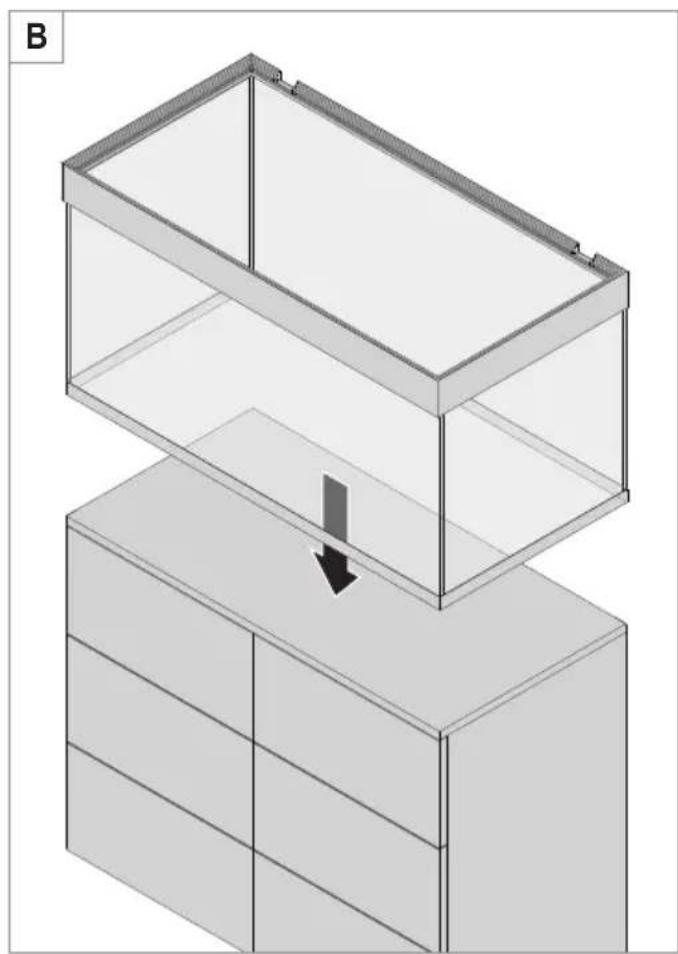

Setting up the aquarium (☒B)

DANGER! Personal injury or material damage.

The aquarium must not be transported or carried when it is filled.

CAUTION! Material damage.

No foreign bodies, mats or bases must be placed between the aquarium and base cabinet.
- Thoroughly clean the top side of the base cabinet and the lower side of the aquarium base. - Remove any foreign bodies, mats or bases.

1. Place the empty aquarium on the base cabinet.

Adjusting/removing the doors

• The doors can be readjusted (see assembly instructions for furniture).
• The doors can be quickly removed/attached via the quick-release function.

6. Commissioning

Installing the drain/inflow

Please observe the operating manual of your filter.

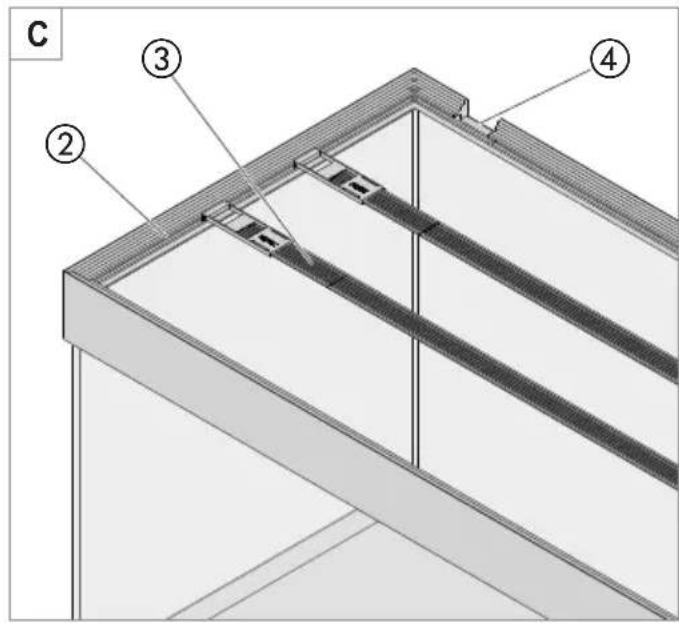

Installing the aquarium lighting (☒C)

1. The continuously adjustable LED brackets allow you to adjust the LED light ③ to the width of your aquarium.
2. Place the LED light in the cover frame ② on the front sides of the aquarium. Make sure that the LED light is secure

3. Insert the LED light's power cable into the profile.

4. Feed the cable through cable and hose opening ④ into the base cabinet.

For maintenance work, the LED light can be pushed into the profile.

7. Operation

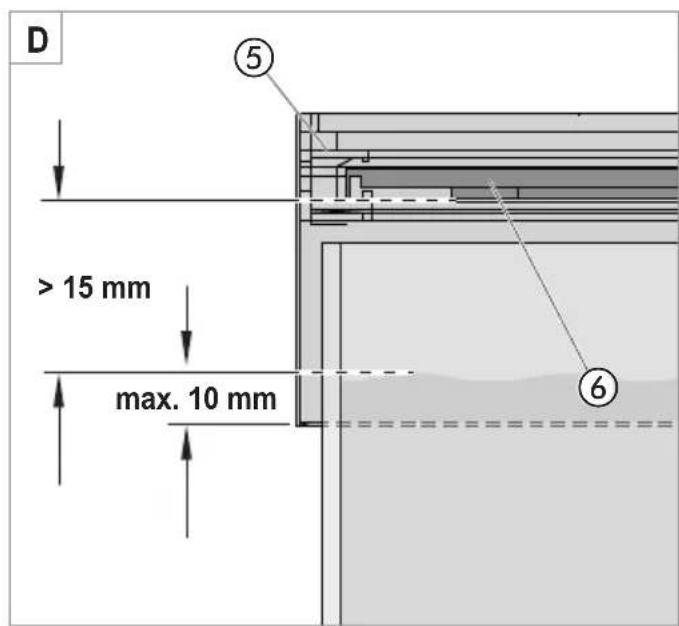

Filling the aquarium (☒D)

CAUTION! Material damage.

- Do not use hard objects or cleaning agents for cleaning.

1. Before filling, thoroughly clean the aquarium with warm water and a soft, clean sponge.
2. Decorate the aquarium with gravel, stones, plants, etc.

DANGER! Electrocution due to penetrating water!

The LED light is only protected against penetrating water if immersed temporarily.

▶ The distance from the underside of the light ^⑥ to the highest water mark must be a minimum of 15 mm.

1. Fill the aquarium with water to a maximum of 10 mm above the lower edge of the cover frame ⑤.

Switching the LED light on/off

1. To switch on the LED light, insert the power supply unit's mains plug into the mains socket.
2. To switch off the LED light, pull out the power supply unit's mains plug.

To switch the LED light on and off more conveniently, we recommend a timer or the EHEIM Dimmer classicLED.

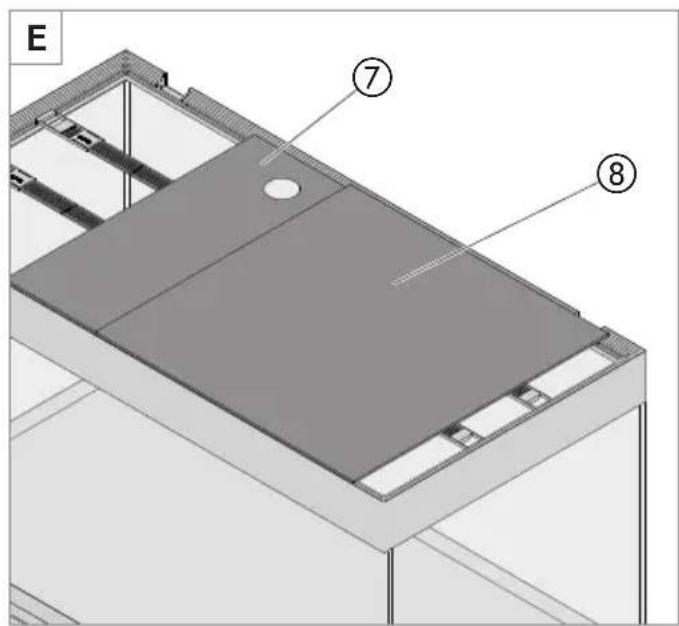

Laying on the cover (☒E)

CAUTION! Material damage.

The covers only serve as protection against escaping condensation and light.

- Do not place objects on the covers from above.

The cover ⑦ is narrower in width than the cover ⑧.

1. Lay the cover ⑦ in the lower sliding surface of the cover frame.
2. Lay the cover ⑧ in the upper sliding surface of the cover frame.

Opening/closing the cover

CAUTION! Material damage.

Condensation can form on the underside of the covers.

▶ Only open the covers by pushing them sideways or folding them back to the side.
▶ Before removing the covers, allow the condensation to drip into the aquarium.

8. Maintenance

DANGER! Electrocution!

- All appliances must be disconnected from the power supply before any maintenance work is carried out.

CAUTION! Material damage.

- Do not use hard objects or aggressive cleaning agents for cleaning.

The appliance components are not dishwasher-proof. Do not clean the appliance or appliance parts in the dishwasher.

The following sections describe maintenance work necessary for optimum and fault-free operation. Regular maintenance prolongs the service life and assures functionality of the appliance over a long period.

1. Regularly remove lime scale deposits from the furniture, the glass and the LED light with a soft, damp cloth.
2. Regularly clean the sliding surfaces of the covers ⑦ and ⑧.

9. Clearing faults

DANGER! Electrocution!

▶ All devices must be disconnected from the power supply before clearing faults.

The LED light cannot be repaired. A defective appliance must be completely replaced.

Faults Possible cause Remedy

LED light does not illuminate	Mains plug of mains socket not connected	Insert the mains plug in the mains socket
	LED light defective	Replace the LED light

For other faults, please contact EHEIM Service.

10. Decommissioning and disposal

Storage

CAUTION! Material damage.

- Do not subject the appliance to adverse weather conditions or temperatures below freezing.

1. Clean the appliance.
2. Store the appliance in a dry, frost-proof place.

Disposal

An appliance that can no longer be used should not be disposed of as a unit, but rather disassembled into individual parts according to the type of material and then recycled.

WARNING! Danger of cutting injuries. Eye injuries due to splinters of flying glass

Shattering the glass panes of the aquarium and filter basin can lead to eye injuries caused by splinters of flying glass, as well as cutting injuries.

▶ To dispose of the glass planes with the household waste, do not shatter them.

When disposing of the appliance, heed the respective statutory regulations.

The appliance may no longer be disposed of with the municipal or household waste. The appliance will be accepted free of charge at municipal collection points or recycling centres. The product packaging is made up of recyclable materials. Dispose of them in an environmentally responsible manner and take them for recycling.

1. Technical data

Type 175 250 325
Complete dimensions (L × W × H)	71 × 51 × 132 cm	101 × 51 × 132 cm	131 × 51 × 132 cm
Empty weight approx. 72 kg approx. 95 kg	approx. 135 kg
Total weight, when filled approx. 280 kg	approx. 390 kg approx. 520 kg

Aquarium
Water volume approx. 175 l approx. 250 l	approx. 325 l
Dimensions (L × W × H)	70 × 50 × 50 cm	100 × 50 × 50 cm	130 × 50 × 50 cm

The technical data of the LED light is found in the associated operating manual.

12. Guarantee

Starting from the date of purchase, we will assume a guarantee period of 24 months for your aquarium light. This covers all defects on any installed electrical parts. This does not include damage due to interventions by the purchaser himself.

The aquarium furniture has a guarantee period of 24 months for factory defects.

Starting from the date of purchase, we will assume a guarantee period of 36 months for the bonding and processing of your aquarium. However, this does not include glass damage. As a prerequisite for this, the specified installation instructions must be observed. Even during the guarantee period, no liability will be assumed for fish, plants and accessories; this also applies to damage and consequential damage in the home. Please do not remove the labelling under the glass base, otherwise the guarantee will be declared void.

Throughout the guarantee period, we will carry out repairs free of charge. For the guarantee to be acknowledged, this certificate must be presented to your specialist dealer together with the dated purchase receipt
