USER MANUAL MT55 18M bl Mafell

Plunge cut saw Translation of the original operating instructions

5.9 Working with the diamond saw blade in fibre cement board (special accessories)........ 30

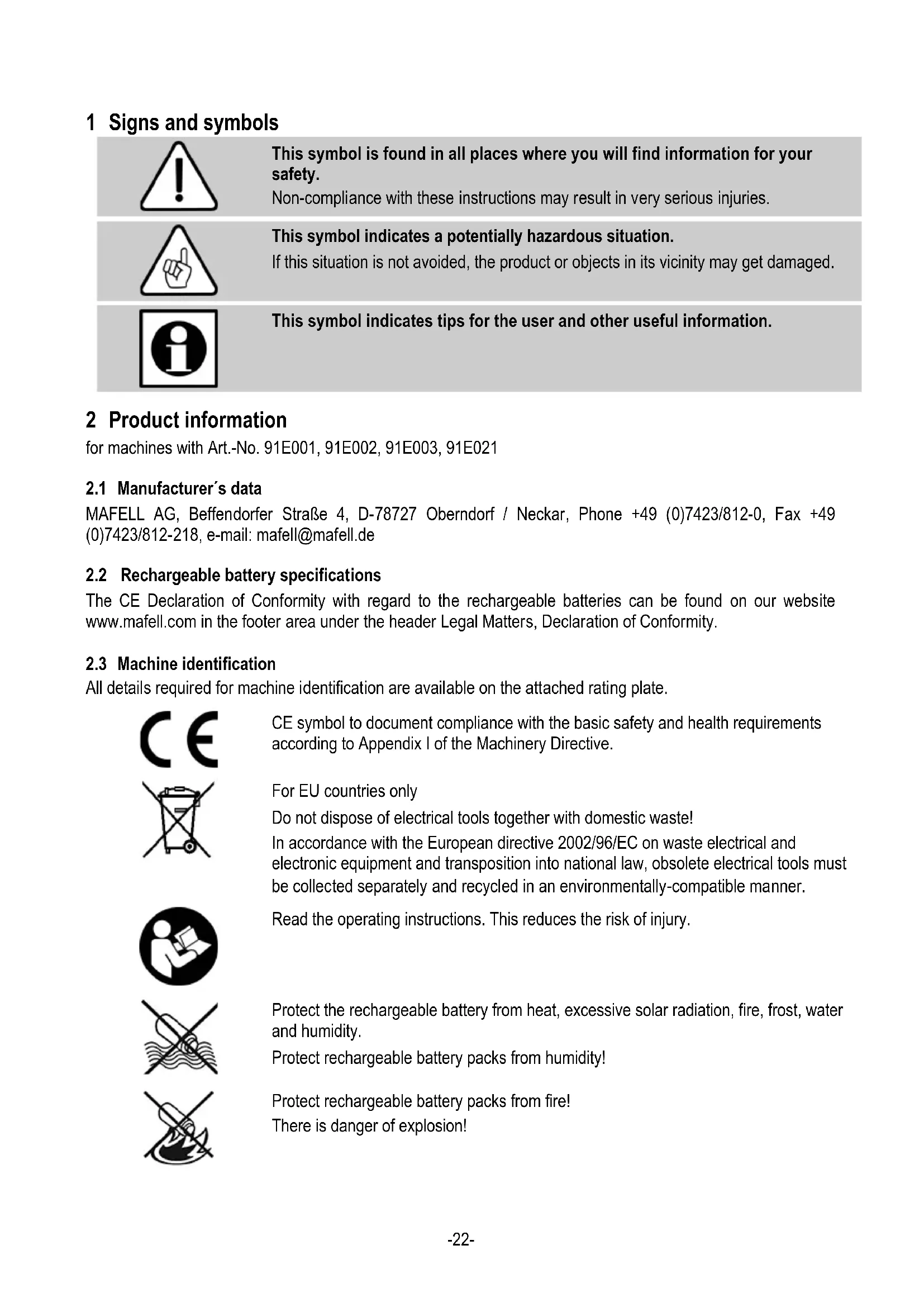

This symbol is found in all places where you will find information for your safety. Non-compliance with these instructions may result in very serious injuries.

This symbol indicates a potentially hazardous situation. If this situation is not avoided, the product or objects in its vicinity may get damaged.

This symbol indicates tips for the user and other useful information. 2 Product information for machines with Art.-No. 91E001, 91E002, 91E003, 91E021

2.2 Rechargeable battery specifications

The CE Declaration of Conformity with regard to the rechargeable batteries can be found on our website www.mafell.com in the footer area under the header Legal Matters, Declaration of Conformity.

2.3 Machine identification

All details required for machine identification are available on the attached rating plate.

CE symbol to document compliance with the basic safety and health requirements according to Appendix I of the Machinery Directive.

For EU countries only Do not dispose of electrical tools together with domestic waste! In accordance with the European directive 2002/96/EC on waste electrical and electronic equipment and transposition into national law, obsolete electrical tools must be collected separately and recycled in an environmentally-compatible manner.

Read the operating instructions. This reduces the risk of injury.

Protect the rechargeable battery from heat, excessive solar radiation, fire, frost, water and humidity. Protect rechargeable battery packs from humidity!

Protect rechargeable battery packs from fire! There is danger of explosion!-23-

Cordless Alliance System (=CAS) is a cross-manufacturer battery pack system. Further information is available at www.cordless-alliance-system.com

brushless Operating voltage

18 V DC Speed during idling

Saw blade mounting hole

20 mm (0.79 in.) Hose connector diameter 35 mm (1.38 in.) Weight with rechargeable battery (without parallel stop)

Dimensions (W x L x H)

The declared noise emission values have been measured in accordance with EN 62841-1 and EN 62841-2-5 and may be used for comparing the tool with another and also in a preliminary assessment of exposure.

Danger The noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed. Always wear hearing protection, even when the power tool ist running idle in addition to the trigger time!

2.5.1 Noise emission specifications

Noise emission values determined according to EN 62841-1 and EN 62841-2-5: Sound pressure level L

= 93 dB (A) Uncertainty

= 3 dB (A) Sound power level L

= 101 dB (A) Uncertainty K

= 3 dB (A) The noise measurement was recorded using the saw blade included in the standard equipment.

2.5.2 Vibration specifications

The typical hand-arm vibration is less than 2.5 m/s

Plunge cut saw MT55 18M bl complete with: 1 carbide-tipped circular saw blade Ø 162 mm (6.38 in.), 48 teeth 1 parallel stop 1 service tool in bracket on the machine 1 carrying case 1 operating manual 1 folder "Safety instructions" 1 position indicator MT-PA 1 chip bag 1 charger APS M for Art.No. 91E001, 91E021 2 rechargeable battery PowerTank 18 M 99 LiHD for Art.No. 91E001, 91E021

Danger These devices are required for the machine's safe operation and may not be removed or rendered inoperative. Before operating the machine, check the safety devices for function and possible damage. Do not use the machine with missing or ineffective safety devices. The machine is equipped with the following safety devices: - Saw guard - Large base plate - Handles - Index mechanism and brake - Hose connector

2.8 Use according to intended purpose

The plunge cut saw is exclusively suitable for longitudinal and cross cutting of solid wood. Panel materials such as chip board, core board and medium density fibre board can also be processed. The use of wood fibre insulation materials is also possible. Only use the saw blades approved by Mafell in accordance with EN 847-1 in the specified ø-range. In conjunction with the diamond saw blade you can also cut fibre cement board. Any other use than described above is not permissible. The manufacturer cannot be held liable for any damage arising from such other use. In order to use the machine as intended, comply with the operating, maintenance, and repair instructions specified by Mafell. Only use saw blades with a speed marking that corresponds to or is higher than the speed specified on the power tool Only use original Mafell / CAS rechargeable batteries and accessories. Battery packs marked with CAS are 100% compatible with CAS devices (Cordless Alliance System).

Danger Even if used in accordance with its intended purpose and despite conforming with the safety instructions, residual risks caused by the intended use that can lead to health consequences will always remain. - Touching the saw blade in the vicinity of the starting aperture below the base plate. - Touching the part of the saw blade that protrudes below the workpiece when cutting. - Touching of turning parts from the side: saw blade, clamping flange and flange screw. - Machine backlash if the blade gets stuck in the workpiece.-25- - Breakage of the saw blade and risk of the blade or pieces of the blade being hurled away. - Accidental activation if rechargeable battery is not unplugged. - Hearing can be impaired when working for long periods without ear protectors. - Emission of harmful wood dusts during longer operation without extraction. 3 Safety instructions Danger Always observe the following safety instructions and the safety regulations applicable in the respective country of use! Please also read the safety information in the enclosed folder 070500 “Safety instructions” (according to standard 62841-1). General instructions: - Children and adolescents must not operate this machine. This rule does not apply to young persons receiving training and being supervised by an expert. - Never work without the protection devices stipulated for the respective operating sequence and do not effect any modifications on the machine that could impair safety. - Examine the workpiece for foreign objects. Never attempt to cut into nails or other metal objects. - Protect the machine and the rechargeable batteries from humidity! - Do not throw the rechargeable batteries into a fire! - Do not use any defective or deformed rechargeable batteries! - Do not open the rechargeable batteries! - Do not touch the contacts of the rechargeable batteries and do not short-circuit them! - A slightly acidic, combustible liquid may leak from defective li-ion rechargeable batteries! If any battery liquid is leaking and comes in contact with the skin, immediately rinse with a copious amount of water. If any battery liquid gets into your eyes, rinse with clean water and immediately consult a doctor for medical treatment! - Remove the rechargeable batteries from the machine before carrying out any setting, retooling, maintenance or cleaning tasks. - Ensure that the machine is switched off when you push in the rechargeable battery. - Please remove the rechargeable battery from the machine if the machine is put down, transported or stored unattended. Do not use: - Cracked and misshapen saw blades. - Saw blades made of high speed steel (HSS saw blades). - Blunt saw blades as they impose an excessive load on the motor. - Saw blades with a base body with a thickness greater than, or a cutting width (setting) less than, the thickness of the riving knife / splitter. - Saw blades which are not suitable for the saw blade's idling speed. - Grinding discs Instructions on the use of personal protective equipment: - Always wear ear protectors during work. - Always where a dust mark during work. - Always wear protective goggles during work. Instructions on operation: Sawing method

- Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade. - Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece. - Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.-26- - Never hold the workpiece in your hands or across your leg while cutting. Secure the workpiece to a stable platform. It is important to support the work properly to minimise body exposure, blade binding, or loss of control. - Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and could give the operator an electric shock. - When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding. - Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run off-centre, causing loss of control. - Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation. Kickback causes and related warnings - kickback is a sudden reaction to a pinched, jammed or misaligned saw blade, causing anuncontrolled saw to lift up and out of the workpiece toward the operator; - When the blade is pinched or jammed tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator; - if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator. Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. - Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken. - When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding. - When restarting a saw in the workpiece, centre the saw blade in the kerf so that the saw teeth are not engaged into the material. If a saw blade binds, it may walk up or kickback from the workpiece as the saw is restarted. - Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel. - Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback. - Blade depth and bevel adjusting locking levers must be tight and secure before making the cut. If blade adjustment shifts while cutting, it may cause binding and kickback. - Use extra caution when sawing into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback. Guard function - Check the guard for proper closing before each use. Do not operate the saw if the guard does not move freely and enclose the blade instantly. Never clamp or tie the guard so that the blade is exposed. If the saw is accidentally dropped, the guard may be bent. Check to make sure that the guard moves freely and does not touch the blade or any other part, in all angles and depths of cut. - Check the operation and condition of the guard return spring. If the guard and the spring are not operating properly, they must be serviced before use. The guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.-27- - Assure that the base plate of the saw will not shift while performing a “plunge cut”. Blade shifting sideways will cause binding and likely kick back. - Always observe that the lower guard is covering the blade before placing the saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released. Instructions on service and maintenance: - Regularly cleaning the machine, especially the adjusting devices and guides, constitutes an important safety factor. - Only original MAFELL spare parts and accessories may be used. Otherwise the manufacturer will not accept any warranty claims and cannot be held liable. - Risk of injury when changing the saw blade! There is a risk of injury from touching the sharp teeth of the saw blade when changing the saw blade. Wear protective gloves. Exercise caution when changing the saw blade. 4 Setting / Adjustment

4.1 Charging the rechargeable battery

Check whether the rated voltage of the rechargeable battery agrees with the information specified on the machine. Rechargeable battery and charger are matched to each other. Only use the MAFELL – APS 18 chargers for recharging. Before using a new machine, first of all charge the rechargeable battery. A description of how to start up and charge the APS 18 can be found in the appended instructions "APS 18 rechargeable power station". The rechargeable battery is equipped with a temperature monitoring system. This guarantees that the rechargeable battery is only charged in the temperature range between 0°C and 50°C. This achieves a long service life for the rechargeable battery. A considerably shortened operating time per charging procedure indicates that the rechargeable battery is spent and needs to be replaced.

Danger Explosion hazard Protect the rechargeable battery from heat, fire and moisture. Do not place the rechargeable battery onto heating appliances and do not expose the rechargeable battery to strong solar radiation for a longer period of time. Temperatures above 50°C are detrimental to the rechargeable battery. Allow a heated rechargeable battery to cool down before charging it. The optimum storage temperature ranges between 10°C and 30°C.

Do not open the rechargeable battery and protect it from impacts. Keep the rechargeable battery in a dry and frost-proof place.

Danger Cover the rechargeable battery's contacts if it is stored outside the charger. There is a fire and explosion hazard in case of a short circuit caused by metallic bridging.

Follow the instructions for the protection of the environment.

4.2 Fitting the rechargeable battery

Slide the charged rechargeable battery into the battery guide next to the handle until it perceptibly engages.

Before using the machine, convince yourself that the rechargeable battery is firmly seated in the machine.

4.3 Removing the rechargeable battery

Unlock the rechargeable battery by pressing the locking lever 26 (Fig. 2) and pull it out of the battery guide.

Do not use force to do so.-28-

Danger Substances that are harmful to health must be taken up with an M- suction device. Connect the machine to a suitable external dust extractor during all work generating a considerable amount of dust. The air velocity must be at least 20 m/s (65.6 ft / sec.). The internal diameter of hose connector 1 (Fig. 1) is 35 mm (1 3/8 in.). The chip bag can be used for self-generated dust extraction when briefly carrying out work that generates a low amount of dust.

4.5 Saw blade selection

Use a sharp tool to obtain a good cut quality and select a tool from the following list according to material and application: For cuts along and across the grain in soft or hard wood: - Circular saw blade carbide Ø 160 x 1.8 x 20 mm (6.30 x 0.07 x 0.79 in.), 32 teeth For cuts especially along the grain in soft or hard wood: - Circular saw blade carbide Ø 160 x 1.8 x 20 mm (6.30 x 0.07 x 0.79 in.), 16 teeth For cuts especially across the grain in soft or hard wood: - Circular saw blade carbide Ø 162 x 1.8 x 20 mm (6.38 x 0.07 x 0.79 in.), 48 teeth For cuts in fibre cement board: - Diamond saw blade Ø 160 x 3.0 x 20 mm (6.30 x

0.12 x 0.79 in.), 4 teeth

Cutting of wood fibre insulation materials: - Circular saw blade carbide Ø 160 x 1.8 x 20 mm, 32 teeth Cutting of synthetic materials (polystyrene): - Circular saw blade carbide Ø 160 x 1.8 x 20 mm, 16 teeth

4.6 Saw blade change

Danger Unplug the rechargeable battery for all service work. Risk of injury even if the saw wire is standing still. Wear protective gloves!

• To fold the saw guard cover 23 (Fig.3) down on the side, press push-button 2 (Fig. 4) and pull up the locking lever 3. Pulling the locking lever automatically locks the saw shaft and locks the gearshift lever.

• Use the Allen key 4 (brackets Fig. 2) to release the flange screw 5 (Fig. 3) counter clockwise. Remove the screw and the front clamping flange 6.

• You can now remove the saw blade by lifting it to the front.

• The clamping flanges must be free of adhering parts.

• Pay attention to the sense of rotation when inserting the saw blade.

• Afterwards, mount the clamping flange, attach the flange screw and tighten it by clockwise turning.

• Lock the saw guard cover. To this end, close the cover and press the locking lever 3 (Fig.3) downwards. 5 Operation During operation and given corresponding conditions - in particular if the air is dry, or if materials such as coated board materials are used and there is no anti-static suction hose - electrostatic discharges via the operator can occur. The electronic system’s protective function is activated and the machine goes into a safe state. The machine switches off automatically.

5.1 Initial operation

Personnel entrusted to work with the machine must be made aware of the operating instructions, calling particular attention to the chapter "Safety instructions".-29-

5.2 Switching on and off

• Switching on: Press the switch-on lock 7 (Fig. 4) forward to unlock it. Then actuate switch trigger 8 (Fig. 4) when the switch-on lock is pressed. As this is a switch without locking device, the machine will only run for as long as this shift lever is pressed. The built-in electronic system provides for jerk-free acceleration when the machine is switched on and under load readjusts the speed to the fixed setting. In addition, this electronic system adjusts the motor down in case of overload, i.e. the saw blade will stop. Switch the machine off then. Then switch the machine on again and continue sawing at a reduced feed speed. Warming of the machine leads to faster overload shutdown. With the setting wheel 9 (Fig. 2) you can adjust the saw speed between 2660 and 5930 rpm.

Material groups - PVC, Plexi, PA - Level: 1 - 6 - Hardwood, softwood, plywood - Level: 3 - 6 - Coated panel materials - Level: 4 - 6 - Fibre cement board - Level: 3 - 5

• Switching off: For switching off, release the switch trigger 8 (Fig. 4). The built-in automatic brake limits the saw blade slowing time to approx. 1 - 2 s. The switch-on lock automatically takes effect again and secures the portable circular saw against accidental switch-on.

5.3 Cutting depth adjustment

The cutting depth is continuously variable between 0 and 57 mm (0 to 2 ¼ in.), graduated in 1 mm steps. Proceed as follows:

• Adjust the indicator 10 (Fig. 4) by turning it into the top or bottom position, depending on whether you are working with or without the guide rail.

• Set the cutting depth with the depth stop 11 according to the scale. The limit stop has a 1 mm latching mechanism.

• In order to set intermediate measurements, you can turn the cylinder screw 12 (Fig. 4) with the Allen key 4 (retaining bracket Fig. 2). One turn corresponds to 1 mm change in cutting depth.

Always set the cutting depth approx. 2 to 5 mm (5/64 to 13/64 in.) larger than the material thickness to be cut.

5.4 Setting for bevel cuts

For bevel cuts, the saw unit can be set to any angle between 0 °and 45°.

• Unfasten the wing screw 13 (Fig. 4).

• Adjust the angle according to the scale on the segment for tilting.

• Afterwards, tighten the wing screw 13. In addition, the machine can be tilted to -1° or 48°.

• To tilt to -1°, pull the slide bar 14 (Fig. 4) backwards in the direction of the arrow and hold on to it.

• Tilt the machine to -1°.

• To tilt the machine to 48°, press the limit stop 15 (Fig. 3) downwards.

• Tilt the machine to 48°.

• 45° and 0°- limit stop are automatically reset after they have been traversed.-30-

Danger Risk of backlash during plunge cuts! Prior to plunging, place the machine with the rear edge of its base plate against a limit stop fastened on the workpiece. When using the guide rail (special accessories) you must fasten the limit stop available as special accessory on the guide rail. Keep a firm hold on the machine handle during plunging and push the saw lightly forward!

• The markings 16 (Fig. 1) on the bottom saw guard and on the slide bar serve as orientation for the cutting area of the completely plunged saw blade if the guide rail (special accessories) is used.

5.6 Sawing according to tracings

The figure is equipped with a tracked score indicator 17 (Fig. 1) both for straight cuts and for bevel cuts. This tracing edge corresponds to the saw blade's inside.

• Secure the workpiece against shifting and arrange the workpiece supports such that the saw blade is running freely underneath the workpiece.

• Hold the machine by its handle and place the front part of its base plate onto the workpiece.

• Switch on the plunge cut saw (see Chapter 5.2). Plunge to the set cutting depth and slide the machine evenly forward in the direction of the cut.

• When the cut is completed, switch off the saw by releasing the gearshift lever 8 (Fig. 4). Tilt the saw unit back into the top locked position.

5.7 Sawing with the parallel stop

When making parallel cuts, the parallel guide fence 18 (Fig. 1) serves to saw parallel to an already existing edge. The guide fence can be attached to the left or right of the machine. The cutting range on the right- hand side amounts to approx. 140 mm (5 ½ in.) and on the left-hand side to approx. 295 mm (11 5/8 in.).

• Once you have unfastened the wing screws you can adjust the cutting width 19 (Fig. 2) by moving the guide fence accordingly and afterwards retightening the wing screws. In addition, by simply turning it around (guide face for the workpiece edge points upwards), the parallel stop can also be used as double support to improve guidance of the plunge cut saw. Now the machine can be guided along a lath that is fastened on the workpiece.

5.8 Scoring with the guide rail (special

accessories) In case of panel materials you can achieve a clean cut if you score. Use a suitable saw blade (see

To avoid the surface from tearing out, proceed as follows:

• Fasten the guide rail on the workpiece.

• Tilt the locking lever 20 (Fig. 2) clockwise up to the limit stop. The scoring depth is now set to approx. 3 mm (1/8 in.).

• Place the machine with the guide groove onto the guide rail.

• Set the cutting depth - take into account the guide rail thickness (see Chapter 5.3).

• Score the board. Tilt the locking lever 20 (Fig. 2) counter clockwise up to the limit stop.

• Plunge to the preset cutting depth and saw the full board thickness.

5.9 Working with the diamond saw blade in fibre

cement board (special accessories) Proceed as follows:

• Use a suitable saw blade (see Chapter 4.5).

• Exchange the saw blade (see Chapter 4.6).

The diamond saw blade was developed for fibre cement board. The diamond-fitted teeth are more delicate than the teeth of the HM saw blade. This is why you are working with a guide rail.

5.10 Working with guide rails

• To achieve more accurate guidance, set the guide clearance with the two setting wheels 21 (Fig. 4). The plunge cut saw can be used to work with the guide rails that are available as special accessories.-31- In addition, it is possible to use some rails that are freely available on the market.

For pictograms in this regard see page 4. 6 Service and maintenance

Danger Unplug the rechargeable battery for all service work. MAFELL machines are designed to be low in maintenance. The ball bearings used are greased for life. When the machine has been in operation for a longer period of time, we recommend to hand the machine in at an authorised MAFELL customer service shop for inspection. Only use our special grease, order No. 049040 (1 kg tin) for all greasing points.

Clean the machine thoroughly if the machine is not used for a longer period of time. Spray blank metal parts with a rust-proofing agent.

The included Li-ion rechargeable batteries are subject to the requirements of dangerous goods legislation. The rechargeable batteries can be transported by the user on the road without any further requirements. For the dispatch by third parties (e.g.: air transport or forwarding agent), special requirements for packaging and labelling must be observed. In this case, a dangerous goods expert must be consulted when preparing the package. Only dispatch rechargeable batteries if their housing is undamaged. Tape open contacts and pack the rechargeable battery so that it does not move in the packaging. Please also observe any further national regulations.

6.3 Disposal of rechargeable batteries/batteries

Electrical tools, rechargeable batteries, accessories and packaging should be recycled in an environmentally friendly manner. Do not dispose of electrical tools together with domestic waste! For EU countries only:

According to the European Directive 2002/96/EC, power tools that are no longer serviceable, and according to the European Directive 2006/66/EC, defective or used rechargeable batteries/batteries must be collected separately and recycled in an environmentally sound manner. Return unusable rechargeable batteries/batteries directly to: Germany Stiftung GRS Batterien Heidenkampsweg 44 20097 Hamburg Germany Rechargeable batteries/batteries:

Li-Ion: Please comply with the information in Section “Transport”, page 17. Subject to changes.-32- 7 Troubleshooting

Danger Determining the causes for existing defects and eliminating these always requires increased attention and caution. Unplug the rechargeable battery beforehand! Some of the most frequent defects and their causes are listed in the following chart. In case of other defects, contact your dealer or the MAFELL customer service. Defect Cause Elimination Machine cannot be switched on Discharge the rechargeable battery Charge the rechargeable battery Rechargeable battery not engaged in end position Allow rechargeable battery to engage completely Rechargeable battery almost empty, an LED on the rechargeable battery is flashing. Electronic system protects the rechargeable battery from deep discharge. Press key 22 to check (Fig. 1 + 3). If only one LED is still glowing, recharge the rechargeable battery. Overload, machine switches off. A sustained load has overheated the machine or the rechargeable battery. A warning signal is sounded (beep tone). As long as the machine or the rechargeable battery have not cooled down, every further attempt to switch on the machine will result in another beep tone. Allow the machine and the rechargeable battery to cool down. The rechargeable battery can be cooled down much faster with a charger with air cooling. The machine can also be cooled down much faster by using a different rechargeable battery and idling the machine. The machine switches off at a sudden increase in load. The sudden increase in load also causes the current that is required for the machine to rise. A warning signal is sounded (beep tone). This rise in current, which occurs when there is a sudden blockage or backlash, is measured and then leads to the machine being switched off. Switch off the machine by releasing the switch trigger. Afterwards, you can switch the machine back on again and resume work as normal. Try to avoid further blockages. The machine switches off during operation Electrostatic charge. The electronic system’s protective function is activated and the machine goes into a safe state. The machine switches off. Use an anti-static suction hose-33- Defect Cause Elimination Saw blade jams as the machine is advanced Feed rate too fast Reduce feed speed Blunt saw blade Release the switch immediately. Remove the machine from the workpiece and replace the saw blade Tension in the workpiece Widen the kerf with a wedge Poor machine guidance Use parallel stop Uneven workpiece surface Straighten the surface Burn marks on the cut surfaces The saw blade used is unsuitable for the task or blunt Replace saw blade Chip ejection blocked Wood is too damp Clean chip ejection Use dry wood Extended operation without extraction Connect machine to an external extraction, e.g. portable dust extractor Sudden smoke emission from the motor casing Overload of the machine’s electronic system Interrupt the power supply by removing the battery pack. The smoke emission stops. Do not insert a rechargeable battery! Avoid inhaling the smoke! 8 Optional accessories - Saw blade carbide Ø 160 x 1.8 x 20, 16 teeth (longitudinal cut) Order No. 092539

Screw clamp F-SZ180MM (2 x) Order No. 207770

Connecting piece F-VS Order No. 204363

Rail bag TZ-FST1600 Order No. 095257 - Rail bag kit F80/160 with sliding bevel consisting of: F80 + F160 + connecting piece + sliding bevel + 2 screw clamps + rail bag Order No. 209592

Rail bag kit F160/160 consisting of: 2 x F160 + connecting piece + 2 screw clamps + rail bag Order No. 209591

Backlash stop F-RS Order No. 202867

Position indicator MT-PA Order No. 205398

- Aerofix suction-clamping-system F-AF 1 consisting of: Rail 1.3 m, adapter for top and bottom, flexible hose Order No. 204770 - Flexible hose FXS-L, length 3.2 m Order No. 205276 - End caps packed F-EK Order No. 205400

Adhesive profile packed F-HP 6.8M Order No. 204376

- Splinter guard packed F-SS 3.4M Order No. 204375 - Parallel guide fence with wing screws Order No. 203214

Rechargeable power station APS M Order No. 094492
