Product type	Electric thermal burner
Brand	GLORIA
Model	Thermoflamm bio Electro
Supply voltage	230 V ~ / 50 Hz
Power	2000 watts
Maximum nozzle temperature	650 °C
Sound pressure level (L_PA)	65.0 dB(A) (K = 3 dB(A))
Sound power level (L_WA)	76.0 dB(A) (K = 3 dB(A))
Weight	1.1 kg
Overall length	116 cm
Intended use	Elimination of weeds between slabs, on paved surfaces, flower beds and lawns; lighting charcoal
Heating mode	Hot air flow
Switch	On/Off on handle
Dust and moisture protection	Protect from rain and humidity
Hot parts	Conical nozzle and heat shield – risk of burns
Maintenance	Clean the conical nozzle with a cloth or brush after cooling
Included accessories	Disassembled tube, housing, 2 fixing screws, support stand, user manual
Outdoor use only	Yes, do not use in a garage or near flammable materials
Minimum age for use	16 years old under supervision
Heating time before use	About 1 minute
Application time on weeds	5 to 15 seconds depending on type

Frequently Asked Questions - Thermoflamm bio Electro GLORIA

How to use the Thermoflamm bio Electro for weeding?

Plug in the device, turn it on with the On/Off switch, wait about 1 minute for the operating temperature to be reached, then place the conical nozzle on the weed for 5 to 15 seconds depending on the plant type. For tall plants, first heat the upper part, then the base.

Can this device be used to light a barbecue?

Yes, it is suitable for kindling the embers of a charcoal barbecue. Hold the conical nozzle close to the charcoal until it ignites, then move the device away to avoid sparks. Caution: fire risk.

What to do if an odor is emitted during first use?

A slight odor is normal during initial operation. It poses no risk to the device. Ventilate the area and the odor will quickly disappear.

How to clean the thermal burner?

After use, wait for the device to cool completely. Clean the conical nozzle with a cloth or brush. Never immerse the device in water or spray it.

Where should the device not be used?

Never use the device indoors, in a garage, or near flammable materials (gasoline, gas, etc.). It is intended for outdoor use in open air. Also avoid wet weather conditions.

How long should heat be applied to weeds?

5 to 15 seconds are sufficient depending on the plant type. Young shoots are more sensitive; tougher weeds (thistles, grasses) may require repeated treatment at 1-2 week intervals.

Does the device automatically shut off in case of overheating?

The manual does not mention automatic shutoff. It is recommended not to leave the device unattended and to place it on a non-flammable surface after use, using the support stand.

What safety precautions to take to avoid burns?

Never touch the conical nozzle or the heat shield during and after use (they remain hot for a long time). Wear sturdy shoes and protective gloves. Do not direct the hot air flow towards people or animals.

Can I use an extension cord?

Yes, use an extension cord suitable for outdoors with a conductor cross-section of at least 1.5 mm². Fully unwind the cable if using a reel. The extension cord should not exceed 25 m to avoid power loss.

How to store the device after use?

Let the device cool completely on a non-flammable surface. Fold down the support stand and hang up the device. Store it in a dry place away from frost and prolonged sunlight.

USER MANUAL Thermoflamm bio Electro GLORIA

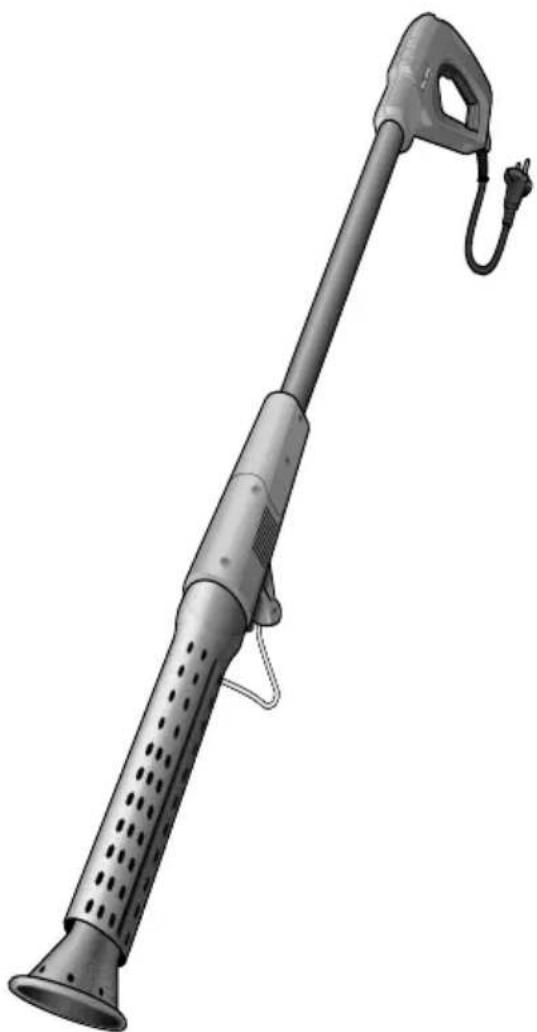

Thermoflamm bio Electro

Illustration of a standard electric soldering iron with a handle and terminal connector (no text or symbols)

CE

Illustration of a fountain pen nib with metallic finish (no text or symbols)

Illustration of a soldering iron with a power tool and cable, showing internal components and a close-up of the tip (no text or symbols)

PZ2

Electric vehicle charging plug with attached power cord and plug, showing electrical connections (no text or symbols)

Diagram showing how to plug an electric vehicle into a power outlet, with arrows indicating charging direction.

5

Illustration of a hairdryer spraying water with reeds, showing a magnified view of the netting process (no text or symbols)

Illustration of a cooking step showing a ladle being inserted into a bowl with food, labeled with number 7 (no text or symbols on the diagram itself)

8 10min

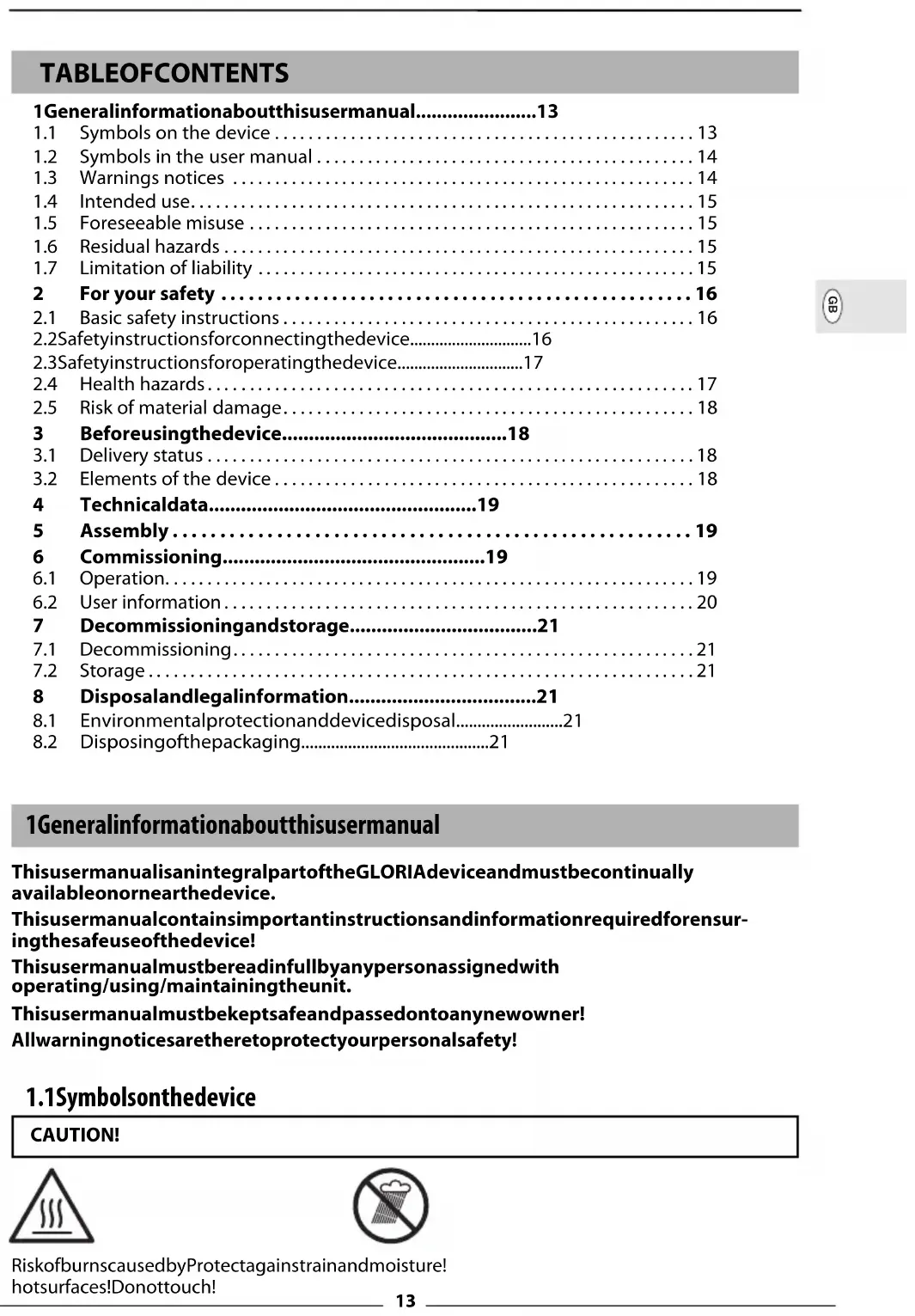

INHALTSVERZEICHNIS

A B C D E E F G H I J

3.2 Geräteelemente

1.1 Symbols on the device 13

1.2 Symbols in the user manual 14

1.3 Warnings notices 14

1.4 Intended use....15

1.5 Foreseeable misuse 15

1.6 Residual hazards 15

1.7 Limitation of liability 15

2 For your safety 16

2.1 Basic safety instructions....16

2.2 Safetyinstructionsforconnectingthedevice....16

2.3 Safety instructions for operating the device.....17

2.4 Health hazards....17

2.5 Risk of material damage....18

3 Beforeusingthedevice....18

3.1 Delivery status....18

3.2 Elements of the device 18

4 Technicaldata....19

5 Assembly....19

6 Commissioning....19

6.1 Operation....19

6.2 User information....20

7 Decommissioningandstorage....21

7.1 Decommissioning....21

7.2 Storage....21

8 Disposalandlegalinformation......21

8.1 Environmentalprotectionanddevicedisposal......21

8.2 Disposingofthepackaging....21

1Generalinformationaboutthisusermanual

ThisusermanualisanintegralpartoftheGLORIAdeviceandmustbecontinually availableonornearthedevice.

Thisusermanualcontainsimportantinstructionsandinformationrequiredforensuringthesafeuseofthedevice!

Thisusermanualmustbereadinfullbyanypersonassignedwith operating/using/maintainingtheunit.

Thisusermanualmustbekeptsafeandpassedontoanynewowner!

Allwarningnoticesaretheretoprotectyourpersonalsafety!

1.1 Symbolsonthedevice

CAUTION!

RiskofburnscausedbyProtectagainstrainandmoisture! hotsurfaces!Donottouch!

1.2 Symbolsintheusermanual

Readtheusermanual!

Warningofflammablesubstances!

Openfireprohibited!

Smokingprohibited!

Donotuseinanexplosiveatmosphere!

DoNOT dispose of foldelectrical and electronic equipment as normal domestic waste.

Environmentallyappropriatedisposal

Recyclablepackagingmaterials

1.3 Warningnotices

WARNING

Thislevelofwarningnoticeindicatesapotentiallyhazardoussituation.Followtheinstructionsaccompanyingthiswarningnoticeinordertoavoidseriousinjuryordeath.

CAUTION

This level of warning notice indicates a potentially hazardous situation which, if not avoided, may result in serious injury. Follow the instructions accompanying this warning notice in order to avoid serious injury.

CAUTION

Thislevelofwarningnoticeindicatesapotentiallyhazardoussituationwhich,ifnotavoided, mayresultinmaterialdamage.

Followtheinstructionsaccompanyingthiswarningnoticeinordertoavoidmaterialdamage.

NOTE!

Anote indicates additional information or illustration that help you operate and facilitate the understanding of the device.

1.4 Intendeduse

ThisGLORIAdeviceisintendedforprivateuseinthehouseandgarden.

Compliancewiththeaccompanyinginstructionsisaprerequisitefortheproperuseofthe device.Theusermanualalsocontainstheoperating,maintenanceandservicingconditions.

The appliance is intended solely for the removal of growth between paving stones, on paved surfaces, on masonry walls, and in beds and in lawns during the growing season.

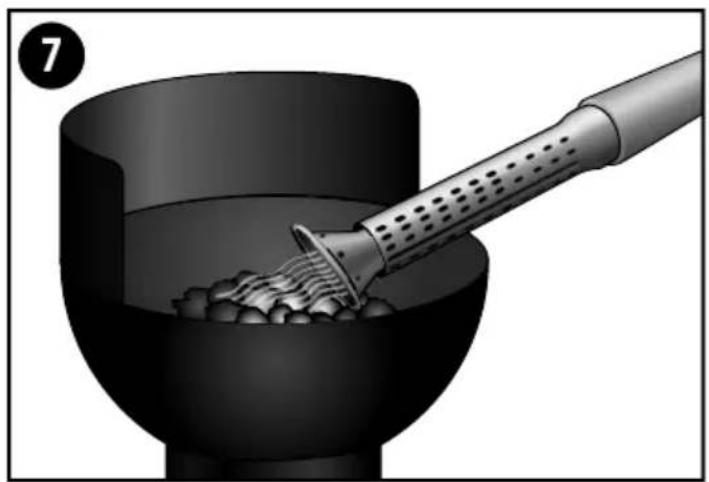

The device can also be used for lighting barbecue charcoal and briquettes. Please note the instructions and guidelines issued by the barbecuedevicemanufacturer.

CAUTION!Dangercausedbyimproperuse!

This device can be dangerous if not used for its intended purpose. You should therefore observ the following safety instructions:

■ Usethedeviceforitsintendedpurposeonly.
■ Noteallinstructionsandinformationintheusermanual.

1.5Foreseeablemisuse

The device is neither suitable for use as a heater in the house, nor for the thawing of ice and snow, or for other usethan the application specified here. Donotusethedeviceinwetweather.

Themanufacturerdoesnotacceptliabilityforanydamageorinjuryresultingfromunauthorisedmodificationstothedeviceoritsimproperuse.

1.6 Residual hazards

This device complies with the accepted rules of technology and therelevant safety requirements! However, use of the device may present:

■ Dangertolifeandlimboftheoperatororotherpersons.
■ Damagethedevice.
■ Damagetotheotheritemsofproperty.

1.7 Limitation of liability

Weexpresslypointoutthataccordingtoproductliabilitylawwedonotacceptliabilityfor damagecausedbyourdevice,insofarasthishasbeencausedbynon-compliancewiththe operatinginstructions,improperuse,improperrepairorreplacementofpartswithnon-genuineparts,orifrepairshavenotbeencarriedoutbythecustomerserviceteamoranauthorisedexpert.Thisalsoappliestoaccessories.

2Foryoursafety

Thischaptercontainsimportantwarningandsafetyinstructionswhichmustbe observedwhenhandlingandusingthedevice.

2.1 Basicsafetyinstructions

Observethefollowingbasicsafetyinstructionstoensurethesafehandlinganduseofthe device:

i NOTE!

• Repairstodevicesforthehomeandgardenmustonlytobecarriedoutbytheservice centres.Sparepartsshouldbeorderedfromyourdealer.Ifthepartsarenotinstock, thedealerwillprocurethemassoonaspossible.
  This device complies with the accepted rules of technology and therelevant safety requirements!
  This device may be used by children from 16 years and above and by persons with diminished physical, sensorial or mental capacities or lack of experience and knowledge if supervised or if they have been instructed with respect to safe use of the device and understand their risk that result from using it. Children must not play with the device. Cleaning and user maintenance must not be performed by children without supervision.
• This device must not be used if the operatorist, ill or under the influence of alcohol or other drugs or medicines.
  ■ Sturdyfootwearmustbewornandwerecommendwearingprotectivegloves!
  ■ Donotleavethedeviceunattendedwhileitisinoperation.
• Youngpeopleundertheageof16andanypersonswhoarenotfamiliarwiththeuser manualmustnotusethisdevice.
• Inordertopreventdamageandhazardsresultingfromimproperuse,youmustobserve theusermanualandstoreitinasafeplace!
  ■ Ifthedeviceispassedontootherpersons,theymustalsobegiventheusermanual!
• OnlyuseGLORIAoriginalsparesandaccessoriesforthedevice.Neveruseworn,modifiedordefectivereplacementparts/accessories!

2.2 Safetyinstructionsforconnectingthedevice

WARNING!Dangerofelectricshock!

Contactwithenergisedcables/wiresorcomponentsmayresultinseriousinjuryordeath! Youshouldthereforeobservethefollowingsafetyinstructions:

• Ifthepowercableisdamaged, it must only bereplaced by a repair shop designated by the manufacturer in order to prevent a hazard! Please contact them an manufacturer or the customers serviced department.
  ■ Ensure that the supply voltage corresponds with the voltage (V) of the device!
  ■ OnlyconnectthedevicetoanACgroundedpoweroutlet.
• Whenusinganextensionlead,onlyuseagroundedcableforoutdoorusewithaconductorcross-sectionofatleast1.5mm ^2 !

■ Additional protection can be achieved by installing a residual current device (RCD) with arated residual operating current not exceeding 30mA in the domestic installation. Ask you electrical installer!
■ Themainsplugmustberemoved:
-Intheeventoffaultsduringoperation
-Priortoanycleaning
-Afteruse

2.3 Safety instructions for operating the device

WARNING!Dangerofelectricshock!

If the energised device comes into contact with water, there is a risk of serious injury or death! You should therefore observe the following safety instructions:

■ Donotusethedevicewithwethands.
- Donotimmersethedeviceinwaterorsprayorcleanitwithwater. Thedevicemustbe protectedagainstmoisture. However, ifthedevicedoesfallintowater, immediately unplugthemainsplug. Neverreachintothewaterifthedeviceisstillconnected!

WARNING!Riskofburnscausedbyhotparts!

Partsofthedevicecanbecomeveryhotduringuseandmaycauseburns.Improperuse ofthedevicemayalsoleadtoariskofburns!Itisthereforeimportanttoobservethefollowingsafetyinstructions:

■ Neverdirectthestreamofhotairatpeopleoranimals.
■ Donottouch,,conicaljet'Jor,,heatshield"I

2.4Healthhazards

WARNING!Dangerordeathbyfireand/orexplosion!

Improperuseofthedeviceposesariskofseriousinjuryordeath! Youshouldthereforeobservethefollowingsafetyinstructions:

■ Handlethedevicecarefullysoastopreventfireorcombustion.
- Onlyusethedeviceinopenspaces.Neverusethedeviceinthegarageorinplaceswhereanypetrolorflammablesubstancesarestored.
■ Donotusethedeviceinthevicinityofanexplosiveatmosphere.
- Donotdirectthestreamofhotairatflammablearticles(e.g.gascylinders).Keepaway fromignitionsources.Donotsmoke.Keepthedeviceoutofthereachofchildren.
■ Positionthedeviceaboveweedsasshowninfigure5.
■ Donotholdthedevicefortoolonginoneandthesameposition.
■ Release „On/Offbutton “ Deachtimethedeviceisraised.
■ Heatcanbetransmittedtocombustiblematerialsthatareconcealed.

2.5 Risk of property damage

CAUTION! Material damage may be caused to the device as a result of improper use!

You should therefore observe the following safety instructions:

■ Protect the device from sunlight and frost.
■ Dry wood, foliage, pine and dry grass can be set on fire.
Continue to observe the treated plants for a while after treating them. The plants may still ignite a while later and cause a fire.
■ Fight fires with fire extinguishers provided it is safe to do so.

3 Before using the device

This chapter contains information about the delivery status.

3.1 Delivery status

The device is shipped as standard as follows:

■ Device with disassembled tube
■ Casing
■ 2x mounting bolts
■ Support stand
■ 1x user manual and product information

Any accessories are individually wrapped.

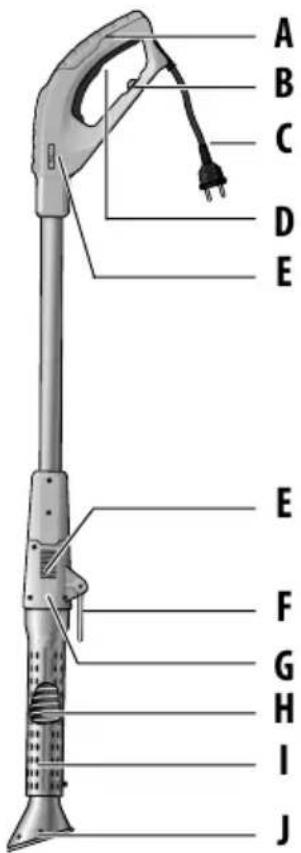

3.2 Elements of the device

A Ergonomic handle
B Cable cleat
C Power cord
D ON/OFF button
E Air intake opening
F Support stand
G Housing with heating element and blower
H Heating element
I Heat shield
J Conical nozzle

A B C D E E F G H I J

4 Technical data

Thermoflamm bio Electro

Voltage:	230 V ~ / 50 Hz
Output:	2000 Watt
Heating system:	Hot air stream
Max. temperature at the nozzle:	650 °C
Noise emissions
LPA:	65,0 dB(A), K = 3 dB(A)
LWA:	76,0 dB(A), K = 3 dB(A)
Weight:	1.1 kg
Total length:	116 cm

5 Assembly

NOTE!

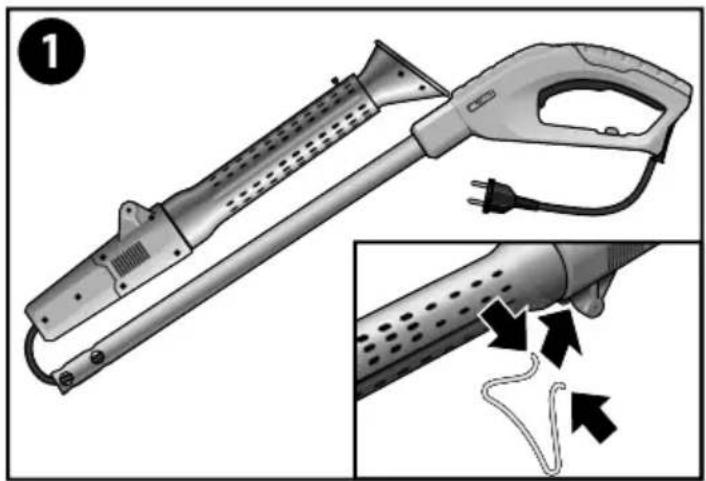

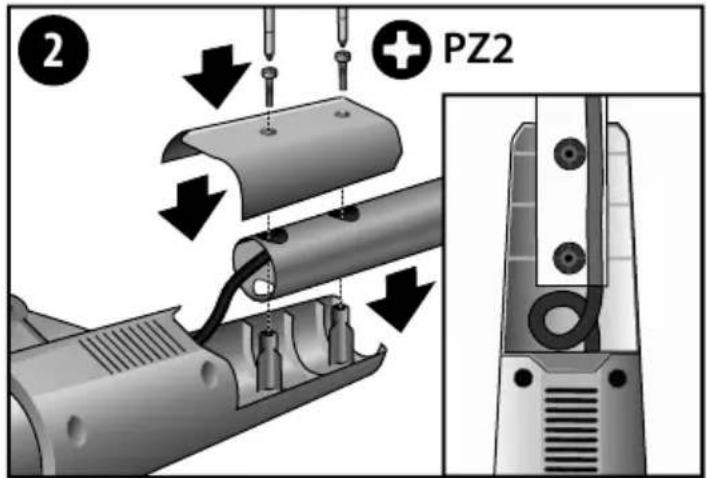

■ Assembly the device in accordance with the illustrations ① – ② see page 3.
■ Ensure that the cable is fed as shown in Fig. 2.

This must lie in a loop in the housing and must not protrude from the housing. The casing must be easy to fit in place. Ensure that the cable is not pinched or damaged.

6 Commissioning

WARNING! Danger or death by fire and/or explosion!

Improper use of the device poses a risk of serious injury or death! You should therefore observe the following safety instructions:

■ Only operate the device in the open air.
- The "air inlet openings" E must not be blocked or covered.
- Ensure that the air outlet openings on the 'conical nozzle' J are not blocked, or the „conical nozzle' J is not twisted and is thus hinders the hot air flow.
■ Never direct the hot air stream at the connection cable or at flammable or explosive substances.

6.1 Operation

Figures 3 - 6

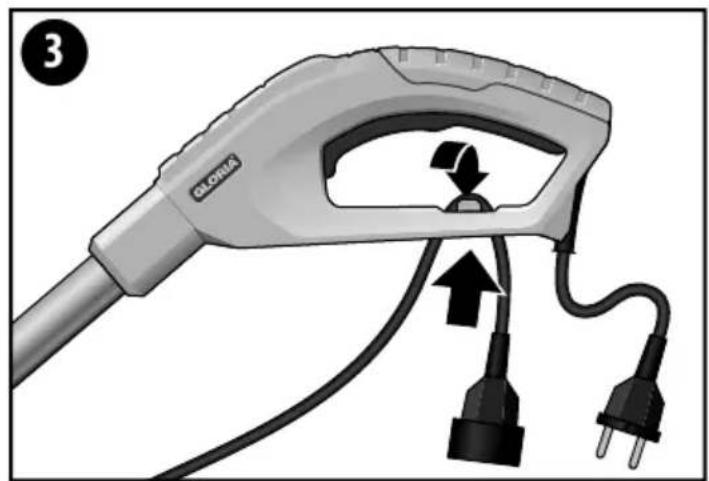

3 Slide the loop of the extension cable into the designated „cable cleat“ B in the „handle“ A and fix it in the designated clip (see Figure 3).

NOTE!

■ The performance of the equipment may decrease if unnecessarily long extension cables (>25 m) are used.
■ If cable reels are used, unroll the entire cable.
■ The cross-section of the cable used must be 1.5 mm ^4 .

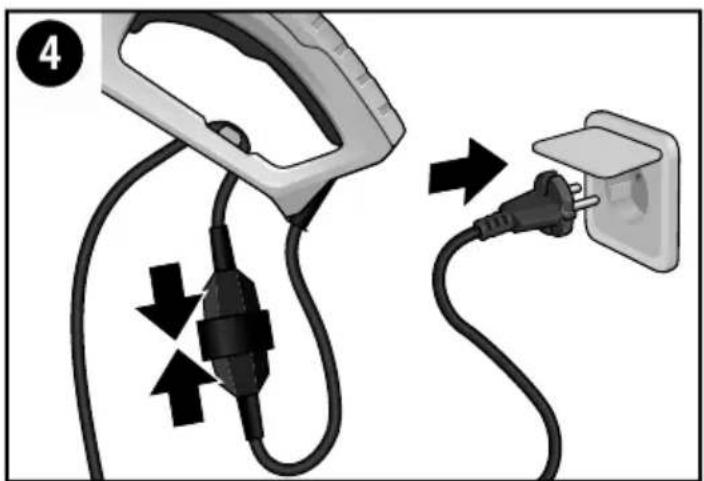

4 Useanextensioncabletoconnectthedevicetoapoweroutlet(230VAC)(seeFigure4).

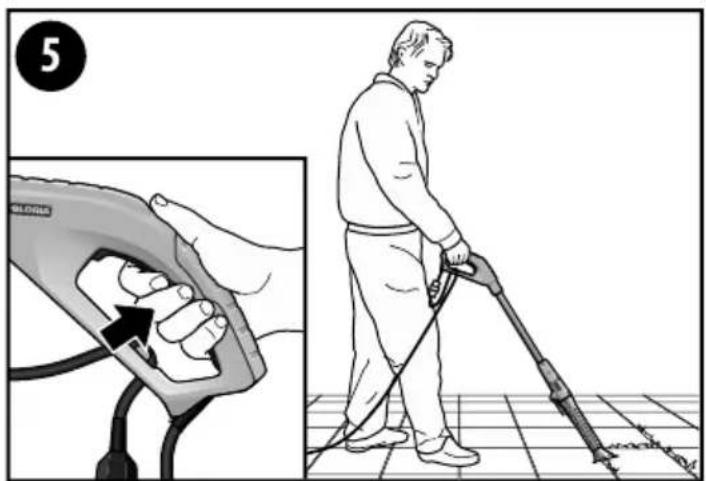

5 Turn on the device by pressing the „ON/OFF button“ D in the „handle“ A. Fulloperatingtemperaturewillbereachedafterapprox.1 minute(seeFigure5).

CAUTION

■ Riskofburnscausedbyhotair!
Neverdirectthehotairstreamathumansoranimals.
Risk of burns caused by hot parts!! Do not touch „conical jet“ J or „heat shield“ I.
- Duringbreaksinwork, releasethe „ON/OFFbutton“Dandplacethedevicewiththe „supportstand“Fopenedonalevelfireproofsurface(seeFigure8).

5 Toeradicateweeds, direct the „conicalnozzle“ Jattheplanttobetreated for 5-10 seconds according to the type of plant (see Figure 5).

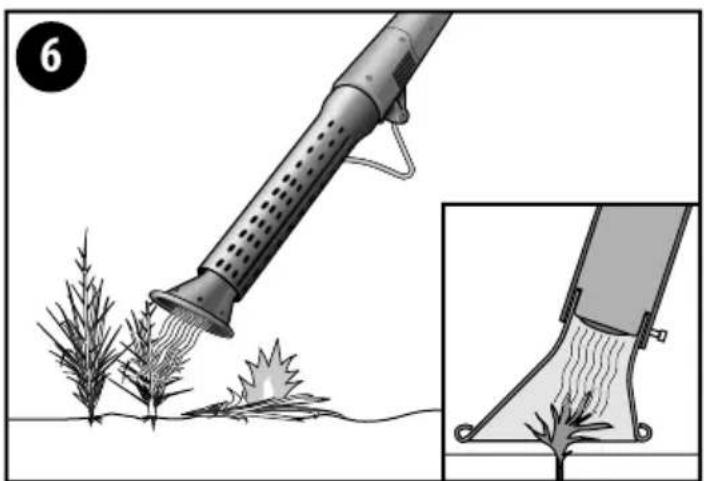

6 Inthecaseoftallplants,firstonlybrieflyheattheuppersectionoftheplantandthen directthe„conicalnozzle“Jattheshrunkenplantforapprox.5-10sec.(seeFigure6).

6.2Userinformation

■ Afaintodourmaybereleasedinthecourseoffirst-timeoperation.Thisisnotharmfulto thedevice.
■ The device is particularly suitable for theremovalofweeds.
- The device is most effective if the plan has a high-sap content. The best time for treating wild growth this in the spring. The effect is more intense, they younger the growth this. However, the results are not immediately visible. Visible part of the plant can also be burned as part of longer exposure time.
Thesensitivityoftheplantstotheheatradiationisnotimmediatelyevidentduringthe recommendedexposuretime.Inprinciple,thefollowingapplies:soft-leavedseedlingsare themostsensitive,inotherwords,theywillnotsurviveasingletreatment.
- Olderplantswithhardleaves,suchasthistles,willdryoutafterseveraltreatmentatintervalsofonetotwoweeks.Sclerophyllousgrassesareextremelyrobustandrequirealongertimefortheheattotakeeffect.
■ Intheinitialphase, wildgrowthgrowingon/throughsurfaces should be treated briefly several times. Only then are lasting results guaranteed. After this, treatments at longer intervals will be sufficient.
- Weedsneedonlybeheated.Itisnotnecessarytoburnthem.ThisdriesouttheCellsofthe leavesandtheweeddiesback.
■ Certainweedspeciesrequirerepeatedtreatment.
- 7 Thedeviceisalsosuitableforrekindlingglowingembersinacharcoalgrillintheopen air.Holdtheconicalnozzleoftheswitched-ondeviceclosetothecharcoal.Assoonas thecharcoalembersbegintoglow,thehotairflowwillrekindletheflame.Thenhold thedevicefurtherawayfromthecharcoal.

CAUTION! Firehazardcausedbyflyingsparks!

■ Holdthedeviceatadistancefromthecharcoaltoavoidsparks.

7Decommissioningandstorage

7.1 Decommissioning

• Takethedeviceoutofoperationbyreleasingthe„ON/OFFbutton“Dinthehandle.
  ■ Disconnectthedevicefromthepowersupply.

CAUTION!Riskofburnscausedbyhotparts!

• The „conical nozzle“ J and „heat shield“ I will remain hot even once the device has been switchedoff.

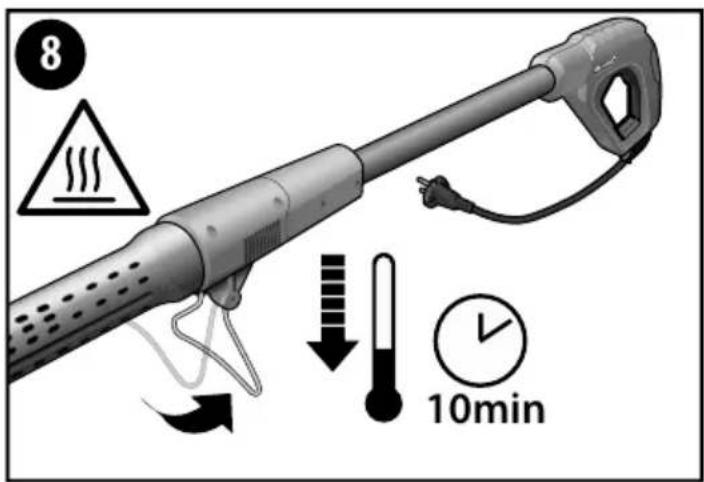

  ■ 8 Afteruse,alwaysplacethedevice withthe„supportstand“Fonaeven,fireproofsurface untilthehotpartshavecooleddown(seeFigure8).

7.2 Storage

- Oncethedevicehascooled, checkwhetherthe'conicalnozzle'Jisdirty, andcleanwitha clothorabrushifnecessary. Thenhangthedeviceonthefoldeddown,, supportstand"F.

8Disposal&Legislation

8.1 Environmental protection & disposal of the device

Thissymbolontheproduct,usermanualorpackagingindicatesthatthisproduct mustnotbedisposedofinregularhouseholdwasteattheendofitsservicelife.

The devicemustbedisposedoffatarecyclingcollectionpoint. Thematerialscan berecycled according to their designations. You will make an important contribution to the protection of our environment by the correct end-of-life product recycling, material recycling or other form of use.

NOTE!

- Pleasecheckwithyourlocalgovernmenttofindtheappropriatedisposalpoint.

8.2 Disposal of packaging

The packaging material have been selected according to environmentally-suitable and disposal-related aspects and are therefore recyclable. Returning the packaging to them material circulations saves raw materials and reduce the level of waste.

Pleasedisposeofunwantedpackagingmaterialsaccordingtoapplicablelocal regulations.

Technicalchangesreserved

SOMMAIRE

A B C D E E F G H I J

A B C D E E F G H I J

A B C D E E F G H I J

A B C D E E F G H I J

A B C D E E F G H I J

4 Dados técnicos

Thermoflamm bio Electro

A B C D E E F G H I J

4 Tekniske data

Thermoflamm bio Electro

INNEHÅLLSFÖRTECKNING

1Allmäninformationomdennabruksanvisning....76

A B C D E E F G H I J

4 Tekniska data

Thermoflamm bio Electro

Spänning:	230 V ~ / 50 Hz
Effekt:	2000 Watt
Värmesystem:	Varmluftsström
Max. temperatur vid munstycke:	650 °C
Buller
L_PA :	65,0 dB(A), K = 3 dB(A)
L_WA :	76,0 dB(A), K = 3 dB(A)
Vikt:	1,1 kg
Totallängd:	116 cm

5 Montering

TIPS!

A B C D E E F G H I J

3.2 Apparatelementer

A Ergonomisk håndtak
B Trekkavlastning
C Nettkabel
D På / Av knapp
E Luftinnsugningsåpning
F Standbøyle
G Hus med varmeelement og vifte
H Varmeelement
I Varmeskjold
J Kjegledyse

4 Tekniske data

Thermoflamm bio Electro

Spenning:	230 V ~ / 50 Hz
Effekt:	2000 Watt
Varmesystem:	Varmluftstrøm
Maks. temperatur ved dysen:	650 °C
Støyemisjon
L_PA :	65,0 dB(A), K = 3 dB(A)
L_WA :	76,0 dB(A), K = 3 dB(A)
Vekt:	1,1 kg
Total lengde	116 cm

5 Montering

MERK!

A B C D E E F G H I J

4 Tekniset tiedot

Thermoflamm bio Electro

A B C D E E F G H I J

4 Τεχνικά στοιχεία

Thermoflamm bio Electro

A B C D E E F G H I J

4 Teknik veriler

Thermoflamm bio Electro

A B C D E E F G H I J

A B C D E E F G H I J

Illustration of a pen nib with a black handle and metallic tip (no text or symbols)

Illustration of a pen nib with a black handle and metallic tip (no text or symbols)
