USER MANUAL Dive 560044 AL-KO

Technical line drawings of two automatic vacuum cleaner units with no visible text or symbols

DE

GB

NL

FR

IT

SI

HR

RS

PL

CZ

SK

HU

DK

SE

NO

FI

RO

BG

RU

UA

Inhaltsverzeichnis

Deutsch 6

English....13

Nederlands 19

Français....26

Italiano 33

Slovenščina 40

Hrvatski....46

Српски....52

Polski....59

Česky 66

Slovenská....72

Magyarul....79

Dansk 86

Svensk....92

Norsk 98

Suomi 104

Român 110

български 117

Русский 125

Україна....133

© 2023

AL-KO KOBER GROUP Kötz, Germany

This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without the express permission of the AL-KO KOBER GROUP.

01 7 8 1 2 3 6 9 10 5 4 5 6 7 8 1 2 3 4 DIVE 5600/44D

02 a b min. 400 mm min. 450 x 450 mm

03 1 a b c

04

Technical diagram of a mechanical or electrical device with numbered components labeled 1 to 4.

05

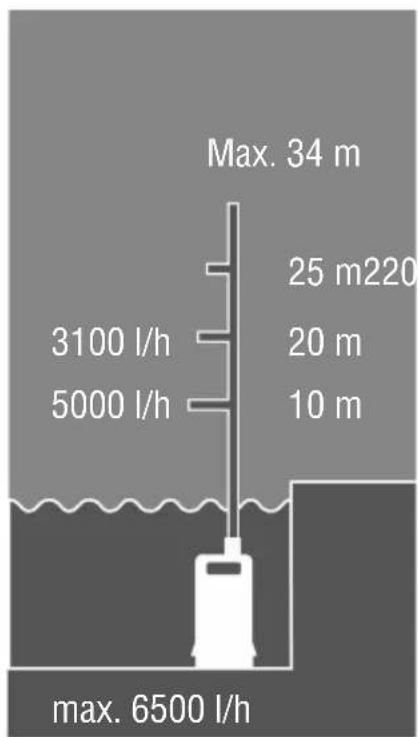

Max. 34 m 25 m220 20 m 10 m 3100 l/h 5000 l/h max. 6500 l/h

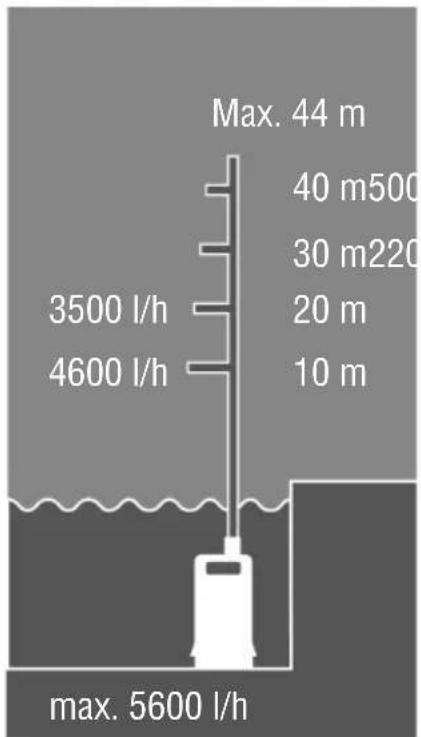

Max. 44 m 40 m500 30 m220 3500 l/h 20 m 4600 l/h 10 m max. 5600 l/h

DIVE 5600/44 DIVE 6500/34

	DIVE 6500/34 DIVE 5600/44
	113884 113883
	1000 W 1200 W
	230 V, 50 Hz 230 V, 50 Hz
	IPX8 IPX8
	34 m 44 m
	7 m 7 m
	6500 l/h 5600 l/h
	3	4
	1 1/2" 1 1/2"
	0,5 mm 0,5 mm
	≈ 400 mm≈ 200 mm	On: ≈ 2 barOff: ≈ 4,4 bar
	≈ 35 °C ≈ 35 °C
	10 kg 11 kg
	10 m 10 m

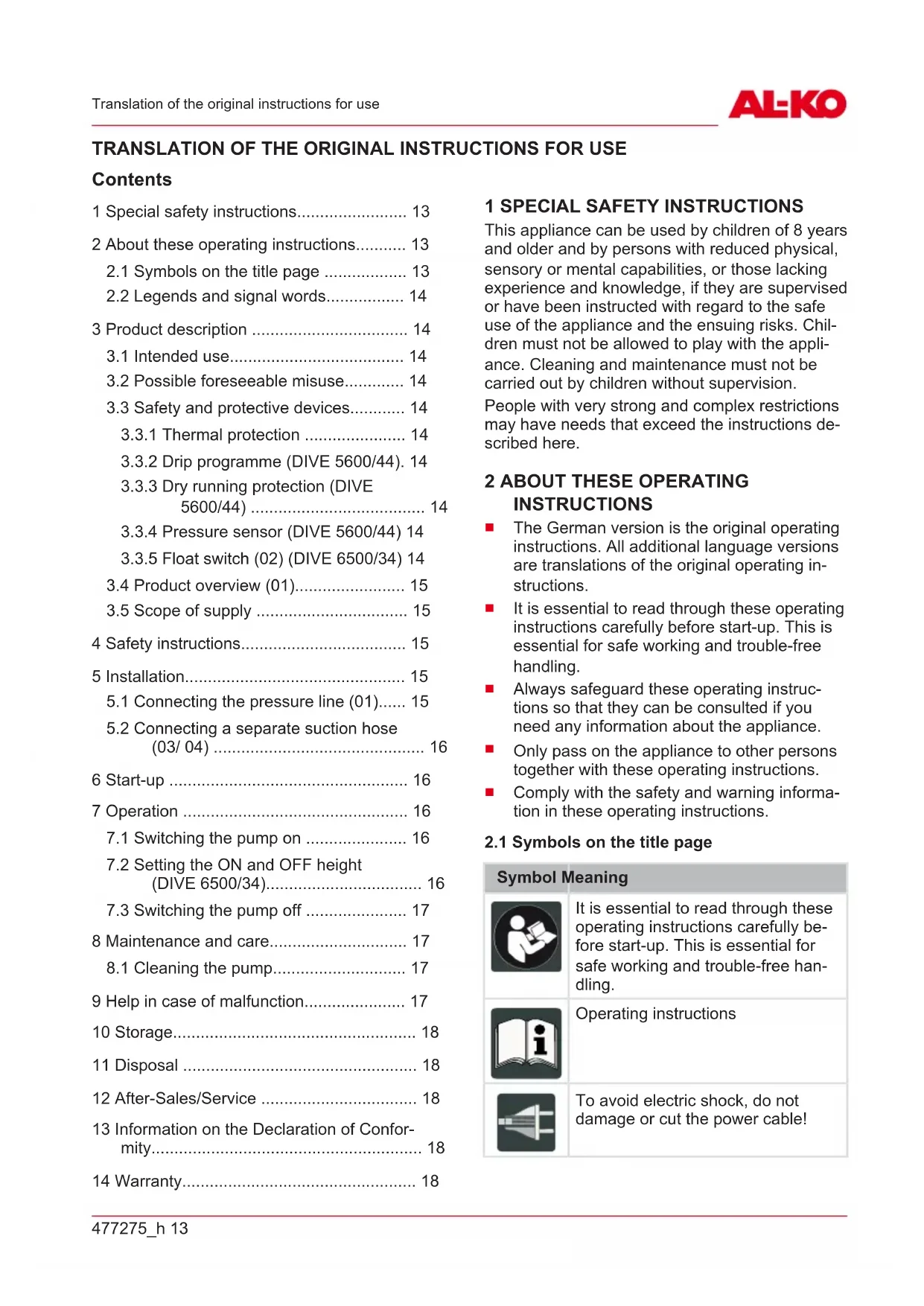

1 Special safety instructions.... 13
2 About these operating instructions...... 13

2.1 Symbols on the title page 13

2.2 Legends and signal words...... 14

3 Product description 14

3.1 Intended use.... 14
3.2 Possible foreseeable misuse.... 14
3.3 Safety and protective devices...... 14

3.3.1 Thermal protection 14
3.3.2 Drip programme (DIVE 5600/44). 14
3.3.3 Dry running protection (DIVE 5600/44) 14
3.3.4 Pressure sensor (DIVE 5600/44) 14
3.3.5 Float switch (02) (DIVE 6500/34) 14

3.4 Product overview (01).... 15

3.5 Scope of supply 15

4 Safety instructions.... 15
5 Installation.... 15

5.1 Connecting the pressure line (01)..... 15
5.2 Connecting a separate suction hose (03/04) 16

6 Start-up 16
7 Operation 16

7.1 Switching the pump on 16
7.2 Setting the ON and OFF height (DIVE 6500/34).... 16
7.3 Switching the pump off 17

8 Maintenance and care.... 17

8.1 Cleaning the pump.... 17

9 Help in case of malfunction.... 17

10 Storage.... 18
11 Disposal 18
12 After-Sales/Service 18
13 Information on the Declaration of Confor-mity.... 18
14 Warranty.... 18

1 SPECIAL SAFETY INSTRUCTIONS

This appliance can be used by children of 8 years and older and by persons with reduced physical, sensory or mental capabilities, or those lacking experience and knowledge, if they are supervised or have been instructed with regard to the safe use of the appliance and the ensuing risks. Children must not be allowed to play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

People with very strong and complex restrictions may have needs that exceed the instructions described here.

2 ABOUT THESE OPERATING INSTRUCTIONS

The German version is the original operating instructions. All additional language versions are translations of the original operating instructions.
It is essential to read through these operating instructions carefully before start-up. This is essential for safe working and trouble-free handling.
■ Always safeguard these operating instructions so that they can be consulted if you need any information about the appliance.
■ Only pass on the appliance to other persons together with these operating instructions.
■ Comply with the safety and warning information in these operating instructions.

2.1 Symbols on the title page

Symbol Meaning

It is essential to read through these operating instructions carefully before start-up. This is essential for safe working and trouble-free handling.

Operating instructions

To avoid electric shock, do not damage or cut the power cable!

2.2 Legends and signal words

⚠️ DANGER! Denotes an imminently dangerous situation which will result in fatal or serious injury if not avoided.

WARNING! Denotes a potentially dangerous situation which can result in fatal or serious injury if not avoided.

CAUTION! Denotes a potentially dangerous situation which can result in minor or moderate injury if not avoided.

IMPORTANT! Denotes a situation which can result in material damage if not avoided.

NOTE Special instructions for ease of understanding and handling.

3 PRODUCT DESCRIPTION

Various models of pumps are described in these operating instructions. Identify your model from the identification plate.

3.1 Intended use

The pump is intended for private use in house and garden. It must only be operated within the scope of its usage limitations in accordance with the technical data.

The pump is suitable for:

■ Re-pumping and pumping out of vessels
■ Drawing water from wells, shafts and other water containers
■ Operation of irrigation systems and lawn sprinklers
■ For household water supplies

The pump is suited exclusively for the conveying of the following fluids:

Clear water, rainwater
■ Water containing chlorine (e.g. swimming pools)
Waste water

Any use not in accordance with this designated use shall be regarded as misuse.

3.2 Possible foreseeable misuse

The pump must not be operated continuously. It is not suitable for conveying:

• Drinking water
  Salt water
  Foodstuffs
  ■ Aggressive media, chemicals

■ Corrosive, flammable, explosive or fuming fluids
■ Fluids that are hotter than 35 °C
■ Water containing sand and abrasive fluids.
■ Waste water with textile or paper residues.

3.3 Safety and protective devices

WARNING! Risk of injury. Defective and disabled safety and protective devices can result in serious injury.

■ Have any defective safety and protective devices repaired.
■ Never disable safety and protective devices.

3.3.1 Thermal protection

The pump is equipped with a thermal protection switch which switches off the motor in the event of overheating. After a cooling down period of approx. 15 - 20 minutes, the pump switches on again automatically.

Operate the pump only when it is fully immersed.

3.3.2 Drip programme (DIVE 5600/44)

When conveying very small water volumes (e.g. dripping of the line), a drip programme is activated in order to prevent the pump switching off prematurely.

7 starting attempts are then carried out within 150 seconds. The pump then switches off. The process is repeated after a short time. If further starting attempts (after one hour in each case) are unsuccessful, the pump is switched off.

The mains plug then has to be unplugged and plugged in again before the pump can be restarted.

3.3.3 Dry running protection (DIVE 5600/44)

The pump is equipped with dry running protection. The dry running protection system switches off the pump if water is not drawn in. The pump then tries to switch itself on again automatically several times.

3.3.4 Pressure sensor (DIVE 5600/44)

The pump is equipped with a pressure sensor. This sensor automatically switches the pump off and on when the set pressure is reached.

■ Pressure values: see technical data.

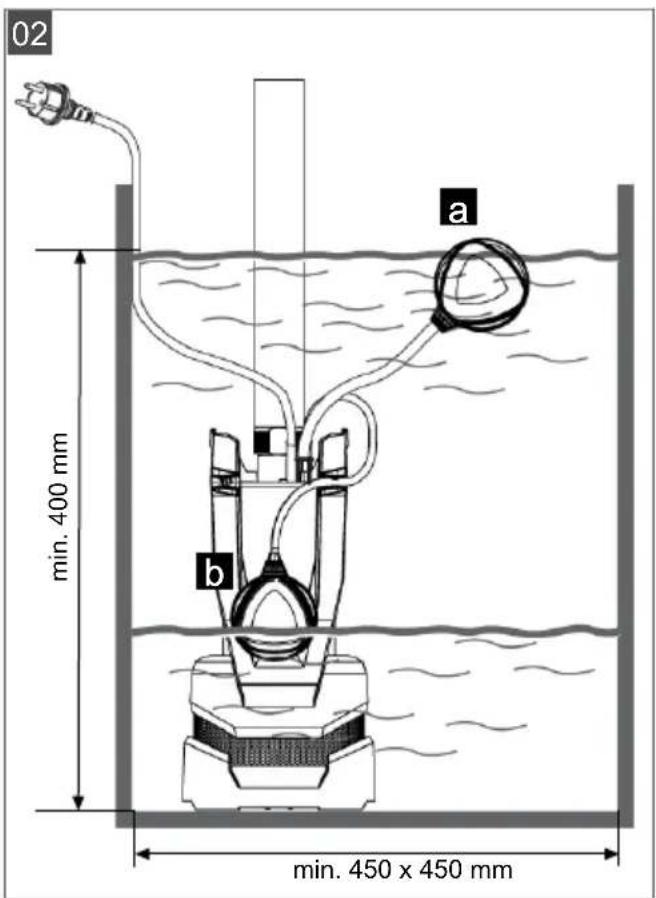

3.3.5 Float switch (02) (DIVE 6500/34)

The pump is switched on automatically by the float switch at a specific water level (ON height) (02/a), and switches off again when the water

level falls to the OFF height (02/b). The float switch must be able to move freely on the surface of the water.

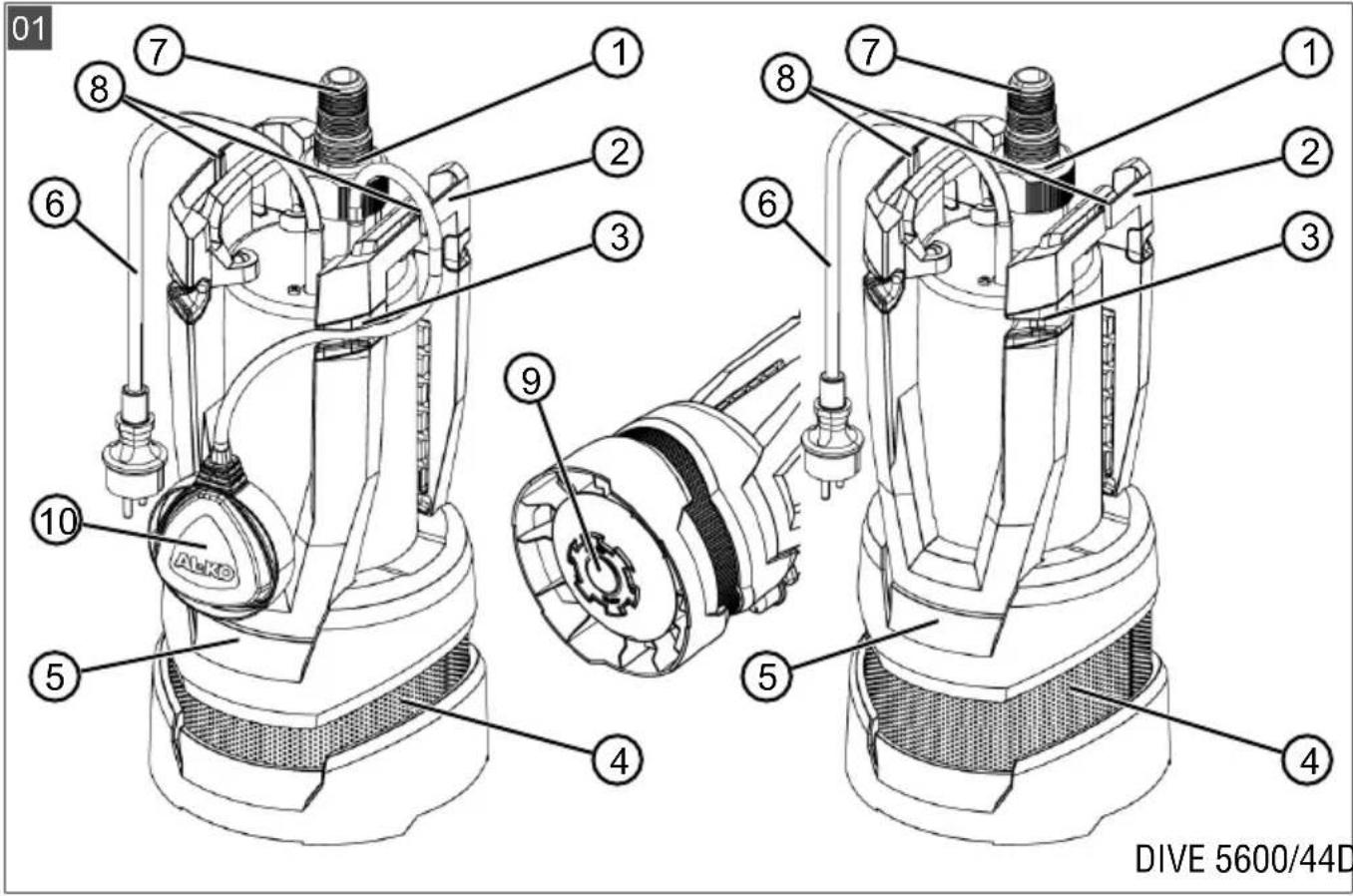

3.4 Product overview (01)

No. Component

1 Pump outlet

2 Handle

3 Cable clamp

4 Inlet screen

5 Pump housing

6 Mains cable

7 Combination adapter

8 Notch for rope attachment

9 Connection for separate suction hose

10 Float switch (DIVE 6500/34 only)

3.5 Scope of supply

The pump is supplied ready for operation with combination nipple, two covers for separate tapping of water and operating instructions.

4 SAFETY INSTRUCTIONS

⚠️ DANGER! Danger from contact with live parts! A defect in the pump or the extension cable can result in serious injury!

■ Disconnect the connector plug from the mains immediately.
■ Connect the device via an earth leakage circuit breaker with a rated leakage current of < 30 mA.

CAUTION! Risk of burns from hot water!

After extended use against the closed pressure side (> 10 min.), the water in the pump can become very hot and may escape uncontrolled!

■ Disconnect the pump from the mains supply and allow the pump and water to cool down.
- Check the water level on the suction side.
■ Check the leak-tightness of the lines.
- Check the installation of the suction and pressure lines.
- Put the pump into operation again only after all the faults have been remedied!

■ Never lift, transport or affix the pump by the mains cable. Do not pull the mains cable in order to pull the mains plug out of the socket.
■ Unauthorised modifications or conversions to the pump are prohibited. Repairs may only be carried out by our customer service.
■ Disconnect the mains plug before working on the device. Protect the mains plug against moisture.
■ Only use the pump and extension cable if they are in flawless technical condition. Damaged appliances must not be operated.
- Maintain a safe distance to persons or animals or switch off the pump if animals approach.

Electrical safety

■ The pump may not be operated while people are in the pool or pond.
The mains voltage at your location must correspond to the information on the mains voltage in the Technical Data. Do not use any other supply voltage.
The appliance must only be operated on electrical equipment in accordance with DIN/VDE 0100, parts 737, 738 and 702. A circuit breaker of 10 A must be installed for fuse protection.
Only use an extension cords which are designed for outdoor use – minimum cross-section 3 x 1.5 mm ^2 , quality of H07RN-F as per DIN 57282/57245 with splash-proof plug socket. Always fully unwind cable drums.
- Check the condition of you extension cable prior to every use.

5 INSTALLATION

5.1 Connecting the pressure line (01)

i NOTE The combination nipple can be trimmed to suit the selected hose connection. Use the largest possible hose diameter.

1. Screw combination nipple (01/7) with seal ring into pump outlet port (01/1).
2. Connect hose to combination nipple.
3. Fasten mains cable (01/6) to the pressure line using cable ties.
4. Unwind the mains cable completely.
5. Insert the mains plug into the power socket.

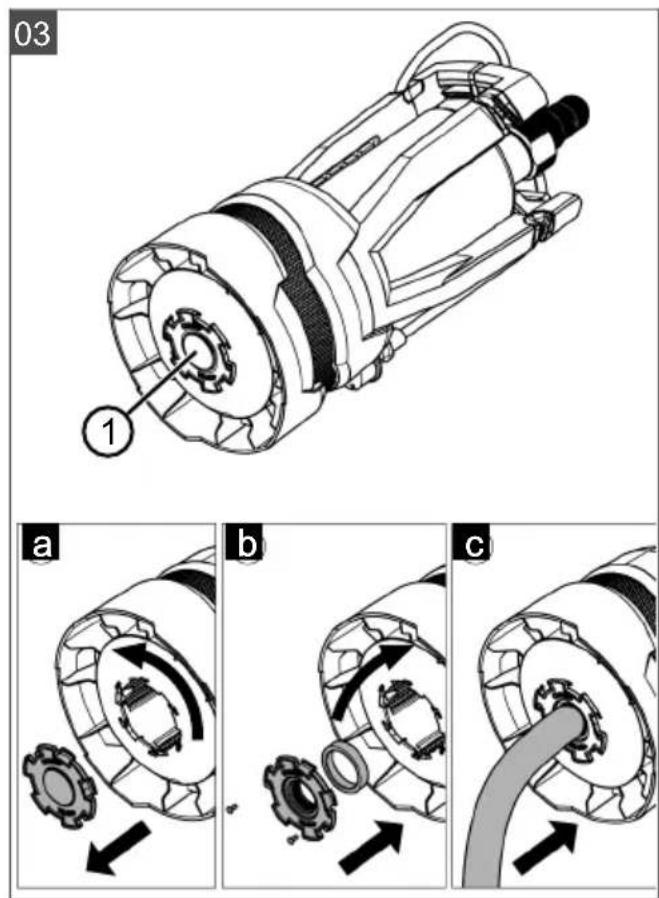

5.2 Connecting a separate suction hose (03/ 04)

IMPORTANT! Danger of damage to the pump! The pump will not function correctly if the tapping point is 18 m higher than the pump.

■ Ensure that the tapping point is not more than 18 m above the water level.

IMPORTANT! Danger of damage to the pump! The pump cannot be vented if the separate suction hose is not filled with water.

- Fill the separate suction hose with water to ensure the proper function.

The port (03/1) for a separate suction hose, e.g. for "floating tapping" of water from the upper half of a cistern (04/1) is on the underside of the pump. Pumping via the separate suction hose prevents water being drawn in via the inlet screen. Water is pumped off only via the additionally installed suction hose (04/3). A float switch (04/2) can also be attached to the suction hose. This allows the water on the surface of the cistern to be pumped off.

■ DIVE 6500/34: The pump is switched on and off by the float switch, depending on the water level.
■ DIVE 5600/44: The pump is switched on and off automatically by the integrated pressure switch.

1. Open cover on the underside of the pump (03/a). Use tools, if necessary.
2. Fill the pump with water until it overflows.
3. Install gasket and cover with thread (03/b).
4. Connect the suction hose (03/c).
5. Fill the suction hose with water on the suction side.

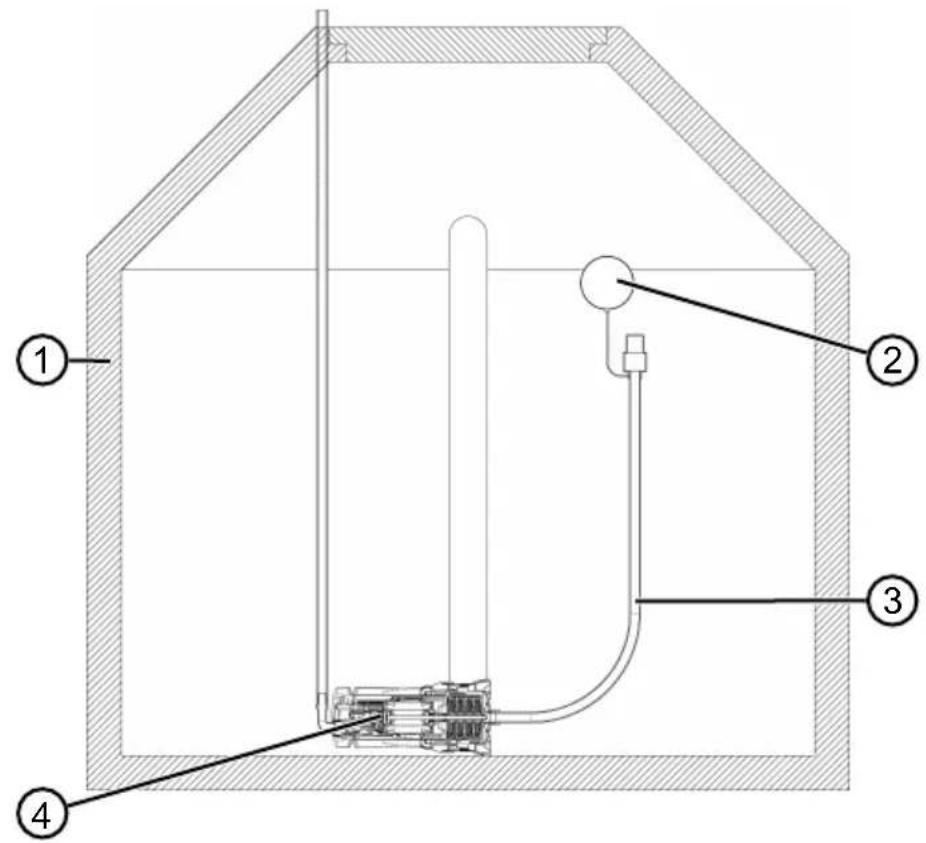

6. Place the pump (04/4) into the cistern.

6 START-UP

IMPORTANT! Risk of flooding! In the event of faults in the pump, water can escape and cause consequential damage due to flooding.

■ Take appropriate measures to avoid consequential damage caused by flooding in the event of faults in the pump.

IMPORTANT! Danger of damage to the pump! If pressure lines are not completely drained, the pump cannot vent itself automatically and the pump may be damaged.

■ Before switching on again after removing from the shaft, ensure that the pressure line is completely drained.

■ Operate the pump suspended from a cable (01/8) or pay attention to a stable position of the pump (upright or horizontal).
■ Operate the pump only when it is fully immersed.
■ Make sure there is adequate clearance under the pump.
■ Never allow the pump to run against a closed pressure line.
- When using in shafts, make sure the size is adequate.
■ Always cover the shaft with a secure foot-plate.

NOTE The pump (DIVE 5600-44) has a check valve on the pump outlet. This prevents the pressure line being drained each time the pump stops.

7 OPERATION

7.1 Switching the pump on

IMPORTANT! Danger of damage to the pump! The pump must not draw in any solid material. Sand and other abrasive materials in the pumped medium will destroy the pump.

■ Ensure that no solids can enter the pumped medium.

i NOTE On muddy, sandy or stony ground, use a suitable plate to ensure the stability of the pump or connect a separate suction hose.

1. DIVE 5600/44 only: Open all shut-off devices (valve, spray nozzle, water cock) in the pressure line.
2. Unwind the mains cable (01/6) completely.
3. Ensure that electrical plug connections are located in the area safe from flooding.
4. DIVE 6500/34 only: Set the ON and OFF height (see chapter 7.2 "Setting the ON and OFF height (DIVE 6500/34)", page 16).
5. Slowly immerse the pump in the pumped medium, holding the pump at a slight angle so that any trapped air can escape.
6. Insert the mains plug into the power socket.

7.2 Setting the ON and OFF height (DIVE 6500/34)

The cable of the float switch (01/9) is clamped to the pump housing (01/5). The switching points of the float switch can be set individually by chang-

ing the clamping position. Recommended cable length on the float switch approx. 100 mm.

IMPORTANT! Danger of damage to the pump! There is a danger during pumping out that the pump could run dry and cause equipment damage.

■ Monitor the pump continuously when pumping out to the residual water level and avoid the pump running dry.
Take the pump out of service when the residual water level is reached by pulling out the mains plug.

NOTE If the water drops below the residual water level, the pump will draw air in. In this case, the pump must be vented when the water level rises and before using it again.

7.3 Switching the pump off

1. Remove the mains plug from the plug socket.

8 MAINTENANCE AND CARE

DANGER! Danger of electric shock!

There is a risk of electric shock when working on the pump.

■ Disconnect the mains plug before starting any fault remedying work.
■ Faults in the electrical system must be rectified by a qualified electrician.

8.1 Cleaning the pump

i NOTE After conveying swimming pool water containing chlorine or fluids that leave residues, the pump must be flushed out with clear water.

1. Clean the inlet screen (01/4) with clear water, if necessary.

9 HELP IN CASE OF MALFUNCTION

DANGER! Danger of electric shock!

There is a risk of electric shock when working on the pump.

■ Disconnect the mains plug before starting any fault remedying work.
■ Faults in the electrical system must be rectified by a qualified electrician.

i NOTE In the event of faults that you cannot rectify, please contact our Customer Service department.

Malfunction Possible cause		Remedy
Engine does not start.	Impeller blocked.	Remove dirt from the suction area. Clean with a suitable tool through the opening on the bottom of the motor housing and turn the im-peller to clear the blockage.
	Thermal pro-tection switch has switched off.	Wait until the thermal protec-tion switch on the pump switches on again. Take note of the max-imum tempera-ture of the con-veying medium. Have the pump inspected.
	No mains power.	Check the fus-es, have the power supply checked by a qualified electri-cian.
	Float switch does not trip when the wa-ter level rises.	Send the pump to an AL-KO service facility.
	Dry running protection ac-tivated	Check the suc-tion side.
	Drip pro-gramme acti-vated	Check the suc-tion side. Unplug the mains cable and plug in again.
Pump running but does not feed.	Air in pump housing.	Vent the pump by holding it at an angle.
	Blockage on the suction side.	Remove dirt from the suction area.
	Pressure line closed off.	Open the pressure lone.
	Pressure hose kinked.	Extend the pressure hose.
	Dry running protection activated	Check the suction side.
Delivery rate too low	Hose diameter too small.	Use a hose with a bigger diameter.
	Blockage on the suction side.	Remove dirt from the suction area.
	Feed head too high.	Observe the max. feed head, see technical data.
	Separate suction hose too long.	Observe the max. feed head, see technical data.

10 STORAGE

NOTE If there is the danger of frost, the system must be completely drained and the pump must be stored in a frost-proof place.

11 DISPOSAL

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.

Packaging, equipment and accessories are made from recyclable materials, and must be disposed of accordingly.

12 AFTER-SALES/SERVICE

In the event of questions of warranty, repair or spare parts, please contact your nearest AL-KO Service Centre. These can be found on the Internet at: www.alko-garden.com/service-contacts

Further information on spare parts can be found at: www.alko-garden.com/spareparts

13 INFORMATION ON THE DECLARATION OF CONFORMITY

We hereby declare, as the exclusively responsible party, that this product in its marketed form meets the requirements of the harmonised EU Directives, EU safety standards and the product-specific standards. The Declaration of Conformity forms part of the operating instructions and is included with the machine.

14 WARRANTY

We will remedy any material or manufacturing defects discovered in the device during the statutory period of limitation for claims for defects by repair or replacement at our discretion. The period of limitation is determined in each case by the law of the country in which the device was purchased.

Our warranty promise applies only if:

■ These operating instructions are observed
■ The device is handled correctly
■ Original spare parts have been used

The warranty does not include:

■ Paint damage attributable to normal wear
■ Wear parts that are marked with a box xxxxxx (x) on the spare parts card

The warranty becomes void in the case of:

■ Unauthorised repair attempts
■ Unauthorised technical modifications
■ Use for other than the intended purpose

The warranty period commences with the purchase by the first end user. The date on the proof of purchase is decisive. In the event of a warranty claim, please contact your dealer or the nearest authorised customer service centre with this declaration and the original proof of purchase. This declaration does not affect the purchaser's statutory claims for defects against the vendor.

VERTALING VAN DE ORIGINELE GEBRUIKERSHANDLEIDING

Inhoudsopgave

3 PRODUCTBESCHRIJVING

12 SERVISNA SLUŽBA/SERVIS

3.3.2 Dropprogram (DIVE 5600/44)

8 VEDLIKEHOLD OG PLEIE

Imported by: AL-KO Gardentech UK Ltd, Murray way, Wincanton, Somerset, BA9 9RS / UK | [phone] [e-mail] | www.alko-garden.uk

AL-KO Service: www.al-ko.com/service-contacts
