USER MANUAL Free Vac 1.0 Lavor

WARNING: read the instructions carefully before use.

• The appliance is intended for non professional use.

• The appliance is intended for use as a dry vacuum cleaner.

• Failure to comply with the abovementioned conditions will lead to cancellation of the guarantee. INTENDED USE: ASH VACUUM

• The appliance is intended for non professional use.

• It has been designed to vacuum only cold ash; it is not suitable for boilers or for fuel oil stoves nor can it be used for plaster powder or cement dust. Area of application

• Substance to be vacuumed – cold ashes from fireplaces, wood/coal stoves, ashtrays, grill.

• Empty and clean vacuum cleaner before and after vacuuming to avoid the collection of materials that could pose a fire hazard in the vacuum cleaner. Restriction of use

• Do not use for the separation of health-hazardous dusts (dust classes L, M, H).

• Vacuum only ashes from admissible fuels.

• Do not vacuum any hot, burning or glowing objects.

• Do not vacuum any object that are hotter than > 40 °C.

• Do not vacuum any flammable substances." SYMBOLS CAUTION! It is important to be careful on sa- fety grounds. IMPORTANT Optional: IF PRESENT Double insulated (IF PRESENT): supple- mentary insulation is applied to the basic insulation to protect against electric shock in the event of failure of the basic insulation. Accessories and filter NOT suitable for ash suction Accessories and filter suitable for ash suction . Translation of the original instructions

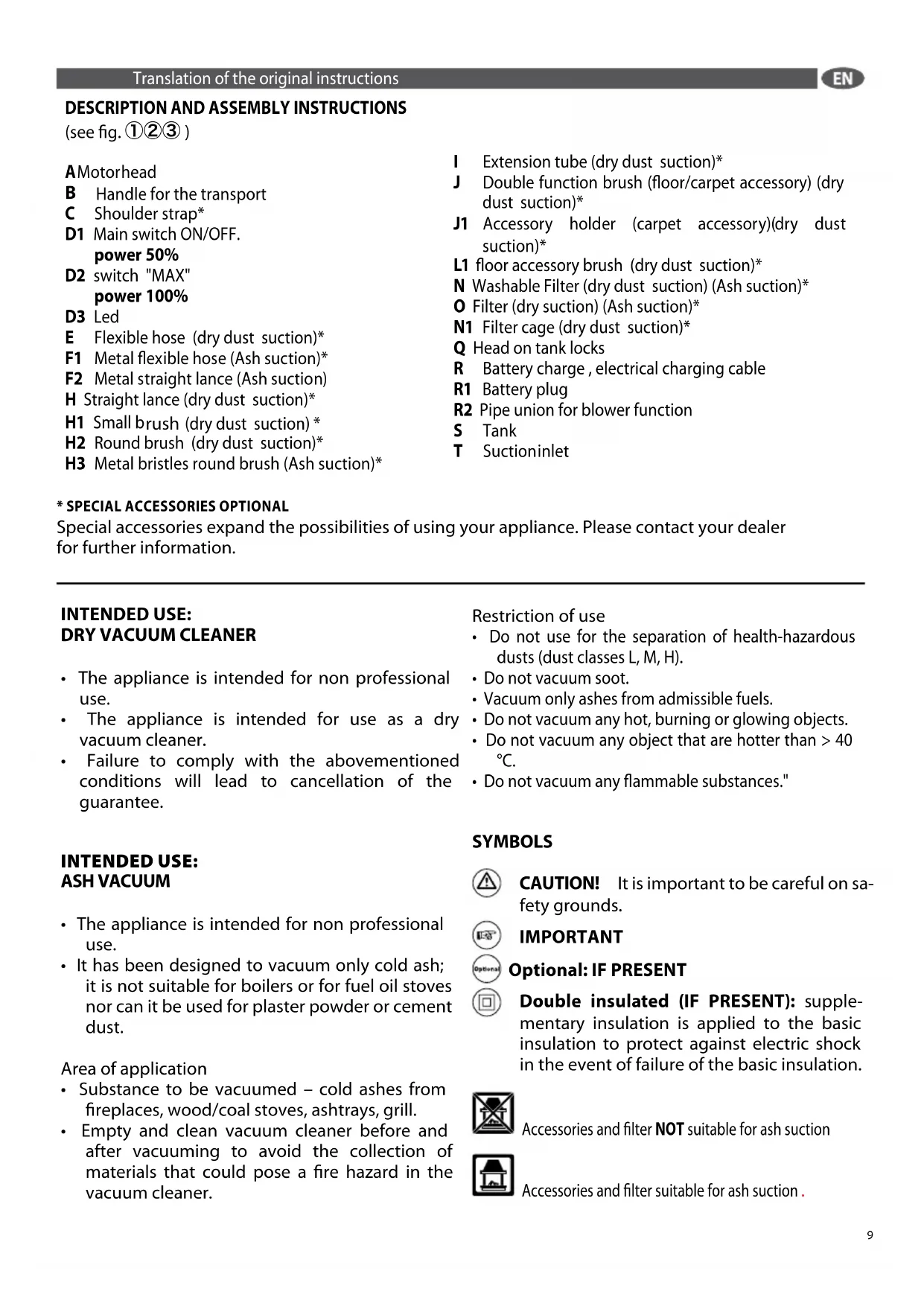

Handle for the transport C Shoulder strap* D1 Main switch ON/OFF. power 50% D2 switch "MAX" power 100% D3 Led E Flexible hose (dry dust suction)* F1 Metal flexible hose (Ash suction)* F2 Metal straight lance (Ash suction) H Straight lance (dry dust suction)* H1 Small b rush (dry dust suction) * H2 Round brush (dry dust suction)* H3 Metal bristles round brush (Ash suction)* I Extension tube (dry dust suction)* J Double function brush (floor/carpet accessory) (dry dust suction)* J1 Accessory holder (carpet accessory)(dry dust suction)* L1 floor accessory brush (dry dust suction)* N Washable Filter (dry dust suction) (Ash suction)* O Filter (dry suction) (Ash suction)* N1 Filter cage (dry dust suction)* Q Head on tank locks R Battery charge , electrical charging cable R1 Battery plug R2 Pipe union for blower function S Tank T Suction inlet

• SPECIAL ACCESSORIES OPTIONAL Special accessories expand the possibilities of using your appliance. Please contact your dealer for further information. 9agent or similary qualied persons in order to avoid a hazard.

• 22 Should extension cables be used, ensure that these lay on dry surfaces and protected against water jets.

• 28 Service and repairs must be carried out by qualified personnel only. Only use manufacturer original spare parts for service repair.

• 29 The manufacturer cannot be held responsible for any damage/injury caused to persons, animals or property caused by misuse of the appliance, not in compliance with manual instructions. CHARGER

• DANGER Risk of electric shock.

• The voltage indicated on the type plate must correspond to the supply voltage. 12 Never touch the mains plug and the socket with wet hands.

• Do not use the charger if dirty or wet.

• Do not operate the charger in explosive environment.

• Do not carry the charger by holding the mains cable.

• Protect the mains cable against heat, sharp edges, oil and moving parts of the machine.

• Avoid using extension wires with multiple sockets and simultaneous operation of multiple devices. 17 Do not pull the plug from the socket by pulling the mains cable.

• Do not cover the charger and keep the air vents of the charger open.

• Do not open the charger. Get repairs done only by authorised experts.

• Use the charger only to charge approved battery packs.

• Do not charge the battery pack for longer than 24 hours, continuously.

• Do not insert conductive objects (such as screwdrivers or the like) into the charging so- cket.

• You may recharge the battery using only the ori- ginal charger provided with the appliance or a charger approved .

• Immediately replace the charger with the char- ging cable in case of visible damage.

• The appliance contains electrical components - do not clean under running water. SAFETY GENERAL WARNING

• 1 Components used in packaging (if plastic bags) can be dangerous keep away from children and animals.

• 2 Operators shall be adequately instructed on the use of these machines.

• 3 The use of this machine for anything not speci- fied in this manual may be dangerous and must be avoided.

• 5 Before emptying the tank, switch off the ma- chine and disconnect the plug from the power outlet.

• 6 Always check the appliance before use.

• 7 The suction nozzle should be kept away from the body, especially delicate areas such as the eyes, ears and mouth.

• 8 The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given super- vision or instruction.

• 9 Children being supervised not to play with the appliance.

• 10 The equipment should be correctly assem- bled before use.

• 11 Ensure that power sockets used are correct for the machine

• 12 Never grasp the mains plug with wet han- ds.

• 13 Check the voltage indicated on the rating plate is the same as the supply voltage.

• 14 These machine are not designed for pi- cking up health endangering dusts or inam- mable/explosives substances.

• 15 Never leave the equipment unattended whil- st in use.

• 16 Never carry out any maintenance on the ma- chine without first disconnecting from the mains supply or when it is left unattended or reachable by children or disables.

• 17 The mains supply cable should not be used to pull or lift the machine.

• 18 The machine should never be immersed and never use the water jet against the appliance to clean it.

• 20 Periodically examine the power cord and machine for damage. If any damage is found, do not use the appliance but contact your service centre for repair.

• 21 If the suplly cord is damaged, it must be replaced by the manufacturer, its service 1060%

• Store and use the charger in dry rooms only, am- bient temperature 5 - 40 °C.

• Remove the battery CHARGER prior to any care and maintenance work. BATTERY DANGER Risk of electric shock.

• Do not insert conductive objects (such as screwdrivers or the like) into the charging so- cket.

• Do not expose the battery to direct sunlight, heat or fire.

CHARGING THE BATTERY

Plug the charger in and connect it to the vacuum cleaner using the socket (R1) Note: if you press the main switch, suction does not start, because suction cannot be activated during charging process. Unplug the charger in and disconnect it to the vacuum cleaner : the light will turn off. The vacuum cleaner can't stay connected to the charger permanently. SAFE HANDLING

• The user must use the appliance as intended. The person must consider the local conditions and must pay attention to other persons in the vicinity when working with the appliance..

• The appliance may not be operated in explosive atmospheres.

• If the appliance is used in hazardous areas the corresponding safety provisions must be observed.

• Do not use the appliance if it fell down, is visibly damaged or leaking. Then connect the battery charger plug to a power socket matching the tech- nical specifications of the appliance; the red LED turns on. When the orange LED turns on, the battery has reached 60% ca- pacity after about 3 hours. When the green LED turns on, the battery has reached 100% ca- pacity after about 4.5 hours. If you press the main ON/OFF button and the red LED flashes for 10 seconds, this means flat battery. ORANGEREDRED GREEN

11HOW TO PREPARE AND USE VACUUM

CLEANER Before you use your vacuum cleaner for the first time, you must charge the battery completely see “Charging the battery”. Unplug the charger cord from the vacuum cleaner. If the charger remains connected to both the power point and to the appliance, the latter will not function.

• The machine must be always kept on horizontal bases, in a safe and stable way.

• Never use the appliance without filters . (see fig.④⑤) I nsert the suitable filters for the proper use

Accessories and filter NOT suitable for ash suction Accessories and filter suitable for ash suction .

is fitted in its housing .

ARANCIONE VERDE VERDE ROSSO GREEN To activate suction, press the main ON/OFF button; the green LED turns on, signalling that suction is at 50% (in energy saving mode). 60% 0%0% 100% 3 h - 3,5 h4,5h - 5 h

ARANCIONE VERDE VERDE ROSSO ORANGE To increase suction to its maximum level, press “MAX”; the orange LED turns on. To deactivate suction, press the main ON/OFF but- ton. Next time you turn suction on, it will be again at 50% in energy saving mode. HOW TO PREPARE AND USE THE ASH VA- CUUM CLEANER Accessories and filter suitable for ash suction .

• Connect the metal hose F1 to its fitting T .

• Connect the metal straight lance F2.

• Before vacuuming the ash, check that it is cold and no longer alight. Do not vacuum burning embers

Do not empty the drum into a container which is easily inammable and make sure that the ashes are completely cool.

• Vacuum the ash directly from the fireplace or from the stove (wood or pellet-burning). Hold the suction nozzle about 1 cm. above the ash.

• If the metal hose becomes hot during use, turn the device off immediately and let it cool. BLOWER FUNCTION

• Never use the appliance without filters

• I nsert the suitable filters and accessories for the proper use

FINISH OPERATION Turn on the appliance. Completely empty the tank. 12FLAT BATTERY If during operation suction stops and the LED turns off, this means that the battery is flat. If you press the main ON/OFF button and the red LED flashes for 10 seconds, this means flat battery. FILTER CLEANING

• Remove the battery CHARGER prior to any care and maintenance work.

drying very well ,befor reassemble it

• Once the filter has been cleaned, check whether it is suitable for further use. If it has been damaged or broken, replace it with an original filter.

The unit is maintenance-free.

• Remove the battery CHARGER prior to any care and maintenance work.

• Clean the exterior part of the machine with a dry cloth.

• Move the appliance only by catching the carrying handle located on the motor head.

• Store the appliance and the accessories in a dry safe place, out of the reach of children.

• It is advisable to charge the vacuum cleaner im- mediately after each use in order to always have it available with a fully charged battery. Thus, you will gain the maximum benefit from its cle- aning and autonomous performance functions. However, in case you plan to be absent for a long period of time (on vacation, for example), it is advisable to unplug the charger , in this case, the autonomous performance function could be diminished due to automatic power loss.

• It is advisable to charge the battery completely every 5 or 6 month. livello pressione acustica: LpA = 75 dB (A) WARRANTY CONDITIONS All our machines are subjected to strict tests and are covered against manufacturing defects in ac- cordance with applicable regulations. The warran- ty is effective from the date of purchase. The following are not included in the warranty: - Parts subject to normal wear. - Rubber parts, char- coal, filters and the accessories and optional acces- sories. - Accidental damage, caused by transport, neglect or inadequate treatment, incorrect or im- proper use and installation failing - The warranty shall not cover any cleaning operations to which the operative components may be subjected, such as clogged nozzles and filter blocked due to lime- stones. This machine is intended to be used for do- mestic and hobby work: the warranty does not cover any other different kind of use. DISPOSAL (WEEE) As the owner of electrical or electronic equipment, the law (in accordance with the EU Directive 2012/19/EU on waste from electrical and electronic equipment and the national laws of the EU Member States that have implemented this Directive) prohibits you from disposing of this product or its electrical / electronic accessories as municipal solid waste and obliges you to make use of the appropriate waste collection facilities. The product can be disposed of by returning it to the distributor when a new product is purchased. The new product must be equivalent to that being disposed of. Disposing of the product in the envi- ronment can cause great harm to the environment itself and human health. The symbol in the figure indicates the urban waste containers and it is strictly prohibited to dispose of the equipment in these containers. Non-complian- ce with the regulations stipulated in the Directive 2012/19/EU and the decrees implemented in the various EU Member States is administratively pu- nishable. livello pressione acustica: LpA = 75 dB (A)
