Taurus 03 IR - Vacuum Cleaner Lavor - Free user manual and instructions
Find the device manual for free Taurus 03 IR Lavor in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Wet & Dry Vacuum Cleaner |
| Brand | Lavor |
| Model | Taurus 03 IR |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Motor Power | 3000 W (3 x 1000 W) |
| Number of Motors | 3 |
| Body Material | Stainless Steel (INOX) |
| Body Dimensions (Diameter x Height) | 420 mm x 585 mm |
| Hose Length | 2.5 m |
| Hose Diameter | 40 mm |
| Cable Length | 7 m |
| Wheel Diameter (Rear) | 250 mm |
| Wheel Diameter (Front Swivel) | 75 mm |
| Filter Type | Cloth filter bag + sponge filter |
| Safety Features | Floating system for overflow protection, switch with transparent cover |
| Accessories Included | Flat lance, round brush, bristle accessory, liquid accessory |
| Handle | Front handle with locking lever |
| Spare Parts Availability | Full parts list with codes available |
| Model Version | Wet & Dry 230/50 EU LW |
Frequently Asked Questions - Taurus 03 IR Lavor
What types of debris can the Taurus 03 IR handle?
The Taurus 03 IR is a wet and dry vacuum cleaner, capable of handling both liquid spills and dry debris like dust, dirt, and small solids.
How many motors does the Taurus 03 IR have?
It features 3 motors, each with a power of 1000 W, providing a combined total of 3000 W for strong suction.
What is the capacity of the tank?
The exact tank capacity is not specified in the manual, but based on the body diameter of 420 mm and height of 585 mm, it is estimated to be around 50-60 liters.
What type of filter does the Taurus 03 IR use?
It uses a cloth filter bag (available as spare part) and a sponge filter (HLC sponge) for filtration. Both are washable and reusable.
Can I use the vacuum without a filter bag?
Yes, the vacuum can be used without the filter bag for wet pick-up, but the sponge filter must always be in place to protect the motors.
How do I prevent liquid overflow?
The Taurus 03 IR is equipped with a floating system (part 18) that automatically shuts off suction when the tank reaches maximum capacity, preventing overflow.
What accessories are included with the vacuum?
Included accessories are a flat lance, round brush, bristle accessory, and liquid accessory (parts 34-38). Additional accessories like a flexible hose and curved steel tube are also provided.
What is the cable length?
The cable is 7 meters long (H05VV-F 2X1.5 MT.7), giving good mobility.
Is the Taurus 03 IR suitable for industrial use?
Yes, it is designed for professional use with a robust stainless steel body, powerful motors, and large wheels for easy transport.
Where can I find spare parts?
Spare parts are listed in the manual with detailed codes. You can order them through authorized Lavor dealers or service centers using the part numbers.
User questions about Taurus 03 IR Lavor
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual Taurus 03 IR - Lavor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Taurus 03 IR by Lavor.
USER MANUAL Taurus 03 IR Lavor

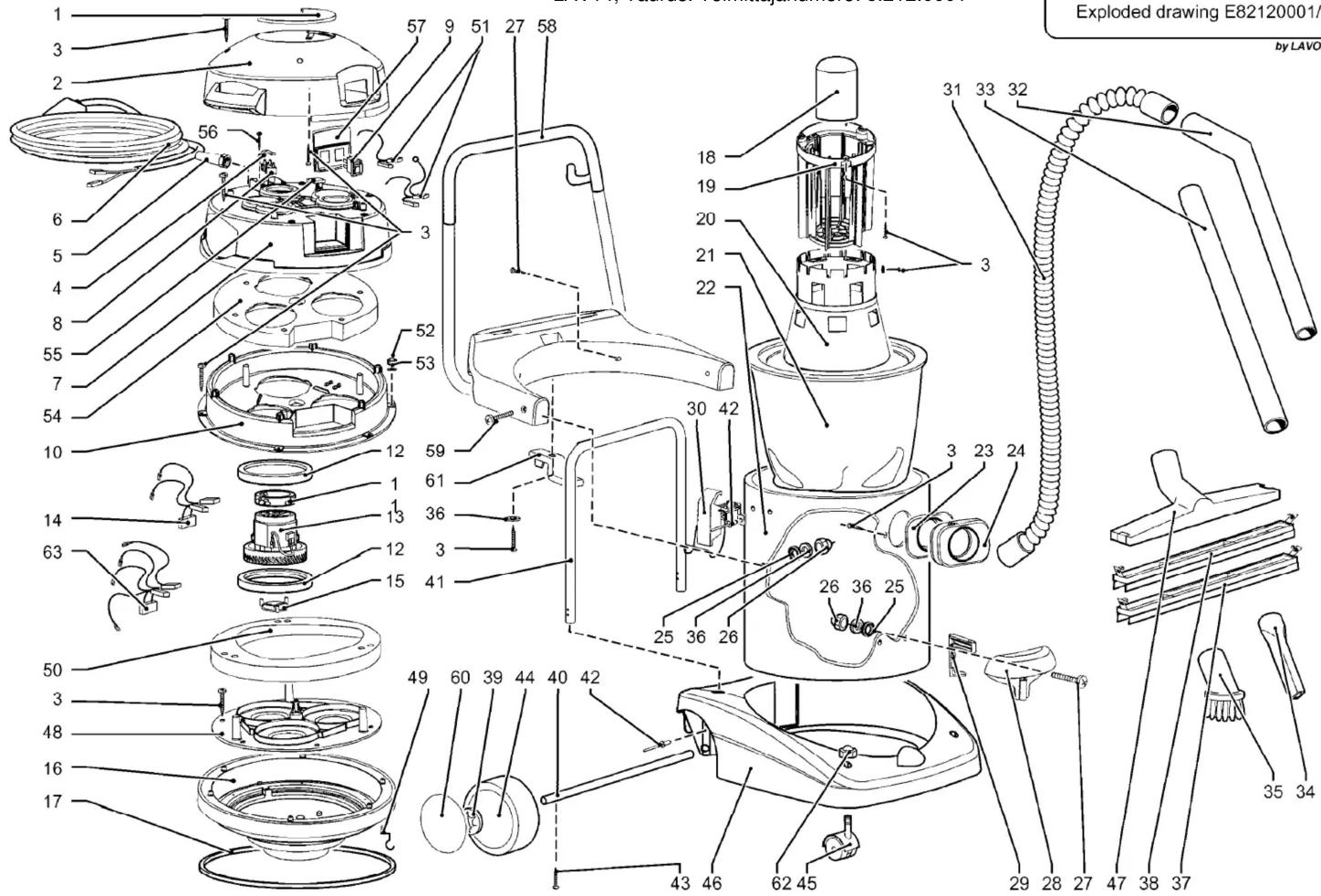

Exploded drawing E82120001/01
by LAVORWASH
0903
List of parts
| Model. | 8.212.0001 | Rev.. 1 | Starting o | 09.01.2003 | End of validity | 01.01.300C |
| Description | TAURUS IR-03 '03 WET&DRY 230/50 EU LW | Date: | 05.07.2005 | |||
| Assembly. | R82120001 | Rev.. 1 | Starting o | 09.01.2003 | End of validity | 01.01.300C |
| Description | TAURUS '03 WET&DRY 230/50 LWS -EL | Table. | E82120001/0 | |||
| Pos | Code | Qty Conf | Description | |
| 1 4.208.0040 1 HANDLE FOR PROFESSIONAL VACUUM CLEANER-BLUE0 | ||||
| 2 4.208.0094 1 HEAD DOMUS-TAURUS BLUE RAL. 5020 ESP.000 | ||||
| 3 3.002.0318 32 SCREW -TORX 5X16 D=10 ZNT BLACK | ||||
| 4 4.008.0277 1 FIX PAD CABLE HOLDER0 | ||||
| 5 3.406.0031 1 CABLE HOLDER 60X12X15.5 EPDM BLACK | ||||
| 6 4.012.0179 1 CABLE H05VV-F 2X1.5 MT.7 F/F SP.SCHUKO ESP.00 | ||||
| 7 4.208.0070 1 HEAD BASE FOR 3MOTOR VACUUMS | ||||
| 8 3.405.0055 1 JUNCTION-BOX 4MMQ. 110 12 380V | ||||
| 9 5.009.0213 2 | 0 | ASS.SWITCH+TRANSPARENT PROTECTION | ||
| 10 4.208.0071 1 UPPER SPACER FOR 3 MOTOR VACUUM | ||||
| 11 3.299.0013 3 MOTOR GASKET 61X85 | ||||
| 12 3.299.0014 6 MOTOR GASKET 120X149 | ||||
| 13 3.755.0018 3 BISTADIUM MOTOR 230V 1000W 8A40) | ||||
| 14 4.212.0003 1 CABLE 0.75 L=480 | ||||
| 15 4.208.0095 3 | 0 | VALVE DOMUS TAURUS | ||
| 16 4.208.0073 1 MOTOR BASE '03 BLUE RA. 5020 ESP.00 | ||||
| 17 4.215.0013 1 GASKET 410X445 EPDM 45 SH FOR DOMUS - TAURUS | ||||
| 18 4.208.0096 1 FLOATING FOR DOMUS-TAURUS ESP.00 | ||||
| 19 4.208.0075 1 BASKET FOR PROFESSIONAL VACUUM CLEANER | ||||
| 20 4.208.0076 1 CONE FILTER STRETCH | ||||
| 21 | 5.509.0039 | 1 | 0 | CLOTH FILTER BAG + O-RING |
| 22 3.751.0002 1 INOX BODY DOMUS/TAURUS 430BA SP0.7 D.420XH585 ESP.00 | ||||
| 23 3.099.0455 1 GASKET FOR VACUUM CLEANER WITHNOZZLE DIAM.40 | ||||
| 24 3.752.0075 1 COMPLETE NYLON NOZZLE D.40 | ||||
| 25 4.215.0018 6 RUBBER WASHER 26X5X2 | ||||
| 26 3.003.0047 6 NUT | ||||
| 27 3.002.0321 4 TCTC SCREW M6X16 ZNT UNI 7687 | ||||
| 28 4.208.0098 1 FRONT HANDLE FOR BODY DOMUS TAURUS ESP.00 | ||||
| 29 | 4.208.0099 | 1 | 0 | LEVER FOR FRONT HANDLE FOR BODY DOMUS TAURUS RAL.3020 |
| 30 | 3.099.0454 | 2 | 0 | HOOK 2.05/621 ZNT FOR BODY TAURUS '03 |
| 31 5.209.0021 1 COMPLETE FLEX HOSE MT.2.5 D.40 | ||||
| 32 3.753.0019 1 STEEL CURVED HOSE D.38.2 | ||||
List of parts
| Model. | 8.212.0001 | Rev.. 1 | Starting o | 09.01.2003 | End of validity | 01.01.300C |
| Description | TAURUS IR-03 '03 WET&DRY 230/50 EU LW | Date: | 05.07.2005 | |||
| Assembly. | R82120001 | Rev.. 1 | Starting o | 09.01.2003 | End of validity | 01.01.300C |
| Description | TAURUS '03 WET&DRY 230/50 LWS -EL | Table. | E82120001/0 | |||
| Pos | Code | Qty | Conf | Description |
| 33 3. | 753.0020 1 STEEL HOSE D.38.20 | |||
| 34 3. | 754.0048 1 FLAT LANCE D.40 FOR ZEUS-DOMUS-TAURUS0 | |||
| 35 3. | 754.0049 1 ROUND BRUSH D.40 FOR ZEUS-DOMUS-TAURUS0 | |||
| 36 3. | 004.0050 10 FLAT WASHER D.6X24 SP. UNI 6593 INOX-RONY062400-0 | |||
| 37 | 3.754.0051 | 1 | 0 | BRISTLE ACCESSORY FOR BODY BRUSH FOR ZEUS DOMUS TAURUS |
| 38 3. | 754.0052 1 | 0 | ACCESSORY FOR LIQUIDS FOR BODYBRUSH FOR ZEUS DOMUS TAUR | |
| 39 3. | 099.0019 2 BLOCK WHEEL D.250x55 D.20 | |||
| 40 4. | 207.0004 1 | AXLE FOR VACUUM CLEANER TAURUSDOMUS D.20 L.5( | ||
| 41 4. | 207.0002 1 INFERIOR TUBOLAR | |||
| 42 3. | 099.0453 6 | 0 | ALLUM.PIN | |
| 43 3. | 002.0324 2 SCREW TC.-TC 5.5X32 ZNT | |||
| 44 3. | 006.0049 2 WHEEL DIAM. 250X55 HOLE 20 (L.WASH) | |||
| 45 | 3.006.0045 | 2 | 0 | PIVOTTING WHEEL D.75X24 M10X30 FOR DOMUS AND TAURUS |
| 46 4. | 208.0042 1 DOMUS-TAURUS CART BASE | |||
| 47 | 3.754.0050 | 1 | 0 | BODY BRUSH D.40 FOR ZEUS DOMUS-TAURUS |
| 48 4. | 208.0002 1 LOWER SPACER FOR 3M MOTOR VACCUMCLEANER | |||
| 49 5. | 213.0001 1 | ANTISTATIC PLATE | ||
| 50 4. | 215.0014 1 HLC SPONGE 24 AU SP.60 D.EST.390MM | |||
| 51 4. | 212.0001 1 WIRING SEZ.1,5 FOR VACUUM CLEANER PROF. | |||
| 52 | 3.003.0001 | 1 | 0 | NUT E. M4 MEDIO UNI 5588 CL8 ZNT |
| 53 3. | 004.0003 1 EXT. INDENTED WASHER D.4X8 DIN6798 ZNT | |||
| 54 4. | 215.0015 1 HLC SPONGE 24 AU SP.60 D.EST.340MM | |||
| 55 | 4.408.0013 | 1 | 0 | GASKET FOR QUICK CONNECTION SOCKET |
| 56 3. | 002.0012 3 THREAD-FORMING SCREW 3,2X16 | |||
| 57 4. | 208.0069 1 SWITCH HOLDER '03 BLACK | |||
| 58 5. | 209.0022 1 BLACK HOSE ASSY+HANDLE SUPPORTHANDEL LOCKING LEVER | |||
| 59 3. | 002.0320 2 TSP-TC SCREW M6X50 ZNT UNI 7688 | |||
| 60 | 3.099.0036 | 2 | 0 | HUB COVER FOR COVER D.250X55 BLACK |
| 61 4. | 208.0093 1 HANDLE LOCKING LEVER -R- RAL-3020 | |||
| 62 | 3.003.0048 | 2 | NUT CL8 M10 CH. 15 ZNT | |
| 63 4. | 212.0002 1 DOUBLE CABLE SEZ 0.75 L=400 |
