USER MANUAL Ashley 4.0 Lavor

CAUTION: Read the instructions before

using the machine. FR ATTENTION: lire attentivement les instructions

Line drawing of a mechanical component inside an open box, with an upward arrow indicating motion (no text or symbols)

Illustration of a hand using a mechanical presser to lift a cylindrical container (no text or symbols present)

Diagram illustrating the process of cleaning a brush, showing steps from a brush to a screw and then to a plastic bag.

Technical line drawing of a mechanical device with handle and mesh base (no text or symbols)

③

Diagram of a mechanical press or pressure testing setup with a cylindrical component and a funnel (no text or symbols)

Illustration of a hand pressing down on a helmet with a downward arrow (no text or symbols)

Line drawing of a container with a bag and a downward arrow, no text or symbols present

④

6

IT Prefiltro

EN Prefilter

FR Préfiltre

DE Vorfilter

NL Vorfilter

ES Prefiltro

PT Pré-filtro

CS Předfiltr

DA Forfilter

ET Eelfilter

FI Esisuodatin

HU Előszűrő

DESCRIPTION AND ASSEMBLY INSTRUCTIONS

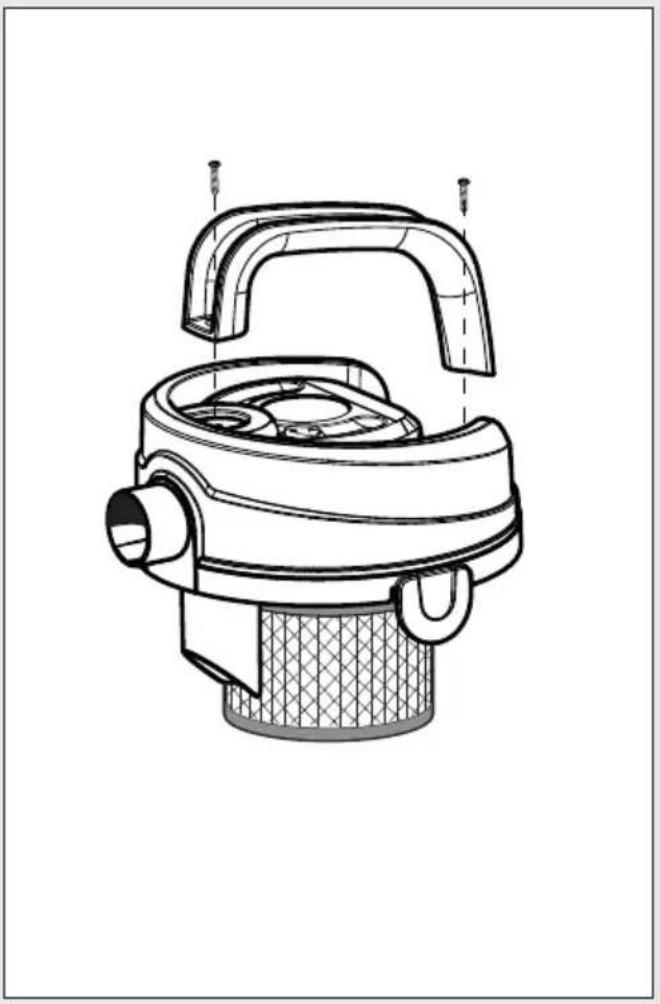

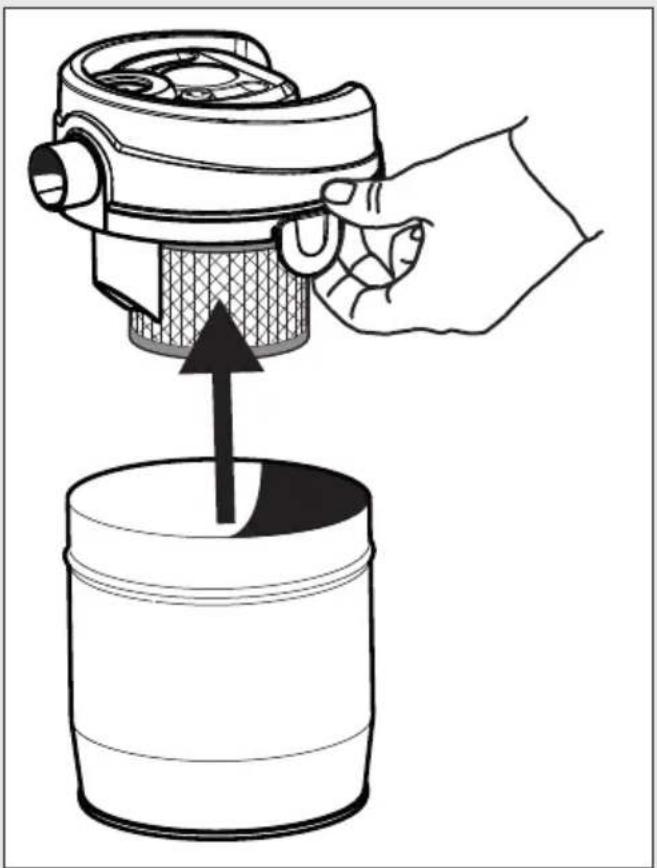

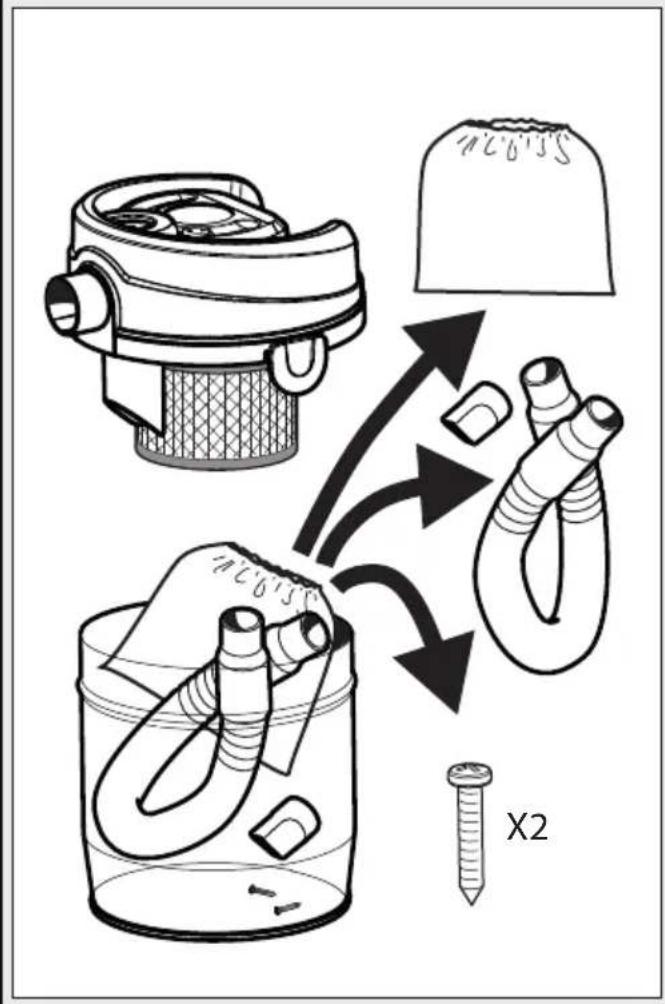

see fig. ①②

1 Handle for the transport
2 Motor head
3 Main switch ON/OFF.
4 Electrical power cable
5 Tank
6 Additional Prefilter
7 Hepa Washable Filter
8 Metal flexible hose
9 Metal slot nozzle
10 Plastic slot nozzle
11 Metal pipe
12 Suction inlet

INTENDED USE

• The appliance is intended for non professional use.
• This appliance is intended to pick up cold ash from fireplaces, chimneys, ovens, ash-trays, and similar places of ash accumulation.
• It has been designed to vacuum only cold ash; it is not suitable for boilers or for fuel oil stoves nor can it be used for plaster powder or cement dust.

Area of application

• Substance to be vacuumed – cold ashes from fire - places, wood/coal stoves, ashtrays, grill.
• Empty and clean vacuum cleaner before and after vacuuming to avoid the collection of materials that could pose a fire hazard in the vacuum cleaner.

Restriction of use

WARNING: risk of fire / flammable materials.

• Do not use for the separation of health-hazardous dusts (dust classes L, M, H).
• Do not vacuum soot.
• Vacuum only ashes from admissible fuels.
• Do not vacuum any hot, burning or glowing objects.
• Do not vacuum any object that are hotter than > 40 °C.
• Do not vacuum any flammable substances.
• Do not use paper dust bags or bags made from

similar flammable materials;

• Do not use any other vacuum cleaner to vacuum ash;
• Do not rest the ash vacuum cleaner on flammable or polymeric surfaces, including carpeting and vinyl tile.

TECHNICAL DATA

(see technical data plate)

SYMBOLS

CAUTION! It is important to be careful on safety grounds.

WARNING: risk of fire / flammable materials.

Double insulated (IF PRESENT): supplementary insulation is applied to the basic insulation to protect against electric shock in the event of failure of the basic insulation.

SAFETY PRECAUTIONS

GENERAL WARNING

WARNING: Connect

the device to a power socket protected by a 30mA earth leakage circuit breaker.

1 This appliance is for dry use and is not to be used or stored outdoors in wet conditions.
2 Components used in packaging (if plastic bags) can be dangerous keep away from children and animals.
3 The use of this machine for anything not specified in this manual may be dangerous and must be avoided.
4 Before emptying the tank, switch off the machine and disconnect the plug from the power outlet.
5 The equipment should be correctly assembled before use.
6 Ensure that power sockets used ore correct for the machine.
8 The suction nozzle should be kept away from the body, especially delicate areas such as the eyes, ears and mouth.
9 The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowled -

ge, unless they have been given supervision or instruction.

10 Children being supervised not to play with the appliance.

11 Never grasp the mains plug with wet hands.

12 Check the voltage indicated on the rappliance is the same as the supply voltage.

13 Never leave the equipment unattended whilst in use.

14 Never carry out any maintenance on the machine without first disconnecting from the mains supply.

15 The mains supply cable should not be used to pull or lift the machine.

16 The machine should never be emersed in water or a pressure jet of water used for cleaning.

^17 The use of the device is not allowed in potentially damp areas (for example in the bathroom).

18 Examine the mains cable and machine for damage. If any damage is found, do not use the appliance but contact your service centre for repair.

20 Should extension cables be used, ensure that these lay on dry surfaces and protected against water jets.

21 The use of extension leads, connectors or adaptors that do not conform to the applicable regulations is not permitted.

23 The machine must be always used on horizontal bases.

24 Do not use the machine without proper filters.

25 Do not use to vacuum water or other liquids.

26 These machine are not designed for picking up health endangering dusts or inflammable/explosives substances.

27 The cover of the motor compartment must only be cleaned with a dry cloth.

29 Service and repairs must be carried out by qualified personnel only. Only use manufacturer original spare parts for service repair.

30 The manufacturer cannot be held responsible for any damage/injury caused to persons, animals or property caused by misuse of the appliance, not in compliance with manual instructions.

WARNING: risk of fire / flammable materials.

• do not pick up hot, glowing or burning ash. Pick up cold ash only;
• the dust container must be emptied and cleaned before and after each use;
• do not use paper dust bags or bags made from

similar flammable materials;

• do not use any other vacuum cleaner to vacuum ash;
• do not rest the ash vacuum cleaner on flammable or polymeric surfaces, including carpeting and vinyl tile.

USE

HOW TO PREPARE AND USE THE ELECTRIC ASH VACUUM CLEANER

ASH VACUUM CLEANER FUNCTION

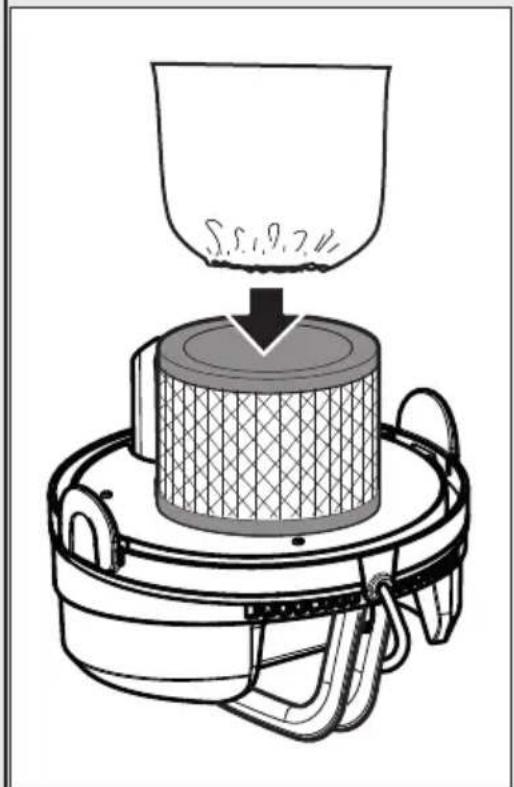

fig.③

• Make sure the filter (7) is fitted in its housing.

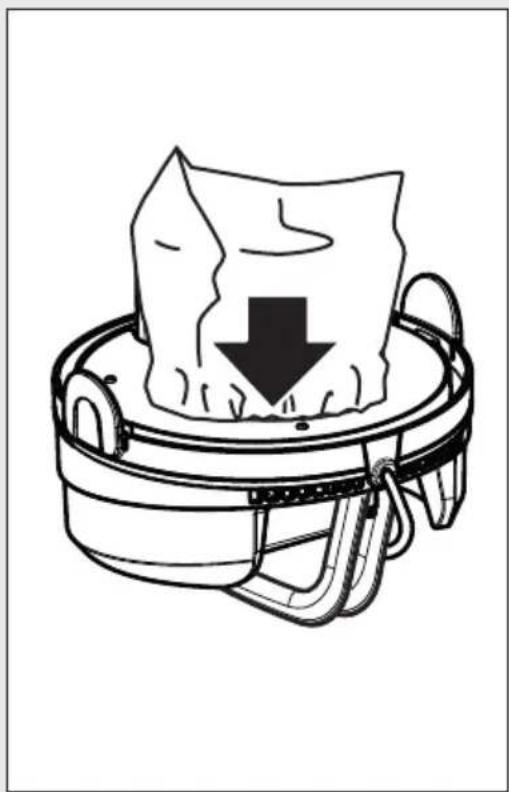

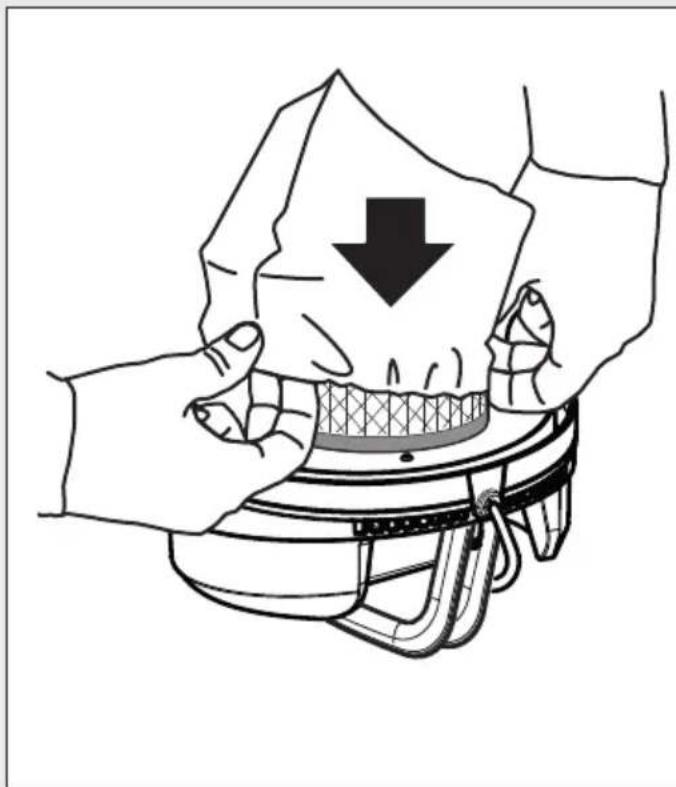

• Put the prefilter (14) above the filter (6) fig. ③.
• Connect steel pipe (8) to the relevant seat (7) fig. ①.

⚠️ Before vacuuming the ash, check that it is cold and no longer alight.

Do not vacuum burning embers

Do not empty the drum into a container which is easily inflammable and make sure that the ashes are completely cool.

⚠️ If ashes hose becomes hot during use, turn the device off immediately and let it cool.

• Turn the appliance on using the (I)ON/(0)OFF switch, located on the cover of the motor.
• Vacuum the ash directly from the fireplace or from the stove (wood or pellet-burning). Hold the suction nozze about 1 cm. above the ash.
• If there should be a reduction in the suction power, turn the motor off using the switch
• When the appliance is no longer in use, turn it off and take the plug out.
• Perform the cleaning operations first on the stove or fireplace and then on the appliance and the suction filter (to be performed outside the building).

CARE AND MAINTENANCE

The unit is maintenance-free.

⚠ The machine shall be disconnected from its power source, by removing the plug from the socket-outlet, during cleaning or maintenance

- Clean the exterior part of the machine with a dry cloth.

- Move the appliance only by catching the carrying handle located on the motor head.

- Store the appliance and the accessories in a dry safe place, out of the reach of children.

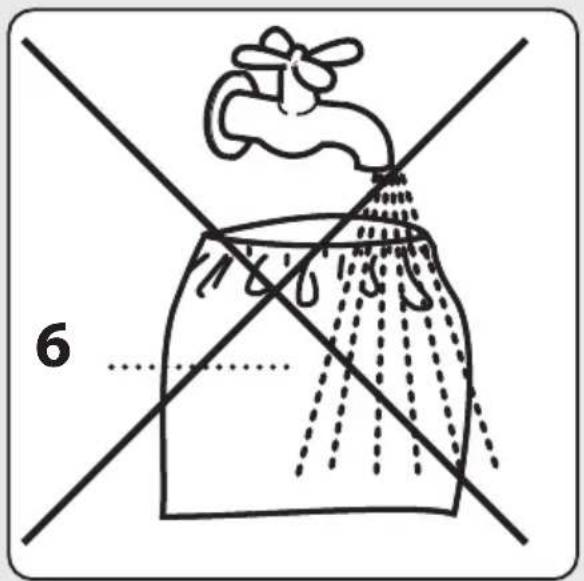

FILTER CLEANING

fig.④⑤

The machine shall be disconnected from its power source, by removing the plug from the socket-outlet, during cleaning or maintenance

1- Remove the filter (6), (7)
2- Shake the filter (6), (7)
3- wash tge filter (7),
4- Let the filter (7), drying very well, before reassemble it
Once the filter has been cleaned, check whether it is suitable for further use. If it has been damaged or broken, replace it with an original filter.

WARRANTY CONDITIONS

All our machines are subjected to strict tests and are covered against manufacturing defects in accordance with applicable regulations. The warranty is effective from the date of purchase.

The following are not included in the warranty: - Parts subject to normal wear. - Rubber parts, charcoal, filters and the accessories and optional accessories. - Accidental damage, caused by transport, neglect or inadequate treatment, incorrect or improper use and installation failing - The warranty shall not cover any cleaning operations to which the operative components may be subjected, such as clogged nozzles and filter blocked due to limestones.

This pressure cleaner is intended to be used for domestic and hobby work: the warranty does not cover any other different kind of use.

DISPOSAL (WEEE)

As the owner of electrical or electronic equipment, the law (according to European Directive 2012/19/EU) prohibits you from dis-

■ posing of this product or its electrical / electronic accessories as municipal solid waste and obliges you to make use of the appropriate waste collection facilities. The product can be disposed of by returning it to the distributor when a new product is purchased. The new product must be equivalent to that being disposed of.

Acoustic pressure LpA = 75 dB (A)
