| Product type | Cordless drill/driver for soil and mixing |
| Brand | Einhell |
| Model | GPEA 18150 Li BLSolo |
| Power supply | 18 V DC (lithium-ion battery, not included) |
| No-load speed | 125 rpm |
| Tool holder | M14 |
| Max. drilling/mixing diameter | 150 mm |
| Weight | 5.7 kg |
| Sound pressure level (LpA) | 79.4 dB(A) (uncertainty K=3 dB) |
| Sound power level (LWA) | 90.4 dB(A) (uncertainty K=3 dB) |
| Vibration (ah) | 5.54 m/s² (uncertainty K=1.5 m/s²) |
| Direction of rotation | Forward (2 levels) and reverse |
| Battery charge indicator | 3 LEDs: full charge, partial, empty, abnormal temperature |
| Compatible charger | Einhell lithium-ion charger (green LED flashing = ready, red = charging, etc.) |
| Supplied accessories | Auger 150 mm, instruction manual, safety instructions |
| Intended use | Drilling holes in soil and mixing construction materials (mortar, plaster) |
| Maintenance | No internal parts requiring maintenance; clean with damp cloth |
| Required protection | Safety glasses, hearing protection, gloves, safety shoes |
| Warranty | 24 months (conditions: non-professional use) |
| Protection class | Not specified (household use) |
Frequently Asked Questions - GPEA 18150 Li BLSolo EINHELL
User questions about GPEA 18150 Li BLSolo EINHELL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Drill in PDF format for free! Find your manual GPEA 18150 Li BLSolo - EINHELL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GPEA 18150 Li BLSolo by EINHELL.
USER MANUAL GPEA 18150 Li BLSolo EINHELL
GB Original operating instructions Cordless earth auger
RO Instruetiuni de utiliser originale Foreza de pamnt cu accumulator
F Instructions d'origine Tariere sans fi I
GR PwototuneC Odyie C xponc Tpuanv 8aouc, e natapia

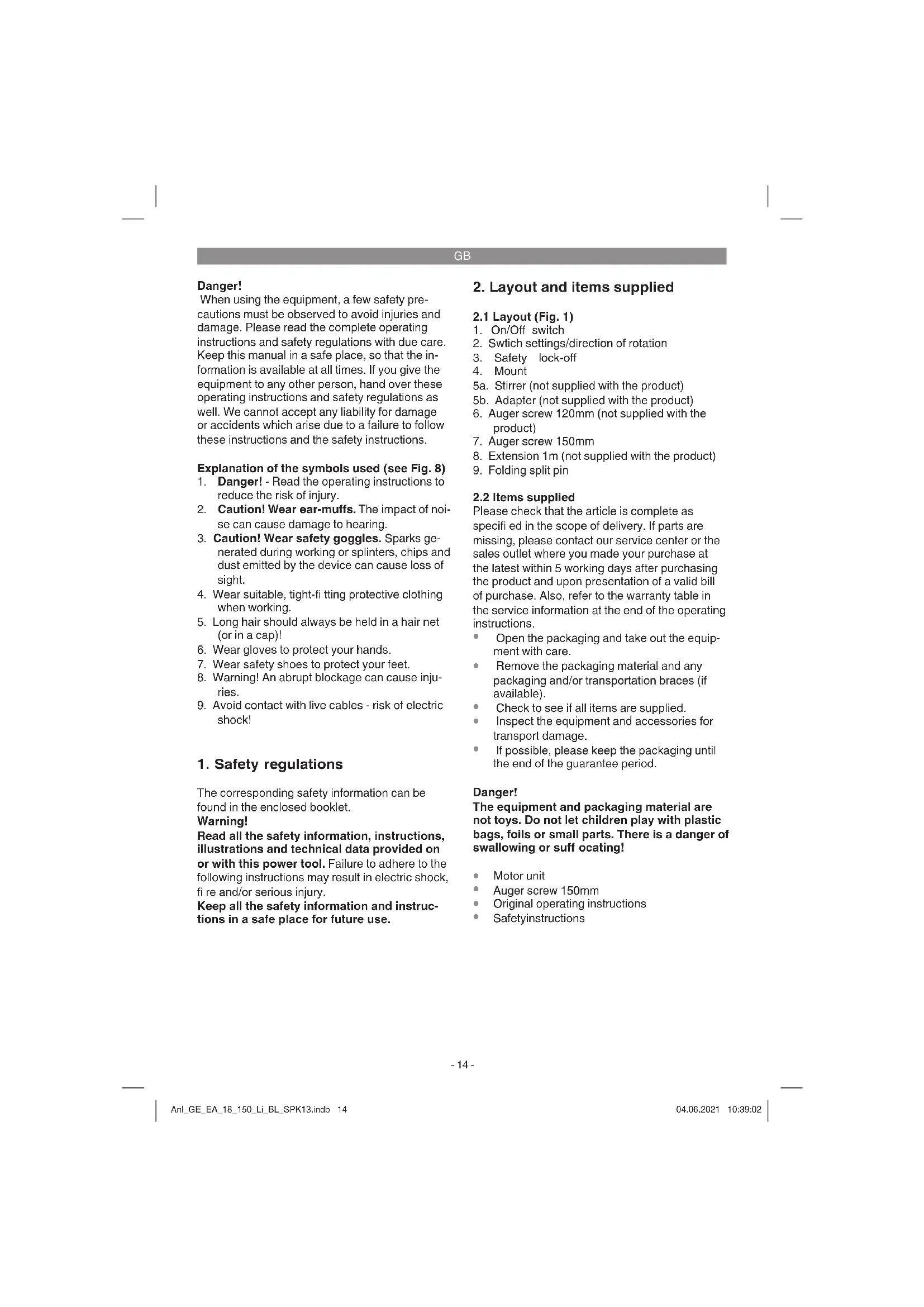

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.
Explanation of the symbols used (see Fig. 8)
- Danger! - Read the operating instructions to reduce the risk of injury.
- Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.
- Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
- Wear suitable, tight-fi tting protective clothing when working.
- Long hair should always be held in a hair net (or in a cap)!
- Wear gloves to protect your hands.
- Wear safety shoes to protect your feet.
- Warning! An abrupt blockage can cause injuries.
- Avoid contact with live cables - risk of electric shock!
1. Safety regulations
The corresponding safety information can be found in the enclosed booklet.
Warning!
Read all the safety information, instructions, illustrations and technical data provided on or with this power tool. Failure to adhere to the following instructions may result in electric shock, fire and/or serious injury.
Keep all the safety information and instructions in a safe place for future use.
2. Layout and items supplied
2.1 Layout (Fig. 1)
- On/Off switch
- Swtich settings/direction of rotation
- Safety lock-off
- Mount
5a. Stirrer (not supplied with the product)
5b. Adapter (not supplied with the product) - Auger screw 120mm (not supplied with the product)
- Auger screw 150mm
- Extension 1m (not supplied with the product)
- Folding split pin
2.2 Items supplied
Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
- Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
If possible, please keep the packaging until the end of the guarantee period.
Danger!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!
Motor unit
Auger screw 150mm
Original operating instructions
Safetyinstructions
GB
3. Proper use
Depending on the attachment, the machine can be used for the following:
Drilling holes in the earth.
- Mixing liquid and powdery building materials such as mortar, plaster and similar substances. A selection of stirrers with different mixing actions is available to suit the consistency and quantity of the material in question.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.
4. Technical data
Motor power supply: 18 V DC
ldling speed 125 min
Mount: M14
Max.drilling/stirring diameter: 150 mm
Weight: 5.7 kg
Danger!
Sound and vibration
Sound and vibration values were measured in accordance with EN 62841.
LpA sound pressure level 79.4 dB(A)
KpA uncertainty 3 dB
LWA sound power level 90.4 dB(A)
KWA uncertainty 3 dB
Wear ear-muff s.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions) determined in accordance with EN 62841.
Vibration emission value a_b = 5.54 m/s^2
Kuncertainty = 1.5m / s^2
The stated vibration emission levels and stated noise emission values were measured in accordance with a set of standardized criteria and can be used to compare one power tool with another.
The stated vibration emission levels and stated noise emission values can also be used to make an initial assessment of exposure.
Warning:
The vibration and noise emission levels may vary from the level specified during actual use, depending on the way in which the power tool is used, especially the type of workpiece it is used for.
Keep the noise emissions and vibrations to a minimum.
Only use appliances which are in perfect working order.
Service and clean the appliance regularly.
Adapt your working style to suit the appliance.
Do not overload the appliance.
- Have the appliance serviced whenever necessary.
- Switch the appliance off when it is not in use.
Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:
- Lung damage if no suitable protective dust mask is used.
- Damage to hearing if no suitable ear protection is used.
- Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.
GB
5. Before starting the equipment
5.1 Charging the Li battery pack (Fig. 2-3)
- Remove the battery pack (a) from the handle, pressing the pushlock button (b) downwards to do so.
- Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger (c) into the socket outlet. The green LED will then begin to blink.
- Push the battery pack onto the battery charger.
In section 10 (Charger indicator) you will find a table with an explanation of the LED indicator on the charger.
If the battery pack fails to charge, check for the following:
- voltage at the power socket
whether there is good contact at the charging contacts of the charging unit
If the battery pack still fails to charge, send the charger
and the battery pack
to our customer service center.
5.2 Battery capacity indicator (Fig. 2/Item e)
Press the button for the battery capacity indicator (d). The battery capacity indicator (e) will indicate the charge status of the battery by means of 3 LEDs.
All 3 LEDs are lit:
The battery is fully charged.
2 or 1 LED(s) are lit:
The battery has an adequate remaining charge.
1 LED fl ashes:
The battery is empty, recharge the battery.
All LEDs blink:
The battery temperature is too low. Remove the battery from the equipment, keep it at room temperature for one day. If the fault reoccurs, this means that the rechargeable battery has undergone exhaustive discharge and is defective. Remove the battery from the equipment. Never use or charge a defective battery.
5.3. Fitting the stirrer/auger screw
To avoid the machine starting up unexpectedly, remove the battery before you fit the stirrer/auger screw.
Fitting the stirrer and adapter (Fig. 4a-4b)
Fitting the stirrer/auger screw/extension (Fig. 5a-5c)
6. Operation
6.1 On/Off switch (Fig. 6/Item 1)
Always use both hands to hold the powered equipment by its handles. Grip the handles firmly with your thumbs, with your right hand on the operating handle.
Switching on:
Press the safety lock-off (3) and the On/Off switch (1).
Switching off :
Release the On/Off switch (1).
6.2 Switch settings/direction of rotation (Fig. 1a/Item 2)
A. Clockwise setting 1
B. Clockwise setting 2
C. Counter-clockwise
6.3 Changing the blades (Fig. 5d/Item A) on the auger screw 120mm and 150mm
Change the blades as shown in Fig. 5d.
7. Cleaning, maintenance and ordering of spare parts
Hazard!
Always pull out the battery pack before starting any cleaning work.
7.1 Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
We recommend that you clean the device immediately each time you have finished using it.
Clean the equipment regularly with a moist
GB
cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.
7.2 Maintenance
There are no parts inside the equipment which require additional maintenance.
7.3 Ordering spare parts and accessories
Please provide the following information when ordering spare parts:
Type of unit
Article number of the unit
ID number of the unit
- Spare part number of the required spare part For our latest prices and information please go to www.Einhell-Service.com
Tip! For good results we recommend high-quality accessories from www.kwb.eu welcome@kwb.eu
8. Disposal and recycling
The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.
9. Storage
Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 ^ C . Store the electric tool in its original packaging.
10. Charger indicator
| Indicator status Explanations and actions | ||
| Red LED Green LED | ||
| Off | Flashing | Ready for use The charger is connected to the mains and is ready for use; there is no battery pack in the charger |
| On Off Charging | The charger is charging the battery pack in quick charge mode. The charging times are shown directly on the charger. Important! The actual charging times may vary slightly from the stated charging times depending on the existing battery charge. | |
| Off | On | The battery is charged and ready for use. The unit then changes over to gentle charging mode until the battery is fully charged. To do this, leave the rechargeable battery on the charger for approx. 15 minutes longer. Action: Take the battery pack out of the charger. Disconnect the charger from the mains supply. |
| Flashing Off | Adapted charging | |
| The charger is in gentle charging mode. For safety reasons the charging is performed less quickly and takes more time. The reasons can be: - The rechargeable battery has not been used for a very long time. - The battery temperature is outside the ideal range. Action: Wait for the charging to be completed; you can still continue to charge the battery pack. | ||
| Flashing Flashing Fault | Charging is no longer possible. The battery pack is defective. Action: Never charge a defective battery pack. Take the battery pack out of the charger. | |
| On On Temperature fault | The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0°C). Action: Remove the battery pack and keep it at room temperature (approx. 20°C) for one day. | |
GB
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.
Subject to technical changes
GB
Service information
We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.
| Category Example | |
| Wear parts* Battery | |
| Consumables* | |
| Missing parts |
- Not necessarily included in the scope of delivery!
In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:
Did the equipment work at all or was it defective from the beginning?
Did you notice anything (symptom or defect) prior to the failure?
What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
GB
Warranty certificate
Dear Customer,
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:
- These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
- The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.
-
The following are not covered by our guarantee:
-
Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).
-
Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.
-
The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.
-
To make a claim under the guarantee, please register the defective device at: www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.
Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.
Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.
F
Danger!
Chere cliente, cher client,
- nabiječku
aakumulatorovyclanek
A. Pravychod, stupen 1
B. Pravychod, stupe 2
C. Lev'chod
6.3 Vymena nozu (obr. 5d / pol. A) u zemniho vrtaku vel. 120 mm a 150 mm
Spanning motor: 18 V DC
Nullasttoerental. 125min
Adapter: M14
Max. boor-/roerdiameter: 150 mm
Gewicht: 5,7 kg
Svetita 2 ali 1 lucka LED
Stimata clienta, stimate client,
AvaBooBivouv 6aTa LED:
Ytepaon TnC tepokpaiaac Tn mntapiaac AphioteTov ouoawpeun an to uokuekui kai afoote tv eri ma npepa o thepokpaiadeltaiou. Eav enavanapouaotei to ofauma tote o ouawpeunxexi ekfoprtoi eK bhouc kai ivai eaattwmuatikoc.Aphiote n mntapatia anto tn oukeun. Mia elattwmuatkn mntapatla dev ivai duvatov va enavaxnoiouointhetai na evavaopptiat!
5.3 Tonoetnnoepyaaleiou
Na anoakpuve nponyouevw ts mntatapia yia va anoquve evexoev n ekkivnon tnc unxavns.
TooTeTnOn avaikTnpa kal evdiueou oToixeiou (EK.4a-4b)
TOnoTeTnon avaiktnpa/tpunavou/entektaonc (EiK.5a-5c)
6. Xειρισμός
6.1 DIAKOTNTN ESVEPYOtonoINONC/ anEVEpyonoinn (EIK.6/ap
Na kpatate n oukeun navta ka t a do xepia ano tic lae. Na niave te kala tic lae c me tov avixepa, to dexi xeip otn lah xepiouo
Evpyonoin:
Piote Tn payn evpyooinos (3) kal tov diakontn evpyooinoc/anevpyooinoc(1).
GR
Anevepyonoln:
AphiTe eEuaepo tvd iakontn evpyoioanc/ anevpyooinoc (1)
Evnpwon yia to epbic
5. Pre puštanja u pigeon
5.1 Punjenje Li akumulatorskog paketa (sl. 2-3)
- Izvadite akumulatorski paket (a) iz drske, pri tome pritisnite taster za fi ksiranje (b).
- Uporedite da li napon naveden na tipskoj plocici odgovara postojecem naponu mreze. Utaknite mreznuti utika punja c u uticnicu. Zelena LED lampica pocinje da treperi.
- Stavite akumulator u uredaj za punjenje.
Pod tackom 10 (Prikaz punjača) naci cete tabelu sa značenjima LED indikatora na punjaču.
Ako punjenje akumuladora ne bude moguce, proverite
da li uticnici ima mreznog napona.
da li su kontakti na punjaču besprekorni.
Ako punjenje akumulatorskog paketa još*nije moguce,
- uredaj za punjenje
i akumulatorski paket posaljite nasem servisu.
5.2 Prikaz kapaciteta akumulatora (sl. 2/porz. e)
Pritisnite prekidač za prikaz kapaciteta akumulatora (d). Prikaz (e) vam signalizuje stanje napunjeniosti akumulatora pomocu 3 LED indicatora.
Svetle sva 3 LED svetla:
Subject to change without notice
Archive-File/Record: NAPR021304
Documents registrar: Markus Jehl Wiesenweg 22, D-94405 Landau/saar
186 CDFordss aer 2014-5371 196
EH 06/2021 (02)
