CEAP 18 Li - Surface pump EINHELL - Free user manual and instructions

Product type	Cordless air pump (inflation and suction)
Brand	Einhell
Model	CEAP 18 Li
Power supply	Power-X-Change series Li-Ion battery (not included)
Sound pressure level (LpA)	83 dB(A) (uncertainty K=3 dB)
Sound power level (LWA)	94 dB(A) (uncertainty K=3 dB)
Guaranteed sound power level	97 dB(A)
Vibration emission value	ah = 2,14 m/s² (uncertainty K=1,5 m/s²)
Suction connection	Yes
Blow connection	Yes
Included adapters	Large and small adapter
LED light	Integrated to illuminate the work area
Switch	On/off with lock function
Intended use	Inflation of large items (boats, large mattresses)
Suction function	Yes, with adapters
Battery charge indicator	3 LED indicators on the battery pack
Compatible charger	Power-X charger (not included)
Storage temperature	5 to 30 °C
Cleaning	Damp cloth and mild soap; do not use detergent
Maintenance	No maintenance parts inside
Wear parts	Battery
After-sales service	www.Einhell-Service.com
Warranty	24 months (according to conditions)

Frequently Asked Questions - CEAP 18 Li EINHELL

How to charge the pump battery?

Use a suitable Power-X charger. Plug the charger into the mains, insert the Li-Ion battery. The green LED flashes during charging and stays on once charged. Refer to the charger's display for more details.

Can I use the pump to inflate car tires?

No, the device is designed only for inflating large items such as boats or large air mattresses. It is not suitable for car tires, bicycles, or small-volume play items.

What adapters are included?

The pump comes with a large adapter and a small adapter. The large adapter attaches to the blow connection, and the small one can be inserted into it if necessary.

How to use the suction function?

Attach the adapter(s) to the suction connection. Make sure the valve's non-return flap is open by slightly compressing the valve before starting.

How to know if the battery is charged?

Press the charge indicator button (A) on the battery. The LED indicators (B) show: 3 LEDs = full charge, 2 or 1 LED = sufficient charge, 1 flashing LED = empty, all flashing = temperature too low or fault.

Can I let the pump run continuously?

No, after 20 minutes of continuous operation, let the device cool down to avoid overheating. In case of overload, turn it off immediately and let it cool down.

How to clean the pump?

Disconnect the battery. Use a clean damp cloth with a little soap. Do not use harsh detergents and avoid water entering the inside of the device.

Where can I buy spare parts?

Order spare parts at www.Einhell-Service.com, specifying the device type, article number, identification number, and the required part number.

What to do if the battery does not charge?

Check the mains voltage, charger contacts, and battery temperature. If the problem persists, contact after-sales service. Do not use a defective battery.

How to dispose of the device at end of life?

Do not dispose of the device with household waste. Take it to an appropriate collection center for recycling electrical and electronic appliances, in accordance with Directive 2012/19/EU.

USER MANUAL CEAP 18 Li EINHELL

GB Original operating instructions Cordless air pump

SLO Originalna navodila za uporabo Akumulatorska zračna Črpalka

F Instructions d'origine Pompe a air a accumulator

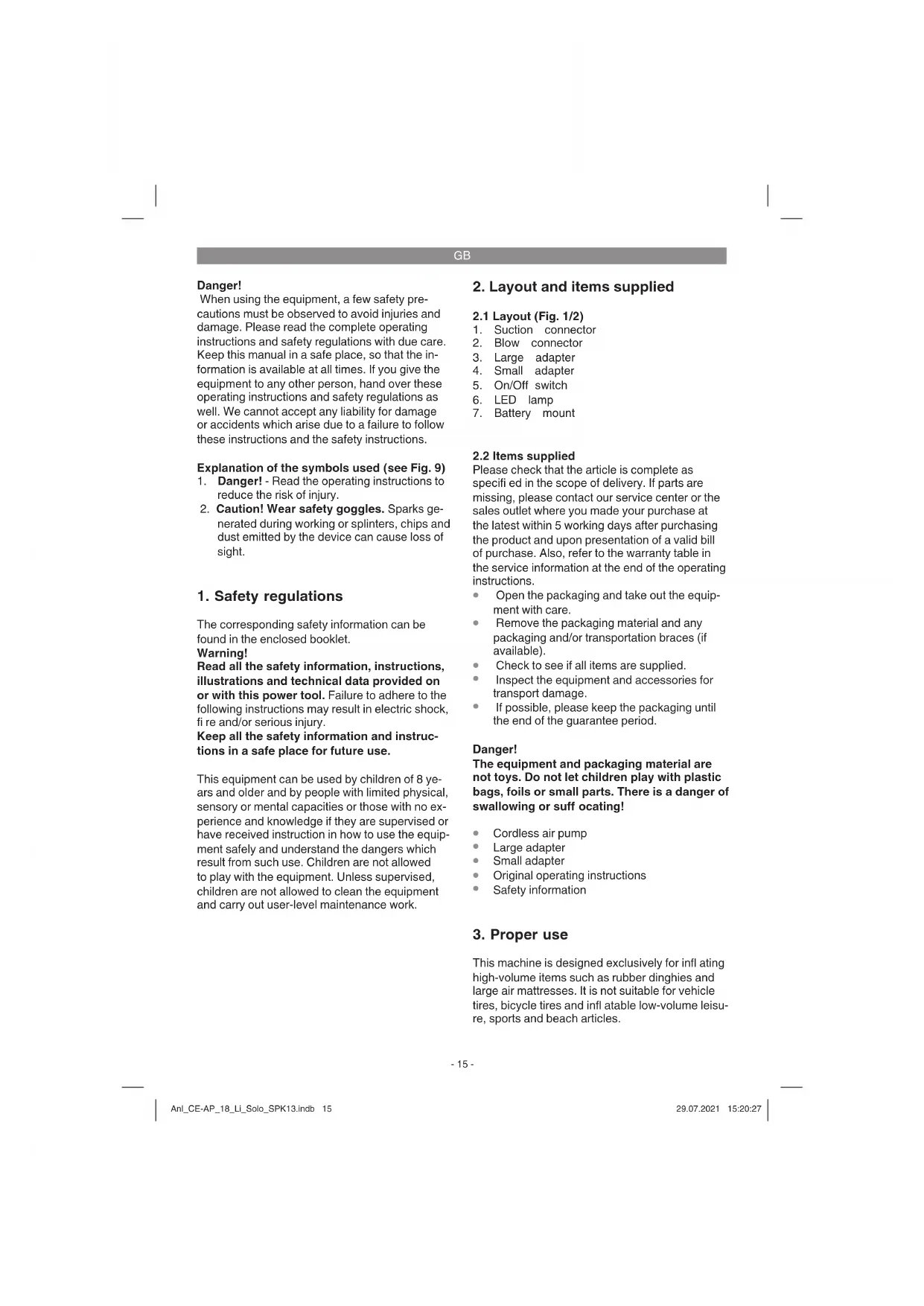

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

Explanation of the symbols used (see Fig. 9)

1. Danger! - Read the operating instructions to reduce the risk of injury.
2. Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Warning!

Read all the safety information, instructions, illustrations and technical data provided on or with this power tool. Failure to adhere to the following instructions may result in electric shock, fire and/or serious injury.

Keep all the safety information and instructions in a safe place for future use.

This equipment can be used by children of 8 years and older and by people with limited physical, sensory or mental capacities or those with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use. Children are not allowed to play with the equipment. Unless supervised, children are not allowed to clean the equipment and carry out user-level maintenance work.

2. Layout and items supplied

2.1 Layout (Fig. 1/2)

1. Suction connector
2. Blow connector
3. Large adapter
4. Small adapter
5. On/Off switch
6. LED lamp
7. Battery mount

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
  If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

• Cordless air pump
  Large adapter
• Small adapter
  Original operating instructions
  Safety information

3. Proper use

This machine is designed exclusively for inflating high-volume items such as rubber dinghies and large air mattresses. It is not suitable for vehicle tires, bicycle tires and inflatable low-volume leisure, sports and beach articles.

GB

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Rated voltage: 18V DC

Protection class:

Max. working pressure: 5.3 kPa (0.053 bar)

Max. air delivery rate: 670 l/min

ldling speed no 18,700 rpm

Approx. weight without battery: 0.6 kg

Sound pressure level L_nA . 83 dB(A)

Uncertainty K_PA 3 dB (A)

Sound power level L_WA .94dB(A)

The machine is supplied without rechargeable batteries and without a charger, and is allowed to be used only with the lithium-ion batteries of the Power-X-Change series!

The lithium-ion batteries of the Power-X-Change series are allowed to be charged only with Power-X chargers.

Handle

Vibration emission value ah = 2.14m / s^2 Uncertainty K = 1.5m / s^2

The noise from the equipment might exceed 85 dB(A). The operator will require noise protection measures if this is the case.

The stated vibration emission levels and stated noise emission values were measured in accordance with a set of standardized criteria and can be used to compare one power tool with another.

The stated vibration emission levels and stated noise emission values can also be used to make an initial assessment of exposure.

Warning:

The vibration and noise emission levels may vary from the level specified during actual use, depending on the way in which the power tool is used, especially the type of workpiece it is used for.

Important!

The vibration value changes according to the area of application of the electric equipment and may exceed the specified value in exceptional circumstances.

Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect working order.
Service and clean the appliance regularly.
Adapt your working style to suit the appliance.
Do not overload the appliance.
- Have the appliance serviced whenever necessary.
- Switch the appliance off when it is not in use.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.

Danger!

The electric power tool generates an electromagnetic fi eld during operation. Under certain circumstances this fi eld may actively or passively impede medical implants. To reduce the risk of serious or fatal injuries, we recommend persons with medical implants to consult their doctor and the manufacturer of the medical implant prior to using the equipment.

GB

5. Before starting the equipment

This product is supplied without batteries and without a charger and is allowed to be used only with the lithium-ion batteries of the Power-X-Change series!

5.1 Charging the lithium-ion battery pack (Fig. 3.4)

1. Pull the battery pack out of the handle, pressing the pushlock button (C) downwards while you do so.
2. Check that your mains voltage is the same as that marked on the rating plate. Insert the power plug of the charger into the socket outlet. The green LED will begin to blink.
3. Push the battery pack onto the battery charger.

In the section entitled "Charger indicator" you will find a table with an explanation of the LED indicator on the charger.

If the battery pack fails to charge, check for the following:

Is there voltage at the power socket
Is there good contact at the charger's charging contacts

If the battery pack still fails to charge, please send the charger and charging adapter
and the battery pack
to our customer service center.

To ensure that items are properly packaged and delivered when you send them to us, please contact our customer service or the point of sale at which the equipment was purchased.

When shipping or disposing of batteries and cordless tools, always ensure that they are packed individually in plastic bags to prevent short circuits and fires.

To ensure that the battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the performance of the device drops. Never allow the battery pack to become fully discharged. This will cause it to develop a defect.

5.2 Battery capacity indicator (Fig. 5)

Press the button for the battery capacity indicator

(A). The battery capacity indicator (B) shows the charge status of the battery using 3 LEDs.

All 3 LEDs are lit:

The battery is fully charged.

2 or 1 LED(s) are lit:

The battery has an adequate remaining charge.

1 LED fl ashes:

The battery is empty, recharge the battery.

All LEDs blink:

The battery temperature is too low. Remove the battery from the equipment, keep it at room temperature for one day. If the fault reoccurs, this means that the rechargeable battery has undergone exhaustive discharge and is defective. Remove the battery from the equipment. Never use or charge a defective battery.

5.3 Fitting a battery (Fig. 3)

Push the battery into the battery mount provided. When the battery is positioned as in Fig. 3, make sure that the pushlock button (C) latches in place! To remove the battery, proceed as described in section 5.1.

6. Operation

Warning!

The equipment does not have an automatic cut-out. You must therefore monitor the complete inflation and deflation process.
- Do not exceed the inflation pressure recommended by the manufacturer in any circumstances. If inflated objects burst they can cause serious injuries.
- Never insert any objects in the blow connector or the suction connector. Do not cover the air openings.
- Never direct the air outlet towards eyes while the equipment is working.
- To prevent overheating, allow the equipment to cool down after every 20 minutes of operation.
In the event of overloading, switch off the equipment immediately and allow it to cool.

6.1 Switching on and off (Fig. 1)

To activate the equipment briefly, press and hold the switch (Item 5) lightly.
- Press the switch (Item 5) to switch on the

GB

equipment. The switch will latch in place and does not need to be held.

To switch off, press the switch (Item 5) again.

6.2 LED light (Fig. 1)

The LED lamp (Item 6) can illuminate the work area in poor lighting conditions. It lights up automatically when the equipment is switched on, and it continues to shine for a few seconds when the equipment is switched off.

6.3 Inflating (Fig. 6/7)

Use the enclosed adapters if necessary.

• Plug the large adapter (Item 3) onto the blow connector (Item 2) and turn it to the left until it locks in place.
• Pug the small adapter (Item 4) onto the already mounted large adapter if needed.

6.4 Deflating (Fig. 8)

Use one or, if necessary, both of the enclosed adapters as shown.

Note:

To avoid problems during inflation or deflation, make sure when you insert the small adapter into standard valves that the usually existing non-return valve (valve fl ap) is open. This can be opened slightly by gently squeezing the valve together.

7. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

7.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  We recommend that you clean the device immediately each time you have finished using it.
  Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

7.2 Maintenance

There are no parts inside the equipment which require additional maintenance.

7.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Type of machine
Article number of the machine
Identification number of the machine

• Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com

8. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

9. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30

^ C Store the electric tool in its original packaging.

10. Charger indicator

Indicator status Explanations and actions
Red LED Green LED
Off	Flashing	Ready for use The charger is connected to the mains and is ready for use; there is no battery pack in the charger
On Off Charging		The charger is charging the battery pack in quick charge mode. The charging times are shown directly on the charger. Important! The actual charging times may vary slightly from the stated charging times depending on the existing battery charge.
Off	On	The battery is charged and ready for use. The unit then changes over to gentle charging mode until the battery is fully charged. To do this, leave the rechargeable battery on the charger for approx. 15 minutes longer. Action: Take the battery pack out of the charger. Disconnect the charger from the mains supply.
Flashing Off	Adapted charging
	The charger is in gentle charging mode. For safety reasons the charging is performed less quickly and takes more time. The reasons can be: - The rechargeable battery has not been used for a very long time. - The battery temperature is outside the ideal range. Action: Wait for the charging to be completed; you can still continue to charge the battery pack.
Flashing Flashing Fault		Charging is no longer possible. The battery pack is defective. Action: Never charge a defective battery pack. Take the battery pack out of the charger.
On On Temperature fault		The battery pack is too hot (e.g. due to direct sunshine) or too cold (below 0°C). Action: Remove the battery pack and keep it at room temperature (approx. 20°C) for one day.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the Einhell Germany AG.

Subject to technical changes

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* Battery
Consumables*
Missing parts

• Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?
Did you notice anything (symptom or defect) prior to the failure?
What malfunction does the equipment have in your opinion (main symptom)?

Describe this malfunction.

GB

Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

Danger!

Chere cliente, cher client,

6.4 Odsavani (obr. 8)

Nominate spanning: 18V DC

Beschermklasse: III

Werkdruk max.: 5,3 kPa (0,053 bar)

6.2 Luz LED (fig. 1)

Svetita 2 ali 1 lucka LED

6.2 Lumina LED (Fig.1)

Stimata clienta, stimate client,

produsele noastre sunt supuse unui control de calitate riguros. Daca totusi vredata acest aparat nu va fonctiona ireprosabil, ne pare foarte rau si va rugam sa va adresa t centrului nostru service, la adresa indica la finalul acestui certificat de garantie. Bineinteles ca va stam si la Telefon cu placere la dispositione, la numeroile de service mentionate. Pentru revendicarea pretentiilor de garantie trebuie tinut cont de urmatoarele:

Eiva avaepva kai 3 LED:

O Ooowpeutnc exei ophiototei n npoc.

Avabov/21 1 LED:

H mntapia eivai akoun apkετa φoπiσeνn.

AvaBooBriVe1 eva LED:

O ouoawpuurnsivai adesios,foptioTe tv.

AvaBooBriouv oλa ta LED:

Ynepbaon TnC eepokpiaac Tn C natapiac. ApaipoteTov ouoowpeutn ano tn ouakeun kai apnoTeTov eni mja nepa oe pkoiadeltauou. Eav enavanapouiaotei to oalma

GR

TOTe O uoOwpeTuNc ExE kEKFOpTIOTe EK BAOUs KAI Eiva ELaTTWmuATiKoc. AApieOE Tn mntapia anTo Suokeun. Mia ELaATTWmuAtikn mntapia 6ev Eiva duVatov va enavaxpnaonointhetai n va eTavaΦopTIOTeI

5.3 Tonoetnon unatapiaac (ekova 3)

OpiwEe Tn mntapia Otv yia To oKono auto npoBaeTneunooxH. MoLc tne n mntatapia e Theon otnc OTN EkoA 3, pooEeTe va kouPiawei To kouPi akivtoOniOns (C) H aphioeon nC mntapiaac vivai Onwcs nepiypafetai OTO Kefalao 5.1.

6. Xειριαμός

Ppoeisdoonoin!

H oukeun dev diaeutei autouato ouotma anevepyoinoNc. Na napakooutheta 0nTnv diabikaia fouokwauoc kai Eefouakwauoc.
Me kaveva tponto 8ev eipertetai n urepbaon tns pioa aepnpown nou auviot o kataeuaotc.Eav ocaoov avtkeieva ymuata aepa 8ev anokkiovtau ooapoi tpaauatouoi.
Not baZeTevtkeiuevaOtnouvSeoI FOovokwpatocnavappofoNs. Na mV nlokapovtata ovolyuata tou aepa.
Kara tm diapkeia tnc aeoupyiac n teivet e tvv eo aepa npoc tn v naepa twv maipiov.
Meta ano aeitoupyia 20 aeTTWv apnoTe tn oukeun va Kpuwoel yia va anofouyete Tnu utepepuavon.
Na oBnveTe Tn ouKeun Oe nepintwn on UrepeoTwns kal afoTe Tnv va Kpuwoei.

Evnpwon yia to epbic

6.2 Luz LED (fi g.1)

5. Pre puštanja u pigeon

Uredaj se isporucije bez akumulatora i punjača i sme da se koristi samo s litijum-jonskim akumulatorom serije Power-X-Change!

5.1 Punjenje Li-jonskog akumulatorskog pa-keta (sl. 3,4)

1. Izvadite akumulatorski paket iz drske, pri tom pritsinite taster za fi ksiranje (C).
2. Uporedite da li napon naveden na tipskoj plocici odgovara postojecem naponu mreze. Utaknite mrezni utika uredaja za punjenje u uticnicu. Zelena LED lampica pocinje da treperi.
3. Stavite akumulator u uredaj za punjenje.

Pod naslovom (Prikaz uredaja za punjenje) naci cete tabelu sa značenjima LED prikaza na punjaču.

Ako punjenje akumuladora ne bude moguce, proverite

da li uticnici imamreznognapona.
da li su kontakti na punjacu besprekorni.

6.1 AÇma/Kapatma (Sekil 1)

Kisa sureli calistirma icin alet, saltere (Poz. 5) hafifice basildigi surece calisir.
Kompresoru calistirmak icin saltere (Poz.5) basin.Salter otomatik olarak sabitlenir ve sonra salter birakilabilir.
- Kompresörü kapatmak icin saltere (Poz. 5) tekrar basin.

6.2 LED Isig (Sekil 1)

Jeff rey Liu Product-Management

First CE:2021

Art-No.:20.701.10

1.-No.:21010

Subject to change without notice

Archive-File/Record: NAPR022381

Documents registrar: Landauer Josef

Wiesenweg 22, D-94405 Landau/Isar

1 GB Cordia air pump . P Pumpa air a cumulatneur . P Pumpa pneumatica b atorator . DKN Akku - lufpmpu . S Bafiriatrionlumpup . CZ Akmalutrolora vredchymovsor . SK Akmalutrolora vredchyma pump . NEL Bomba nezmalna inamalnac . Fin Aknu - Impuapmu . SLO Akmalutrolara mezika , H Akkus - kspgumpu . P Orm pumnatae cu acumulator . GR Acypavus. junipotra . P Bonma de or sornfe . HR/RIB Alstomala rzana pump . RS Akmalutrolara varilnat pump . PL Pompka akmalutrolara TR - tritr . RUS Aukmua rrrnau nucnay h hce : EC AL Anupump . LV Akmalutrolara gass kompaner . LT Akmalutrolara sri surytsi . BG besnesis kssanayas . UKT Aukmua rrrnau nucnay h

Declaration of conformity

We, Einhell UK Ltd

Champions Business Park, First Floor Unit 10, Arrowe Brook Rd, Upton, Wirral CH49 0AB, United Kingdom

declare the conformity to UK standards and legislation was assessed for:

Cordless Air Pump CE-AP 18 Li (Einhell)

UK legislation

Simple Pressure Vessels (Safety) Regulation

Electrical Equipment (Safety) Regulation

Radio Equipment Regulation

Personal Protective Equipment Regulation

The Ecodesign for Energy-Related Products and Energy Information Regulation

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulation

Nolse Emisslon in the Environment by Equipment for use Outdoors Regulation

Noise:measuredL = dB Aguaranteed L_WA = dB A

Supply of Machinery (Safety) Regulation

Annex IV

Notified Body:

Reg.No.:

X Electromagnetic Compatibility Regulation
Measuring Instruments Regulation
Pressure Equipment (Safety) Regulation

Standards:

BS 62841-1; BS 1012-1; BS 55014-1; BS 55014-2;

Wirral, 2021.17.06

Tom Chambers, Managing Director Einhell UK Ltd.

Archive-File/Record: NAPR022381

Article Number:20.701.10 I-No.:21010

Subject to change without notice Wiesenweg 22, 94405 Landau/Isar, Germany

Documents registrar: Landauer Josef

EH 07/2021 (01)
