| Product type | Laser distance meter |
| Brand | Bosch |
| Model | DLE 40 Professional |
| Dimensions | 58 x 100 x 32 mm |
| Weight | 0.18 kg |
| Power supply | 4 AAA batteries (LR03) 1.5 V or KR03 rechargeable batteries 1.2 V |
| Measuring range | 0.05 – 40 m |
| Accuracy | ±1.5 mm (typical) |
| Laser class | 2 |
| Laser type | 635 nm, < 1 mW |
| Beam diameter | 6 mm at 10 m; 24 mm at 40 m |
| Battery life | Up to 30,000 individual measurements; 5 h continuous |
| Auto power-off | Laser after 20 s; device after 5 min |
| Operating temperature | -10 °C to +50 °C (continuous +40 °C) |
| Storage temperature | -20 °C to +70 °C |
| Protection class | IP54 (dust and splash water protected) |
| Main functions | Length, area, volume measurement; continuous measurement; memory with addition/subtraction |
| Reference levels | Selectable front or rear edge |
| Display | Screen with battery indicator, temperature, result, unit, reference level, laser active |
| Included accessories | Protective case, wrist strap, batteries (4 x AAA) |
| Maintenance and cleaning | Clean with a soft, damp cloth; do not use solvents; store in the case |
| Safety | Do not point the beam at people or animals; laser class 2 |
| Spare parts and repairability | Repair by qualified personnel; original spare parts; article number 3 601 K16 300 |
| General information | Indoor and outdoor use; precision check recommended after impacts |
Frequently Asked Questions - DLE 40 Professional BOSCH
User questions about DLE 40 Professional BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Laser pointer in PDF format for free! Find your manual DLE 40 Professional - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DLE 40 Professional by BOSCH.
USER MANUAL DLE 40 Professional BOSCH
OBJ_DOKU-12472-003.fm Page 1 Tuesday, July 29, 2014 2:15 PM
Robert Bosch GmbH
Power Tools Division
70764 Leinfelden-Lchterdingen
GERMANY
www.bosch-pt.com
1609 92A 0L6 (2014.07) I 189 XXX
160992A0K3
DLE 40 Professional
BOSCH
SV Bricksanishing Tangina
No Original drifts in the UK
TI Alkuperalset objekt
The following table is in English:
tr Onjihanişlechle calimati
6 | Deutsch
Deutsch
Sicherheitshinweise
All instructions must be read and observed in order to work safely with the measuring tool. Never make warning signs on the measuring tool unrecognisable. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE AND INCLUDE THEM WITH THE MEASURING TOOL WHEN GIVING IT TO A THIRD PARTY.
▶ Caution – The use of other operating or adjusting equipment or the application of other processing methods than those mentioned here can lead to dangerous radiation exposure.
The measuring tool is provided with a warning label (marked with number 8 in the representation of the measuring tool on the graphics page).
IEC 60825-1:07 <1 mW, 635 nm
▶ If the text of the warning label is not in your national language, stick the provided warning label in your national language over it before operating for the first time.
Do not direct the laser beam at persons or animals and do not stare into the direct or reflected laser beam yourself, not even from a distance. You could blind somebody, cause accidents or damage your eyes.
▶ If laser radiation strikes your eye, you must deliberately close your eyes and immediately turn your head away from the beam.
▶ Do not make any modifications to the laser equipment.
▶ Do not use the laser viewing glasses as safety goggles. The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.
▶ Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete UV protection and reduce colour perception.
▶ Have the measuring tool repaired only through qualified specialists using original spare parts. This ensures that the safety of the measuring tool is maintained.
12 | English
▶ Do not allow children to use the laser measuring tool without supervision. They could unintentionally blind other persons or themselves.
▶ Do not operate the measuring tool in explosive environments, such as in the presence of flammable liquids, gases or dusts. Sparks can be created in the measuring tool which may ignite the dust or fumes.
Product Description and Specifications

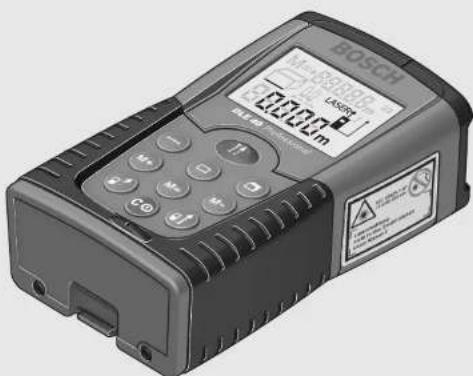

Please unfold the fold-out page with the representation of the measuring tool and leave it unfolded while reading the operating instructions.
Intended Use
The measuring tool is intended for measuring distances, lengths, heights, clearances, and for the calculation of areas and volumes. The measuring tool is suitable for measuring indoors and outdoors.
Product Features
The numbering of the product features shown refers to the illustration of the measuring tool on the graphic page.
1 Button for reference level of the front measuring-tool edge
2 Memory retrieve button "M="
3 Memory add button "M+"
4 Area measurement button
5 Length measurement button
6 Display
7 Alignment aid
8 Laser warning label
9 Button for measuring and continuous measuring
10 Volume measurement button
11 Memory subtraction button "M-"
12 Button for reference level of the rear measuring-tool edge
13 On/Off and memory delete button
14 1/4" thread
15 Latch of battery lid
16 Battery lid
17 Serial number
18 Laser beam outlet
19 Reception lens

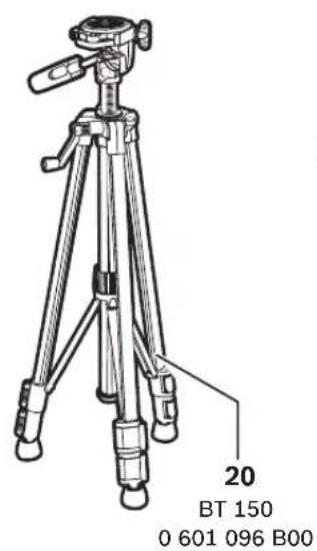

20 Tripod*
21 Laser viewing glasses*
22 Laser target plate*

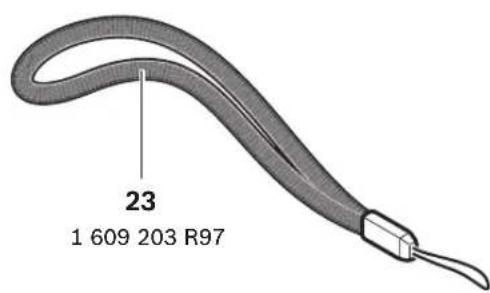

23 Carrying strap*

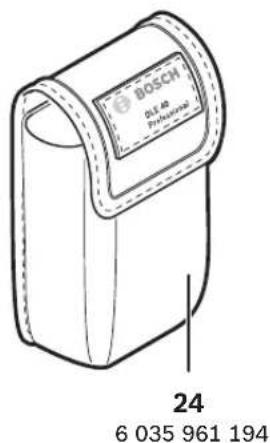

24 Protective pouch
* The accessories illustrated or described are not included as standard delivery.
Display Elements
a Battery indicator
b Temperature warning
c Measured value/result
d Unit of measure
e Measurement reference level
f Laser switched on
g Individual measured value (for length measurement: result)
h Measuring functions
— Length measurement
Tracking (continuous measurement)
Area measurement
Volume measurement
i Measured values stored
Technical Data
| Digital Laser Measure DLE 40 Professional | |
| Article number | 3601 K16 300 |
| Measuring range | 0.05-40 mA) |
| Measuring accuracy (typical) ± 1.5 mm | B) |
| Lowest indication unit 1 m m | |
| Operating temperature | -10°C...+50°C |
| Storage temperature - 20°C... + 70°C | |
| Relative air humidity, max. | 90% |
| Laser class | 2 |
| Laser type | 635 nm, <1 mW |
| Laser beam diameter (at 25°C) approx. | |
| - a t 10 m d i s t a n c e | 6 mm |
| - a t 40 m d i s t a n c e | 24 mm |
| Batteries | 4x1.5 VLR03 (AAA) |
| Rechargeable batteries | 4x1.2 VKR03 (AAA) |
| Battery live, approximately | |
| - Individual measurements | 30000D) |
| - Continuous measurement | 5 hD) |
A) The working range increases depending on how well the laser light is reflected from the surface of the target (scattered, not reflective) and with increased brightness of the laser point to the ambient light intensity (interior spaces, twilight). In unfavourable conditions (e.g. when measuring outdoors at intense sunlight), it may be necessary to use the target plate.
B) In unfavourable conditions (e.g. at intense sunlight or an insufficiently reflecting surface), the maximum deviation is ±10 mm per 40 m. In favourable conditions, a deviation influence of ±0.05 mm/m must be taken into account.
C) In the continuous measurement function, the maximum operating temperature is +40 °C.
D) Less measurements are possible when using 1.2 V rechargeable batteries than with 1.5 V batteries.
The measuring tool can be clearly identified with the serial number 17 on the type plate.
English | 13
Digital Laser Measure DLE 40 Professional
| Automatic switch-off after approx. | |
| - Laser | 20 s |
| - Measuring tool (without measurement) | 5 min |
| Weight according to EPTA-Procedure 01/2003 | 0.18 kg |
| Dimensions | 58 x 100 x 32 mm |
| Degree of protection (excluding battery compartment) | IP 54 (dust and splash water protected) |
A) The working range increases depending on how well the laser light is reflected from the surface of the target (scattered, not reflective) and with increased brightness of the laser point to the ambient light intensity (interior spaces, twilight). In unfavourable conditions (e.g. when measuring outdoors at intense sunlight), it may be necessary to use the target plate.
B) In unfavourable conditions (e.g. at intense sunlight or an insufficiently reflecting surface), the maximum deviation is ±10 mm per 40 m. In favourable conditions, a deviation influence of ±0.05 mm/m must be taken into account.
C) In the continuous measurement function, the maximum operating temperature is +40 °C.
D) Less measurements are possible when using 1.2 V rechargeable batteries than with 1.5 V batteries.
The measuring tool can be clearly identified with the serial number 17 on the type plate.
Assembly
Inserting/Replacing the Batteries (see figure A)
Use only alkali-manganese or rechargeable batteries.
Less measurements are possible when using 1.2 V rechargeable batteries than with 1.5 V batteries.
To open the battery lid 16, press the latch 15 in the direction of the arrow and remove the battery lid. Insert the batteries provided. Pay attention to the correct polarity of the batteries according to the representation in the battery compartment. When the battery symbol appears in the display for the first time, then at least 100 measurements are still possible. The batteries must be replaced when the battery symbol flashes; taking measurements is no longer possible.
Always replace all batteries at the same time. Only use batteries from one brand and with the identical capacity.
Remove the batteries from the measuring tool when not using it for extended periods. When storing for extended periods, the batteries can corrode and self-discharge.
Operation
Initial Operation
▶ Do not leave the switched-on measuring tool unattended and switch the measuring tool off after use. Other persons could be blinded by the laser beam.
▶ Protect the measuring tool against moisture and direct sun light.
▶ Do not subject the measuring tool to extreme temperatures or variations in temperature. As an example, do not leave it in vehicles for longer periods. In case of large variations in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into operation.
- Avoid heavy impact to or falling down of the measuring tool. After severe exterior effects to the measuring tool, it is recommended to carry out an accuracy check (see "Accuracy Check of the Measuring Tool", page 16) each time before continuing to work.
Switching On and Off
▶ Do not leave the switched-on measuring tool unattended and switch the measuring tool off after use. Other persons could be blinded by the laser beam.
To switch on the measuring tool, briefly press the On/Off button 13 or measuring button 9. When switching on the measuring tool, the laser beam is not switched on yet.
To switch off the measuring tool, press the On/Off button 13 for a few seconds.
If none of the measuring tool buttons are pressed for approx. 5 minutes, the measuring tool switches off automatically in order to extend the service life of the battery.
When a measured value has been stored, it is retained in automatic switch-off mode. When switching on the measuring tool again, "M" is indicated in the display.
Measuring Procedure
After switching on, the measuring tool is in the length measurement mode. Other measuring modes can be switched to by pressing the respective function/mode button (see "Measuring Functions", page 14).
After switching on, the rear edge of the measuring tool is preset as the reference level for the measurement. To change the reference level, see "Selecting the Reference Level (see figure B-C)", page 14.
Upon selection of the measuring function and the reference level, all further steps are carried out by pushing the measuring button 9.
With the reference level selected, place the measuring tool against the desired measuring line (e.g. a wall).
Briefly press the measuring button 9 to switch on the laser beam.
▶ Do not point the laser beam at persons or animals and do not look into the laser beam yourself, not even from a large distance.
Aim the laser beam at the target surface. Briefly press the measuring button 9 again to initiate the measurement.
In the continuous measurement mode, the measurement begins immediately upon switching on the function.
Typically, the measured value appears after 0.5 and latest after 4 seconds. The duration of the measurement depends on the distance, the light conditions and the reflection properties of the target surface. The end of the measurement is indicated by a signal tone. The laser beam is switched off automatically upon completion of the measurement.
14 | English
When no measurement has taken place approx. 20 seconds after sighting, the laser beam is switched off automatically to save the batteries.
Selecting the Reference Level (see figure B-C)
For the measurement, it is possible to select between two different reference levels:
- For measurements starting from the rear edge of the measuring tool (e.g., when placing against a wall), press button 12.
- For measurements starting from the front edge of the measuring tool (e.g., when measuring from onward from a table edge), press button 1.
The selected reference level is indicated on the display. Each time after switching on the measuring tool, the rear end of the measuring tool is preset as the reference level.
Measuring Functions
Length Measurement
For length measurement, push button 5. The indicator for length measurement appears in the display —
Press the measuring button 9 once for sighting and once more to take the measurement.
The measured value is indicated at the bottom in the display.
Area Measurement
For area measurements, push button 4. The indicator for area measurement appears in the display □
Afterwards, measure the length and the width, one after another, in the same manner as a length measurement. The laser beam remains switched on between both measurements.
After taking the second measurement, the area/surface is automatically calculated and displayed. The last individual measured value is indicated at the bottom in the display, while the final result is shown at the top.
Volume Measurement
For volume measurements, push button 10. The indicator for volume measurement appears in the display
Afterwards, measure the length, width and the height, one after another, in the same manner as for a length measurement. The laser beam remains switched on between all three measurements.
After taking the third measurement, the volume is automatically calculated and displayed. The last individual measured value is indicated at the bottom in the display, while the final result is shown at the top.
Continuous Measurement (Tracking) (see figure D)
For continuous measurements, the measuring tool can be moved relative to the target, whereby the measuring value is updated approx. every 0.5 seconds. In this manner, as an example, you can move a certain distance away from a wall, while the actual distance can always be read.
For continuous measurements, first select the length measuring function and then press button 9 until the indicator for continuous measurement appears on the display. The laser is switched on and the measurement starts immediately.
Move the measuring tool until the required distance value is indicated in the bottom of the display.
Briefly pressing button 9 ends the continuous measurement. The last measured value is indicated at the
bottom in the display. Pressing button 9 for several seconds restarts a continuous measuring run.
Continuous measurement automatically switches off after 5 min. The last measured value remains indicated at the bottom on the display.
Deleting Measured Values
Briefly pressing button 13 deletes the last individual measuring value determined in all measuring functions. Briefly pressing the button repeatedly deletes the individual measured values in reverse order.
Memory Functions
When switching off the measuring tool, the value in the memory is retained.
Storing/Adding Measured Values
Push the memory add button 3 in order to store the current measured value - a length, area or volume value, depending on the current measuring function. As soon as a value has been stored, "M" is indicated in the display and the "+" behind it briefly flashes.
If a value is already stored in the memory, the new value is added to the memory contents, however, only when the measures of unit correspond.
As an example, when an area value is in the memory and the current measured value is a volume value, the addition cannot take place. "Error" briefly flashes in the display.
Subtracting Measured Values
Push the memory subtraction button 11 in order to subtract the current measured value from the memory value. As soon as a value has been subtracted, "M" is indicated in the display and the "-" behind it briefly flashes.
If a value is already stored in the memory, the new measured value can be subtracted only when the measures of unit correspond (see "Storing/Adding Measured Values").
English | 15
Displaying the Stored Value
Push the memory retrieve button 2 in order to display the value stored in the memory. "M=" is indicated in the display. When the memory contents "M=" is indicated in the display, it can be doubled by pushing the memory add button 3 or set to zero by pushing the memory subtract button 11.
Deleting the Memory
To delete the memory contents, first push the memory retrieve button 2, so that "M=" is indicated in the display. Then briefly press button 13; "M" is no longer indicated in the display.
Working Advice
General Information
The reception lens 19 and the laser beam outlet 18 must not be covered when taking a measurement.
The measuring tool must not be moved while taking a measurement (with the exception of the continuous measurement function). Therefore, place the measuring tool, as far as this is possible, against or on the measuring points.
Measurement takes place at the centre of the laser beam, even when target surfaces are sighted at an incline.
Influence Effects on the Measuring Range
The measuring range depends upon the light conditions and the reflection properties of the target surface. For improved visibility of the laser beam when working outdoors and when the sunlight is intense, use the laser viewing glasses 21 (accessory) and the laser target plate 22 (accessory), or shade off the target surface.
Influence Effects on the Measuring Result
Due to physical effects, faulty measurements cannot be excluded when measuring on different surfaces. Included here are:
- Transparent surfaces (e.g., glass, water),
- Reflecting surfaces (e.g., polished metal, glass),
- Porous surfaces (e.g. insulation materials),
- Structured surfaces (e.g., roughcast, natural stone).
If required, use the laser target plate 22 (accessory) on these surfaces.
Also, air layers with varying temperatures or indirectly received reflections can affect the measured value.
Sighting with the Alingment Aid (see figure E)
With the alignment aid 7, sighting over larger distances is a lot easier. For this, look alongside the aligning aid on the top side of the measuring tool. The laser beam runs parallel to this line of sight.
Working with the Tripod (see figure C)
The use of a tripod is particularly necessary for larger distances. Position the measuring tool with the 1/4" thread 14 onto the quick-change plate of the tripod 20 or a commercially
available camera tripod. Tighten the measuring tool with the locking screw of the quick-change plate.
When positioning the tripod, observe that the measurement will take place beginning from the rear or front edge of the measuring tool, depending on the selected reference level.
Troubleshooting – Causes and Corrective Measures
Cause Corrective Measure
Temperature warning indicator (b) flashing; measurement not possible
| The measuring tool is outside the operating temperature range from -10^ to +50^ (in the function continuous measurement up to +40^ ). | Wait until the measuring tool has reached the operating temperature |
Battery low indicator (a) appears
| Battery voltage decreasing (meas- Replace batteries urement still possible). |
| Battery low indicator (a) flashing; measurement not possible |
Battery voltage too low Replace batteries
"Error" and "----" indication in display
| The angle between the laser beam and the target is too acute. | Enlarge the angle between the laser beam and the target |
| The target surface reflects too intensely (e.g. a mirror) or insufficiently (e.g. black fabric), or the ambient light is too bright. | Work with the laser target plate 22 (accessory) |
| The laser beam outlet 18 or the reception lens 19 are misted up (e.g. due to a rapid temperature change). | Wipe the laser beam outlet 18 and/or the reception lens 19 dry using a soft cloth |
| Calculated value is greater than 99999 m/m2/m3. | Divide calculation into intermediate steps |
"Error" indication flashes at in display (top)
| Addition/Subtraction of measured values with different units of measure | Only add/subtract measured values with the same units of measure |
Unreliable measuring result
| The target surface does not reflect correctly (e.g. water, glass). | Cover off the target surface |
| The laser beam outlet 18 or the reception lens 19 are covered. | Make sure that the laser beam outlet 18 or the reception lens 19 are unobstructed |
Measuring result not plausible
| Wrong reference level set Select reference level that corresponds to measurement |
| Obstruction in path of laser beam | Laser point must be completely on target surface. |
16 | English
The measuring tool monitors the correct function for each measurement. When a defect is determined, only the symbol shown aside flashes in the display. In this case, or when the above mentioned corrective measures cannot correct an error, have the measuring tool checked by an after-sales service agent for Bosch power tools.
Accuracy Check of the Measuring Tool
The accuracy of the measuring tool can be checked as follows:
- Select a permanently unchangeable measuring section with a length of approx. 3 to 10 metres; its length must be precisely known (e.g. the width of a room or a door opening). The measuring distance must be indoors; the target surface for the measurement must be smooth and reflect well.
- Measure the distance 10 times
The deviation of the individual measurements from the mean value must not exceed ±2.0 mm (max.). Log the measurements, so that you can compare their accuracy at a later point of time.
Maintenance and Service
Maintenance and Cleaning
Store and transport the measuring tool only in the supplied protective pouch.
Keep the measuring tool clean at all times.
Do not immerse the measuring tool in water or other fluids.
Wipe off debris using a moist and soft cloth. Do not use any cleaning agents or solvents.
Maintain the reception lens 19 in particular, with the same care as required for eye glasses or the lens of a camera.
In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the measuring tool.
In case of repairs, send in the measuring tool packed in its protective pouch 24.
After-sales Service and Application Service
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:
www.bosch-pt.com
Bosch's application service team will gladly answer questions concerning our products and their accessories.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0844) 7360109
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
CanyoWhert.
Dublin 24
Tel. Service: (01) 4666700
Fax:(01)4666888
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353
Fax: (0800) 428570
Outside AU and NZ:
Phone: +61 3 95415555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng - BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-Mail: bsctools@icon.co.za
KZN - BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: (031) 7012120
Fax: (031) 7012446
E-Mail: bsc.dur@za.bosch.com
Western Cape - BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: (021) 5512577
Fax: (021) 5513223
E-Mail: bsc@zsd.co.za
Bosch Headquarters
Midrand, Gauteng
Tel.: (011) 6519600
Fax: (011) 6519880
E-Mail: rbsa-hq.pts@za.bosch.com
People's Republic of China
China Mainland
Bosch Power Tools (China) Co., Ltd.
567, Bin Kang Road
Bin Jiang District 310052
Hangzhou, P.R.China
Service Hotline: 4008268484
Fax: (0571) 87774502
E-Mail: contact.ptcn@cn.bosch.com
www.bosch-pt.com.cn
HK and Macau Special Administrative Regions
Robert Bosch Hong Kong Co. Ltd.
21st Floor, 625 King's Road
North Point, Hong Kong
Customer Service Hotline: +852 2101 0235
Fax: +852 2590 9762
E-Mail: info@hk.bosch.com
www.bosch-pt.com.hk
Indonesia
PT Robert Bosch
Palma Tower 9 ^th & 10 ^th Floor
JI. Let. Jend. TB Simatupang II S/06
28th Floor Fort Legend Towers,
3rd Avenue corner 31st Street,
Fort Bonifacio Global City,
1634 Taguig City, Philippines
Tel.: (02) 8703871
Fax: (02) 8703870
matheus.contiero@ph.bosch.com
www.bosch-pt.com.ph
Bosch Service Center:
9725-27 Kamagong Street
San Antonio Village
Makati City, Philippines
Tel.: (02) 8999091
Fax: (02) 8976432
rosalie.dagdagan@ph.bosch.com
Malaysia
Robert Bosch (S.E.A.) Sdn. Bhd.
No. 8A, Jalan 13/6
G.P.O. Box 10818
46200 Petaling Jaya
Selangor, Malaysia
Tel.: (03) 79663194
Fax: (03) 79583838
cheehoe.on@my.bosch.com
Toll-Free: 1800 880188
www.bosch-pt.com.my
Thailand
Robert Bosch Ltd.
Liberty Square Building
No. 287, 11 Floor
Silom Road, Bangrak
Bangkok 10500
Tel.: 02 6393111, 02 6393118
Fax: 02 2384783
Robert Bosch Ltd., P. O. Box 2054
Bangkok 10501, Thailand
www.bosch.co.th
Bosch Service – Training Centre
La Salle Tower Ground Floor Unit No.2
10/11 La Salle Moo 16
Srinakharin Road
Bangkaew, Bang Plee
Samutprakarn 10540
Thailand
Tel.: 02 7587555
Fax: 02 7587525
Singapore
Robert Bosch (SEA) Pte. Ltd.
11 Bishan Street 21
Singapore 573943
Tel.: 6571 2772
Fax: 6350 5315
leongheng.leow@sg.bosch.com
Toll-Free: 1800 3338333
www.bosch-pt.com.sg
Vietnam
Robert Bosch Vietnam Co. Ltd
10/F, 194 Golden Building
473 Dien Bien Phu Street
Ward 25, Binh Thanh District
84 Ho Chi Minh City
Vietnam
Tel.: (08) 6258 3690 ext. 413
Fax: (08) 6258 3692
hieu.lagia@vn.bosch.com
www.bosch-pt.com
Disposal
Measuring tools, accessories and packaging should be sorted
for environmental-friendly recycling.
Do not dispose of measuring tools and batteries/rechargea-
ble batteries into household waste!
18 | Français
Only for EC countries:
According to the European Guideline 2012/19/EU, measuring tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.
Batteries no longer suitable for use can be directly returned at:
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0844) 7360109
E-Mail: boschservicecentre@bosch.com
Subject to change without notice.
Mesure continue (voir figure D)
Robert Bosch (France) S.A.S.
Conforme as Directivas Europeias
Bosch Service Center
Telegrafvej 3
2750 Ballerup
På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.
Tlf. Service Center: 44898855
Fax: 44898755
E-Mail: vaerktoej@dk.bosch.com
Bortskaffelse
3 Minnets additionsknapp "M+"
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Danmark
Tel.: (08) 7501820 (inom Sverige)
Fax: (011) 187691
Avfallshantering
Bosch San. ve Tic. A.S.
Ahi Evran Cad. No:1 Kat:22
Polaris Plaza
80670 Maslak/Istanbul
Bosch Uzman Ekibi +90 (0212) 367 18 88
Işıklar LTD.ŞTİ.
Kızılay Cad. No: 16/C Seyhan
Adana
Tel.: 0322 3599710
Tel.: 0322 3591379
Robert Bosch Sp. z o.o.
Bosch Service Center PT
K Vápence 1621/16
692 01 Mikulov
OBJ_BUCH-724-003.book Page 97 Friday, July 18, 2014 3:07 PM
Magyar|97
Tel. service scule electrice: (021) 4057540
Fax: (021) 4057566
E-Mail: infoBSC@ro.bosch.com
IOI I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I
