USER MANUAL FH2500 DOLMAR

ENGLISH (Original instructions)

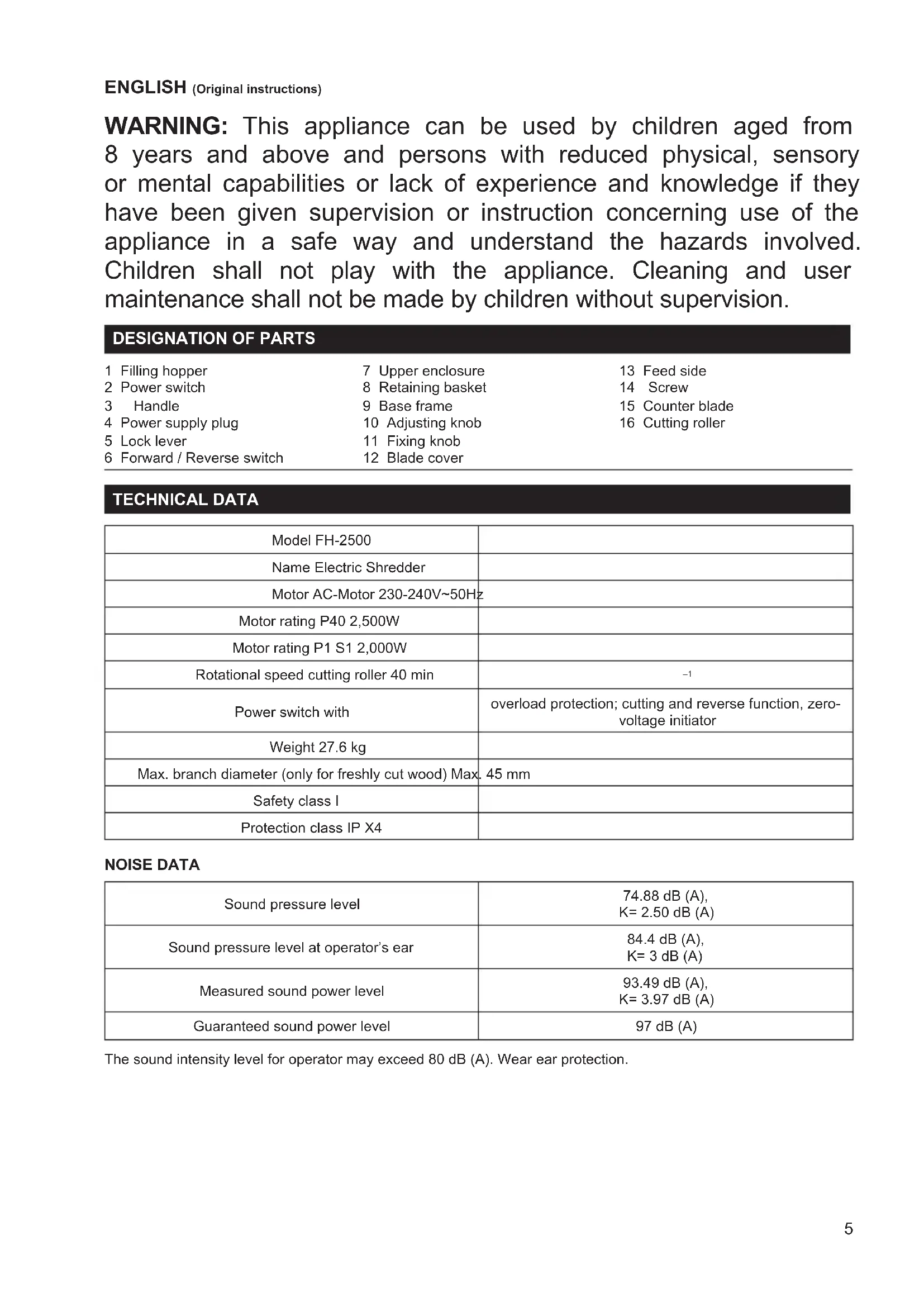

WARNING: This appliance can be used by children aged from

8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Power switch with overload protection; cutting and reverse function, zero- voltage initiator Weight 27.6 kg Max. branch diameter (only for freshly cut wood) Max. 45 mm Safety class I Protection class IP X4 NOISE DATA Sound pressure level

K= 2.50 dB (A) Sound pressure level at operator’s ear

K= 3 dB (A) Measured sound power level

K= 3.97 dB (A) Guaranteed sound power level 97 dB (A) The sound intensity level for operator may exceed 80 dB (A). Wear ear protection.6 SAFETY WARNINGS

READ CAREFULLY BEFORE USE

KEEP INSTRUCTION MANUAL FOR FUTURE

REFERENCE Do not start to operate the machine until you have read these operating instructions. Observe all the instruc- tions given, and install the machine as described. Intended use of the machine

• The garden shredder is intended for shredding follow- ing items: – All types of branches up to maximum diameter of the machine’s capacity (depending on the type and condition of wood) – Garden refuses such as withered plants or wet weed which has been laid some days (Feed them alternating with branches.)

• The garden shredder is intended for private use only, and not for commercial use. Do not use it in public places either. For public low-voltage distribution systems of between 220 V and 250 V. Switching operations of electric apparatus cause voltage uctuations. The operation of this device under unfavor- able mains conditions can have adverse effects to the operation of other equipment. With a mains impedance equal or less than 0.45 Ohms it can be presumed that there will be no negative effects. The mains socket used for this device must be protected with a fuse or protective circuit breaker having slow tripping characteristics. General Instructions

• Read this instruction manual to become familiar with handling of the machine. Users insufciently informed will risk danger to themselves as well as others due to improper handling.

• Do not lend the machine to people who have unproven to be experienced.

• When lending the machine, always attach this instruc- tion manual.

• The electric shredder is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Young children should be supervised to ensure that they do not play with the machine. Do not allow children to operate this equipment.

• Operate only if you are in good physical condition. Perform all work calmly and carefully. The user is re- sponsible for all safety of persons and damages around the operating area.

• Never use this machine after consumption of alcohol or drugs, or if feeling tired or ill.

• Use the machine in accordance with these instructions, considering the working conditions and the application. Unintended use of the machine could result in a hazard- ous situation.

• Never alter the machine, including safety devices such as interlock device. This will endanger your safety.

• National or local regulation can restrict the handling of the machine.

• Stay alert. Watch what you are doing. Use common sense. Do not operate machine when you are tired. SYMBOLS The following show the symbols used for the machine. Be sure that you understand their meaning before use.

• Read instruction manual.

• Take particular care and attention.

• Switch off the motor and unplugged before servicing, cleaning, maintenance or repairing.

• Objects may be thrown out at high speed.

• Keep bystanders and pets away from danger area.

• Danger — Rotating blades. Keep hands and feet out of openings while machine is running.

• Danger — Rotating blades. Keep hands and feet out of openings while machine is running.

• Wear eye and ear protection.

• Wear protective gloves.

• Do not expose to rain or moisture.

• Turn the knob clockwise for narrower clear- ance / turn the knob counterclockwise for wider clearance

• Open the blade cover to replace the blade or to service.

• Wait until all the machine parts stop completely.

• Do not use the machine as a step.

• Only for EU countries Due to the presence of hazardous components in the equipment, used electrical and electronic equipment may have a negative impact on the environment and human health. Do not dispose of electrical and electronic appliances with household waste! In accordance with the European Directive on waste electrical and electronic equipment and its adaptation to national law, used electrical and electronic equipment should be collected separately and delivered to a separate collection point for municipal waste, operating in accordance with the environmental protection regulations. This is indicated by the symbol of the crossed-out wheeled bin placed on the equipment.7

• Use only IEC60245 (H07RN-F) extension cable for outdoor use with splash-proofed connector. Its cross- section must be at least 1.5 mm

for cable lengths up to 25 m, and 2.5 mm

• Voltage drop may happen when using long thin cable. If it happens the power of the machine may be reduced.

• When using the extension cable, make sure that it does not interfere, is not squeezed or bended, and the plug does not get wet.

• When using a cable reel, wind the cable completely off the reel.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the machine. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• Check the extension cable regularly for damage to the insulation. Replace it if damaged.

• If the connecting cable is damaged, withdraw the mains plug immediately. A damaged cable may cause contact with live parts and electric shock.

• Never use damaged cables.

• Only plug the machine into sockets in tested electrical circuits. Check that the system voltage matches that on the rating plate.

• Never deactivate or bypass the protective devices.

• When using the machine outdoors, always use a residual current-operated circuit-breaker (RCD) with an operating current of 30 mA or less. Operation

• Keep your face and body away from the inlet opening.

• Never let your hands or other part of the body or clothing place inside the inlet and discharge opening, or near moving parts. It may result in serious injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. Do not stand at higher level than the base of the machine when feeding material into it.

• Always keep distance from the discharge opening dur- ing operation.

• Observe regional regulations for noise protection.

• Do not feed rock, a piece of metal, bottles or other foreign matter. Pay attention that those foreign objects are not included when you feed.

• Immediately switch off the motor and unplugged if the blade strike a foreign object or the machine starts vibrat- ing or making noise unusually. Check the shredder for damage, and tighten any loose parts. Ask an authorized service center to repair the machine.

• Do not let the processed material accumulated in discharge opening. Otherwise it may result in kickback of material through the inlet opening.

• Switch off the motor and unplugged before: – Whenever leaving the machine unattended – Before clearing a blockage or any fault – Before checking, cleaning or working on the machine – Before making any adjustments, changing ac- cessories or storing – Whenever the machine starts vibrating or making noise unusually – Clearing inlet or discharge opening – Attaching or removing retaining basket – Transporting. Personal protective equipment

• Dress Properly. The clothing worn should be functional and appropriate, i.e. it should be tight-tting but not cause hindrance. Do not wear either jewelry or clothing which could become entangled in to machine. Wear protecting hair covering to contain long hair.

• Always wear ear protections to avoid hearing loss.

• Wear protective glasses or goggles to protect eyes from debris thrown from the lling hopper.

• Wear protective groves to prevent injury to ngers.

• Wear face mask when the dusk is substantive, such as shredding dry branches, hedges with leaves.

• When using the machine, always wear sturdy shoes with a non-slip sole. This protects against injuries and ensures a good footing. Work area safety

• Keep children and bystanders away while operating the machine.

• Operate the machine in open space on a rm, level surface. Do not operate the machine close to a wall or other objects.

• Do not operate machine in explosive atmospheres, such as in the presence of ammable liquids, gases or dust. The machine creates sparks which may ignite the dust or fumes.

• Do not operate the machine on a paved or gravel surface where ejected material may result in injury.

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not expose the machine to rain or wet conditions. Water entering the machine may increase the risk of electric shock. Starting up the machine

• Before connect the plug or switch on the machine: – Check all the screws, nuts and other fasteners are properly secured. – Check guards, deectors and screens are in place and good working condition. – Replace damaged or unreadable labels. – Make sure the lling hopper is empty. – Make sure the inlet and discharge opening are guarded properly. – Check all the parts of the machine carefully to determine if it operates properly and performs its intended function. Especially, never use the machine if the switch does not work normally.

• If the supply cord is damaged, ask Dolmar authorized service center, always using genuine replacement parts, to replace it. Electrical safety

• This appliance is Class I appliance. Connect with a supply socket with earth terminal. Improper earth may cause electric shock and death. Use only three-wire extension cords which have three-prong grounding- type plugs and three-pole receptacles which accept the tool’s plug.

• Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators) during operation.8

• Do not tilt the machine during operation.

• Keep abundant distance when you put long material. It may spring back and may result in personal injury.

• Do not operate without the lling hopper.

• Do not force the machine. It does the job better and safer at the rate for which it was designed. Frequent overload may cause motor damage or re.

• Use the right appliance. Do not use appliances for pur- poses not intended. Never intend to feed metal parts, glasses, stones, ceramics, plastics, thicker branches, hard wood or thick wood plates, etc. Maintenance instructions

• Have your machine serviced by our authorized service center, always using only genuine replacement parts. Incorrect repair and poor maintenance can shorten the life of the machine and increase the risk of accidents.

• Before servicing, inspection, adjustment, storage, or to change an accessory, take following steps: – Shut off the power source – Disconnect the machine from power supply – Make sure that all moving parts have come to a complete stop – Allow the machine to cool.

• Inspect on the machine for possible damage: – Whether safety devices works properly for its intended function – Whether all the moving parts work smoothly and adequately – Whether all parts are not damaged and properly installed – Replace or repair by our authorized service center if there are any damaged parts.

• Pay extreme attention when servicing cutter. The cutter is able to move manually tough interlock feature of the guard functions.

• Do not clean the device with water. It may cause electri- cal shock.

• Wear protective gloves during maintenance or assem- bly work to prevent injury to ngers.

• Do not carry out maintenance or repair work other than that described in this instruction manual. Any other work must be carried out by Dolmar aurhorized service center.

• Only use original Dolmar replacement parts and accessories intended for your machine. Otherwise it may result in personal injury or damage on the machine.

• Store the machine in a dry room. Keep it out of reach of children. Never store the machine outdoors. ASSEMBLY CAUTION:

• Always be sure that the machine is switched off and unplugged before carrying out any work on the tool.

1. Place the upper enclosure upside down on the at

oor. And then put the base frame on it. Be careful about the direction of the part. (Fig. 2)

2. Fasten each part by tightening screws. Make sure they

become perfectly stable. (Fig. 3)

3. Attach the stoppers by screw. Make sure they are

fastened tightly. (Fig. 4)

4. Attach wheels as follows: (Fig. 5)

– Attach the axis on one of the wheel. – Pass the axis through the holes on the leg. – Attach the other wheel to the axis by passing the pin through the hole on the axis. Fasten the wheel by bending the pin. – Attach the covers on the wheels.

5. Attach the retaining basket. And then raise the lock

Before plugging the machine, always make sure that the machine is switched off. Plugging the machine with the switch on may cause an unexpected start resulting in serious personal injury. Power Switch (Fig. 7) CAUTION: Do not use the machine if the switch does not turn it on and off. Have defective switches replaced by Dolmar authorized service center. To turn on the machine, push the green button. To turn off the machine, push the red button. LED light The LED light indicates the status of the machine as follows: RED color: When the machine is connected to the power supply and the machine is switched off. GREEN color: When machine is switched on. Flickering GREEN color constantly: When the machine is blocked during operation. Flickering RED color: When the machine can not recover automatically. Clear the problem manually when it happens. Unintentional restart proof The machine switches off automatically when power failure happens. To restart, push the green button again. Overload protection The motor is equipped with an overload protection. When overloaded, the machine acts as follows: – The blade runs reverse for two or three seconds to try to push the shredded material back out. – The blade runs forward again. – If the material is still clogged after this attempt for three times, the machine stops with LED light ickering in red. When it happens perform the following steps: – Turn off the machine. – Wait until the blades stop completely. – Remove the clogged material. – Turn the shredder on again after about 5 minutes, and feed easier material. – If you cannot turn on the machine after this waiting time, refer to “Trouble shooting”.9 Forward / Reverse switch CAUTION: Switch off the shredder before changing the forward / reverse switch. Position e The blades rotate in forward direction. Position d The blades rotate in reverse direction to release jammed material. When you change the direction into d (reverse), keep pushing the green button of the power switch to rotate the blades. The shredder automatically stops when you release the power switch. NOTE:

• Several repetitions of reverse and forward operations may be required to shred a large object. CAUTION:

• Always use a hook or a stick to remove jammed objects to prevent accidents.

• Always wait until the shredder stops completely before restart. Retaining basket CAUTION:

• Switch off and unplug the machine before attaching or removing the retaining basket.

• Check the functionality of the interlock feature every two hours for safe operation.

• Never attempt to override the interlock feature of guarding. Lock lever: Upper position → Retaining basket is locked. Lower position → Retaining basket is unlocked. The device does not switch on because of safety function. The machine is not switched on if the lock lever is unlock position. The machine automatically stops if the retaining basket is unlocked during operation. Blade cover CAUTION:

• Make sure that the machine is switched off and unplugged before opening the blade cover.

• Wear protective groves before opening the blade cover.

• The cutter does not stop immediately after switch off. Wait until all the parts stop. In case the material clogs badly in the upper enclosure, remove them by opening the blade cover. OPERATION Set up the machine:

• On a at, horizontal surface. Do not place the machine on paved or graveled ground.

• With a safe distance (at least 2 m) away from walls or other objects. Before starting, make sure that:

• The connection cables are not damaged. If there is cuts or tears, stop operation and replace it immediately.

• There is no damage on the machine, and all screws are tight.

• The machine is assembled completely and correctly. Check the mains connection:

• Make sure that the mains voltage matches the rated voltage on the nameplate and the machine is properly grounded.

• Use only extension cords with sufcient core cross-section. The material which the shredder can process The shredder can process following types of material:

• All types of branches up to the maximum diameter of the machine’s capacity, depending on type and condition of wood

• Garden refuses such as withered plants or wet weed which has been laid some days (Feed them alternating with branches.) The shredder can NOT process following types of material:

• Glass, metal, plastic, stones, ceramics, thicker branches, hard wood, thick wood plates, cloth, plastic bags, roots with soil.

• Garbage which is almost liquid state, e.g. kitchen garbage. Operation: (Fig. 8)

• Feed the material into the lling hopper from the right side.

• In case of branches, twigs and wood, shred them just after they are cut. They may get very hard as they become dry.

• Remove any side shoots from branches if they are not easy to feed.

• Turn off the motor and disconnect the machine from the mains power supply before cleaning ejection opening.

• Do not let the shredded material accumulated in ejection opening. Otherwise those shredded material may block the ejection opening. Empty the retaining basket regularly.

• Do not feed material which is more than the maximum branch diameter specied in Technical data. Depending on the wood’s freshness and condition, the maximum branch diameter may be smaller.

• Shredding wet garden waste results in a clog. To prevent the machine from clogging, alternate waste with wood containing material.

• Soft material or wet branches may be torn instead of being cut. Worn counter blade may also cause this problem.

• If the machine becomes clogged at the inlet opening or discharge chute, switch off the motor and unplugged before clearing debris in the inlet opening or discharge chute. Keep the power source clear of debris and other accumulations to prevent damage to the power source or possible re. Adjusting the blade clearance (Fig. 9) For an effective operation, adjust the clearance between the counter blade and cutting roller. Setting the clearance:

• Switch on the device.

• Turn the xing knob counterclockwise to release the adjusting knob.

• Turn the adjusting knob clockwise slowly to place the counter blade closer to the cutting roller. Turn it until ne aluminum chips are falling from the ejection opening.10 TROUBLE SHOOTING

WARNING: Before solving troubles, switch off the machine, pull out the mains plug, and wait until the machine stops

completely. Trouble Possible cause Remedy Motor does not start No power supply Check mains supply. Mains cable defective Ask authorized service center for checking. Overload protection is activated Wait until the machine cools down and press the green button. Safety cut-out device of the retaining basket (Retaining basket is unlocked) Check and lock the retaining basket. Motor sounds but does not start Cutting roller is blocked Turn off the device. Switch the forward/reverse switch into reverse direction. Switch on the machine until the jam has been cleared. Switch the machine off again. Turn back the direction of forward rotation. Capacitor fault Bring machine to authorized service center for repairing. Shredding material is not drawn into the shredder Reverse rotation. Switch off device and switch over direction of rotation selector switch. Shredding material caught in lling hopper Switch off device. Switch the forward/reverse switch into reverse direction. Switch on device to release the material to be shredded, remove any foreign matter. Switch device off again. Turn back the direction of forward rotation. Shredding material too soft or wet Push down with a branch Cutting roller worn Adjust xed counter blade as described under “Adjusting the blade clearance”. If the cutting roller is severely worn, replace it. Shredding material is not cut cleanly Fixed counter blade is not adequately adjusted Adjust the counter blade. Device starts but blocked by even slight load, and switches off by protective motor switch soon. Extension cable is too long or cross-sec- tion too thin. Socket is too far from mains supply or cross-section of mains cable too thin Check the extension cable is at least 1.5 mm

, maximum 25 m long. If using longer cable, minimum cross-section is 2.5 mm

EC DECLARATION OF CONFORMITY

For european countries only The EC declaration of conformity is included as Annex A to this instruction manual.

• Turn the xing knob clockwise to lock the adjusting knob. MAINTENANCE CAUTION:

• Always be sure that the machine is switched off and unplugged before performing inspection or maintenance.

• Wear protective groves before performing inspection or maintenance.

• The cutter does not stop immediately after switch off. Wait until all the parts stop before performing any maintenance work.

• Make sure that all the tools are removed after maintenance work.

• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To clean the machine, use only moist cloth and soft brush.

• Do not hose or clean the machine with high pressured water. After each operation, perform the following maintenance:

• Check whether all the locking screws are tight (tighten if necessary).

• Lubricate metal parts to protect them against corrosion.

• Keep the vents clean and free from dust. The cutting roller and counter blade wears out in course of time. Ask your nearest authorized service center for replacement when it is necessary.11 FRANÇAIS (Instructions originales)
