Product type	Cordless leaf blower
Brand	Kärcher
Model	LBL 4 Battery
Dimensions (L x W x H)	975 x 170 x 305 mm
Weight	2.2 kg (without battery)
Power source	Lithium-ion battery 36 V (Battery Power 36/25)
Max. air speed	250 km/h
Max. volumetric flow rate	330 m³/h
Speed adjustment	Yes, 2 levels
Sound pressure level	82 dB(A)
Guaranteed sound power level	96 dB(A)
Hand-arm vibration	2.1 m/s²
Flat nozzle with scraping edge	Included
Blower tube	Detachable into two parts
Maintenance	No maintenance required
Protection	Safety glasses and hearing protection recommended
Use	Outdoor only
Warranty	According to country-specific conditions (see manual)
Country of manufacture	Germany (headquarters)

Frequently Asked Questions - LBL 4 Battery Kärcher

How to turn on the LBL 4 Battery leaf blower?

Push the main switch forward to position 1 (low speed) or 2 (high speed) to start. To stop, push it backward.

What type of battery to use with the LBL 4 Battery?

The blower requires a Kärcher Battery Power 36 V battery (model 36/25 recommended). 18 V batteries are not compatible.

How to install the blower tube?

Insert the lower part of the tube onto the upper part, then turn clockwise to lock the bayonet system.

Why does the blower stop during use?

This may be due to battery overheating. Let the battery cool down for a few minutes before using the appliance again. Also check that the battery is fully charged.

How to clean the blower?

The appliance does not require special maintenance. Keep the fresh air vents clean and free of dirt. Never immerse the appliance in water.

Can I use the blower in the rain?

No, use the appliance only outdoors in dry weather. Protect it from water splashes (symbol on the appliance).

What accessories can I buy for this appliance?

Use only original Kärcher accessories, available at www.kaercher.com. For example, other nozzles or batteries.

How to store the blower at the end of the season?

Remove the battery and store the appliance in a dry place. Observe the weight (2.2 kg) to avoid injuries.

Is the blower under warranty?

Yes, warranty conditions vary by country. In case of a defect, contact your dealer or an authorized after-sales service with the invoice.

Can I blow wet debris with this appliance?

The appliance is designed to blow dry leaves, cut grass, and dry debris. Avoid wet or heavy debris that could clog the nozzle.

USER MANUAL LBL 4 Battery Kärcher

LBL 2 Battery	LBL 2 Battery Set
LBL 4 Battery	LBL 4 Battery Set

H. Jenner, Chairman of the Board of Management

S. Reiser, Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/03/01

Contents

Safety instructions 8

Hazard levels. 8

General safety instructions. 8

Safety instructions 9

Intended use. 10

Environmental protection. 10

Symbols on the device 10

Accessories and spare parts 10

Scope of delivery. 10

Device description 10

Blower pipe installation. 10

Flat nozzle installation 10

Initial startup 10

Switch the device on and off. 11

Transport 11

Storage 11

Care and service 11

Troubleshooting guide. 11

Warranty 11

Technical data 11

EC Declaration of conformity. 11

Safety instructions

Read these safety instructions, these original operating instructions, the safety instructions provided with the battery pack and the operating instructions supplied with the battery pack and charger before using the device for the first time. Act in accordance with them. Keep the booklets for future reference or for future owners.

In addition to the notes in the operating instructions, you also need to take into consideration the general safety regulations and accident prevention guidelines applicable by law.

Hazard levels

DANGER

Indication of an imminent threat of danger that will lead to severe injuries or even death.

WARNING

Indication of a potentially dangerous situation that may lead to severe injuries or even death.

CAUTION

Indication of a potentially dangerous situation that may lead to minor injuries.

ATTENTION

Indication of a potentially dangerous situation that may lead to damage to property.

General safety instructions

DANGER - Risk of asphyxiation. Keep packaging film out of the reach of children.

WARNING - Persons with reduced physical, sensory or mental capabilities and persons lacking experience and knowledge may only use the appliance if they are properly supervised, have been instructed on use of the appliance safely by a person responsible for their safety, and understand the resultant hazards involved.

ed on use of the appliance safely by a person responsible for their safety, and understand the resultant hazards involved.

Children must not operate the device. Children must be supervised to prevent them from playing with the appliance. Note: Do not operate the device when other persons or animals are in the work area.

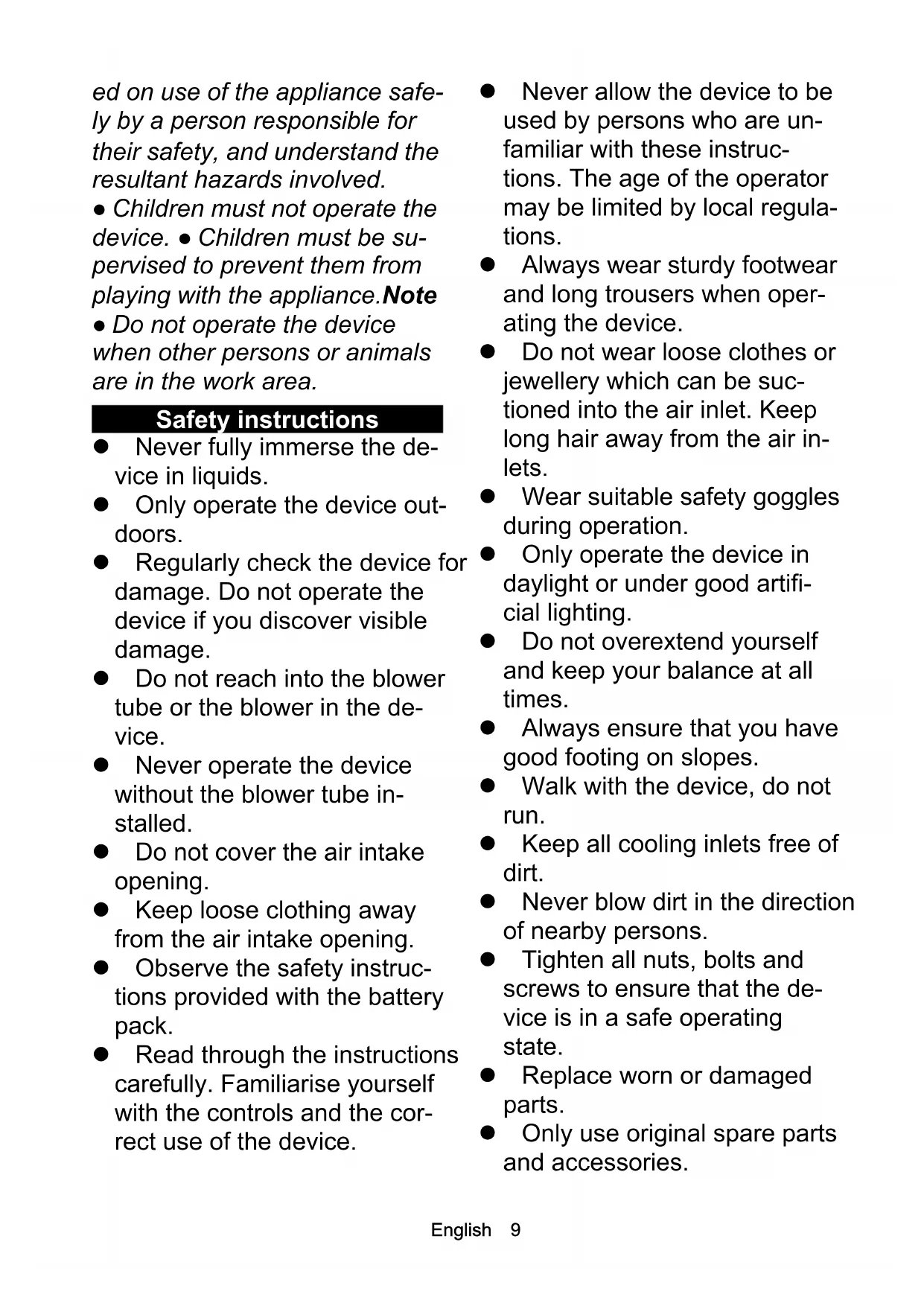

Safety instructions

• Never fully immerse the device in liquids.
• Only operate the device outdoors.
• Regularly check the device for damage. Do not operate the device if you discover visible damage.
• Do not reach into the blower tube or the blower in the device.
• Never operate the device without the blower tube installed.
• Do not cover the air intake opening.
• Keep loose clothing away from the air intake opening.
• Observe the safety instructions provided with the battery pack.
• Read through the instructions carefully. Familiarise yourself with the controls and the correct use of the device.
• Never allow the device to be used by persons who are unfamiliar with these instructions. The age of the operator may be limited by local regulations. Always wear sturdy footwear and long trousers when operating the device.
• Do not wear loose clothes or jewellery which can be suctioned into the air inlet. Keep long hair away from the air inlets.
• Wear suitable safety goggles during operation.
• Only operate the device in daylight or under good artificial lighting.
• Do not overextend yourself and keep your balance at all times. Always ensure that you have good footing on slopes.
• Walk with the device, do not run.
• Keep all cooling inlets free of dirt.
• Never blow dirt in the direction of nearby persons.
• Tighten all nuts, bolts and screws to ensure that the device is in a safe operating state.
• Replace worn or damaged parts.
• Only use original spare parts and accessories.

Intended use

△WARNING

Risk of injury from flying particles

Use the leaf blower only when this does not endanger other persons in the vicinity.

The device is intended for blowing leaf litter, grass clippings, hedge clipping and loose dirt lying on the ground. Only use the device in private households.

Foreseeable misuse

Any type of improper use is prohibited.

The operating personnel are liable for damage resulting from incorrect use.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can

pose a potential threat to human health and the environment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.com/REACH

Symbols on the device

Leaf blower LBL 2 / LBL 4

Warning of flying objects.

Keep other persons away from the work area.

Wear suitable hearing protection and safety goggles when operating the device.

Protect the device from rain and spray water.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when

unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Device description

Illustration A

1 Flat nozzle with integrated scraper edge 2 Blower tube lower section 3 Blower tube upper section 4 Air outlet 5 Power switch 18 V: On/Off

36 V: Off, Level 1, Level 2

6 Battery pack unlocking button 7 Type plate 8 Mount for Battery Power battery pack 9 Air intake opening 10 Battery Power 36/25 battery pack 11 Battery Power 36 V Quick Charger 12 Battery Power 18 V Standard Charger 13 Battery Power 18/25 battery pack

• Already included in the scope of delivery of the set variants.

Blower pipe installation

1. Plug the blower tube lower section onto the blower tube upper section. Illustration C
2. Turn the blower tube clockwise to lock in position (bayonet lock). Illustration D

Turn the blower tube anticlockwise to unlock and remove.

Flat nozzle installation

1. Plug the flat nozzle onto the lower section of the blower tube. See Illustration B.

Initial startup

Inserting the battery pack

ATTENTION

Dirty contacts

Damage to the device and battery. Check the battery mount and the contacts for soiling and clean them as necessary before inserting the battery.

See Illustration E.

1. Push the battery into the mounting in the device until it audibly latches into place.

Removing the battery

WARNING

Uncontrolled startup

Risk of injury

Remove the battery pack from the device during work breaks and before carrying out any service or care work. See Illustration F.

1. Press the unlocking button.
2. Remove the battery from the device.

Switch the device on and off

Use the power switch to switch the device on and off.

1. Slide the power switch forwards to position "1" or "2" (LBL 4 battery only).

The device starts up.

1. Slide the power switch backwards.

The device stops.

Transport

CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during transportation.

Storage

CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during storage.

Note

Always store the device in a dry place and remove the battery pack.

Care and service

The device is maintenance-free.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

As the battery pack ages, even if it is looked after, its capacity reduces such that the full run time will no longer be reached when fully charged. This does not indicate a defect.

Type plate

The major device information is specified on the type plate.

The location of the type plate on the device is specified in the "Device description" chapter.

Faults on the device

The device does not start up

The battery pack is not inserted correctly.

1. Push the battery pack into the mounting in the device until it audibly latches into place.

The battery pack is discharged.

1. Charge the battery pack.

The battery pack is in sleep mode.

1. Press and hold the power switch longer or press the power switch a second time.

The battery pack is defective.

1. Replace the battery pack.

The device stops during operation.

The battery has overheated.

• Stop working and allow the battery to cool down to the permissible temperature range. This can take a few minutes.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please

contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Technical data

LBL 2 Battery	LBL 2 Battery Set
LBL 4 Battery	LBL 4 Battery Set

Device performance data

Maximum air speed km/h 210 210 250 250

Maximum volume flow rate m³/h 220 220 330 330

Working voltage of the battery V 18 18 3

Speed control - - Yes Yes

Speed levels -- 2 2

Battery pack in- cluded	-	Bat- tery Pow- er 18/ 25	Bat- tery Pow- er 36/ 25
Battery charger type	-	Bat- tery Pow- er 18V Stand ard Char- ger	Bat- tery Pow- er 36V Quick Char- ger

Dimensions and weights

Weight	kg	2	2,5	2,2	3
Length x width x	mm	975 x	975 x	975 x	975 x
height		170 x	170 x	170 x	170 x
		305	305	305	305

Determined values in acc. with EN 60335-2-79 * Measurements were made with the flat nozzle

Hand-arm vibration value	m/s2	1,7	1,7	2,1	2,1
Uncertainty K	m/s2	0,2	0,2	0,2	0,2
* Sound level	dB(A)	74	74	82	82
* Uncertainty KpA	dB(A)	2	2	2	2
* Sound power lev-el LWA +	d	B	( A )	8	8
* Uncertainty KWA

Subject to technical modifications.

EC Declaration of conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: Leaf blower

Type: LBL 2, LBL 4

Currently applicable EU Directives

2000/14/EC

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Harmonised standards used

EN 60335-1

EN 50636-2-100

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 62233: 2008

EN 50581

Applied conformity evaluation method

2000/14/EG: Appendix V

Sound power level dB(A)

LBL 2:

Measured: 86

Guaranteed: 88

LBL 4:

Measured: 94

Guaranteed: 96

The signatories act on behalf of and with the authority of the company management.

Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Documentation supervisor: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Karcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2015/03/01

Content

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Responsible for documentation: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Karcher-Str.28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/03/2015

Indices

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/03/2015

Contents

The battery is overheated

LBL 2 Battery	LBL 2 Battery Set
LBL 4 Battery	LBL 4 Battery Set

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/03/01

LBL 2 Battery	LBL 2 Battery Set
LBL 4 Battery	LBL 4 Battery Set

2006/42/CE (+2009/127/CE)

2011/65/UE

2014/30/UE

S. Reiser Director Regulatory Affairs & Certification

Documentation manager: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Karcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 1/3/2015

Indices

LBL 2 Battery	LBL 2 Battery Set
LBL 4 Battery	LBL 4 Battery Set

2006/42/CE (+2009/127/CE)

2011/65/EU

2014/30/EU

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/03/2015

Contents

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

2000/14/EC: Annex V

Sound power level dB(A)

LBL2:

Malt: 86

Guaranteed: 88

LBL 4:

Malt: 94

Guaranteed: 96

H.Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/03/01

Contents

LBL 2 Battery	LBL 2 Battery Set
LBL 4 Battery	LBL 4 Battery Set

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Applied harmonized standards

NEK EN 60335-1

EN 50636-2-100

EN 55014-1: 2006+A1: 2009+A2: 2011

NEK EN 55014-2: 2015

NEK EN 62233: 2008

NEK EN 50581

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 03/01/2015

Contents

Safety information 42

Risk levels 42

General safety instructions 42

Safety information 42

Intended use 43

Environmental protection 43

Symbols on the device 44

Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Authorized documentation representative: S. Reiser

Alfred Karcher SE & Co. KG

Alfred-Karcher-Str. 28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/03/01

Contents

LBL 2 Battery	LBL 2 Battery Set
LBL 4 Battery	LBL 4 Battery Set

Device specifications

Ilmannopeus maks.

km/h 210 210 250 250

Maximum flow rate m³ /h 220 220 330 330

Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Documentation Officer: S. Reiser

Alfred Karcher SE & Co. KG

Alfred-Karcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

LBL 2 Battery	LBL 2 Battery Set
LBL 4 Battery	LBL 4 Battery Set

Authorized Representative

LBL 2 Battery	LBL 2 Battery Set
LBL 4 Battery	LBL 4 Battery Set

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/03/01

Table of contents

LBL 2 Battery

LBL 2 Battery Set

LBL 4 Battery

LBL 4 Battery Set

Device performance data

Max. air speed km/h 210 210 250 250

Max. volume flow m³/h 220 220 330 330

Operating voltage V 18 18 36 36

Speed setting - yes yes

Hüz kademeleri	-	-	2	2
Akü paketi dahil	-	Bat- tery	-	Bat- tery
		Powe r 18/	r 36/	Powe r 36/
		25		25
Şarj aleti tipi	-	Bat- tery	-	Bat- tery
		Powe r 18V	stan- dart	Powe r 36V
		aleti		hüzli Şarj aleti

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

In case of accidents

cases.

Degree of danger

DANGER

Indicates a directly dangerous situation that can lead to

serious or fatal injuries.

serious or fatal injuries.

DANGER

1

Indicates a potentially dangerous situation that can lead to serious or fatal injuries.

CAUTION

Indicates a potentially dangerous situation,

which can lead to minor or moderate injuries.

Indicates a potentially dangerous situation that can lead to material damage.

General safety instructions

DANGER Danger of suffocation. Keep the packaging film out of reach of children.

CAUTION

• People with limited physical, sensory or mental capabilities, as well as people lacking the necessary experience and knowledge, may use the device only under proper supervision or after receiving instructions from a responsible person regarding the safe use of the equipment and understanding the possible risks. Do not allow children to use the device. Ensure that children do not play with the device. Note: Do not use the device if other people or animals are in the work area.

Safety instructions

Do not immerse the device completely in liquid.

Operate the device only outdoors. - Regularly check the device for visible damage. If visible damage is present, do not use the device. Do not insert hands into the discharge hose or the device's blower. Do not operate the device without the discharge hose installed. Do not block the suction opening. Do not allow loose clothing to enter the suction opening area. Follow the safety instructions regarding the battery pack and act accordingly. Carefully read the instructions. Familiarize yourself with the control elements and the correct usage of the device. Under no circumstances allow the device to be used by persons who have not read these instructions. Local regulations may

restrict the operator's age.

During operation of the device, always wear sturdy shoes and long trousers. Do not wear loose clothing or jewelry that could be drawn into the air intake opening. Do not allow hair to enter the air intake opening area. During operation, use protective goggles. Operate the device only in daylight or with good artificial lighting. Do not overexert yourself; always maintain balance. Always maintain a stable stance on slopes. Walk, do not run. Do not allow the air intake openings to become clogged. Under no circumstances blow debris towards bystanders. - Tighten all nuts, bolts, and screws securely to

ensure the device is in a safe working condition.

Replace worn or damaged parts. Use only original spare parts and accessories.

Intended use

DANGER

Danger of injury from rotating parts

Use the leaf blower only when it does not pose a danger to bystanders.

The device is intended for blowing leaves, grass clippings, hedge trimmings, and debris on the ground.

The device is intended for household use only.

Foreseeable misuse

Any use other than the intended use is prohibited.

The operator is responsible for damage caused by misuse.

Environmental protection

Packaging materials are recyclable. Packaging must be disposed of without harming the environment.

Electrical and electronic devices often contain valuable materials that are suitable for recycling and may also contain components such as batteries,

accumulators or oil, which, if handled improperly or disposed of incorrectly, can pose a potential

hazard to health and the environment. However, these components are necessary for the correct operation of the device. Devices marked with this symbol are prohibited from being disposed of with household waste.

Declaration on ingredients (REACH)

Glossary LBL 2/LBL 4

Warning about moving objects.

Do not allow other persons in the work area.

When working with the device, use appropriate hearing protection and protective goggles.

Protect the device from moisture and water.

The device is maintenance-free.

Help in case of malfunction

Malfunctions often have simple causes, so with the help of the following instructions they can be fixed independently. In case of doubt or if malfunctions not described here occur, contact an authorized service center. With increasing service life, the capacity of the battery block will decrease even with good care, so even with a full charge, the full operating time will no longer be ensured. This is not a defect.

Manufacturer's label

The main data of the device are indicated on the factory plate.

The chapter "Device Description" shows where the factory plate is located on the device.

Device malfunctions

The device does not turn on

The battery pack is installed incorrectly. 1. Push the battery pack into the compartment until it clicks. The battery pack is discharged. 1. Charge the battery pack. The battery pack is in sleep mode. 1. Press the device power button for more than 5 seconds. The battery pack is faulty. 1. Replace the battery pack.

The device stops during operation

Battery overheating

• Stop working and let the battery cool down to a temperature below the permissible temperature range. This may take several minutes.

Warranty

In each country, the corresponding warranty conditions established by the authorized organization for the sale of our products apply. We will fix possible device malfunctions free of charge during the warranty period, if they are caused by material defects or manufacturing defects. In case of claims during the warranty period, please contact the trading organization that sold the product or the nearest authorized service center.

(The address is indicated on the back)

The production date is displayed on the factory plate in encoded form.

The digits have the following meaning:

Example: 30190

3 year of production 0 century of production 1 decade of production 9 second digit of the month of production 0 first digit of the month of production

Thus, in this device, the number 30190 indicates the release date 09/(2)013.

Technical specifications

LBL 2 Battery

LBL2 Battery Set

LBL 4 Battery

LBL 4 Battery Set

Operating characteristics of the device

Air speed, km/h 210 210 250 250 max.

Volume flow, m³/h 220 220 330 330 max.

Operating voltage 1 8 1 8 3 Charging

Adjustment -- all speeds

Speed level -- 22

Battery - Battery - Battery block Power Power r18/ r36/ 25 25

Charging - Station - Device charging device fast charging device battery Power Power r 18V r 36V

Dimensions

Bec	kg	2	2,5	2,2	3
Ди_inа x Ширпа x	mm	975 x	975 x	975 x	975 x
ВьICOTa		170 x	170 x	170 x	170 x
		305	305	305	305

Calculated values according to EN 60335-2-79 * Measurements made with a flat surface

Vibration emission value ah/ m/s² 1.7 1.7 2.1 2.1 Uncertainty K m/s² 0.2 0.2 0.2 0.2 *Sound pressure level dB(A) 7 4

*Uncertainty dB(A) 2 2 2 *Sound power level dB(A) 8 8 LWA+ *Uncertainty K WA

We reserve the right to make technical changes.

Declaration of Conformity with EU Standards

We hereby declare that the design, construction, and execution of the machine described below comply with the essential requirements of the EU Directives on safety and health protection. Any modifications to the machine not approved by our company will render this declaration invalid. Product: Air blower Type: LBL 2, LBL 4

Applicable EU Directives

2000/14/EC

2006/42/EC (+2009/127/EC)

2011/65/EC

2014/30/EC

Applied harmonized standards

EN 60335-1

EN 50636-2-100

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 62233: 2008

EN 50581

Applied method of conformity assessment

2000/14/EC: Annex V

Sound power level L(D)

LBL 2:

Measured: 86

Guaranteed: 88

LBL 4:

Measured: 94

Guaranteed: 96

The undersigned act on behalf of the company.

H. Jenner

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Person responsible for documentation: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Karcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/03/01

Table of contents

LBL 2 Battery	LBL 2 Battery Set
LBL 4 Battery	LBL 4 Battery Set

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 2015/03/01

Table of contents

Leaf blower LBL 2 / LBL 4

Warning against flying objects.

Other persons should stay away from the work area.

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

2000/14/EC: Annex V

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Authorized documentation representative: S. Reiser

Alfred Karcher SE & Co. KG

Alfred-Karcher-Str. 28 - 40

Winnenden, 2015/03/01

Table of contents

Safety instructions. 72

2006/42/EC (+2009/127/EC)

6201865/EU

2014/30/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Authorized person for documentation: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Karcher-Str. 28 - 40

Winnenden, 1. 3. 2015

Table of contents

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Documentation administrator: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Karcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2015/03/01

Table of contents

Safety instructions. 81 Danger levels. 81 General safety instructions 81 Safety instructions. 81 Intended use 82 Environmental protection. 82 Symbols on the device 83 Accessories and spare parts 83 Delivery set 83 Description of the device 8 Mounting the blowing tube 83 Mounting the flat nozzle 83 Commissioning 8 Switching the device on and off 83 Transport 83 Storage 83 Care and maintenance 83 Troubleshooting 84 Warranty 84 Technical data 84 EU Declaration of Conformity 84

Relevant EC Directives

2000/14/EC

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Harmonized standards applied

EN 60335-1

EN 50636-2-100

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 62233: 2008

EN 50581

Conformity assessment procedure

2000/14/EU: Annex V

Acoustic power level dB(A)

LBL 2:

Measured: 86

Guaranteed: 88

LBL 4:

Page: 94

Guarantee: 96

The signatories act in the name and on behalf of the company's management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Responsible for the preparation of the documentation: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Karcher-Str.28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/03/01

Table of contents

2000/14/ES: Annex V

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01.03.2015

Contents

Safety instructions. 89

Safety levels 89

General safety instructions 89

Safety instructions. 90

2006/42/EC (+2009/127/EC)

2011/65/EU

2014/30/EU

Applied harmonized standards

EN 60335-1

EN 50636-2-100

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2: 2015

EN 62233: 2008

EN 50581

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Authorized representative for documentation: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Karcher-Str.28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, March 1, 2015.

Contents

Safety notes 93

Danger levels 93

General safety notes 93

Safety notes 94

Intended use 94

Environmental protection 9

Symbols on the device 95

Accessories and spare parts 95

Scope of delivery 95

Description of the device 95

Mounting the blowing tube 95

Mounting the flat nozzle 95

Blowing into operation 95

Relevant directive EZ

2000/14/EZ

2006/42/EZ (+2009/127/EZ)

2011/65/EU

2014/30/EU

Applied harmonized standards

EN 60335-1

EN 50636-2-100

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 62233: 2008

EN 50581

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Winnenden, 2015/03/01

Safety instructions 97

Degree of danger 97

General safety instructions 98

Safety instructions 98

Battery pack and charging device.

Proceed accordingly.

Keep this manual for future use or for the next owner.

In addition to the instructions in the

operating manual, you must also follow the generally applicable laws and regulations on

safety and protection of the environment.

Degree of danger

DANGER

Instruction for immediate danger that can lead to serious injury or death.

WARNING

Warning about possible dangerous situations that may lead to serious injuries or death.

DANGER

Warning about possible dangerous situations that may lead to serious injuries.

WARNING

Warning about possible dangerous situations that may lead to material damage.

General safety instructions

DANGER Danger of suffocation. Keep the packaging away from children.

WARNING

• People with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, may use the device only under supervision or if they have been instructed by the person responsible for their safety regarding the safe use of the device and if they understand the dangers arising from misuse of the device. Children must not use the device.
• Children must be supervised to ensure they do not play with the device. Warning: Do not use the device if the working area is occupied by other people or animals.

Safety instructions

Never point the device at people or animals. Use the device only outdoors. Regularly check the device for damage. If damaged, do not

operate the device.

Do not blow into the exhaust pipe of the device. Do not work with the device without the exhaust pipe installed. Do not cover the suction opening. Keep the area around the suction opening free of objects. Pay attention to the instructions for the battery and act accordingly. Read the manual carefully. Follow the maintenance and proper use instructions. Never allow the device to be used by people who are not familiar with this manual. The operator must be at least 18 years old. During work with the device, wear protective clothing and non-slip shoes. Do not wear loose clothing or jewelry that could be caught in the air intake. Keep your hair

away from the air intakes.

• Use the device only in daylight or in well-artificially lit areas. Do not lean over the device.
• When assembling, make sure the device stands stably on its legs. Use the device with care, do not push it. Before starting, check all air intakes for blockages. Never operate the device near people. Tighten all nuts, bolts, and screws to ensure the device is in a safe working condition. Replace worn or damaged parts.
• Use only original spare parts and accessories.

Intended use

WARNING

Risk of injury from rotating parts

Using the device for blowing can cause debris to be thrown at people nearby.

The device is intended for blowing leaves on the ground, dry grass, and debris from hard surfaces.

Use the device only for its intended purpose.

Improper use

Any use other than intended is prohibited.

The operator is responsible for damage caused by improper use.

Environmental protection

Packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Electrical and electronic devices contain materials, components and substances that may be hazardous to health and the environment if not handled or disposed of correctly. For the device to function correctly, all components and parts are necessary. The device symbol must not be disposed of with household waste.

Electrical and electronic devices contain materials, components and substances that may be hazardous to health and the environment if not handled or disposed of correctly. For the device to function correctly, all components and parts are necessary. The device symbol must not be disposed of with household waste.

Information on ingredients (REACH)

Current information on ingredients can be found at: www.kaercher.com/REACH

Symbols on the device

Operating instructions LBL 2 / LBL 4

Warning about hazardous objects.

Do not allow other people in the work area.

When working with the device, wear suitable hearing protection and protective goggles.

Keep the device away from rain and moisture.

Accessories and spare parts

Use only original accessories and original spare parts. They ensure the safe and trouble-free operation of the device.

Information on accessories and spare parts can be found at: www.kaercher.com.

Scope of delivery

The scope of delivery of the device is shown on the packaging. When unpacking, check the contents for completeness. In case of missing accessories or transport damage, contact your distributor.

On/Off switch

Figure A

1. Air outlet grille 2. Air inlet grille 3. Air inlet grille 4. Air exhaust 5. On/Off switch 18V:DC/AC

Installing the battery pack

WARNING

Battery contacts

Battery pack and charger maintenance Before installation, check the battery pack and the charging contacts for damage and clean them if necessary.

Figure E

1. Insert the battery pack into the slot until it clicks into place.

Removing the battery pack

WARNING

Uncontrolled starting

Danger of injury

Before any work on the device, and before maintenance or repair, remove the battery pack from the device.

Figure F

1. Press the button.
2. The battery is charging.

Turning the device on and off

Turn the device on and off with the power button.

1. Press the power button to turn on the device. The heating level is set to "1" or "2" (only for LBL 4 Battery). The device starts.
2. Press the power button to turn off the device. The device turns off.

Transportation

DANGER

Unsecured device

Danger of injury and damage when transporting. Secure the device.

Storage

DANGER

Unsecured device

Danger of injury and damage when storing. Keep the device secured.

Instruction

Store the device in a dry place and protect the battery from moisture.

Power supply

The device does not need maintenance.

Help in case of damage

Many places can be considered damaged. With the help of the elementary instructions, you can fix them yourself. If you are not sure or the damages are not described here, contact the authorized service. With the increase of the battery capacity, the initial power is good, so even in a fully charged state, the device does not reach its full working time. This is not a defect.

Type plate

On the type plate you will find the most important data of the device.

In the chapter "Description of the device" it is described where the type plate is placed.

Device malfunctions

Device functions

The battery is installed correctly.

1. Press the battery into the compartment until it clicks. The battery is not rechargeable.
2. Charge the battery. The battery is charging.
3. Press the device switch more firmly or turn it on.

The battery is defective.

Operating instructions

Battery charger

• Switch off the device and let the battery charger cool down until the temperature is permissible.

Temperature display. This may take a few minutes.

Warranty

In every country, the warranty conditions issued by our authorized distributor apply. Possible damage to your device will be repaired free of charge within the warranty period if it is due to a material or manufacturing defect. In the event of a warranty claim, please contact your distributor or the nearest authorized service center, presenting the proof of purchase. (Address, see back page)

Technical data

	LBL 2 Battery	LBL 2 Battery Set	LBL 4 Battery	LBL 4 Battery Set
Данни за мошността на урEDA
Сkopост ha	km/h 210 210	250 250
Вьздуха, макс.
Обемен поtok, mакс.	m³/h 220	330 330
РавOTно hyпөжени	V	1	8	1
Perуларане на sckopocста	-	-	d	a
Стелени на sckopocst	-	-	2	2
налоча akumулирашиа bateря	-	B	-a	Вt
		ry		ry
		Powe r 18/ 25		Powe r 36/ 25
Тип зардно устрийстvo	-	C	-t	За
		дэрт HO		Дно устpo щоство эзго
		Зэря дно uстpo щоство Batte ry		За Брз о зAPEхдане
		Powe r 18V		Ватte ry Powe r 36V

Dimensions of the device

Терлк 2 2,5	2,2	3
Дылхинах	mm	975x	975x	975x	975x
широчинах		170x	170x	170x	170x
Височина		305	305	305	305
Установнистор检псьгласно EN 60335-2-79* Измерваимята са Извршени с пльockатудюза

		LBL 2 Battery	LBL 2 Battery Set	LBL 4 Battery	LBL 4 Battery Set
Стойост ha	m/s2	1,7	1,7	2,1	2,1
Вибрацьanta рька-рамо
Heусточивocst K	m/s2	0,2	0,2	0,2	0,2
* Нibo на 3БУКОВа	d	B	( A)	7	4
налягане
* Heусточивocst	dB(A)	2	2	2	2
KpA
* Нibo на 3БУКOBа	d	B	( A)	8	8
мошноct LWA+
* Heусточивocst
KWA

We reserve the right to make technical modifications.

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Documentation assistant: S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Karcher-Str.28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2015/03/01

Table of contents

Safety instructions 102

Hazard levels. 102

General safety instructions 102

Safety instructions 102

Intended use 103

Environmental protection 103

General safety instructions

DANGER · Risk of suffocation. Keep packaging film away from children.

www.kaercher.com/REACH

Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2015/03/01

Safety instructions

Safety instructions 106

Risk classes. 106

General safety instructions. 106

Safety instructions 106

LBL 2 Battery	LBL 2 Battery Set
LBL 4 Battery	LBL 4 Battery Set

Device power data

Oro greitis, maks. km/h 210 210 250 250

Türinis srautas, m3/h 220 220 330 330

maks.

Operating voltage V 18 18 36 36

Oro greiţio regula- vimas

-- jreng-

ta

jreng- ta

Speed stages - - 2 2

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 2015/03/01

CONTENTS

Safety instructions. 114

Safety levels 1

General safety instructions 114

Safety instructions. 115

Intended use. 116

Environmental protection 116

Symbols used 116

Scope of delivery 116

Package contents. 116

Description 116

Installation of the wall pipe 117

Installation of the floor drain. 117

Commissioning 117

Device 117

Transportation 1

Storage 117

Maintenance and technical service 117

Troubleshooting 117

Warranty 117

Technical specifications 118

Declaration of conformity with EU standards .. 118

Safety instructions

Before using the device

Before using the device, read the safety instructions, the original operating instructions, the safety instructions that are added to the battery unit, as well as the original operating instructions for the battery unit and the charging device. Date

According to them. Keep the documents for future use or for the next owner.

Together with the instructions in the operating instructions, take into account the general legal provisions on safety and accident prevention.

Safety levels

DANGER

Warning about safety, which can directly endanger and lead to severe injuries or death.

DANGER

Warning about a potentially dangerous situation that can lead to severe injuries or death.

WARNING

Warning about a potentially dangerous situation that can cause injuries.

CAUTION

Warning about a potentially dangerous situation that can cause material damage.

General safety instructions

DANGER Danger of injury. Keep the device out of reach of children.

WARNING People with limited physical, sensory, or mental abilities, as well as those who lack the necessary experience and knowledge, may use the device only under supervision or after they have been instructed by a responsible person regarding safe use.

The device must be kept away from moisture.

It is forbidden to play with the device. - Watch that children do not play with the device. Do not use the device when other people or animals are in the work area.

Safety instructions

Never immerse the device in water. Use the device only on open air. - Regularly check the device for damage. If damage is detected, do not use the device. Do not insert hands into the exhaust pipe or near the device. Do not operate the device without the installed exhaust pipe. Do not cover the suction opening. Do not allow loose clothing elements to enter the suction opening area. - Follow the safety instructions included with the device and the charger, and act accordingly.

Carefully read the instructions. Familiarize yourself with the control elements and the safe operation of the device. Do not allow persons who have not read these instructions to use the device. The user may be subject to local regulations. Use the device only in appropriate clothing and full footwear. Do not wear loose clothing or jewelry that could be caught in the vacuum cleaner. Keep hair away from the vacuum cleaner. - During operation, use protective goggles. Operate the device only in daylight or good artificial lighting. Do not overreach; always maintain balance. - When working on a slope, ensure stable footing. Do not run with the device, only walk. Watch that the vacuum cleaner openings do not become clogged.

Check the device for damage before use. Tighten all screws, bolts, and fasteners to ensure the device is in safe working condition. Replace damaged or worn parts. Use only original spare parts and accessories.

Intended Use

WARNING

Danger of injury from moving parts

Use the product only when it does not pose a danger to others.

The device is intended for use on the ground, not on ladders, scaffolding, or similar.

The device is intended only for household use.

Possible incorrect use

Any use other than the intended use is prohibited.

The operator is responsible for damage caused by incorrect use.

Environmental Protection

Packaging materials are suitable for recycling. Dispose of packaging in an environmentally friendly manner.

Electrical and electronic devices contain valuable materials that are suitable for recycling and components such as batteries, accumulators, and oil, which must be disposed of separately.

Incorrect disposal or incorrect recycling can create potential hazards for human health and the environment. These components are necessary for proper operation of the device. Devices marked with this symbol must not be disposed of with household waste.

Information on Components (REACH)

Current information about the components is provided on the website: www.kaercher.com/REACH

Symbol on the device

Folding brush LBL 2/LBL 4

Warning against uncontrolled movement of objects.

Keep other people away from the work area.

When working with the device, use protective goggles and protective gloves.

Protect the device from rain and splashes.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure safe and reliable operation of the device.

Information about accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The device's scope of delivery is indicated on the packaging. When unpacking the device, check the completeness. In case of missing accessories or damage during transport, please contact your dealer.

Device description

Figure A

① Flat nozzle with integrated scraper ② Lower part of the suction tube ③ Upper part of the suction tube ④ Air outlet opening ⑤ Device switch

18B: yBIMK./BUMK. 36B:BIMK.,piBeHb1,piBeHb2

6KhONka BnBiNbHeHHa kMyIaTOpHOrO 6Joka 7BaOdcbKa Ta6nUka 8HizdoIaakymyTopHoro6noka Battery Power (+) 9CMOKTyBaIbHNIOTBip 10*AkymyTOpHn 6Jok Battery Power 36/25 ①*Пистрий WВИДКОТЗapяЖаHH Battery Power 36 V

12*CTaHdapTHn3apAHN npncTpiB Battery Power 18 V 13*AkymnyTopnH 6Jok Battery Power 18/25

*BIXE BXOJNTb DO KOMNJIeKTy NOCTaBKn BapiaHTiB Na6opib.

YcTaHOBJIeHHaO6dUBaJIbHoI Tpy6n

1.HacyHyTN HnKHHO qactHy 06dyBaJIbHOI Tpy6n Ha BepxHIO II qactHy.

MaJIPOHOK C

2.ДяфikcaiTpy6n NOBepHyTu 3a roDHHNKOBIOCTpiIKKO（6aNoHETHe 3'EdHaHH）

MaJIHOHOK D

IЯ 3HimAHHH NOBepHyTN Tpy6y npOTn roHnHOBOO CTpinKn.

YCTAHOBJIeHHI NIOCKORO CONJa

1.HacyHytn nnocke coIIO ha HnKHe YacTInHy 6dyBaIbHoI Tpy6n.

MaJIHOK B

BVeDeHnB eKcnnyataciIO

BctaHOBJIeHHaKymyIaTopa

Connect the device to the charger.

Before installing the battery, check the battery compartment and contacts for contamination and, if necessary, clean them.

FIGURE E

1. Install the battery into the compartment and secure it until it clicks into place.

Removing the battery

WARNING

Uncontrolled start

Unsafe operation

During operation and before performing maintenance, always remove the battery from the device.

FIGURE F

1. Press the release button
2. Remove the battery from the device.

Switch on/off the device

1. Move the switch to position "1" or "2" (only for 4 Battery). The trigger is released. 2. Move the switch back. The trigger is locked.

Transportation

CAUTION

Improper transportation may cause damage

Unsafe transportation may cause damage

When transporting, use the original packaging.

Storage

CAUTION

Improper storage may cause damage

Unsafe storage may cause damage

When storing, use the original packaging.

Disposal

Always store the device in a dry place without the battery pack.

The battery pack is installed incorrectly.

1. Install the battery into the socket and lock it by the characteristic sound.

The battery is discharged.

1. Charge the battery.

The battery is in sleep mode.

1. Hold the power button longer or press it several times.

The battery is damaged.

1. Replace the battery.

Battery overheat

Stop operation and let the battery cool down to the permissible temperature range. This may take several minutes.

Warranty

The warranty conditions are established by the authorized organization of the manufacturer in the country of purchase. We accept claims for warranty repairs without charge if the malfunction is due to material or manufacturing defects. In case of a claim during the warranty period, please contact the retail organization that sold the product or the authorized service center.

(Addresses are listed on the back)

Technical specifications

LBL 2 Battery	LBL 2 Battery Set
LBL 4 Battery	LBL 4 Battery Set

Operating characteristics of the device

ШвдкICTь повитray, макс.	km/h 210 210 250 250
ОБ'емнй по�示, макс.	m³/h 220 220 330 330

Operating voltage 18 18 36 36

Perugliobanhny швдкостi	-	-	e	e
P i B H i		H	B	B
Наявни akymлайторни блOk	-	В ry Po wer 1 8/25	-a	Вt ry Po wer 3 6/25
Тип зарядного пристrodu	-	С дapor нii Зapor Днii Прись pii Вatte ry Po wer 1 8V	-T	Па Тriй швд Кого Зapor Джан Я Batte ry Po wer 3 6V

Bara kg 2	2,5	2,2	3
Довжина x		mm	975 x	975 x	975 x	975 x
ширINA x BИСОТа			170 x	170 x	170 x	170 x
			305	305	305	305

The declared values conform to EN 60335-2-79. The verification was carried out with a flat fan nozzle.

Harmonized standards applied

EN 60335-1

EN 50636-2-100

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:2005

EN 62233:2008

EN 50581

Conformity assessment procedure applied

2000/14/EC: Annex V

Sound power level, LWA

Measured: 86

Guaranteed: 88

LBL 4:

BmipraHn: 94

TapaHTOBaHn: 96

Oco6n, 0HxKHe nIiNcAINcR, DIIOb 3a DOpUeHHaM i 3a DOBipEHiCTo KepiBHuTBA.

H. Jenner

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Oco6a, BiINOBiIaNbHa 3a BeIeHHN DaKymEnTaJI: II. Paimep (S. Reiser)

Alfred Kärcher SE & Co. KG

Alfred-Karcher-Str.28-40

71364 Winnenden (HimeyuHa)

Ten.: [phone]

a_Kc: + 49719514 - 2212

M. BiHHeHdEh, 01.03.2015

Safety technique for burns and injuries ......... 119

Burn injuries. 119

Technical safety for burns and injuries. 119

Safety technique for burns and injuries ......... 120

First aid for electric shock. 121

Protection of the surrounding environment. 121

First aid supplies. 121

Necessary additional equipment. 121

Safety instructions 1

Installation of the structure. 121

Installation of the burner. 121

Installation of the valve assembly. 121

Connection to the gas pipeline. 122

Commissioning of the structure. 122

Table of contents. 122

Safety. 122

Maintenance and technical service. 122

Troubleshooting. 122

Storage. 122

Technical data. 123

Declaration of conformity to EU standards. 123

Safety instructions

Before starting the device, read these safety

instructions carefully.

General safety instructions

Instructions for the battery

Additional information

Safety

Instructions and safety

TypaJIbI HyCKayJbIFbIH XəHe aKKyMyJrTOP XnHaFbIHa XəHe

CTaHdapTTbI 3apYdTay

Kypblfbciba ha apHaIfaH

TynHyckaJIbIK naIdaIaNHy

HvckaynapbIH OkbIHbI3. OfaH cainkec apeket etihi3.

Буклетерді кeінірек

naiandaany ywiH HeMece KeiHri nelepi ywiH ycTaHbI3.

PaiandaHy 6oBbHwa

HvCKayIbIKTaIbI HvCKayIapFa

KOCbIMwa Kypblfbl PaiDanaHbIaTbIH eNdiH Kayinc3dk TexHnKaCbIMeH KaYfbIbI KaFdaIaIapDbIH aNDbIH aNydbIH JaaIbI HcCKaynapbIH CaKTay KepeK.

Kayin DeHreJnepi

KAYIN

Ayip kapaakammaHyra Hemece oImae anapbin corambih mikeenu Kayin 6oubuHwa Hycay. ECKEPTY

Aybp KapakammaHyra Hemece enimae anapbin corybl MymkiH kayinmi kardau boubiHa Hyckay.

△ABAHJIAHbI3

HAZAR AUDARYNY

Materialdyk zynga anapyn sogyby bykmagan kayinmy kardau boiynsha nuskau.

Tekhnikalyk kayinsizdik boiynsha zhaly nuskalar

KAYIN • Tuniwby kayni!

Kalmama prenkany baladardan alsy ustau kazhet.

ESKERTU • fizikalyk,

sezimdik nemese akyldy-oy

kaybinemі nawarnahar men tekseribesi men biіmіnіsі

Zemіsnelіmіn mygarta

Kurylymny kayinsiz pashanau turaly oparyny

Kayinsizdіgіne kayanmy mynga nuskaylyk berіlgen he onar namіxesіnde pasha boluy bykmagan kayinmerdі

musіnaen, kurylym myіsіm turde bakylana kazhdan

fana pashanana alaby.

• Bala parga kurylymny pashanauyga mbylym

__SUPPIMER__

Do not start the device if there are people or animals in the danger zone.

Safety instructions for use

Before immersing the device in liquid, remove the plug. Do not touch the device with wet hands. If the device is not switched off, do not immerse it. Do not pull the cord or the device by the cord. Do not use the device without a properly installed filter. Clean the filter regularly. Replace the filter with a new one if it is dirty. - Keep the safety instructions supplied with the battery and follow the instructions. Read the instructions carefully. Familiarize yourself with the device's controls and proper use.

Do not allow persons who do not know these instructions to use the device. It is possible that unexpected situations may occur. During operation, keep children and pets away. - During operation, do not touch possible hot surfaces. Keep the device away from your face. During operation, wear protective goggles. Do not use the device in rainy or damp conditions. Do not smoke and keep a safe distance. - Do not look into the light beam. Do not run or jump with the device. Keep all ventilation openings clear. - Do not insert foreign objects into the openings. To prevent the device from being damaged, all screws, nuts and bolts must be tightened.

Do not use damaged or broken accessories. Only use original spare parts or those recommended by the manufacturer.

Intended use

WARNING

There is a risk of injury from rotating parts

Keep hands, hair, clothing and other objects away from rotating parts. Do not use the device without the protective guard.

Use the device only for its intended purpose.

Possible misuse

Do not use the device for purposes other than its intended use.

The operator must be trained before using the device.

Corrosion of the housing

Use only original spare parts. Using non-original spare parts may cause damage to the housing.

Electrical and electronic devices must not be disposed of with household waste. Dispose of them at an appropriate collection point or through a certified disposal company.

Do not touch the device with wet hands, and do not use it near flammable materials, batteries, accumulators, or magnetic storage media. Keep the device away from heat sources. Do not expose the device to rain or moisture.

Regulations on hazardous substances (REACH)

Information on hazardous substances can be found at: www.kaercher.com/REACH

Safety instructions

LBL 2/LBL 4 wall mounting

Only use the device for its intended purpose.

Always keep the device at a safe distance from the wall.

When using the device, always wear protective gloves and safety goggles.

Protect the device from moisture and water splashes.

Disconnect the device from the power supply before cleaning.

Risk of electric shock

Do not immerse the device in water or other liquids, and do not use it near bathtubs, showers, or swimming pools.

Cyper F

1. Kynnbih ahy Tyimecin 6abHb3.

2.AkkymyIaTOpIbI KypbIbIaH nbIfapbI aIbIbI3.

KypbInfbHbIKocbIn,ewipiHi3

KypbInfblHb KypbIfB KOckblw apkblbl KOcbHbl3 Hemece eWipih3.

1. KypbIfbl KockblTbI 《1》Hemece 《2》KyniHe KeTIpy yuiH anFa XblXblTbHb3 (TeK LBL 4 6ataperecbI).

Kypblrbl icke KocbinaabI.

1. KypbInFbKOCKblWTbI apTKa XblNkbITbIHbI3. KypbInFbTOKTaIbI.

TacbImaJday

△ABAIJIAHbI3

CaMaKmbiH caKmMaMybI

Kapakam any KHe KypbIrfiHbI 3aKbIMday Kayni TacbImaNDay Ke3iHde KypbIrfiHbIH caNMaFbIH eckephi3.

CakTay

△ABAIJIAHbI3

CanmaKmbiH caKmamaybi

Before any maintenance work, disconnect the device from the power supply.

Attention

When handling the device, avoid touching the accumulator terminals.

Maintenance and technical service

Required technical service for the device

Help during operation

If the device is used improperly or in ways not described in this manual, it may be damaged. If the device is broken or malfunctions, contact the service center.

The accumulator battery has a limited lifespan. If it needs to be replaced, it should only be done by a specialist. This is not a malfunction.

Warranty

The warranty does not cover damage caused by improper use of the device.

The warranty is void if the device has been opened or modified.

Damaged device

Device disposal

The accumulator must be disposed of properly.

1. Remove the accumulator from the device before disposal.

Accumulator charging.

1. Accumulator charging.

Accumulator charging mode.

1. If the charger is not connected, the second row is empty.

Accumulator charging is complete.

1. Accumulator charging operation.

Stop when the indicator lights up.

Accumulator charging is complete.

Do not connect the accumulator to a temperature lower than the permitted temperature range. This may cause a short circuit. Please wait a few minutes.

Warranty

The warranty terms given by the distributor apply. In case of material or manufacturing defects, the warranty claims are excluded. For warranty claims, contact the seller or the authorized service center. (See additional information)

For the specified test type

The following table shows:

Model: 30190

3 inputs 0 outputs 1 output 9 outputs 0 outputs 1 output

Combined with Micsanda 30190 Kolby

09/(2)013 to be included in the kit.

Technical data

LBL 2 Battery

LBL 2 Battery Set

LBL 4 Battery

LBL 4 Battery Set

Technical specifications

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Approved by the authorized representative S. Reiser

Winnenden, 2015/03/01

00

0

Table of Contents

Safety and problem notes 124

Seven lucky Nirel. 124

General safety precautions. 124

Safety precautions 124

Intended use. 125

Environmental protection. 125

Symbols on the device. 125

Accessories and spare parts. 126

Included items. 126

Device description. 126

Installation of the pipe. 126

Mounting plate/25 126

Seven steps 126

Machine noise/level. 126

Transport. 126

Storage. 126

Maintenance and care. 126

Support in case of malfunction. 126

Warranty. 127

Technical data. 127

EG-Konformitätserklärung. 126

Safety instructions

Before first use of the device, read the original operating instructions

a n > a 1 + 2n - 1

2.2.11

3a

1. 1/2

1

a i = \ ai令a i A\

J

4

a 1 · ( a 2 + a₃) = 6

A 192, l.

= ( x₁, y₁ ), = ( x₂, y₂ )

F a > | a 1| b₂ > 0 , that is a > 0

J a2,j b2,...

∴ indeed j² ≥ 4

y

be = ( x 1,y 1)

aLlalrJolcJck Lgfo g aIbll aIe aq

.

JgX

128 0s

128

128

128

129

129

129

129

129

130

130

130

130

130

130

130

130

130

130

131

131

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Karcher-Str.28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]
