| Product type | Cordless backpack blower |
| Brand | Kärcher |
| Model | LBB 106036 Bp |
| Nominal voltage | 36 V |
| Average air speed | 135 km/h |
| Average air speed (Turbo mode) | 193 km/h |
| Air volume | 744 m³/h |
| Air volume (Turbo mode) | 1063 m³/h |
| Weight (without battery) | 8.5 kg |
| Dimensions (L x W x H) | 1579 x 546 x 470 mm |
| Sound pressure level | 81.2 dB(A) |
| Guaranteed sound power level | 97 dB(A) |
| Total vibration value | 0.8 m/s² |
| Power supply | Kärcher Battery Power+ 36V battery (optional) |
| Use | Blowing leaves, grass, light debris |
| Main functions | Main switch, speed lock, Turbo Boost button, adjustable handle |
| Safety equipment | Two-shoulder harness, emergency stop by battery removal, protection against projectiles |
| Maintenance | Cleaning with damp cloth, replacement of pleated bellows possible |
| Included accessories | Blow tube, nozzle, pleated bellows, harness, mounting tool |
| Warranty | According to country conditions, material and manufacturing defects |
Frequently Asked Questions - LBB 106036 Bp Kärcher
User questions about LBB 106036 Bp Kärcher
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Blower in PDF format for free! Find your manual LBB 106036 Bp - Kärcher and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LBB 106036 Bp by Kärcher.
USER MANUAL LBB 106036 Bp Kärcher
English 11
Français 17
Italiano 23
Nederlands 29
Español 35
Português 41
Dansk 48
Norsk 53
Svenska 59
Suomi 65
Ελληνικά 71
Türkçe 77
Русский 83
Magyar 90
Čeština 96
Slovenščina 102
Polski 107
Românește 114
Slovenčina 120
Hrvatski 126
Srpski 131
Български 137
Eesti 144
Latviešu 150
Lietuviškai 156
Українська 162
Қазақша 168
日本語 175
العربية 181
A
Inhalt
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/09/01
Contents
General notes.... 11
Safety instructions 11
Intended use.... 13
Environmental protection.... 13
Accessories and spare parts 13
Scope of delivery.... 13
Symbols on the device 13
Description of the unit.... 13
Installation 14
Operation.... 14
Transport and storage 15
Care and service 15
Troubleshooting guide 16
Warranty 16
Technical data 16
EU Declaration of Conformity.... 16
General notes
Read these safety instructions, these original instructions, the safety instructions provided with the battery pack and
the original instructions supplied with the battery pack/standard charger before using the device for the first time. Act in accordance with them. Keep the booklets for future reference or for future owners.
In addition to the notes in the operating instructions, you also need to take into consideration the general safety regulations and accident prevention guidelines applicable by law.
Safety instructions
Hazard levels
⚠️DANGER
- Indication of an imminent threat of danger that will lead to severe injuries or even death.
⚠ WARNING
- Indication of a potentially dangerous situation that may lead to severe injuries or even death.
△CAUTION
- Indication of a potentially dangerous situation that may lead to minor injuries.
ATTENTION
- Indication of a potentially dangerous situation that may lead to damage to property.
General safety instructions
⚠️ DANGER • Severe injuries through a lack of concentration when working. Do not use the device when under the influence of drugs, alcohol, or medication, or when you are tired.
⚠ WARNING • Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. • The device is not intended for use by children, persons with restricted physical, sensory or mental abilities or persons unfamiliar with these instructions. The age of the operator may be limited by local restrictions. • Ensure that all protective devices and handles are correctly fitted, securely fastened and in good condition. • Before operation, make sure the device, all control elements, and safety devices are working properly. • Never use the device if the on/off switch on the handle does not switch on and off correctly. • Check the housing for damage each time before using the device. • Keep children and other persons out of the work area while you are using the device. • Make sure that the ventilation openings are free of deposits. • Objects can be blown by the airflow over a considerable distance. Inspect the work area thoroughly for objects such as stones, broken glass, nails, wires or strings, and remove these before using the device. • Operate the device only on a firm, level surface and in the recommended position.
CAUTION • Familiarise yourself with the controls and the correct use of the device. • Wear full hearing protection when using the device. The device is loud and can cause permanent hearing damage if you do not strictly follow the instructions on exposure, noise reduction and hearing protection. • Wear full eye protection when using the device. The manufacturer strongly recommends wearing a full face mask or fully closed safety goggles. Normal glasses or sunglasses will not protect you from thrown objects. • Wear long, heavy trousers, sturdy shoes and well-fitting gloves when working with the device. Do not work barefoot. Do not wear any jewellery, sandals or short trousers.
ATTENTION • The device operator is responsible for accidents with other people and their property.
Note • Regulations may restrict the use of this device in some regions. Seek advice from your local authorities. • Have damaged or illegible warning signs on the device replaced by the authorised Customer Service department.
Safe operation
⚠️ DANGER • Operation in explosive atmospheres is prohibited.
⚠ WARNING • Maintain a minimum distance of 15 m from persons and animals. Stop the device when any persons or animals enter this area. • Do not use the device if there is a danger of lightning. • You need an unobstructed view of the work area in order to be able to recognise any potential dangers. Use the device only under good lighting conditions. • Do not run but rather walk when working with the device. Do not walk backwards. Avoid an abnormal posture, keep a stable, safe footing and maintain your balance. • Immediately stop the device and check for damage or identify the cause of the vibration if the device has been dropped, hit or vibrates abnormally. Have damage repaired by the authorised Customer Service or replace the device.
- Switch off the device in the case of a malfunction or accident, and remove the battery pack. You may only start up the device again if it has been checked by an authorized customer service centre. The backpack blower is supplied with a harness. Carefully adjust the harness to comfortably help to support the weight of the product. Identify the quick-release mechanism and practise using it before you start using the device. Its correct use may prevent serious injury in the case of an emergency. Never wear additional clothing over the harness or otherwise restrict access to the quick-release mechanism. Risk of injury on rotating parts. Switch the motor off, remove the battery pack and make sure that all moving parts have stopped moving:
• Before leaving the device unattended.
- Before you check the device after it has been hit by a foreign object.
- Before checking, maintaining or working on the device.
⚠️ CAUTION • The operation of similar tools in the environment increases the risk of hearing damage and the likelihood of failing to hear potential hazards, e.g. people entering your work area. • Do not make any changes to the device, and only use accessories and spare parts recommended by the manufacturer. • Danger to health due to inhalation of dust. Wear a respiratory mask when working with the device. • Moisten dusty surfaces to reduce dust impact. • Do not operate the device near an open window. • Never direct the blower nozzle at people or animals.
ATTENTION • Damage to the device if waste is sucked into the air intake. Do not place the blower on or near loose waste. • Never insert objects into the blower pipes.
Note • Use the extension of the nozzle so that the airflow can be close to the ground and work effectively.
- Only operate the device at appropriate times. Please also observe local regulations and directives. When operating early in the morning or late in the evening, other people may be disturbed.
Safe transport and storage
⚠ WARNING • Switch the device off, allow it to cool down and remove the battery pack before storage or transportation.
⚠ CAUTION • Risk of injury and damage to the device. Secure the device against movement or falling down during transport.
ATTENTION • Remove all foreign bodies from the device before storage or transportation. • Store the device in a dry, well ventilated location out of the reach of children. Keep the device away from corrosive substances such as garden chemicals. • Do not store the device outdoors.
Safe servicing and care
⚠ WARNING • Turn off the motor, make sure all moving parts have fully stopped and remove the battery pack before inspecting, cleaning, or servicing the device. • Service and maintenance work on this device require special care and knowledge and may only be performed by appropriately qualified personnel. Take the device to an authorized Customer Service department for maintenance. • Ensure that the device is in a safe condition by regularly checking that all bolts, nuts and screws are screwed tight.
⚠ CAUTION • Only use accessories and spare parts and attachments that are approved by the manufacturer. Only original spare parts, original accessories and original attachments ensure fault-free and safe operation of the device.
ATTENTION • Clean the product with a soft, dry cloth each time after use.
Note • You may only perform the adjustments and repairs described in these operating instructions. Contact your authorised Customer Service department for other repairs. • Have damaged or illegible warning signs on the device replaced by the authorised Customer Service department.
Residual risks
Certain residual risks remain even when the device is operated as intended. The following dangers can be present when using the device:
⚠ WARNING
- Vibration can cause injuries. Use the correct tools for the job, use the handles provided and use the lowest required speed in order to complete the job.
- Noise can cause hearing injuries. Wear hearing protection and limit the duration of exposure.
- Injuries from hurled objects that may escape from the blower pipe due to air pressure.
• Always wear eye protection.
Risk reduction
△CAUTION
- Using the device for longer periods can cause poor circulation in the hands due to vibrations. A general period of use cannot be set, because this depends on several influencing factors:
- Personal tendency to suffer from poor circulation (frequently cold fingers, tingling sensation in the fingers)
- Low ambient temperature. Wear warm gloves to protect your hands.
- Holding the device too tightly hindering blood circulation.
- Continuous operation is more harmful than operation interrupted by work breaks.
You should see a doctor if using the device regularly and for lengthy periods of time, and in the event of repeated occurrences of symptoms such as tingling in the fingers or cold fingers.
Intended use
⚠ WARNING
The device is not intended for use by children, persons with restricted physical, sensory or mental abilities or persons unfamiliar with these instructions.
• The device is suitable for commercial use.
• The device is intended for outdoor use only.
- The device may only be used in a dry, well-lit environment.
- The device is designed for blowing away light debris such as leaf litter, grass clippings, hedge clipping and loose dirt lying on the ground.
Foreseeable misuse
Any type of improper use is prohibited.
The operating personnel are liable for damage resulting from incorrect use.
Environmental protection
The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.
Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can
pose a potential threat to human health and the environment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish.
Notes on the content materials (REACH)
Current information on content materials can be found at: www.kaercher.com/REACH
Accessories and spare parts
Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.
Information on accessories and spare parts can be found at www.kaercher.com.
Scope of delivery
The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.
Symbols on the device
Read the operating instructions and all safety instructions before operating the device for the first time.
Always wear suitable eye protection and hearing protection when working with the device.
Do not subject the device to rain or moist conditions.
 | Danger due to flung objects. Keep spec-tators away from the work area. |
 | Rotating fan wheels. Keep hands and feet away from the openings while the device is in operation. |
 | The guaranteed sound level specified on the label is 97 dB. |
Description of the unit
The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

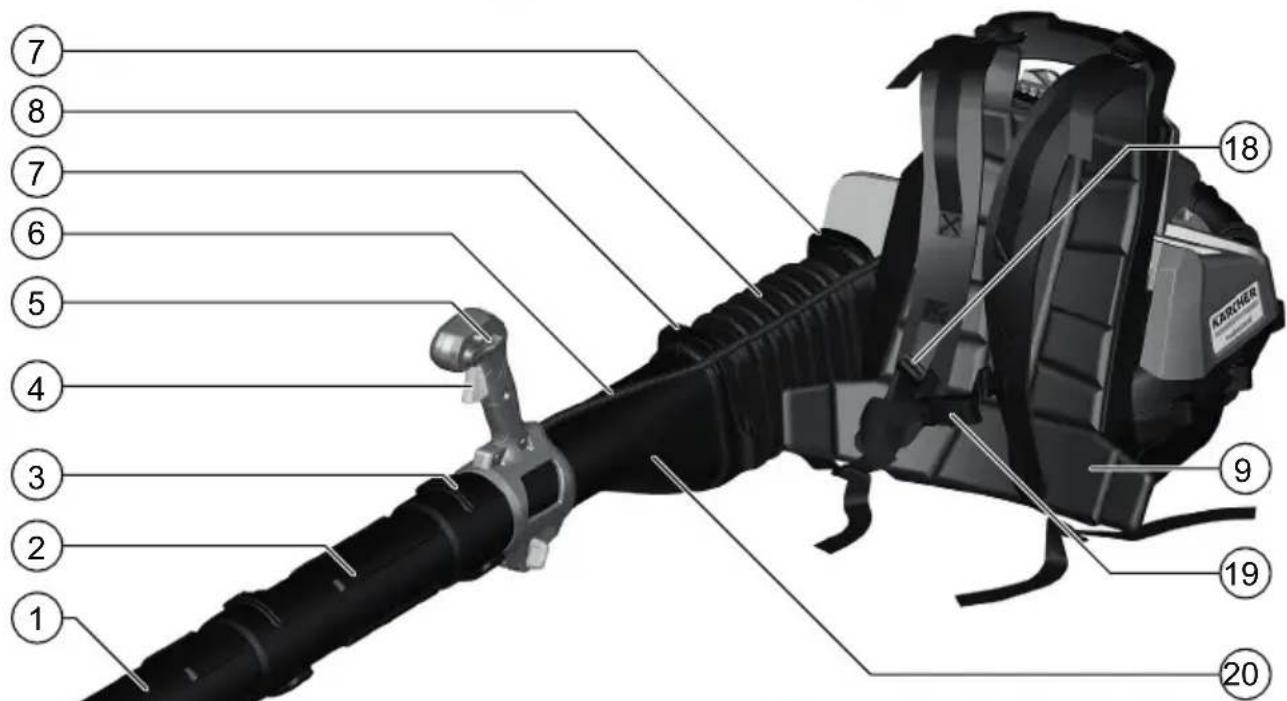

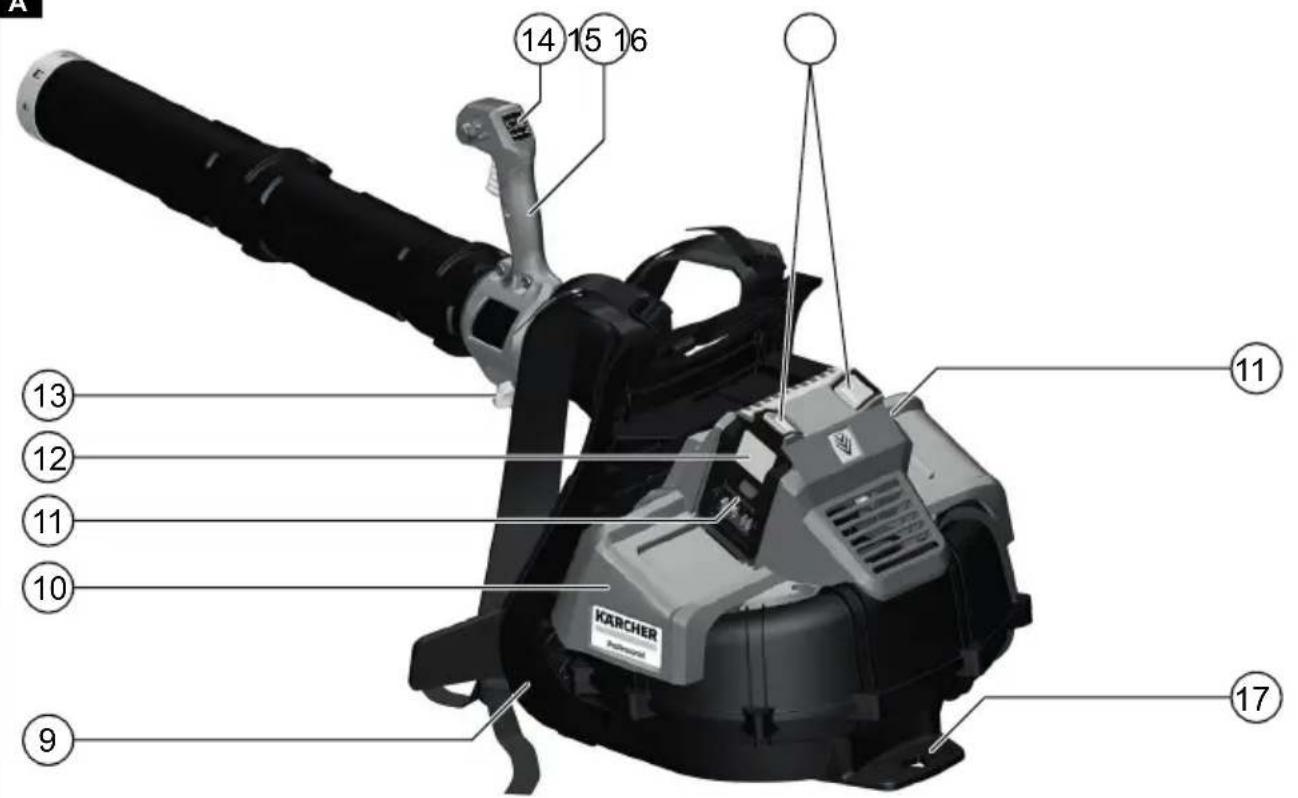

See graphics page for illustrations Illustration A
① Nozzle for blower pipe
② Blower pipe
③ Casing bayonet lock
④ Power switch
⑤ Speed fixing function
6 Sheathed cable
⑦ Terminal
⑧ Bellows
⑨ Carrying rack
⑩Motor casing
⑪Battery mount
12Type plate
⑬Handle locking screw
⑭ Turbo boost button
15Handle
⑯Battery pack unlocking button
⑰Support bracket with eyelet
⑱Buckle for belt height adjustment
19 Belt click buckle
20Connection pipe

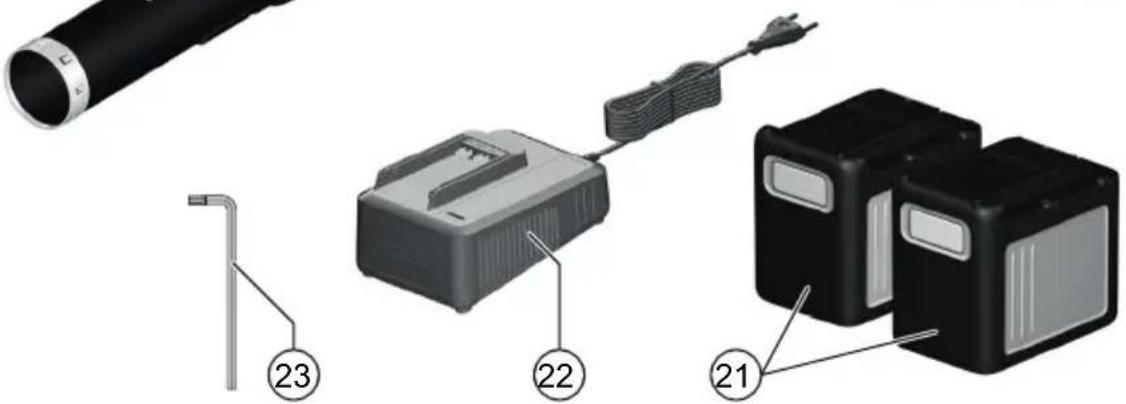

21*Power+ 36V Battery Pack
22*Power+ 36V Battery Quick Charger
23 Assembly tool
Rechargeable battery pack
The device can be operated with two 36 V Kärcher Battery Power+ battery packs.
Installation
Device assembly
⚠ WARNING
Risk of injury due to incompletely assembled device
Only operate the appliance once it is fully assembled and functional.
- Mount the bellows on the casing.
a Push one end of the bellows over the casing pipe so that the raised burr on the pipe fits securely into the slot on the bellows.

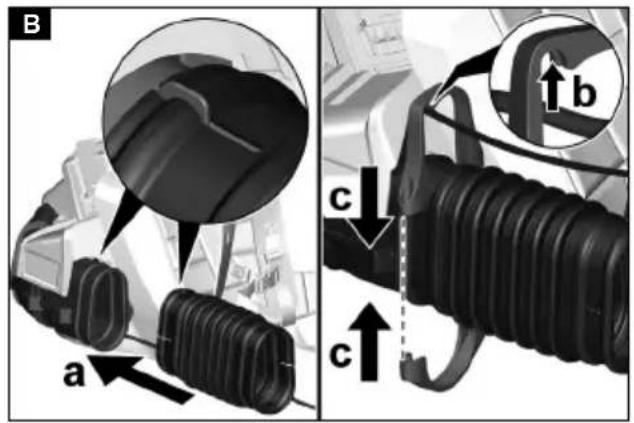

Illustration B
b Insert the sheathed cable into the recess in the pipe clamp.
c Fit the parts of the pipe clamp on the pipe above and below the bellows so that the sheathed cable is not pinched.
d Insert a screw in the pipe clamp on the side that is closest to the device and tighten with the supplied assembly tool.

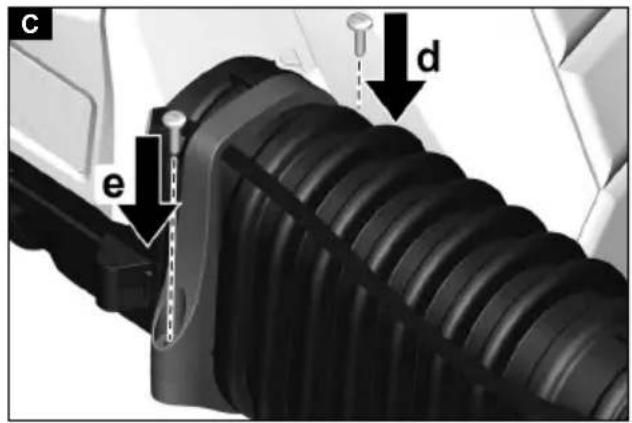

Illustration C
e Insert the second screw in the other side of the pipe clamp and tighten with the assembly tool provided.
- Mounting the connection pipe on the bellows.
a Push the connection pipe into the bellows so that the raised burr on the pipe fits securely into the slot on the bellows.

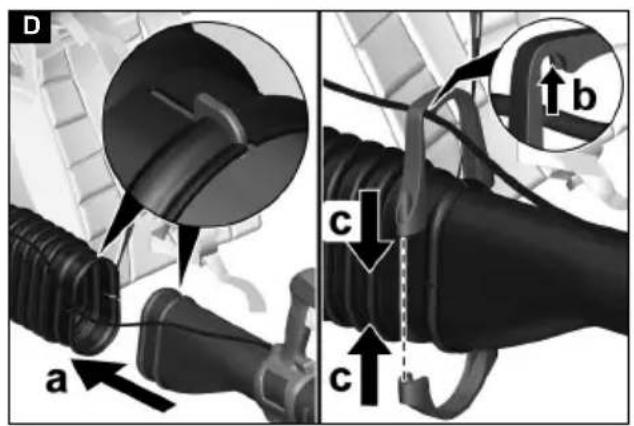

Illustration D
b Insert the sheathed cable into the recess in the pipe clamp.
c Fit the parts of the pipe clamp on the pipe above and below the bellows so that the sheathed cable is not pinched.
d Insert a screw in the pipe clamp on the side that is closest to the device and tighten with the supplied assembly tool.

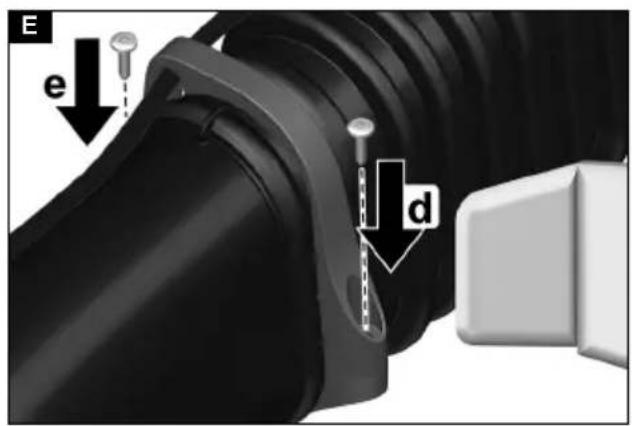

Illustration E
e Insert the second screw in the other side of the pipe clamp and tighten with the assembly tool provided.
- Mount the blower pipe nozzle.
a Slide the cutouts on the nozzle over the lugs on the blower pipe.

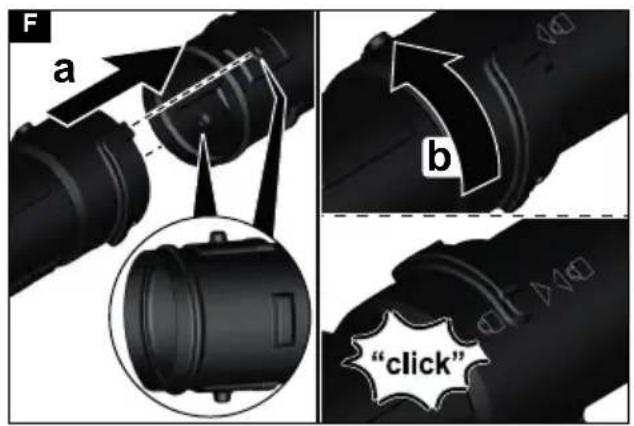

Illustration F
b Turn the nozzle so that the two arrows point towards each other.
The nozzle is latched in position.
- Mount the blower pipe.
a Slide the cutouts on the blower pipe over the lugs on the device.
Illustration F
b Turn the blower pipe so that the two arrows point towards each other.
The blower pipe is latched in position.

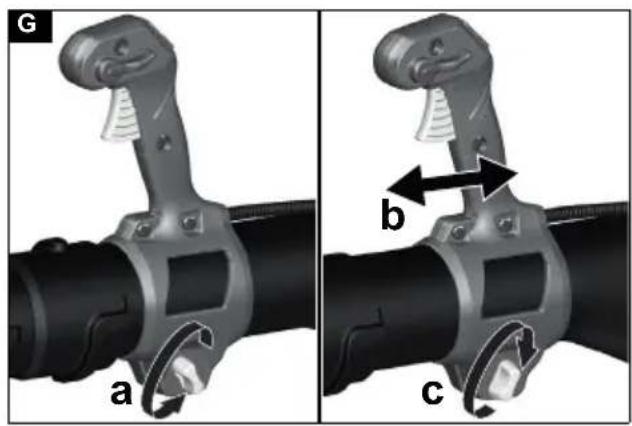

Changing the position of the handle
The position of the handle can be adjusted to the needs of the operator.
- Change the position of the handle.
Illustration G
a Release the locking screw.
b Slide the handle on the pipe.
c Tighten the locking screw.
Operation
⚠ WARNING
Risk of injury due to incompletely assembled device
Only operate the appliance once it is fully assembled and functional.
△CAUTION
Risk of injury from objects flying about
Wear safety goggles and suitable protective gloves for all work with the device.
Control elements
The leaf blower has the following control elements:
- A power switch for switching the device on and off. The speed is regulated via the power switch, depending on how strongly it is pressed.
- A lever for fixing the speed to set the speed of the air flow.
- A turbo boost button to maximise the air speed that has been set via the speed fixing function. The boost mode remains active for 2 minutes, then automatically returns to normal operation.
- A locking screw to change the position of the handle.
Inserting the battery pack
ATTENTION
Dirty contacts
Damage to the device and battery
Check the battery mount and the contacts for soiling and clean them as necessary before inserting the battery.

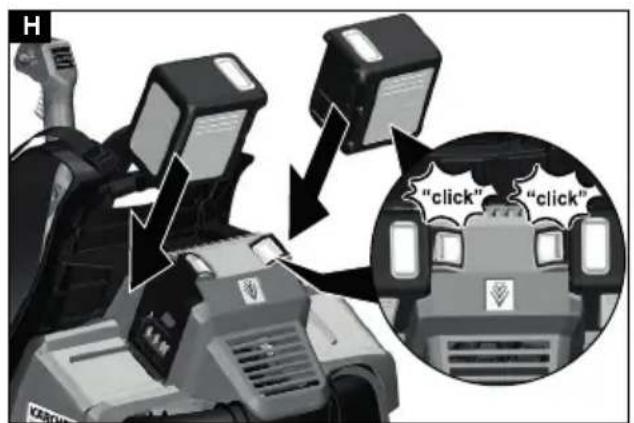

Illustration H
- Push the battery pack into the respective mount in the device until it audibly latches into place.
Donning the carrying harness
Note
The carrying harness must be worn over both shoulders.
-
Adjust the height of the click fastener by moving the buckles on the belt.
-
Snap the belt click buckle into place.
-
Pull the strap ends tight so that the harness fits snugly.
Switching on the device
△CAUTION
Risk of injury from flying parts and hearing damage due to noise
Always wear eye and hearing protection.
-
Insert the battery pack, see chapter Inserting the battery pack.
-
Press the trigger.

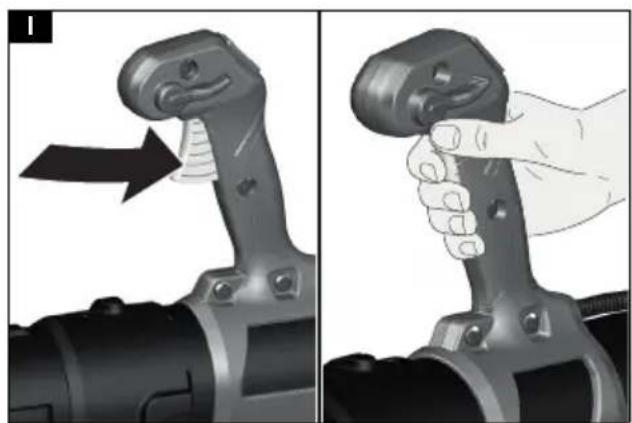

Illustration I
- Fix the speed.

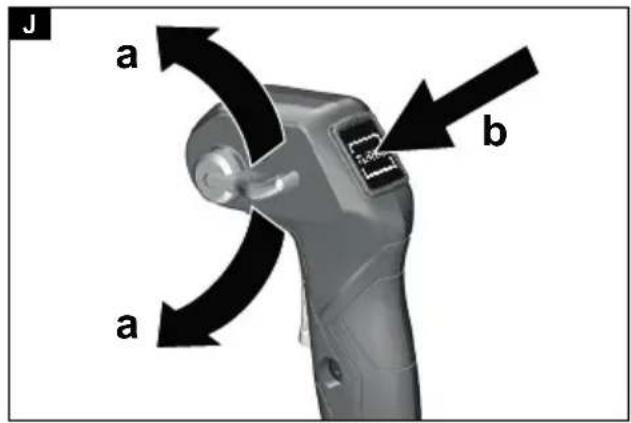

Illustration J
a Use the speed fixing function to adjust the amount of airflow.
b If necessary, press the turbo boost button for maximum flow speed.
Removing the battery pack
Note
During longer work breaks, remove the battery pack from the device and secure it against unauthorised use.
- Pull the battery pack unlocking button in the direction of the battery pack.

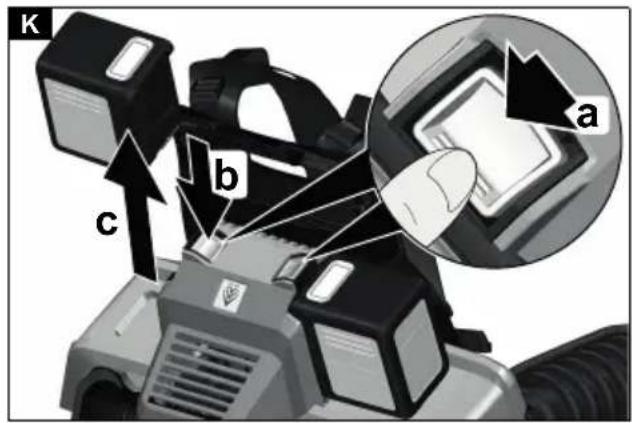

Illustration K
-
Press the battery pack unlocking button to unlock the battery pack.
-
Remove the battery pack from the device.
Ending operation
-
Remove the battery pack from the device (see Chapter Removing the battery pack).
-
Clean the device (see Chapter Cleaning the device).
Transport and storage
-
Switch off the device.
-
Remove the battery pack, see Chapter Removing the battery pack.
-
Removing the blower pipe.

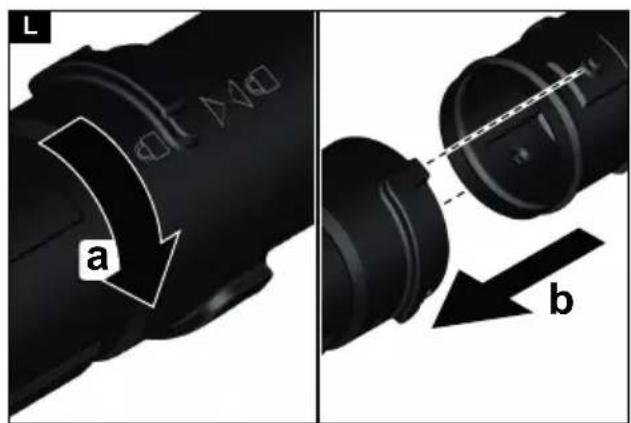

Illustration L
a Turn the blower pipe until it can be released from the pipe.
b Remove the blower pipe.
- Removing the blower pipe nozzle.
Illustration L
a Turn the blower pipe nozzle until it can be released from the blower pipe.
b Remove the blower pipe nozzle.
Care and service
The device is maintenance-free.
Cleaning the device
⚠ WARNING
Uncontrolled startup
Risk of injury
Remove the battery pack from the device during work breaks and before carrying out any service or care work.
ATTENTION
Incorrect cleaning
Damage to the device
Clean the device with a damp cloth.
Do not use solvent-based cleaning agents.
Do not immerse the device in water.
Do not clean the device with a hose or high-pressure water jet.
-
Switch off the device.
-
Remove the battery pack (see Chapter Removing the battery pack).
-
Clean the exterior of the device with a soft, dry cloth or with a brush.

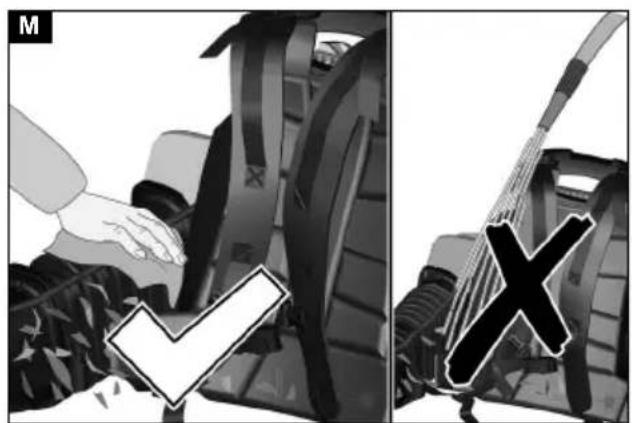

Illustration M
Changing the bellows
⚠ WARNING
Uncontrolled startup
Risk of injury
Remove the battery pack from the device during work breaks and before carrying out any service or care work.
⚠ WARNING
Risk of injury due to incompletely assembled device
Only operate the appliance once it is fully assembled and functional.
-
Switch off the device.
-
Remove the battery pack (see Chapter Removing the battery pack).
-
Remove the bellows.
Illustration N
a Loosen and remove the screws of the clamp on the connection pipe using the supplied assembly tool.
b Remove the clamp.
c Remove the connection pipe.
d Loosen and remove the screws of the clamp on the casing using the assembly tool provided.
e Remove the clamp.
f Remove the bellows from the casing.
- Mount the new bellows on the casing.
a Push one end of the bellows over the casing pipe so that the raised burr on the pipe fits securely into the slot on the bellows.
Illustration B
b Insert the sheathed cable into the recess in the pipe clamp.
c Fit the parts of the pipe clamp on the pipe above and below the bellows so that the sheathed cable is not pinched.
d Insert a screw in the pipe clamp on the side that is closest to the device and tighten with the supplied assembly tool.
Illustration C
e Insert the second screw in the other side of the pipe clamp and tighten with the assembly tool provided.
- Mount the connection pipe on the new bellows.
a Push the connection pipe into the bellows so that the raised burr on the pipe fits securely into the slot on the bellows.
Illustration D
b Insert the sheathed cable into the recess in the pipe clamp.
c Fit the parts of the pipe clamp on the pipe above and below the bellows so that the sheathed cable is not pinched.
d Insert a screw in the pipe clamp on the side that is closest to the device and tighten with the supplied assembly tool.
Illustration E
e Insert the second screw in the other side of the pipe clamp and tighten with the assembly tool provided.
- Mount the blower pipe nozzle.
a Slide the cutouts on the nozzle over the lugs on the blower pipe.
Illustration F
b Turn the nozzle so that the two arrows point towards each other.
The nozzle is latched in position.
- Mount the blower pipe.
a Slide the cutouts on the blower pipe over the lugs on the device.
Illustration F
b Turn the blower pipe so that the two arrows point towards each other.
The blower pipe is latched in position.
Troubleshooting guide
Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.
As the battery pack ages, even if it is looked after, its capacity reduces such that the full run time will no longer be reached when fully charged. This does not indicate a defect.
| Fault Cause Rectification | ||
| The device does not start up | Battery pack is not inserted correctly. | ● Push the battery pack into the mounting until it latches into place. |
| Battery pack is empty ● Charge the battery pack. | ||
| Battery pack is defective. ● Replace the battery pack. | ||
| The device stops during operation | The battery has overheated | ● Stop working and allow the battery to cool down to normal battery temperature. |
| Motor has overheated | ● Stop working and allow the motor to cool down. | |
Warranty
The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address)
Technical data
| LBB1060/36Battery |
| Device performance data | ||
| Nominal voltage V 36 | ||
| Average air speed km/h | 135 | |
| Average air speed (turbo mode) | km/h | 193 |
| Maximum theoretical air speed of cordless blower | km/h | 163 |
| Maximum theoretical air speed of cordless blower (turbo mode) | km/h | 232 |
| Air volume Cordless blower | m^3/h | 744 |
| Air volume Cordless blower (turbo mode) | m^3/h | 1063 |
| Dimensions and weights | ||
| Weight (without battery pack) | kg | 8.5 |
| Length x width x height | mm | 1579x546x470 |
| Determined values in acc. with EN 50636-2-100 | ||
| Sound pressure level L_pA | dB(A) | 81.2 |
| Uncertainty K_pA | dB(A) | 3.0 |
| Sound power level L_WA + K uncertainty _WA | dB(A) | 97 |
| Overall vibration value | m/s ^2 | 0.8 |
| Uncertainty K | m/s ^2 | 1.5 |
Subject to technical modifications.
Vibration value
⚠ WARNING
The specified vibration value was measured using a standard test procedure and may be used to compare devices.
The specified vibration value may be used in a provisional assessment of the load.
Depending on the way the device is used, the vibration emission can deviate from the specified overall value during the current use of the device.
Device with a hand-arm vibration value > 2.5 m/s ^4 (see chapter Technical Data in the operating instructions)
⚠️ CAUTION • Uninterrupted use of the device for several hours can lead to numbness. • Wear warm gloves to protect your hands. • Take regular breaks from work.
EU Declaration of Conformity
We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.
Product: Backpack cordless leaf blower
Type: 1.042-509.x, 1.042-510.x
Currently applicable EU Directives
2006/42/EC (+2009/127/EC)
2014/30/EU
2000/14/EC (+2005/88/EC)
2011/65/EU
Harmonised standards used
EN 60335-1:2012+A11:2014+A13:2017
EN 50636-2-100:2014
EN ISO 12100: 2010
EN 55014-1: 2017
EN 55014-2: 2015
EN 50581: 2012
Conformity evaluation procedure used
2000/14/EC and amended by 2005/88/EC: Appendix V
Sound power level dB(A)
Measured:94.3
Guaranteed:97
The signatories act on behalf of and with the authority of the company management.
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Documentation supervisor: S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Ph.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/09/01
Contenu
2006/42/CE (+2009/127/CE)
2014/30/UE
2000/14/CE (+2005/88/CE)
2011/65/EU
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Responsable de la documentation : S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 01/09/2019
Inhoud
Reduceren van risico's
⚠VOORZICHTIG
21*Accupack Battery Power+ 36V
②2*Snellader Battery Power+ 36V
23 Montagegereedschap
* optioneel
Accupack
Product: Accu-backpackbladblazers
Type: 1.042-509.x, 1.042-510.x
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/09/01
2006/42/CE (+2009/127/CE)
2014/30/UE
2000/14/CE (+2005/88/CE)
2011/65/UE
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 01/09/2018
Indice
2006/42/CE (+2009/127/CE)
2014/30/UE
2000/14/CE (+2005/88/CE)
2011/65/UE
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Winnenden, 01/09/2018
Indhold
www.kaercher.com/REACH
2006/42/EF (+2009/127/EF)
2014/30/EU
2000/14/EF (+2005/88/EF)
2011/65/EU
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tlf.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/09/01
Indhold
2006/42/EF (+2009/127/EF)
2014/30/EU
2000/14/EG (+2005/88/EG)
2011/65/EU
Anvendte harmoniserte standarder
EN 60335-1:2012+A11:2014+A13:2017
EN 50636-2-100:2014
EN ISO 12100: 2010
EN 55014-1: 2017
EN 55014-2: 2015
EN 50581: 2012
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tlf.: +49 7195 14-0
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
D-71364 Winnenden (Germany)
Tfn: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018-09-01
Sisältö
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Dokumentointivastaava: S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Puh.: +49 7195 14-0
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tηλ.: +49 7195 14-0
Φαξ: +49 7195 14-2212
Winnenden, 2018/09/01
İçindekiler
Tip: 1.042-509.x, 1.042-510.x
2006/42/AT (+2009/127/AT)
2014/30/AB
2000/14/AT (+2005/88/AT)
2011/65/AT
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Winnenden, 2018/09/01
Содержание
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Тел.: +49 7195 14-0
Факс: +49 7195 14-2212
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Winnenden, 2018/09/01
Obsah
2006/42/ES (+2009/127/ES)
2014/30/EU
2000/14/ES (+2005/88/ES)
2011/65/EU
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Zmocněnec pro dokumentaci: S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
Winnenden, 2018/09/01
Kazalo
Splošni napotki 102
Varnostna navodila.... 102
Namenska uporaba 103
Varovanje okolja 103
Pribor in nadomestni deli.... 104
Obseg dobave.... 104
Simboli na napravi.... 104
Opis naprave 104
Montaža.... 104
Upravljanje 105
Transport in shranjevanje 105
Varen transport in shranjevanje
Transport in shranjevanje
- Izklopite napravo.
- Odstranite paketa akumulatorskih baterij, glejte poglavje Odstranjevanje paketov akumulatorskih baterij.
- Odstranite pihalno cev.
Slika L
Tip: 1.042-509.x, 1.042-510.x
Zadevne EU-direktive
2006/42/ES (+2009/127/ES)
2014/30/EU
2000/14/ES (+2005/88/ES)
2011/65/EU
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Winnenden, 9. 1. 2018
Spis treści
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Directive UE relevante
2006/42/UE (+2009/127/UE)
2014/30/UE
2000/14/CE (+2005/88/CE)
2011/65/UE
Norme armonizate aplicate
EN 60335-1:2012+A11:2014+A13:2017
EN 50636-2-100:2014
EN ISO 12100: 2010
EN 55014-1: 2017
EN 55014-2: 2015
EN 50581: 2012
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germania)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/09/01
Obsah
Všeobecné upozornenia.... 120
2006/42/ES (+2009/127/ES)
2014/30/EÚ
2000/14/ES (+2005/88/ES)
2011/65/EÚ
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 01.09.2018
Sadržaj
Opće napomene 126
Sigurnosne napomene 126
Tip: 1.042-509.x, 1.042-510.x
2006/42/EZ (+2009/127/EZ)
2014/30/EU
2000/14/EZ (+2005/88/EZ)
2011/65/EU
Primijenjene uskladene norme
EN 60335-1:2012+A11:2014+A13:2017
EN 50636-2-100:2014
EN ISO 12100: 2010
EN 55014-1: 2017
EN 55014-2: 2015
EN 50581: 2012
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Opunomoćenik za dokumentaciju: S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Njemačka)
Tel.: +49 7195 14-0
Telefaks: +49 7195 14-2212
Winnenden, 1. 9. 2018.
Sadržaj
Opšte napomene.... 131
Sigurnosne napomene 132
Namenska upotreba.... 133
Zaštita životne sredine 133
Pribor i rezervni delovi.... 133
Obim isporuke 133
2006/42/EZ (+2009/127/EZ)
2014/30/EU
2000/14/EZ (+2005/88/EZ)
2011/65/EU
Primenjene harmonizovane norme
EN 60335-1:2012+A11:2014+A13:2017
EN 50636-2-100:2014
EN ISO 12100: 2010
EN 55014-1: 2017
EN 55014-2: 2015
EN 50581: 2012
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Lice ovlašćeno za dokumentaciju: S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2018/09/01
Съдържание
Общи указания 137
Указания за безопасност 137
Употреба по предназначение 139
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Тел.: +49 7195 14-0
Факс: +49 7195 14-2212
Виненден, 2018/09/01
Sisukord
Üldised juhised 144
Ohutusjuhised 144
Toode: Akuga seljakott-lehepuhur
Tüüp: 1.042-509.x, 1.042-510.x
2006/42/EÜ (+2009/127/EÜ)
2014/30/EL
2000/14/EÜ (+2005/88/EÜ)
2011/65/EL
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel: +49 7195 14-0
Winnenden, 2018/09/01
Saturs
www.kaercher.com/REACH
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Pilnvarotais sagatavot dokumentāciju: S. Reizers (S. Reiser)
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
文書の全権委員：S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
電話番号：+49 7195 14-0
MERCI! DANKE! iGRACIAS!
Register your product and benefit from many advantages.
www.kaercher.com/welcome
Rate your product and tell us your opinion.
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28-40
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
