USER MANUAL LM 53036 Bp Kärcher
English 16
Français 24
Italiano 33
Nederlands 41
Español 50
Português 59
Dansk 67
Norsk 75
Svenska 83
Suomi 91
Ελληνικά 99
Türkçe 109
Русский 117
Magyar 127
Čeština 136
Slovenščina 144
Polski 152
Românește 161
Slovenčina 169
Hrvatski 178
Srpski 186
Български 194
Eesti 204
Latviešu 212
Lietuviškai 220
Українська 229
日本語 238
العربيه 247
A
Inhalt
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/11/01
Contents
Safety instructions 16
Intended use.... 20
Environmental protection.... 20
Accessories and spare parts 20
Scope of delivery.... 20
Safety devices 20
Symbols on the device 20
Description of the device 20
Initial startup 21
Operation.... 21
Transport 22
Storage.... 22
Care and service 22
Troubleshooting guide.... 23
Technical data 23
Warranty 23
EU Declaration of Conformity.... 23
Safety instructions
Read these safety instructions, these original instructions, the safety instructions provided with the battery pack and the original instructions for the battery pack/standard charger supplied before using the device for the first time. Act in accordance with them. Keep the booklets for future reference or for future owners.
In addition to the notes in the operating instructions, you also need to take into consideration the general safety regulations and accident prevention guidelines applicable by law.
Hazard levels
⚠️DANGER
- Indication of an imminent threat of danger that will lead to severe injuries or even death.
⚠ WARNING
- Indication of a potentially dangerous situation that may lead to severe injuries or even death.
△CAUTION
- Indication of a potentially dangerous situation that may lead to minor injuries.
ATTENTION
- Indication of a potentially dangerous situation that may lead to damage to property.
General safety instructions
⚠️DANGER ● The device can amputate hands and feet, causing death or severe personal injury, and can fling objects unpredictably. ● Severe injuries through a lack of concentration when working. Do not use the device when under the influence of drugs, alcohol, or medication, or when you are tired.
⚠ WARNING ● Children and persons unfamiliar with these instructions are not allowed to operate the device. The age of the operator may be limited by local restrictions. ● Children must not play with the appliance. ● Children must be supervised to prevent them from playing with the appliance. ● Use only the battery pack specified in these operating instructions with the device. Observe the basic precautionary measures when us-
ing battery operated devices, to reduce the risk of injuries, fire and a leaking battery. • Wear long, heavy trousers, clothing with long arms and non-slip boots when working with the device. Do not work barefoot. Do not wear sandals or short trousers. Avoid wearing loose clothing or clothing with cords and straps. • Wear protective goggles or safety goggles with side protection. • Always guide the device along the face of a gradient. Danger of severe injuries when you guide the device up and down a gradient. • Do not run but rather walk when working with the device. Maintain a solid and safe footing and keep your balance, especially when working on gradients. • Danger of accident due to slipping. Do not use the device at the edges of steep slopes or trenches, on steep slopes or embankments.
⚠️ CAUTION • Familiarise yourself with the controls and the correct use of the device.
Occupational safety
⚠️DANGER ● Severe injuries when objects are flung by the cutting blade or when the cutting tool becomes entangled in wires or cords. Inspect the work area thoroughly for objects such as stones, sticks, metal, wires, bones or toys and remove these before using the device. ● Never use the device when persons, especially children, are within a radius of 15 m of the working area, because the danger exists of objects being flung out by the cutting blade. ● Danger of explosion. The device creates sparks that may ignite dust, gas or vapours. Do not operate the device in explosive atmospheres, such as in the presence of flammable liquids, gases or dusts. ● Severe accidents with children. Children can be attracted by the device and your activities. Keep an eye on children because they do not always remain where you have last seen them.
⚠ WARNING ● Do not use the device if there is a danger of lightning. ● Always mow in daylight or under good artificial lighting. ● Keep children away from the mowing area and have them supervised by an adult who is not the operator, be alert and switch the device off if a child enters the mowing area. ● Be careful when approaching blind corners, bushes, trees or objects that might restrict your view.
ATTENTION • The device operator is responsible for accidents with other people and their property.
Safe operation
⚠️DANGER ● Check that the blade, blade bolts and blade unit are undamaged each time before using the device. ● Never lock the On/Off switch in the ON position, this is extremely dangerous. ● Pull the device backwards only when absolutely necessary. If you need to pull the device away from a wall or obstacle, first pull downwards to prevent yourself from stumbling or pulling the device over your feet. ● Danger of coming into contact with the open blade or being hit by flung objects. Do not tip the device when starting the motor or while the motor is running. If tipping is absolutely necessary, e.g. to make starting easier, then you can raise the front of the device by 5 cm. Press the handle carefully downwards for this. You must return the device to the normal operating position (i.e. all four wheels on the ground) before starting to mow. ● Knives that come into contact with a live cable may energize exposed metal parts of the device and cause an electric shock.
⚠ WARNING • The blades on the device are sharp. Wear sturdy protective gloves and work carefully when installing, replacing, cleaning or checking the seating of screws. • Replace
worn or damage parts as a complete set to maintain the correct balance. ● Ensure that the device is in a safe condition by regularly checking that all bolts, nuts and screws are screwed tight. ● Replace any worn or damaged parts before operating the device. ● Never use the device if the on/off switch on the handle does not switch on and off correctly. ● Do not forcefully operate the device. ● Stop the motor, in order to stop the blade when transporting the device to and from the mowing area or when tipping the device for crossing ground that is not covered with grass. ● Stop the blade before crossing gravel surfaces. ● Never use the device with defective or absent protective devices, such as e.g. deflectors and/or the grass bag. ● Do not bring your hands or feet in the vicinity of, or underneath rotating parts. Switch the motor on according to the operating instructions. ● Never lift or carry the device while the motor is running. ● Uneven terrain carries an increased risk of slipping and accidents. Avoid holes, furrows, uneven areas, stones and other hidden objects. ● Start the device only when you are positioned in the safe area behind the handle.
- All four wheels are on the ground.
● The grass ejection chute is not open but rather protected by the grass bag or the cover.
● The hands and feet of all persons are away from the cutting housing.
- Switch the motor off and remove the safety key. Ensure that all moving parts have completely stopped moving:
● Always when you leave the device unattended, including the periods when disposing of the mown grass.
● Before removing a blockage or cleaning the ejection chute.
● Before checking, cleaning or working on the device.
● After hitting a foreign object. First check the device for damage and repair any damage before restarting the device.
● Before removing the grass bag or the grass ejection chute cover.
- When the device starts to vibrate unusually. Immediately check the device:
- For loose parts. Tighten any loose parts if necessary.
- For damage, especially to the blade. Repair or replace any damaged parts.
⚠️ CAUTION ● Check the grass bag regularly for wear and tear.
ATTENTION • Take care to ensure that the motor control cable is not jammed or damaged in any other way during installation or when folding the handle.
Residual risks
⚠ WARNING
- Certain residual risks remain present, even when the device is operated in the prescribed manner. The following dangers can be present when using the device:
- Vibration can cause injuries. Use the correct tools for the job, use the handles provided and restrict the working time and hazard exposure time.
- Noise can cause hearing injuries. Wear hearing protection and limit the duration of exposure.
● Injuries through contact with the blades.
● Injuries due to flung objects.
Risk reduction
⚠️CAUTION
- Using the device for longer periods can cause poor circulation in the hands due to vibrations. A general period of use cannot be set, because this depends on several influencing factors:
● Personal tendency to suffer from poor circulation (frequently cold fingers, tingling sensation in the fingers)
- Low ambient temperature. Wear warm gloves to protect your hands.
● Holding the device too tightly hindering blood circulation.
● Continuous operation is more harmful than operation interrupted by work breaks.
You should see a doctor if using the device regularly and for lengthy periods of time, and in the event of repeated occurrences of symptoms such as tingling in the fingers or cold fingers.
Intended use
⚠️DANGER
Improper use
Danger of death from incision injuries
Only use the device for its proper use.
- The battery-powered lawnmower is suitable for commercial use.
● The device is intended for outdoor use only.
● The device is designed for mowing private lawns. - The device is designed for being pushed by hand or for being used with the Power Assist function. The device should not be pulled.
● Riding on the device is prohibited.
Any other use is prohibited. The user carries full liability for damage resulting from improper use.
Environmental protection
The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.
Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can
pose a potential threat to human health and the environment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish.
Notes on the content materials (REACH)
Current information on content materials can be found at: www.kaercher.com/REACH
Accessories and spare parts
Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.
Information on accessories and spare parts can be found at www.kaercher.com.
Scope of delivery
The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.
Safety devices
△CAUTION
Missing or modified safety devices
Safety devices are provided for your own protection.
Never modify or bypass safety devices.
Overload protection
The device is equipped with an overload protection system. The device switches off automatically when an overload is detected.
Anti-tipper
The device is equipped with a tilting aid that prevents the unit from starting when the angle of inclination exceeds 45^ .
Symbols on the device
Follow all warning notices and safety instructions. Read and comprehend all instructions before using the product.
Watch out for flung or flying objects.
Keep all spectators, especially children and pets, at least 15 m away from the work area.
Watch out for the sharp blade. The blades continue rotating after the motor has been switched off.
Remove the safety key before performing any maintenance.
Wear suitable eye protection and hearing protection when performing work.
Do not work on steep slopes.
Do not subject the device to rain.
The guaranteed sound level specified on the label is 95 dB.
Description of the device
The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).
For the illustrations, refer to the graphics page.

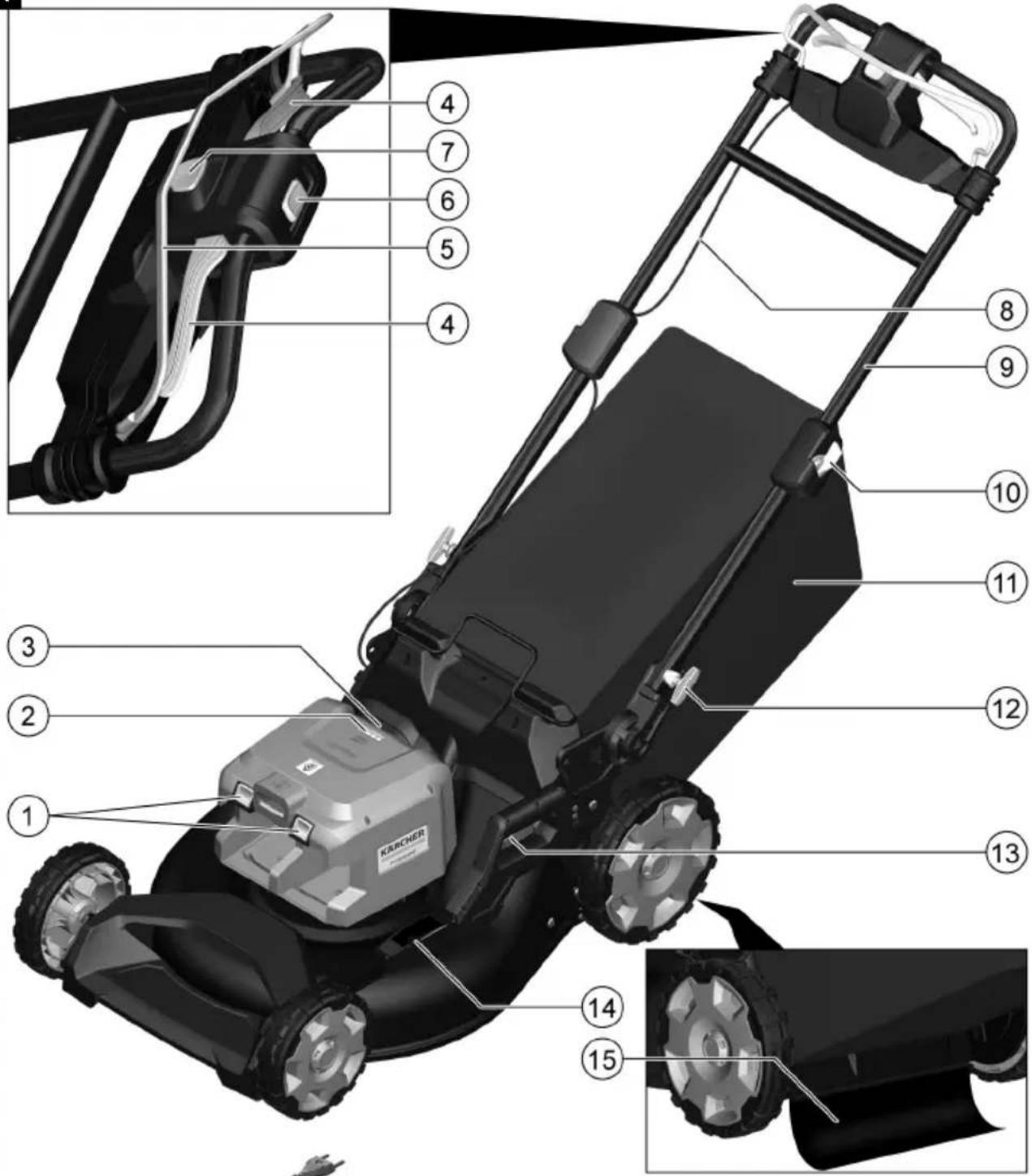

Illustration A
① Battery pack release
② Charge indicator
③ Type plate
④ Push Assist lever
⑤ ON/OFF lever

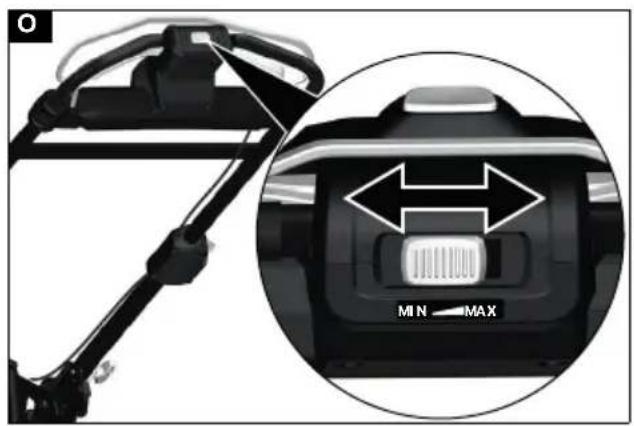

⑥ Slider speed control
⑦ Starter button
⑧ Motor control cable
⑨ Telescopic handle
10 Handle lock
⑪ Grass bag
⑫ Quick-release catch
⑬ Cutting height adjustment lever
⑭ Cutting height display
15 Fall protection
⑯ Mulch plug
⑰*Side ejector
⑱ Safety key

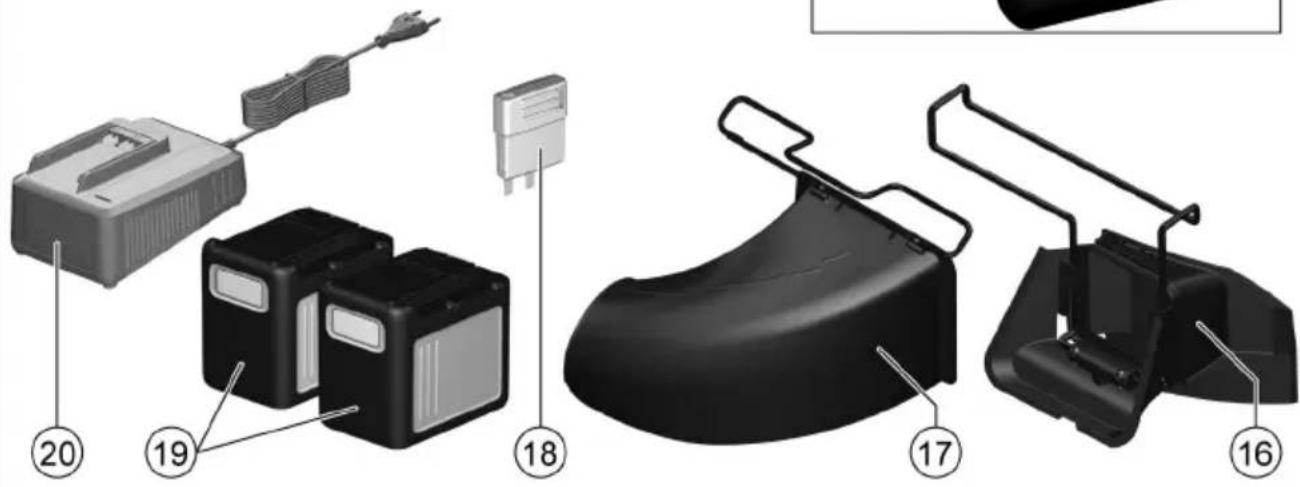

⑲*Battery Pack Battery Power+ 36V (2x)
20*Quick Charger Battery Power+ 36V
* optional
Rechargeable battery pack
The device can be operated with two 36 V Kärcher Battery Power+ battery packs.
Initial startup
Adjusting the handle
- Fold over the telescopic handle.

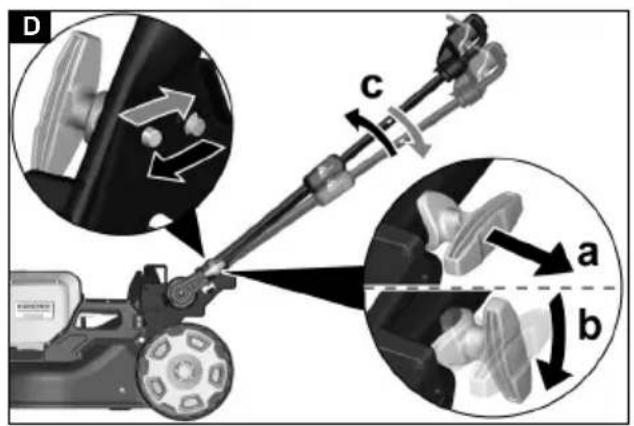

a Pull out both quick-release catches. Illustration B
b Turn the quick-release catches. The quick-release catches are unlocked. c Fold over the telescopic handle. d Lock the quick-release catches.
- Extend the telescopic handle.

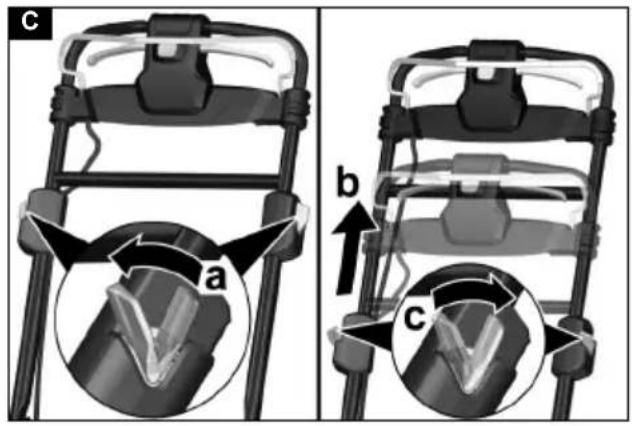

a Unlock the handle locks. Illustration C
b Pull the telescopic handle out completely. c Lock the handle locks.
Note
The device only functions when the telescopic handle has been completely pulled out and the handle locks are locked.
- Adjust the inclination angle of the handle if necessary.

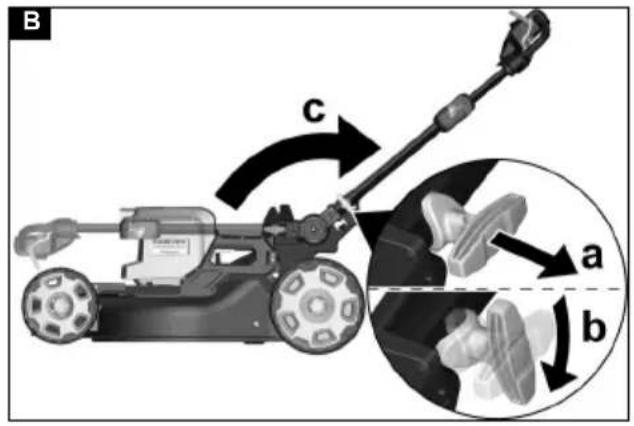

a Pull out both quick-release catches. Illustration B
b Turn the quick-release catches. The quick-release catches are unlocked. c Choose the inclination angle. d Lock the quick-release catches.
Attaching the mulch plug
The mulch plug is used when the mown grass is to remain on the lawn.

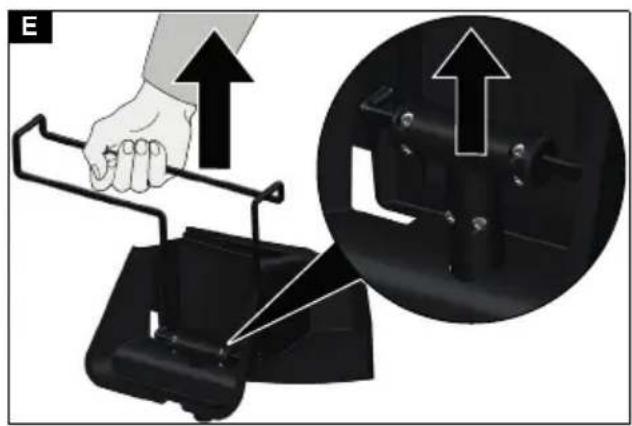

- Pull up the handle of the mulch plug. Illustration E

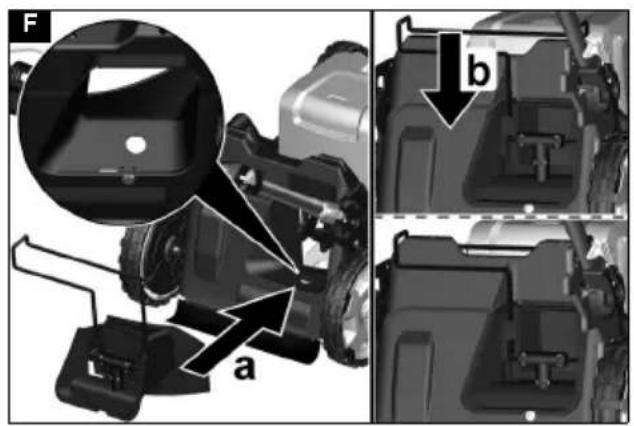

- Install the mulch plug in the ejection chute. Illustration F
- Pull down the handle of the mulch plug. The mulch plug is locked in the device.
Mount the grass bag
The grass bag is used when the mown grass is to be collected for disposal.
- Remove the mulch plug if necessary. a Pull up the handle of the mulch plug. Illustration G
The mulch plug is unlocked. b Remove the mulch plug from the ejection chute

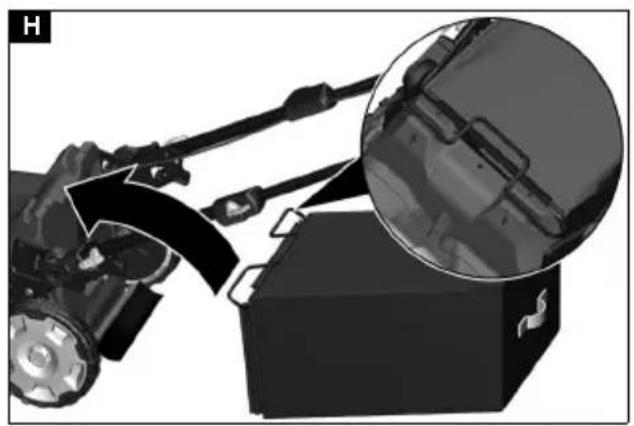

- Hook the grass bag to the ejection chute. Illustration H
Mounting the side ejector
The side ejector is used when the grass clippings are to be ejected sideways.

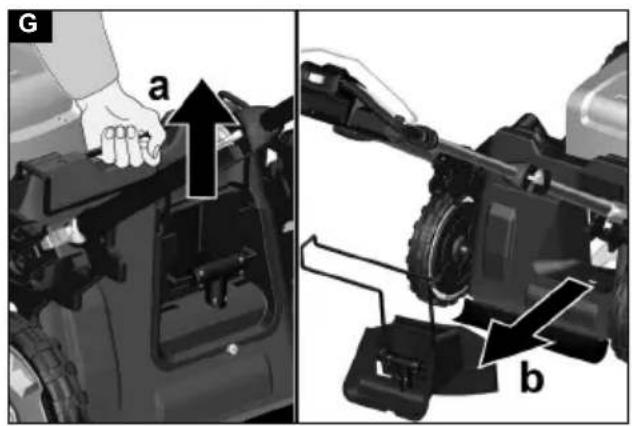

- Remove the mulch plug if necessary. a Pull up the handle of the mulch plug.
Illustration G
The mulch plug is unlocked. b Remove the mulch plug from the ejection chute

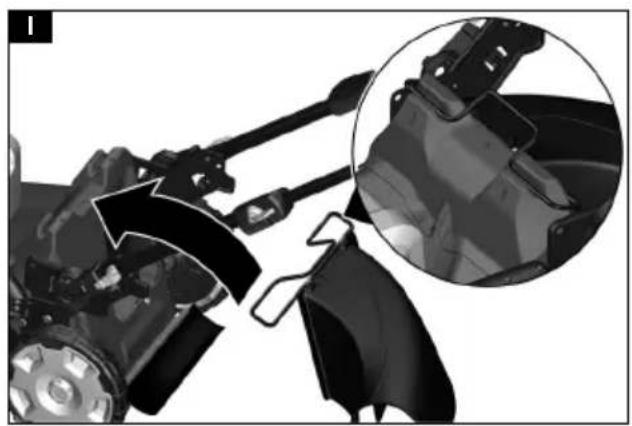

- Hook in the side ejector on the ejection chute. Illustration I
Mount the battery pack

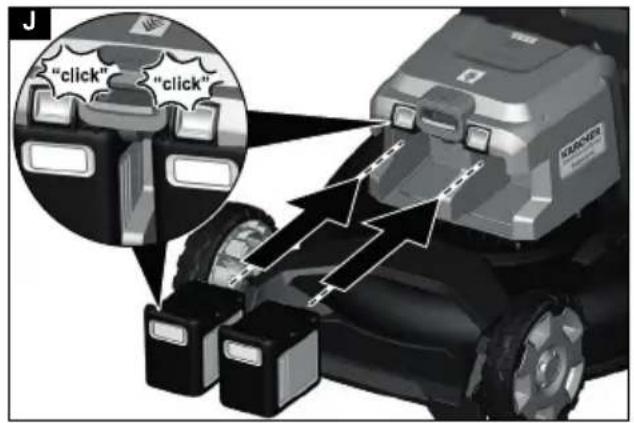

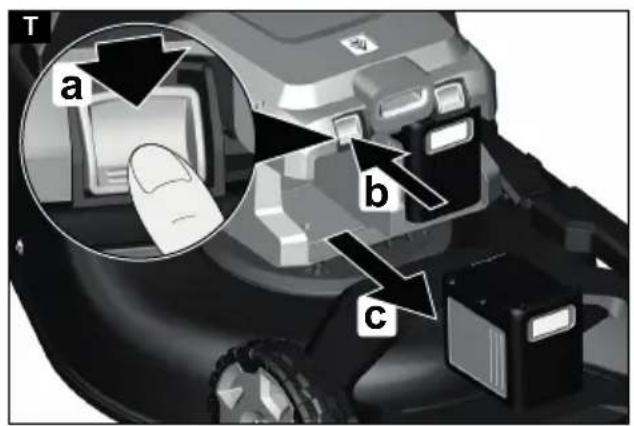

- Push the battery pack into the mounting in the device until it audibly latches into place. Illustration J
Insert the security key
- Use the security key.

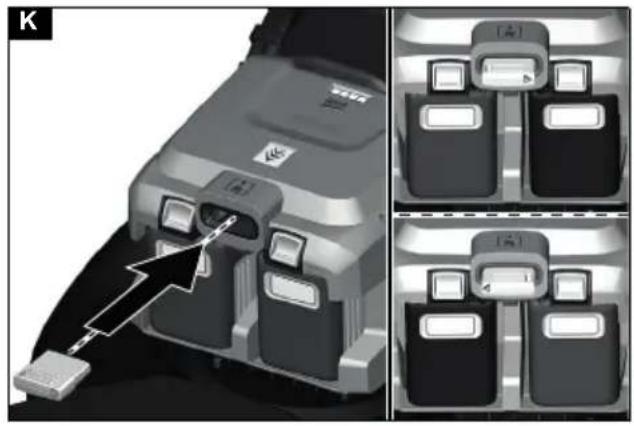

Illustration K
The mark on the security key indicates which battery pack is used during operation.
Operation
General information on handling the lawnmower
The run time of the battery depends on several factors:
● The condition, length and density of the grass
● The cutting height setting
Maximum surface performance depending on the state of the grass: approx. 2500 m^2 .
The results of the mowing process can be optimised as follows:
● Cut at a maximum of one third of the grass height.
- When mowing tall grass, reduce the speed at which the device is pushed or moves forward when the push-assist function is activated.
Note
Do not mow wet grass. Wet grass sticks to the underside of the lawnmower and prevents correct collection of the grass in the grass bag or ejection of the grass.
Mowing lawns
⚠ WARNING
Lifting or tipping the lawnmower during operation Incision injuries
The blade of the lawnmower rotates approximately parallel to the ground over which it moves. Take care to ensure that all four wheels touch the ground when mowing.
-
Install the grass bag, the side ejector or mulch plug (see Chapter Initial startup).
-
Set the cutting height using the cutting height adjustment lever.

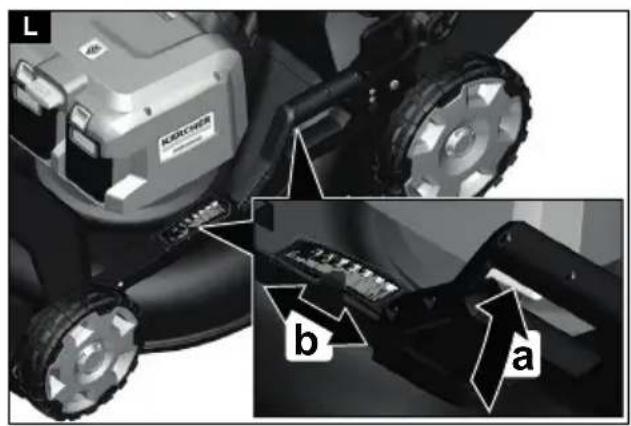

Illustration L
Choose the cutting height according to the condition, length and density of the grass (see Chapter General information on handling the lawnmower).
- Press the lever ON/OFF.

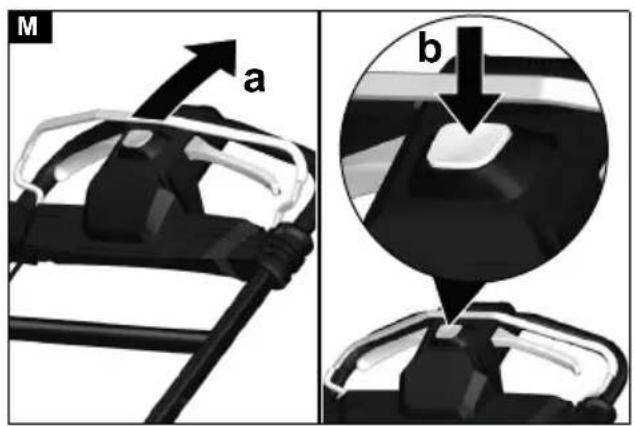

Illustration M
- Press the start button. Keep the lever ON/OFF pressed.
The device starts.
Empty the grass bag regularly when using the grass catcher, otherwise the ejection chute can become clogged with cut grass (see Chapter Emptying the grass bag).
Push Assist function
The Push Assist function activates the device's self-driving function.
The ON/OFF lever is pressed.
- Press the Push Assist lever.

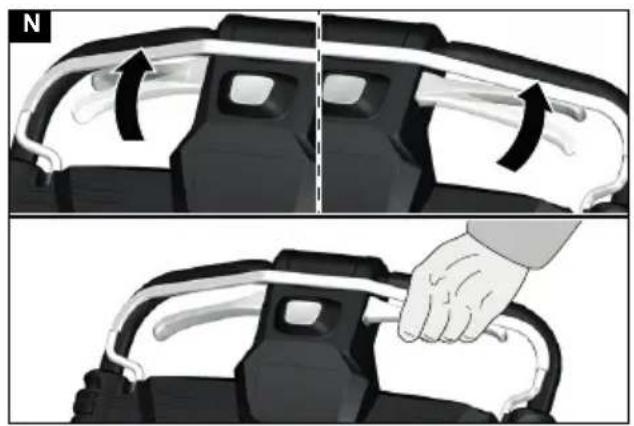

Illustration N
The Push Assist function is activated. The device moves forwards without having to be pushed by the operator.
- Set the speed at which the device should move forward on the speed control slider.
Illustration O
- Release the Push Assist lever.

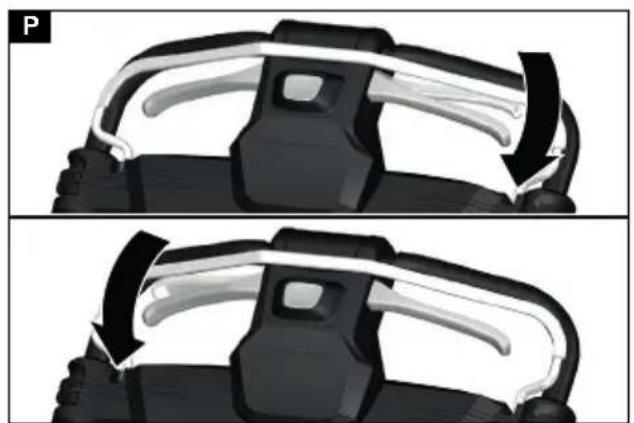

Illustration P
The Push Assist function is deactivated. The device continues to mow, however it must be pushed by the operator.
Interrupting operation
- Release the ON/OFF lever.

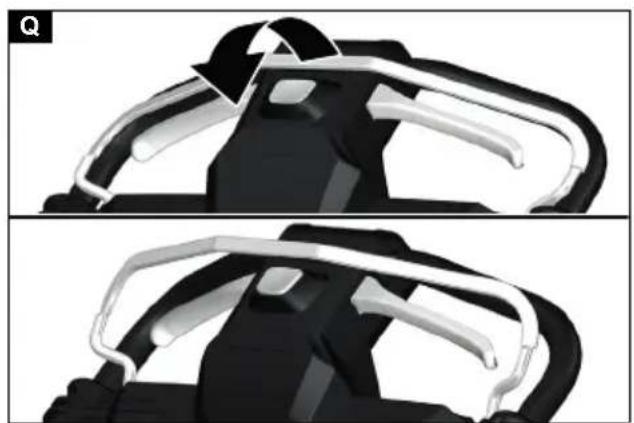

Illustration Q
The motor stops.
Emptying the grass bag
- Remove the grass bag.

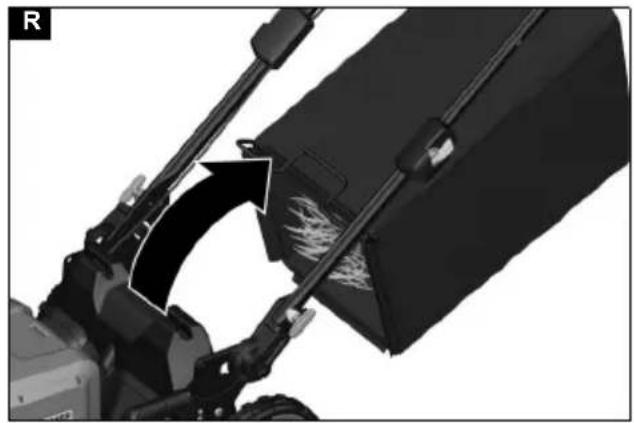

Illustration R
Take care to ensure that the motor control cable remains in the cable holder when removing the grass bag.
- Empty the grass bag.
Remove the security key
Before removing the battery packs, the safety key must be removed.
- Pull the security key out of the device.
Illustration S
Removing the battery pack
Note
During longer work breaks, remove the battery pack from the device and secure it against unauthorised use.
- Pull the battery pack unlocking button in the direction of the battery pack.
Illustration T
-
Press the battery pack unlocking button to unlock the battery pack.
-
Remove the battery pack from the device.
Ending operation
-
Remove the battery pack from the device (see Chapter Removing the battery pack).
-
Clean the device (see Chapter Cleaning the device).
Transport
⚠ WARNING
Sharp blade
Incision injuries
Be careful when tipping or lifting the device.
Keep all parts of your body away from the cutting blade.
- Switch the device off (see Chapter Interrupting operation).
- Ensure that the blade is no longer rotating.
- Allow the device to cool down.
- Remove the safety key.
- Remove the battery pack (see Chapter Removing the battery pack).
- Secure the device against slipping and tipping over when transporting in vehicles.
Storage
Clean the device before storing (see Chapter Cleaning the device).
- Remove the safety key.
-
Remove the battery pack (see Chapter Removing the battery pack).
-
Unlock the handle locks.
Illustration U
- Push the telescopic handle in completely.
- Lock the handle locks.
- Release the quick-release catches and fold down the handle.

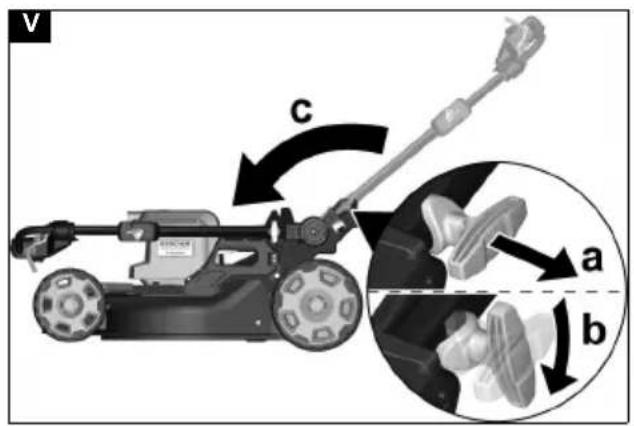

Illustration V
- Store the device in a dry, well ventilated location. Keep away from corrosive substances such as garden chemicals and defrosting salt. Do not store the device outdoors.
Care and service
⚠ WARNING
Sharp blade
Incision injuries
Be careful when tipping or lifting the device.
Keep all parts of your body away from the cutting blade.
Cleaning the device
- Remove the safety key.
- Remove the battery pack (see Chapter Removing the battery pack).

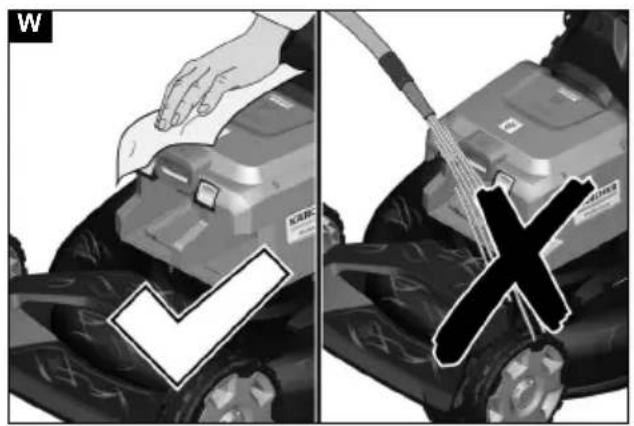

- Clean the exterior of the device with a soft, damp cloth or brush each time after use.
Illustration W
Clean the blade before longer storage periods.

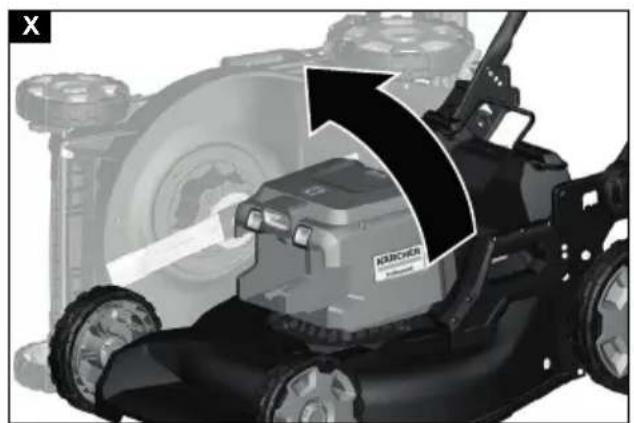

- Tip the device onto the side.
Illustration X

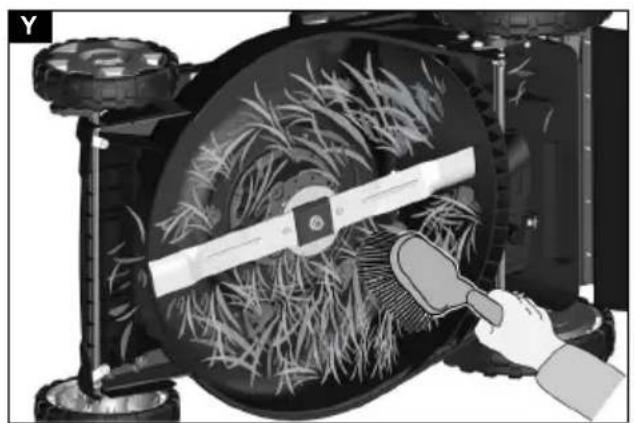

- Clean the blade and the underside of the device using a brush.
Illustration Y
Removing blockages
⚠ WARNING
Removing blockages
Incision injuries from the sharp blade or sharp-edged objects
Wear protective gloves when checking for blockages or removing blockages.
-
Switch the device off and wait until the blade comes to a standstill.
-
Remove the safety key.
-
Remove the battery pack (see Chapter Removing the battery pack).
- Remove the grass bag and check for blockages. Remove any blockages.
- Check the ejection shaft for blockages. Remove any blockages.
- Tip the device onto the side.
- Check the underside of the device and the blade for blockages. Be careful when removing blockages because the blade can move while doing this.
Replacing the blade
- Remove the safety key.
- Remove the battery pack (see Chapter Removing the battery pack).
- Clean the underside of the device (see Chapter Cleaning the device).

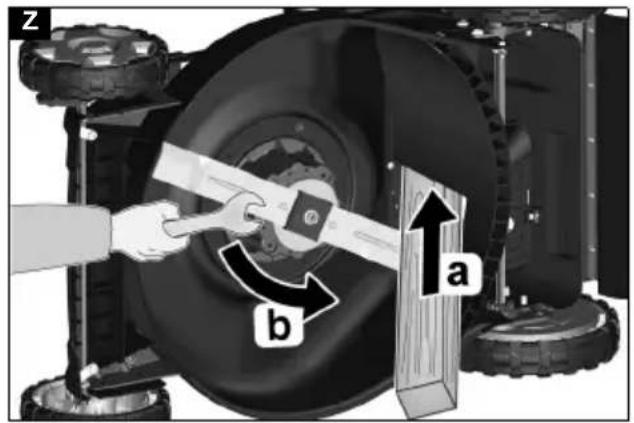

- Lock the blade and then loosen the screw. Illustration Z

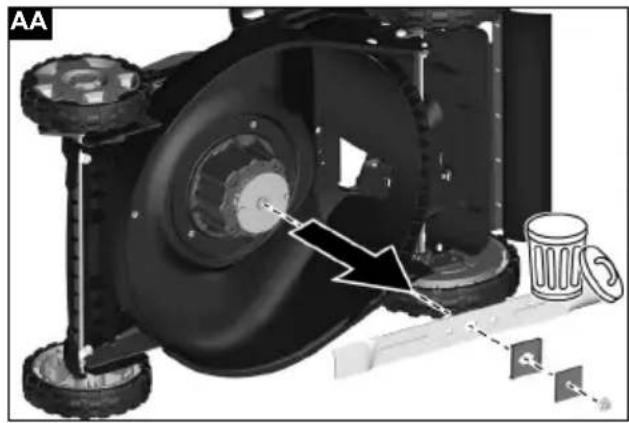

- Remove and dispose of the blade. Illustration AA

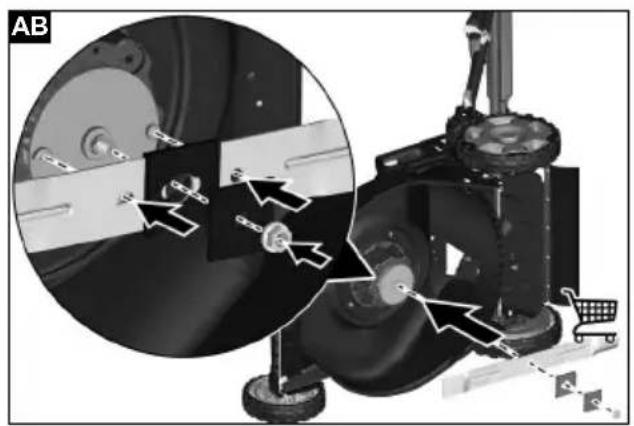

- Fit the new blade into the holder. Illustration AB

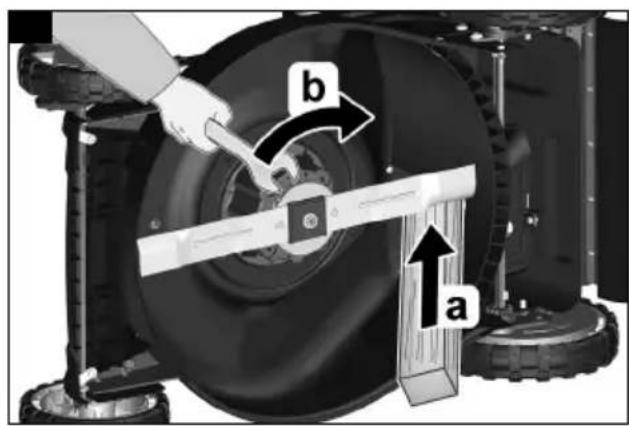

- Lock the blade and then tighten the screw. Illustration AC
Troubleshooting guide
Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.
The device switches off
The device overload protection system has triggered.
- Release the ON/OFF lever.
- Press the start button and the ON/OFF lever. The battery pack overheating protection has triggered.
- Wait until the battery pack temperature lies within the normal range.
- Charge the battery pack if the device cannot be switched on.
The charge status indicator does not show
The battery pack overheating protection has triggered.
● Release the ON/OFF lever.
- Remove the battery pack.
Technical data
Device performance data
| Nominal voltage V 36 |
| Cutting width cm 53 |
| Cutting height cm 3-11 |
| Grass bag volumes l 70 |
| Maximum speed /min 3100 ± 5% |
Determined values in acc. with EN 60335-2-77
| Sound pressure level L_pA | dB(A) 82,2 | |
| Uncertainty K_pA | dB(A) 3,0 | |
| Sound power level L_WA + K uncertainty_WA | dB(A) 95 | |
| Right handle hand-arm vibration value | m/s ^2 | 0,8 |
| Left handle hand-arm vibration value | m/s ^2 | 0,8 |
| Uncertainty K | m/s ^2 | 1,5 |
Dimensions and weights
| Length x width x height | mm | 1568 x 548 x 1075 |
| Weight (without battery pack) | kg | 32,6 |
Subject to technical modifications.
Warranty
The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address)
EU Declaration of Conformity
We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.
Product: Battery-operated lawnmower
Type: 1.042-50x.x
Currently applicable EU Directives
2000/14/EC (+2005/88/EC)
2014/30/EU
2006/42/EC (+2009/127/EC)
2011/65/EU
Harmonised standards used
EN 50581: 2012
EN 55014-1: 2017
EN 55014-2: 2015
EN 60335-1:2012+A11:2014+A13:2017
EN 60335-2-77:2010
EN 62233: 2008
Conformity evaluation procedure used
2000/14/EC and amended by 2005/88/EC: Annex VI
Sound power level dB(A)
Measured: 93,7
Guaranteed: 95
Name and address of the notified body involved
TÜV Rheinland LGA Products GmbH (NB 0197)
Tillystraße 2
D-90431 Nuremberg
The signatories act on behalf of and with the authority of the company management.
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Documentation supervisor: S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Ph.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/11/01
Contenu
2006/42/CE (+2009/127/CE)
2011/65/EU
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Responsable de la documentation : S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 01/11/2018
Inhoud
Reduceren van risico's
⚠ VOORZICHTIG
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/11/01
2006/42/CE (+2009/127/CE)
2011/65/UE
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 01/11/2018
Índice
2006/42/CE (+2009/127/CE)
2011/65/UE
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Winnenden, 01/11/2018
Indhold
2006/42/EF (+2009/127/EF)
2011/65/EU
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tlf.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/11/01
Indhold
2006/42/EF (+2009/127/EF)
2011/65/EU
Anvendte harmoniserte standarder
EN 50581: 2012
EN 55014-1: 2017
EN 55014-2: 2015
EN 60335-1:2012+A11:2014+A13:2017
EN 60335-2-77:2010
EN 62233: 2008
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tlf.: +49 7195 14-0
Winnenden, 2018/11/01
Innehåll
Säkerhetsinformation 83
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
D-71364 Winnenden (Germany)
Tfn: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2018/11/01
Sisältö
⑲*Battery Power+ 36V -akku (2 x)
20*Battery Power+ 36V -pikalaturi
* valinnainen
Akku
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Dokumentointivastaava: S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Puh.: +49 7195 14-0
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tηλ.: +49 7195 14-0
Φαξ: +49 7195 14-2212
Winnenden, 2018/11/01
İçindekiler
2006/42/AT (+2009/127/AT)
2011/65/AT
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Winnenden, 01/11/2018
Содержание
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Тел.: +49 7195 14-0
Факс: +49 7195 14-2212
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
2006/42/ES (+2009/127/ES)
2011/65/EU
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Zmocněnec pro dokumentaci: S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
Winnenden, 2018/11/01
Kazalo
Varnostna navodila.... 144
Namenska uporaba 148
Varovanje okolja 148
Pribor in nadomestni deli.... 148
Obseg dobave.... 148
Varnostne naprave 148
Simboli na napravi.... 148
Opis naprave 149
Zagon 149
Obratovanje.... 150
Transport 150
Skladiščenje 150
2006/42/ES (+2009/127/ES)
2011/65/EU
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Winnenden, 1. 11. 2018
Spis treści
2006/42/WE (+2009/127/WE)
2011/65/UE
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Directive UE relevante
2000/14/CE (+2005/88/CE)
2014/30/UE
2006/42/UE (+2009/127/UE)
2011/65/UE
Norme armonizate aplicate
EN 50581: 2012
EN 55014-1: 2017
EN 55014-2: 2015
EN 60335-1:2012+A11:2014+A13:2017
EN 60335-2-77:2010
EN 62233: 2008
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germania)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 01/11/2018
Obsah
2006/42/ES (+2009/127/ES)
2011/65/EÚ
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 01.11.2018
Sadržaj
Sigurnosni napuci.... 178
www.kaercher.com/REACH
2006/42/EZ (+2009/127/EZ)
2011/65/EU
Primijenjene uskladene norme
EN 50581: 2012
EN 55014-1: 2017
EN 55014-2: 2015
EN 60335-1:2012+A11:2014+A13:2017
EN 60335-2-77:2010
EN 62233: 2008
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Opunomoćenik za dokumentaciju: S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Njemačka)
Tel.: +49 7195 14-0
Telefaks: +49 7195 14-2212
Winnenden, 1. 11. 2018.
Sadržaj
Sigurnosne napomene 186
Namenska upotreba 190
2006/42/EZ (+2009/127/EZ)
2011/65/EU
Primenjene harmonizovane norme
EN 50581: 2012
EN 55014-1: 2017
EN 55014-2: 2015
EN 60335-1:2012+A11:2014+A13:2017
EN 60335-2-77:2010
EN 62233: 2008
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Lice ovlašćeno za dokumentaciju: S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Winnenden, 2018/11/01
Съдържание
Указания за безопасност.... 194
Употреба по предназначение.... 200
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Тел.: +49 7195 14-0
Факс: +49 7195 14-2212
Виненден, 2018/11/01
Sisukord
Ohutusjuhised 204
2006/42/EÜ (+2009/127/EÜ)
2011/65/EL
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel: +49 7195 14-0
Winnenden, 2018/11/01
Saturs
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Pilnvarotais sagatavot dokumentāciju: S. Reizers (S. Reiser)
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
- Paspauskite svirtj ON / OFF.
Paveikslas M
H. Jenner
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Тел.: +49 7195 14-0
Факс: +49 7195 14-2212
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
文書の全権委員：S. Reiser
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
電話番号：+49 7195 14-0
- retirement des Privacy Group
صورة إيضاحية P
MERCI! DANKE! iGRACIAS!
Register your product and benefit from many advantages.
www.kaercher.com/welcome
Rate your product and tell us your opinion.
Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28-40
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
