USER MANUAL LW15 Maginon

Black and white close-up of a butterfly with detailed wings, set against a hatched background (no text or symbols)

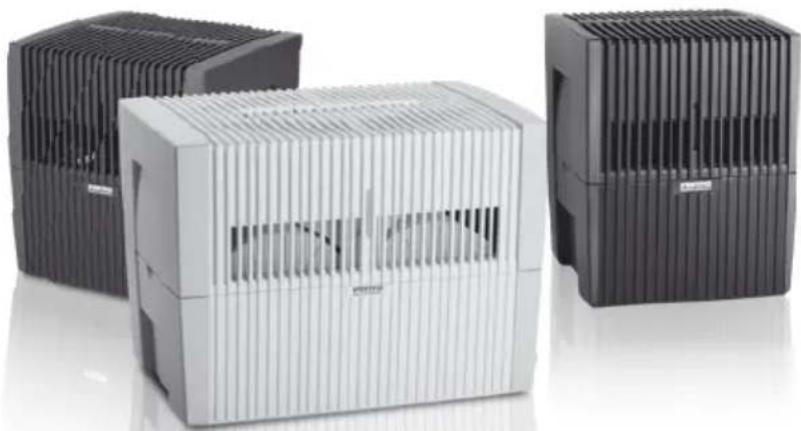

Three industrial air purifiers with ventilation grilles, shown from different angles (no visible text or labels)

VENTA LUFTWÄSCHER

LW15 / LW25 / LW45

Exploded view diagram of a mechanical device showing internal components (no text or symbols)

Illustration of a water pump system with a motor and a tank, no text or symbols present

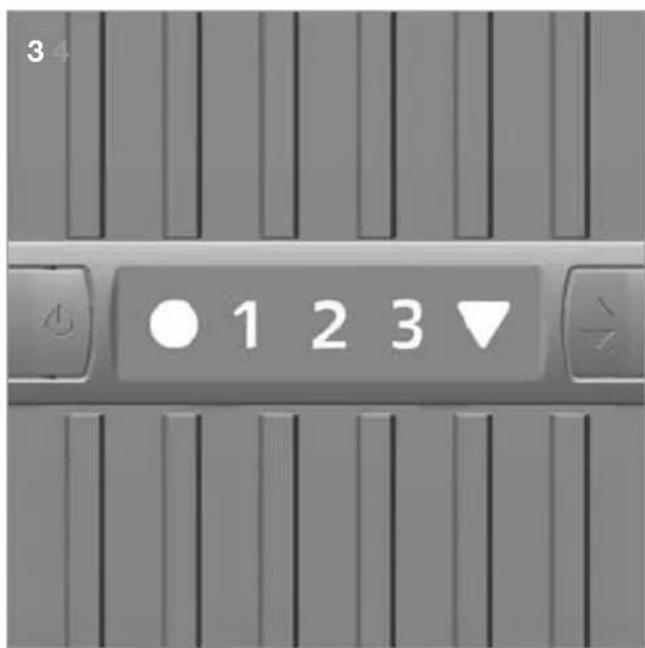

3 4 ● 1 2 3 ▼

3D rendering of a mechanical device with a drain pouring liquid into a rectangular housing and two spools of material (no text or symbols visible)

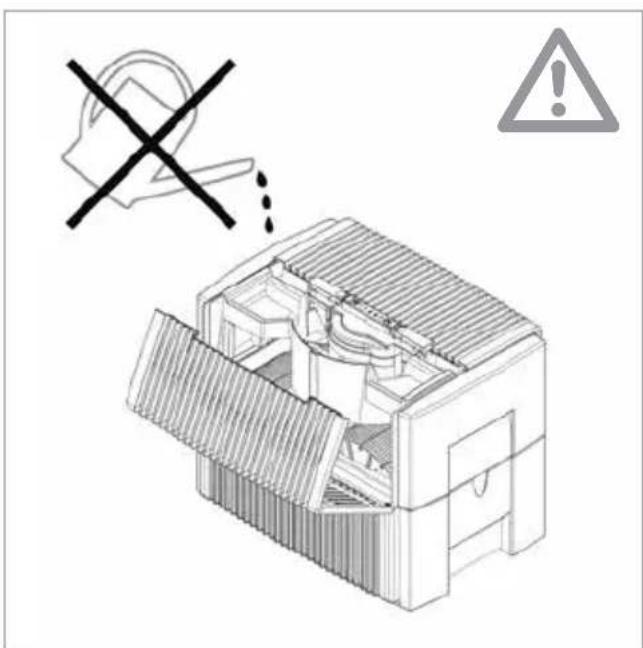

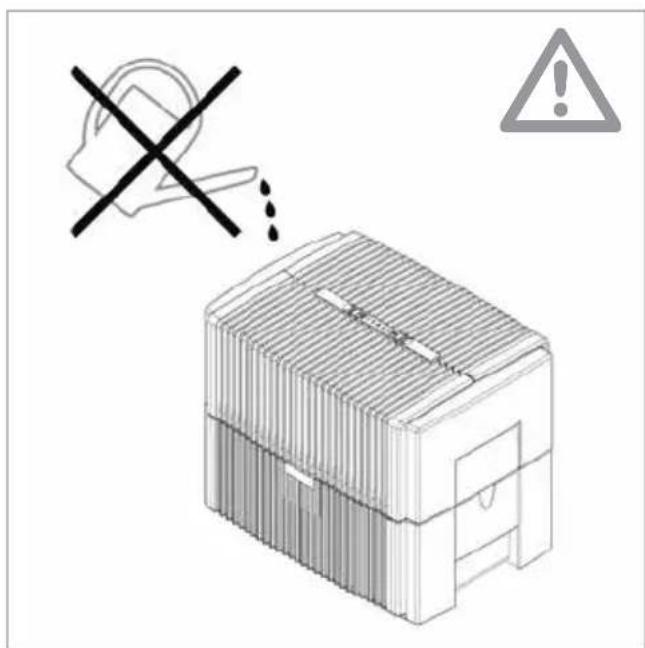

Warning symbol with a crossed-out hand gesture and warning sign, accompanied by a 3D diagram of a device with warning symbols.

Safety warning illustration showing a roof structure with a cross symbol and warning symbol

Diagram of a battery cell structure with a hand holding a tool and a checkmark indicating inspection (no text or symbols present)

Close-up of a heat sink with two black arrows indicating downward pressure or force, no text or symbols present.

6 1 3 4 2

7 2 1 3 4

8 1 3 4 2

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

INHALTSVERZEICHNIS

Scope of delivery 14

Description of the appliance 14

Before first use 15

Putting into operation 15

Maintenance and cleaning 15

Technical data 17

Guarantee 17

Automatic shut-off 17

Eliminating faults 17

Waste disposal reference 17

NOTES ON SAFETY

• Before putting the appliance into operation, please read these instructions carefully and keep them in a safe place for future reference.
• The Venta Airwasher is a domestic appliance for moistening and cleansing the air in homes, offices and leisure facilities. Using the appliance for something other than the intended purpose can endanger health and lives.
• The manufacturer is not liable for personal injury or damage to property brought about by careless or improper use.
• In particular, the appliance must not be used in the following circumstances:

in rooms or locations where there is risk of explosion;

in rooms where there is an aggressive atmosphere;

in rooms where there is a high concentration of solvents;

in rooms with considerable quantities of dust in the air;

in the vicinity of swimming pools or other wet areas.

- Plug the appliance into suitable power outlets only – the voltage must correspond to the details of the rating plate on the appliance.

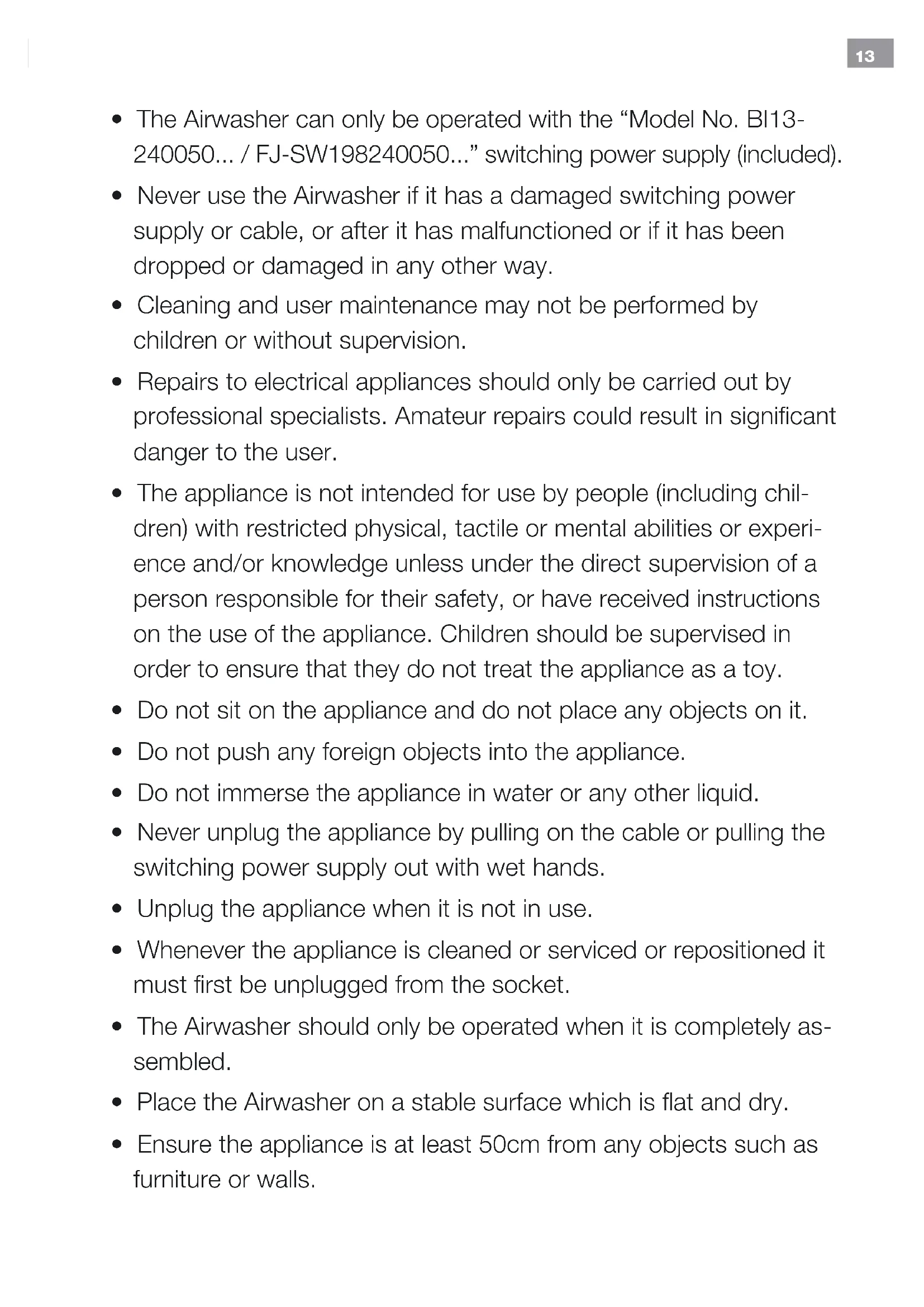

• The Airwasher can only be operated with the “Model No. BI13-240050... / FJ-SW198240050...” switching power supply (included).
• Never use the Airwasher if it has a damaged switching power supply or cable, or after it has malfunctioned or if it has been dropped or damaged in any other way.
• Cleaning and user maintenance may not be performed by children or without supervision.
• Repairs to electrical appliances should only be carried out by professional specialists. Amateur repairs could result in significant danger to the user.
• The appliance is not intended for use by people (including children) with restricted physical, tactile or mental abilities or experience and/or knowledge unless under the direct supervision of a person responsible for their safety, or have received instructions on the use of the appliance. Children should be supervised in order to ensure that they do not treat the appliance as a toy.
• Do not sit on the appliance and do not place any objects on it.
• Do not push any foreign objects into the appliance.
• Do not immerse the appliance in water or any other liquid.
• Never unplug the appliance by pulling on the cable or pulling the switching power supply out with wet hands.
• Unplug the appliance when it is not in use.
• Whenever the appliance is cleaned or serviced or repositioned it must first be unplugged from the socket.
• The Airwasher should only be operated when it is completely assembled.
• Place the Airwasher on a stable surface which is flat and dry.

• Ensure the appliance is at least 50cm from any objects such as furniture or walls.

• Place the appliance so that it cannot be knocked over, and so that no one can trip over it or its lead.
  • Maximum installation altitude: 2000 m

• Only add original Venta additives to the water. Venta-Luftwäscher GmbH accepts no liability for damage which may be caused by the use of other additives.

DEAR CUSTOMER,

The Venta system for Airwashing offers a technology unique in the world. The Venta Airwasher is designed without filter pads and is extremely hygienic.

UNIQUE FUNCTIONALITY:

Bad-quality, dry air is routed into the appliance. Rotating disk stacks with a surface area of up to 4.2m^2 guarantee, using the smallest space, that dry air is capable of absorbing moisture and pure water can evaporate. Dirt particles to 10 m (10/1000mm) are retained in the water. There are no filters which get dirty over time. The Venta filter is the water: Every day it is new and fresh and year for year it provides constant high-quality cleaning and humidification performance.

SCOPE OF DELIVERY

1 × Airwasher
1 × Hygiene agent sample package 50 ml (sufficient for 2 weeks)
1 × Operating instructions

EQUIPMENT DESCRIPTION

Upper housing

Transport protection

Disk stack

Transport protection

Lower housing

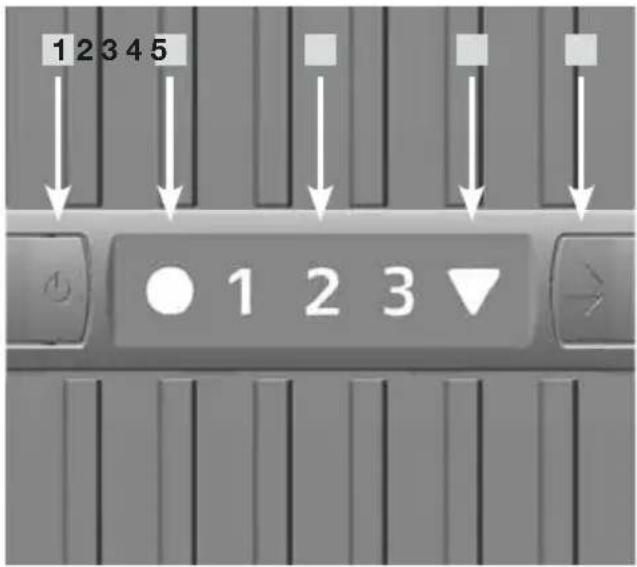

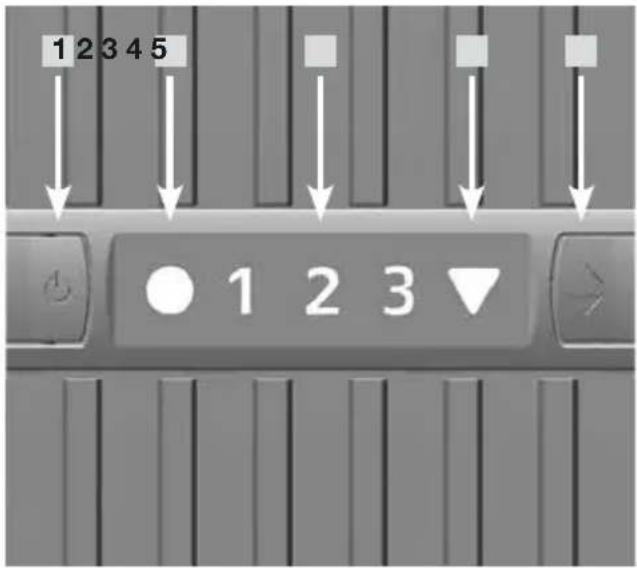

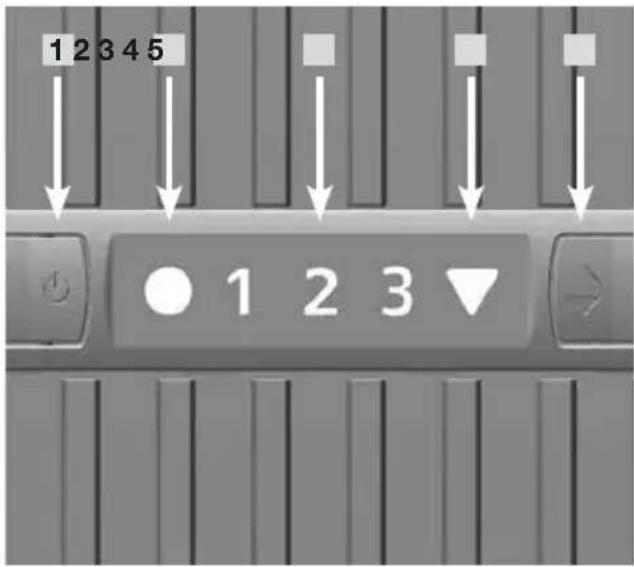

OPERATOR PANEL

1 2 3 4 5 ● 1 2 3 ▼

1 ON / OFF button
2 Operation indication ON / OFF
Continuous lighting: ON
No lighting: OFF
Flashing: Fault
(see Eliminating faults)
3 Fan stage display 1 - 2 (LW 15), 1 - 2 - 3 (LW 25/45)
4 Automatic shut-off display
(see "Automatic shut-off")
5 Fan stage selector button
1 - 2 (LW 15), 1 - 2 - 3 (LW 25/45)

BEFORE FIRST USE

Remove trial package from Styrofoam packaging.

Illustration 1: Remove upper housing (illustration LW 45). Remove transport protection from the upper housing. Remove disk stack. Remove transport protection from the lower housing.

• Place the Airwasher on a dry and level surface at least 50cm from the walls, furniture and any other objects.
• Check whether switching power supply or cable are free from damage.

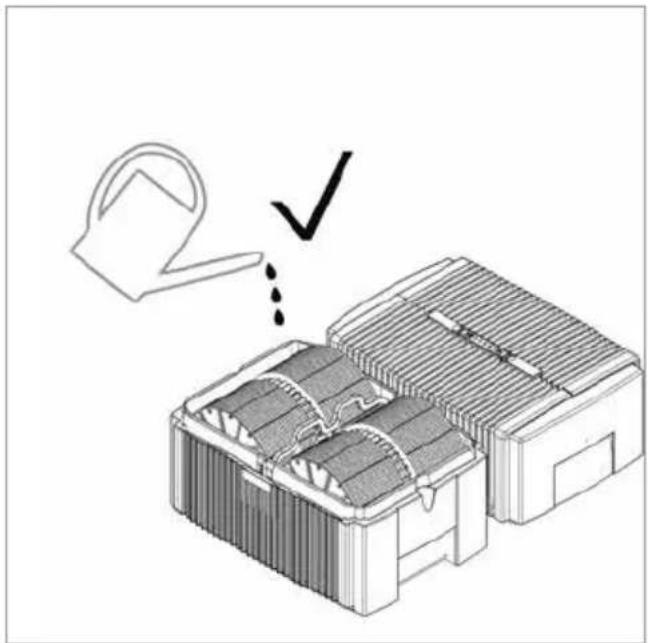

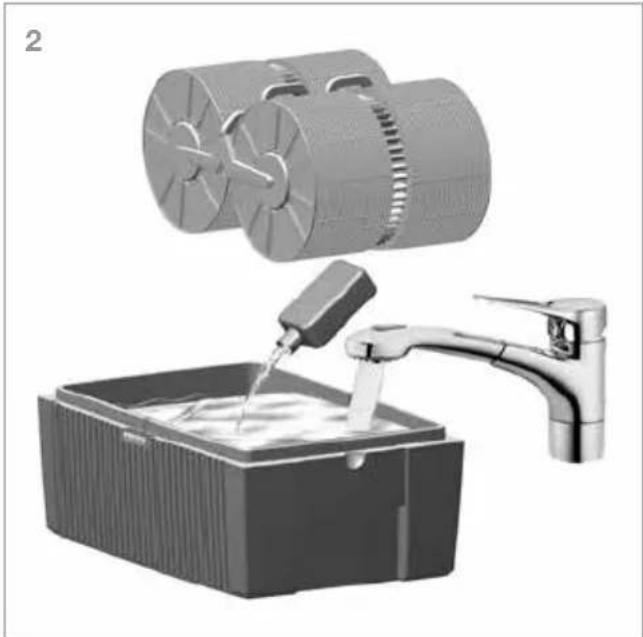

Illustration 2: Remove upper housing. Fill water into the lower housing. The appliance may never be filled with the upper part in place! Filling level: See marker in the lower housing (approx. 5cm below the trough rim). Add entire content of the Venta hygiene agent (sample bottle 50ml). Insert disk stack again.

Illustration 3: Replace the upper housing. Plug the appliance into the mains. Switch on the appliance with button 1 and operation display 2 lights up. Select required fan stage to 1 - 2 (LW 15), 1 - 2 - 3 (LW 25/45) with selector button 5.

MAINTENANCE AND CLEANING

UNPLUG SWITCHING POWER SUPPLY IN CASE OF ALL CLEANING AND MAINTENANCE WORK!

DAILY

Switch off appliance with button 1 and unplug switching power supply. Remove upper housing and top up with fresh water into the lower housing. Mount top cover again. Switch on the appliance with button 1.

EVERY 10-14 DAYS

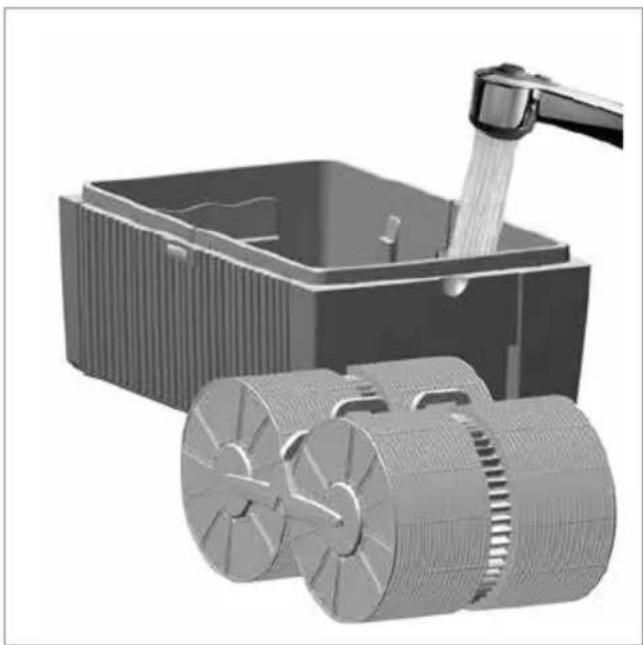

Illustration 4: Switch off appliance and pull out switching power supply. Pour out soiled water. Brush off precipitated deposits in the lower housing and flush out. Flush disk stack with water. Fill lower housing with water again. Refill with Venta hygiene agent. For dosing, see scale on back of bottle.

All residues in the lower housing and on the disk stack (white, green-yellowish or brownish precipitation) do NOT impair the function of the Venta Airwasher. As a result of the addition of the hygiene agent, trouble-free hygienic operation is guaranteed.

Dosage for models

LW 15 = Dosage for LW 14, LW 25 = Dosage for LW 24, LW 45 = Dosage for LW 44

See back of the bottle.

EVERY SIX MONTHS

We recommend a six-monthly general cleaning with the Venta Cleaner. According to the degree of pollution of the air washer, odors can possibly arise during cleaning. Please provide for fresh air ventilation in these cases. The Venta Cleaner was especially designed to be compatible with Venta plastics, without attacking them. Please consider directions for use on bottle.

GENERAL CLEANING

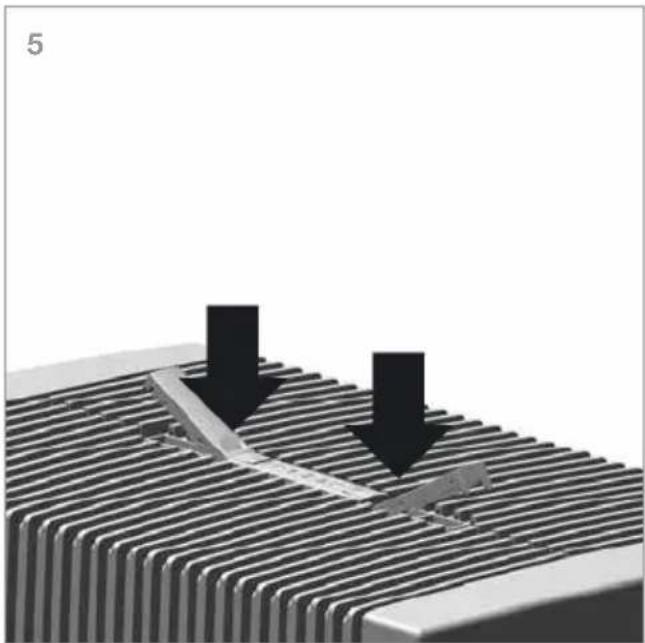

Illustration 5: Switch off the appliance and pull out switching power supply. For the opening of the upper housing, press on the locking latch (see arrows).

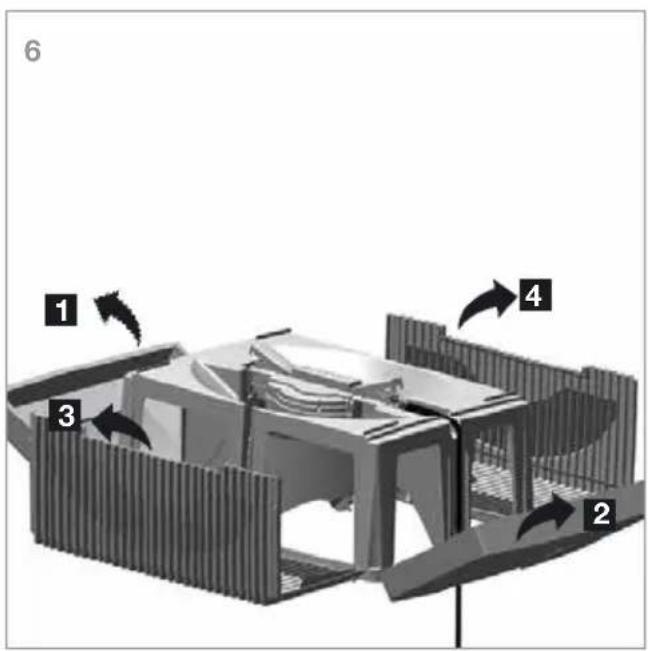

Illustration 6: It is absolutely necessary to consider the sequence during the opening of the top cover: First pivot aside the two sides 1 + 2 (with light pressure) and after that pivot out the two ribbed wings 3 + 4.

Illustration 7: Remove mains cable connector from drive unit 1. Lift out drive unit 2. Remove mains cable from holder 3 and pull out through opening in the upper housing 4.

• Do not dismantle unit and switching power supply, do not immerse in water and do not bring into contact with liquid!
• Clean drive unit, fan blade and gearing with dry cloth!
• Dismantled upper housing can be cleaned under flowing water.
• Dismantled upper housing must be completely dry before assembly!!!

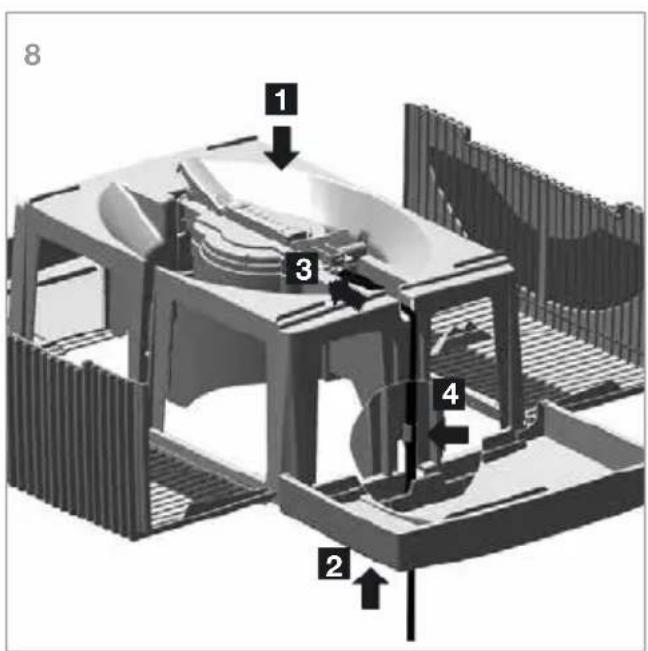

Illustration 8: Place drive unit into the upper housing in correct alignment 1. Pull mains cable connector up from underneath through the opening of the upper housing 2 and plug into drive unit until latched 3. Clip mains cable into holder 4.

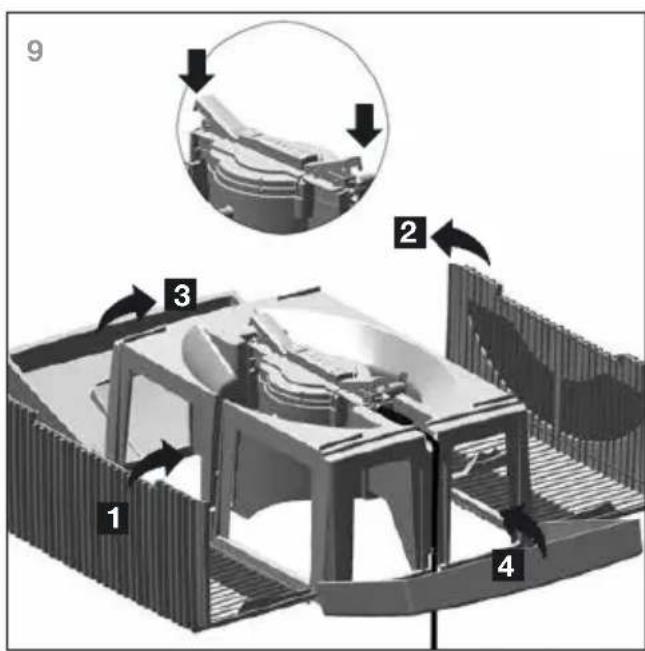

Illustration 9: For the closing of the upper housing it is absolutely necessary to follow the sequence: Place the external ends of the latches in the up position! First pivot up the two ribbed wings 1 + 2 and press on the external ends of the latches (see rings). After that pivot up the two side parts 3 + 4 and engage in latch.

TECHNICAL DATA

PRODUCT DESIGNATION LW 15 LW 25 LW 45

For rooms* up to 25 m2up to 40m2up to 55m2
Mains voltage	100-240V/50-60Hz	100-240V/50-60Hz	100-240V/50-60Hz
Disk surface	1,4m2	2,1m2	4,2m2
Speeds	2	3	3
Sound level	22/32 dBA	24/34/44 dBA	24/35/45 dBA
Dimensions	26×28×31cm	30×30×33cm	45×30×33cm
Weight	approx. 3kg	approx. 3,8kg	approx. 5,8kg
Motor output (Speed 1 - 2 - 3)	approx. 3-4 Watt	approx. 3-5-8 Watt	approx. 3-5-8 Watt
Water capacity	5 liter	7 liter	10 liter
Guarantee	2 years	2 years	2 years

Extremely low power consumption

* based on a ceiling height at a max of 2,5m

WARRANTY

Due to the high quality of the product, the Venta-Luftwäscher GmbH guarantees that this product when used properly will not be defective for a duration of two years from the purchase date. If a material or processing error should occur anyway, please contact the VENTA service team or your dealer. Venta's general warranty conditions also apply: www.venta-luftwaescher.de/service/garantie/

AUTOMATIC SHUT-OFF

The appliance has an automatic shut-off feature that is indicated by displaying 4.

The appliance will shut off automatically if:	What to do
there is too little water in the lower housing.	Switch off appliance, disconnect switching power supply, top up with water and start operation again with button 1. See also „Maintenance and cleaning“, „Daily“
the upper housing has been opened.	Close top cover again by pressing on the external ends of the latches. Switch the appliance off and on with button 1.
the upper housing is not installed or is not properly fitted to the lower housing.	Place top cover onto lower container. Switch the appliance on and off with button 1.

ELIMINATING FAULTS

Problem Possible causes What to do
Appliance does not function	1. Switching power supply not connected.2. Mains cable connector not plugged and latched into drive unit.	1. Connect switching power supply to mains socket, switch on appliance with button 1.2. Plug mains cable connector into drive unit until it latches.
Operation indication 2 flashes	Motor/Gearing malfunction Please get in touch with Customer ServiceTel. +49 - 751 - 5008 88

WASTE DISPOSAL REFERENCE

Valid for EU countries only: Old electrical and electronic appliances must not be disposed of in domestic waste. Please use the return and collection facilities available locally. In this way you can make a valuable contribution to environmental protection and to human health.

FR CH BE

TABLE DES MATIÈRES

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

MODÈLES: LW 15 LW 25 LW 45

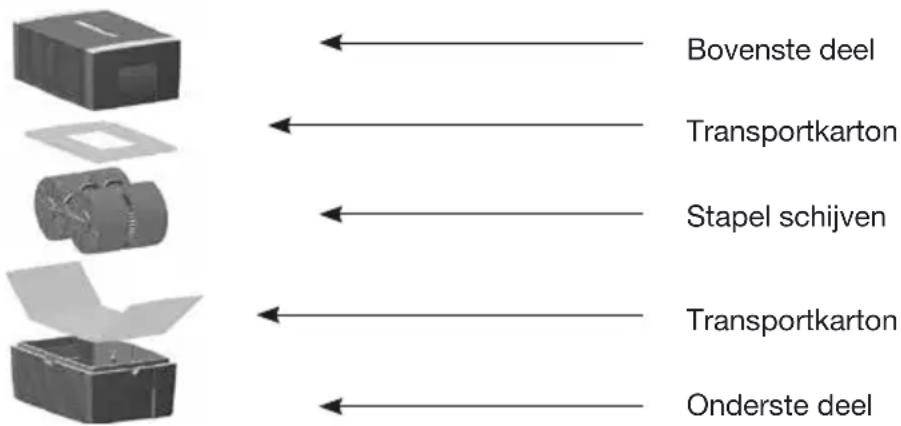

APPARAATOMSCHRIJVING

INNEHÅLLSFÖRTECKNING

Säkerhetsinformation 43

PRODUKTBETECKNING: LW 15 LW 25 LW 45

Exploded view diagram of a mechanical assembly showing internal components (no text or symbols)

BETJENINGSFELT

1 2 3 4 5 1 2 3 ▼

1 PÅ-/AV-tast
2 Driftsindikator PÅ/AV
Kontinuerlig lysende lamper: PÅ
Lyser ikke: AV
Blinker: Feil
(se Utbedre feil)
3 Indikator for ventilatortrinn 1 - 2 (for LW 15), 1 - 2 - 3 (for LW 25/45)
4 Indikator for automatisk utkopling (se Automatisk utkopling)
5 Valgtast for ventilatortrinn 1 - 2 (for LW 15), 1 - 2 - 3 (for LW 25/45)

F∅R F∅RSTE GANGS BRUK

PRODUKTA MODELIS LW 15 LW 25 LW 45

Exploded view of a mechanical assembly showing layered components (no text or symbols visible)

Four parallel horizontal arrows pointing left, no text or symbols present

Viršutinis korpusas

Apsauga transportavimui

Disky eilè

Apsauga transportavimui

Apatinis korpusas

VALDIKLIS

1 2 3 4 5 ● 1 2 3 ▼

Exploded view of a mechanical device showing internal components (no text or symbols visible)

Exploded view of a mechanical assembly showing internal components (no text or symbols visible)

POKYNY PRE LIKVIDÁCIU

Exploded view of a mechanical device showing internal components (no text or symbols visible)
