USER MANUAL IP 138 Wireless Maginon

Quality products for Life.

Close-up of a MAGINON digital camera lens (no visible text or symbols beyond brand name)

Read and Keep the Manual....32

Important Note! 33

Explanation of Symbols 34

What's in the Box 35

Components.... 36

Quick Start Guide ....37

Setting Up the Camera 37

Placing / Assembling the Camera....37

Using the Magnetic Mount 38

Optimizing Motion Detection 38

Coverage of the Monitoring Area 39

Charging the Batteries 39

Quick Start Guide App 40

Setting Up the App ....40

Operation of the App 46

Technical Data 48

Safety Instructions .... 50

Precautions 51

Battery Warnings 52

Possible Infringements.... 53

Security 56

Disposal....57

Conformity 58

Vorwort

Four different types of screw or screw fasteners shown in line drawings (no text or symbols)

Simple line drawing of a vertical bar and a semicircular shape (no text or symbols)

Two cylindrical batteries with different cap sizes, shown side by side (no text or symbols)

Line drawing of a cable with two connectors (no text or symbols)

Diagram showing a device being switched between two sides, with arrows indicating rotation (no text or symbols present)

Technical line drawing of a mechanical device with two views: top shows a block and tray, bottom shows a remote control unit (no text or symbols)

Simple line drawing of a screw and a shaft inside a rectangular block (no text or symbols)

Line drawing of a handheld device with a circular head and two side ports (no text or symbols)

Erhältlich im

App Store

JETZT BEI

Google Play

Smartphone-App starten

congratulations on your purchase of a high-quality Maginon product. You have chosen a modern security camera with good technical features and corresponding accessories, which is particularly easy to operate.

Read and Keep the Manual

These operating instructions belong to the security camera „IP 138 Wireless“. It is an integral part of the product and contains important information on commissioning, handling and disposal. Read the operating instructions carefully, particularly the safety instructions, carefully before using the security camera. Non-compliance with these operating instructions may result in damage to the security camera. The operating instructions are based on the standards and regulations applicable in the European Union. In foreign countries, also observe country-specific guidelines and laws. Keep the operating instructions for further use. If you pass the security camera on to third parties, it is essential to include this operating manual.

Imprint

Published by:

Note that security cameras have worldwide access via data connections (Internet, mobile data).

To protect your privacy and prevent unauthorized persons from accessing your security camera, it is essential to protect your account with an individual password during the initial setup.

Keep this in mind when assigning passwords for the security camera (e.g. when creating user accounts).

For more information on creating a secure password, refer to the German Federal Office for Information Security (BSI) at www.bsi-fuer-buerger.de.

Passwords should never be given to third parties!

Furthermore, we would like to point out that before passing on your security camera to a third party (e.g. by selling it), you must reset the security camera to its factory settings using the reset button (see the note in the manual).

This is the only way to ensure that all your personal data has been irrevocably deleted.

If you have any questions, do not hesitate to contact our technical support.

Explanation of Symbols

The following symbols are used in this manual, on the Maginon IP 138 Wireless, or on the packaging.

Products marked with this symbol comply with all relevant community regulations of the European Economic Area.

Products marked with this symbol are operated with direct current.

What's in the Box

• Security camera
• Magnetic wall mount
• 2x mounting screws
• 2x dowels
• 2x rechargeable lithium-ion batteries
• Micro-USB cable
• User manual

Simple line drawing of a vertical bar and semicircular shape (no text or symbols)

Simple line drawing of a device control panel with two circular buttons and 'MAGINON' text label (no additional symbols or text)

Four different types of screw or nut designs shown in line drawings (no text or symbols)

Simple line drawing of a cable with a connector (no text or symbols)

Two cylindrical batteries with different sizes, no text or symbols visible

A

Components

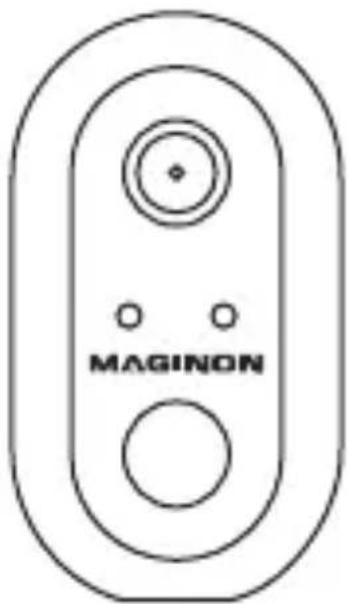

1 Lens
2 Microphone
3 Light Sensor
4 Status LED
5 Motion detection sensor
6 LED charge indicator
7 Micro-USB connection
8 Speaker

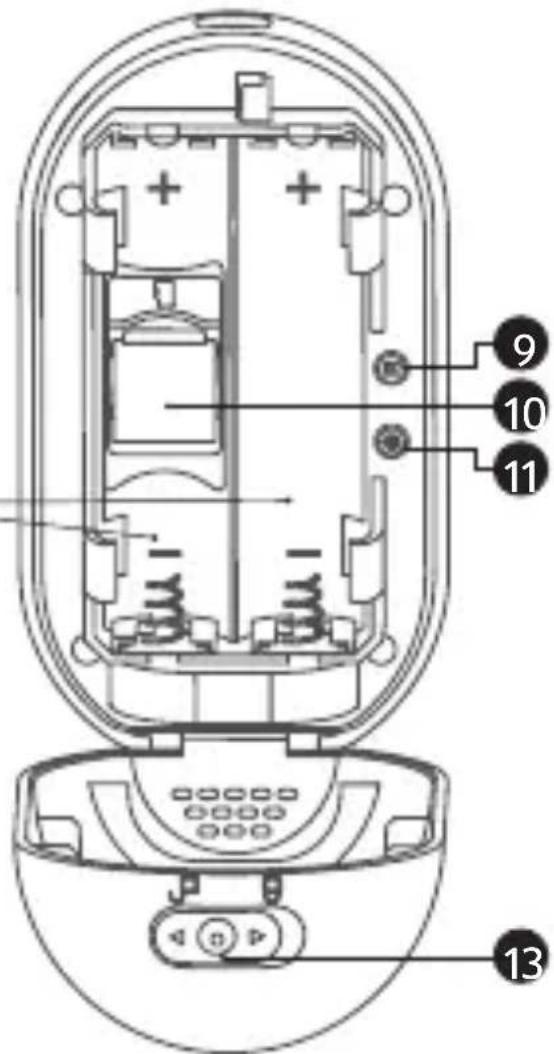

9 Reset button
10 microSD card slot
11 Power button

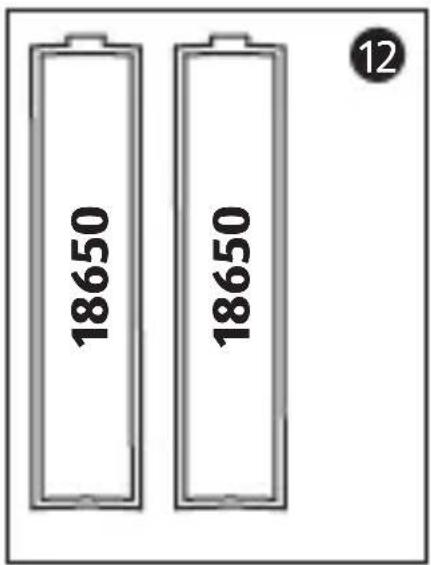

12 Slot for 2x rechargeable lithium-ion batteries ICR 18650
13 Housing lock

Setting Up the Camera

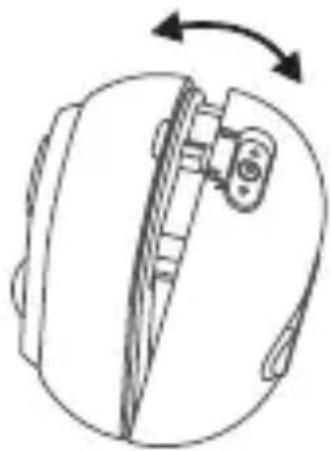

• Unlock the battery compartment by sliding the latch.
• Insert a microSD memory card (optional / not included in the scope of delivery) into the memory slot.
• Insert the batteries into the battery compartment.
• RESET: Press and hold the reset button until the „System Reset“ prompt comes out of the camera speaker.
• Close the battery cover and lock the camera by sliding the latch.

Diagram of a hand holding a device with directional arrows indicating rotation (no text or symbols)

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Placing / Assembling the Camera

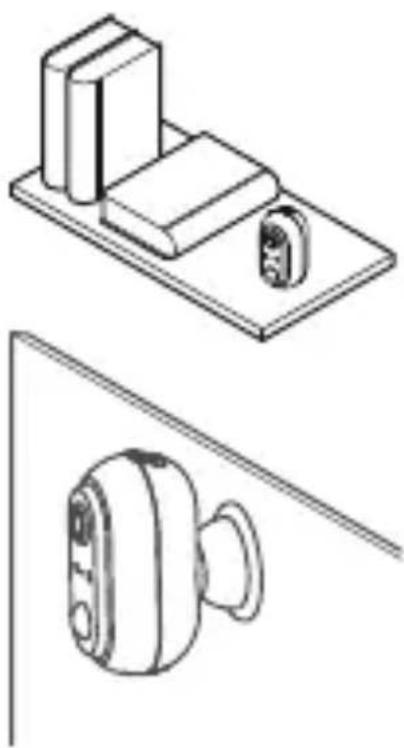

• You can place your camera on a flat surface or mount it on the wall.
• Choose a location with a clear field of view and a good wireless signal.

Note: The WLAN range can be impaired by walls or objects, or by interference from other WLAN networks. Select the installation location for the security camera that no sunlight falls on the lens.

Technical line drawing of a door lock and door clip assembly (no text or symbols)

Using the Magnetic Mount

• Fasten the dowel and mounting screw in a suitable wall about 2.1 meters above the floor and at a distance of about 3 – 5 meters from an expected movement.
• Hang the magnetic mount on the screw.

Note: You can also use double-sided adhesive tape instead of screws.

Simple line drawing of a screw with a shaft inserted into a rectangular block (no text or symbols)

Optimizing Motion Detection

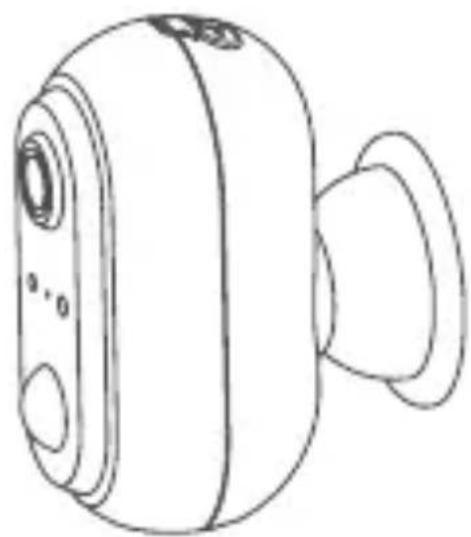

• Attach the camera to the magnetic mount.
• Point the camera slightly downwards.

Line drawing of a handheld device with circular ports and handle (no text or symbols)

Coverage of the Monitoring Area

• When installing the camera, the PIR sensor should not be aligned vertically with the moving object as it may not detect motion.
• It is recommended that the camera is oriented at an angle of more than 10 degrees in order to detect any movement.

Charging the Batteries

• To charge the batteries, connect the video doorbell to a power supply (not included in the scope of delivery) with 5 V=2 A and connect this to a power source using the micro-USB cable.
• The LED charging indicator lights red when charging and turns green when charging is complete.

Setting Up the App

Download the free app "Smart Life" by scanning the QR code or searching for „Smart Life" in the App Store or Google Play Store.

Download on the

App Store

GET IT ON

Google Play

Start the app on your phone and click the „Register“ button. Follow the on-screen instructions. Or login in with an existing "Smart Life" account.

Setting Up the App

Click the "Add Device" button. From the category "Security & Video Surveillance", select the category "Smart Camera (Wi-Fi)".

Follow the instructions in the app and reset the device first.

RESET: Press and hold the reset button until you hear the "System Reset" prompt from the camera speaker.

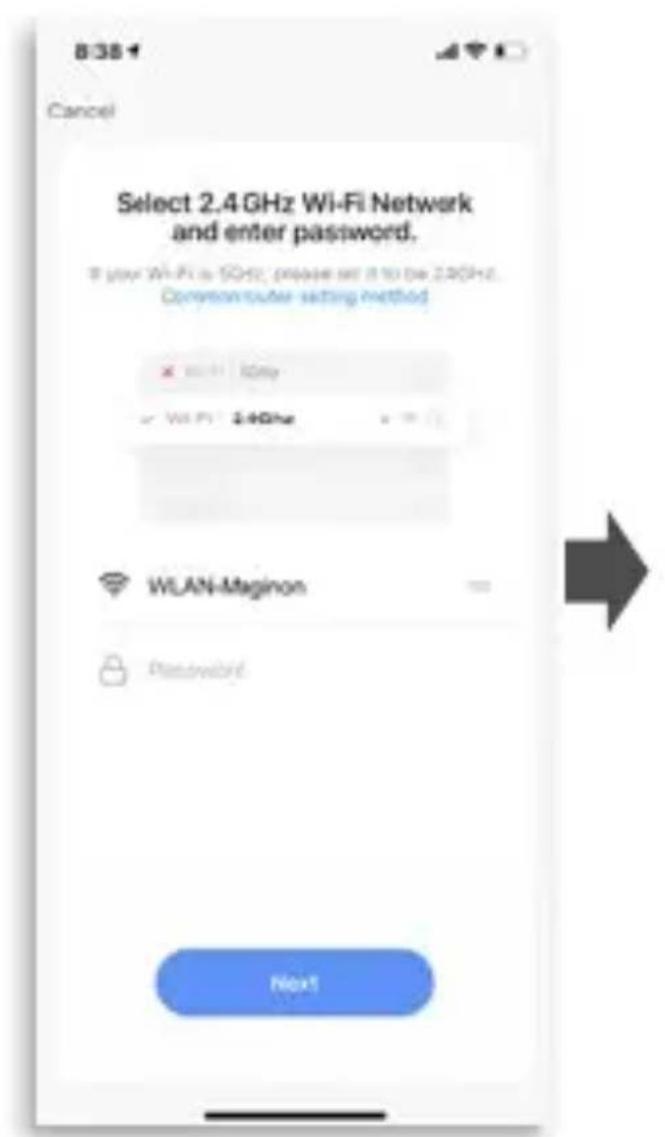

Select your 2.4 GHz WLAN network and enter your password.

Setting Up the App

Scan the QR code with the security camera.

After the successful scan, you will hear a prompt.

Then press the "I Heard a Prompt" button.

The device is added automatically.

The device is added, you can now make the room settings.

Click on the "Maginon IP 138 Wireless" button.

Operation of the App

The Main Menu

1 Resolution (HD = High Definition) (SD = Standard Definition)
2 Battery level
3 Settings
4 Screen format
5 Sound playback
6 Full screen
7 Photo recording
8 Intercom system
9 Video recording
10 Menu fold in and out
11 App optics settings
12 Anti-flicker settings
13 Playback (recordings saved in microSD memory card)
14 Gallery (recordings saved in the app)
15 PIR settings
16 Menu settings
17 Messages
18 Tuya Cloud
19 Features

Settings

Here you can make additional settings – e.g., the setup of Amazon Alexa or motion detection.

Technical Data

Image sensor 2 MP / 1/2,9" CMOS sensor

Effective pixels 1920 x 1080p

Field of view 130° diagonal

IR LED 10

Night vision distance 6 – 8 m

Storage microSD memory cards with memoryclass 10 up to 64 GB | Cloud storage

Video record Motion detection | manual recording via app

Upgrade Via „Smart Life“ app or firmware update via microSD memory card

Microphone Built in -38 db mic

Speaker Built in 8Ω / 1w speaker

Network 802.11 b/g/n 2.4 GHz WiFi

Frequency range 2.412-2.472 GHz for IEEE 802.11 b/g/n / HT20

Frequency band 60 MHz

Max. transmission power 17.2 dBm

Video compression H.264 / H.265

Motion detection distance 6 m

Motion detection levels 3 (high, medium, low)

Power 2x rechargeable Li-ion batteries ICR 18650 (total 5,200 mAh / 3.7 V / 19.24 Wh) | charging by USB power adapter (not included)

Input DC 5.0 V= 2.0 A

Working temperature -10 ~ 50°C

Protection class IP65

Mounting Magnetic wall mount, wireless installation

Compatibility Google Assistant, Amazon Alexa

Dimensions | Weight 10.1 x 5.7 x 8.2 cm | 0.126 kg

Box content Security camera, magnetic wall mount, 2x mounting screws, 2x dowels, 2x rechargeable lithium-ion batteries ICR 18650, micro-USB cable, user manual

Technical data are subject to change without notice.

The presented contents and representations may differ from the real contents and representations in the app due to updates.

Safety Instructions

• Only connect the product if the mains voltage of the USB input or USB power supply matches the specifications on the type plate on the back of the product.
• Do not use the product if it is visibly damaged or if the cable is defective.
• Use only the micro-USB cable supplied with the product.
• If the product or accessories are damaged, they must be replaced or repaired by the manufacturer, its customer service or a similarly qualified person in order to prevent hazards.
• Repairs may only be carried out by a specialist. Contact a specialist workshop for this purpose. Any liability and all warranty claims are excluded in the event of repairs by the user, improper connection or incorrect operation.
• Do not insert any objects into the product.
• Protect the product from moisture. Do not immerse it in water.
• Do not open, damage, short circuit, bypass or use the battery for any other purpose.
• Keep the battery away from children and animals, open flames and liquids, and do not expose it to temperatures higher than 50 °C. In addition, observe the information on caring for the battery in these operating instructions.
• Do not use or store the device at high temperatures or in closed rooms with direct sunlight and do not charge the battery during this time. The product should not be used at ambient temperatures more than 50 °C.

• Do not use the device near flammable gases or liquids, as this can lead to explosions.

• The device is not a toy. Keep the device, accessories and packaging materials away from children and animals to prevent accidents and suffocation.

• Provide adequate ventilation during operation. Never cover the device.
• If you sell the product to another person, also pass this user manual to that person.
• Use only the recommended adapter, with a maximum of DC 5.0 V=2.0 A.

Precautions

• Fully charge the battery, then disconnect the micro-USB cable.
• If the product has not been used for a long period of time, charge the battery before using it again.
• To extend the battery life, you should charge the battery at least every three months.
• This product has a built-in rechargeable battery that has a specific run time. If this has been used for a certain period of time, the performance of the battery will be reduced. This is normal.
• If the product is used in too cold or too hot ambient temperatures, the product switches off automatically.
• Have the product checked by an authorized service center if a problem occurs. You are not permitted to disassemble the product in case of malfunction. Otherwise, your guarantee will be void.

Battery Warnings

• Do not disassemble, hit or puncture the battery, be careful not to short-circuit the battery.
• Do not expose the battery to places with high temperatures. Do not continue to use the battery if it leaks or expands.
• Always charge through the system. If the battery is replaced with an incorrect type, there is a risk of explosion.
• Keep the battery away from children and animals.
• Batteries can explode if exposed to an open fire. Never throw batteries into a fire.
• Dispose of used batteries in accordance with local regulations.
• Before disposing of the appliance, remove the battery and dispose of it separately.
• The batteries must be fully charged before the device is used for the first time.

Note: Do not use quick- and/or superchargers to charge the camera, only power supplies with a maximum of DC 5.0 V=2.0 A. Use only the supplied micro-USB cable to charge the device. Otherwise, there is a risk of fire or electric shock.

Possible Infringements

When using the security camera, you should be aware of the following:

Copyright

In principle, every person has the right to their own image. According to the Copyright law, images may only be published without the consent of the persons concerned if the persons appear merely as an accessory next to a landscape or other localities.

The answer to the question of whether a person is merely an accessory depends on the circumstances of the individual case.

For reasons of legal certainty, information should be provided via the security camera in all cases where recordings with identifiable personal references are possible (see also the section on "Duty to inform").

Protection of Privacy

The privacy of others must not be violated by the images shown. Do not point your security camera into your garden or at the front door of your neighbor's house, even if these places are visible from your own home or from public places. This does not entitle you to publish these views.

Note that before handing over the camera for repair or to a third party, use the camera's reset function to delete all personal data from the camera's memory.

Possible Infringements

Personal Identifiability

A person can be identified if it can be determined that a particular person was at a particular place at a particular time. Identification can also be made using a personal license plate, such as a vehicle license plate. It is absolutely necessary to avoid the possibility of identifying persons.

Security Cameras at the Workplace

Monitoring in the workplace is subject to particularly strict regulations in Germany. Employers should completely dispense with security cameras in the workplace as long as a possible violation of the law cannot be completely ruled out.

Security Cameras in Road Traffic

In the case of security cameras with a view of road traffic, it is recommended that the location of the security cameras and the image section is configured in such a way that the road users cannot be determined by the car number though the recordings. Vehicle markings can also lead to the identification of road users.

Duty to Inform

If personal identification of persons cannot be ruled out, a notice on the security camera must be placed in a clearly visible position at all access routes to the recording area. The passer-by must also be informed that by entering the recording area, he or she gives his or her consent to the recording of the images and that, if his or her consent is denied, he or she can avoid the recording by not entering the area. In this context, attention must be paid to the declaration of conformity – voluntary nature of the declaration. If the photo trap is located in a place that the person concerned must pass in order to reach his or her destination (e.g. entrance from a tourist attraction), no effective consent is given due to lack of voluntariness.

Security

Intended Use

The security camera is designed exclusively as a security camera. It is intended exclusively for private use and is not suitable for commercial use.

Only use the security camera only as described in this user manual. Any other use is considered improper and may result in property damage or data loss.

The manufacturer or dealer assumes no liability for damage caused by improper or incorrect use.

If you want to connect your camera to your router in a European country, after selecting your router, set the region from North America (channel 1-11) to Europe (channel 1-13).

The minimum distance between the camera and the user is 25 cm for normal use.

WLAN is the abbreviation for „Wireless Local Area Network“. WLAN can be used when data transmission via cable would not be possible or only possible with great effort.

Disposal

Dispose of the packaging according to its type. Use the local possibilities for collecting paper, cardboard and other materials. (Applicable in the European Union and other European countries with systems for the separate collection of recyclable materials.)

Devices marked with this symbol must not be disposed of with household waste! You are legally obliged to dispose of old devices separately from to dispose of household waste. Information on collection points that accept old appliances free of charge can be obtained from your local authority or town council.

Batteries and rechargeable batteries must not be disposed of with household waste! As a consumer, you are legally obligated to dispose of all batteries and accumulators, whether they contain harmful substances* or not, to be disposed of in an environmentally sound manner. Accumulators and batteries are therefore marked with the symbol shown opposite. For more information, contact your dealer or contact return and collection points in your community.

*marked with: Cd = Cadmium, Hg = Mercury, Pb = Lead.

Conformity

supra Foto-Elektronik-Vertriebs-GmbH hereby declares that this radio system type "Maginon IP 138 Wireless" is in conformity with Directive 2014/53/EU.

The full text of the EU Declaration of Conformity is available at the following Internet address: downloads.maginon.com/download/ip-138-wireless
