USER MANUAL GLM 5025 G Professional BOSCH

(20) Locking mechanism of the Li-ion battery pack

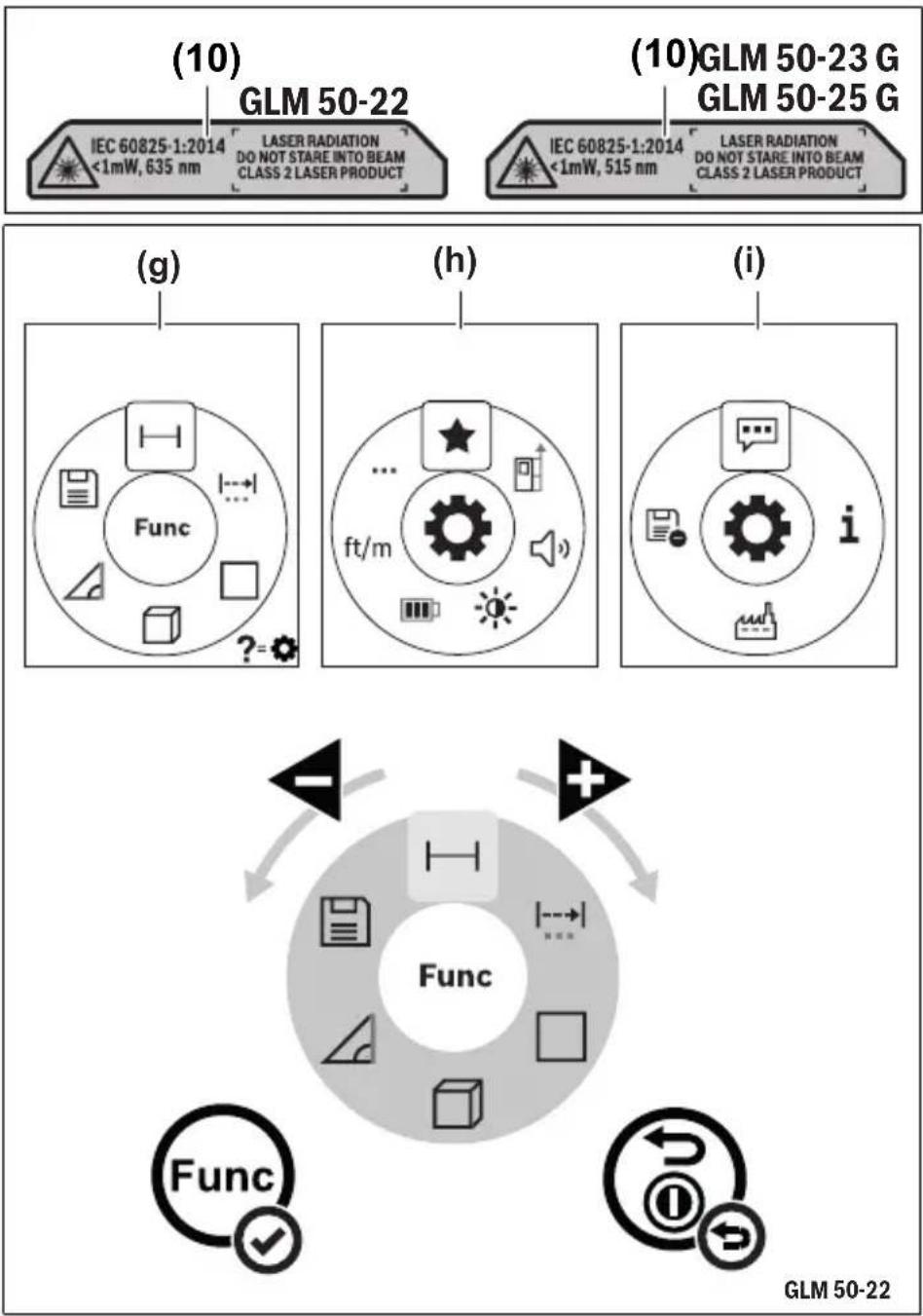

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. B) USBType-C® and USB-C® are trademarks of USB Implementers Forum. Display elements (a) Reference level of measurement (b) Battery indicator (c) Measured value lines (d) Result line (e) Measuring function display (f) Status bar (g) Functions menu (h) Basic settings menu (i) Further basic settings menu (j) Slope angle display (GLM 50-23 G) Bosch Power Tools 1 609 92A 7P5 | (24.06.2022)26 | English Technical data Digital laser measure GLM 50-22 GLM 50-23 G GLM 50-25 G Article number 3601K72S.. 3601K72V01 3601K72V00 Measuring range

0.05–50m Measuring range (unfa- vourable conditions)

0.05–20m Measuring accuracy

±1.5mm Measuring accuracy (unfa- vourable conditions)

–10°C to +45°C Storage temperature –20°C to +70°C Relative air humidity max. 90% Max. altitude 2000m Pollution degree accord- ing to IEC61010-1

Laser class 2 Laser type 635nm,<1mW 515nm,<1mW 515nm,<1mW Divergence of the laser beam <1.5mrad (full angle) Automatic switch-off after approx. – Laser 20s – Measuring tool (without measurement) 5min Batteries 2×1.5V LR6(AA) Battery pack (access- ory) Li-ion Type BA 3.7V 1.0Ah A Article number 1607A350N8 USB charging connection Type-C® 1 609 92A 7P5 | (24.06.2022) Bosch Power ToolsEnglish | 27 Digital laser measure GLM 50-22 GLM 50-23 G GLM 50-25 G Recommended USB Type- C® cable 1600A016A8 Rated voltage 3.7V Capacity 1.0Ah Number of battery cells 1 Permitted charging tem- perature range 0°C to +60°C Power supply Output voltage 5.0V Min. output current 500mA Recommended power supply

GLM 50-22 GLM 50-23 G GLM 50-25 G

www.bosch-pt.com/serviceaddresses
