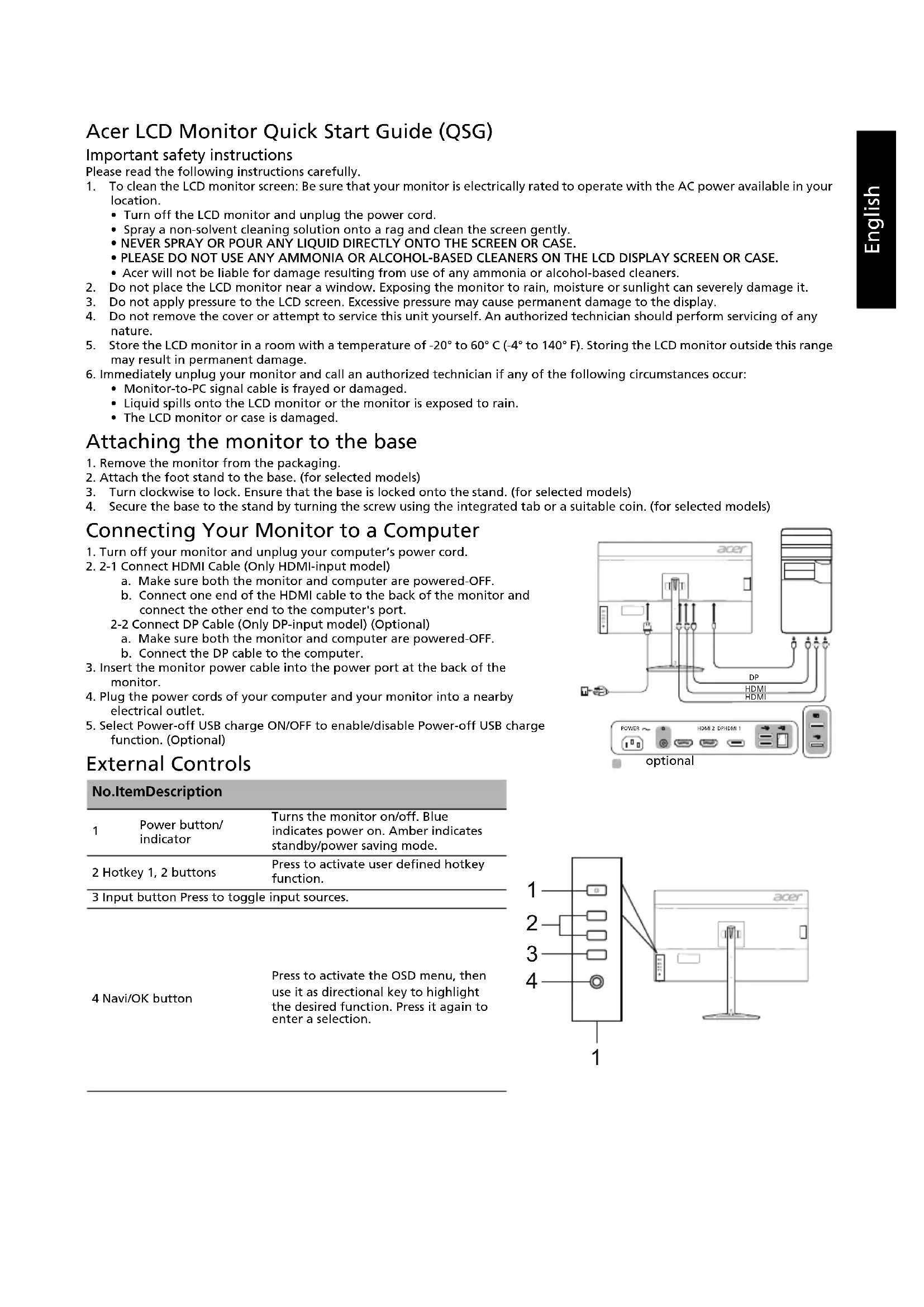

Important safety instructions

Please read the following instructions carefully.

1. To clean the LCD monitor screen: Be sure that your monitor is electrically rated to operate with the AC power available in your location.

2. Turn off the LCD monitor and unplug the power cord.

3. Spray a non-solvent cleaning solution onto a rag and clean the screen gently.
   NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE.
4. PLEASE DO NOT USE ANY AMMONIA OR ALCOHOL-BASED CLEANERS ON THE LCD DISPLAY SCREEN OR CASE.

5. Acer will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

6. Do not place the LCD monitor near a window. Exposing the monitor to rain, moisture or sunlight can severely damage it.

7. Do not apply pressure to the LCD screen. Excessive pressure may cause permanent damage to the display.
8. Do not remove the cover or attempt to service this unit yourself. An authorized technician should perform servicing of any nature.

9. Store the LCD monitor in a room with a temperature of -20^ to 60^ C (-4^ to 140^ F). Storing the LCD monitor outside this range may result in permanent damage.

10. Immediately unplug your monitor and call an authorized technician if any of the following circumstances occur:

Monitor-to-PC signal cable is frayed or damaged.
- Liquid spills onto the LCD monitor or the monitor is exposed to rain.
The LCD monitor or case is damaged.

Attaching the monitor to the base

1. Remove the monitor from the packaging.
2. Attach the foot stand to the base. (for selected models)
3. Turn clockwise to lock. Ensure that the base is locked onto the stand. (for selected models)
4. Secure the base to the stand by turning the screw using the integrated tab or a suitable coin. (for selected models)

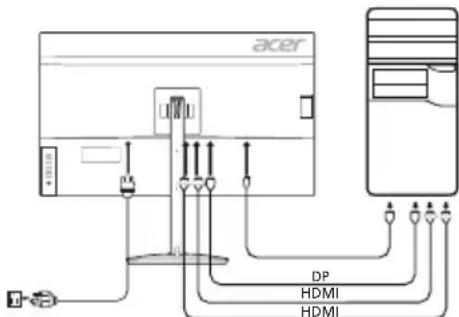

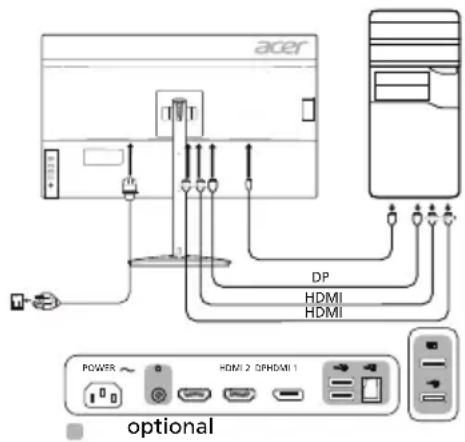

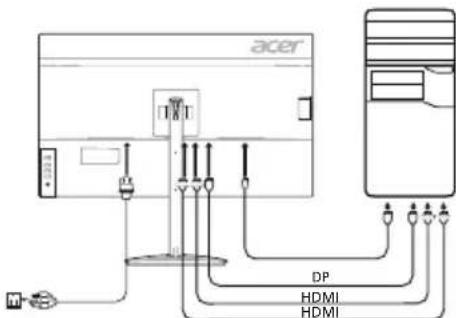

Connecting Your Monitor to a Computer

1. Turn off your monitor and unplug your computer's power cord.
2. 2-1 Connect HDMI Cable (Only HDMI-input model)

a. Make sure both the monitor and computer are powered-OFF.
b. Connect one end of the HDMI cable to the back of the monitor and connect the other end to the computer's port.

2-2 Connect DP Cable (Only DP-input model) (Optional)

a. Make sure both the monitor and computer are powered-OFF.
b. Connect the DP cable to the computer.

1. Insert the monitor power cable into the power port at the back of the monitor.
2. Plug the power cords of your computer and your monitor into a nearby electrical outlet.
3. Select Power-off USB charge ON/OFF to enable/disable Power-off USB charge function. (Optional)

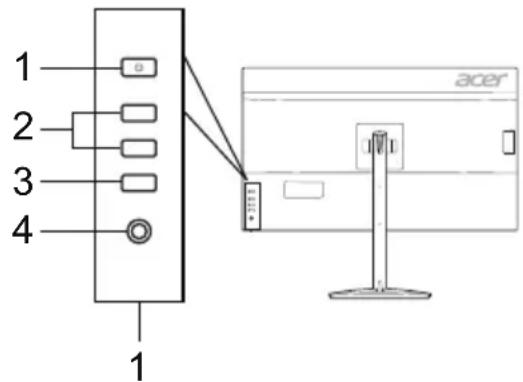

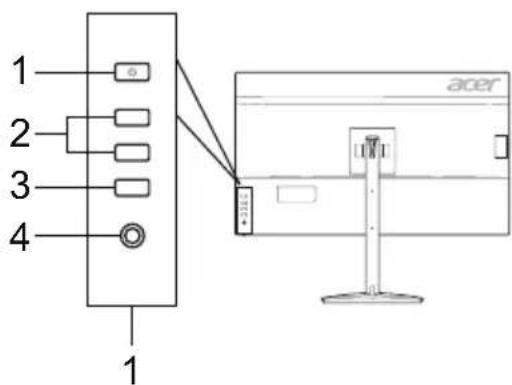

External Controls

No.ItemDescription
1	Power button/indicator	Turns the monitor on/off. Blue indicates power on. Amber indicates standby/power saving mode.
2	Hotkey 1, 2 buttons	Press to activate user defined hotkey function.
3	Input button Press to toggle input sources.
4	Navi/OK button	Press to activate the OSD menu, then use it as directional key to highlight the desired function. Press it again to enter a selection.

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.

CE declaration of Conformity

Hereby, Acer Inc., declares that this LCD monitor is in compliance with the essential requirements and other relevant provisions of EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, and RoHS Directive 2011/65/EU and Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

Notice:

In order to prevent damage to the monitor, do not lift the monitor by its base.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with EMC regulations.

Notice:

Acer monitor is purported for video and visual display of information obtained from electronic devices.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user authority, which is granted by the Federal Communications Commission, to operate this product.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

SPECIFICATION

LCD Panel	Driving System TFT Color LCD
	Size 32"W (81 cm)
	Pixel Pitch 0.276 mm (H) x 0.276 mm (V)
	Brightness	Native: 400 cd/m²; HDR600 mode: 600 cd/m²
	Contrast 10000000:1 Max (ACM)
	Viewable Angle 178° (H) 178° (V) (CR=10)
	Response Time 1 ms (G) to G / 0.5 ms (G to G, min)
	Panel Type In-Plane Switching
	H-Frequency HDMI: 31 - 222 kHz / DP: 31 - 395 kHz
	V-Frequency HDMI: 56 - 144 Hz / DP: 56 - 270 Hz
Display Colors 16.7 Million
Dot Clock HDMI: 595.5 MHz / DP: 1056.97 MHz
Maximum Resolution		HDMI: 2560 x 1440 @ 144 Hz / DP: 2560 x 1440 @ 240 Hz DP: 2560 x 1440 @ 270 Hz (with Over Clock On)
Plug & Play VESA DDCCI/DDC2B
Energy Efficiency Class C
*Annual Energy Consumption 86 (kWh) (for HDMI-Input Model)
Power Consumption (at 200 nits)	On Mode 45 W (Typical)
	Sleep Mode	0.45 W (Typical)
	Off Mode	0.3 W (Typical)
Input Connector		HDMI (Only HDMI-Input Model) / DP (Only DP-Input Model)
Input Video Signal		HDMI (Only HDMI-Input Model) (Optional) / DP (Only DP-Input Model) (Optional)
Speakers		2 W x 2 (Only Audio-Input Model) (Optional)
USB		USB 3.0 x 4 (Optional)
Maximum Screen Size		Horizontal: 708.4 mm Vertical: 398.5 mm
Power Source		100-240 V, 50/60 Hz
Environmental Considerations		Operating Temp: 0° to 40°C Storage Temp: -20° to 60°C Operating Humidity: 20% to 80%
Dimensions		727.48 (W) x 479.18 ~ 609.18 (H) x 269 (D) mm
Weight (N. W.)		9.5 kg (net)
Mechanism Specifications		Tilt: -5° to +35° (Only at the highest point can 35 degrees of recline be offered for the angle of elevation) Swivel: 360° Height adjustment: 0 mm to 130 mm Pivot: No Detachable foot stand: Yes
External Controls	Switch/Buttons	Power Button Input Hotkey 1 Menu/Navi/OK Hotkey 2
	Functions	Brightness Aim Point Contrast Language Blue Light OSD Timeout Black Boost Transparency ACM OSD Lock HDR*** Input Super Sharpness Auto Source Gamma DP Format Color Temperature Hot Key Assignment Modes Wide Mode Color Space PIP/PBP Grayscale Mode DCC/CI 6-axis Hue HDMI Black Level 6-axis Saturate Quick Start Mode Over Clock# Volume Mute Power-Off USB Charge Display Information Reset All Settings Exit
Specifications vary depending on model and/or region.

Find manuals and other documents for your Acer product on the official Acer support website.
Annual energy consumption is calculated using the typical power consumption 4 hours per day, 365 days per year.
*FreeSync Premium provides artifact-free performance. It is compatible with both Nvidia G-Sync and AMD FreeSync Premium technologies when used in combination with select Nvidia/AMD graphics cards.
***With HDR enabled, full-array local dimming display may experience a blooming or haloing effect due to brighter zones affecting images of adjacent dark zones.
Overclocking may result in flicker or other adverse effects that may derive from the total configuration of the system connected to the display, and possibly, in addition, the display's panel specifications. It may be possible to resolve or reduce such effects by setting a lower refresh rate.
