USER MANUAL DigiLab 3D40 Flex DREMEL

Technical illustration of a DREMEL 3D printer internal structure (no text or symbols on the device itself)

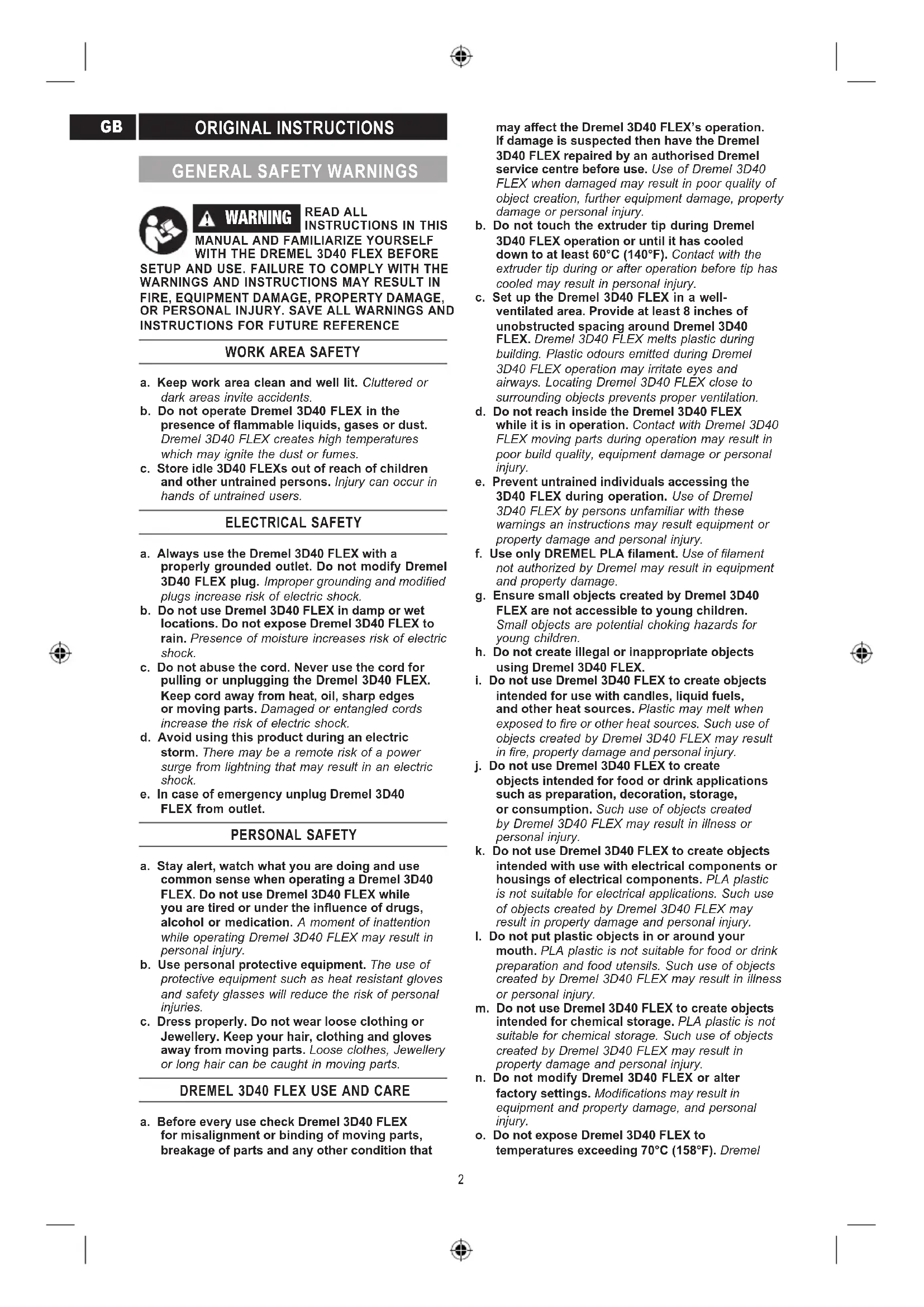

GB Original instructions 2

SETUP AND USE. FAILURE TO COMPLY WITH THE WARNINGS AND INSTRUCTIONS MAY RESULT IN FIRE, EQUIPMENT DAMAGE, PROPERTY DAMAGE, OR PERSONAL INJURY. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

WORK AREA SAFETY

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate Dremel 3D40 FLEX in the presence of flammable liquids, gases or dust. Dremel 3D40 FLEX creates high temperatures which may ignite the dust or fumes.
c. Store idle 3D40 FLEXs out of reach of children and other untrained persons. Injury can occur in hands of untrained users.

ELECTRICAL SAFETY

a. Always use the Dremel 3D40 FLEX with a properly grounded outlet. Do not modify Dremel 3D40 FLEX plug. Improper grounding and modified plugs increase risk of electric shock.
b. Do not use Dremel 3D40 FLEX in damp or wet locations. Do not expose Dremel 3D40 FLEX to rain. Presence of moisture increases risk of electric shock.
c. Do not abuse the cord. Never use the cord for pulling or unplugging the Dremel 3D40 FLEX. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
d. Avoid using this product during an electric storm. There may be a remote risk of a power surge from lightning that may result in an electric shock.
e. In case of emergency unplug Dremel 3D40 FLEX from outlet.

PERSONAL SAFETY

a. Stay alert, watch what you are doing and use common sense when operating a Dremel 3D40 FLEX. Do not use Dremel 3D40 FLEX while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating Dremel 3D40 FLEX may result in personal injury.
b. Use personal protective equipment. The use of protective equipment such as heat resistant gloves and safety glasses will reduce the risk of personal injuries.
c. Dress properly. Do not wear loose clothing or Jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, Jewellery or long hair can be caught in moving parts.

DREMEL 3D40 FLEX USE AND CARE

a. Before every use check Dremel 3D40 FLEX for misalignment or binding of moving parts, breakage of parts and any other condition that

may affect the Dremel 3D40 FLEX's operation. If damage is suspected then have the Dremel 3D40 FLEX repaired by an authorised Dremel service centre before use. Use of Dremel 3D40 FLEX when damaged may result in poor quality of object creation, further equipment damage, property damage or personal injury.

b. Do not touch the extruder tip during Dremel 3D40 FLEX operation or until it has cooled down to at least 60°C (140°F). Contact with the extruder tip during or after operation before tip has cooled may result in personal injury.

c. Set up the Dremel 3D40 FLEX in a well-ventilated area. Provide at least 8 inches of unobstructed spacing around Dremel 3D40 FLEX. Dremel 3D40 FLEX melts plastic during building. Plastic odours emitted during Dremel 3D40 FLEX operation may irritate eyes and airways. Locating Dremel 3D40 FLEX close to surrounding objects prevents proper ventilation.

d. Do not reach inside the Dremel 3D40 FLEX while it is in operation. Contact with Dremel 3D40 FLEX moving parts during operation may result in poor build quality, equipment damage or personal injury.

e. Prevent untrained individuals accessing the 3D40 FLEX during operation. Use of Dremel 3D40 FLEX by persons unfamiliar with these warnings an instructions may result equipment or property damage and personal injury.

f. Use only DREMEL PLA filament. Use of filament not authorized by Dremel may result in equipment and property damage.

g. Ensure small objects created by Dremel 3D40 FLEX are not accessible to young children. Small objects are potential choking hazards for young children.

h. Do not create illegal or inappropriate objects using Dremel 3D40 FLEX.

i. Do not use Dremel 3D40 FLEX to create objects intended for use with candles, liquid fuels, and other heat sources. Plastic may melt when exposed to fire or other heat sources. Such use of objects created by Dremel 3D40 FLEX may result in fire, property damage and personal injury.

j. Do not use Dremel 3D40 FLEX to create objects intended for food or drink applications such as preparation, decoration, storage, or consumption. Such use of objects created by Dremel 3D40 FLEX may result in illness or personal injury.

k. Do not use Dremel 3D40 FLEX to create objects intended with use with electrical components or housings of electrical components. PLA plastic is not suitable for electrical applications. Such use of objects created by Dremel 3D40 FLEX may result in property damage and personal injury.

I. Do not put plastic objects in or around your mouth. PLA plastic is not suitable for food or drink preparation and food utensils. Such use of objects created by Dremel 3D40 FLEX may result in illness or personal injury.

m. Do not use Dremel 3D40 FLEX to create objects intended for chemical storage. PLA plastic is not suitable for chemical storage. Such use of objects created by Dremel 3D40 FLEX may result in property damage and personal injury.

n. Do not modify Dremel 3D40 FLEX or alter factory settings. Modifications may result in equipment and property damage, and personal injury.

o. Do not expose Dremel 3D40 FLEX to temperatures exceeding 70°C (158°F). Dremel

3D40 FLEX may become damaged. Dremel 3D40 FLEX is intended to operate in temperature between 16 - 29^ (60 - 85° F).

p. Do not move or bump Dremel 3D40 FLEX or the extruder during operation. The object may build incorrectly.
q. Do not change filament spool unless the building process is completed, stopped, or paused. Changing the filament during building will cancel the object and may damage the extruder.
r. Do not pull the filament out until instructed by the touch screen. Doing so may damage the extruder.
s. Use extra care not to damage the extruder tip when clearing debris. Dremel 3D40 FLEX will not work properly with damaged extruder tip and will require replacement.
t. Before every build make sure that the build platform is covered with Dremel specified build tape. Use of improper build tape may result in equipment damage and poor object build quality.
u. Be aware of your body position when using hand tools to remove objects from the build platform. Sudden tool slip and improper body position during object removal from the build platform may result in personal injury.
v. Avoid scratching the build platform when removing objects. Scratches in the build platform will result in improper object creation.
w. Do not drop the build platform. Tempered glass plate may break and result in personal injury.
x. Do not remove tempered glass plate from plastic holder. Contact with tempered glass plate edge may result in personal injury.
y. Do not twist or bend the build platform while removing objects. Tempered glass plate may separate from plastic holder and result in personal injury.
z. Dremel is not responsible for structural integrity or utility of objects created using Dremel 3D40 FLEX. Structural models created by inexperienced designers may result in property damage and personal injury.

SERVICE

a. Always unplug Dremel 3D40 FLEX from its power before performing any service procedures. Failure to do so may result in personal injury and equipment damage.
b. Have your Dremel 3D40 FLEX serviced only by an authorized Dremel service centre using only Dremel replacement parts. This will ensure that proper operation and safety of Dremel 3D40 FLEX is maintained.
c. Use only Dremel approved materials and components. Use of object materials, or 3D objects other than Dremel ^® approved object materials and genuine Dremel ^® components may void warranty.
d. Use only Dremel approved filament. Damage to the product resulting from use of filament other than Dremel approved filament is not covered under warranty.

TABLE OF CONTENTS

General safety warnings ......2
Table of contents....3
Used symbols....4
FCC COMPLIANCE ....4
Information on Intellectual Property 4
Functional Description and Specifications ..... 4
3D40 FLEX Resources....5
Glossary of Terms......6
Getting to know your 3D40 FLEX....7
Introduction....9
Kit Contents*......9
Touch Screen....11
Touch Screen Icons 16
Initial Setup....17
Getting Ready to Build....18
Initial setup 20
Building 23
Removing Your Object....25
Best Practices ......26
Maintenance....27
Maintenance and Service....29
Open Source Software 30
Dremel ^® Consumer Limited Warranty......31

USED SYMBOLS

Symbol Name Designation/

		Explanation
WARNING	Warning symbol	Alerts user to warning messages
	Read manual symbol	Alerts user to read manual
V	Volts Voltage
A	Amperes Current)
Hz	Hertz	Frequency, cycles per second
∅	Diameter
o	Off position
	Alternating current	Type or a characteristic of current
	Hot surface hazard symbol	Contact may cause burn. Allow to cool before servicing.
		The magnets of the build plate holder generate a field that can impair the function of cardiac pacemakers.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes and Modifications not expressly approved by the manufacturer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commission's rules.

INFORMATION ON INTELLECTUAL PROPERTY

The Dremel 3D40 FLEX is intended for 3D printing objects from digital files that you create or own, or have the right to print using the Dremel 3D40 FLEX.

When making objects using the Dremel 3D40 FLEX, it is your responsibility to ensure that you do not infringe any third party intellectual property rights or violate any applicable laws or regulations, such as U.S. or foreign intellectual property laws. The Dremel 3D40 FLEX may not be used to make objects protected by intellectual property rights owned by third parties without such third parties' permission. Using the Dremel 3D40 FLEX to do any of the following may require the permission of third parties: to make a duplicate or facsimile (in whole or in part) of any object not created by you, to make an object from a digital file you do not own, or to make an object from a scan of a physical object that you did not create. It is your responsibility to obtain such permission. In some cases, you may not be able to obtain such permission. Where such permission cannot be obtained, you should not 3D print such object, or you do so at your own risk. You may not modify, reverse engineer, decompile, or disassemble the Dremel 3D40 FLEX or its software or firmware, except as permitted by applicable law. If you use the Dremel 3D40 FLEX in any way other than as recommended and described in these Operating/Safety Instructions, you do so at your own risk. Using the Dremel 3D40 FLEX to make objects that infringe any intellectual property rights owned by third parties could result in civil or criminal prosecution and penalties, and you could be liable for money damages, fines, or imprisonment.

FUNCTIONAL DESCRIPTION AND SPECIFICATIONS

BUILDING

Extruder: Single extrusion

Extruder temperature: Up to 230°C (397°F)

Operating Interface: 3.5" full color IPS touch screen Maximum Build Volume: 10" x 6" x 6.7" (255mm x 155mm x 170mm)

Layer Thickness: 50 microns | 0.5 mm

Filament Colors: See Dremel3D.com for color choices Internal Storage: 4GB

External Storage: USB Flash Drive

WEIGHT & DIMENSIONS

Weight (without spool): 16kg (35lbs)

Dimensions: 20.25" x 16" x 15.9" (515mm x 406mm x 394mm)

FILAMENT

ONLY works with Dremel 1.75mm filament

FILAMENT STORAGE

All polymers degrade with time. Do not unpack until filament is needed. Filament should be stored at room temperature: 16-29°C (60-85°F) and in dry conditions.

SOFTWARE

Dremel 3D40 FLEX comes with complimentary Dremel Digilab 3D Slicing software for Windows and Mac OSX. This application converts your 3D digital files into buildable files.

• CPU: 64-bit processor (32-bit not supported)
• Memory: 3 GB RAM (4 GB or more recommended)
- Disk space: \~2 GB free disk space for installation
- Display card: 1,024 MB GDDR RAM or more. Microsoft® Direct3D® 11 capable graphics card or higher
- Pointing device: Three-button mouse

ELECTRICAL REQUIREMENTS

3D40 FLEX input rating: 100-240V, 47-60Hz, 0.8A-1.8A

OPERATING ENVIRONMENT

Room Temperature: 16-29°C (60 - 85°F)

Level workspace

Dry workspace environment

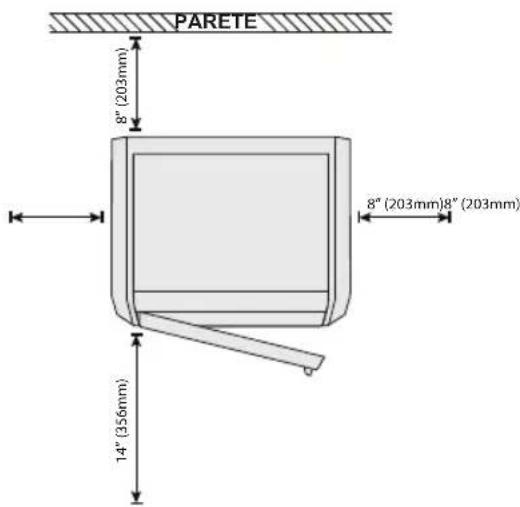

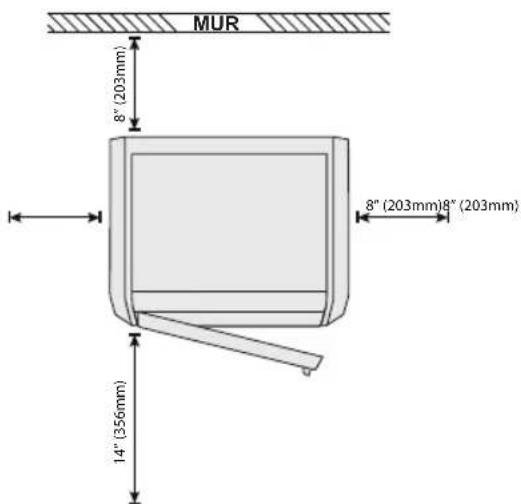

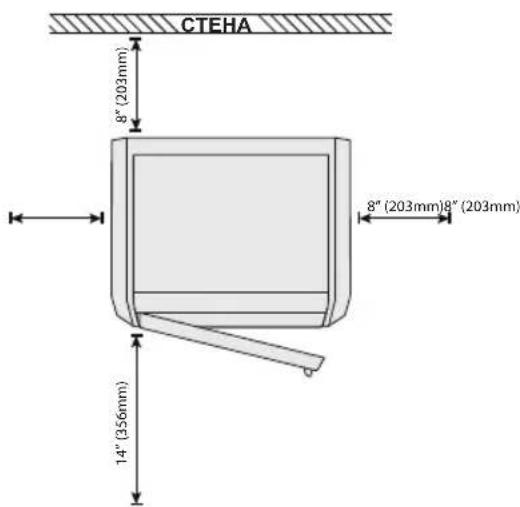

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Line drawing of a rectangular device with diagonal stripes and small square buttons at the bottom (no text or symbols)

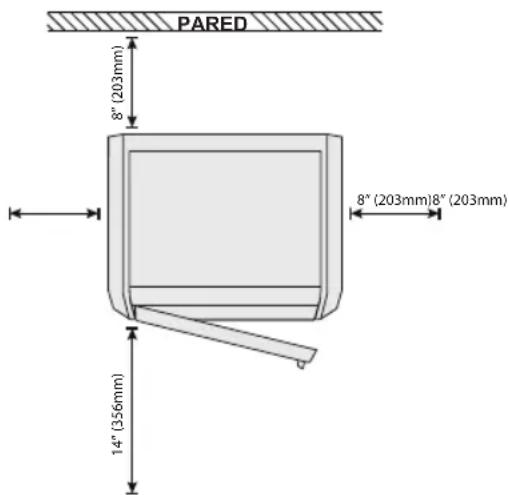

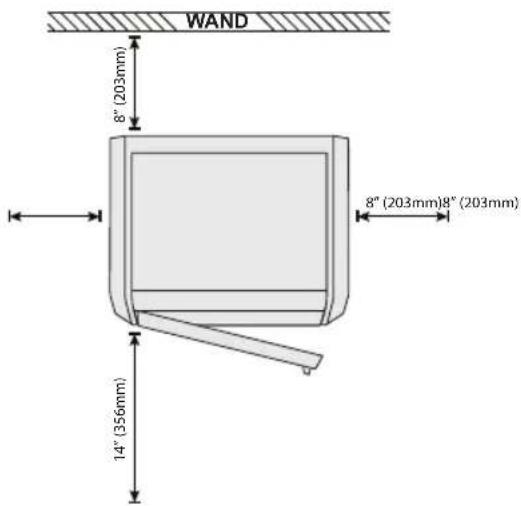

WALL 8" (203mm) 8" (203mm)8" (203mm) 14" (356mm)

3D40 FLEX RESOURCES

Resource Description Location
Quick Start Guide	Provides illustrated walk through of how to un-box your 3D40 FLEX and start building out of the box.	Printed version of the Quick Start Guide is located in the rectangular component carton. It is also available on www.dremel3d.com
Dremel 3D Website	Provides the latest 3D40 FLEX software, product information, customer support, and 3D model and project downloads.	www.dremel3d.com
Dremel 3D Customer Support	Contact Dremel for product support, maintenance, and service.	www.dremel3d.com
File Slicing Software	Allows you to upload, edit, and build 3D files.	Installed from www.dremel3d.com or from USB flash drive provided with the Dremel 3D40 FLEX.

GLOSSARY OF TERMS

Term Definition

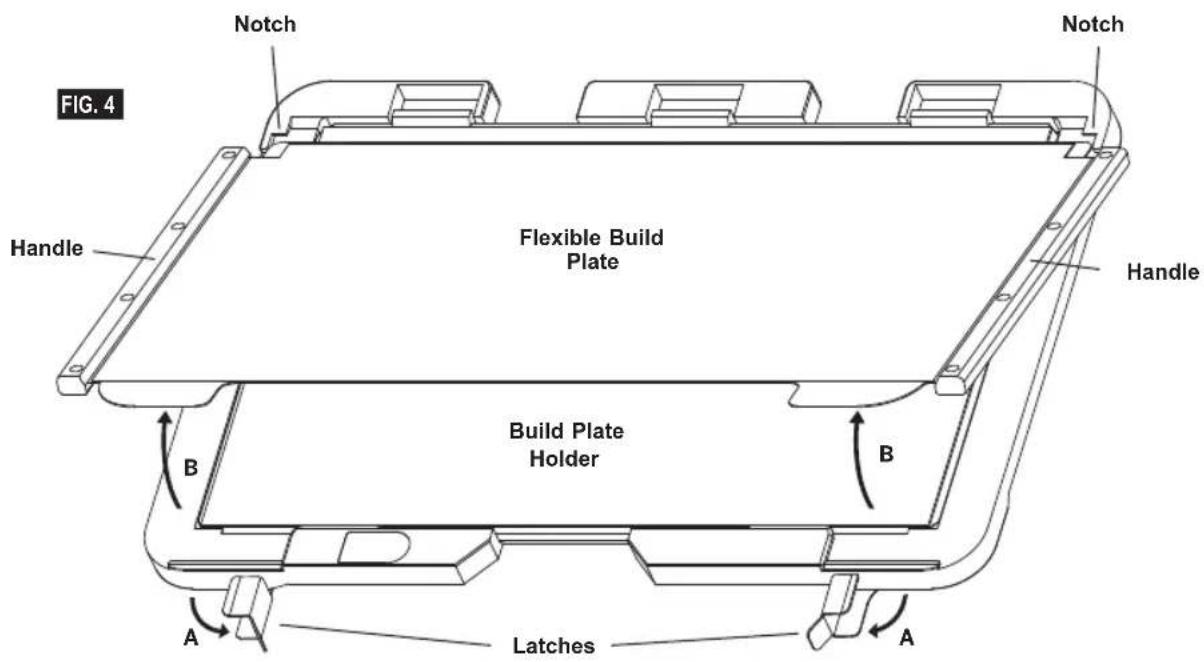

Flexible Build Plate	The flat, flexible surface used by your Dremel 3D40 FLEX to build objects. The flexible build plate is comprised of a flexible steel plate with plastic handles for easy bending. The flexible build plate is attached to the printer using the build plate holder.
Build Plate Holder	The flat, magnetic surface used to hold the flexible build plate. It has a magnetic surface, two notches in the back and two movable latches in the front to hold down the flexible build plate.

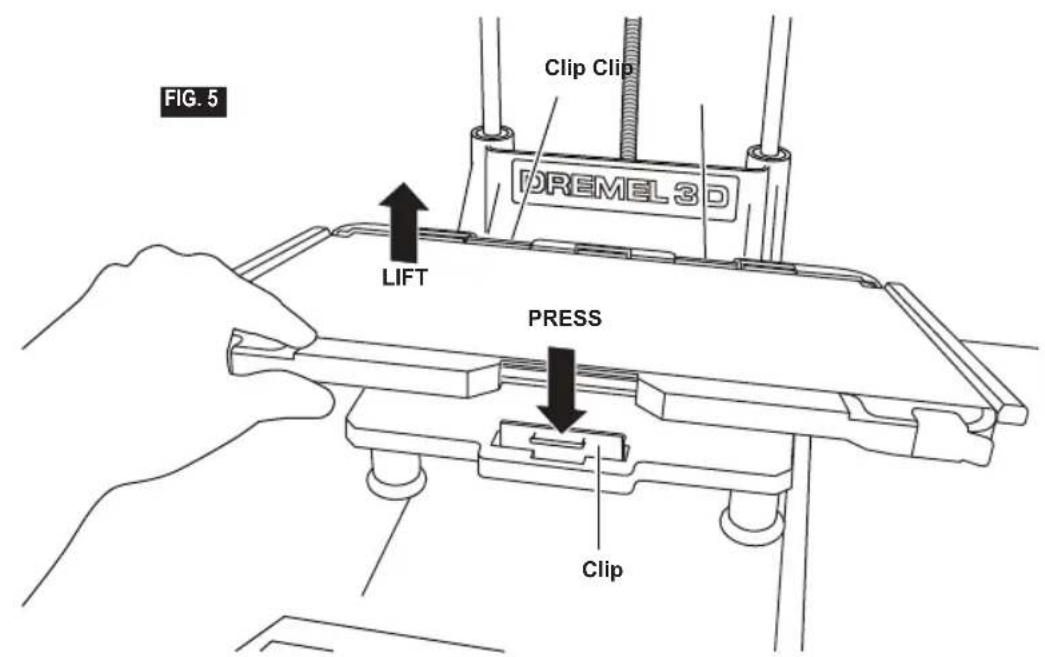

Build Platform Clip	Clip located at the front of the build platform base that is used to secure the build platform in place.
Build Tape Adhesive tape that improves the consistency of your objects and helps them stick to the build plate surface.
Build Volume The three dimensional (3D) amount of space that an object will use once it is completed. Your Dremel 3D40 FLEX has a maximum build volume which means that objects with a larger build volume cannot be built unless they are resized or broken into subobjects.
Door Your Dremel 3D40 FLEX has a door located on the front panel. This allows for easy access to the build platform, extruder, filament, and your objects. This door is made with a transparent material so you can monitor the progress of your objects while keeping the build environment stable.

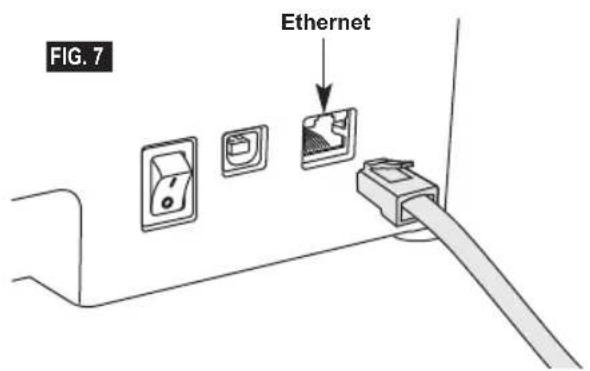

Ethernet Port A local area wired networking technology that allow electronic devices to communicate.
Extruder An assembly that uses gears to pull filament through the extruder intake, heat the filament to the build temperature, and push the heated filament out of the extruder tip.
Extruder Fan A fan used to cool the outer assembly of the extruder and gear motor.
Extruder Fan Baffle	A plastic piece that directs air from the extruder fan onto the build platform to assist in cooling the active build.
Extruder Intake An opening located at the top of the extruder where filament is inserted for building.
Extruder Lever A lever located on the side of the extruder that is used to loosen the grip of the extruder gear motor.
Extruder Tip A nozzle located at the bottom of the extruder where heated filament is forced out for building.
Filament	A threadlike strand of plastic material.

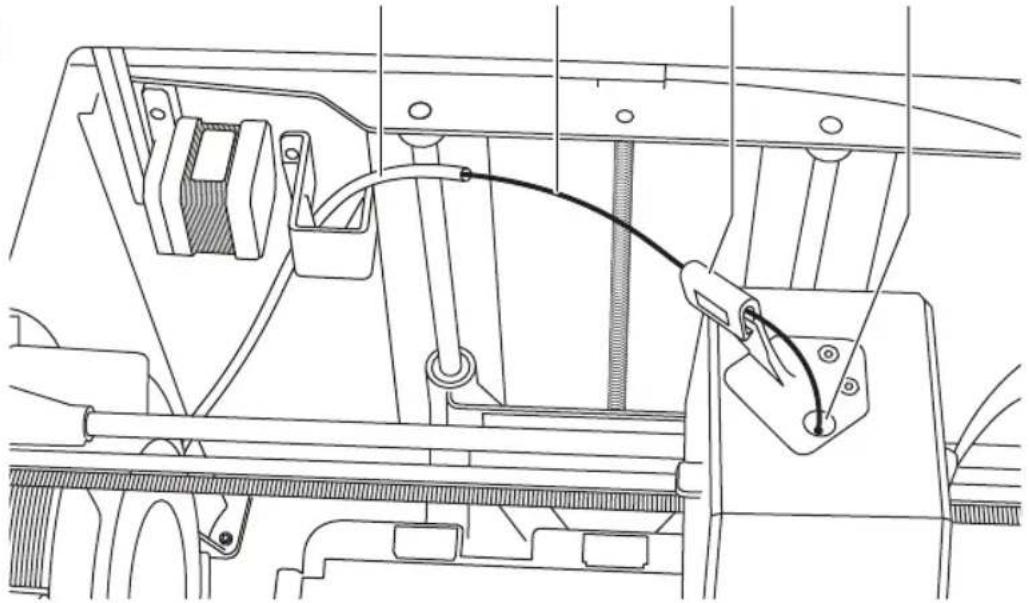

Filament Guide Tube	A plastic piece that guides the filament from the filament spool through a passage in the outer housing of your Dremel 3D40 FLEX.
Filament Jam Sensor	A sensor in the extruder that pauses your printer if filament stops extruding properly.

Filament Runout Sensor	A sensor in the extruder intake that pauses your printer if it runs out of filament during a build.
Filament Spool	A cylindrical piece on which a long strand of filament is wound for storage and continuous use.
.g, .gcode, .g3drem	A buildable file format compatible with your Dremel 3D40 FLEX.
Leveling Knobs	Knobs located under the build platform base that are used to create proper spacing between the extruder tip and the build platform.
Leveling Sensor	A sensor that detects the height of the build platform and assists in proper leveling.
Lid	Your Dremel 3D40 FLEX has a pivoting lid on the top. This allows for more access to the build platform, extruder, filament, and objects when necessary.
Needle Nose Pliers	Common tool used to hold small objects and to grab excess material that may be too hot to touch directly.
OBJ File	A common digital file format used in a wide range of 3D model software. This file is created in 3rd party 3D software or downloaded from Dremel3D.com.
Object Removal Tool	A tool used to separate your objects from the build platform.
PLA. A bioplastic derived from renewable resources such as corn starch
Spool Holder A	plastic piece located to the left of the build platform inside your Dremel 3D40 FLEX build area that is designed to hold a filament spool.
Spool Door	A removable door which locks the filament spool to the spool holder.
Stepper Motor	A brushless DC electric motor used to drive the guide rails and extruder gears.
.STL File	A common digital file format used in a wide range of 3D model software. This file is created in 3rd party 3D software or downloaded from Dremel3D.com.
Touch Screen	Full color display that is touch activated. It allows you to monitor your Dremel 3D40 FLEX and objects while also providing commands directly to your Dremel 3D40 FLEX without the use of a computer.
USB Flash Drive	A portable memory card used on a wide array of devices.
WIFI	A local area wireless networking technology that allow electronic devices to communicate.
X-Axis Guide Rails	A set of rails on either side of the extruder that allow a stepper motor to move the extruder to the left or right side of the build area.
Y-Axis Guide Rails	A set of rails on either side of the build area that allow a stepper motor to move the extruder to the front or back of the build area.
Z-Axis Guide Rails	A set of rails located at the back of the build area that allow a stepper motor to move the build platform up or down.

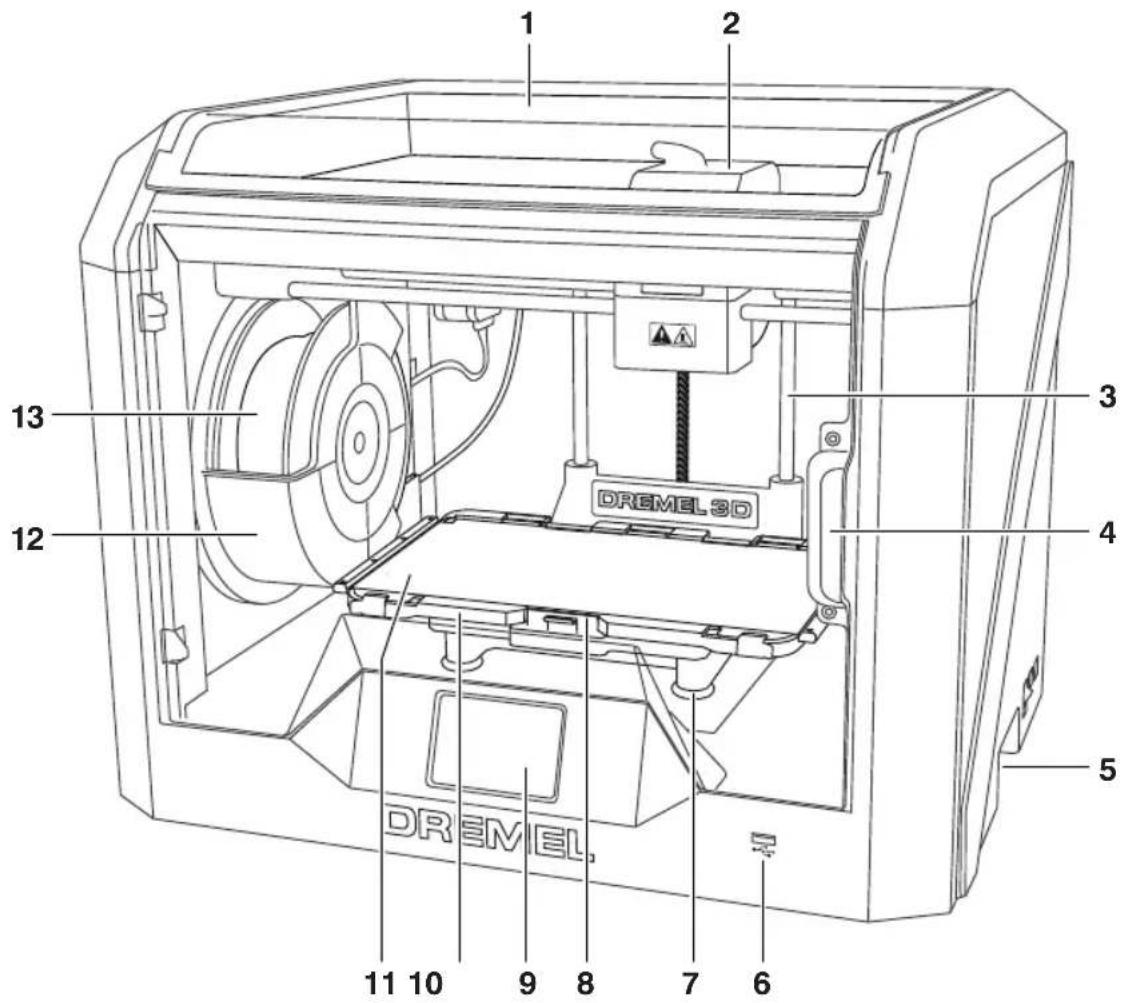

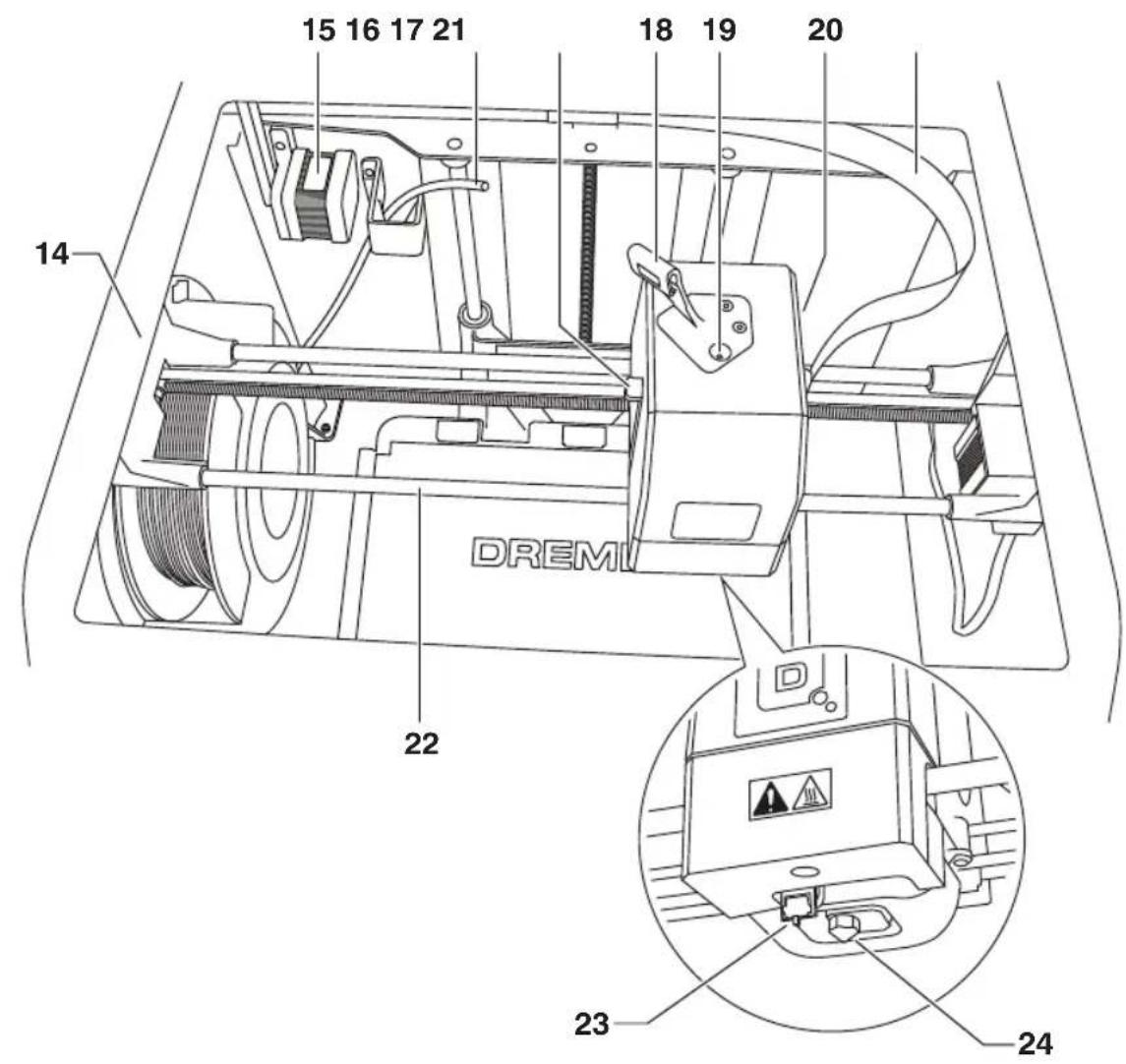

GETTING TO KNOW YOUR 3D40 FLEX

1 2 3 DREMEL 3D 4 5 13 12 DREMEL 1110 9 8 7 6

1. Lid
2. Extruder
3. Z-Axis Guide rail
4. Door
5. Gripping Handles
6. USB A Port
7. Leveling Knobs
8. Build Platform Clip
9. Touch Screen
10. Build Plate Holder
11. Flexible Build Plate
12. Filament Spool Holder
13. Filament Spool

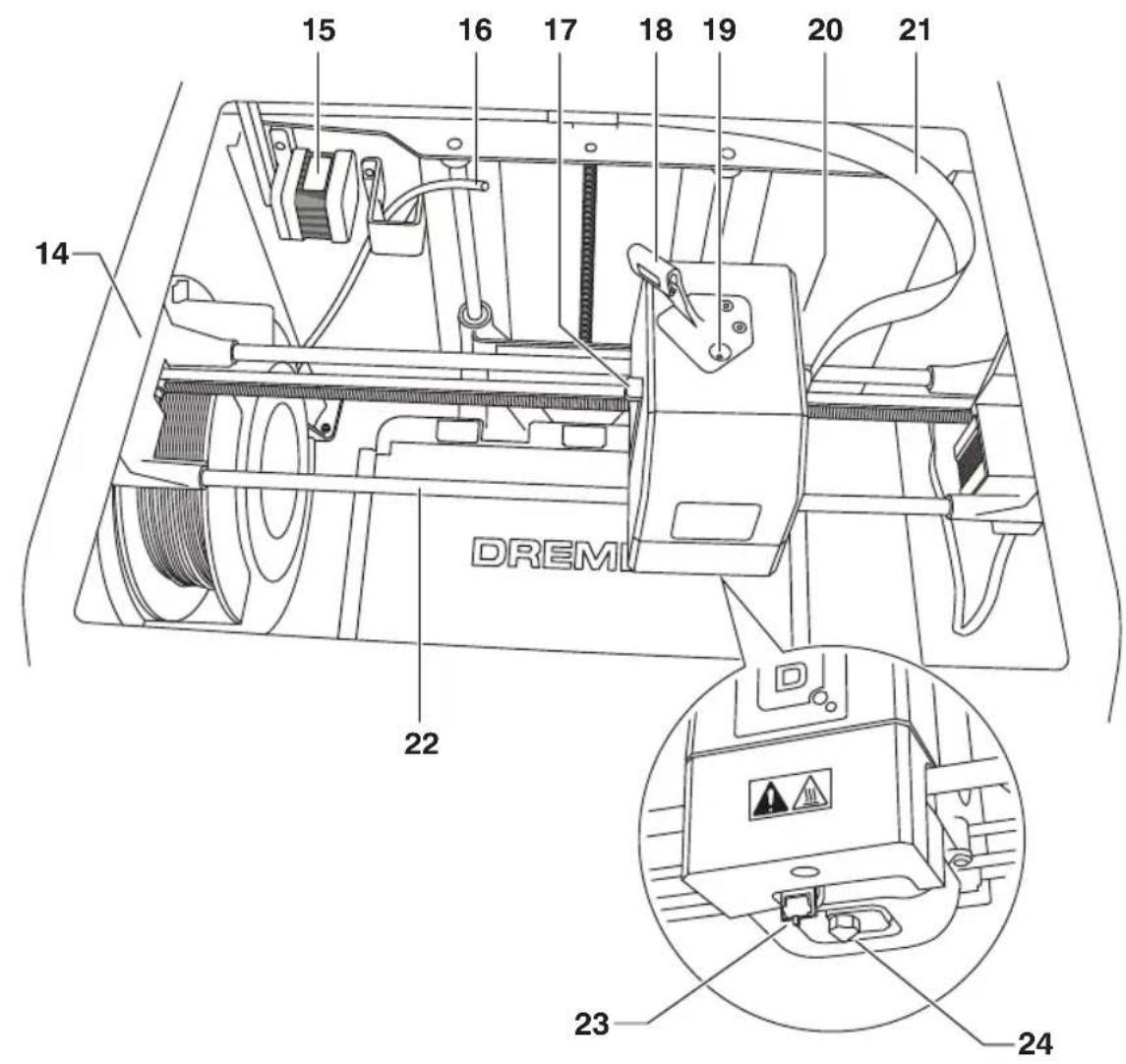

14. Y-Axis Guide Rail

15. Stepper motor

16. Filament Guide Tube

17. Extruder Lever
18. Filament Guide Clip
19. Extruder Intake
20. Extruder Fan
21. Ribbon Cable
22. X-Axis Guide Rail
23. Leveling Sensor
24. Extruder Tip

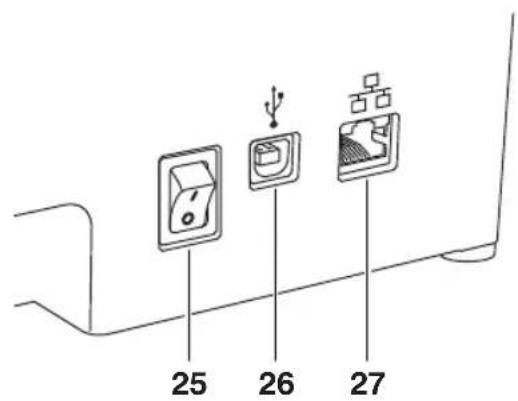

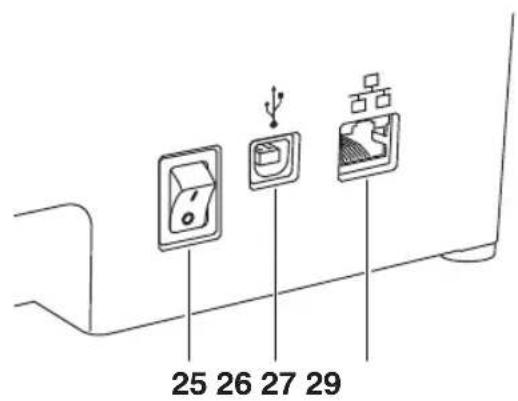

25. Power Switch
26. USB B Port
27. Ethernet Port

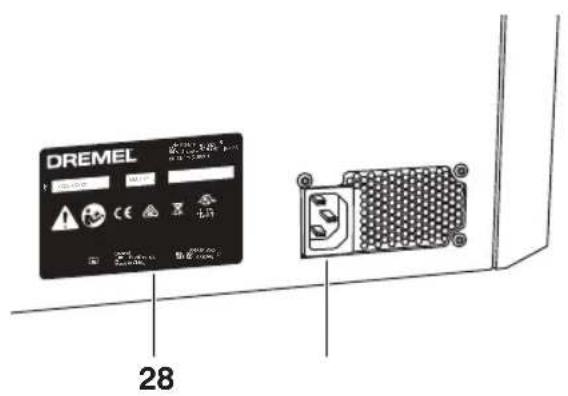

28. Nameplate
29. Power Input

14 15 16 17 18 19 20 21 22 DREMI 23 24

25 26 27

DREMEL 28 29

INTRODUCTION

Welcome to the world of Dremel 3D. Our mission is to mentor you through the 3D building process and share best practices for bringing your ideas to life. 3D building is a process that will involve experimentation and persistence. Thankfully, the Dremel experts are here to make your job easier with online tips and support. With Dremel, you can build on your own ideas, build them better and make them yours. To get started with 3D40 FLEX follow the initial setup routine on the touch screen.

KIT CONTENTS\*

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Instruction Manual

Quick Start Guide

Filament Spool**

Power Cable

USB Cable

Build Tape

Line drawing of a spatula (no text or symbols)

Object Removal Tool

USB Flash Drive

Technical line drawing of a mechanical component or housing (no text or symbols)

Flexible Build Plate and Build Plate Holder

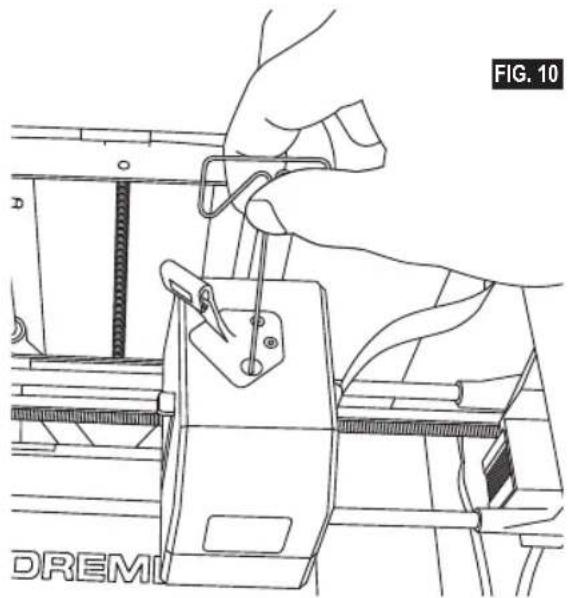

Unclog Tool

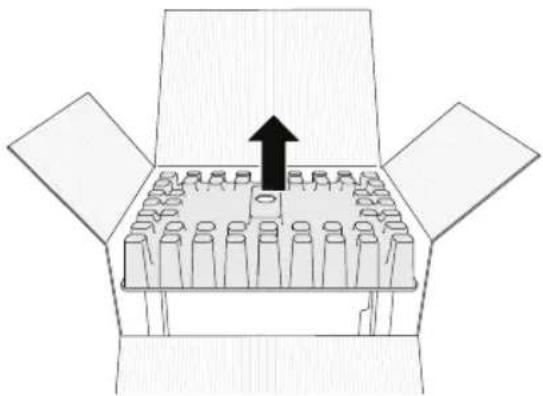

UNPACKING

1. Place box on table, cut tape, and open.
2. Remove top insert.

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

1. Remove 3D40 FLEX and place on table.

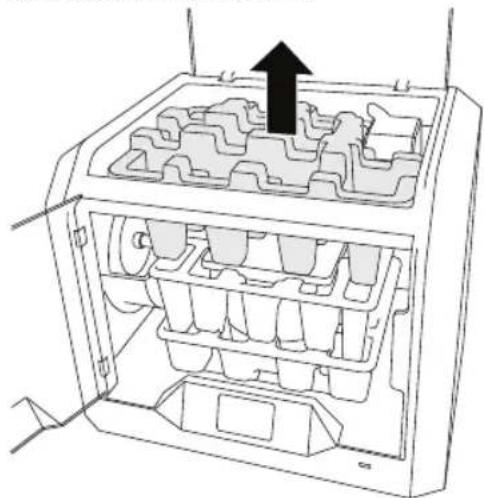

2. Open lid and remove top insert.

Technical line drawing of a mechanical device with internal cavities and a black arrow indicating upward motion (no text or symbols)

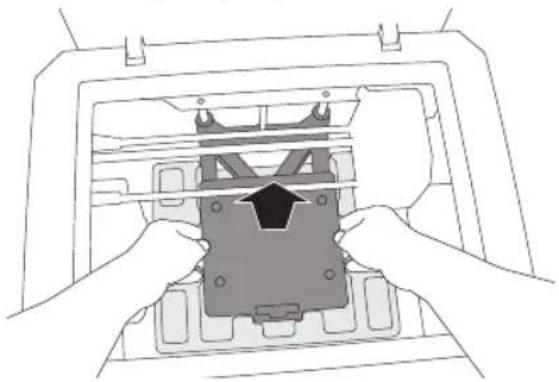

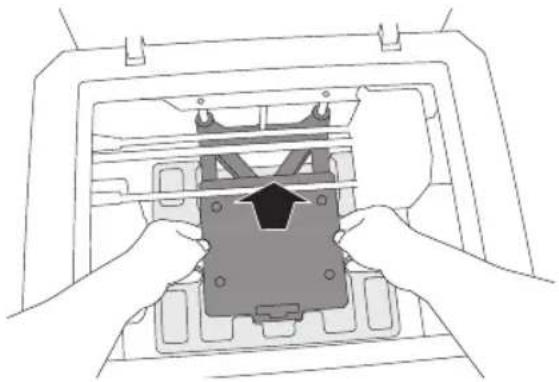

1. Raise build plate by lifting from both sides.

Illustration of hands installing a device into a computer case (no text or symbols visible)

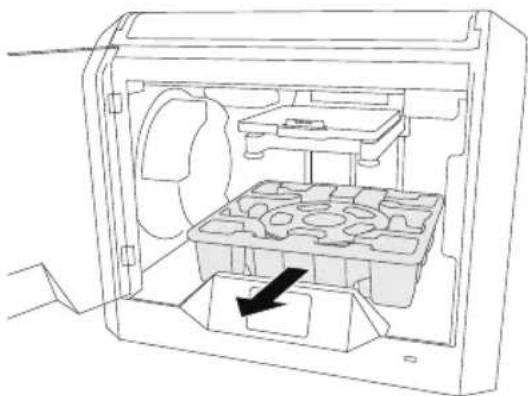

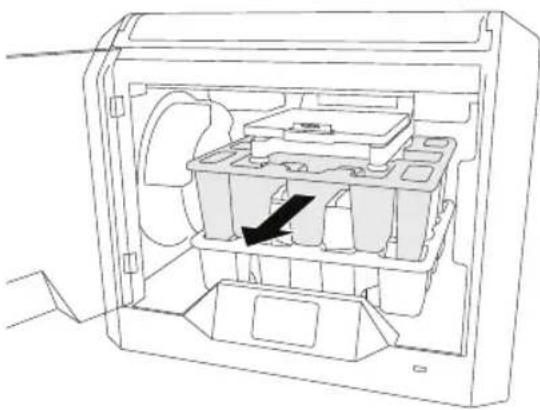

1. Open door and remove middle insert.

Technical line drawing of an open computer case with internal compartments and a black arrow indicating a specific component (no text or symbols present)

1. Remove bottom insert.

Technical line drawing of an open mechanical device with internal compartments and a black arrow indicating a component (no text or symbols)

Tip: Keep packaging for future transportation and storage.

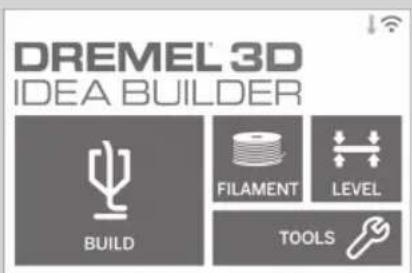

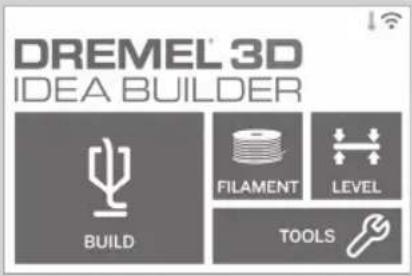

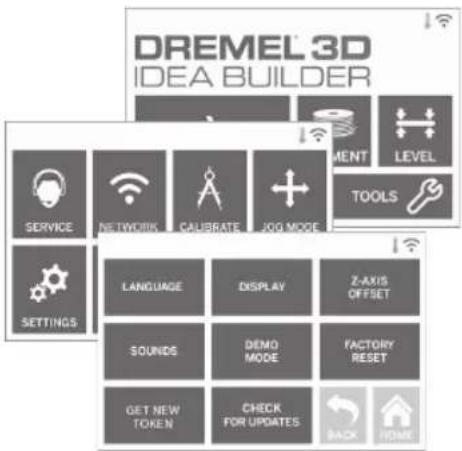

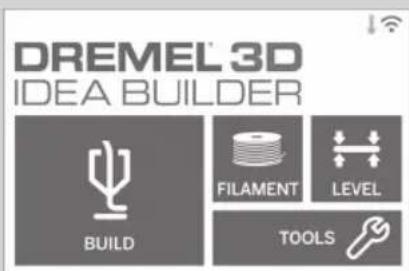

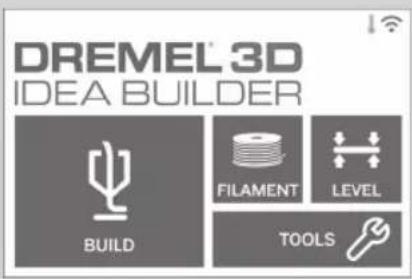

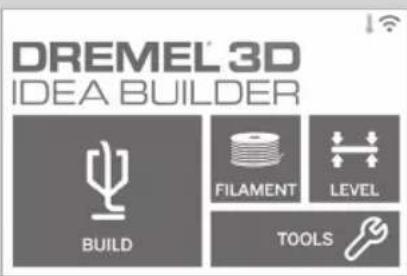

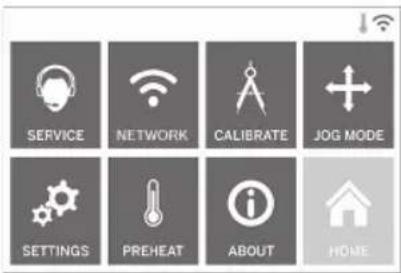

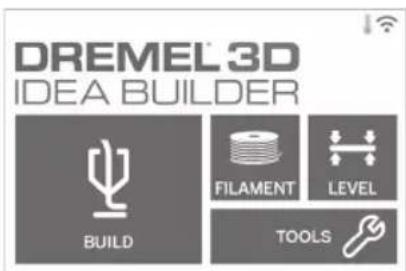

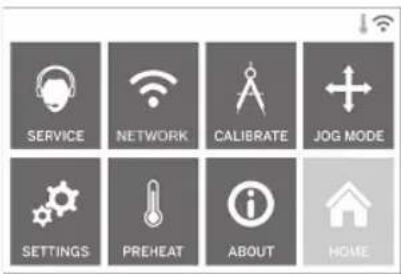

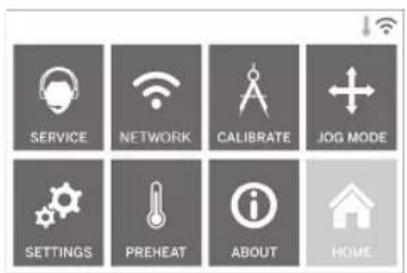

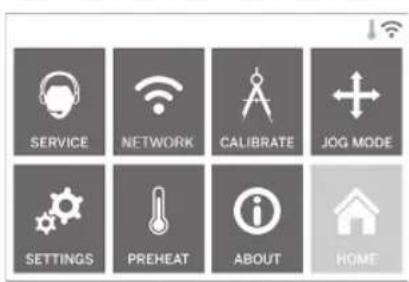

TOUCH SCREEN

Using your Dremel 3D40 FLEX without a computer is easy with the onboard software and full colour touch screen. Before building your model we want to familiarize you with the touch screen menu structure and options.

WARNING

OBSERVE ALL PROVIDED WARNINGS AND SAFETY INSTRUCTIONS WHEN USING THE DREMEL 3D40 FLEX. FAILURE TO DO SO MAY RESULT IN FIRE, EQUIPMENT DAMAGE, GE OR PERSONAL INJURY.

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

BUILD

Tap to select a 3D model and begin build process. (See page 23 for detailed build instructions)

108MB 3781MB 434MB 1585MB PRINT QUEUE HOME

BUILD MENU

Tap Printer, USB Flash Drive, or Print Queue to choose the destination of your desired file.

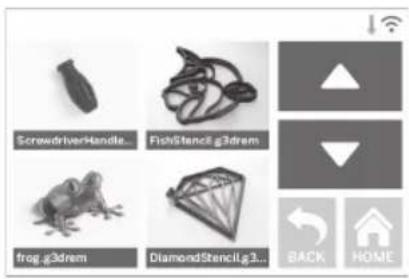

ScrewdriverHandle... FishStanci.g3drem frog.g3drem DiamondStencil.g3... BACK HOME

MODEL MENU

Tap to select the desired model or use arrows to scroll through pages to find your model.

FILE NAME BUILD TIME 00:00 BUILD DELETE COPY TO PRINTER BACK HOME

FILE DETAILS

BUILD – Tap to begin build process. DELETE – Tap to remove model file from on-printer storage or USB flash drive. COPY TO PRINTER – From USB flash drive, tap to copy model file to on-printer storage.

TIME REMAINING: 00:00 CHANGE FILAMENT

BUILD STATUS

STOP – Tap to cancel the current build process. PAUSE/PLAY – Tap to pause or resume the current build process. Pause will allow you to access the filament button. CHANGE FILAMENT – Tap to change filament during the current build process to add more filament or change colors.

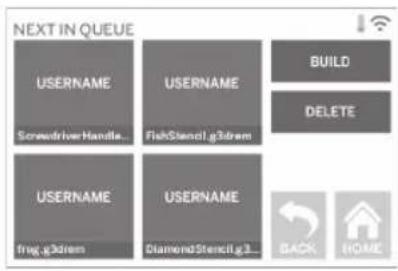

NEXT IN QUEUE USERNAME Screwdriver Handle... USERNAME FishStencil.g3drem BUILD DELETE USERNAME frig.g3drem USERNAME DiamondStencil.g3 BACK HOME

PRINT QUEUE MENU

BUILD - Tap to view details of next build.

DELETE - Tap to remove next build from queue.

FILE NAME BUILD TIME BUILD DELETE BACK HOME

PRINT QUEUE MODEL DETAILS

BUILD – Tap to begin build process.

DELETE - Tap to remove model file from queue.

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

FILAMENT

Tap to begin heating and start filament load/change process. (See page 18 for instructions on filament load/change process)

CUT FILAMENT TEMP NEXT HOME

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

LEVEL

Tap to begin build platform leveling process. (See page 22 for instructions on leveling the build platform)

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

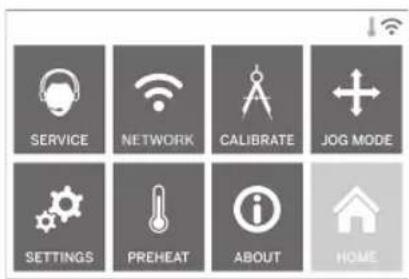

TOOLS

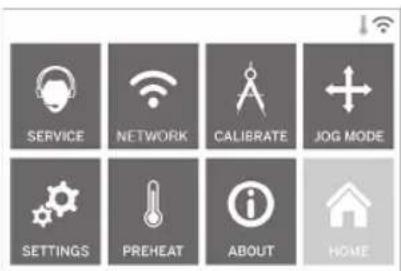

Tap to access the following individual printer functions and settings.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

FOR HELP PLEASE CONTACT DREMEL CUSTOMER SERVICE: 4915 21ST STREET RACINE, WI 53406 [phone] @

SERVICE

Tap to enter service menu to see customer service contact information.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

CONNECT WI-FI DISCONNECT WI-FI SET PROXY BACK HOME

NETWORK

Tap to enter Network menu to connect or disconnect WiFi and Set Proxy.

CONNECT WIFI – Tap to connect to WiFi.

DISCONNECT WIFI – Tap to turn Wifi off.

SET PROXY – Tap to set manual proxy.

SET STATIC IP - Tap to set Static IP.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

Please Wait Calibrating.

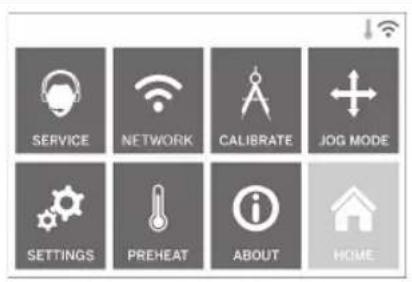

CALIBRATE

Tap to move extruder and build platform to zero position.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME


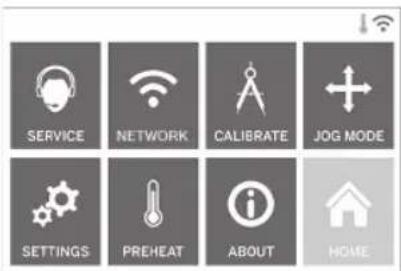

JOG MODE

Tap to display options to move extruder and build platform along the X, Y, and Z-axis.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

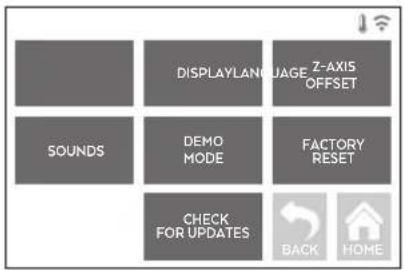

DISPLAYLANGUAGE Z-AXIS OFFSET SOUNDS DEMO MODE FACTORY RESET CHECK FOR UPDATES BACK HOME

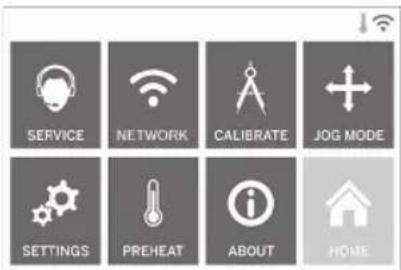

SETTINGS

LANGUAGE – Tap to pick alternate menu language.

DISPLAY – Tap to customize cabinet LEDs or main menu hotkeys.

Z-AXIS OFFSET – Used to calibrate build plate height during assembly.

SOUNDS – Tap to turn 3D40 FLEX sounds On/Off.

DEMO MODE – Tap to turn retail demo mode On/Off.

FACTORY RESET – Tap to remove all information stored on 3D40 FLEX and return it to factory defaults.

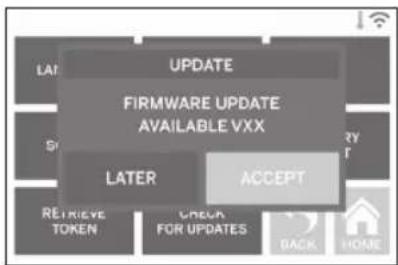

CHECK FOR UPDATES – Tap to check for new firmware version when connected to Wifi or Ethernet.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

HEATING: PURGE STOP BACK HOME

PREHEAT

Tap to automatically begin preheating the extruder for building or removing excess debris.

PURGE – Once extruder is hot, tap to manually extrude filament.

STOP/START - Tap to stop or start preheating.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

DREMEL 3D40 IDEA BUILDER FIRMWARE VERSION: USAGE COUNTER: PRINTER STATUS: MAC:

ABOUT

Tap to see 3D40 FLEX information such as firmware version, usage counter, printer status, and MAC address.

TOUCH SCREEN ICONS

Indicates that there is an error such as filament empty or door open.

Indicates that Ethernet is connected.

Indicates WiFi signal strength and if connected to WiFi symbol will be blue.

Indicates that the extruder is cool.

Indicates that the extruder is warm.

Indicates that the extruder is hot.

INITIAL SETUP

The first time you power on your Dremel 3D40 FLEX you will be prompted to perform an initial setup of network. Completing this process will give you access to notifications of firmware updates.

1. To complete initial setup, tap "Yes" when prompted on the initial setup screen. If you decline this setup you can always setup network later.
2. If you choose "Yes", 3D40 FLEX will automatically connect to your ethernet or search for available wireless networks.

SEARCHING AVAILABLE NETWORKS BACK HOME

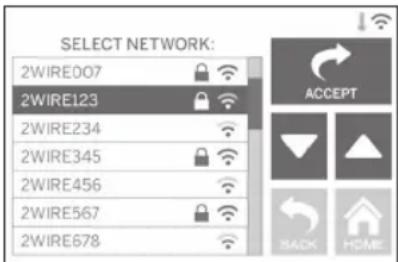

1. Choose your wireless network using the touchscreen. Use the arrows to scroll through the list of available wireless networks. When your wireless network name is highlighted, tap "Accept".

SELECT NETWORK: 2WIRE007 2WIRE123 2WIRE234 2WIRE345 2WIRE456 2WIRE567 2WIRE678 ACCEPT BACK HOME

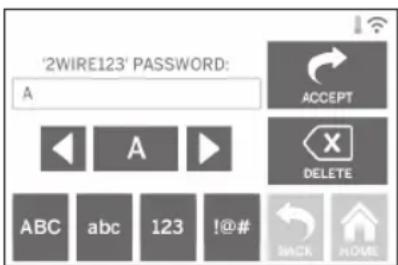

1. Enter your wireless network password and tap "Accept".

'2WIRE123' PASSWORD: A ACCEPT DELETE ABC abc 123 !@# BACK HOME

GETTING READY TO BUILD

WARNING

OBSERVE ALL PROVIDED

WARNINGS AND SAFETY

INSTRUCTIONS WHEN USING THE DREMEL 3D40

FLEX. Failure to do so may result in fire, equipment

damage, property damage or personal injury.

WARNING

(140°F). Contact with the extruder tip during or after operation before tip has cooled may result in

personal injury.

WARNING

USE ONLY DREMEL FILAMENT.

Use of filament not authorized by

Dremel may result in equipment and property damage.

WARNING

DO NOT PULL THE FILAMENT

OUT. Doing so may damage the

extruder.

LOADING/CHANGING FILAMENT

1. Start filament load/change process by tapping "Filament" button on touchscreen. Extruder will move to front right corner of print area and extruder tip will begin to heat.

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

1. After extruder stops moving, open the 3D40 FLEX Lid for better access to extruder.

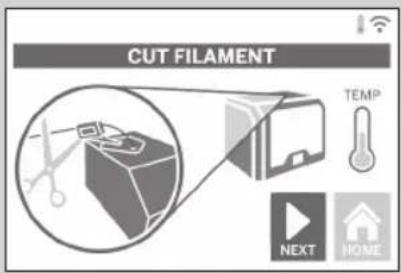

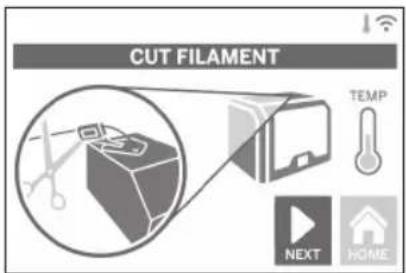

2. If existing filament is loaded, cut existing filament near extruder intake and tap "Next" button on touchscreen.

CUT FILAMENT TEMP NEXT HOME

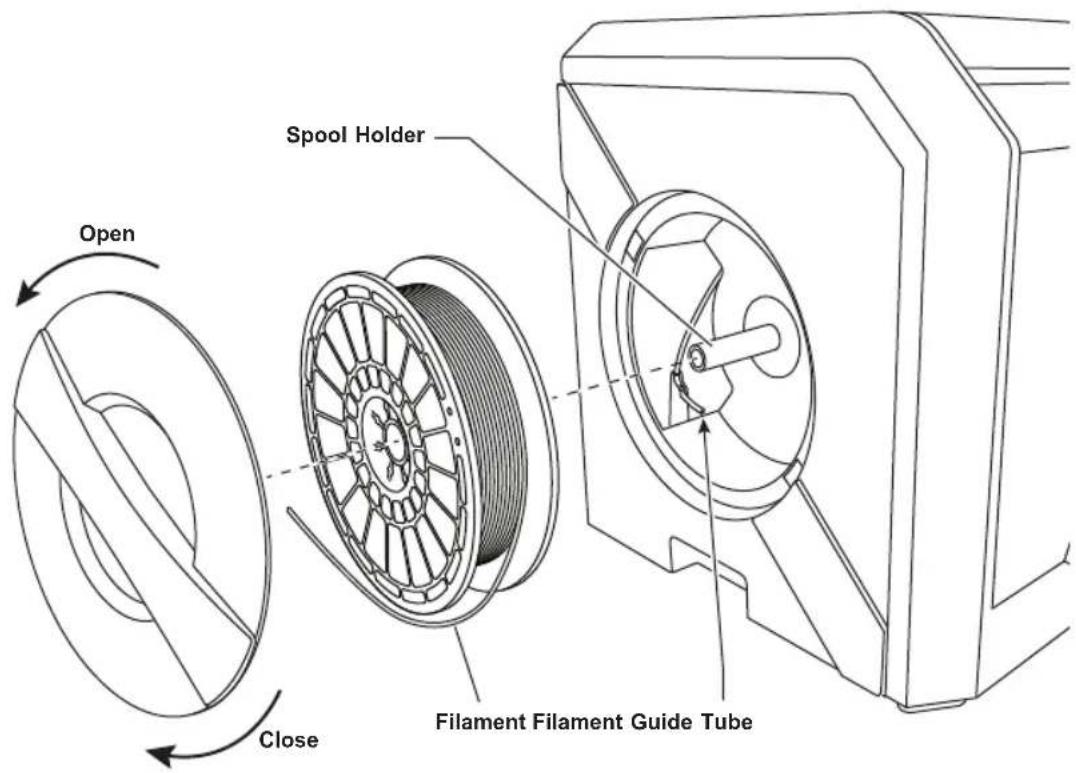

1. Remove Spool door by rotating it counter clockwise and remove existing spool if one is present, see figure1.

FIG. 1

Spool Holder Open Close Filament Filament Guide Tube

Guide Tube Filament Filament Guide Extruder intake
FIG. 2

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Thread tip of new filament through guide tube, place spool on spool holder, replace spool door by aligning locking tabs and rotating clockwise, see figure 1.
   Tap "Next" on touchscreen.
2. If changing existing filament, 3D40 FLEX will automatically purge existing filament.

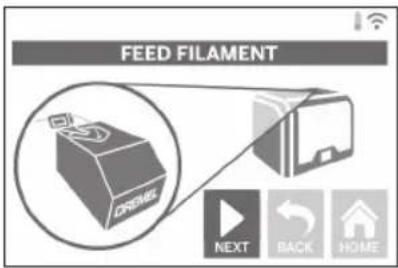

3. When Feed Filament screen appears, tap "Next" on touchscreen and thread filament coming from guide tube into extruder intake until extruder feeds through on its own, see figure 2.

FEED FILAMENT CREAM NEXT BACK HOME

1. Filament will be drawn into the extruder and begin to exit from the hot extruder tip.

NOTE: Your Dremel 3D40 FLEX was tested by building objects before leaving the factory. These test objects may have been made with a different filament color than you are using. Therefore, a small amount of filament may be remaining in the extruder.

1. When new filament appears from extruder tip, tap "done" on touchscreen to complete filament load process, return to main menu, and calibrate extruder. Carefully remove excess filament without touching hot extruder tip. If necessary, carefully remove debris from extruder tip with needle nose pliers.

PRESS DONE WHEN NEW COLOR APPEARS DONE BACK HOME

USE EXTRA CARE NOT TO

DAMAGE THE EXTRUDER TIP

WHEN CLEARING DEBRIS. DREMEL 3D40 FLEX WILL

NOT WORK PROPERLY WITH A DAMAGED

EXTRUDER TIP AND WILL REQUIRE REPLACEMENT.

1. Close 3D40 FLEX lid and door.

INITIAL SETUP

PREPARING BUILD PLATFORM

WARNING

DO NOT DROP THE BUILD PLATFORM. TEMPERED GLASS

PLATE MAY BREAK AND RESULT IN PERSONAL INJURY.

WARNING

DO NOT REMOVE TEMPERED GLASS PLATE FROM PLASTIC

HOLDER. CONTACT WITH TEMPERED GLASS PLATE EDGE MAY RESULT IN PERSONAL INJURY.

CAUTION

BEFORE EVERY BUILD MAKE SURE THAT THE FLEXIBLE

BUILD PLATE IS COVERED WITH DREMEL SPECIFIED BUILD TAPE. USE OF IMPROPER BUILD TAPE MAY RESULT IN EQUIPMENT DAMAGE AND POOR OBJECT BUILD QUALITY.

1. Your build plate consists of two parts: the flexible build plate, and the build plate holder. The build plate holder has a magnetic surface to attach the flexible build plate to, and it has two notches in the back and movable latches in the front to hold down the corners of the flexible build plate.

2. The flexible build plate can be removed from the build plate holder by rotating the movable latches towards you (A), lifting the flexible build plate up by the blue handles (B), and pulling it out towards you (C), figure 3.

3. The flexible build plate comes with build tape installed. To remove it, lift it up from the tab at the front corner and slowly peel off. To install a new build tape, remove adhesive liner from build tape and place build tape over flexible build plate. For best results, apply build tape at center of flexible build plate and smooth outward to remove any air bubbles, figure 4.

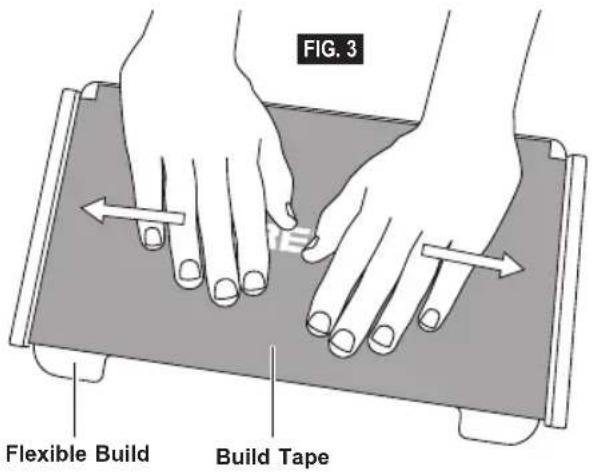

FIG. 3 Flexible Build Build Tape

FIG. 4 Notch Handle Flexible Build Plate B Build Plate Holder A Latches A B Handle Notch

1. The flexible build plate can be installed on top of the build plate holder by sliding it backwards at an angle so that the corners of the flexible build plate slide under the notches at the back of the build plate holder. Release the flexible build plate so it sticks on top of the magnet, and close the latches at the front to hold it in place.

TIP: It is much easier to remove and install the flexible build plate if the build plate holder is already installed in the printer. In general, once the build plate holder is installed in the printer you do not need to remove it, you only need to remove the flexible build plate.

1. The build plate holder can be removed by pinching the clip located at the front of the build platform and lifting the build plate holder off the base, figure 7.

2. Install the build plate holder using the build platform clips.

FIG. 5 LIFT Press Clip Clip DREMEL 3D Clip

LEVELING BUILD PLATFORM

WARNING

It is important you level the build platform every time you replace the build tape or reinstall the build platform to ensure that the build platform is evenly spaced from the extruder head. Make sure to remove any air bubbles from between the build platform and the build tape. Not leveling the build platform or eliminating air bubbles may cause objects to not build properly.

1. Make sure you have placed Build Tape on Build Platform and no objects are present. Applying Build Tape after leveling may effect the consistency of your object.

2. Tap "Level" on 3D40 FLEX's touchscreen.

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

1. The extruder and build platform will move into position to level the build platform. 3D40 FLEX will first check level at the back center of the build platform. The two knobs under the build platform are used to raise and lower the build platform on the left and right. The extruder contains a sensor that detects if the bed is level, no additional tools are necessary.

2. The touchscreen will indicate if your build platform is too high or too low. If the build platform is too high, adjust the appropriate knob by rotating right until you hear a "beep" and the touchscreen indicates that it is ready to verify that the bed is level.

1. If the build platform is too low, adjust the knob by rotating left until you hear a "beep" and the touchscreen indicates that it is ready to verify that the bed is level.

BUILD PLATFORM IS TOO LOW TURN LEFT TO RAISE

1. Tap "Verify" to check the bed level. If further adjustment is needed the touchscreen will indicate the direction, if the level is correct, the extruder will move to the next point and the level process can be repeated.

READY TO VERIFY VERIFY BACK HOME

1. Repeat steps 4-6 for the second position, when you bed is fully level the extruder will automatically move to the calibration position and complete the leveling process.

PLEASE WAIT LEVEL COMPLETE

CONNECTING USB CABLE

1. Ensure 3D40 FLEX power switch is in the off position.
2. Connect the included USB cable to your 3D40 FLEX and computer, figure 6.
3. Open software.
4. Turn your Dremel 3D40 FLEX on using the power switch to sync your computer to your Dremel 3D40 FLEX.

CONNECTING ETHERNET

1. Ensure 3D40 FLEX power switch is in the off position.
2. Plug ethernet cable into your 3D40 FLEX, figure 7.
3. Turn your Dremel 3D40 FLEX on using the power switch. Ethernet connection should be detected automatically. Tap "Accept" to confirm connection.

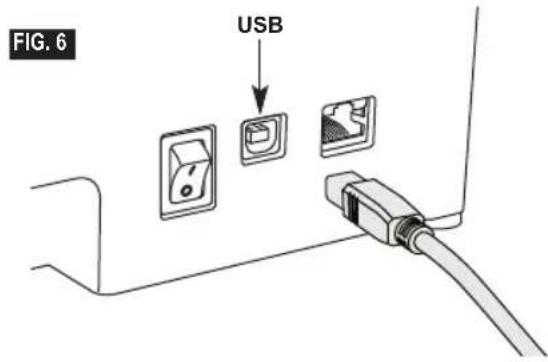

FIG. 6 USB

BUILDING

WARNING OBSERVE ALL PROVIDED WARNINGS AND SAFETY INSTRUCTIONS WHEN USING THE DREMEL 3D40 FLEX. Failure to do so may result in fire, equipment damage, property damage or personal injury.

A WARNING DO NOT REACH INSIDE THE DREMEL 3D40 FLEX WHILE IT IS IN OPERATION. Contact with Dremel 3D40 FLEX moving parts during operation may result in poor build quality, equipment damage or personal injury.

NOTE: Your Dremel 3D40 FLEX will build test objects before leaving the factory. These test objects may have been made with a different filament color than you are using. Therefore, a small amount of filament may be remaining in the extruder. The start of your first object may have some of this filament color until it transitions over to your filament color.

You have several options when building on your 3D40 FLEX:

1) On-Printer Storage
2) USB Flash Drive
3) Computer

FIG. 7 Ethernet

BEFORE YOU BUILD

1. Ensure an adequate amount of filament is loaded (see page 18).
   TIP: You can determine whether you have enough filament to complete your object before building by comparing the length of filament needed as displayed by Dremel Digilab 3D Slicer to the length of filament on spool indicated by the length gauge. If 3D40 FLEX runs out of filament during a build, it will pause until more filament is added.
2. Ensure build tape is applied, build platform is level and clear of objects.

BUILDING FROM ON-PRINTER STORAGE

1. On the main menu tap "Build".

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

1. On the build menu tap the printer icon.

108MB 3781MB 434MB 1885MB PRINT QUEUE HOME

1. Tap the model file you would like to build. (Use arrows to scroll through pages)

ScrewdriverHandle... FishStencil.g3drem frog.g3drem DiamondStencil.g3... BACK HOME

1. In the model detail page tap "Build" to begin building process.

FILE NAME BUILD TIME 00:00 BUILD DELETE COPY TO PRINTER BACK HOME

1. Your 3D40 FLEX will first align the extruder and build platform to their zero positions then the level sensor will lightly touch the build platform to complete alignment. Your extruder tip will begin to heat which may take a few minutes. Once the proper temperature is reached your model will begin to build.

2. Once your object is finished your 3D40 FLEX will automatically align the extruder and build platform to their calibration positions and cool the extruder tip.

3. Wait until the touch screen indicates that the extruder is "cool" to remove your object. See section for removing object from build platform below for object removal instructions.

BUILDING FROM USB FLASH DRIVE

1. On main menu tap "Build".

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

1. Tap USB icon to access contents of USB flash drive.

108MB 3761MB 434MB 1885MB PRINT QUEUE HOME

1. Follow steps 3-7 from Build from On-Printer storage to complete build from USB flash drive.

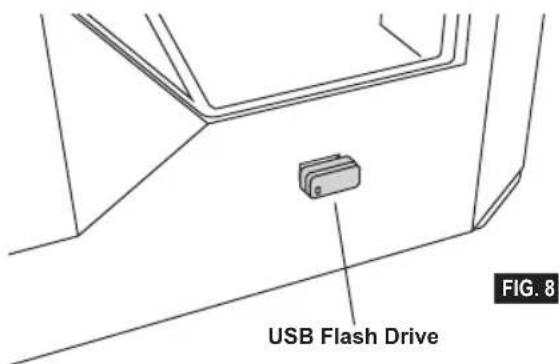

USB Flash Drive FIG. 8

BUILD FROM COMPUTER

Dremel 3D40 FLEX is compatible with Dremel Digilab 3D Slicer. Follow the instructions that came with this software to complete a Build from your computer.

CANCELING YOUR BUILD ON 3D40 FLEX

To cancel your object during preheating or building, tap "Stop" on the touch screen. If you confirm "Yes" the extruder and build platform will move to their calibration positions.

REMOVING YOUR OBJECT

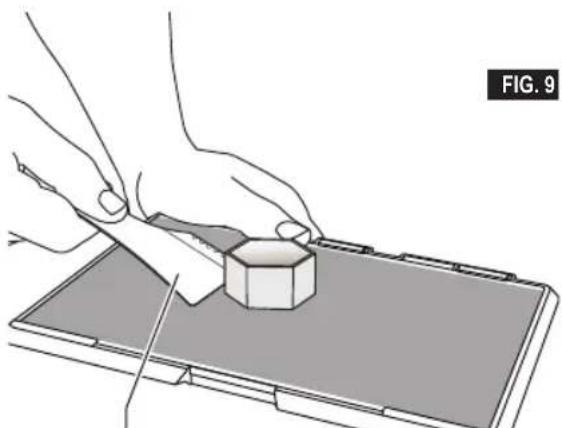

REMOVING YOUR OBJECT FROM THE BUILD PLATFORM

WARNING DO NOT TOUCH THE EXTRUDER TIP DURING DREMEL 3D40 FLEX OPERATION OR UNTIL IT HAS COOLED DOWN TO AT LEAST 60°C (140°F). Contact with the extruder tip during or after operation before tip has cooled may result in personal injury.

WARNING USE PERSONAL PROTECTIVE EQUIPMENT. The use of protective equipment such as heat resistant gloves and safety glasses will reduce personal injuries.

WARNING DO NOT FLEX THE BUILD PLATE WITH THE OBJECT POINTING TOWARDS YOURSELF AND OTHERS. Objects flying off the build plate may result in personal injury.

WARNING BE AWARE OF YOUR BODY POSITION WHEN USING HAND TOOLS TO REMOVE OBJECTS FROM THE BUILD PLATFORM. Sudden tool slip and improper body position during object removal from the build platform may result in personal injury.

WARNING DO NOT DROP THE BUILD PLATE HOLDER. Tempered glass plate may break and result in personal injury.

WARNING DO NOT TWIST OR BEND THE BUILD PLATE HOLDER WHILE REMOVING OBJECTS. Tempered glass plate may separate from plastic holder and result in personal injury.

WARNING AVOID SCRATCHING THE BUILD PLATFORM WHEN REMOVING OBJECTS. SCRATCHES IN THE BUILD PLATFORM WILL RESULT IN IMPROPER OBJECT CREATION.

1. Wait for the extruder to cool before removing your object.
2. With the object still attached, remove flexible build plate from the build area. See page 20 for detailed instructions.
3. Flex the build plate with the object pointed away from yourself and others. Push on the back of it with your thumbs using your other fingers to hold onto the handles, figure 9. The part will release and will either fall off or be easy to pull off with your hand.
4. For thin or small parts, flexing the build plate may not be enough to release the part. In these cases, gently use the object removal tool to remove the object from the build plate, figure 9.

Illustration of hands using a tool to apply a small object onto a flat surface, labeled 'FIG. 9' (no text or symbols on the diagram itself)

Removal Tool

REMOVING SUPPORTS (IF REQUIRED)

Use needle nose pliers to remove supports that are inside your object or hard to reach.

BEST PRACTICES

1. ALWAYS USE BUILD TAPE.
2. Ensure your build plate is level before every object.
3. Ensure spool is installed properly and can rotate freely.
4. When using your Dremel 3D40 FLEX for the first time or after changing filament, allow Dremel 3D40 FLEX to extrude until material is consistent with the installed filament color.
5. It is important to watch your Dremel 3D40 FLEX begin building objects. Your object is most likely to experience difficulty in the beginning. Thankfully, this is also the most convenient time to cancel the object, clean the build plate, and start your object again. Remain near the Dremel 3D40 FLEX during the building process.
6. It is important to save your Dremel 3D40 FLEX packaging as it will make re-boxing and transporting your Dremel 3D40 FLEX easier.
7. Ensure that you store filament spools in an environment that is not moist or too hot. It is recommended that you do not remove the filament spool from its airtight packaging until use.
8. Use object removal tool gently to avoid damaging the build plate or object.
9. Whenever possible, it is best to locate your object in the center of the build plate. Using the best orientation for your object is critical. Ensure that your object is located on the build plate and that you are using the best orientation for building.
10. For steep overhangs (Less than 45 degree angle) it is recommended to build with support.
11. Always remove the build plate before removing the object.
12. Low speed sanding is recommended to prevent remelting of the object.
13. The Dremel Digilab 3D Slicer software will display the length of filament required for each object. Compare this to the length indicated on the spool length gauge.

MAINTENANCE

UNCLOGGING THE EXTRUDER

Use the unclogging tool to clean the extruder and unclog built up filament.

1. Wait for extruder to heat up insert the unclog tool into the extruder intake (top).
2. Clogged debris will be pushed down and will extrude from the extruder tip.

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

UPDATING FIRMWARE VIA NETWORK

If your 3D40 FLEX is registered and added to your Dremel3D profile, you can update its firmware directly from the touchscreen. To update firmware:

1. Tap "Tools", "Settings", "Check for Updates".

DREMEL 3D IDEA BUILDER SERVICE NETWORK CALIBRATE LOG MODE LEVEL MENT TOOLS SETTINGS LANGUAGE DISPLAY Z-AXIS OFFSET SOUNDS DEMO MODE FACTORY RESET GET NEW TOKEN CHECK FOR UPDATES BACK HOME

1. Your 3D40 FLEX will check to see if it has the latest firmware installed and ask if you would like to update if one is needed.
2. Choose accept to download and install the latest firmware.

UPDATE FIRMWARE UPDATE AVAILABLE VXX LATER ACCEPT RETRIEVE TOKEN CHECK FOR UPDATES BACK HOME

1. When the 3D40 FLEX starts up and returns to the Home Screen, firmware update is complete.

UPDATING FIRMWARE MANUALLY

If your 3D40 FLEX is not connected to a network, you can update firmware directly from a USB Flashdrive.

1. On your web browser go to www.dremel3d.com/support and download the latest 3D40 FLEX firmware file.
2. Add the 3D40 FLEX firmware file to an empty, FAT32 formatted, USB flashdrive.
3. Turn off your 3D40 FLEX using the ON/OFF switch.
4. Insert the USB flashdrive into the USB-A port.
5. Turn on your 3D40 FLEX and it should automatically detect and install the new firmware.
6. Turn your 3D40 FLEX OFF, remove the USB flashdrive, and turn ON again to complete the update.

CLEANING THE EXTERIOR

Clean the 3D40 FLEX's exterior with a lint free cloth. Clear the outer surfaces of any debris that is visible. To avoid damaging your Dremel 3D40 FLEX do not use water, chemicals or other cleaners on the 3D40 FLEX.

CLEANING THE EXTRUDER TIP

WARNING

USE EXTRA CARE NOT TO DAMAGE THE EXTRUDER TIP

WHEN CLEARING DEBRIS. DREMEL 3D40 FLEX WILL NOT WORK PROPERLY WITH DAMAGED EXTRUDER TIP AND WILL REQUIRE REPLACEMENT.

WARNING

DO NOT TOUCH THE EXTRUDER TIP DURING DREMEL 3D40 FLEX

OPERATION OR UNTIL IT HAS COOLED DOWN TO 60°C (140°F). Contact with the extruder tip during or after operation before tip has cooled may result in personal injury.

Using small needle nose pliers, pull away any plastic debris from the extruder tip. If the debris is stubborn, the extruder may need to be heated.

Wipe the touch screen with the soft, lint-free cloth. Do not spray cleaners on the touch screen.

MAINTENANCE AND SERVICE

Problem Cause Corrective Action
Extruder head building off center. Dremel 3D40 FLEX has lost track of the extruder head's exact location and is failing to build.		Sending the extruder head to the home position will recalibrate the Dremel 3D40 FLEX. Cancel your object, clear build platform, send the extruder head to the home position, and restart the object.
PLA is not extruding or sticking to the build tape properly.	This can be caused by the build platform not being leveled with the extruder head.	Leveling the build platform will align the extruder head and ensure a better object quality. Cancel your object, clear build platform, level the build platform, and restart the object.
Dremel 3D40 FLEX froze before my object started.	Dremel 3D40 FLEX may have received conflicting commands.	Turn power switch off, wait 30 seconds, and turn power switch on.
Support material does not break away during cleaning and results in decreased quality of the final object.	Orientation of the part is not optimized. Reorient the position of the 3D file in your file slicing software to minimize the support material or place the support material on a non-critical surface.
Spaghetti mess at end of build. A layer of your object did not stick properly, model was saved with minimal surface area contacting the build platform, or object was built floating above the build platform with no support selected.		Use your file slicing software to see the first layer height and position. Build with supports when necessary.
Part only built halfway. Filament ran out.	Filament clogged during build.	Replace filament and resume build. See “No filament coming out”.
No filament coming out.	Clogged extruder.	Contact customer service.
Extruder will not home. Contact customer service.
Stringy or fraying plastic layers on steep overhangs.	Object overhangs are too far apart or too steep (<45 degree angle).	Build with supports.
3D40 FLEX will not find my Wi-Fi network.	Printer too far from wireless router. Reposition 3D40 FLEX to be closer to your router. Connect to network with Ethernet.
3D40 FLEX will not connect to my network.	Printer too far from wireless router. Reposition 3D40 FLEX to be closer to your router.
	Network password incorrect. Re-enter your password or verify your password with your network owner.

OPEN SOURCE SOFTWARE

Firmware Updates

Dremel recommends that firmware be updated whenever Dremel provides an update. Dremel will provide firmware updating to improve performance and a dd additional features for the 3D40 FLEX throughout the life of the product. There are two ways of updating the 3D40 FLEX: (1) Download update from www.dremel3d.com and install using USB memory drive. (2) Connect the 3D40 FLEX to the internet and update from the 3D40 FLEX touch screen.

Open Source Software used in this Dremel product

This product contains software components that are licensed by the holder of the rights under any version of the GNU General Public License (GPL), GNU Lesser General Public License (LGPL) or any other open source software license which requires that source code be made available. You can receive a complete machine-readable copy of the corresponding source code by sending a written request to:

Dremel

Attn: Open Source Software Officer

P.O Box 081126

Racine, WI USA 53408-1126

Your request should include: (i) the name of the Dremel product, (ii) the serial number (if applicable), (iii) the software version (if applicable), (iv) your name, (v) your company name (if applicable) and (vi) your return mailing and email address (if available). We may charge you a nominal fee to cover the cost of the physical media and distribution. You may send your request (i) within three (3) years of the date you received the product that included the software which is subject of your request or (ii) in the case of code licensed under the GPL version 3 for as long as Dremel offers spare parts or customer support for that product.

Warranty regarding further use of the Open Source Software:

DREMEL provides no warranty for the Open Source Software programs contained in this device, if such programs are used in any manner other than the program execution intended by DREMEL. The licenses listed below define the warranty, if any, from the authors or licensors of the Open Source Software. DREMEL specifically disclaims any warranties for defects caused by altering any Open Source Software program or the product's configuration. You have no warranty claims against DREMEL in the event that the Open Source Software infringes the intellectual property rights of a third party. Technical support, if any, will only be provided for unmodified software.

DREMEL® CONSUMER LIMITED WARRANTY

This DREMEL product is guaranteed in accordance with statutory/country-specific regulations; damage due to normal wear and tear, overload or improper handling are excluded from the warranty.

In the event of the product fails to conform to this written warranty, please take the following action:

1. DO NOT return your product to the place of purchase.
2. Please contact customer service via www.dremel.com for further instructions.

DISPOSAL

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

ONLY FOR EC COUNTRIES

Do not dispose of power tools with household waste!

According to the European Guideline 2012/19/EC for Waste Electrical and Electronic

Equipment and its implementation into national law, power tools that are no longer usable must be collected separately and disposed of in an environmentally-correct manner.

CONTACT DREMEL

For more information on the Dremel product range, support and hotline, go to www.dremel.com.

Dremel, Konijnenberg 60, 4825 BD Breda, The Netherlands.

DE

16" (406mm) 20.25" (515mm) 15.5" (394mm)

WAND 8" (203mm) 8" (203mm)8" (203mm) 14" (356mm)

INFORMATIONSQUELLEN ZUM 3D40 FLE

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Betriebshandbuch

Kurzanleitung

Filamentspule**

Netzkabel

USB-Kabel

Druckmatte

Line drawing of a spatula (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols)

Diagram of a box with internal compartments and an upward arrow, no text or symbols present

Technical line drawing of a mechanical device interior with internal compartments and a black arrow indicating upward motion (no text or symbols)

Line drawing of hands installing a component into a device frame (no text or symbols visible)

Technical line drawing of an internal storage or housing unit with a black arrow indicating a component (no text or symbols present)

Technical line drawing of a mechanical device interior showing internal components and a black arrow indicating a specific part (no text or symbols present)

CONNECT WI-FI DISCONNECT WI-FI SET PROXY BACK HOME

NETZWERK (NETWORK)

Please Wait Calibrating.

KALIBRIEREN (CALIBRATE)

NACH UPDATES SUCHEN (CHECK FOR

Technical line drawing of a mechanical assembly with a cable and housing (no text or symbols)

ACHTEN SIE VOR JEDEM DRUCK DARAUF, DASS DIE FLEXIBLE

DRUCKPLATTFORM GEMÄSS DEN ANGABEN VON DREMEL MIT DRUCKBAND (EINER DRUCKMATTE) BEDECKT IST. DIE VERWENDUNG VON UNGEEIGNETEM DRUCKBAND KANN ZU GERÄTESCHÄDEN UND OBJEKTEN VON MANGELHAFTER QUALITÄT FÜHREN.

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

FIRMWARE-UPDATE ÜBER DAS NETZWERK

OPEN SOURCE-SOFTWARE

Firmware-Updates

Attn: Open Source Software Officer

PO Box 081126

Racine, WI USA 53408-1126

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Simple line drawing of a rectangular device with diagonal stripes and a small protrusion at the bottom (no text or symbols)

MUR 8" (203mm) 8" (203mm)8" (203mm) 14" (356mm)

RESSOURCES POUR L'ÉQUIPEMENT 3D40 FLEX

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Mode d'emploi

Line drawing of a flat tool with a pointed handle and handlehead (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

Diagram of a mechanical device interior showing internal compartments and a black upward arrow indicating direction (no text or symbols)

Illustration of hands installing a mechanical component into a device (no text or symbols visible)

Technical line drawing of a mechanical device interior showing internal components and a black arrow indicating a specific part (no text or symbols present)

Technical line drawing of an open mechanical device with internal compartments and a black arrow indicating a component (no text or symbols present)

CONNECT WI-FI DISCONNECT WI-FI SET PROXY BACK HOME

RÉSEAU (NETWORK)

Please Wait Calibrating.

CALIBRER (CALIBRATE)

FIG. 6 USB

CONSTRUCTION

FIG. 7 Ethernet

AVANT LA CONSTRUCTION

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

MISE À JOUR DU FIRMWARE PAR LE RÉSEAU

Attn: Open Source Software Officer

P.O Box 081126

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Simple line drawing of a rectangular device with diagonal stripes and small square cutouts at the bottom (no text or symbols)

PARED 8" (203mm) 8" (203mm)8" (203mm) 14" (356mm)

RECURSOS PARA LA 3D40 FLEX

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Line drawing of a flat tool with a pointed handle and handlehead (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

Technical line drawing of a mechanical component with internal cavities and an upward arrow indicating motion (no text or symbols)

Illustration of hands installing a component into a device frame (no text or symbols visible)

Technical line drawing of a mechanical device interior showing internal components and a black arrow indicating a specific part (no text or symbols present)

Technical line drawing of an open mechanical device with internal compartments and a black arrow indicating a component (no text or symbols present)

CONNECT WI-FI DISCONNECT WI-FI SET PROXY BACK HOME

RED (NETWORK)

Please Wait Calibrating.

CALIBRAR (CALIBRATE)

FIG. 6 USB

CONSTRUCCIÓN

ATENCIÓN

RESPETE TODAS LAS

ADVERTENCIAS E

FIG. 7 Ethernet

ANTES DE CONSTRUIR

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

A/A: Open Source Software Officer

P.O Box 081126

Racine, WI USA 53408-1126

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Line drawing of a rectangular device with diagonal stripes and rounded corners, shown with no text or symbols.

PAREDE 8" (203mm) 8" (203mm)8" (203mm) 14" (356mm)

GLOSSÁRIO TERMINOLÓGICO

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Coiled cable with connectors, no text or symbols visible

Cabo USB

DREMEL

Fita de construção

Line drawing of a flat tool with a pointed tip and handle (no text or symbols)

Espátula extratora de objetos

Pen USB

Technical line drawing of a mechanical component with flanges and supports (no text or symbols)

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

Technical line drawing of a mechanical component with internal cavities and an upward arrow indicating motion (no text or symbols)

Illustration of hands installing a mechanical component into a device (no text or symbols visible)

Technical line drawing of an internal device housing with a black arrow indicating a component (no text or symbols present)

Technical line drawing of an open mechanical device with internal compartments and a black arrow indicating a component (no text or symbols)

ASSISTÊNCIA (SERVICE)

CONNECT WI-FI DISCONNECT WI-FI SET PROXY BACK HOME

REDE (NETWORK)

Please Wait Calibrating.

CALIBRAR (CALIBRATE)

FIG. 6 USB

CONSTRUÇÃO (BUILD)

ATENÇÃO

AO UTILIZAR A DREMEL 3D40

FIG. 7 Ethernet

ANTES DE CONSTRUIR

Pen USB FIG. 8

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

ATUALIZAR O FIRMWARE ATRAVÉS DE UMA REDE

SOFTWARE OPEN SOURCE

A/C Open Source Software Officer

P.O Box 081126

Racine, WI USA 53408-1126

APENAS PARA PAÍSES DA CE

Procedure consigliate....181

Manutenzione....182

Software Open Source ....185

(255mm x 155mm x 170mm)

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Simple line drawing of a rectangular device with diagonal stripes and rounded corners, no text or symbols present.

PARETE 8" (203mm) 8" (203mm)8" (203mm) 14" (356mm)

RISORSE DI 3D40 FLEX

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Coiled cable with connectors, no text or symbols visible

Cavo USB

Line drawing of a spatula (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols)

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

Technical line drawing of a mechanical device interior with internal compartments and a black arrow indicating upward motion (no text or symbols)

Illustration of hands installing a component into a device frame (no text or symbols visible)

Technical line drawing of an open computer case with internal compartments and a black arrow indicating a specific component (no text or symbols present)

Technical line drawing of an open mechanical device with internal components and a black arrow indicating a directional component (no text or symbols)

ASSISTENZA (SERVICE)

CONNECT WI-FI DISCONNECT WI-FI SET PROXY BACK HOME

RETE (NETWORK)

Please Wait Calibrating.

CALIBRARE (CALIBRATE)

MODALITÀ SBALZO (JOG MODE)

FIG. 6 USB

CREAZIONE

ATTENZIONE

QUANDO SI UTILIZZA LA STAMPANTE DREMEL 3D40

FIG. 7 Ethernet

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

AGGIORNAMENTO DEL FIRMWARE DALLA RETE

SOFTWARE OPEN SOURCE

Attn: Open Source Software Officer

P.O Box 081126

Racine, WI USA 53408-1126

SOLO PER I PAESI DELLA CE

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN

LET OP

LEES ALLE GEBRUIKS-EN VEILIGHEIDS-

INSTRUCTIES IN DE HANDLEIDING EN ZORG DAT U VERTROUWD RAAKT MET

DE DREMEL 3D40 FLEX VOORDAT U HET APPARAAT INSTALLEERT EN GEBRUIKT. HET NIET IN ACHT NEMEN VAN DE WAARSCHUWINGEN EN INSTRUCTIES KAN BRAND, SCHADE AAN HET APPARAAT, MATERIÈLE SCHADE OF PERSOONLIJK LETSEL TOT GEVOLG HEBBEN. BEWAAR ALLE WAARSCHUWINGEN EN INSTRUCTIES ALS REFERENTIEMATERIAAL

VEILIGHEID VAN DE WERKPLEK

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Handleiding

Line drawing of a flat tool with a pointed handle and handlehead (no text or symbols)

Objectgrijper

USB-stick

Technical line drawing of a mechanical component or bracket (no text or symbols)

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

Technical line drawing of a mechanical device interior with internal compartments and a black arrow indicating upward motion (no text or symbols)

Illustration of hands installing a mechanical component into a device frame (no text or symbols visible)

Technical line drawing of a mechanical device interior showing internal components and a black arrow indicating a specific part (no text or symbols present)

Technical line drawing of an open mechanical device with internal compartments and a black arrow indicating a component (no text or symbols)

Please Wait Calibrating.

KALIBRER. (CALIBRATE)

WAARSCHUWINGEN EN VEILIGHEIDSINSTRUCTIES

Technical line drawing of a mechanical assembly with no visible text or symbols

AFB. 6 USB

BOUWEN

LET OP NEEM BIJ GEBRUIK VAN DE DREMEL 3D40 FLEX ALLE

AFB. 7 Ethernet

VOORDAT U BEGINT TE BOUWEN

USB-stick AFB. 8

BOUWEN VANAF COMPUTER

Line drawing of a hand using a tool to adjust or install a component, with no visible text or symbols.

FIRMWARE UPDATEN VIA HET NETWERK

OPEN SOURCE SOFTWARE

Firmware-updates

Attn: Open Source Software Officer

P.O Box 081126

Racine, WI USA 53408-1126

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Simple line drawing of a rectangular device with diagonal stripes and rounded corners, no text or symbols present.

V/EG 8" (203mm) 8" (203mm)8" (203mm) 14" (356mm)

3D40 FLEX RESSOURCER

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Instruktionsmanual

Quick start guide

Filament Spool**

Strømkabel

Coiled cable with connectors and connectors (no text or symbols visible)

USB-kabel

Byggetape

Line drawing of a flat tool with a pointed tip and handle (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols)

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

Technical line drawing of a mechanical component with internal cavities and an upward arrow indicating motion (no text or symbols)

Line drawing of hands installing a component into a device frame (no text or symbols visible)

Technical line drawing of an open computer case with internal compartments and a black arrow indicating a specific component (no text or symbols present)

Technical line drawing of an open mechanical device with internal compartments and a black arrow indicating a component (no text or symbols)

CONNECT WI-FI DISCONNECT WI-FI SET PROXY BACK HOME

NETVÆRK [NETWORK]

AFBRYD WIFI [DISCONNECT WIFI] – Tryk for at slå Wifi fra.

INDSTIL PROXY [SET PROXY] – Tryk for at indstille manuel proxy.

INDSTIL STATISK IP [SET STATIC IP] – Tryk for at indstille statisk IP.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

Please Wait Calibrating.

KALIBRÉR [CALIBRATE]

G∅R KLAR TIL AT BYGGE

ADVARSEL

OVERHOLD ALLE GIVNE ADVARSLER OG

Technical line drawing of a mechanical assembly with no visible text or symbols

NIVELLERING AF BYGGEPLATFORM

ADVARSEL

R∅R IKKE VED

EKSTRUDERSPIDSEN, MENS

DREMEL 3D40 FLEX K∅RER, ELLER VENT TIL DEN ER K∅LET NED TIL 60°C (140°F). KONTAKT MED EKSTRUDERSPIDSEN UNDER ELLER EFTER DRIFT F∅R SPIDSEN ER AFK∅LET, KAN F∅RE TIL PERSONSKADE.

FIG. 6 USB

BYGNING

ADVARSEL OVERHOLD ALLE GIVNE ADVARSLER OG SIKKERHEDSANVISNINGER, Når DREMEL 3D40 FLEX BRUGES. Manglende overholdelse kan føre til brand, beskadigelse af udstyr, materiel skade eller personskade.

FIG. 7 Ethernet

F∅R DU BYGGER [BEFORE YOU BUILD]

BYGNING FRA USB-FLASHDREV

USB-flashdrev FIG. 8

BYGNING FRA COMPUTEREN [BUILD FROM COMPUTER]

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

OPDATERING AF FIRMWAREN VIA NETVÆRKET

RENG∅RING AF DEN BER∅RINGSF∅LSOMME SKÆRM

OPEN SOURCE SOFTWARE

Firmware-opdatering

Att.: Open Source Software Officer

P.O Box 081126

Racine, WI USA 53408-1126

INNEHÅLLSFÖRTECKNING

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Simple line drawing of a rectangular device with diagonal stripes and rounded corners, no text or symbols present.

VAGG 8" (203mm) 8" (203mm)8" (203mm) 14" (356mm)

3D40 FLEX RESURSER

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Bruksanvisning

Snabbstartguide

Filamentspole**

Elsladd

Coiled cable with connectors and connectors (no text or symbols visible)

USB-kabel

Byggtejp

Line drawing of a flat tool with a pointed tip and handle (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols)

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

Technical line drawing of a mechanical device interior with internal compartments and a black arrow indicating upward motion (no text or symbols)

Line drawing of hands installing a component into a device frame (no text or symbols visible)

Technical line drawing of an open computer case with internal compartments and a black arrow indicating a specific component (no text or symbols present)

Technical line drawing of an open mechanical device with internal compartments and a black arrow indicating a component (no text or symbols)

CONNECT WI-FI DISCONNECT WI-FI SET PROXY BACK HOME

NÄTVERK

Please Wait Calibrating.

KALIBRERA

INLEDANDE INSTALLATION

Technical line drawing of a mechanical assembly with no visible text or symbols

INLEDANDE INSTALLATION

FÖRBEREDA BYGGPLATTAN

WARNING

TAPPA INTE BYGGPLATTAN. GLASPLATTAN AV HÄRDAT

GLAS KAN SPRICKA OCH RESULTERA I PERSONSKADA.

DREMEL 3D40 FLEX MEDAN

BYGGA FRÅN MINNET I SKRIVAREN

BYGGA FRÅN USB-FLASHMINNE

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

UPPDATERA FIRMWARE VIA NÄTVERK

OPEN SOURCE-PROGRAMVARA

Firmwareuppdateringar

Att.: Open Source Software Officer

P.O Box 081126

Racine, WI USA 53408-1126

SIKKERHET FOR ARBEIDSOMRÅDET

BRUK OG VEDLIKEHOLD AV DREMEL 3D40 FLEX

Vekt (uten spole): 16 kg (35 lbs)

Dimensjoner: 515mm x 406mm x 394mm (20,25" x 16" x 15,9")

FILAMENT

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Simple line drawing of a rectangular device with diagonal stripes and rounded corners, no text or symbols present.

VEGG 8" (203mm) 8" (203mm)8" (203mm) 14" (356mm)

3D40 FLEX-RESSURSER

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Instruksjonshåndbok

Hurtigstartguide

Filamentspole**

Strømledning

Coiled cable with connectors, no text or symbols visible

USB-ledning

Byggetape

Line drawing of a spatula with handle and blade (no text or symbols)

Objektfjerningsverktøy

USB-flash-stasjon

Technical line drawing of a mechanical component or bracket (no text or symbols)

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

Technical line drawing of a mechanical component with internal cavities and an upward arrow indicating motion (no text or symbols)

Line drawing of hands installing a component into a device frame (no text or symbols visible)

Technical line drawing of an open computer case with internal compartments and a black arrow indicating a specific component (no text or symbols present)

Technical line drawing of an open mechanical device with internal compartments and a black arrow indicating a component (no text or symbols present)

STILL PROXY (SET PROXY) – Trykk for å stille proxy manuelt.

Please Wait Calibrating.

KALIBRER (CALIBRATE)

Technical line drawing of a mechanical assembly with a cable and housing (no text or symbols)

FIG. 6 USB

BYGGING

ADVARSEL OVERHOLD ALLE MEDF∅LGENDE ADVARSLER OG SIKKERHETSINSTRUKSJONER NÅR DU BRUKER DREMEL 3D40 FLEX. Hvis ikke disse følges kan det resultere i brann, skade på utstyr, skade på eiendom eller personskade.

ADVARSEL IKKE STIKK FINGRE/HENDER INN I DREMEL 3D40 FLEX MENS DEN ER I DRIFT. Kontakt med de bevegende delene til Dremel 3D40 FLEX mens den er i drift kan føre til dårlig byggekvalitet, skade på utstyret eller personskade.

FIG. 7 Ethernet

F∅R DU BYGGER

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

OPPDATER FATSVARE VIA NETTVERK

OPPDATERER FASTVARE MANUELT

VEDLIKEHOLD OG SERVICE

Problem Årsak Korrigerende handling

Att: Open Source Software Officer

P.O Box 081126

Racine, WI USA 53408-1126

TOIMINNAN KUVAUS JA TEKNISET TIEDOT

RAKENTAMINEN

Pursotin: Yksi pursotus

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Simple line drawing of a rectangular device with diagonal stripes and a small protrusion at the bottom (no text or symbols)

3D40 FLEX RESURSSIT

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Käyttöopas

Pikaopas

Filamenttikela**

Virtakaapeli

USB-kaapeli

Rakennusteippi

Line drawing of a spatula (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols)

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

Technical line drawing of a mechanical component with internal cavities and an upward arrow indicating motion (no text or symbols)

Line drawing of hands installing a component into a device frame (no text or symbols)

Technical line drawing of an open computer case with internal compartments and a black arrow indicating a specific component (no text or symbols present)

1. Poista alatuki.

Technical line drawing of an open mechanical device with internal compartments and a black arrow indicating a component (no text or symbols)

MALLI (MODEL) -VALIKKO

Please Wait Calibrating.

KALIBROI (CALIBRATE)

Line drawing of a hand using a tool to adjust or install a component, with no visible text or symbols.

LAITEOHJELMISTON PÄIVITTÄMINEN VERKON KAUTTA

Attn: Open Source Software Officer

P.O Box 081126

Racine, WI USA 53408-1126

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Simple line drawing of a rectangular device with diagonal stripes and small square cutouts at the bottom (no text or symbols)

3D40 FLEX FORRÁSOK

Forrás Leírás Hely

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Kezelési utasítás

Line drawing of a flat tool with a pointed handle and handlehead (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

Technical line drawing of a mechanical component with internal cavities and an upward arrow indicating motion (no text or symbols)

Line drawing of hands inserting a device into a device casing (no text or symbols)

Technical line drawing of an open computer case with internal compartments and a black arrow indicating a specific component (no text or symbols present)

Technical line drawing of an open mechanical device with internal components and a black arrow indicating a directional component (no text or symbols)

Please Wait Calibrating.

CALIBRATE (KALIBRÁLÁS)

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Simple line drawing of a rectangular device with diagonal lines and a small protrusion at the bottom (no text or symbols)

CTEHA 8" (203mm) 8" (203mm)8" (203mm) 14" (356mm)

РЕСУРСЫ 3D40 FLEX

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Инструкция

Line drawing of a flat tool with a pointed handle and handlehead (no text or symbols)

Technical line drawing of a mechanical component or bracket (no text or symbols)

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

Technical line drawing of a mechanical component with internal cavities and an upward arrow indicating motion (no text or symbols)

Line drawing of hands installing a component into a device (no text or symbols visible)

Technical line drawing of an open computer case with internal compartments and a black arrow indicating a specific component (no text or symbols present)

Technical line drawing of an open mechanical device with internal components and a black arrow indicating a directional component (no text or symbols)

CONNECT WI-FI DISCONNECT WI-FI SET PROXY BACK HOME

NETWORK (CETB)

Please Wait Calibrating.

CALIBRATE (КАЛИБРОВКА)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

说明手册

快速启动指南

打印线盘**

电源线

Coiled cable with connectors and connectors (no text or symbols visible)

USB 线缆

打印贴纸

Line drawing of a flat tool with a pointed tip and handle (no text or symbols)

模型移除工具

USB 闪存驱动器

Technical line drawing of a mechanical component or housing frame (no text or symbols)

可弯曲打印平台板和 打印平台板支架

疏通工具

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

Technical line drawing of a mechanical component with internal cavities and an upward arrow indicating motion (no text or symbols)

1. 从两侧抬起打印平台。

Line drawing of hands inserting a device into a device casing (no text or symbols)

1. 打开前门，移除中部内衬。

Technical line drawing of an open computer case with internal compartments and a black arrow indicating a specific component (no text or symbols present)

1. 移除底部内衬。

Technical line drawing of an open mechanical device showing internal components and a black arrow indicating a directional component (no text or symbols present)

CONNECT WI-FI DISCONNECT WI-FI SET PROXY BACK HOME

网络 (NETWORK)

Please Wait Calibrating.

校准

轻击将喷头和打印平台移动到零点位置。

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

JOG 模式

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

通过网络更新固件

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Simple line drawing of a rectangular device with diagonal stripes and a small door (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Εγχειρίδιο οδηγιών

Coiled cable or connector with two connectors and a central connector (no text or symbols visible)

Καλώδιο USB

DREMEL

Taivía dóμησης

Line drawing of a folding tool (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a box containing multiple test tubes with an upward arrow indicating growth (no text or symbols present)

Technical line drawing of a mechanical device interior with internal compartments and a black arrow indicating upward motion (no text or symbols)

Line drawing of hands installing a component into a device frame (no text or symbols visible)

Technical line drawing of an open computer case with internal compartments and a black arrow indicating a specific component (no text or symbols present)

Technical line drawing of an open computer case with internal compartments and a black arrow indicating a component (no text or symbols)

CONNECT WI-FI DISCONNECT WI-FI SET PROXY BACK HOME

ΔΙΚΤΥΟ

Please Wait Calibrating.

ΒΑΘΜΟΝΟΜΗΣΗ

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

ENHMEPΩΣΗ TOY FIRMWARE MEΣΩ ΔΙΚΤΥΟΥ

Symbol Adi Tanm/Açıklama

1

V Salt Valaj
Hs Hept Fekons, soiye
∅ Cap

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Simple line drawing of a rectangular device with diagonal stripes and a small protrusion at the bottom (no text or symbols)

3D40 FLEX KAYNAKLARI

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Kullanım Kılavuzu

OPEMEL 3D40 FLEX Quick Start Guide

Coiled cable with connectors and connectors (no text or symbols visible)

USB Kablosu

DREMEL

Yapım Bandı

Line drawing of a flat tool with a pointed tip and handle (no text or symbols)

Nesne Çıkartma Aleti

USB Bellek Çubuğu

Technical line drawing of a mechanical component or housing (no text or symbols)

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

Technical line drawing of a mechanical component with internal cavities and an upward arrow indicating motion (no text or symbols)

Line drawing of hands installing a component into a device frame (no text or symbols visible)

Technical line drawing of an open computer case with internal compartments and a black arrow indicating a specific component (no text or symbols present)

Technical line drawing of an open mechanical device showing internal components and a black arrow indicating a directional component (no text or symbols present)

CONNECT WI-FI DISCONNECT WI-FI SET PROXY BACK HOME

NETWORK (AĞ)

Please Wait Calibrating.

CALIBRATE (KALİBRE ET)

Attn: Open Source Software Officer

P.O Box 081126

Racine, WI USA 53408-1126

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Simple line drawing of a rectangular device with diagonal stripes and a small protrusion at the bottom (no text or symbols)

SCIANA 8" (203mm) 8" (203mm)8" (203mm) 14" (356mm)

ZASOBY 3D40 FLEX

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Instrukcja obsługi

Coiled cable with connectors and connectors (no text or symbols visible)

Kabel USB

DREMEL

Taśma do druku

Line drawing of a spatula (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols)

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

Technical line drawing of a mechanical component with internal cavities and an upward arrow indicating motion (no text or symbols)

Line drawing of hands installing a component into a device frame (no text or symbols visible)

Line drawing of an open refrigerator internal compartments with a black arrow indicating a specific component (no text or symbols present)

Technical line drawing of an open refrigerator interior showing internal compartments and a black arrow indicating a component (no text or symbols present)

Please Wait Calibrating.

KALIBRUJ

ANULOWANIE DRUKOWANIA W 3D40 FLEX

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Attn: Open Source Software Officer

P.O Box 081126

Racine, WI USA 53408-1126

SETUP AND USE. FAILURE TO COMPLY WITH THE WARNINGS AND INSTRUCTIONS MAY RESULT IN FIRE, EQUIPMENT DAMAGE, PROPERTY DAMAGE, OR PERSONAL INJURY. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

WORK AREA SAFETY

e. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
f. Do not operate Dremel 3D40 FLEX in the presence of flammable liquids, gases or dust. Dremel 3D40 FLEX creates high temperatures which may ignite the dust or fumes.
g. Store idle 3D40 FLEXs out of reach of children and other untrained persons. Injury can occur in hands of untrained users.

ELECTRICAL SAFETY

a. Always use the Dremel 3D40 FLEX with a properly grounded outlet. Do not modify Dremel 3D40 FLEX plug. Improper grounding and modified plugs increase risk of electric shock.
b. Do not use Dremel 3D40 FLEX in damp or wet locations. Do not expose Dremel 3D40 FLEX to rain. Presence of moisture increases risk of electric shock.
c. Do not abuse the cord. Never use the cord for pulling or unplugging the Dremel 3D40 FLEX. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
d. Avoid using this product during an electric storm. There may be a remote risk of a power surge from lightning that may result in an electric shock.
e. In case of emergency unplug Dremel 3D40 FLEX from outlet.

PERSONAL SAFETY

a. Stay alert, watch what you are doing and use common sense when operating a Dremel 3D40 FLEX. Do not use Dremel 3D40 FLEX while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating Dremel 3D40 FLEX may result in personal injury.
b. Use personal protective equipment. The use of protective equipment such as heat resistant gloves and safety glasses will reduce the risk of personal injuries.
c. Dress properly. Do not wear loose clothing or Jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, Jewellery or long hair can be caught in moving parts.

DREMEL 3D40 FLEX USE AND CARE

a. Before every use check Dremel 3D40 FLEX for misalignment or binding of moving parts, breakage of parts and any other condition that

may affect the Dremel 3D40 FLEX's operation. If damage is suspected then have the Dremel 3D40 FLEX repaired by an authorised Dremel service centre before use. Use of Dremel 3D40 FLEX when damaged may result in poor quality of object creation, further equipment damage, property damage or personal injury.

b. Do not touch the extruder tip during Dremel 3D40 FLEX operation or until it has cooled down to at least 60°C (140°F). Contact with the extruder tip during or after operation before tip has cooled may result in personal injury.
c. Set up the Dremel 3D40 FLEX in a well-ventilated area. Provide at least 8 inches of unobstructed spacing around Dremel 3D40 FLEX. Dremel 3D40 FLEX melts plastic during building. Plastic odours emitted during Dremel 3D40 FLEX operation may irritate eyes and airways. Locating Dremel 3D40 FLEX close to surrounding objects prevents proper ventilation.
d. Do not reach inside the Dremel 3D40 FLEX while it is in operation. Contact with Dremel 3D40 FLEX moving parts during operation may result in poor build quality, equipment damage or personal injury.
e. Prevent untrained individuals accessing the 3D40 FLEX during operation. Use of Dremel 3D40 FLEX by persons unfamiliar with these warnings an instructions may result equipment or property damage and personal injury.
f. Use only DREMEL PLA filament. Use of filament not authorized by Dremel may result in equipment and property damage.
g. Ensure small objects created by Dremel 3D40 FLEX are not accessible to young children. Small objects are potential choking hazards for young children.
h. Do not create illegal or inappropriate objects using Dremel 3D40 FLEX.
i. Do not use Dremel 3D40 FLEX to create objects intended for use with candles, liquid fuels, and other heat sources. Plastic may melt when exposed to fire or other heat sources. Such use of objects created by Dremel 3D40 FLEX may result in fire, property damage and personal injury.
j. Do not use Dremel 3D40 FLEX to create objects intended for food or drink applications such as preparation, decoration, storage, or consumption. Such use of objects created by Dremel 3D40 FLEX may result in illness or personal injury.
k. Do not use Dremel 3D40 FLEX to create objects intended with use with electrical components or housings of electrical components. PLA plastic is not suitable for electrical applications. Such use of objects created by Dremel 3D40 FLEX may result in property damage and personal injury.
I. Do not put plastic objects in or around your mouth. PLA plastic is not suitable for food or drink preparation and food utensils. Such use of objects created by Dremel 3D40 FLEX may result in illness or personal injury.
m. Do not use Dremel 3D40 FLEX to create objects intended for chemical storage. PLA plastic is not suitable for chemical storage. Such use of objects created by Dremel 3D40 FLEX may result in property damage and personal injury.
n. Do not modify Dremel 3D40 FLEX or alter factory settings. Modifications may result in equipment and property damage, and personal injury.
o. Do not expose Dremel 3D40 FLEX to temperatures exceeding 70°C (158°F). Dremel

3D40 FLEX may become damaged. Dremel 3D40 FLEX is intended to operate in temperature between 16 - 29^ (60 - 85° F).

p. Do not move or bump Dremel 3D40 FLEX or the extruder during operation. The object may build incorrectly.
q. Do not change filament spool unless the building process is completed, stopped, or paused. Changing the filament during building will cancel the object and may damage the extruder.
r. Do not pull the filament out until instructed by the touch screen. Doing so may damage the extruder.
s. Use extra care not to damage the extruder tip when clearing debris. Dremel 3D40 FLEX will not work properly with damaged extruder tip and will require replacement.
t. Before every build make sure that the build platform is covered with Dremel specified build tape. Use of improper build tape may result in equipment damage and poor object build quality.
u. Be aware of your body position when using hand tools to remove objects from the build platform. Sudden tool slip and improper body position during object removal from the build platform may result in personal injury.
v. Avoid scratching the build platform when removing objects. Scratches in the build platform will result in improper object creation.
w. Do not drop the build platform. Tempered glass plate may break and result in personal injury.
x. Do not remove tempered glass plate from plastic holder. Contact with tempered glass plate edge may result in personal injury.
y. Do not twist or bend the build platform while removing objects. Tempered glass plate may separate from plastic holder and result in personal injury.
z. Dremel is not responsible for structural integrity or utility of objects created using Dremel 3D40 FLEX. Structural models created by inexperienced designers may result in property damage and personal injury.

SERVICE

a. Always unplug Dremel 3D40 FLEX from its power before performing any service procedures. Failure to do so may result in personal injury and equipment damage.
b. Have your Dremel 3D40 FLEX serviced only by an authorized Dremel service centre using only Dremel replacement parts. This will ensure that proper operation and safety of Dremel 3D40 FLEX is maintained.
c. Use only Dremel approved materials and components. Use of object materials, or 3D objects other than Dremel ^® approved object materials and genuine Dremel ^® components may void warranty.
d. Use only Dremel approved filament. Damage to the product resulting from use of filament other than Dremel approved filament is not covered under warranty.

TABLE OF CONTENTS

General safety warnings ....524
Table of contents....525
Used symbols....526
FCC compliance 526
Information on Intellectual Property ....526
Functional Description and Specifications .... 526
3D40 FLEX Resources....527
Glossary of Terms....528
Getting to know your 3D40 FLEX....529
Introduction....531
Kit Contents ^* ......531
Touch Screen....533
Touch Screen Icons ....538
Initial Setup....539
Getting Ready to Build....540
Initial setup 542
Building 545
Removing Your Object....547
Best Practices ....548
Maintenance....549
Maintenance and Service....551
Open Source Software 552
Warranty 553

USED SYMBOLS

Symbol Name Designation/

		Explanation
WARNING	Warning symbol	Alerts user to warning messages
	Read manual symbol	Alerts user to read manual
V	Volts Voltage
A	Amperes Current)
Hz	Hertz	Frequency, cycles per second
∅	Diameter
o	Off position
	Alternating current	Type or a characteristic of current
	Hot surface hazard symbol	Contact may cause burn. Allow to cool before servicing.
		The magnets of the build plate holder generate a field that can impair the function of cardiac pacemakers.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes and Modifications not expressly approved by the manufacturer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commission's rules.

INFORMATION ON INTELLECTUAL PROPERTY

The Dremel 3D40 FLEX is intended for 3D printing objects from digital files that you create or own, or have the right to print using the Dremel 3D40 FLEX.

When making objects using the Dremel 3D40 FLEX, it is your responsibility to ensure that you do not infringe any third party intellectual property rights or violate any applicable laws or regulations, such as U.S. or foreign intellectual property laws. The Dremel 3D40 FLEX may not be used to make objects protected by intellectual property rights owned by third parties without such third parties' permission. Using the Dremel 3D40 FLEX to do any of the following may require the permission of third parties: to make a duplicate or facsimile (in whole or in part) of any object not created by you, to make an object from a digital file you do not own, or to make an object from a scan of a physical object that you did not create. It is your responsibility to obtain such permission. In some cases, you may not be able to obtain such permission. Where such permission cannot be obtained, you should not 3D print such object, or you do so at your own risk. You may not modify, reverse engineer, decompile, or disassemble the Dremel 3D40 FLEX or its software or firmware, except as permitted by applicable law. If you use the Dremel 3D40 FLEX in any way other than as recommended and described in these Operating/Safety Instructions, you do so at your own risk. Using the Dremel 3D40 FLEX to make objects that infringe any intellectual property rights owned by third parties could result in civil or criminal prosecution and penalties, and you could be liable for money damages, fines, or imprisonment.

FUNCTIONAL DESCRIPTION AND SPECIFICATIONS

BUILDING

Extruder: Single extrusion

Extruder temperature: Up to 230°C (397°F)

Operating Interface: 3.5" full color IPS touch screen Maximum Build Volume: 10" x 6" x 6.7" (255mm x 155mm x 170mm)

Layer Thickness: 50 microns | 0.5 mm

Filament Colors: See Dremel3D.com for color choices Internal Storage: 4GB

External Storage: USB Flash Drive

WEIGHT & DIMENSIONS

Weight (without spool): 16kg (35lbs)

Dimensions: 20.25" x 16" x 15.9" (515mm x 406mm x 394mm)

FILAMENT

ONLY works with Dremel 1.75mm filament

FILAMENT STORAGE

All polymers degrade with time. Do not unpack until filament is needed. Filament should be stored at room temperature: 16-29°C (60-85°F) and in dry conditions.

SOFTWARE

Dremel 3D40 FLEX comes with complimentary Dremel Digilab 3D Slicing software for Windows and Mac OSX. This application converts your 3D digital files into buildable files.

• CPU: 64-bit processor (32-bit not supported)
• Memory: 3 GB RAM (4 GB or more recommended)
- Disk space: \~2 GB free disk space for installation
- Display card: 1,024 MB GDDR RAM or more. Microsoft® Direct3D® 11 capable graphics card or higher
- Pointing device: Three-button mouse

ELECTRICAL REQUIREMENTS

3D40 FLEX input rating: 100-240V, 47-60Hz, 0.8A-1.8A

OPERATING ENVIRONMENT

Room Temperature: 16-29°C (60 - 85°F)

Level workspace

Dry workspace environment

16" (406mm) 20.25" (515mm) 15.5" (394mm)

Line drawing of a rectangular device with diagonal stripes and small square buttons at the bottom (no text or symbols)

WALL 8" (203mm) 8" (203mm)8" (203mm) 14" (356mm)

3D40 FLEX RESOURCES

Resource Description Location
Quick Start Guide	Provides illustrated walk through of how to un-box your 3D40 FLEX and start building out of the box.	Printed version of the Quick Start Guide is located in the rectangular component carton. It is also available on www.dremel3d.com
Dremel 3D Website	Provides the latest 3D40 FLEX software, product information, customer support, and 3D model and project downloads.	www.dremel3d.com
Dremel 3D Customer Support	Contact Dremel for product support, maintenance, and service.	www.dremel3d.com
File Slicing Software	Allows you to upload, edit, and build 3D files.	Installed from www.dremel3d.com or from USB flash drive provided with the Dremel 3D40 FLEX.

GLOSSARY OF TERMS

Term Definition
Flexible Build Plate	The flat, flexible surface used by your Dremel 3D40 FLEX to build objects. The flexible build plate is comprised of a flexible steel plate with plastic handles for easy bending. The flexible build plate is attached to the printer using the build plate holder.
Build Plate Holder	The flat, magnetic surface used to hold the flexible build plate. It has a magnetic surface, two notches in the back and two movable latches in the front to hold down the flexible build plate.
Build Platform Clip	Clip located at the front of the build platform base that is used to secure the build platform in place.
Build Tape Adhesive tape that improves the consistency of your objects and helps them stick to the build plate surface.
Build Volume The three dimensional (3D) amount of space that an object will use once it is completed. Your Dremel 3D40 FLEX has a maximum build volume which means that objects with a larger build volume cannot be built unless they are resized or broken into subobjects.
Door Your Dremel 3D40 FLEX has a door located on the front panel. This allows for easy access to the build platform, extruder, filament, and your objects. This door is made with a transparent material so you can monitor the progress of your objects while keeping the build environment stable.
Ethernet Port A local area wired networking technology that allow electronic devices to communicate.
Extruder An assembly that uses gears to pull filament through the extruder intake, heat the filament to the build temperature, and push the heated filament out of the extruder tip.
Extruder Fan A fan used to cool the outer assembly of the extruder and gear motor.
Extruder Fan Baffle	A plastic piece that directs air from the extruder fan onto the build platform to assist in cooling the active build.
Extruder Intake An opening located at the top of the extruder where filament is inserted for building.
Extruder Lever A lever located on the side of the extruder that is used to loosen the grip of the extruder gear motor.
Extruder Tip A nozzle located at the bottom of the extruder where heated filament is forced out for building.
Filament A threadlike strand of plastic material.
Filament Guide Tube	A plastic piece that guides the filament from the filament spool through a passage in the outer housing of your Dremel 3D40 FLEX.
Filament Jam Sensor	A sensor in the extruder that pauses your printer if filament stops extruding properly.

Filament Runout Sensor	A sensor in the extruder intake that pauses your printer if it runs out of filament during a build.
Filament Spool	A cylindrical piece on which a long strand of filament is wound for storage and continuous use.
.g, .gcode, .g3drem	A buildable file format compatible with your Dremel 3D40 FLEX.
Leveling Knobs	Knobs located under the build platform base that are used to create proper spacing between the extruder tip and the build platform.
Leveling Sensor	A sensor that detects the height of the build platform and assists in proper leveling.
Lid	Your Dremel 3D40 FLEX has a pivoting lid on the top. This allows for more access to the build platform, extruder, filament, and objects when necessary.
Needle Nose Pliers	Common tool used to hold small objects and to grab excess material that may be too hot to touch directly.
OBJ File	A common digital file format used in a wide range of 3D model software. This file is created in 3rd party 3D software or downloaded from Dremel3D.com.
Object Removal Tool	A tool used to separate your objects from the build platform.
PLA. A bioplastic derived from renewable resources such as corn starch
Spool Holder A	plastic piece located to the left of the build platform inside your Dremel 3D40 FLEX build area that is designed to hold a filament spool.
Spool Door	A removable door which locks the filament spool to the spool holder.
Stepper Motor	A brushless DC electric motor used to drive the guide rails and extruder gears.
.STL File	A common digital file format used in a wide range of 3D model software. This file is created in 3rd party 3D software or downloaded from Dremel3D.com.
Touch Screen	Full color display that is touch activated. It allows you to monitor your Dremel 3D40 FLEX and objects while also providing commands directly to your Dremel 3D40 FLEX without the use of a computer.
USB Flash Drive	A portable memory card used on a wide array of devices.
WIFI	A local area wireless networking technology that allow electronic devices to communicate.
X-Axis Guide Rails	A set of rails on either side of the extruder that allow a stepper motor to move the extruder to the left or right side of the build area.
Y-Axis Guide Rails	A set of rails on either side of the build area that allow a stepper motor to move the extruder to the front or back of the build area.
Z-Axis Guide Rails	A set of rails located at the back of the build area that allow a stepper motor to move the build platform up or down.

GETTING TO KNOW YOUR 3D40 FLEX

1 2 3 DREMEL 3D 4 5 6 7 8 9 10 11 12 13

1. Lid
2. Extruder
3. Z-Axis Guide rail
4. Door
5. Gripping Handles
6. USB A Port
7. Leveling Knobs
8. Build Platform Clip
9. Touch Screen
10. Build Plate Holder
11. Flexible Build Plate
12. Filament Spool Holder
13. Filament Spool
14. Y-Axis Guide Rail

15. Stepper motor

16. Filament Guide Tube

17. Extruder Lever
18. Filament Guide Clip
19. Extruder Intake
20. Extruder Fan
21. Ribbon Cable
22. X-Axis Guide Rail
23. Leveling Sensor
24. Extruder Tip
25. Power Switch
26. USB B Port
27. Ethernet Port
28. Nameplate
29. Power Input

15 16 17 21 18 19 20 14 DREMI 22 23 24

25 26 27 29

DREMEL 28

INTRODUCTION

Welcome to the world of Dremel 3D. Our mission is to mentor you through the 3D building process and share best practices for bringing your ideas to life. 3D building is a process that will involve experimentation and persistence. Thankfully, the Dremel experts are here to make your job easier with online tips and support. With Dremel, you can build on your own ideas, build them better and make them yours. To get started with 3D40 FLEX follow the initial setup routine on the touch screen.

KIT CONTENTS\*

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Instruction Manual

Quick Start Guide

Filament Spool**

Power Cable

USB Cable

Build Tape

Line drawing of a flat tool with a pointed tip and handle (no text or symbols)

Object Removal Tool

USB Flash Drive

Technical line drawing of a mechanical component or housing (no text or symbols)

Flexible Build Plate and Build Plate Holder

Unclog Tool

UNPACKING

1. Place box on table, cut tape, and open.
2. Remove top insert.

Diagram of a box with multiple test tubes and an upward arrow, no text or symbols present

1. Remove 3D40 FLEX and place on table.
2. Open lid and remove top insert.

Technical line drawing of a mechanical component with internal cavities and an upward arrow indicating motion (no text or symbols)

1. Raise build plate by lifting from both sides.

Illustration of hands installing a device into a computer case (no text or symbols visible)

1. Open door and remove middle insert.

Technical line drawing of an open computer case with internal compartments and a black arrow indicating a specific component (no text or symbols present)

1. Remove bottom insert.

Technical line drawing of an open mechanical device with internal compartments and a black arrow indicating a component (no text or symbols present)

Tip: Keep packaging for future transportation and storage.

TOUCH SCREEN

Using your Dremel 3D40 FLEX without a computer is easy with the onboard software and full colour touch screen. Before building your model we want to familiarize you with the touch screen menu structure and options.

WARNING

OBSERVE ALL PROVIDED WARNINGS AND SAFETY INSTRUCTIONS WHEN USING THE DREMEL 3D40 FLEX. FAILURE TO DO SO MAY RESULT IN FIRE, EQUIPMENT DAMAGE, AGE OR PERSONAL INJURY.

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

BUILD

Tap to select a 3D model and begin build process. (See page 545 for detailed build instructions)

108MB 3781MB 434MB 1585MB PRINT QUEUE HOME

BUILD MENU

Tap Printer, USB Flash Drive, or Print Queue to choose the destination of your desired file.

ScrewdriverHandle... FishStanci.g3drem frog.g3drem DiamondStencil.g3... BACK HOME

MODEL MENU

Tap to select the desired model or use arrows to scroll through pages to find your model.

FILE NAME BUILD TIME 00:00 BUILD DELETE COPY TO PRINTER BACK HOME

FILE DETAILS

BUILD – Tap to begin build process. DELETE – Tap to remove model file from on-printer storage or USB flash drive. COPY TO PRINTER – From USB flash drive, tap to copy model file to on-printer storage.

TIME REMAINING: 00:00 CHANGE FILAMENT

BUILD STATUS

STOP – Tap to cancel the current build process. PAUSE/PLAY – Tap to pause or resume the current build process. Pause will allow you to access the filament button. CHANGE FILAMENT – Tap to change filament during the current build process to add more filament or change colors.

NEXT IN QUEUE USERNAME Screwdriver Handle... FisikStencil.g3drem CREATE BUILD DELETE USERNAME frig.g3drem USERNAME DiamondStencil.g3... BACK HOME

PRINT QUEUE MENU

BUILD - Tap to view details of next build.

DELETE – Tap to remove next build from queue.

FILE NAME BUILD TIME BUILD DELETE BACK HOME

PRINT QUEUE MODEL DETAILS

BUILD – Tap to begin build process.

DELETE - Tap to remove model file from queue.

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

FILAMENT

Tap to begin heating and start filament load/change process. (See page 540 for instructions on filament load/change process)

CUT FILAMENT TEMP NEXT HOME

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

LEVEL

Tap to begin build platform leveling process. (See page 544 for instructions on leveling the build platform)

BUILD PLATFORM IS TOO HIGH TURN RIGHT TO LOWER

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

TOOLS

Tap to access the following individual printer functions and settings.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

FOR HELP PLEASE CONTACT DREMEL CUSTOMER SERVICE: 4915 21ST STREET RACINE, WI 53406 [phone] @

SERVICE

Tap to enter service menu to see customer service contact information.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

CONNECT WI-FI DISCONNECT WI-FI SET PROXY BACK HOME

NETWORK

Tap to enter Network menu to connect or disconnect WiFi and Set Proxy.

CONNECT WIFI – Tap to connect to WiFi.

DISCONNECT WIFI – Tap to turn Wifi off.

SET PROXY – Tap to set manual proxy.

SET STATIC IP - Tap to set Static IP.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

Please Wait Calibrating.

CALIBRATE

Tap to move extruder and build platform to zero position.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

JOG MODE

Tap to display options to move extruder and build platform along the X, Y, and Z-axis.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

DISPLAYLANGUAGE Z-AXIS OFFSET SOUNDS DEMO MODE FACTORY RESET CHECK FOR UPDATES BACK HOME

SETTINGS

LANGUAGE – Tap to pick alternate menu language.

DISPLAY – Tap to customize cabinet LEDs or main menu hotkeys.

Z-AXIS OFFSET – Used to calibrate build plate height during assembly.

SOUNDS – Tap to turn 3D40 FLEX sounds On/Off.

DEMO MODE – Tap to turn retail demo mode On/Off.

FACTORY RESET – Tap to remove all information stored on 3D40 FLEX and return it to factory defaults.

CHECK FOR UPDATES – Tap to check for new firmware version when connected to Wifi or Ethernet.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

HEATING: PURGE STOP BACK HOME

PREHEAT

Tap to automatically begin preheating the extruder for building or removing excess debris.

PURGE – Once extruder is hot, tap to manually extrude filament.

STOP/START – Tap to stop or start preheating.

SERVICE NETWORK CALIBRATE JOG MODE SETTINGS PREHEAT ABOUT HOME

DREMEL 3D40 IDEA BUILDER FIRMWARE VERSION: USAGE COUNTER: PRINTER STATUS: MAC:

ABOUT

Tap to see 3D40 FLEX information such as firmware version, usage counter, printer status, and MAC address.

TOUCH SCREEN ICONS

Indicates that there is an error such as filament empty or door open.

Indicates that Ethernet is connected.

Indicates WiFi signal strength and if connected to WiFi symbol will be blue.

Indicates that the extruder is cool.

Indicates that the extruder is warm.

Indicates that the extruder is hot.

INITIAL SETUP

The first time you power on your Dremel 3D40 FLEX you will be prompted to perform an initial setup of network. Completing this process will give you access to notifications of firmware updates.

1. To complete initial setup, tap "Yes" when prompted on the initial setup screen. If you decline this setup you can always setup network later.
2. If you choose "Yes", 3D40 FLEX will automatically connect to your ethernet or search for available wireless networks.

SEARCHING AVAILABLE NETWORKS BACK HOME

1. Choose your wireless network using the touchscreen. Use the arrows to scroll through the list of available wireless networks. When your wireless network name is highlighted, tap "Accept".

SELECT NETWORK: 2WIRE007 2WIRE123 2WIRE234 2WIRE345 2WIRE456 2WIRE567 2WIRE678 ACCEPT BACK HOME

1. Enter your wireless network password and tap "Accept".

'2WIRE123' PASSWORD: A ACCEPT DELETE ABC abc 123 !@# BACK HOME

GETTING READY TO BUILD

WARNING

OBSERVE ALL PROVIDED

WARNINGS AND SAFETY

INSTRUCTIONS WHEN USING THE DREMEL 3D40

FLEX. Failure to do so may result in fire, equipment

damage, property damage or personal injury.

WARNING

DO NOT TOUCH THE

EXTRUDER TIP DURING

OPERATION OR UNTIL IT HAS COOLED DOWN TO

AT LEAST 60°C (140°F). Contact with the extruder tip during or after operation before tip has cooled may

result in personal injury.

WARNING

USE ONLY DREMEL FILAMENT.

Use of filament not authorized by

Dremel may result in equipment and property damage.

WARNING

DO NOT PULL THE FILAMENT

OUT. Doing so may damage the

extruder.

LOADING/CHANGING FILAMENT

1. Start filament load/change process by tapping "Filament" button on touchscreen. Extruder will move to front right corner of print area and extruder tip will begin to heat.

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

1. After extruder stops moving, open the 3D40 FLEX Lid for better access to extruder.
2. If existing filament is loaded, cut existing filament near extruder intake and tap "Next" button on touchscreen.

CUT FILAMENT TEMP NEXT HOME

1. Remove Spool door by rotating it counter clockwise and remove existing spool if one is present, see figure1.

FIG. 1

Spool Holder Open Close Filament Filament Guide Tube

Guide Tube Filament Filament Guide Extruder intake
FIG. 2

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Thread tip of new filament through guide tube, place spool on spool holder, replace spool door by aligning locking tabs and rotating clockwise, see figure 1.
   Tap "Next" on touchscreen.
2. If changing existing filament, 3D40 FLEX will automatically purge existing filament.
3. When Feed Filament screen appears, tap "Next" on touchscreen and thread filament coming from guide tube into extruder intake until extruder feeds through on its own, see figure 2.

FEED FILAMENT CREAM NEXT BACK HOME

1. Filament will be drawn into the extruder and begin to exit from the hot extruder tip.

NOTE: Your Dremel 3D40 FLEX was tested by building objects before leaving the factory. These test objects may have been made with a different filament color than you are using. Therefore, a small amount of filament may be remaining in the extruder.

1. When new filament appears from extruder tip, tap "done" on touchscreen to complete filament load process, return to main menu, and calibrate extruder. Carefully remove excess filament without touching hot extruder tip. If necessary, carefully remove debris from extruder tip with needle nose pliers.

PRESS DONE WHEN NEW COLOR APPEARS DONE BACK HOME

USE EXTRA CARE NOT TO

DAMAGE THE EXTRUDER TIP

WHEN CLEARING DEBRIS. DREMEL 3D40 FLEX WILL

NOT WORK PROPERLY WITH A DAMAGED

EXTRUDER TIP AND WILL REQUIRE REPLACEMENT.

1. Close 3D40 FLEX lid and door.

INITIAL SETUP

PREPARING BUILD PLATFORM

WARNING

DO NOT DROP THE BUILD PLATFORM. TEMPERED GLASS

PLATE MAY BREAK AND RESULT IN PERSONAL INJURY.

WARNING

DO NOT REMOVE TEMPERED GLASS PLATE FROM PLASTIC

HOLDER. CONTACT WITH TEMPERED GLASS PLATE EDGE MAY RESULT IN PERSONAL INJURY.

CAUTION

BEFORE EVERY BUILD MAKE SURE THAT THE FLEXIBLE

BUILD PLATE IS COVERED WITH DREMEL SPECIFIED BUILD TAPE. USE OF IMPROPER BUILD TAPE MAY RESULT IN EQUIPMENT DAMAGE AND POOR OBJECT BUILD QUALITY.

1. Your build plate consists of two parts: the flexible build plate, and the build plate holder. The build plate holder has a magnetic surface to attach the flexible build plate to, and it has two notches in the back and movable latches in the front to hold down the corners of the flexible build plate.

2. The flexible build plate can be removed from the build plate holder by rotating the movable latches towards you (A), lifting the flexible build plate up by the blue handles (B), and pulling it out towards you (C), figure 3.

3. The flexible build plate comes with build tape installed. To remove it, lift it up from the tab at the front corner and slowly peel off. To install a new build tape, remove adhesive liner from build tape and place build tape over flexible build plate. For best results, apply build tape at center of flexible build plate and smooth outward to remove any air bubbles, figure 4.

FIG. 3 Flexible Build Build Tape

FIG. 4 Notch Handle Flexible Build Plate B Build Plate Holder A Latches A B Handle Notch

1. The flexible build plate can be installed on top of the build plate holder by sliding it backwards at an angle so that the corners of the flexible build plate slide under the notches at the back of the build plate holder. Release the flexible build plate so it sticks on top of the magnet, and close the latches at the front to hold it in place.

TIP: It is much easier to remove and install the flexible build plate if the build plate holder is already installed in the printer. In general, once the build plate holder is installed in the printer you do not need to remove it, you only need to remove the flexible build plate.

1. The build plate holder can be removed by pinching the clip located at the front of the build platform and lifting the build plate holder off the base, figure 7.

2. Install the build plate holder using the build platform clips.

FIG. 5 LIFT Press Clip Clip DREMEL 3D Clip

LEVELING BUILD PLATFORM

WARNING

DO NOT TOUCH THE

EXTRUDER TIP DURING

DREMEL 3D40 FLEX OPERATION OR UNTIL IT HAS COOLED DOWN TO 60°C (140°F). CONTACT WITH THE EXTRUDER TIP DURING OR AFTER OPERATION BEFORE TIP HAS COOLED MAY RESULT IN PERSONAL INJURY.

It is important you level the build platform every time you replace the build tape or reinstall the build platform to ensure that the build platform is evenly spaced from the extruder head. Make sure to remove any air bubbles from between the build platform and the build tape. Not leveling the build platform or eliminating air bubbles may cause objects to not build properly.

1. Make sure you have placed Build Tape on Build Platform and no objects are present. Applying Build Tape after leveling may effect the consistency of your object.

2. Tap "Level" on 3D40 FLEX's touchscreen.

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

1. The extruder and build platform will move into position to level the build platform. 3D40 FLEX will first check level at the back center of the build platform. The two knobs under the build platform are used to raise and lower the build platform on the left and right. The extruder contains a sensor that detects if the bed is level, no additional tools are necessary.

2. The touchscreen will indicate if your build platform is too high or too low. If the build platform is too high, adjust the appropriate knob by rotating right until you hear a "beep" and the touchscreen indicates that it is ready to verify that the bed is level.

1. If the build platform is too low, adjust the knob by rotating left until you hear a "beep" and the touchscreen indicates that it is ready to verify that the bed is level.

BUILD PLATFORM IS TOO LOW TURN LEFT TO RAISE

1. Tap "Verify" to check the bed level. If further adjustment is needed the touchscreen will indicate the direction, if the level is correct, the extruder will move to the next point and the level process can be repeated.

READY TO VERIFY VERIFY BACK HOME

1. Repeat steps 4-6 for the second position, when you bed is fully level the extruder will automatically move to the calibration position and complete the leveling process.

PLEASE WAIT LEVEL COMPLETE

CONNECTING USB CABLE

1. Ensure 3D40 FLEX power switch is in the off position.
2. Connect the included USB cable to your 3D40 FLEX and computer, figure 6.
3. Open software.
4. Turn your Dremel 3D40 FLEX on using the power switch to sync your computer to your Dremel 3D40 FLEX.

CONNECTING ETHERNET

1. Ensure 3D40 FLEX power switch is in the off position.
2. Plug ethernet cable into your 3D40 FLEX, figure 7.
3. Turn your Dremel 3D40 FLEX on using the power switch. Ethernet connection should be detected automatically. Tap "Accept" to confirm connection.

FIG. 6 USB

BUILDING

WARNING OBSERVE ALL PROVIDED WARNINGS AND SAFETY INSTRUCTIONS WHEN USING THE DREMEL 3D40 FLEX. Failure to do so may result in fire, equipment damage, property damage or personal injury.

A WARNING DO NOT REACH INSIDE THE DREMEL 3D40 FLEX WHILE IT IS IN OPERATION. Contact with Dremel 3D40 FLEX moving parts during operation may result in poor build quality, equipment damage or personal injury.

NOTE: Your Dremel 3D40 FLEX will build test objects before leaving the factory. These test objects may have been made with a different filament color than you are using. Therefore, a small amount of filament may be remaining in the extruder. The start of your first object may have some of this filament color until it transitions over to your filament color.

You have several options when building on your 3D40 FLEX:

1) On-Printer Storage
2) USB Flash Drive
3) Computer

FIG. 7 Ethernet

BEFORE YOU BUILD

1. Ensure an adequate amount of filament is loaded (see page 540).
   TIP: You can determine whether you have enough filament to complete your object before building by comparing the length of filament needed as displayed by Dremel Digilab 3D Slicer to the length of filament on spool indicated by the length gauge. If 3D40 FLEX runs out of filament during a build, it will pause until more filament is added.
2. Ensure build tape is applied, build platform is level and clear of objects.

BUILDING FROM ON-PRINTER STORAGE

1. On the main menu tap "Build".

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

1. On the build menu tap the printer icon.

108MB 3781MB 434MB 1885MB PRINT QUEUE HOME

1. Tap the model file you would like to build. (Use arrows to scroll through pages)

ScrewdriverHandle... FishStencil.g3drem frog.g3drem DiamondStencil.g3... BACK HOME

1. In the model detail page tap "Build" to begin building process.

FILE NAME BUILD TIME 00:00 BUILD DELETE COPY TO PRINTER BACK HOME

1. Your 3D40 FLEX will first align the extruder and build platform to their zero positions then the level sensor will lightly touch the build platform to complete alignment. Your extruder tip will begin to heat which may take a few minutes. Once the proper temperature is reached your model will begin to build.

2. Once your object is finished your 3D40 FLEX will automatically align the extruder and build platform to their calibration positions and cool the extruder tip.

3. Wait until the touch screen indicates that the extruder is "cool" to remove your object. See section for removing object from build platform below for object removal instructions.

BUILDING FROM USB FLASH DRIVE

1. On main menu tap "Build".

DREMEL 3D IDEA BUILDER BUILD FILAMENT LEVEL TOOLS

1. Tap USB icon to access contents of USB flash drive.

108MB 3761MB 434MB 1885MB PRINT QUEUE HOME

1. Follow steps 3-7 from Build from On-Printer storage to complete build from USB flash drive.

USB Flash Drive FIG. 8

BUILD FROM COMPUTER

Dremel 3D40 FLEX is compatible with Dremel Digilab 3D Slicer. Follow the instructions that came with this software to complete a Build from your computer.

CANCELING YOUR BUILD ON 3D40 FLEX

To cancel your object during preheating or building, tap "Stop" on the touch screen. If you confirm "Yes" the extruder and build platform will move to their calibration positions.

REMOVING YOUR OBJECT

REMOVING YOUR OBJECT FROM THE BUILD PLATFORM

WARNING DO NOT TOUCH THE EXTRUDER TIP DURING DREMEL 3D40 FLEX OPERATION OR UNTIL IT HAS COOLED DOWN TO AT LEAST 60°C (140°F). Contact with the extruder tip during or after operation before tip has cooled may result in personal injury.

WARNING USE PERSONAL PROTECTIVE EQUIPMENT. The use of protective equipment such as heat resistant gloves and safety glasses will reduce personal injuries.

WARNING DO NOT FLEX THE BUILD PLATE WITH THE OBJECT POINTING TOWARDS YOURSELF AND OTHERS. Objects flying off the build plate may result in personal injury.

WARNING BE AWARE OF YOUR BODY POSITION WHEN USING HAND TOOLS TO REMOVE OBJECTS FROM THE BUILD PLATFORM. Sudden tool slip and improper body position during object removal from the build platform may result in personal injury.

WARNING DO NOT DROP THE BUILD PLATE HOLDER. Tempered glass plate may break and result in personal injury.

WARNING DO NOT TWIST OR BEND THE BUILD PLATE HOLDER WHILE REMOVING OBJECTS. Tempered glass plate may separate from plastic holder and result in personal injury.

WARNING AVOID SCRATCHING THE BUILD PLATFORM WHEN REMOVING OBJECTS. SCRATCHES IN THE BUILD PLATFORM WILL RESULT IN IMPROPER OBJECT CREATION.

1. Wait for the extruder to cool before removing your object.
2. With the object still attached, remove flexible build plate from the build area. See page 20 for detailed instructions.
3. Flex the build plate with the object pointed away from yourself and others. Push on the back of it with your thumbs using your other fingers to hold onto the handles, figure 9. The part will release and will either fall off or be easy to pull off with your hand.
4. For thin or small parts, flexing the build plate may not be enough to release the part. In these cases, gently use the object removal tool to remove the object from the build plate, figure 9.

Illustration of hands using a tool to apply a small object onto a flat surface, labeled 'FIG. 9' (no text or symbols on the diagram itself)

Removal Tool

REMOVING SUPPORTS (IF REQUIRED)

Use needle nose pliers to remove supports that are inside your object or hard to reach.

BEST PRACTICES

1. ALWAYS USE BUILD TAPE.
2. Ensure your build plate is level before every object.
3. Ensure spool is installed properly and can rotate freely.
4. When using your Dremel 3D40 FLEX for the first time or after changing filament, allow Dremel 3D40 FLEX to extrude until material is consistent with the installed filament color.
5. It is important to watch your Dremel 3D40 FLEX begin building objects. Your object is most likely to experience difficulty in the beginning. Thankfully, this is also the most convenient time to cancel the object, clean the build plate, and start your object again. Remain near the Dremel 3D40 FLEX during the building process.
6. It is important to save your Dremel 3D40 FLEX packaging as it will make re-boxing and transporting your Dremel 3D40 FLEX easier.
7. Ensure that you store filament spools in an environment that is not moist or too hot. It is recommended that you do not remove the filament spool from its airtight packaging until use.
8. Use object removal tool gently to avoid damaging the build plate or object.
9. Whenever possible, it is best to locate your object in the center of the build plate. Using the best orientation for your object is critical. Ensure that your object is located on the build plate and that you are using the best orientation for building.
10. For steep overhangs (Less than 45 degree angle) it is recommended to build with support.
11. Always remove the build plate before removing the object.
12. Low speed sanding is recommended to prevent remelting of the object.
13. The Dremel Digilab 3D Slicer software will display the length of filament required for each object. Compare this to the length indicated on the spool length gauge.

MAINTENANCE

UNCLOGGING THE EXTRUDER

Use the unclogging tool to clean the extruder and unclog built up filament.

1. Wait for extruder to heat up insert the unclog tool into the extruder intake (top).
2. Clogged debris will be pushed down and will extrude from the extruder tip.

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

UPDATING FIRMWARE VIA NETWORK

If your 3D40 FLEX is registered and added to your Dremel3D profile, you can update its firmware directly from the touchscreen. To update firmware:

1. Tap "Tools", "Settings", "Check for Updates".

DREMEL 3D IDEA BUILDER SERVICE NETWORK CALIBRATE LOG MODE LEVEL TOOLS SETTINGS LANGUAGE DISPLAY Z-AXIS OFFSET SOUNDS DEMO MODE FACTORY RESET GET NEW TOKEN CHECK FOR UPDATES BACK HOME

1. Your 3D40 FLEX will check to see if it has the latest firmware installed and ask if you would like to update if one is needed.
2. Choose accept to download and install the latest firmware.

UPDATE FIRMWARE UPDATE AVAILABLE VXX LATER ACCEPT RETRIEVE TOKEN CHECK FOR UPDATES BACK HOME

1. When the 3D40 FLEX starts up and returns to the Home Screen, firmware update is complete.

UPDATING FIRMWARE MANUALLY

If your 3D40 FLEX is not connected to a network, you can update firmware directly from a USB Flashdrive.

1. On your web browser go to www.dremel3d.com/support and download the latest 3D40 FLEX firmware file.
2. Add the 3D40 FLEX firmware file to an empty, FAT32 formatted, USB flashdrive.
3. Turn off your 3D40 FLEX using the ON/OFF switch.
4. Insert the USB flashdrive into the USB-A port.
5. Turn on your 3D40 FLEX and it should automatically detect and install the new firmware.
6. Turn your 3D40 FLEX OFF, remove the USB flashdrive, and turn ON again to complete the update.

CLEANING THE EXTERIOR

Clean the 3D40 FLEX's exterior with a lint free cloth. Clear the outer surfaces of any debris that is visible. To avoid damaging your Dremel 3D40 FLEX do not use water, chemicals or other cleaners on the 3D40 FLEX.

CLEANING THE EXTRUDER TIP

WARNING

USE EXTRA CARE NOT TO DAMAGE THE EXTRUDER TIP

WHEN CLEARING DEBRIS. DREMEL 3D40 FLEX WILL NOT WORK PROPERLY WITH DAMAGED EXTRUDER TIP AND WILL REQUIRE REPLACEMENT.

WARNING

DO NOT TOUCH THE EXTRUDER TIP DURING

DREMEL 3D40 FLEX OPERATION OR UNTIL IT HAS COOLED DOWN TO 60°C (140°F). Contact with the extruder tip during or after operation before tip has cooled may result in personal injury.

Using small needle nose pliers, pull away any plastic debris from the extruder tip. If the debris is stubborn, the extruder may need to be heated.

Wipe the touch screen with the soft, lint-free cloth. Do not spray cleaners on the touch screen.

MAINTENANCE AND SERVICE

Problem Cause Corrective Action
Extruder head building off center. Dremel 3D40 FLEX has lost track of the extruder head's exact location and is failing to build.		Sending the extruder head to the home position will recalibrate the Dremel 3D40 FLEX. Cancel your object, clear build platform, send the extruder head to the home position, and restart the object.
PLA is not extruding or sticking to the build tape properly.	This can be caused by the build platform not being leveled with the extruder head.	Leveling the build platform will align the extruder head and ensure a better object quality. Cancel your object, clear build platform, level the build platform, and restart the object.
Dremel 3D40 FLEX froze before my object started.	Dremel 3D40 FLEX may have received conflicting commands.	Turn power switch off, wait 30 seconds, and turn power switch on.
Support material does not break away during cleaning and results in decreased quality of the final object.	Orientation of the part is not optimized. Reorient the position of the 3D file in your file slicing software to minimize the support material or place the support material on a non-critical surface.
Spaghetti mess at end of build. A layer of your object did not stick properly, model was saved with minimal surface area contacting the build platform, or object was built floating above the build platform with no support selected.		Use your file slicing software to see the first layer height and position. Build with supports when necessary.
Part only built halfway. Filament ran out.	Filament clogged during build.	Replace filament and resume build. See “No filament coming out”.
No filament coming out.	Clogged extruder.	Contact customer service.
Extruder will not home. Contact customer service.
Stringy or fraying plastic layers on steep overhangs.	Object overhangs are too far apart or too steep (<45 degree angle).	Build with supports.
3D40 FLEX will not find my Wi-Fi network.	Printer too far from wireless router. Reposition 3D40 FLEX to be closer to your router. Connect to network with Ethernet.
3D40 FLEX will not connect to my network.	Printer too far from wireless router. Reposition 3D40 FLEX to be closer to your router.
	Network password incorrect. Re-enter your password or verify your password with your network owner.

OPEN SOURCE SOFTWARE

Firmware Updates

Dremel recommends that firmware be updated whenever Dremel provides an update. Dremel will provide firmware updating to improve performance and a dd additional features for the 3D40 FLEX throughout the life of the product. There are two ways of updating the 3D40 FLEX: (1) Download update from www.dremel3d.com and install using USB memory drive. (2) Connect the 3D40 FLEX to the internet and update from the 3D40 FLEX touch screen.

Open Source Software used in this Dremel product

This product contains software components that are licensed by the holder of the rights under any version of the GNU General Public License (GPL), GNU Lesser General Public License (LGPL) or any other open source software license which requires that source code be made available. You can receive a complete machine-readable copy of the corresponding source code by sending a written request to:

Dremel

Attn: Open Source Software Officer

P.O Box 081126

Racine, WI USA 53408-1126

Your request should include: (i) the name of the Dremel product, (ii) the serial number (if applicable), (iii) the software version (if applicable), (iv) your name, (v) your company name (if applicable) and (vi) your return mailing and email address (if available). We may charge you a nominal fee to cover the cost of the physical media and distribution. You may send your request (i) within three (3) years of the date you received the product that included the software which is subject of your request or (ii) in the case of code licensed under the GPL version 3 for as long as Dremel offers spare parts or customer support for that product.

Warranty regarding further use of the Open Source Software:

DREMEL provides no warranty for the Open Source Software programs contained in this device, if such programs are used in any manner other than the program execution intended by DREMEL. The licenses listed below define the warranty, if any, from the authors or licensors of the Open Source Software. DREMEL specifically disclaims any warranties for defects caused by altering any Open Source Software program or the product's configuration. You have no warranty claims against DREMEL in the event that the Open Source Software infringes the intellectual property rights of a third party. Technical support, if any, will only be provided for unmodified software.

WARRANTY

Robert Bosch (Australia) Pty Ltd (Bosch) Power Tools

Voluntary Repair or Replacement Warranty

Applicable for purchases of specified power tools, garden tools, rotary tools, 3D printing systems, pneumatic tools and measuring tools after 1 September 2015

All Bosch power tools, garden tools, rotary tools, 3D printing systems, pneumatic tools and measuring tools are carefully checked, tested and are subject to the stringent quality controls of Bosch Quality Assurance.

Important Note: Consumer Protections

If you have purchased your product in Australia, you should be aware that:

This warranty is provided in addition to other rights and remedies held by a consumer at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

If you have purchased your product in New Zealand, you should be aware that:

This warranty is supplemental to any other rights and remedies you have under the Consumer Guarantees Act 1993 NZ, unless your purchase is made for commercial purposes, in which case Bosch excludes all consumer guarantees implied in the Consumer Guarantees Act 1993 NZ in respect of your product.

(A reference to “Bosch” in this Voluntary Repair or Replacement Warranty is a reference to Robert Bosch (Australia) Pty Ltd, unless from the particular context it is obvious that it is being used as a trade mark or brand name.)

Warranty

Bosch warrants, at its option, to repair or exchange those ranges of power tools, garden tools, rotary tools, 3D printing systems, pneumatic tools and measuring tools described below (Products) if such Products are faulty or defective in manufacture or materials during the warranty period which is also specified below.

Repair or replacement under this warranty does not extend to repair or replacement, or any cost of replacement, of consumables or accessories incorporated into or supplied with the Products (for example, drill bits or jigsaw blades).

This warranty only extends to repair or replacement of the Products. It does not extend to cover:

• any costs incurred by the end user in normal or scheduled maintenance of the Products; or
• any damage to property, personal injury, direct or indirect loss, consequential losses or other expenses arising from breach of this warranty. Any end user concerned with this exclusion should consider the “Important Note: Consumer Protections” above.

Warranty Period and Coverage

The following warranty period will apply in respect of the following Products in Australia and New Zealand.

• Bosch Green Tools (including measuring tools) used solely for DIY / domestic purposes: 2 years
• Bosch Professional (Blue) Tools (including measuring tools) used for commercial / professional purposes: 1 year
• Bosch Lawn and Garden Tools: 2 years
• Skil Tools: 2 years
  • Dremel Corded Rotary Tools: 5 years
  • Dremel Cordless Rotary Tools: 2 years
  • Dremel Non-Rotary Tools: 2 years
• Dremel 3D Printers: used solely for DIY / domestic purposes: 1 year
  • Dremel 3D Printers: used for commercial / professional purposes: 60 days

The warranty period commences on the date of purchase of the Product by the end user of the Product.

Optional Extended Warranty – Bosch Professional (Blue) Tools

The warranty period for Bosch Professional (Blue) Tools (details of which are available at www.bosch-pt.com.au/warranty) may be extended from 12 months to 3 years and the warranty period for Bosch Professional (Blue) Lithium Ion batteries and chargers (details of which are available at www.bosch-pt.com.au/warranty) (collectively, Extended Warranty Products) may be extended from 12 months to 2 years if registered with Bosch, as follows:

• The Extended Warranty Products must be registered with Bosch within 12 months of the date of purchase by the end user.
• Registration can only be made at www.bosch-pt.com.au/warranty or www.bosch-pt.co.nz/warranty.
• This warranty extension is not available for Bosch Professional (Blue) high frequency tools, production cordless screwdrivers, air tools, supplied accessories and normal wear items and consumables such as jig saw blades, drill bits etc.

Warranty Conditions

• The warranty period is not renewed or extended as a result of a warranty repair or replacement.
• The warranty is not transferable and is only offered to the original end user of the Product.
• The warranty does not extend to any Products that have been completely or partially disassembled.
  • These warranty terms cannot be amended except in writing by an authorised representative of Bosch.
• The warranty only applies to Products purchased by an end user in Australia or New Zealand from Bosch or from a reseller where the Products have been originally sold by Bosch.
• The warranty claim must meet the requirements below in respect to "How to Make a Warranty Claim."

Warranty Exclusions

This warranty will not apply to a defect or fault to the extent to which it arises:

• due to storage, handling or installation of the Products otherwise than in accordance with instructions provided for the Products by Bosch or without reasonable care;
• due to operation, use or maintenance of the Products otherwise than in accordance with instructions provided for the Products by Bosch or without reasonable care;
• due to accidental damage or to use of the Products

for a purpose or in environmental conditions for which the Products were not designed or sold, or use of the products outside the specified or normal operating ranges for such Products (such as commercial / professional use of Green Tools or Dremel 3D printers);

• as a result of changes which occur in the condition or operational qualities of the Products due to climate or other environmental influence, foreign material contamination or water entry or as a result of exposure to excessive heat or solvents;
• from normal wear and tear or when replacement or repair of parts would be part of normal maintenance or service of the Products (for example, carbon brushes, o-rings, cords, build platforms or build tape) or where the damage is only to surface coating, varnish or enamel;
• as a result of repairs, alterations or modifications to the Product which have been performed by a third party; or
  • from the use of any spare parts not manufactured, sold or approved by Bosch in connection with the repair or replacement of the Product.

Neither will this warranty apply to products where damage has been caused by continued use of the products after it is known they are defective.

Wrong Deliveries and Transit Damage

Wrong deliveries, incorrect or damaged packing and transit damage claims are not warranty claims. Such cases should be directed to Bosch's Customer Service line in Australia on 1300 307 044 or in New Zealand on 0800 543 353.

How to Make a Warranty Claim

If a Product fails within the warranty period, the end user must stop using the Product and store the Product in a safe, dry environment.

The Product must be returned before the end of the Warranty Period (see Deadlines for Submitting Warranty Claims below) to the place of purchase or to a Bosch Silver Service Dealer or other Bosch Authorised Service Dealer together with proof of purchase and documentation detailing facts relevant to the claim. To locate a Bosch Silver Service Dealer or other Bosch Authorised Service Dealer, please call 1300 307 044.

For claims under the Optional Extended Warranty in respect of the Extended Warranty Products, a copy of the warranty confirmation certificate must also be provided with the warranty claim.

Costs of Submitting a Warranty Claim

For invalid claims under this voluntary warranty, Bosch will not be liable for the end user's costs in making the warranty claim, including transport or return freight.

In respect of valid claims under this supplementary voluntary warranty, the end user will not be charged for costs associated with making a warranty claim, including warranty processing costs, the cost of replacement parts or freight. Reimbursement for necessary and reasonably incurred costs or expenses in making valid warranty claims under this manufacturer's warranty may be sought from Bosch. To enquire how to make a claim for reimbursement for costs incurred in submitting a warranty claim, please call 1300 307 044 in Australia or 0800 543 353 in New Zealand. Documentary evidence in support of such claim will be required.

Deadlines for Submitting Warranty Claims

Bosch aims to rectify genuine quality problems as a priority. This is generally achieved by investigating why defective products have failed and by introducing immediate corrective action measures to prevent reoccurring warranty failures. It is therefore critical that all warranty claims are promptly submitted to Bosch as soon as the product fails, and in any event before the end of the warranty period.

Packaging

Products do not need to be returned with the original packaging to make a warranty claim.

Product Liability and Product Safety

Bosch should be informed immediately about any potential product safety concerns within and outside the warranty period. Bosch is well aware of its product liability and product safety obligations and responsibilities. It is our aim to ensure appropriate product safety standards are met in order to avoid injury, loss and damage caused by defects in any Products.

Privacy

Bosch is required to seek personal information from an end user who seeks to make a claim under this warranty.

Such personal information may be used by Bosch and/or any Authorised Service Dealer (who is authorised to process warranty claims and/or carry out warranty repairs on behalf of Bosch) for the purpose of processing such warranty claim and also for the provision of customer support and further information about Bosch's products and services (Purpose).

If an end user does not wish to provide Bosch and/or its Authorised Service Dealer with personal information, Bosch may be unable to process the end user's warranty claim or to provide the end user with additional customer support, services and information.

Bosch is committed to protecting the privacy of personal information and will act in compliance with applicable privacy laws, including the National Privacy Principles under the Australian Privacy Act 1988 (Cth) (as amended) and New Zealand's Information Privacy Principles described in the Privacy Act 1993 (NZ).

Bosch takes security measures in order to protect any personal information collected in the warranty claim process against manipulation, loss, destruction, access by unauthorized persons or unauthorized disclosure.

Bosch will not disclose any personal information to third parties other than for the Purpose or except as required by law.

An end user has the right to access the personal information Bosch or its Authorised Service Dealers hold about them. The end user can request to see, change or modify the personal information held about them, or withdraw consent for its usage, by contacting Bosch at the Bosch Contact Details below.

Bosch Contact Details

This warranty is offered by Robert Bosch (Australia) Pty Ltd (ACN 004 315 628) of 1555 Centre Road, Clayton, Victoria 3168. Please call Robert Bosch (Australia) Pty Ltd on 1300 307 044 in Australia or 0800 543 353 in New Zealand or email at

[e-mail] if you have any queries in relation to this warranty.

DISPOSAL

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

ONLY FOR EC COUNTRIES

Do not dispose of power tools with household waste!

According the European Guideline 2012/19/EC for Waste Electrical and Electronic

Equipment and its implementation into national law, power tools that are no longer usable must be collected separately and disposed of in an environmentally-correct manner.

CONTACT DREMEL

For more information on the Dremel product range, support and hotline, go to www.dremel.com.

ROBERT BOSCH AUSTRALIA

1555 CENTRE RD

CLAYTON, VIC 3168

Australia

1300 30 70 44

New Zealand

0800 54 33 53

Technical line drawing of a mechanical device with internal components (no text or symbols)

Dremel 3D40 FLEX

Coiled cable with connectors and connectors (no text or symbols visible)

USB كابل

كابل الطاقة

مسلكة الملك**

USB محرك فلاش

Line drawing of a flat tool with a pointed tip and handle (no text or symbols)

أداة إخراج الأغراض

شريط الإنشاء

اداة إزالة العوائق

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of an open computer case with internal components and a black arrow indicating a specific part (no text or symbols present)

Technical line drawing of an open computer case with internal compartments and a black arrow indicating a component (no text or symbols)

Technical line drawing of a mechanical device interior with internal compartments and a black arrow indicating upward motion (no text or symbols)

Illustration of hands installing a device into a computer case (no text or symbols visible)

شاشة المس

CONNECT WI-FI DISCONNECT WI-FI SET PROXY BACK HOME

Please Wait Calibrating.

JOG
