USER MANUAL MGR11M MPM

EN We wish you satisfaction from using the product and invite you to check a wide range of other MPM/ appliances

Exterior view of a black grater with metal handle and control panel (no text or symbols visible)

C2 NAVOD K OBSLUZE 3

Labeled diagram of a grater with numbered parts and control buttons below

BEZPEČNOSTNÍ POKYNY PŘI POUŽÍVÁNÍ

Exterior view of a black and silver flatbed electronic device (no text or symbols visible)

Exterior view of a black and silver flat-screen grater with control knobs (no text or symbols visible)

Abb. 1

Black and white photo of a Joonis 1 flat-screen cutting tool (no text or symbols on the device itself)

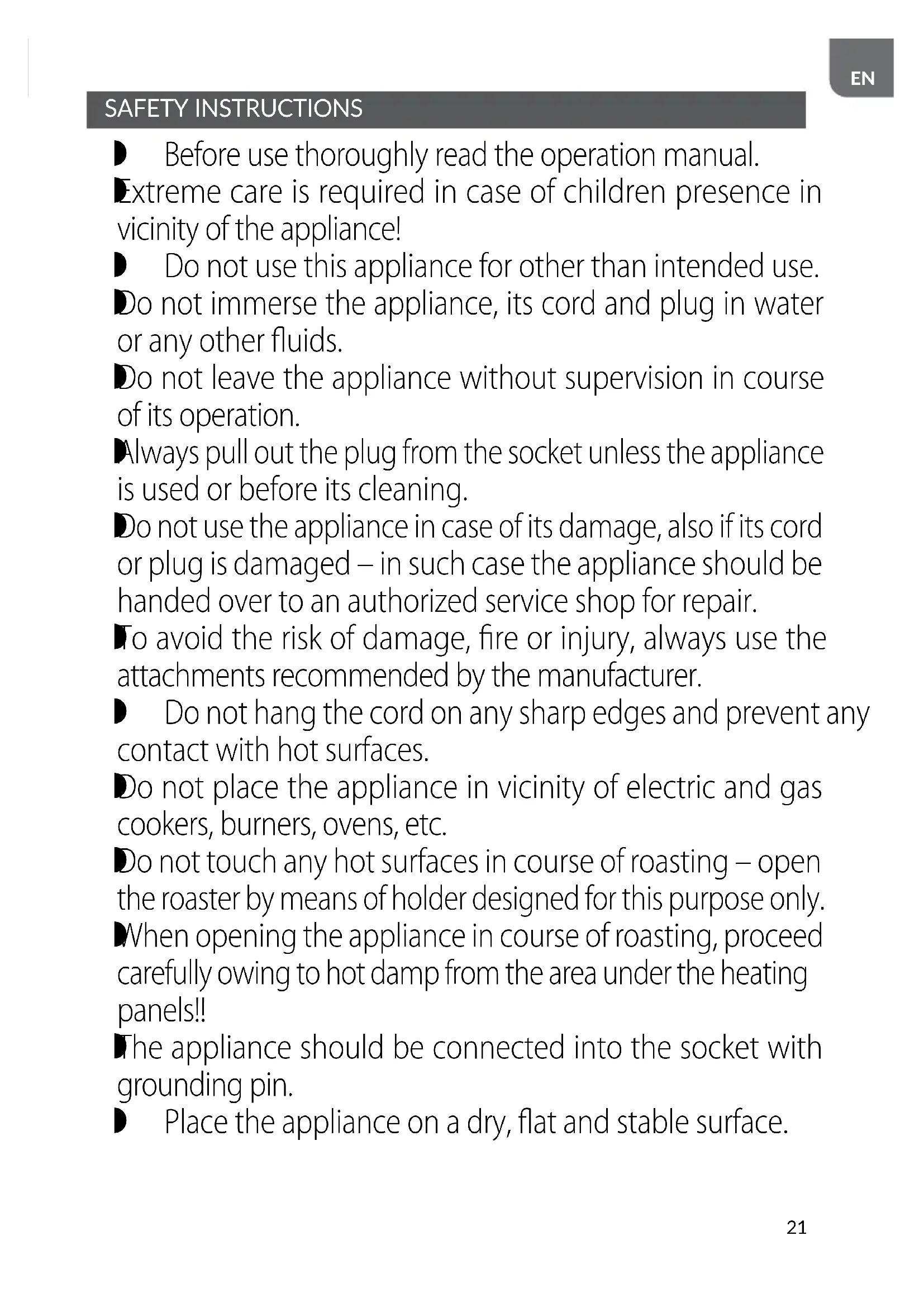

Before use thoroughly read the operation manual.

Extreme care is required in case of children presence in vicinity of the appliance!

Do not use this appliance for other than intended use.

Do not immerse the appliance, its cord and plug in water or any other fluids.

Do not leave the appliance without supervision in course of its operation.

Always pull out the plug from the socket unless the appliance is used or before its cleaning.

Do not use the appliance in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.

To avoid the risk of damage, fire or injury, always use the attachments recommended by the manufacturer.

Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.

Do not place the appliance in vicinity of electric and gas cookers, burners, ovens, etc.

Do not touch any hot surfaces in course of roasting – open the roaster by means of holder designed for this purpose only.

When opening the appliance in course of roasting, proceed carefully owing to hot damp from the area under the heating panels!!

The appliance should be connected into the socket with grounding pin.

Place the appliance on a dry, flat and stable surface.

Place the press grill on a heat-resistant surface. Do not place the press grill on surfaces made or finished with plastic, vinyl, paint/varnish or other flammable materials.

Do not move the press grill when hot or in operation.

Before cleaning the press grill after use, wait for it to cool down, unplug the power cord from the mains and empty the fat drip pan.

The press grill is suitable for indoor use only.

Do not use the appliance outdoors.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

The device is intended for domestic use only.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

- Ensure that children do not play with the appliance.

Store the appliance and its cord out of reach of children under 8 years of age.

NOTE! Hot surface!

The temperature of surfaces may be higher when the appliance is in use.

To avoid the risk of fire, do not place the appliance near flammable objects, such as curtains, tablecloths, etc.

Do not remove the plug from the mains by pulling by the cord.

Do not plug the power cord with wet hands.
In order to ensure your children's safety, please keep all pack aging (plastic bags, boxes, polystyrene etc.) out of their reach.
WARNING! Never let children play with plastic film or bags. Choking/asphyxiation hazard!

WARNING! Oils and fats may burn when overheated. Please be careful!

PRESS GRILL OVERVIEW

1. Grill base
2. Top lid
3. Non-stick heating plates
4. Top lid slider latch
5. Top lid handle
6. Control panel

a. Power switch with LED indicator
b. control knob with button for the bottom hot plate
c. control knob with button for the top hot plate
d. delayed shut-off time setting button “-”, “+”

e. bottom hot plate indicator light
f. top hot plate indicator light
g. delayed shut-off function time display (TIME)
h. bottom hot plate set temperature display
i. top hot plate set temperature display

1. Drip pan
2. Bottom hot plate release button
3. Top hot plate release button
4. Folding feet

Depending on the recipe and/or the grilled food product and/or its size or quantity, the press grill can be used in two configurations:

• With the hot plates closed: the top and down sides of food products are grilled at the same time; the food products are processed fast and with a well-controlled, nearly uniform doneness on both sides.
• With the hot plates open: this configuration is the next best thing to natural grilling on an open flame; the grilling surface is two times bigger than when the hot plates are closed.

BEFORE FIRST USE

1. Unpack the press grill and remove all plastic bags, labelling stickers, filling materials and transport locks.
2. Verify that the power ratings on the rating plate of the press grill match your power mains system.
3. Slide the top lid slider latch ④ open to the 'OPEN' mark and lift the top lid ② open. The top lid can be locked closed with the top lid slider latch at the 'LOCK' mark. Check if the heating plates ③ are correctly mounted in the device. Unfold the folding feet (10) by pressing the lever located in the feet socket.

WARNING! Never start the appliance without properly installed heating plates.

1. Clean the hot plates ③ and the fat drip pan ⑦ thoroughly with a wet cloth and wipe them dry.
2. Before grilling for the first time, the hot plates must be properly conditioned by running them hot. Place the press grill on a firm, dry, level and smooth surface, plug the power cord to the mains, and heat up both plates at 230^ C for 5 minutes. The detailed description of how to use the control panel, set the temperature and time can be found the "GRILL USE" chapter. After the process

turn off the device, unplug it from the mains and wait until it cools completely. The hot plates may smoke slightly during this process. This is natural and will not recur during further use.

1. Wipe the hot plates with a damp cloth and wipe them dry.

USING THE PRESS GRILL WITH CLOSED HOT PLATES

CAUTION! Before starting the press grill, make sure it is dry and that the room is well ventilated.

1. Place the press grill on a firm, dry, level and smooth surface.
2. Make sure that the fat container ⑦ is installed in the device.
3. Unlock the top lid slider latch 4 and lift the top lid upright.

CAUTION! Lift the top lid ② by the handle ⑤ only.

1. Spread some cooking fat on the heating plates ③. Close the top lid.

2. Connect the appliance to the mains - this is signaled by the pulsing LED indicator on the power switch 6a. Next switch on the appliance using the power switch 6a - the LED indicator on the power switch will light steadily.

3. Switch on the bottom hot plate by pressing knob 6b and turn the knob left/right to set the desired target temperature of the bottom hot plate. The temperature is indicated on the display 6h. Proceed in the same way for the top hot plate by using the knob 6c and observing the display 6i. You can set the temperature within the range from 60°C to 230°C, with a 10°C increment, independently for each hot plate. This allows you to fully control the grilling process. You can also change the temperatures during the process. In order to gently grill delicate food use lower temperatures. For meats use higher temperatures. With time, you will be able to optimise the grilling process by adjusting the temperature of the plates. To turn off the plate, press the relevant knob 6b again or 6c.

4. Lift the top lid, place the food products on the bottom hot plate, and close the top lid while gently pressing it down. While placing the food products be careful not to obstruct the grease flow to the back of the hot plate, where the outlet to the drip pan is located. Use can use the appliance to grill meat, fish, shish kebabs, vegetables, etc. If the grilled food products has a delicate structure, lock the top lid in the slightly open position by sliding the slide (4) to reach one of the five positions between LOW and HIGH.

CAUTION!! The hot plate are hot. Do not touch the hot plates.

1. The LED indicators of thermostats 6e and 6f indicate the operational status of the appliance:

2. red – heating or reheating the hot plate

3. green – the temperature set has been reached
   When the grill is operating, the LED indicator for the activated hot plate will periodically change its light, which indicates that the device maintains heat.

4. Using buttons 6d you can set the time after which the grill will switch off (the "TIME" function). You can set the time between 1 and 99 hours with a 1-minute increment. The time set is indicated on the display 6g and counted down on an ongoing basis. After the set time elapses, the grill will stop operation and emit a 5 beeps.

5. Hot steam may burst when opening and closing the top lid to check the doneness. This is a normal effect of processing food with heat. Adjust the grilling temperature with the thermostat knob according to the desired grilling effect.

6. The fat melted out of the food will flow to the fat drip pan ⑦. Empty the fat drip pan frequently to prevent overflow and spills.

CAUTION!! Risk of burns! The fat flowing out to the fat drip pan is hot!

1. Remove the processed food from the press grill with grilling tongs or utensils made of wood. Do not use metal utensils, they might damage the non-stick coating of the hot plates.

2. When done grilling, you can either put another serving in the press grill. After finishing grilling, turn the device off using the power switch 6a and unplug it from the mains.

3. Leave the press grill to cool down and clean it as explained in Section "CLEANING AND MAINTENANCE".

USING THE GRILL WITH OPEN HOT PLATES

CAUTION! Before starting the press grill, make sure it is dry and that the room is well ventilated.

1. Place the press grill on a firm, dry, level and smooth surface.
2. Make sure that the fat container ⑦ is installed in the device.
3. Slide the slider ④ to the "BBQ MODE" (Barbecue) position and hold, while lifting the top plate ② all the way to the back until the handle ⑤ is resting on the surface. Both heating plates are now facing up (Fig. 1).

CAUTION! Do not open the press grill completely when hot.

1. Spread some cooking fat on the heating plates ③.

2. Plug in the appliance and turn on both hot plates in the way described in the previous chapter, point 6. Since it is possible to set different plate temperatures, you can grill products what at the same time.

3. Place the food to be grilled on both hot plates. The grilling type will depend on what food products you want to process. Flip the food over after some time to have it done even. Adjust the grilling temperature with the thermostat slider according to the desired grilling effect. When placing products, be careful not to block fat channels.

4. You can set the time after which the grill will switch off (the "TIME" function) – see description in the previous chapter, point 9.

5. The fat melted out of the food will flow for the fat drip pan ⑦. Empty the fat drip pan frequently to prevent overflow and spills.

Black and white photo of a flat-screen electronic device with ports and connectors (no visible text or symbols)

CAUTION! Risk of burns! The fat flowing out to the fat drip pan is hot!

CAUTION! The grilling process produces hot steam. Risk of burns.

1. Remove the processed food from the press grill with grilling tongs or utensils made of wood. Do not use metal utensils, they might damage the non-stick coating of the hot plates.
2. When done grilling, you can either put another serving in the press grill. After finishing grilling, turn the device off using the power switch 6a and unplug it from the mains.
   11.Leave the press grill to cool down and clean it as explained in Section "CLEANING AND MAINTENANCE".

CAUTION! Do not close the top lid until the press grill cools down completely. Risk of burns!

CLEANING AND MAINTENANCE

1. Before attempting to clean the press grill (and when done grilling), turn off switch 6a, unplug it from the mains and wait until it cools down.

CAUTION! Do not submerge the press grill in water or other liquids! Do not wipe the hot plates with rough scourers or sponges as you may damage the hot plates.

1. Clean the hot plates of fat with paper tower. Remove the hot plates and wash them with warm water and a detergent. Thoroughly flush clean with water and dry. To remove the hot plates, press down the button ⑧ with one hand and take out the bottom hot plate with the other. Use the button ⑨ to remove the top hot plate likewise. Both hot plates are identical and interchangeable. Install each hot plate by engaging the two grooves in the hot plate with the two tabs in the hot plate seat; next, press down the hot plate until it is latched in place.

2. The surface where the heating plates are mounted inside the device can be wiped with a paper towel.

3. Wash the fat drip pan with lukewarm water and a mild dishwashing detergent, rinse them clean, and leave to dry.

4. Clean the outer surfaces of the press grill with a damp cloth and wipe them dry.

5. You can wash in dishwashers the hotplates ③ and fat container ⑦.

TECHNICAL SPECIFICATIONS

See the product's nameplate for technical specifications. Length of the network cable: 0.70 m

NOTE! MPM agd S.A. company reserves the right to technical changes.

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health. Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.
