Product type	Built-in dishwasher
Brand	Bosch
Model	SGU4HVS31E
Height (adjustable)	81 cm - 86 cm
Width	59.8 cm
Depth	55 cm
Weight	Approximately 45 kg
Power supply	220-240 V, 50 Hz
Main functions	EmotionLight, TimeLight, GAP illumination, Vario drawer, upper and lower spray arms, filtration system, steam cooking insert, cup rack
Installation	Built-in (fully integrated or integrated)
Tub material	Stainless steel
Control type	Control panel with buttons
Safety	Disconnect the appliance before any repair; risk of electric shock; wear protective gloves
Maintenance and cleaning	Regular cleaning of filters and spray arms; draining residual water
Replaceable spare parts	Worktop, basket system, spray arms, filters, detergent cover, pump cover, side panel, front door, control panel, door seal, lights (EmotionLight, TimeLight, GAP), door hinge, overflow conduit
Repairability	User-replaceable parts according to the repair instructions provided; use only original parts
Manual	Repair manual available (PDF, 989 pages) with detailed instructions
Capacity (estimated)	12 place settings
Water consumption (estimated)	9.5 L per cycle
Noise level (estimated)	44 dB(A)

Frequently Asked Questions - SGU4HVS31E BOSCH

How to replace the worktop of my Bosch SGU4HVS31E dishwasher?

Remove the worktop: remove the two rear screws if present, push up the locking levers, slightly lift the worktop towards the front, then push towards the back and remove. Install: insert the worktop into the rails, push forward, then push down until the levers click into place. Screw back if necessary.

How to clean or replace the filters?

Turn the coarse filter counterclockwise and remove the filter system. Lower the microfilter to remove it. For installation, reassemble the system by aligning the arrows and turn the coarse filter clockwise until it locks.

How to replace the spray arms?

For the upper spray arm, unscrew it and pull downward. For the lower spray arm, lower it to remove it. Installation is the reverse: insert the lower arm until it clicks, then insert and screw the upper arm.

How to change the detergent cover?

Open the detergent cover. Remove by pushing the cover 5 mm, lift it at the guide rails and remove the spring. For installation, insert the spring (long end into the hole of the dispenser, short end into the hole of the cover), then place the cover 5 mm before the open position into the guide rails and press.

How to replace the front door?

Removal: open the door, remove four screws, hold the door, remove two more screws. Installation: close the inner door, push the front panel upward under the control panel, press against the inner door and secure with two screws (4x11 mm) then four more screws.

What safety instructions must be followed before repair?

Disconnect the appliance from the mains at least 60 seconds before any intervention. Risk of electric shock from live parts. Wear protective gloves against cuts. Use only original parts. Perform a safety test after repair.

Where to find spare parts for this model?

Spare parts are listed in the manual with numbers like [00340764]. You can order them from Bosch after-sales service or authorized dealers. Always use original parts to ensure safety and proper operation.

How to install the Vario drawer?

Installation is done in the reverse order of removal. Remove: bend the handle tabs, remove it, push the plastic inserts outward, remove the folding rods, then the metal frame. Installation follows the reverse steps: insert the frame, rods, inserts, handle and click into place.

How to replace the lower door seal?

Remove the two retaining clips, detach the overflow channel, then remove the lower seal from the inner door. For installation, place the sealing caps, insert the seal with the closing flap into the inner door and secure with the clips.

How to change the EmotionLight?

The EmotionLight is located at the top front of the tub. Remove: unclip the lug, remove the socket from above, disconnect the connections. Install: insert the socket into the frame, clip the lug, connect the connections ensuring the cable is routed correctly to avoid damage.

USER MANUAL SGU4HVS31E BOSCH

4.2 Mounting the system from the chimney. 9

4.2.1 Mounting the flue collar for 86-cm models 9 4.2.2 Mounting the fixing bracket for the chimney 9 4.2.3 Mounting the vapor generator insert 10

4.3 Replacing the varioDrawer drawer 11

4.3.1 Removing the varioDrawer drawer 11 4.3.2 Mounting the varioDrawer drawer 12

4.4 Replacing the spray arms 13

4.4.1 Removing the spray arm 13 4.4.2 Mounting the spray arm 13

4.5 Replacing the filters 14

4.5.1 Removing the filter 14 4.5.2 Mounting the filters 14

4.6 Mounting the spray head for tablets 15

4.7 Replacing the power cord 16

4.7.1 Disconnecting the power cord 16 4.7.2 Connecting the power cord 16

4.8 Replacing the detergent dispenser cap 17

4.8.1 Removing the detergent dispenser cap 17 4.8.2 Placing the spring 17 4.8.3 Mounting the detergent dispenser cap 17

4.9 Replacing the drain pump cover 18

4.9.1 Removing the drain pump cover 18 4.9.2 Mounting the drain pump cover 18

4.10 Replacing the door leaf on page 19

4.10.1 Removing the door leaf on page 19 4.10.2 Installing the door leaf on page 20

4.11 Replacing the upper door on page 21

4.11.1 Removing the upper door on page 21 4.11.2 Installing the upper door on page 21

4.12 Replacing the control panel on page 23

4.12.1 Removing the control panel on page 23 4.12.2 Installing the control panel on page 23

4.13 Fixing the door springs on page 24 4.14 Replacing the bottom panel on page 26

4.14.1 Removing the bottom panel on page 26 4.14.2 Installing the bottom panel on page 26

4.15 Replacing the main contact plate on page 27

4.15.1 Removing the main contact plate on page 27 4.15.2 Installing the main contact plate on page 27

4.16 Replacing the overflow pipe on page 28

4.16.1 Removing the overflow channel on page 28 4.16.2 Installing the overflow pipe on page 29

4.17 Replacing the inner door on page 31

4.17.1 Removing the inner door on page 31 4.17.2 Installing the inner door on page 31

4.18 Replacing the door handle on page 32

4.18.1 Removing the door hinges 32 4.18.2 Mounting the door hinges 32

4.19 Replacing the door seal (bottom) 34

4.19.1 Removing the door seal 34 4.19.2 Mounting the door seal 35

4.20 Replacing the door seal (top) 36

4.20.1 Removing the door seal 36 4.20.2 Mounting the door seal... 36

Repair tips - Washing machine

4.21 Replacing the EmotionLight 37

4.21.1 Removing the EmotionLight 37 4.21.2 Mounting the EmotionLight 37

4.22 Replacing the TimeLight 40

4.22.1 Removing the TimeLight 40 4.22.2 Mounting the TimeLight 40

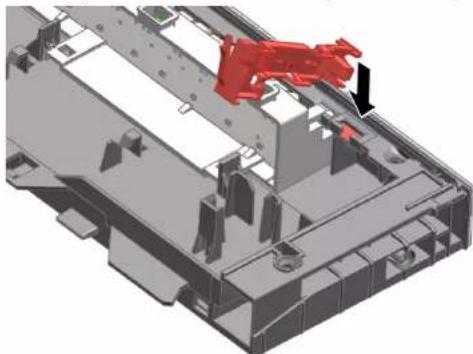

4.23 Replacing the gap illumination (lighting of the gap) 41

4.23.1 Removing the gap illumination 41 4.23.2 Mounting the gap illumination 42

ABOUT THIS DOCUMENT

1.1 Basic information

1.1.1 Purpose

The repair advice is intended for the user and is in accordance with the regulations for environmentally sound design of repairs (from 03.2021).

They contain information about the replacement of certain spare parts, including warnings and risks.

If you have any questions, please contact our customer service department. We are not responsible for damage unless the repair advice has been followed correctly.

1.2 Explanation of symbols

1.2.1 Danger label

Warnings are indicated by the symbol of a warning triangle. The warning sign shows the severity of the danger.

Нимо на predecessorдени 3начени
ОИАС"HОCT	HecnaЗванeto на predecessorдени.To сбоб楚дени по Смьрт ини сернони наразяравли.
ПЕДУПЕЖДEHNE	HecnaЗванeto на predecessorдени.To сбоб楚дени по Смьрт ини сернони наразяравли.
ВΗΜΑTEЛΗ	HecnaЗванeto на predecessorдени.To сбоб楚дени по Смьрт ини сернони.
ВΗΜΑHΗΕ!	HecnaЗванeto на predecessorдени.To сбоб楚дени по Смьрт ини сернони.

Table 1: Danger label

1.2.2 Danger symbols

The danger symbols are symbols with a pictogram that give an indication of the type of danger.

In this document, the following danger symbols are used:

Симboл за оданост саночи
!	Овци поедусятелно сбобчине
9	Оданост от[eilektpruceko нар_EXeuten]
	Рис OT[eckplio3и]
	Оданost ot поязвани

About this document

4.2 Installation of the system from the collector

Requirement:

The appropriate collector has been selected by the user.

4.2.1 Installation of the burner for the 86-cm model

Special tools:

Water pump pliers [00614935] Retaining ring pliers [00618565]

1. Place the pliers diagonally in the front part of the housing.
2. Center and press the pliers in place.

4.2.2 Mounting the retaining ring pliers

Special tools:

Water pump pliers [00614935] Retaining ring pliers [00618565]

When you have finished, the retaining ring can be removed. Under certain conditions, it may be necessary to remove the retaining ring to access the housing. For high and low temperatures, we recommend leaving the retaining ring removed. If the housing has additional plastic parts, they must be removed first.

1. Remove the plastic part.

2. Press the retaining ring into place.

3. Remove the retaining ring.

Repair

1. Place the item for me.

4.2.3 Mounting the generator block

Special tools:

Fasten the blocks to the door of the heater with the parts under the system.

Repair

4.3 Replacing the drawer

4.3.1 Removing the drawer

1. Open the door of the appliance.

2. Remove the drawer.

1. Press the side parts inward and pull the drawer out of the frame.

Mount the new drawer.

Repair

4.4 Replacing the spray arms

4.4.1 Removing the spray arm

1. Turn the upper spray arm (1) and pull it downwards to remove it (2).

1. Pull the lower spray arm upwards to remove it.

4.4.2 Mounting the spray arm

1. Install the pressure switch. The pressure switch is installed by the manufacturer.
2. Install the pressure switch in the correct position and secure it properly.

Repair

4.5 Replacing the filter

4.5.1 Removing the filter

1. Turn the filter counterclockwise to remove it from the filter housing (1) and the filter system (2).

Make sure there is no pressure in the cartridge.

2. Remove the old filter to discard it.

4.5.2 Installing the filter

1. Align the filter system correctly.

Make sure the filter locking tabs are in the correct position.

2. Install the filter system in the housing by turning it clockwise.

Make sure the markings align with the arrows.

Repair

4.6 Installing the pressure switch for the table

1. Remove the protective cap. 2. Place the supplied head on the valve (1) and tighten it hand-tight (2).

The valve is now ready for use.

4.10.2 Mounting the side panel

1. Place the side panel in the groove of the base (1).

Fig. 2: Side panel mounting

2. Press the side panel onto the seal (2). 3. Secure the side panel with the screws (3).

Repair

4.11 Replacing the outlet valve

Requirement:

Disconnect the device from the power supply. Disconnect the device from the water supply.

4.11.1 Removing the outlet valve

First remove the screws as described in the relevant section.

1. Open the valve. 2. Remove the retaining ring.

3.

Close the valve, holding the opposite side.

CbaTe DbTa BnHTa.

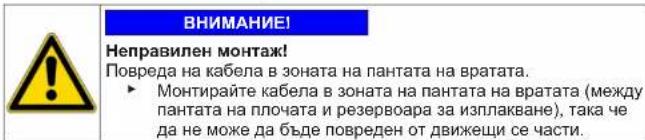

WARNING!

4.11.2 Mounting the outer door

Cables that are not properly routed and not secured!

Damage to the cabling

Route the cables and the exhaust hose with the fastening strap.

Repair

Removal:

The insulating jacket is correctly positioned on the exhaust hose and on the inside of the outer door. The outer door has been painted.

1. Close the inner door without slamming it.

1. Press the outer door upwards against the control panel (1).

1. Press the outer door towards the inner door (2).

4.

Secure the door by tightening the side screws.

Open the door and secure it with the screw (metal 4 x 11 mm screws).

5.3 Tighten the door hinges (metal 4 x 11 mm screws).

Repair

4.12 Replacing the control panel

If the operating module is defective, the control panel must be replaced.

Removal:

Disconnect the appliance from the power supply. Disconnect from the water supply. The door is closed. The door is closed (integral/integral).

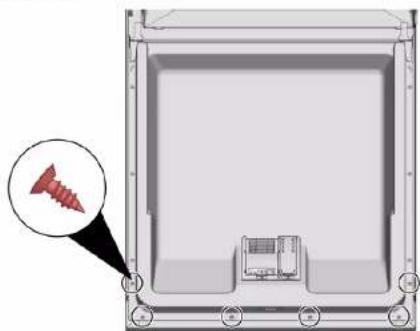

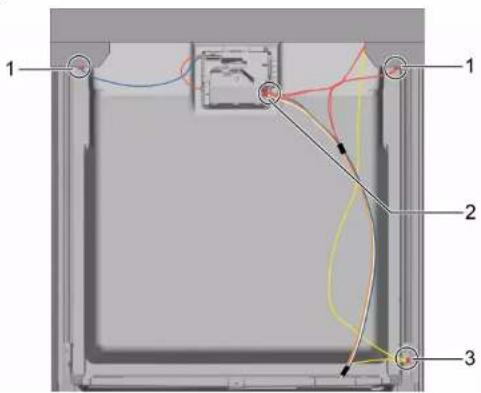

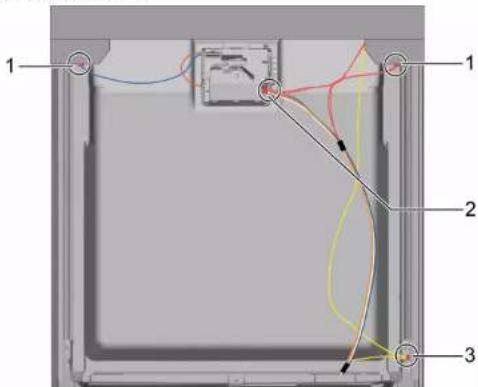

4.12.1 Removing the control panel

1. Disconnect the electrical connections to the control panel and describe the position of the components for reassembly (1,2).

2. Disconnect the grounding cable (3) (optional). 3. Open the door. 4. Remove the control panel, being careful not to damage it (set it aside).

5. Remove the six screws.

6. Remove the control panel.

4.12.2 Installing the control panel

Use 4x16 mm screws.

Install in reverse order.

Repair

1. Open the water tap.

2.1. Open the door slightly (1).

2. FIX THE HINGE TO THE BASE (2). 3. OPEN THE DOOR (3).

The cable system attaches automatically to the door.

Repair

3.1. Close the door slightly (4).

1. Move the left hinge and release the door (5) 3. Open the door (6).

1. Repeat the procedure on the other side of the device.

4.14.2 Mounting the bottom hinge

1. Place the hinge. 2. Attach the bottom hinge (1) and press it down until it clicks into place (2).

Repair

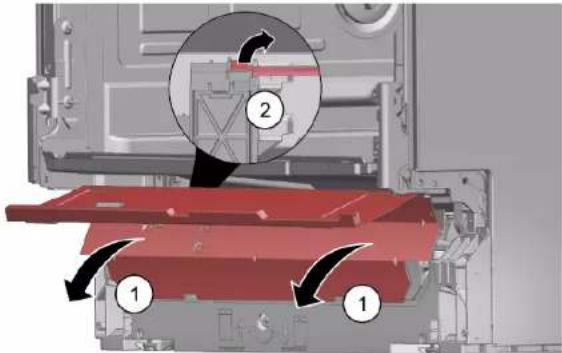

4.15 Removing the main contact cover

The main cover is located in the lower part of the device.

Removal:

The device is disconnected from the power supply. The device is disconnected from the mains supply. The furniture panel (one-piece) is removed. The upper door is removed. The upper door is removed (if present/integrated). The lower panel is removed (one-piece).→26

4.15.1 Connecting the plug to the main contact

1. Insert the plug (1).

2. Tighten the screws (2).

1. CAREFULLY INSERT THE PLUG INTO THE MAIN CONTACT (1).

4.

Depending on the series/model, the plug may be secured to the base.

Remove the plug from the holder and pull the cable (one-piece) (2).

4.15.2 Mounting the plug to the main contact

Mount the plug to the main contact in the reverse order.

Repair

4.16 Replacing the circuit breaker

The circuit breaker is located in the front lower part of the device.

Removal:

Disconnect the device from the power supply. Disconnect the device from the mains supply. The furniture panel is removed (one-piece). The upper door is removed. The lower panel is removed (one-piece).→26 The plug is disconnected from the main contact.→27

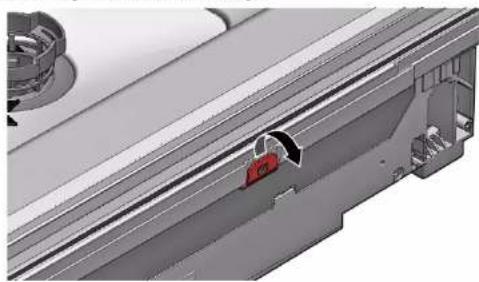

4.16.1 Draining the remaining water

Residual water

To prevent damage from frost, the remaining water must be drained. Close the water tap and disconnect the main hose from the supply.

1. Lower the drain mechanism (1, 2).

2. Release the drain element.

Repair

3.1. Place the screwdriver under the metal cap (1). 2. Carefully release the metal cap (2).

1. Lift the drain hoses.

4.16.2 Mounting the drain hoses

Damage from water may occur if the drain hoses are mounted incorrectly!

Insert the correct drain hoses into the water inlet and onto the base.

4.20.2 Mounting the door seal

Before mounting, the door seal must be cut to the correct length. That is 1750 mm for doors with a height of 81 cm and 1850 mm for doors with a height of 86 cm.

1. Prepare the door seal accordingly. 2. Check the correct position for mounting the seal profile.

1. The water level must be at the height of the seal.

The filter does not need to be cleaned. The filter can be removed from the drain and the cap, and the sealing ring is attached to the end of the container.

When placing the filter and the cap on the drain, the filter must be positioned as far as possible from the container.

Correctly placed filter on the drain:

Repair

4.21 Removing the EmotionLight

The EmotionLight is located in the upper front part of the flushing reservoir.

Removal:

The device is disconnected from the power supply. The device is disconnected from the water supply. The screws are freely accessible. The working light is switched on (once). The night light is switched on (once).→19

4.21.1 Removing the EmotionLight

1. Detach the locking hooks from the rear (1).

1. Press the button upwards (2).
2. Disconnect the plug from the connector (red plug from the front side of the device).

4. Disconnect the electrical connection from the power supply.

1. Remove the EmotionLight from the device.

4.21.2 Mounting the EmotionLight

1. Place the lamp in the mounting bracket (1).

Repair

2. Remove the cap of the fixator (2).

3

Mount the cable on the lower side.

4.23 Removing the Gap illumination (Product lighting)

Requirement:

Disconnect the power supply. Disconnect from the mains. The front door is open. The operating panel is folded down.

4.23.1 Removing the Gap illumination

1.1. Remove the fixator (1).

2. Disconnect the electrical connection from the operating module (2).

2.1. Remove the cap of the fixator backwards (1).

2. Disconnect the operating module (2).

Repair

3.1. Control panel keys (1).

4.23.2 Mounting the bar illumination

1. Place the top panel in the frame of the operating module.

2.3 Insert the lock and tighten

1. Mount the optical lock and tighten it.

4. Connect the wire to the operating module.

Fig. 2: Integrated consumer unit

1. Slide the side panel into the consumer unit (2).
2. Secure the side panel with screws (3).

Repair

4.11 Replacing the outer door

Requirement:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply.

4.11.1 Removing the outer door

4.23 Replacing Gap Illumination

Requirement:

4.22.1 Removing timeLight 163 4.22.2 Installing timeLight 163

4.23 Replacing Gap Illumination 164

4.23.1 Removing Gap Illumination 164 4.23.2 Installing Gap Illumination 165

4.21.2 Installing emotionLight

1. Insert the holder into the frame of the flush tank (1).

Repair

1. Activate the locking hook (2).

3.

NOTE

Incorrect installation!

4.22 Replacing timeLight

4.22.1 Removing timeLight

4.22.2 Installing timeLight

1. Put the base elements (1) back in place.

1. Push the timeLight module into the guide (2).
2. Connect the electrical connection.

Repair

4.23 Replacing Gap illumination

Presetting:

4.23.2 Installing Gap illumination

1. Insert the circuit board holder into the frame of the operating module.

2.1 General Safety instructions 212 2.1.1 All domestic appliances 212

Tools and aids. 213

Repair 214

4.1 Replacing worktop 214

4.1.1 Removing worktop 214 4.1.2 Installing worktop 214

4.2 Installing basket system 215

4.2.1 Installing a tab slide for the 86 cm model 215 4.2.2 Installing cup support clip 215 4.2.3 Installing steamer insert 216

4.3 Replacing varioDrawer 217

4.3.1 Removing varioDrawer 217 4.3.2 Installing varioDrawer 218

4.4 Replacing spray arms 219

4.4.1 Removing spray arm 219 4.4.2 Installing spray arm 219

4.5 Replacing filters 220

4.5.1 Removing filter 220 4.5.2 Installing filters 220

4.6 Installing baking sheet spray head 221

4.7 Replacing power cord 222

4.7.1 Unplugging power cord 222 4.7.2 Plugging in power cord 222

4.8 Replacing detergent cover 223

4.8.1 Removing detergent cover 223 4.8.2 Inserting spring 223 4.8.3 Installing detergent cover 223

4.9 Replacing wastewater pump cover 224

4.9.1 Removing wastewater pump cover 224 4.9.2 Installing wastewater pump cover 224

4.10 Replacing side panel 225

4.10.1 Removing side panel 225 4.10.2 Installing side panel 226

4.11 Replacing outer door 227

4.12 Replacing control panel 229

4.12.1 Removing control panel 229 4.12.2 Installing control panel 229

4.19 Replacing (lower) door seal 240

4.19.1 Removing the door seal 240 4.19.2 Installing the door seal 241

4.20 Replacing (upper) door seal 242

4.20.1 Removing door seal 242 4.20.2 Installing door seal 242

Repair hints - Dishwasher

4.21 Replacing EmotionLight 243

4.21.1 Removing EmotionLight 243 4.21.2 Installing EmotionLight 243

4.22 Replacing TimeLight 246

4.22.1 Removing TimeLight 246 4.22.2 Installing TimeLight 246

4.23 Replacing Gap illumination 247

4.23.1 Removing Gap illumination 247 4.23.2 Installing Gap illumination 248

Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumers in repairing appliances themselves in accordance with the applicable eco-design regulation (as of 03/2021).

They contain information on how to exchange defined spare parts, including warnings and risks.

If you have any questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observation of the warning message will result in death or serious injuries.
Warning	Non-observation of the warning message could result in death or serious injuries.
Caution	Non-observation of the warning message could result in minor injuries.
Notice	Non-observation of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations that give an indication of the kind of danger.

The following hazard symbols are used in this document:

Hazard symbol Meaning
!	General warning message
!	Danger from electrical voltage
	Risk of explosion
	Danger of cuts
	Danger of crushing

Concerning this document

Hazard symbol Meaning
	Danger from hot surfaces
	Danger from strong magnetic field
	Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Danger

Type and source of danger!

Possible consequences of ignoring the danger / warning.

Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Danger

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
1	Identification of a special tip (text and/or graphic)
0	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

Errors by repairs involving electrical components can lead to electrical shock! - Disconnect the appliance from the mains for at least 60 seconds before starting work. After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

Wear protective shoes. - Secure heavy components from falling down. - Do not stick body parts into moving components.

Risk to the appliance's safety / function! Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)! - Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Insulated Screw- driver Torx T15 with bore hole [15000626]	Blade length 125 mm, for screws with safety pin
Slotted screwdriver	Blade 10 mm x 1.6 mm x 200 mm
Needle nose pliers [00340871]	Length: 200 mm, straight

Repair

4.1 Replacing worktop

Prerequisite:

Appliance is disconnected from the power supply. Appliance is freely accessible.

4.1.1 Removing worktop

1. Remove the two screws at the back (1) (optional).
2. Press both catch levers under the worktop upwards (2).

1. Lift the worktop slightly at the front (3).
2. Push worktop away towards the rear (4).
3. Remove worktop.

4.1.2 Installing worktop

1. Lock the rear of the worktop into the guides using the retaining collars (1).

1. Push worktop forwards (2).
2. Press the front of the worktop downwards until both catch levers click audibly into place (3).
3. Screw in the two screws again (4) (optional).

Repair

4.2 Installing basket system

Prerequisite:

The relevant basket has been removed from the appliance.

4.2.1 Installing a tab slide for the 86 cm model

Required tools:

Tab guide [00614935] Cup support clip [00618565]

1. Insert the tab slide diagonally at the front of the basket.
2. Center and click the tab chute into place.

4.2.2 Installing cup support clip

Required tools:

Tab guide [00614935] Cup support clip [00618565]

When washing cups, the cup support clip can be folded up. The additional angle reduces the collection of water on the bottom of cups. In the case of tall glasses, we recommend leaving the cup support clip folded down. If upper baskets have an optional plastic insert, they must first be removed.

1. Remove the plastic insert.

1. Click the cup support clip into place.

1. Fold up the clip.

Repair

1. Position the items to be washed.

4.2.3 Installing steamer insert Required tools:

Tab guide [00614935] Cup support clip [00618565]

• Wedge the steamer insert with the end pieces under the basket system.

Repair

4.3 Replacing varioDrawer

4.3.1 Removing varioDrawer

1. Bend the handle flaps inwards.

1. Remove the handle upwards.
2. Press plastic side inserts outwards and press them upwards out of the frame.

1. Carefully bend the guide tabs outwards.

1. Pull the folding spines out of the tabs.
2. Press metal frame at the front out of the holders.

1. Push metal frame back out of the guide.

4.3.2 Installing varioDrawer

Install in reverse order.

Repair

4.4 Replacing spray arms

4.4.1 Removing spray arm

1. Unscrew the upper spray arm (1) and pull down to remove (2).

1. Pull down the lower spray arm to remove.

4.4.2 Installing spray arm

1. Insert the lower spray arm. The spray arm clicks into position.
2. Insert the upper spray arm and screw it firmly in place.

Repair

4.5 Replacing filters

4.5.1 Removing filter

1. Turn the coarse filter anticlockwise (1) and remove the filter system (2).

Check that no foreign objects fall into the sump.

1. Pull down the micro filter to remove.

4.5.2 Installing filters

1. Re-assemble the filter system. Make sure that the locking catches on the coarse filter click into position.
2. Insert the filter system into the appliance and turn the coarse filter clockwise. Make sure that the arrow markings match up.

Repair

4.6 Installing baking sheet spray head

1. Remove top basket.
2. Insert the baking sheet spray head in the holder (1) and turn to the right (2).

The baking sheet spray head clicks into position.

Repair

4.7 Replacing power cord

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible.

4.7.1 Unplugging power cord

• Move the plug of the power cord carefully up and down and pull it out of the mains socket.

4.7.2 Plugging in power cord

Notice

Overheating of main connection!

Risk of fire

Firmly insert the power cord until it clicks.

• Insert the plug of the power cord into the mains socket until the plug clicks audibly into place.

Repair

4.8 Replacing detergent cover

A small screwdriver can be used as a levering tool.

Prerequisite:

1. Appliance is disconnected from power supply. 2. Appliance is disconnected from water supply. 3. Door has been opened. 4. Detergent cover has been opened.

4.8.1 Removing detergent cover

1. Slide the detergent cover in 5 mm.
2. Lever the detergent cover on the lower side out of the guide rails and take the detergent cover on the upper side out of the guide rails.
3. Remove the spring.

4.8.2 Inserting spring

1. Insert the long end of the spring into the mounting hole of the dispenser device (1).

1. Insert the short end of the spring into the mounting hole of the detergent cover (2).
2. Press cover into the dispenser device (3).

4.8.3 Installing detergent cover

1. Insert the detergent cover 5 mm before the completely open position into the guide rails on one side. Applying gentle force, press the opposite side into the guide rails.
2. Check the function of the detergent cover.

Repair

4.9 Replacing wastewater pump cover

Prerequisite:

Basket has been removed. Filters have been removed. -> Page 220

4.9.1 Removing wastewater pump cover

1. Scoop out any water. Use a sponge if necessary.
2. Pry off the pump cover using a spoon and grip it by the crosspiece.

1. Lift the pump cover inwards at an angle and remove.

4.9.2 Installing wastewater pump cover

Insert the pump cover (1) and press down (2).

The pump cover clicks into position.

Repair

4.10 Replacing side panel

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The appliance is freely accessible. For free-standing appliances: The worktop has been removed. See page 214.

4.10.1 Removing side panel

1. Remove the screws from the side panel (1).

Fig. 1: Fully integrated

1. Tilt the side panel slightly outwards at the top (2).
2. Lower the side panel and pull it out of the base trough (3).

Repair

4.10.2 Installing side panel

1. Insert the side panel into the base trough (1).

Fig. 2: Fully integrated

2. Press the side panel onto the appliance (2). 3. Secure the side panel with screws (3).

Repair

4.11 Replacing outer door

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply.

Just remove the screws which are described in the following steps.

1. Open door.
2. Remove four screws.

3

Secure the door by holding it on one side.

Remove two screws.

Insulating fleece has been correctly positioned and fixed on the inside of the outer door. Hinges are inserted into the outer door.

1. Close the inner door without snapping it shut.
2. Push the outer door upwards underneath the control panel (1).

1. Press the outer door against the inner door and hold (2).

4.

Secure the door by holding it on one side.

Open the door and secure it with two screws (4 x 11 mm metal screws).

1. Secure the outer door with four screws (4 x 11 mm metal screws).

Repair

4.12 Replacing control panel

If an operating module is defective, the entire control panel must be replaced.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Outer door has been removed (fully integrated/integrated).

4.12.1 Removing control panel

1. Disconnect electrical connections from the control panel and the low rinse-aid sensor (1, 2).

1. Disconnect the earth cable (3) (optional).
2. Open the appliance door.
3. Secure the control panel to prevent it from falling down (hold on to it).
4. Remove six screws.

1. Remove the control panel.

4.12.2 Installing control panel

Use screws 4 × 16 mm .

Install in reverse order.

Repair

1. Remove cord guide cover out.

2.1. Open door slightly (1).

1. Fix in the groove of the base trough (2).
2. Slowly close the door (3).

The cord system attaches itself automatically to the door hinge.

Repair

3.1. Slightly close the door (4).

1. Move the groove to the back and release the door hinge (5).
2. Open the door (6).

1. Repeat the process again on other side of appliance.

Repair

4.14 Replacing toe panel

The feet are identical and can be swapped over.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Outer door has been removed (fully integrated/integrated).

4.14.1 Removing toe panel

1.

Incorrect removal. If the toe panel is loosened at the side and removed, the two brackets may break away. If only one bracket is damaged, the side can be changed as the brackets are identical. It is advisable to place something under the appliance at the front on the side to relieve the load on the toe panel with the feet.

1. Reach into the guides (1) with a screwdriver and release the catch by pushing downwards.

1. Lift the panel off.
2. Remove the feet forwards (1).

4.14.2 Installing toe panel

1. Insert the feet.
2. Attach the toe panel at the top (1) and press it down until it audibly clicks into place (2).

Repair

4.15 Replacing base socket plate

The base socket plate is located in the lower area at the front.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The furniture panel (optional) has been removed. The outer door has been removed. The outer door has been removed (fully integrated/integrated). The toe panel has been removed (optional). See page 232.

4.15.1 Removing base socket plate

1. Remove two screws (1).

1. Disengage catch elements (2).
2. Tilt the base socket plate carefully forwards (1).

4.

Depending on the model series, the plug to the EmotionLight is still secured to the base.

Unlock the plug on the catch tappet and pull to the rear (optional) (2).

4.15.2 Installing base socket plate

Install the base socket plate in reverse order.

Repair

4.16 Replacing overflow conduit

The overflow conduit is located in the front lower area of the appliance.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Furniture panel has been removed (optional). Outer door has been removed. Toe panel has been removed (optional). → Page 232 Base socket plate has been removed. → Page 233

4.16.1 Removing overflow channel

Residual water

• When the drainage hose is removed, residual water may run out. Catch water or remove from the base pan with suction syringe.
• Lever out of the catch mechanism at the top (1, 2).

1. Release the catch element at the top.

3.1. Insert a screwdriver below the metal brake (1).

1. Gently release the metal clip (2).

Repair

1. Lift the overflow conduit off.

4.16.2 Installing the overflow conduit

Water damage due to incorrect installation of the overflow conduit! Correctly insert the overflow conduit at the bottom into the guide of the base trough. Click the overflow conduit correctly into place at the top.

1. Place the overflow conduit (1).
2. Move the overflow conduit into the seal (2).
3. Press the overflow conduit into the guide of the seal (3).
4. Insert overflow conduit concisely (4).
5. Clip in overflow conduit (5).

Repair

1. Check installation left and right. 3. Check firm seat.

1. Clip in metal clip on left and right side.

Repair

4.17 Replacing inner door

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply.

4.17.1 Removing inner door

1. Remove screws (1).
2. Remove inner door upwards (2).

1. Secure door hinge with screws.
2. Place inner door on door hinge.
3. Secure inner door with screws.

4.17.2 Installing inner door

1. Flap door seal to front.
2. Move inner door behind door seal.
3. Close inner door.
4. Flap door seal upwards. Side parts show up.
5. Move door hinge upwards.

Repair

4.18 Replacing door hinge

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible. Side panel has been removed. (See page 225) Outer door has been removed. Inner door has been removed. Control panel has been removed. (See page 229) Door springs have been fixed. (See page 230) Toe panel has been removed. (See page 232) Base socket plate has been removed. (See page 233) Overflow channel has been removed. (See page 234)

1. Release catch hook with a screwdriver (1).
2. Pull door hinge forwards (2).

1. Release ground connection on door hinge.

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repairs.

Electric parts should be repaired by qualified electricians. After the repair, have a safety test according to VDE 0701 or country-specific regulations performed.

Repair

1. Place hinge on appliance (1)
2. Move hinge downwards (2) till it is latched to the appliance.

2.

A missing ground connection can lead to mains potential on door.

Establish ground connection.

Repair

4.19 Replacing (lower) door seal

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Base socket plate has been removed. (See page 233) Toe panel has been removed (optional). (See page 232) Door springs have been removed. Control panel has been removed. Cable harness holder on bottom right has been removed.

4.19.1 Removing the door seal

1. Remove the two retaining clips on the lower door seal (1, 2).

1. Detach the overflow channel.

1. Lift the overflow gutter off.

Repair

1. Remove the lower door seal from the inner door.

4.19.2 Installing the door seal

1. Fit the sealing caps on the left and right to the sealing rail with the door seal.

1. Insert the door seal with the sealing flap in the inner door.
2. Secure the door seal with two retaining clips.

Repair

4.20 Replacing (upper) door seal

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply.

4.20.1 Removing door seal

• Remove door seal from inner frame.

4.20.2 Installing door seal

The door seal must be cut to the correct length before installation. This is 1750 mm for appliances of 81 cm in height and 1850 mm for appliances of 86 cm in height.

1. Prepare appropriate door seal.
2. Ensure correct installation position of sealing profile.

1. White dot must be on level with sealing bed strip.

4

Sealing must not be wavy or stretched at corners. Seal is cut off diagonally at ends and tapers away into bottom of container at front.

Position end of seal straight to front underneath inner door. Seal should lie against side of container as far as possible.

Correctly installed door seal:

Repair

4.21 Replacing EmotionLight

The EmotionLight is situated in the upper front exterior area of the rinsing tank.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible. Worktop has been removed (optional). The right-hand side panel has been removed (optional). See page 225.

4.21.1 Removing EmotionLight

1. Detach catch hook at the rear (1).

1. Remove the holder upwards (2).
2. Pull plug out of connector (bottom right at front of appliance).
3. Remove electrical connection from the power module.

1. Remove EmotionLight from the appliance.

4.21.2 Installing EmotionLight

1. Insert the holder into the rinsing tank frame (1).

Repair

1. Engage the catch hook (2).

3

Install the cable on the right lower side.

Repair

Fig. 3: Flat cable

1. Insert the plug.

Repair

4.22 Replacing TimeLight

Replace the TimeLight only as a complete part.

The TimeLight module is fixed to the rear of the base socket plate.

Prerequisite:

The appliance is disconnected from power supply. The appliance is disconnected from water supply. Toe panel has been removed. (See page 232) Base socket plate has been removed and turned. (See page 233)

4.22.1 Removing TimeLight

1. Bend the catch elements (1) slightly outwards.

1. Pull the TimeLight module upwards out of the guide (2).

4.22.2 Installing TimeLight

1. Bend the catch elements (1) back again.

1. Push the TimeLight module into the guide (2).
2. Connect the electrical connection.

Repair

4.23 Replacing Gap illumination

Prerequisite:

1. Appliance is disconnected from power supply. 2. Appliance is disconnected from water supply. 3. Outer door is disassembled. 4. Operation panel has been removed.

4.23.1 Removing Gap illumination

1. Detach catch (1).
2. Remove electrical connection from the operation module (2).

2.1. Detach catch hook at rear (1).

1. Remove light fibre (2).

Repair

3.1. Detach catch hook (1).

1. Lift up PCB with holder and remove it from operation module frame (2).

4.23.2 Installing Gap illumination

1. Insert PCB holder to operation module frame.

1. Tighten it with a "click" sound.

1. Install light fibre and tighten it with a "click" sound.

1. Connect wire to operation module.

4.2.3 To install the Gap Illumination and connect it:

Gap Illumination tablet [00614935] and connection cable [00618565] - 2x to install the Gap Illumination at the ends of the system cabinet.

EMIOKEUN

4.3 Replacing the cash drawer

1. Isimkite,EmotionLight" is prietaio.

4.2.1.2 "EmotionLight" installation

4.23.2 Gap Illumination installation

4.17.1 Remove the interior door 731 4.17.2 Install the interior door 731

4.18 Replace the door hinge 732

4.18.1 Remove the door hinge 732 4.18.2 Install the door hinge 732

4.19 Replace the door seal (lower) 734

4.17.1 Remove the interior door

4.17.2 Install the interior door

4.23.1 Remove the Gap Illumination

1. Remove the cover (1).
2. Disconnect the electrical connection of the operating module (2).

2.1. Unhook the latch (1). 2. Remove the optical fiber (2).

Repair

3. 1. Unhook the latch (1).

4.23 Replacing the Gap illumination 823

4.23.1 Removing the Gap illumination 823 4.23.2 Installing the Gap illumination 824

About this document

4.23 Replacing the Gap illumination

Requirement:

4.23 Replacing the Gap illumination

Prerequisite:

4.23.2 Installing the Gap illumination

1. Insert the circuit board into the frame of the operating module.

Special auxiliary equipment:

Tab Guide [00614935] Spare part [00618565]
