Product Type	Massage Mat
Brand	HoMedics
Model	YMM1500EU
Power Supply	220-240 V AC
Dimensions (approx.)	180 x 60 cm (unfolded)
Weight (approx.)	4 kg
Main Functions	Stretching, Twisting, Fluid, Revitalizing
Programs	Twisting, Fluid, Revitalizing, Stretching
Intensity Levels	3 levels (Low, Moderate, High)
Program Duration	6 to 15 minutes depending on program
Control	Wired remote control
Included Accessories	Removable cushion
Usage	Lying on back, on the floor or a firm mattress
Target Audience	Adults, from 13 years old
Maintenance	Soft damp cloth, no harsh cleaners
Storage	Fold and store in a dry, cool place
Safety	Do not use on sensitive skin, pacemaker, pregnancy, diabetes
Protection Rating	IPX0 (not waterproof)
Warranty	2 years (parts and labor)

Frequently Asked Questions - YMM1500EU HOMEDICS

How to use the HoMedics YMM1500EU massage mat?

Unfold the mat on the floor, plug it into a 220-240 V power outlet, lie on your back with the cushion under your head. Press the power button on the remote, choose the intensity then the program. Relax during the session.

What programs are available?

Four programs: Twisting (6-9 min), Fluid (9-15 min), Revitalizing (9-12 min) and Stretching (10-15 min). Their duration varies depending on the chosen intensity.

How to clean the mat?

Unplug the device. Use a soft damp cloth to clean the fabric. Do not use harsh chemical cleaners or excess water.

Can I use the mat if I have a pacemaker or am pregnant?

Consult your doctor before use. It is not recommended for people with pacemakers, pregnant women, and diabetics without medical advice.

What is the ideal position on the mat?

Lie on your back, with your buttocks near the raised part. Adjust the position of your legs and arms according to your flexibility to modulate the intensity. Refer to the chart in the manual.

How long does a session last?

A program lasts between 6 and 15 minutes depending on the type and intensity. You can repeat sessions, but start gently and space them 48 hours apart at the beginning.

Can the mat be used on a bed?

Yes, on a flat and sufficiently firm mattress, after removing all bedding. Make sure the mat does not overheat and the air vents are not obstructed.

What to do if the mat overheats?

Immediately unplug the device and contact the HoMedics service center. Excessive use can cause overheating; let it cool down between sessions.

Can I use the mat with clothes?

Yes, wear comfortable, soft, and warm clothing. Remove shoes, scarf, tie, belt, and jewelry before the session.

How to store the mat after use?

Fold the mat and store it in its box or a dry, cool place. Avoid sharp objects. Do not wrap the cord around the mat or hang it by the cord.

USER MANUAL YMM1500EU HOMEDICS

Person performing a prone exercise on a mat, lying supine with hands raised (no text or symbols visible)

STRETCH

THE BACK STRETCHING MAT INSPIRED BY YOGA

INSTRUCTION MANUAL

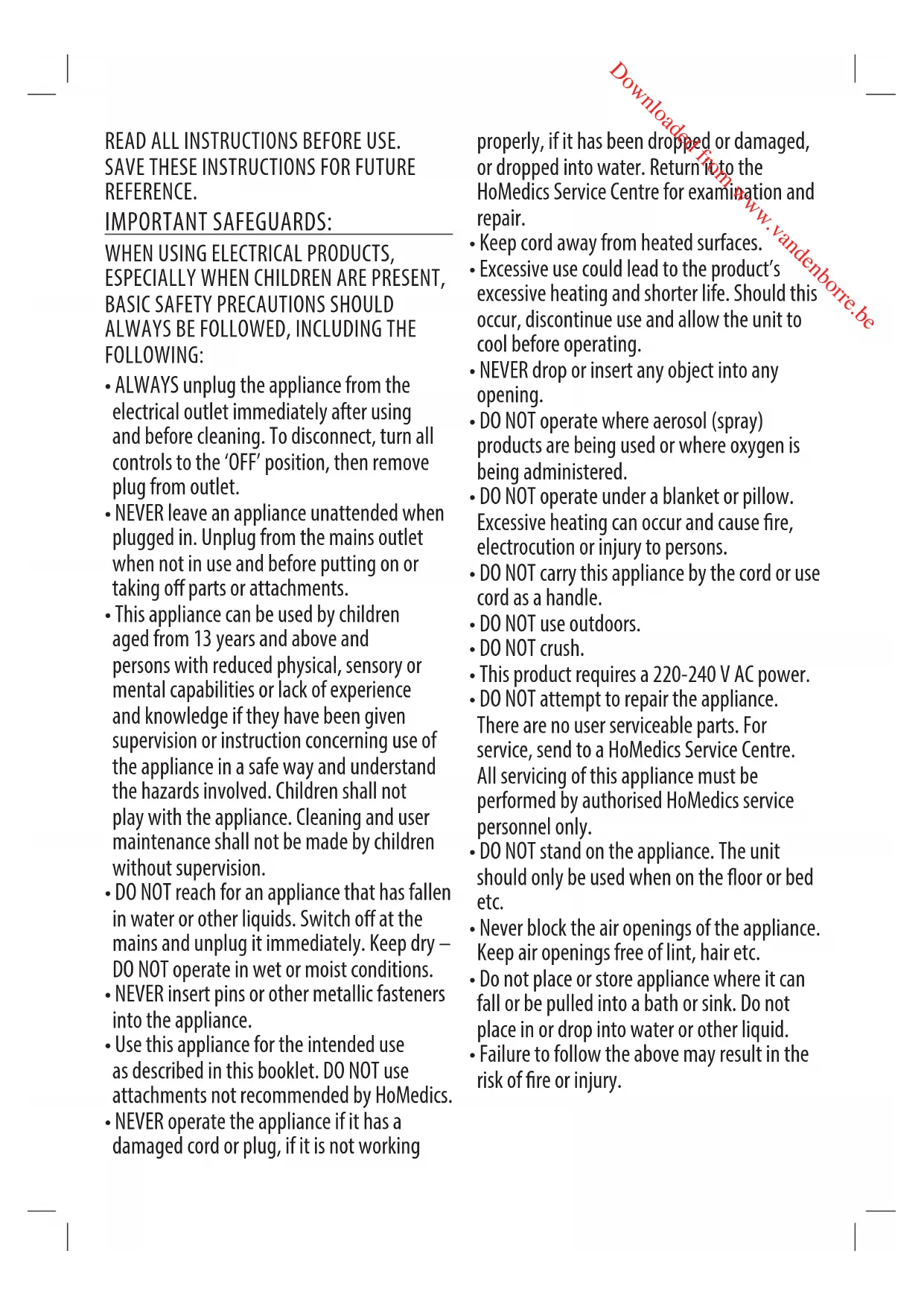

READ ALL INSTRUCTIONS BEFORE USE. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

IMPORTANT SAFEGUARDS:

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

• ALWAYS unplug the appliance from the electrical outlet immediately after using and before cleaning. To disconnect, turn all controls to the 'OFF' position, then remove plug from outlet.
• NEVER leave an appliance unattended when plugged in. Unplug from the mains outlet when not in use and before putting on or taking off parts or attachments.
• This appliance can be used by children aged from 13 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• DO NOT reach for an appliance that has fallen in water or other liquids. Switch off at the mains and unplug it immediately. Keep dry – DO NOT operate in wet or moist conditions.
• NEVER insert pins or other metallic fasteners into the appliance.
• Use this appliance for the intended use as described in this booklet. DO NOT use attachments not recommended by HoMedics.
• NEVER operate the appliance if it has a damaged cord or plug, if it is not working

properly, if it has been dropped or damaged, or dropped into water. Return it to the HoMedics Service Centre for examination and repair.

• Keep cord away from heated surfaces.
• Excessive use could lead to the product's excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.
• NEVER drop or insert any object into any opening.
• DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
• DO NOT operate under a blanket or pillow. Excessive heating can occur and cause fire, electrocution or injury to persons.
• DO NOT carry this appliance by the cord or use cord as a handle.
• DO NOT use outdoors.
• DO NOT crush.
  • This product requires a 220-240 V AC power.
• DO NOT attempt to repair the appliance. There are no user serviceable parts. For service, send to a HoMedics Service Centre. All servicing of this appliance must be performed by authorised HoMedics service personnel only.
• DO NOT stand on the appliance. The unit should only be used when on the floor or bed etc.
• Never block the air openings of the appliance. Keep air openings free of lint, hair etc.
• Do not place or store appliance where it can fall or be pulled into a bath or sink. Do not place in or drop into water or other liquid.
• Failure to follow the above may result in the risk of fire or injury.

SAFETY CAUTIONS:

PLEASE READ THIS SECTION CAREFULLY BEFORE USING THE APPLIANCE.

• If you have any concerns regarding your health, consult a doctor before using this appliance.
• Individuals with pacemakers and pregnant women should consult a doctor before using this appliance. Not recommended for use by Diabetics
• DO NOT use on an infant, invalid or on a sleeping or unconscious person. DO NOT use on insensitive skin or on a person with poor blood circulation.
• This appliance should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls or who has sensory deficiencies in the lower half of their body.
• NEVER use directly on swollen or inflamed areas or skin eruptions.
• If you feel any discomfort whilst using this appliance, discontinue use and consult your doctor.
• This is a non-professional appliance, designed for personal use and intended to ease muscle tension. DO NOT use as a substitute for medical attention.
• Treatments can have a stimulating effect which may delay sleep if the product is used before going to bed.
• Do not use for longer than the recommended time.
• If the product feels excessively hot, switch off at mains and contact the HoMedics Service Centre.
• Please ensure that all hair, clothing and jewellery are kept clear of the massage mechanism or any other moving parts of the product at all times.

MAINTENANCE:

Cleaning

Unplug from the mains and use a soft damp cloth to clean the fabric if required. Never saturate the mat or use harsh chemical cleaners. No other maintenance is required.

Storage

Place the appliance in its box or in a safe, dry, cool place. Avoid contact with sharp edges or pointed objects which might cut or puncture the fabric surface. To avoid breakage, DO NOT wrap the power cord around the appliance. DO NOT hang the unit by the cord.

WEEE explanation

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

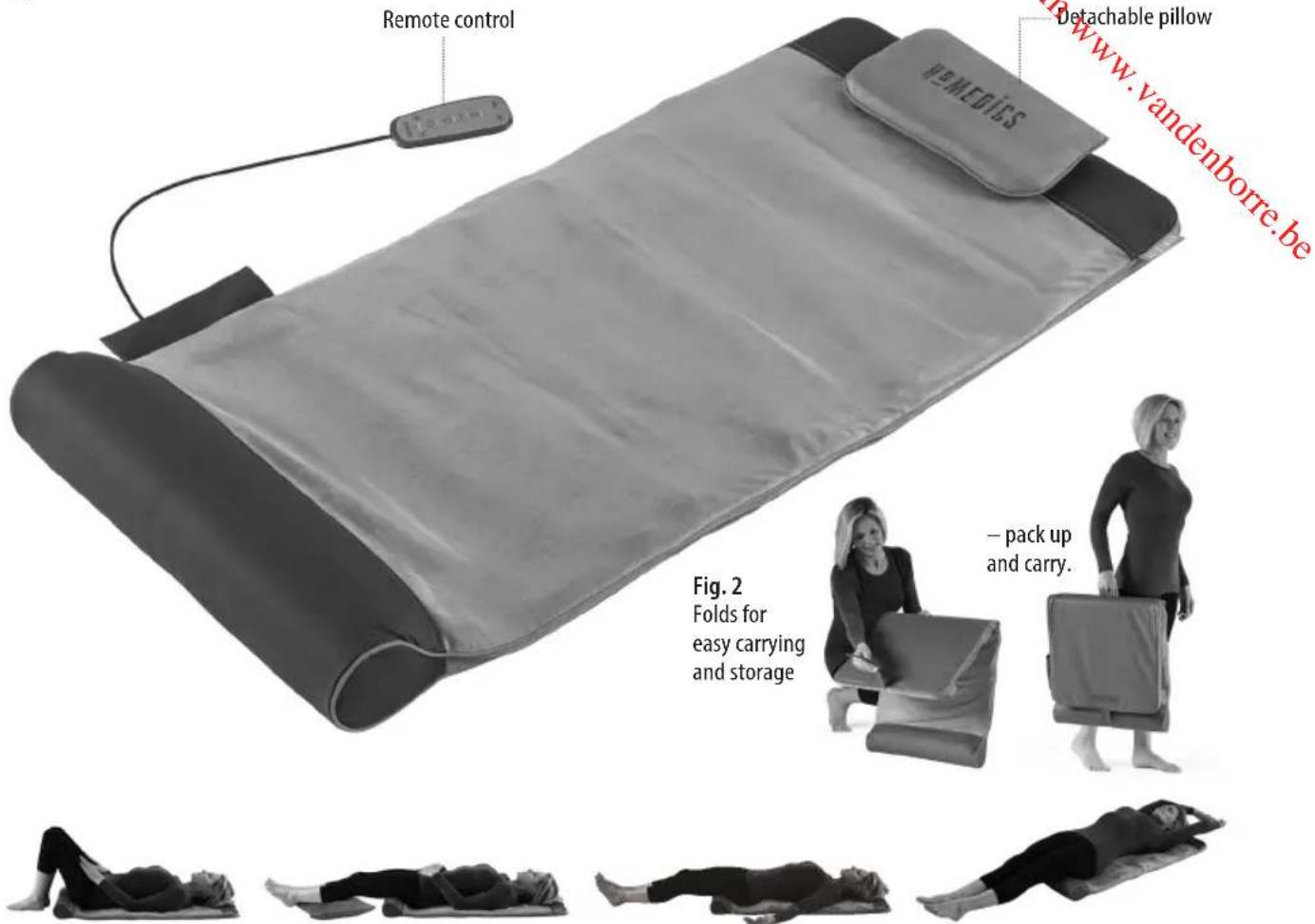

PRODUCT FEATURES:

Fig. 1

Remote control Detachable pillow www.vandenborre.be NE MEDISS Fig. 2 Folds for easy carrying and storage – pack up and carry.

INSTRUCTIONS FOR USE:

Preparation

1. Unfold STRETCH and place on the floor.

Alternatively STRETCH can be placed on a firm flat mattress, providing any soft bedding is removed first.

1. Plug into a nearby socket

Ensure the cable is not going to cause a trip hazard and keep the area free from other objects so that you have enough space to lie down comfortably.

1. Remove shoes, scarves, ties, belts & jewellery.

Wear soft, comfortable clothing that will keep you warm.

Treatment

1. Lie down on STRETCH on your back with your bottom nearest the 'bositer' end and the pillow underneath your head.

2. Position your legs and arms according to the advice given in table opposite.

Please chose appropriately as your leg and arm positions can affect the intensity of the treatment quite considerably.

Your Flexibility Leg Position Arm position Intensity
Fig. 3	Inflexible, eg. tight back /tight hamstrings	Knees bent up, feet flat on floor beyond the mat	By sides, or with hands resting on belly	Mild
Fig. 4	Some flexibility, but still a way to go	Straight legs, cushion under knees	By sides, or with hands resting on belly	Moderate
Fig. 5	Good flexibility - can easily touch toes	Straight Legs (no cushion)	By sides, or with hands resting on belly	Enhanced
Fig. 6	Very flexible & looking for a deeper treatment	Straight Legs (no cushion)	Arms extended or folded over head	Full Intensity

3. Press the ⏻ button on the remote control.

4. Choose your intensity level

LOW = 1 LED lit

MED = 2 LEDs lit

HIGH = 3 LEDs lit

We recommend starting on LOW as you can always increase the intensity during the program if you want a deeper treatment.

5. Select a program.

Program Duration* Description & Benefits
Twist 6 to 9 mins A shorter program incorporating		twists to decrease tension in shoulders and hips. Also great for releasing tension in the lower back.
Flow 9 to 15 mins A progressive flow of stretches to[2×37]		gently mobilise the whole length of the spine leaving you feeling refreshed and more supple
Energize 9 to 12 mins An uplifting program to help boost		energy
Stretch 10 to 15 mins An ‘all-round’ treatment providing		a great antidote after long periods of sitting

*Note: duration varies according to the chosen intensity setting

6. Relax

As the treatment program starts, close your eyes, relax all your muscles and focus on your breath. Allow the weight of the body to sink deeply into the mat and enjoy.

Tips to get the best from STRETCH

1. Relax and let the mat do the work

Try to mindfully scan each part of your body during the treatment, and wherever you sense tension, consciously release that tension by allowing your body to become heavier and softer. The motion created by STRETCH will move your body without you needing to exert any effort. In fact, the more you relax, the greater the benefits will be.

2. Enhancing the twist action

For programs that include a twisting movement, the benefits can be further enhanced by adding a gentle turn of the head as described below:

During a shoulder twist, try turning your head slowly in the direction of the twist. Allow the head to be heavy and the ear to sink down towards the mat. Move the head gently back to centre as the shoulder comes back down, before repeating on the other side.

During a hip twist, keep the upper body relaxed and both shoulders heavy. Allow the hip to be lifted without resistance. As the right hip lifts, try turning the head to the left side and vice versa. Always move gently and return to a neutral position in between movements. If there is any discomfort in the neck, make the movements smaller or try using a pillow either side to rest the head on as you turn.

Two black-and-white photos showing a person performing a prone exercise on a mat, with legs and feet visible (no text or symbols)

Shoulder twist

Two sequential images showing a person performing a prone exercise on a mat, with no visible text or symbols.

Hip twist

3. Using your breath

If you feel tension or slight discomfort during the treatment program, try to visualise directing your breath to the area of tension. Breathe slowly and deeply, in and out through the nose. If it feels okay, you can also try extending the outbreak making it up to 50% longer than the in-breath. To get into this rhythm try counting to 4 on the in-breath and 6 on the out-breath. Sink deeper into the mat as you exhale.

4. Try varying your position on the mat

STRETCH has been cleverly designed to work for people of all different shapes and sizes. You can subtly change the feel of your treatments by moving slightly closer to either the top or bottom of the mat as you lie down. The effect will be different for everyone, dependant on your height and proportions, so give it a try and find your favourite position.

5. Get in the habit of regular treatments

Treatments can be repeated as often as feels good for you, but as with anything new, always start gently and build up your regime as your body becomes accustomed. We recommend starting with a gentle 'stretch' treatment on level 1 and waiting at least 48 hours before the next treatment. Then slowly build up to daily or twice daily treatments, as desired.

LIRE TOUTES LES INSTRUCTIONS AVANT UTILISATION. LES CONSERVER POUR POUVOIR LES CONSULTER ULTÉRIEUREMENT. PRÉCAUTIONS IMPORTANTES :

LORS DE L'UTILISATION D'APPAREILS ÉLECTRIQUES, PARTICULIÈREMENT EN PRÉSENCE D'ENFANTS, IL EST CONSEILLÉ DE TOUJOURS PRENDRE DES PRÉCAUTIONS DE BASE, NOTAMMENT DE SUIVRE LA PROCÉDURE SUIVANTE :

Two sequential images showing a person performing a prone exercise on a mat, with legs and feet stacked (no text or symbols visible)

Torsion de l'épaule

Two sequential black-and-white images showing a person performing a prone exercise on a mat, with no visible text or symbols.

MEDIUM = 2 LED leuchten

HOCH = 3 LED leuchten

Two black-and-white images of a person performing a sit-up exercise on a mat, with no visible text or symbols.

Schulter-Drehung

Two sequential images showing a person performing a prone exercise on a mat, with no visible text or symbols.

Hüftdrehung

Two black-and-white images showing a person performing a prone exercise on a mat, with legs and feet stacked (no text or symbols visible)

Ladeo del hombro

Two sequential black-and-white images showing a person lying on a flat surface, viewed from the side (no text or symbols visible)

Ladeo de la cadera

Two individuals performing a prone exercise on a mat, one lying supine and the other standing with arms crossed (no text or symbols visible)

Two sequential black-and-white images showing a person lying on a mat, viewed from the side (no text or symbols visible)

Torsione dell'anca

LEIA TODAS AS INSTRUÇÕES ANTES DE UTILIZAR. CONSERVE ESTAS INSTRUÇÕES PARA REFERÊNCIA FUTURA.

AVISOS IMPORTANTES :

QUANDO UTILIZAR APARELHOS ELÉCTRICOS, ESPECIALMENTE SE HOUVER CRIANÇAS POR PERTO, HÁ QUE RESPEITAR SEMPRE AS PRECAUÇÕES BÁSICAS DE SEGURANÇA, INCLUINDO AS SEGUINTES:

Two black-and-white photos showing a person lying on their back in two different positions (no text or symbols visible)

Torção do ombro

Two sequential black-and-white images showing a person lying on a mat, viewed from the lower side (no text or symbols visible)

Torção da anca

Two-panel black-and-white photo showing a person performing a prone exercise on a mat, with legs and feet visible (no text or symbols)

Schouderdraai

Two sequential images showing a person performing a prone exercise on a mat, with no visible text or symbols.

Heupdraai

Two black-and-white images showing a person performing a prone exercise on a mat, with legs and feet visible (no text or symbols)

Axelvridning

Two sequential images showing a person performing a prone exercise on a mat, with no visible text or symbols.

Höftvridning

1. Använda din andning

Two black-and-white images showing a person performing a prone exercise on a mat, with legs and feet stacked (no text or symbols visible)

Skulderdrejning

Two sequential black-and-white images showing a person performing a prone exercise on a mat, with no visible text or symbols.

Hoftedrejning

Two black-and-white images showing a person performing a prone exercise on a mat, with legs and feet visible (no text or symbols)

Skuldervridning

Two sequential black-and-white images showing a person performing a prone exercise on a mat, with no visible text or symbols.

Hoftevridning

1. Å bruke pusten

KESKINKERTAINEN = 2 LED-valoa

KORKEA = 3 LED-valoa

Two black-and-white images showing a person performing a prone exercise on a mat, with no visible text or symbols.

Olkapään taivutus

Two sequential black-and-white images showing a person performing a prone exercise on a mat, with no visible text or symbols.

Lantion taivutus

3. Hengitys

Two-panel black-and-white photo showing a person performing a prone exercise on a mat, with legs and feet visible (no text or symbols)

Omuz çevirme

Two sequential images showing a person performing a prone exercise on a mat, with no visible text or symbols.

Kalça çevirme

Two black-and-white photos showing a person lying on a mat and another lying down, both viewed from the side (no text or symbols visible)

Two sequential images showing a person performing a prone exercise on a mat, with legs and feet stacked (no text or symbols visible)

Изгибание плеч

Two sequential images showing a person lying on a mat, viewed from the side (no text or symbols visible)

Изгибание бедер

Two black-and-white images showing a person lying on their back in two different positions (no text or symbols visible)

Skręty ramion

Two sequential images showing a person performing a prone exercise on a mat, with no visible text or symbols.

Skręty bioder

1. Jak oddychać

Two sequential black-and-white images showing a person performing a prone exercise on a mat, with legs and feet visible (no text or symbols)

Kroucení ramene

Two sequential black-and-white images showing a person performing a prone exercise on a mat, with no visible text or symbols.

Kroucení boku

3. Správné dýchání

Two sequential images showing a person performing a prone exercise on a mat, with legs and feet visible (no text or symbols)

Vállforgatás

Two sequential images showing a person performing a prone exercise on a mat, with hands and legs extended (no text or symbols visible)

Csípőforgatás

1. Lélegzés

Two sequential images showing a person performing a prone exercise on a mat, with legs and feet stacked (no text or symbols visible)

Krútenie v oblasti ramien

Two sequential images showing a person performing a prone exercise on a mat, with no visible text or symbols.

Krútenie v oblasti bedier
