BDL170B - Laser pointer BLACK & DECKER - Free user manual and instructions
Find the device manual for free BDL170B BLACK & DECKER in PDF.
| Product type | Laser pointer |
| Brand | Black & Decker |
| Model | BDL170B |
| Power supply | 2 LR03 (AAA) batteries 3 V |
| Wavelength | 630 – 690 nm |
| Laser class | 2 |
| Laser power | < 4 mW |
| Laser range | 300 cm (3 m) |
| Accuracy (at 3 m) | ± 3 mm |
| Working temperature | 0°C to 40°C |
| Weight | 0.3 kg |
| Main functions | Projection of horizontal and vertical laser lines, self-leveling mode, locked/trace mode, illuminated angle finder |
| Maintenance and cleaning | Clean with a damp cloth and mild detergent; no liquid should enter the tool |
| Safety | Do not look directly into the beam; laser class 2; do not use if optics are damaged; keep out of reach of children |
| Spare parts and repairability | Repairs by an authorized technician only; use non-rechargeable batteries of the same type |
| General information | 24-month warranty; separate collection of electronic waste |
Frequently Asked Questions - BDL170B BLACK & DECKER
User questions about BDL170B BLACK & DECKER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Laser pointer in PDF format for free! Find your manual BDL170B - BLACK & DECKER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BDL170B by BLACK & DECKER.

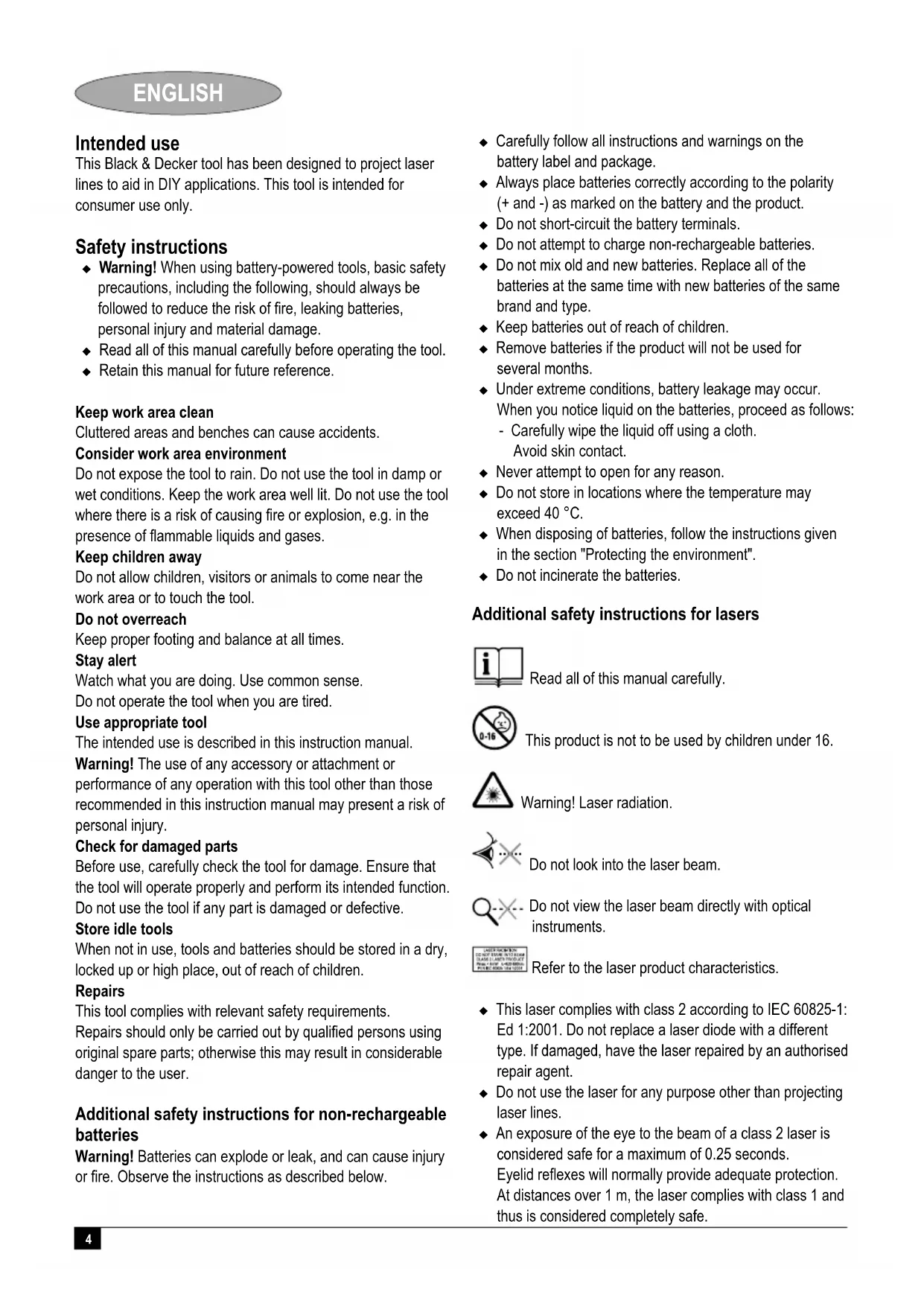

USER MANUAL BDL170B BLACK & DECKER
This Black & Decker tool has been designed to project laser lines to aid in DIY applications. This tool is intended for consumer use only.
Safety instructions
Warning! When using battery-powered tools, basic safety precautions, including the following, should always be followed to reduce the risk of fire, leaking batteries, personal injury and material damage.
Read all of this manual carefully before operating the tool.
Retain this manual for future reference.
Keep work area clean
Cluttered areas and benches can cause accidents.
Consider work area environment
Do not expose the tool to rain. Do not use the tool in damp or wet conditions. Keep the work area well lit. Do not use the tool where there is a risk of causing fire or explosion, e.g. in the presence of flammable liquids and gases.
Keep children away
Do not allow children, visitors or animals to come near the work area or to touch the tool.
Do not overreach
Keep proper footing and balance at all times.
Stay alert
Watch what you are doing. Use common sense. Do not operate the tool when you are tired.
Use appropriate tool
The intended use is described in this instruction manual. Warning! The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury.
Check for damaged parts
Before use, carefully check the tool for damage. Ensure that the tool will operate properly and perform its intended function. Do not use the tool if any part is damaged or defective.
Store idle tools
When not in use, tools and batteries should be stored in a dry, locked up or high place, out of reach of children.
Repairs
This tool complies with relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts; otherwise this may result in considerable danger to the user.
Additional safety instructions for non-rechargeable batteries
Warning! Batteries can explode or leak, and can cause injury or fire. Observe the instructions as described below.
Carefully follow all instructions and warnings on the battery label and package.
Always place batteries correctly according to the polarity (+ and -) as marked on the battery and the product.
Do not short-circuit the battery terminals.
Do not attempt to charge non-rechargeable batteries.
Do not mix old and new batteries. Replace all of the batteries at the same time with new batteries of the same brand and type.
Keep batteries out of reach of children.
- Remove batteries if the product will not be used for several months.
Under extreme conditions, battery leakage may occur. When you notice liquid on the batteries, proceed as follows: - Carefully wipe the liquid off using a cloth. Avoid skin contact.
- Never attempt to open for any reason.
Do not store in locations where the temperature may exceed 40^
- When disposing of batteries, follow the instructions given in the section "Protecting the environment".
Do not incinerate the batteries.
Additional safety instructions for lasers
Read all of this manual carefully.
This product is not to be used by children under 16.
Warning! Laser radiation.
Do not look into the laser beam.
Do not view the laser beam directly with optical instruments.
Refer to the laser product characteristics.
This laser complies with class 2 according to IEC 60825-1: Ed 1:2001. Do not replace a laser diode with a different type. If damaged, have the laser repaired by an authorised repair agent.
- Do not use the laser for any purpose other than projecting laser lines.
An exposure of the eye to the beam of a class 2 laser is considered safe for a maximum of 0.25 seconds. Eyelid reflexes will normally provide adequate protection. At distances over 1m the laser complies with class 1 and thus is considered completely safe.
Never look into the laser beam directly and intentionally.
Do not use optical tools to view the laser beam.
Do not set up the tool at a position where the laser beam can cross any person at head height.
Do not let children come near the laser.
If the laser line brightness suddenly increases or the projectedbe used, a removable adhesive adhesive strip (8) must be line becomes distorted this may indicate a broken lens. used. Adhesive strips can be obtained from your local retailer. To prevent a laser hazard the tool must not be used. Warning! Test the strip on an inconspicuous area to make
Use non-rechargeable batteries only. Do not connect the laser to any other type of power source.
Warning! The pin of the bracket is sharp and should be handled with care.
If the unit is mounted to surfaces where screws or nails cannot be used, a removable adhesive adhesive strip (8) must be used. Adhesive strips can be obtained from your local retailer.
Warning! Test the strip on an inconspicuous area to make sure it does not damage the surface material.
Features
- On/off switch
- Protractor
- Laser apertures
- Laser direction button
Assembly
Warning! Make sure that the tool is switched off.
Fitting the batteries (fig. A)
Remove the battery cover (5) from the tool.
Insert the batteries into the tool in the orientation as shown.
Refit the cover and let it click into place.
Installing the tool.
The tool can be mounted to a wall. To optimise the length of the laser line, the tool must be installed onto its bracket.
Fitting the tool to the mounting bracket.
Install the tool by clinging the magnetic back of the tool to the ring of the mounting bracket.
To remove the tool from the bracket, pull the tool off.
Wall mounting (fig. B & C)
The tool can be mounted to walls using the mounting bracket with a screw (I), a wall pin (II), or an adhesive strip (III) (optional).
Keyhole wall mount
The keyhole wall mount (6) is used for mounting to most wall constructions.
Drive a screw into the wall.
Hang the wall mount onto the fastener by the keyhole (6).
Fit the tool to the bracket.
Wall pin
If the tool is mounted to drywall or other soft materials, the wall pin must be used:
Expose the wall pin (7) by rotating the pin base to the right.
Hold the mounting bracket with the wall pin at the required height in front of a suitable location and press the pin straight into the wall.
Fit the tool to the mounting bracket.
Adhesive strip
Peel the protective foil from one side of the strip (8).
Stick the strip to the bracket.
Peel the protective foil from the other side of the strip.
Press the bracket with the strip to the wall.
Fit the tool to the bracket.
To remove the strip, proceed as follows:
Remove the tool from the bracket.
Hold the bracket with one hand and grasp the end of the adhesive strip with the other hand.
- Slowly stretch the strip parallel to the wall and away from the bracket, until the entire strip has released.
Dispose of the strip.
Use
Install the tool as required.
Switch the tool on.
Adjust the position of the tool as necessary to position the laser line. Be aware that extreme temperature changes may affect the adjustment of the unit.
After finishing work, always switch off the tool.
Setting the laser line (fig. D)
The laser line can set to allow horizontal and vertical projection.
Press the button (4) into the following positions:
- position A: horizontal projection to the left
- position B: horizontal projection to the right
- position C: vertical projection
Adjusting the mounting bracket
The position of the bracket can be adjusted to fine-adjust the tool.
Move the keyhole portion up or down.
Switching on and off
To switch on in locked/layout mode, slide the switch (1) into the centre position.
To switch on in auto-levelling mode, slide the switch (1) to the right.
To switch off, slide the switch (1) to the left.
Using the laser in auto-leveling mode (fig. E)
Direct the laser line if necessary.
ENGLISH
Place the tool against the wall.
Switch on the tool in auto-levelling mode.
Note: the laser lines will only level if the tool is kept within 5^ from vertical.
Using the laser in locked/layout mode (fig. F)
Direct the laser line if necessary.
Rotate the unit if necessary.
Place the tool against the wall.
Switch on the tool in locked/layout mode.
Using the protractor
The protractor (3) can be used to transfer an angle.
The protactor screen illuminates in locked/layout mode.
Position the unit with the laser line at the reference point.
Align the 0^ position on the protractor with the laser line.
Rotate the unit into the desired angle.
Cleaning and maintenance
Your tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
To clean the tool, use only mild soap and a damp cloth. Never let any liquid get inside the tool and never immerse any part of the tool into liquid.
Protecting the environment
Separate collection. This product must not be disposed of with normal household waste.
Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.
Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.
Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com
Batteries
At the end of their useful life, discard batteries with due care for our environment.
Remove the batteries as described above.
Place the batteries in a suitable packaging to ensure that the terminals cannot be short-circuited.
Take the batteries to a local recycling station.
Technical data
BDL170B
Voltage V 3
Battery size 2xLR03(AAA)
Wave length nm 630-690
Laser class 2
Laser power mW < 4
Laser length cm 300
Accuracy (at 3 m) mm +/- 3
Operating temperature ^ C0 - 40
Weight kg 0.3
EC declaration of conformity
BDL170B
Black & Decker declares that these products conform to: 89/336/EEC, IEC 60825-1, EN 61010 & EN 61000-61
Kevin Hewitt
Director of Consumer Engineering
Spennymoor, County Durham DL16 6JG
United Kingdom
01-10-2006
Guarantee
Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.
If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:
The product has been used for trade, professional or hire purposes;
The product has been subjected to misuse or neglect;
The product has sustained damage through foreign objects, substances or accidents;
Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.
To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com
Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk
