Product type	Construction laser level
Brand	Black & Decker
Model	LZR6
Power supply	9V battery (type 6LR61)
Weight	0.45 kg
Laser class	2 (according to EN 60825-1)
Wavelength	630-675 nm
Laser power	< 2.2 mW
Operating temperature	0 °C to 40 °C
Projection modes	Horizontal line, vertical line, cross (reticle)
Leveling	Self-leveling up to 5° from vertical
Wall mounting	Bracket with keyhole or wall anchors
Magnetic mounting	Magnet on metal button (bracket included)
Suspension	Suspension strap for beam
Line adjustment	Vertical and horizontal knobs on bracket
Switch	3-position sliding switch (A, B, C)
Transport lock key	Yes (laser protection during transport)
Maintenance	Clean with a damp cloth and mild detergent
Warranty	24 months (excluding professional use, rental, neglect)
Intended use	Home DIY projects (laser lines)

Frequently Asked Questions - LZR6 BLACK & DECKER

How to install the battery in the Black & Decker LZR6 laser?

Remove the battery cover (4). Connect the battery to the connector respecting polarity: the larger terminal of the battery connects to the smaller terminal of the connector. Replace the cover until it 'clicks'.

How to turn on the LZR6 laser?

Slide the on/off switch (1) to the right to the desired mode: position A for horizontal line, B for vertical line, C for cross. To turn off, push the switch fully to the left.

How to mount the laser on the wall?

Use the bracket (3). For a standard wall, insert a screw or nail and hang the bracket using the keyhole accessory (9). For drywall, use the wall anchors (10) by turning the knobs (11) to press them into the wall.

How to adjust the laser lines?

Turn the adjustment knobs on the bracket: the knob (12) to move the line vertically, the knob (13) to move it horizontally.

What to do if the laser lines are blurry?

This means the tool is tilted more than 5° from vertical. Adjust the tool's position so it is roughly level. The lines will become solid again.

What safety precautions should be observed?

Never look directly into the laser beam and do not use optical instruments to view it. Keep children away. Do not place the tool where the beam could cross a person's line of sight at head height.

How to clean the LZR6 laser?

Use only a mild detergent and a damp cloth. No liquid should enter the tool. Never immerse any part in liquid.

How to replace the used battery?

Remove the cover (4), disconnect the used battery and connect a new 9V battery (type 6LR61) respecting polarity. Replace the cover. Dispose of the old battery at a suitable collection point.

What is the range of the laser?

The manual does not give a precise range, but the laser is class 2. At more than one meter, it is compliant with class 1. The eyelid reflex offers protection if exposure is less than 0.25 seconds.

How to use the suspension strap?

Thread the strap through the slot on top of the tool and attach the hook. Adjust the position so the tool is roughly level. This allows hanging the laser from a beam or other sturdy structure.

USER MANUAL LZR6 BLACK & DECKER

Technical diagram of a vacuum cleaner with labeled parts including valve, gear, and control panel

English 3

Deutsch 6

Français 10

Italiano 14

Nederlands 18

Español 22

Português 26

Svenska 30

Norsk 34

Dansk 38

Suomi 42

Ελληνικα 45

A 5 6 5

4 B

31213 7 8 13 12 C

Line drawing of three different types of industrial equipment with no visible text or symbols

9 10 11 E

A OFF - I + 1 B OFF - I + 1 C OFF - I + 1 F

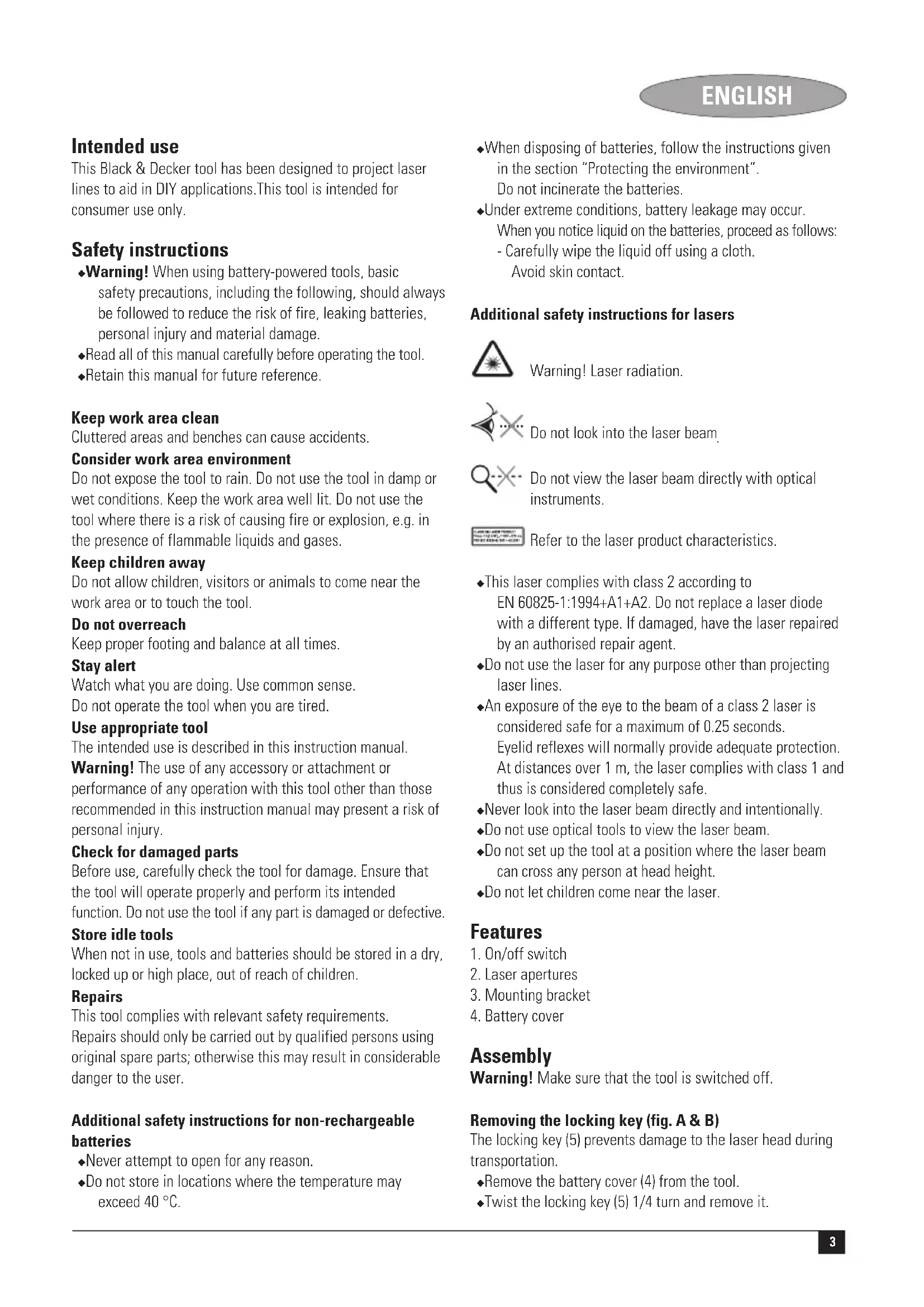

Intended use

This Black & Decker tool has been designed to project laser lines to aid in DIY applications. This tool is intended for consumer use only.

Safety instructions

◆Warning! When using battery-powered tools, basic safety precautions, including the following, should always be followed to reduce the risk of fire, leaking batteries, personal injury and material damage.

◆Read all of this manual carefully before operating the tool.

◆Retain this manual for future reference.

Keep work area clean

Cluttered areas and benches can cause accidents.

Consider work area environment

Do not expose the tool to rain. Do not use the tool in damp or wet conditions. Keep the work area well lit. Do not use the tool where there is a risk of causing fire or explosion, e.g. in the presence of flammable liquids and gases.

Keep children away

Do not allow children, visitors or animals to come near the work area or to touch the tool.

Do not overreach

Keep proper footing and balance at all times.

Stay alert

Watch what you are doing. Use common sense.

Do not operate the tool when you are tired.

Use appropriate tool

The intended use is described in this instruction manual.

Warning! The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury.

Check for damaged parts

Before use, carefully check the tool for damage. Ensure that the tool will operate properly and perform its intended function. Do not use the tool if any part is damaged or defective.

Store idle tools

When not in use, tools and batteries should be stored in a dry, locked up or high place, out of reach of children.

Repairs

This tool complies with relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts; otherwise this may result in considerable danger to the user.

Additional safety instructions for non-rechargeable batteries

◆Never attempt to open for any reason.
Do not store in locations where the temperature may exceed 40 °C.

• When disposing of batteries, follow the instructions given in the section "Protecting the environment". Do not incinerate the batteries.
  ◆Under extreme conditions, battery leakage may occur. When you notice liquid on the batteries, proceed as follows:
• Carefully wipe the liquid off using a cloth. Avoid skin contact.

Additional safety instructions for lasers

Warning! Laser radiation.

Do not look into the laser beam.

Do not view the laser beam directly with optical instruments.

Refer to the laser product characteristics.

This laser complies with class 2 according to EN 60825-1:1994+A1+A2. Do not replace a laser diode with a different type. If damaged, have the laser repaired by an authorised repair agent.
◆Do not use the laser for any purpose other than projecting laser lines.
◆An exposure of the eye to the beam of a class 2 laser is considered safe for a maximum of 0.25 seconds. Eyelid reflexes will normally provide adequate protection. At distances over 1 m, the laser complies with class 1 and thus is considered completely safe.
◆Never look into the laser beam directly and intentionally.
◆Do not use optical tools to view the laser beam.
◆Do not set up the tool at a position where the laser beam can cross any person at head height.
◆Do not let children come near the laser.

Features

1. On/off switch
2. Laser apertures
3. Mounting bracket
4. Battery cover

Assembly

Warning! Make sure that the tool is switched off.

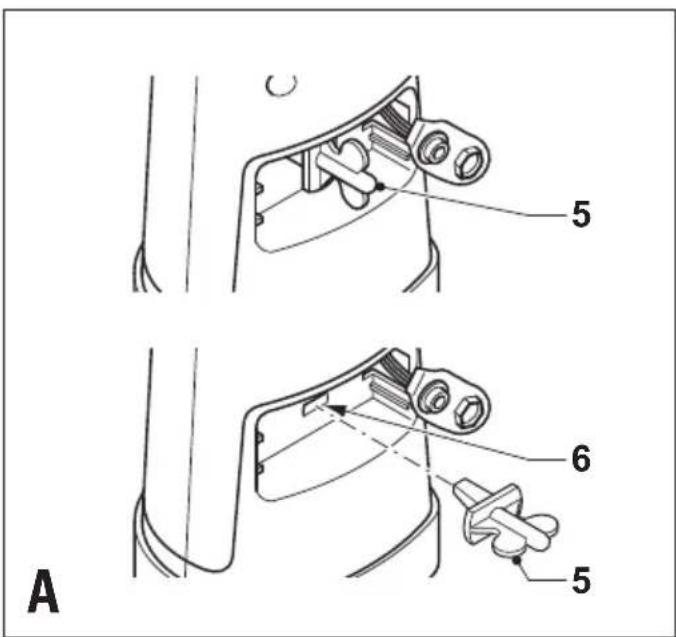

Removing the locking key (fig. A & B)

The locking key (5) prevents damage to the laser head during transportation.

◆Remove the battery cover (4) from the tool.
◆Twist the locking key (5) 1/4 turn and remove it.

ENGLISH

◆To re-fit the locking key, place the key into the hole (6) as shown and twist it 1/4 turn.
◆Refit the battery cover and let it click into place.

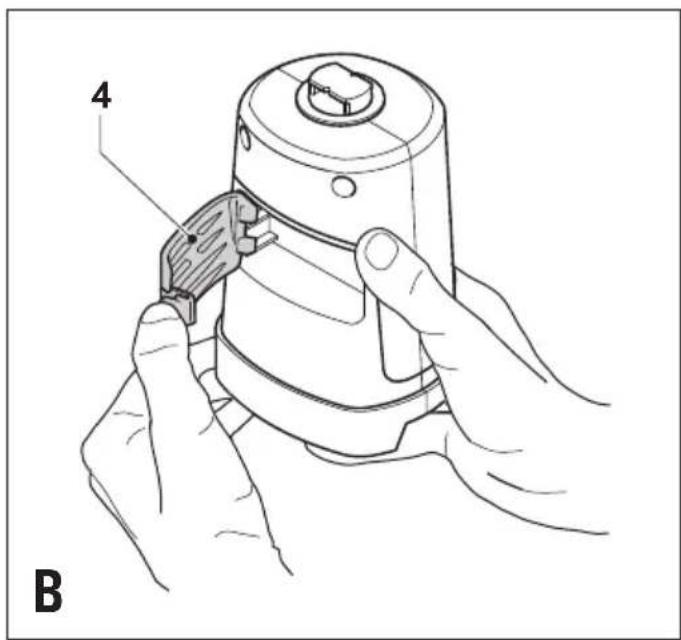

Fitting the battery (fig. A & B)

◆Remove the battery cover (4) from the tool.
◆Connect the battery to the connector. The larger battery terminal connects to the smaller connector terminal.
◆Refit the cover and let it click into place.

Installing the tool (fig. C & D)

The tool can be installed on a horizontal surface such as a floor or a table. Alternatively, the laser head can be mounted to a wall using the bracket (3). The laser head can also be hung from a joist or other secure structure using a hanging strap. Note: the laser lines will only be level if the tool is kept within 5° from vertical. If the tool is kept outside the level range, the projected laser lines become dashed instead of solid.

◆Re-adjust the position of the tool if any or both lines are dashed.

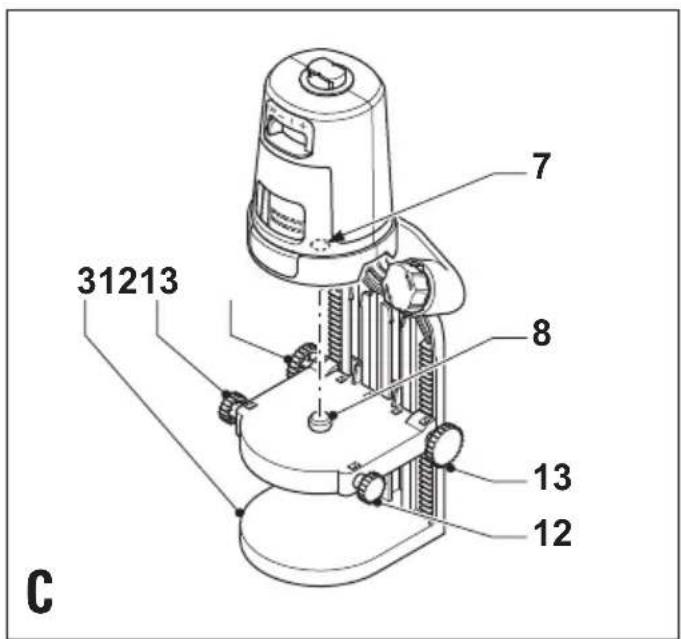

Fitting the tool to the mounting bracket (fig. C)

◆Mount the bracket (3) to a wall following one of the procedures as described below.
◆Install the unit by clinging the magnet (7) to the steel knob (8).
◆To remove the unit from the bracket, pull the unit off the steel knob.

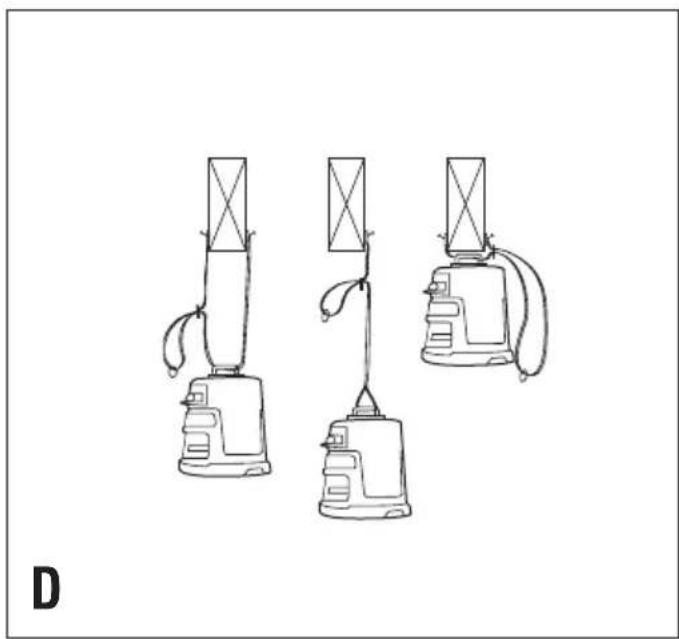

Hanging the laser head (fig. D)

◆Thread the hanging strap through the slot in the top of the tool and fasten the hook as shown.
◆Adjust the tool so that it hangs relatively level.

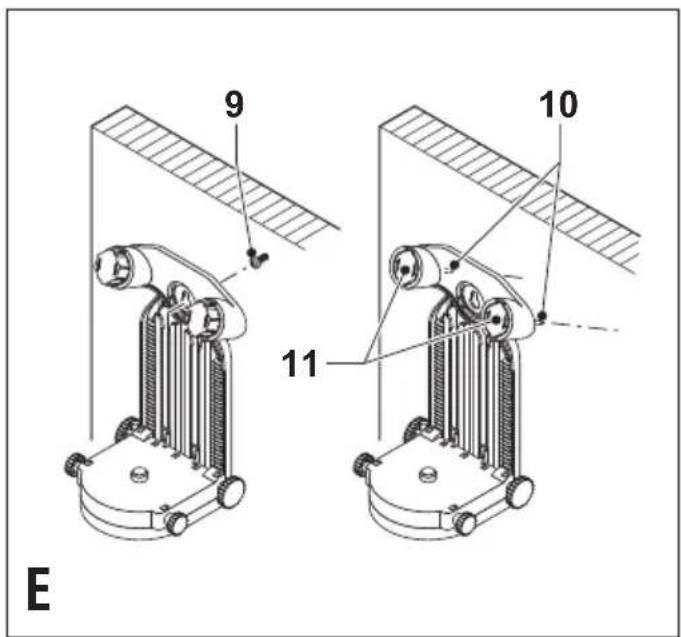

Wall mounting (fig. E)

The unit can be mounted to walls using one of the mounting facilities of the bracket (3).

Keyhole wall mount

The keyhole (9) is used for mounting to most wall constructions.

◆Drive a screw or nail into the wall.
◆Hang the bracket onto the fastener by the keyhole (9).
◆Fit the tool to the bracket.

Wall pins

If the unit is mounted to drywall or other soft materials, the wall pins (10) must be used:

◆Hold the bracket in front of a suitable location.
◆Twist the knobs (11) to press the pins (10) straight into the wall.
◆Fit the tool to the bracket.

Use

◆Install the tool as required.
◆If necessary, fit the unit to the mounting bracket to position the laser line.
◆Be aware that extreme temperature changes can cause movement or shifting of building structures, tripods, equipment, etc. This may affect accuracy. Verify your set-up before each use as the laser may have moved.
◆Extreme temperature changes may affect the adjustment of the unit.

Adjusting the laser lines (fig. C)

The adjusting knobs on the mouting bracket facilitate adjustment of the laser lines.

◆To move the line in vertical direction, turn one of the knobs (12) on either side of the bracket.
◆To move the line in horizontal direction, turn one of the knobs (13) on either side of the bracket.

Switching on and off

◆To switch the tool on, slide the on/off switch (1) to the right into the desired operating mode.
◆To switch the tool off, slide the on/off switch to the utter left position.

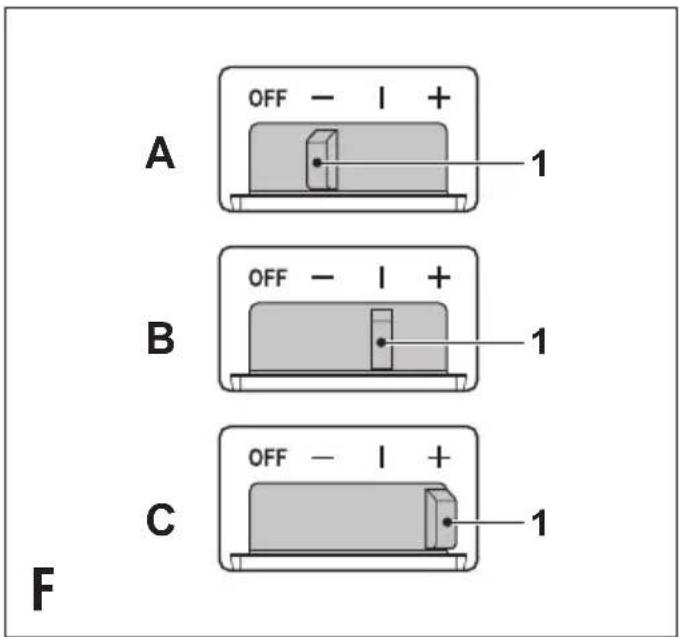

Selecting the operating mode (fig. F)

◆In order to project a horizontal line, slide the switch (1) to position A.
◆In order to project a vertical line, slide the switch (1) to position B.
◆In order to project a crosshair, slide the switch (1) to position C.

Cleaning and maintenance

Your tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

◆To clean the tool, use only mild soap and a damp cloth. Never let any liquid get inside the tool and never immerse any part of the tool into liquid.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Battery

At the end of their useful life, discard batteries with due care for our environment.

◆Remove the battery as described above.
◆Place the battery in a suitable packaging to ensure that the terminals cannot be short-circuited.
◆Take the battery to a local recycling station.

Technical data
LZR6

Voltage V 9

Battery size 6LR61

Operating temperature °C 0 - 40

Wave length nm 630-675

Laser class 2

Laser power mW < 2.2

Weight kg 0.45

EC declaration of conformity

LZR6

Black & Decker declares that these products conform to: 89/336/EEC, EN 61010, EN 60825

Kevin Hewitt

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

1-12-2004

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

◆The product has been used for trade, professional or hire purposes;
◆The product has been subjected to misuse or neglect;
◆The product has sustained damage through foreign objects, substances or accidents;
◆Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk

Director of Consumer Engineering Spennymoor, County Durham DL16 6JG, United Kingdom 1-12-2004
