Product Type	Laser pointer
Brand	Black & Decker
Model	BDL120
Supply voltage	3 V
Battery type	2 LR6 (AA) batteries
Laser class	2
Operating temperature	0 °C to 40 °C
Weight (without batteries)	0.2 kg
Line projection	Horizontal and vertical
Bubble level	Yes, two levels
Wall mounting	Yes, with wall anchor and keyhole bracket
Magnetic attachment	Yes
Angular adjustment	Angle scale
Use	Domestic
Safety	Class 2 laser radiation, do not stare directly
Maintenance	Clean with a soft dry cloth
Repairs	By approved technician only
Warranty	24 months
Standards	EN 61010-1, IEC 60825-1, EN 61000-6-3, EN 61000-6-1

Frequently Asked Questions - BDL120 BLACK & DECKER

How to turn on the BDL120 laser pointer?

Press the on/off switch (1) to turn on the tool. The laser then projects a line.

What batteries to use?

Use two LR6 (AA) 1.5 V batteries. Follow the orientation indicated in the compartment.

How to replace the batteries?

Turn off the device, remove the battery cover (4), insert the batteries according to orientation, then replace the cover until it clicks.

How to mount the device on the wall?

Use the appropriate wall bracket: wall anchor (5) for drywall or keyhole bracket (6) for other walls. Hang the tool using the magnet (8).

How to adjust the horizontal or vertical laser line?

For a vertical line, adjust the bubble level (9). For a horizontal line, adjust the bubble level (10). Turn the tool to center the bubble.

What to do if the laser does not turn on?

Check that the batteries are inserted correctly and in good condition. If necessary, replace the batteries. If the problem persists, contact an approved technician.

Is the laser dangerous for the eyes?

This laser is class 2. Never look directly into the beam and do not use optical instruments. Eyelid reflexes usually provide adequate protection.

Can I use the device outdoors?

Yes, but avoid exposing it to rain or humidity. The operating temperature is between 0 °C and 40 °C.

How to clean the device?

Clean the exterior with a soft dry cloth. In case of battery leakage, carefully clean the liquid with a cloth while avoiding skin contact.

Where to find spare parts?

Contact an authorized Black & Decker repair agent or visit www.2helpU.com to find the nearest center. Use only genuine parts.

USER MANUAL BDL120 BLACK & DECKER

This Black & Decker tool has been designed to project laser lines to aid in DIY applications. This tool is intended for consumer use only.

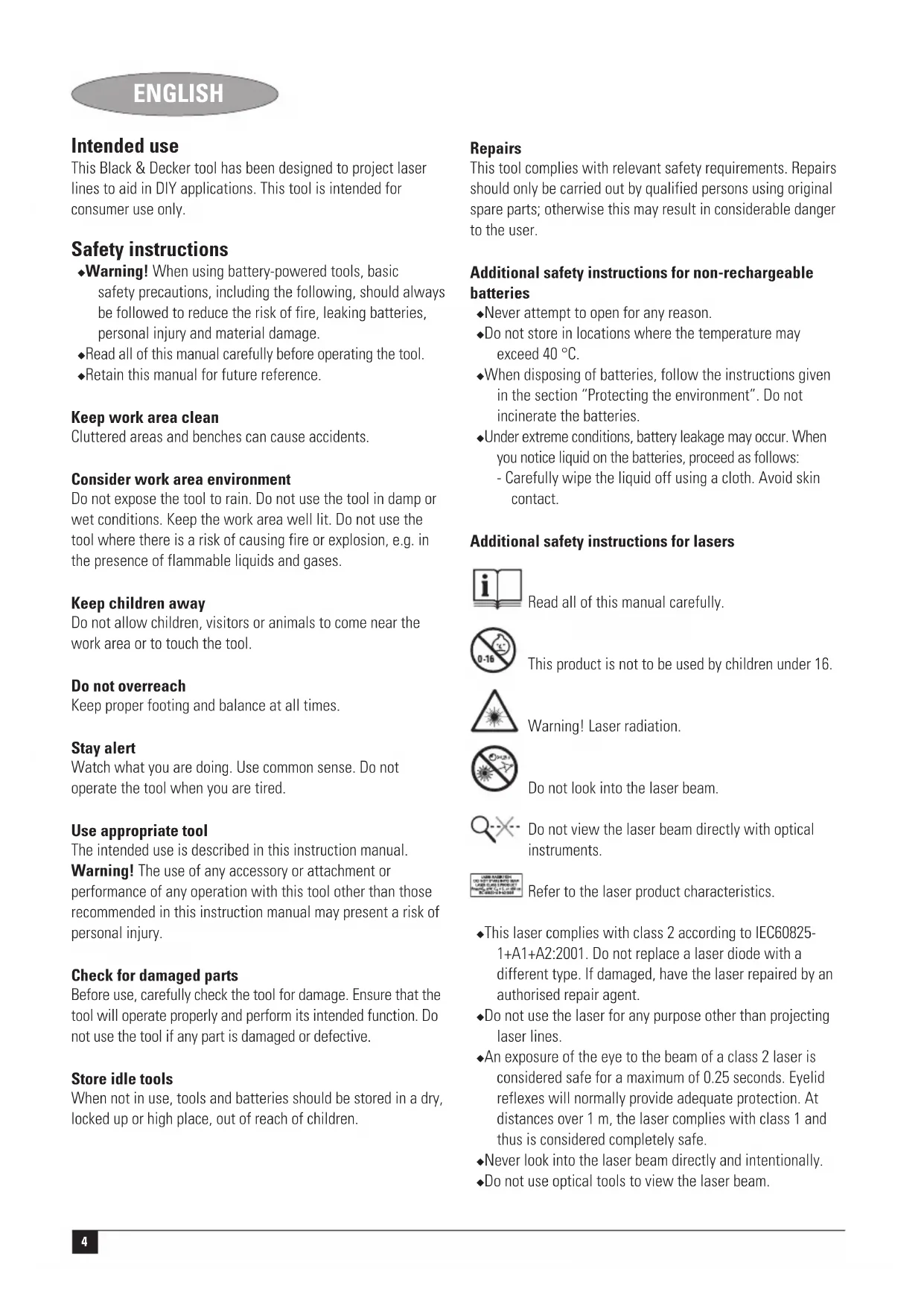

Safety instructions

Warning! When using battery-powered tools, basic safety precautions, including the following, should always be followed to reduce the risk of fire, leaking batteries, personal injury and material damage.
Read all of this manual carefully before operating the tool.
Retain this manual for future reference.

Keep work area clean

Cluttered areas and benches can cause accidents.

Consider work area environment

Do not expose the tool to rain. Do not use the tool in damp or wet conditions. Keep the work area well lit. Do not use the tool where there is a risk of causing fire or explosion, e.g. in the presence of flammable liquids and gases.

Keep children away

Do not allow children, visitors or animals to come near the work area or to touch the tool.

Do not overreach

Keep proper footing and balance at all times.

Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

Use appropriate tool

The intended use is described in this instruction manual.

Warning! The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury.

Check for damaged parts

Before use, carefully check the tool for damage. Ensure that the tool will operate properly and perform its intended function. Do not use the tool if any part is damaged or defective.

Store idle tools

When not in use, tools and batteries should be stored in a dry, locked up or high place, out of reach of children.

Repairs

This tool complies with relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts; otherwise this may result in considerable danger to the user.

Additional safety instructions for non-rechargeable batteries

• Never attempt to open for any reason.
  Do not store in locations where the temperature may exceed 40^
  When disposing of batteries, follow the instructions given in the section "Protecting the environment". Do not incinerate the batteries.
  Under extreme conditions, battery leakage may occur. When you notice liquid on the batteries, proceed as follows:

• Carefully wipe the liquid off using a cloth. Avoid skin contact.

Additional safety instructions for lasers

Read all of this manual carefully.

This product is not to be used by children under 16.

Warning! Laser radiation.

Do not look into the laser beam.

Do not view the laser beam directly with optical instruments.

Refer to the laser product characteristics.

This laser complies with class 2 according to IEC60825-1+A1+A2:2001. Do not replace a laser diode with a different type. If damaged, have the laser repaired by an authorised repair agent.
Do not use the laser for any purpose other than projecting laser lines.
An exposure of the eye to the beam of a class 2 laser is considered safe for a maximum of 0.25 seconds. Eyelid reflexes will normally provide adequate protection. At distances over 1m the laser complies with class 1 and thus is considered completely safe.
- Never look into the laser beam directly and intentionally.
Do not use optical tools to view the laser beam.

Do not set up the tool at a position where the laser beam can cross any person at head height.
Do not let children come near the laser.

Features

1. On/off switch
2. Levels
3. Laser aperture
4. Battery cover

Assembly

Warning! Make sure that the tool is switched off.

Fitting the batteries (fig. A)

Remove the battery cover (4) from the tool.
Insert the batteries into the tool in the orientation as shown.
Refit the cover and let it click into place.

Wall mounting (fig. B & C)

The tool can be mounted to walls using one of the wall mounts (5 or 6). The wall pin (5) is used to hang the tool to drywalls. The keyhole mount (6) is used to hang the tool on other types of wall using a screw or nail.

Warning! Keep the wall mounts in a safe place when not in use.

Wall pin

Fold out the spade pin (7).
Hold the wall pin in front of a suitable location and press the pin straight into the wall.
Install the tool by clinging the magnet (8) to the wall pin (5).

Warning! The wall pin is sharp and should be handled with care.

Keyhole mount

Drive a screw or nail into the wall.
Hang the wall mount (6) onto the fastener.
Install the tool by clinging the magnet (8) to the keyhole mount (6).

Use (fig. D)

Place the tool flat against the wall as shown.
Push the on/off switch (1) up to switch the tool on.
Move the tool as necessary to position the laser line.
Hang the tool on the wall using the appropriate wall mount.

Adjusting the laser line (fig. E)

In order to project a vertical line, adjust the tool until the vial (9) is level.
In order to project a horizontal line, adjust the tool until the vial (10) is level.

Using the scale

The scale (11) on the wall mount can be used for angular adjustment.

Align the 0^ position on the scale with the pointer on the tool by turning the wall pin.
To check an angle, adjust the scale as necessary.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Reuse of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Batteries

At the end of their useful life, discard batteries with due care for our environment.

Remove the batteries as described above.
Place the batteries in a suitable packaging to ensure that the terminals cannot be short-circuited.
Take the batteries to a local recycling station.

Technical data

BDL120

Voltage V 3

Battery size 2 x LR6 (AA)

Laser class 2

Operating temperature ^ C0 - 40

Weight (without battery) kg 0.2

EC declaration of conformity

BDL120

Black & Decker declares that these products conform to:

EN 61010-1, IEC 60825-1, EN 61000-6-3, EN 61000-6-1

Kevin Hewitt

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG

United Kingdom

1-10-2005

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;
The product has been subjected to misuse or neglect;
The product has sustained damage through foreign objects, substances or accidents;
Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk

Kevin Hewitt
Director of Consumer Engineering
Spennymoor, County Durham DL16 6JG, United Kingdom
1-10-2005

Garantie

Spennymoor, County Durham DL16 6JG

Royaume-Uni

1-10-2005

Garantie

Kevin Hewitt
Director of Consumer Engineering
Spennymoor, County Durham DL16 6JG, United Kingdom
1-10-2005

Garantie

No permitted to be in the area.

Spennymoor, County Durham DL16 6JG

United Kingdom

1-10-2005

Garantía

Spennymoor, County Durham DL16 6JG

United Kingdom

1-10-2005

Garantia

Forvaras utom rackhall for barn

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG

United Kingdom

1-10-2005

Reservdelar / reparationer

Adversell Laserstråling.

Ikke seinn i laserstralen.

Ikke se direkte på dette laserstrålen med optiske instrumenter.

Se ogsa laserens tekniske data.

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG

United Kingdom

1-10-2005

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG

United Kingdom

1-10-2005

Reservedele / reparationer

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG, United Kingdom 1-10-2005
