USER MANUAL Forestry Pro NIKON

Exterior view of a Nikon Forestry Pro optical device (no text or symbols on body)

Forestry Pro

Instruction manual / Bedienungsanleitung/ Manuel d'utilisation / Manual de instrucciones / Manuale di istruzioni / Руководство по продукции / Instruksjonsmanual / Bruksanvisning / Käyttöohje / Gebruiksaanwijzing / Brugsvejledning / Manual de instrucțiuni / Instrukcją obsługi / Kezelési útmutató / Návod k použití

En De Fi Es SeRu No NI DkFi Ro PI Hu Cz

English......p. 4-33

Deutsch...... s. 34-63

Français ......p. 64-93

Español......p. 94-123

Italiano ......p. 124-153

Cautions before use 5-7

Key features 8-9

Nomenclature/Composition 10

Changing batteries 11

Internal display.... 12-13

Operational Summary 14-16

Specifications.... 17-18

External display.... 19-21

Operation and internal display.... 22-28

Others....29

Troubleshooting/Repair 30-31

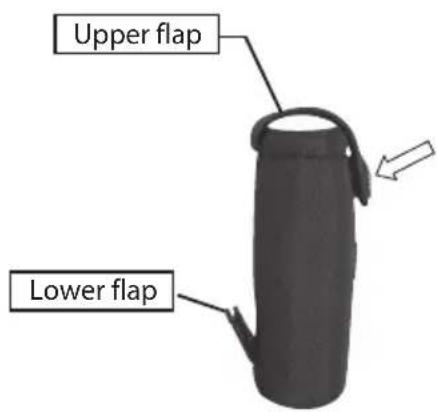

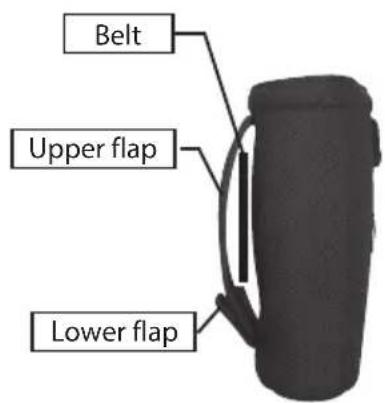

How to use the Rangefinder case.... 32

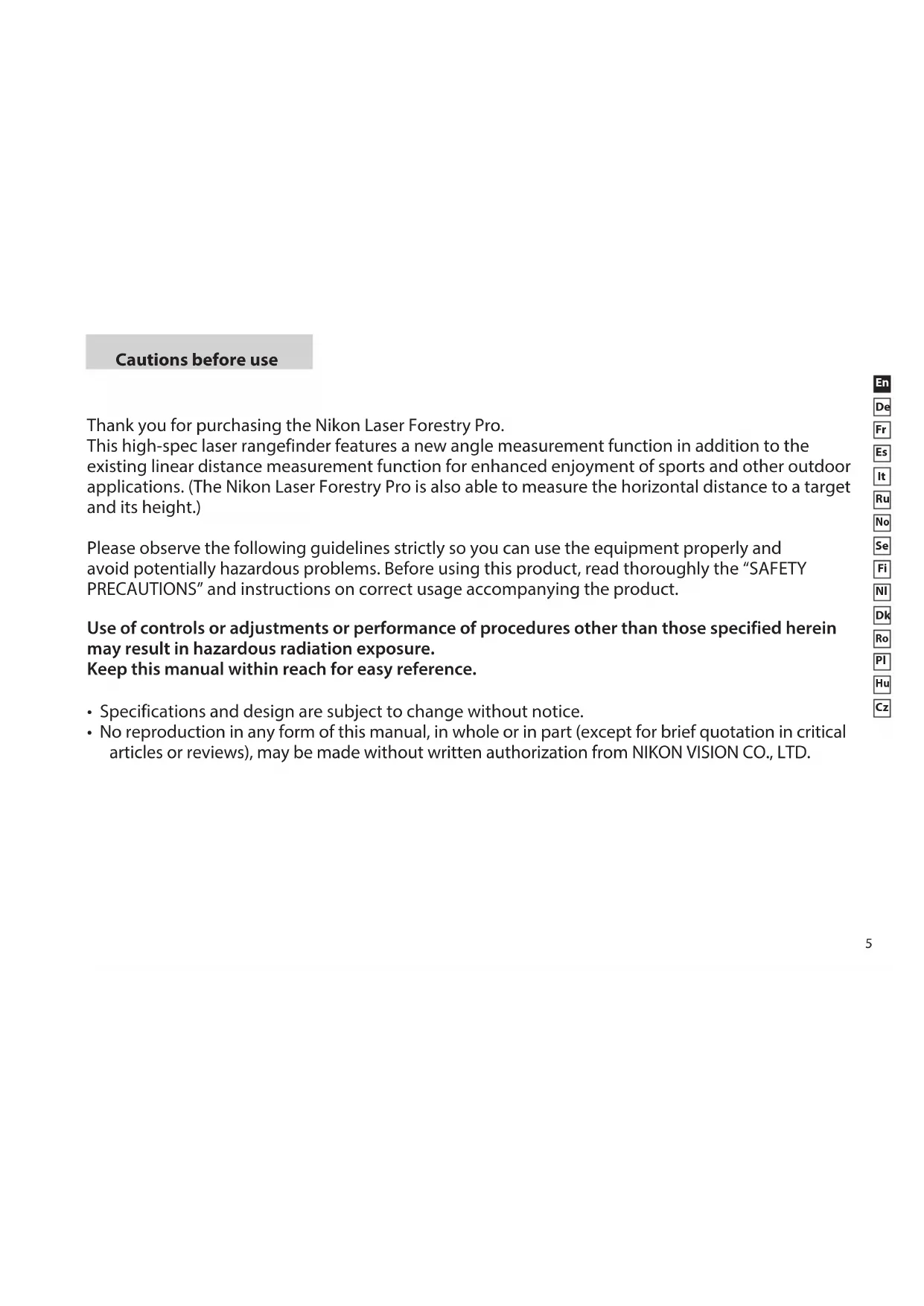

Cautions before use

Thank you for purchasing the Nikon Laser Forestry Pro.

This high-spec laser rangefinder features a new angle measurement function in addition to the existing linear distance measurement function for enhanced enjoyment of sports and other outdoor applications. (The Nikon Laser Forestry Pro is also able to measure the horizontal distance to a target and its height.)

Please observe the following guidelines strictly so you can use the equipment properly and avoid potentially hazardous problems. Before using this product, read thoroughly the "SAFETY PRECAUTIONS" and instructions on correct usage accompanying the product.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Keep this manual within reach for easy reference.

• Specifications and design are subject to change without notice.
• No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON VISION CO., LTD.

Cautions before use

Please observe the following guidelines strictly so you can use the equipment properly and avoid potentially hazardous problems. Before using this product, read thoroughly the "SAFETY AND OPERATION PRECAUTIONS" and instructions on correct usage accompanying the product. Keep this manual within reach for easy reference.

WARNING

This indication alerts you to the fact that any improper use ignoring the contents described herein can result in potential death or serious injury.

CAUTION

This indication alerts you to the fact that any improper use ignoring the contents described herein can result in potential injury or material loss.

SAFETY AND OPERATION PRECAUTIONS

Warning

• Never look directly at the laser beam or directly at the sun when using the Nikon Laser Forestry Pro.
• Do not depress the POWER button while looking into the optics from the

objective side.

• Do not aim at the eye.
• Do not operate the unit with other additional optical elements, such as lenses or binoculars. Using an optical instrument together with the Nikon Laser Forestry Pro increases the danger of damaging the eyes.
• Do not disassemble the Nikon Laser Forestry Pro. The emitting laser may be harmful to your health. A product that has been disassembled is not guaranteed by the manufacturer.
• When the Nikon Laser Forestry Pro's body cover is damaged, or if it emits a strange sound due to dropping or for some other cause, immediately remove the battery and stop using.

⚠️ Cautions

• When not using the Nikon Laser Forestry Pro, do not push the POWER button.
• Do not leave the Nikon Laser Forestry Pro within the reach of small children.
• Rain, water, sand and mud should be removed from the rangefinder body surface as soon as possible, using a soft, clean, dry cloth.

• Although the Nikon Laser Forestry Pro is waterproof, it is not designed for use underwater.

• Do not swing the Nikon Laser Forestry Pro by its strap. It may hit someone and cause injury.

• Do not leave the Nikon Laser Forestry Pro in an unstable place, as it may fall and cause injury, or damage the equipment.
• Do not look through the Nikon Laser Forestry Pro while walking. You may walk into something and get hurt.
• Do not leave the Nikon Laser Forestry Pro in a car on a hot or sunny day, or near heat-generating equipment. This may damage or negatively affect it.
• Do not leave the Nikon Laser Forestry Pro in direct sunlight. Ultraviolet rays and excessive heat may negatively affect or even damage the unit.
• When the Nikon Laser Forestry Pro is exposed to sudden changes in temperature, water condensation may occur on lens surfaces. Do not use the product until the condensation has evaporated.
• Do not use alcohol for cleaning the main body.
• Do not leave the polyethylene bag used for packaging within the reach of small children.
• Be careful that small children do not inadvertently swallow the eyecup. If it does happen, consult a doctor

immediately.

• If you use the rubber eyecup for a long period of time, you may suffer skin inflammation. If you develop any symptoms, consult a doctor immediately.
• When carrying the Nikon Laser Forestry Pro, store it in the soft case.
• If your Nikon Laser Forestry Pro should fail to operate correctly, discontinue use immediately and consult the Troubleshooting Table. If you are unable to fix the problem, contact your local dealer for instructions on where to send it for repair.

CARE AND MAINTENANCE Lenses

• When removing dust on the lens surface, use a soft oil-free brush.
• When removing stains or smudges like fingerprints from the lens surface, wipe the lenses very gently with a soft clean cotton cloth or quality oil-free lens tissue.

Use a small quantity of pure alcohol (not denatured) to wipe stubborn smudges. Do not use velvet cloth or ordinary tissue, as it may scratch the lens surface. Once the cloth has been used for cleaning the body, it should not be used again for the lens surface.

Main body

• Clean the body surface with a soft, clean cloth and a dry cloth. Do not use benzene, thinner, or other organic agents because they may cause discolouration or rubber degeneration.

Storage

• Water condensation or mold may occur on the lens surface because of high humidity. Therefore, store the Nikon Laser Forestry Pro in a cool, dry place.
After use on a rainy day or at night, thoroughly dry it at room temperature, then store in a cool, dry place.

NOTES ON LITHIUM BATTERY

If handled incorrectly, batteries may rupture and leak, corroding equipment and staining clothing. Be sure to observe the following:

• Install batteries with the + and - poles positioned correctly.

• Batteries should be removed when exhausted or during extended periods of non-use.
  • Always use the same type of battery.

• If battery fluid contacts eyes or skin, rinse well with water. If swallowed, consult a doctor immediately.

• Do not short-circuit battery chamber terminals.
• Do not carry batteries together with keys or coins in a pocket or bag. This may overheat and short-circuit batteries.
• Do not put batteries in fire or water. Never disassemble batteries.
• Do not charge batteries.
• Do not subject stored batteries to extremes in temperature.
• Do not subject batteries to strong vibrations or shock.

Symbol for separate collection applicable in European countries

This symbol indicates that this battery is to be collected separately. The following apply only to users in European countries.

- This battery is designated for separate collection at an appropriate collection point. Do not dispose of as household waste.

• For more information, contact the retailer or the local authorities in charge of waste management.

Symbol for separate collection applicable in European countries.

This symbol indicates that this product is to be collected separately. The following apply only to users in European countries.

• This product is designated for separate collection at an appropriate collection point. Do not dispose of as household waste.

• For more information, contact the retailer or the local authorities in charge of waste management.

Key Features

• Linear distance measurement range: 10-500 meters/11-550 yards/33-999 feet.
  • Angle measurement range: ±89°
  • Distance measurement display step:
  [Internal Display]: (Linear Distanc
  0.5 meter/yard, 1 foot
  (measurement distance is less than 100 meters/yards /feet)
  1.0 meter/yard, 1 foot
  (measurement distance is 100 meters/yards/feet or further) (Horizontal Distance/Height)
  0.2 meter/yard, 0.5 foot
  (measurement distance is less than 100 meters/yards /feet)
  1.0 meter/yard, 1 foot
  (measurement distance is 100 meters/yards/feet or further) (Angle)
  0.1^(-10^-10^)
  1.0^ ( ≤ - 10^, 10^ ≤ )

[External Display]:

(Linear distance) 0.5 meter/yard, 1 foot

(Horizontal Distance/Height) 0.2 meter/yard, 0.5 foot

(Angle) 0.1^

• Easy-to-aim 6x optical observation system
• Quantifies the horizontal distance to the target and its height in relation to the rangefinder's level by measuring linear distance and angle.
• Measure the vertical separation (height between two points) - vertical separation mode and 3-point measurement mode are available
• The results are displayed on both an internal and an external LCD panel. The external LCD panel shows all results simultaneously.
• Target Priority Switch System allows you to easily match the measuring situation.
• Waterproof design (NOT designed for underwater usage)
  • Invisible/Eyesafe EN/IEC Class 1M Laser
  • 30-second results display
• Compact, lightweight, ergonomic design
  • Automatic shut-off (after approx. 30 sec. unattended)
• Default to "Last Use" settings
• Approx. 20-second continuous measuring function

The Nikon Laser Forestry Pro emits invisible, eyesafe, infrared energy pulses that reflect off the selected target back to its optical receiver. Sophisticated precision charge circuitry is used to instantaneously calculate distances, by measuring the time it takes for each pulse to travel from the rangefinder to the target and back. Laser reflectivity and measurement results may vary according to climatic and environmental conditions, the colour, surface finish, size, shape and other characteristics of the target.

The following factors ensure better range and accuracy:

• Night time use
• Cloudy weather
  • Bright-coloured targets
  • Targets with highly reflective surfaces
  • Targets with shiny exteriors
• Large-size targets
• Shooting targets facing at 90 degrees

Measurement may result in inaccuracy or failure in the following cases:

• Slender or small target
  • Target has diffusing reflective surface
• Target does not reflect the laser beam to the rangefinder (glass, a mirror, etc.)
• Black target
  • Target has varying depths
  • In snow, rain or fog
  • Target measured through glass
• Reflective surface measured from diagonal direction
• Moving target
• Obstacle moving in front of the target
• When targeting the surface of water

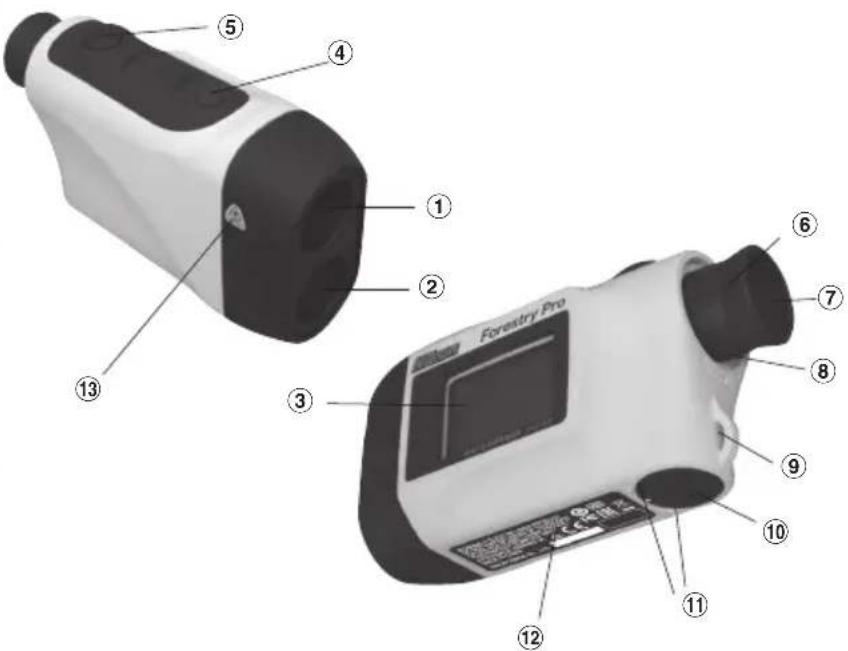

Nomenclature/Composition

Forestry Pro ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬

① Monocular objective lens/Laser emission aperture
② Laser detector aperture
③ External LCD
④ MODE button
⑤ POWER button
⑥ 6x monocular eyepiece
⑦ Eyecup/dioptre adjustment ring
⑧ Dioptre index
⑨ Strap eyelet
⑩ Battery chamber cover
⑪ Battery chamber cover "Open/Close" indication
⑫ Product number/explanatory label

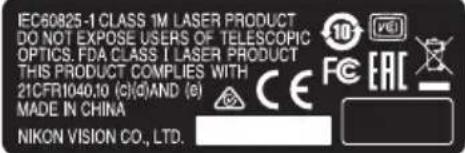

IEC60825-1 CLASS 1M LASER PRODUCT DO NOT EXPOSE USERS OF TELESCOPIC OPTICS. FDA CLASS 1 LASER PRODUCT THIS PRODUCT COMPLIES WITH 21CFR1040.10 (c)(d)AND (e) MADE IN CHINA NIKON VISION CO., LTD.

⑬ Laser warning label

Composition

Body ....x1 Neckstrap ....x1

Soft case (CCN)....x1 Lithium battery (CR2)....x1

Changing Batteries

• Type of battery: 3V CR2 lithium battery

- Battery condition indicators

Battery has enough power for use.

Battery is getting low.

-flashing: Battery is low and battery should be replaced.

disappears: Battery is exhausted and should be replaced.

flashing in the LCD indicates that the battery should be replaced.

① Open the battery chamber cover

Using the ball of the thumb or a coin in the recessed part of the battery chamber cover, rotate the cover following the Open/Close arrow indicator. It may not open easily due to its rubber packing for water resistance.

② Replace the old battery with a new one

Install new battery with the [+] and [-] correctly positioned following the "Battery installation" indication seal in the battery chamber. (Insert battery positioning the [+] pole towards the inside of the chamber.) [The Laser Forestry Pro will not operate if the battery is installed incorrectly.]

③ Close the battery chamber cover

Align the Open/Close indicator with the white dot and insert the battery chamber cover. Using the ball of the thumb or a coin, turn the cover in the opposite direction to the arrow indicator. It may not close easily due to the rubber packing for water resistance, but continue to turn it all the way until it stops. Confirm that the cover is securely closed.

•Battery life

Continuous operation: Approx. 13,000 times (at 20°C)

Target focusing, measurement, and automatic power off are included in a single cycle. This figure may differ according to temperature, and other factors such as target shape, colour, etc.

* The Nikon Laser Forestry Pro come with a 3V CR2 lithium battery. However, due to natural electric discharge, the life of the battery will likely be shorter than that noted above.

* Replace battery if the Nikon Laser Forestry Pro is ever submerged in water or if water enters in the battery chamber.

Internal display

1. 「→K- Target aiming/Laser irradiate system

『—』- Aim at the target. Position the target at the center of the reticle. 「××」- Appears while the laser is being used for a measurement. (Remains present during single measurement. Blinks during continuous measurements.)

Warning: Do not look into the objective lenses when this mark is shown.

1. 88.8 - Distance/measurement status display

Digitally indicates measured distance in meters/yards/feet and angles in degrees. Also indicates measuring status such as "Measurement in progress", "Measurement unsuccessful" or "Unable to measure."

(Distance)

Display of results: (≥ 100m/yards/feet) e.g. 234 meters = [234m]

Display of results: (< 100m/yards/feet) e.g. 76.5 yards = [76.5yo]

Display of results: (< 100m/yards/feet) e.g. 82 feet = [82] (Angle)

Display of results: ( ≤ -10^ and ≥ 10^ ) e.g. 36^ = 36

e.g. -29^ = -29

Display of results: (-10^<and<10^) e.g. 3.5^=[3.5]

e.g. -7.0^ = -7.0

『 :』- Now measuring

[---] - Failure to measure or unable to measure distance

1. Display Units

[ m ] Indicates distance being measured in meters.

FD Indicates distance being measured in yards.

[No unit displayed] Indicates distance is measured in feet.

1. [ ] - Indicates battery condition. (See "Changing Batteries")

Act Hor Hgt+Hgt2 88.8m YD Ang 1st Dst

5.『Act Display+Mode Ang

(See "External display, and Operation and Internal display" for operations and display examples.)

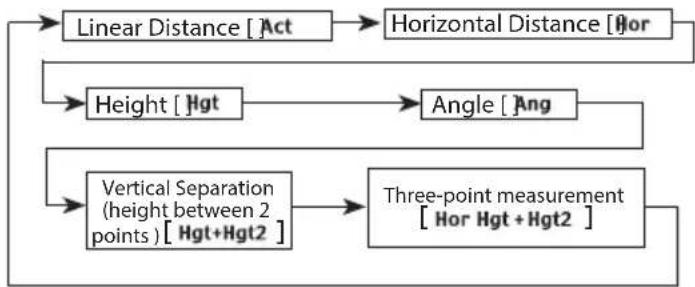

Linear distance mode

Act] Calculates linear distance to your target and displays the results.

Horizontal distance mode

[ Hor ] Calculates horizontal distance to your target by measuring the linear distance and angle, and displays the results.

Height mode

Hgt] Measures your target's height from the horizontal level, and displays the results.

Vertical separation (height between two points) mode

Hgt+Hgt2 Uses the linear distance and angle data of two points to calculate and display the vertical separation (height between the two points.)

Three-point measurement (height between two points) mode

[ Hor Hgt + Hgt2 ] Use the horizontal distance data to the target (1st point) and angle data of two points (2nd and 3rd points) to calculate and display the vertical separation (height between 2nd and 3rd points).

Angle mode

Ang」Measures the angle of your target from the horizontal level and displays the results.

6. [1st Dst] Target Priority mode

First Target Priority mode

[1st] Indicates when First Target Priority mode is set.

Distant Target Priority mode

[ Dst ] Indicates when Distant Target Priority mode is set.

Note: When Angle measuring mode is set (during [Ang] symbol display), Target Priority mode is not displayed and illuminated [1st] or [Dst] symbols turn off.

Although the LCD was produced using the most advanced technology, it is impossible to eliminate dust completely. When using this product, the LCD is magnified by high magnification of the eyepiece lens and dust may appear as a defect. It will not, however, affect measurement accuracy.

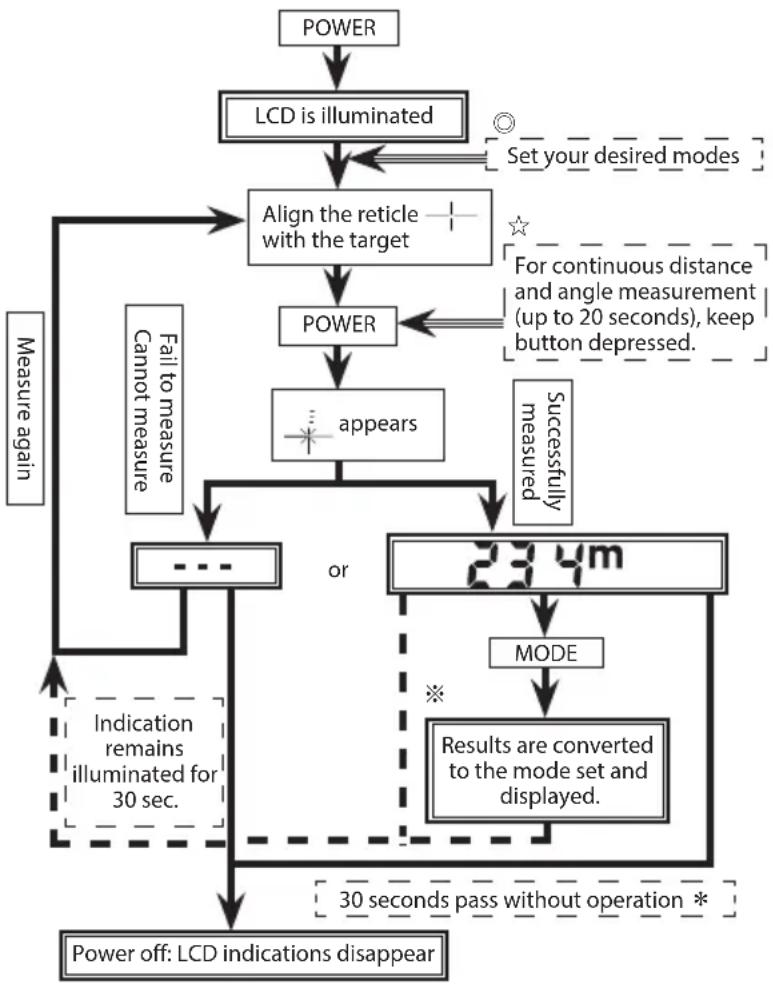

Operational Summary

En Caution—use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure

1. Install a battery in the battery chamber. (See "Changing Batteries")
2. Rubber eyepiece cup

Eyeglass wearer: Collapse the eyepiece cups.

Non-eyeglass wearer: Do not collapse the eyepiece cups.

1. Diopter adjustment

Adjust diopter to obtain a clear image in the LCD.
First, rotate the diopter adjustment ring counterclockwise until it comes to a complete stop. Next, turn on the power to activate the LCD when you look through the Nikon Laser Forestry Pro. Rotate the diopter adjustment ring clockwise until the display comes into focus.
If the diopter is not adjusted to correspond to your eyesight, you may not be able to clearly focus your subject.

1. Measuring

Note: See the chapter "External and Internal display" for external LCD panel.

Note: Depressing and holding down the POWER button causes all symbols to be displayed in the internal LCD panel. After you remove your finger from the POWER button, the last-used setting is displayed. (If you briefly press the POWER button then remove your finger, the LCD panel may display the last-used setting without displaying all of the symbols. This is not a malfunction or other problem.)

Before measuring, be sure to confirm settings, such as unit, measurement/display mode and priority mode.

◎ : See the relevant mode section in this manual for setting.

※ See the chapter "External and Internal display" for details regarding the operations and results display of the various modes."

* Power turns off 30 seconds after the last operation.

☆【Continuous measurement mode】

POWER Keeping the POWER button depressed allows you to perform continuous measurement for 20 seconds.

Blinks while performing measurements.

When measuring a pin at a golf course, for example, use First Target Priority and Continuous measurement mode for easy measurement. With no objects between you and the pin, the smallest number is the distance to your targeted pin.

1. Selecting display unit (Factory default setting is feet.)

1. Confirm the LCD panel is on.
2. Press and hold the MODE button for approx. two seconds.
3. When display unit has switched, release the MODE button.
4. Repeat steps 2 and 3 until your desired mode is displayed.

5. When you have completed setting, results will be converted and displayed in the your selected measurement unit.

6. Switching measurement/display modes (Factory default setting is linear distance measurement mode)

By pressing the MODE button, modes will change in the order indicated above.

1. Confirm the LCD panel is on.
2. Press MODE button within 0.5 seconds.
3. Release MODE button to switch the mode.
4. Repeat steps 2 and 3 until your desire mode is displayed.

5. Switching the mode after measurement converts the results to the new mode.

6. After the mode is set, measurements are performed in the new mode.

Operational Summary

1. Switching Target priority modes (Factory default setting is Distant Target Priority mode.)

1. LCD panel should be on.

2. Press and hold MODE button, then depress and hold POWER button within 0.5 second.

Note) If the POWER button is not pressed within 0.5 second, the display unit (m/yd/ft) will be switched.

1. Continue to press and hold both buttons (more than 2 seconds) until First Target Priority mode and Distant Target Priority mode are switched.

Note: If buttons are not pressed in the correct order, switching will not take place.

Note: If switching fails to take place, repeat 2.

1. Release buttons.

Note: Because Target Priority mode is not displayed while Angle mode is set, switching is made but visual confirmation is impossible. Switch to another measuring mode for confirmation.

[Deciding which Target Priority to use]

When obtaining different results from a single measuring operation, the Nikon Laser Forestry Pro will display the distance to the farthest target on the LCD panel when using Distant Target Priority mode, while First Target Priority mode will show the range to the nearest target.

ex.) When measuring a tree standing in front of a house;

Distance to Target	Tree	Fence	House
	115m	123m	128m

"115m" (distance to the tree) will be displayed in First Target Priority mode, and "128m" (distance to the house) in Distant Target Priority mode. First Target Priority mode, for example, has applications for golf, while Distant Target Priority is useful when

hunting in heavily wooded areas.

8. Low battery indication

Flashing 📄 indicates that the battery power is low and battery should be replaced. (See "Changing Battery")

Specifications

Measuring system
Measuring mode display Linear distance			ActHorizontal distance : HorHeight : HgtAngle : AngVertical separation (height between two points ): Hgt + Hgt2Three-point measurement: Hor + Hgt + Hgt2
Measuring distance/ angle range			Distance: 10-500 meters/11-550 yards/33-999 feet(999 feet: 304.5 meters/333 yards)Angle: ± 89°
Distance-angleDisplaysteps	Internal	Act(Linear distance)	0.5m/yd., 1.0 ft. (< 100m/yd./ft.)1.0m/yd., 1.0 ft. (≥ 100m/yd./ft.)
		Hor(Horizontal distance)	0.2m/yd., 0.5 ft. (< 100m/yd./ft.)1.0m/yd., 1.0 ft. (≥ 100m/yd./ft.)
		Hgt(Height)	0.2m/yd., 0.5 ft. (< 100m/yd./ft.)1.0m/yd., 1.0 ft. (≥ 100m/yd./ft.)
		Ang (Angle) 0.1° (< 10°), 1.0° (≥ 10°)
	External	Linear distanceHorizontal dist.HeightAngle	0.5m/yd., 1.0 ft.0.2m/yd., 0.5 ft.0.2m/yd., 0.5 ft.0.1°
System First Target Priority/Distant Target Priority switching system
Optical system
Type Roof-prism monocular
Magnification (x) 6
Effective diameter of objective lens(mm)		ø21
Angular field of view (real) (°) 6.0
Eye relief (mm) 18.2
Exit pupil (mm) ø3.5
Dioptre adjustment ±4m		-1

Specifications

Others
Operating temperature (°C) -10 —	+50
Power source CR2 lithium battery	x 1 (DC 3V)Auto power shutoff function equipped (after approx. 30 seconds)
Dimensions (L x H x W) (mm) 130x69x45
Weight (g) Approx. 210 (without battery)
Structure Body: Waterproof	(maximum depth of 1 meter for up to 10 minutes)*(Battery chamber: Water resistant**)
Laser classification IEC60825-1: Class 1M/Laser ProductFDA/21 CFR Part 1040.10:Class I Laser Product
EMC FCC Part15 SubPartB class B, Environment RoHS, WEEE	EU:EMC directive, AS/NZS, VCCI classB, CU TR 020
Laser
Wavelength (nm) 870
Pulse duration (ns) 14
Output (W) 15
Beam divergence (mrad) Vertical:	2.5, Horizontal: 0.025
Operating humidity (%RH) 80 (without dew condensation)

* Waterproof models
The Nikon Laser Forestry Pro is waterproof, and will suffer no damage to the optical system if submerged or dropped in water to a maximum depth of 1 meter for up to 10 minutes.

The Nikon Laser Forestry Pro offers the following advantages:

- Can be used in conditions of high humidity, dust and rain without risk of damage.

- Nitrogen-filled design makes it resistant to condensation and mold.

Observe the following when using the Nikon Laser Forestry Pro.

• The unit should not be operated nor held in running water.
• Any moisture should be wiped off before adjusting movable parts (eyepiece, etc.) of the Nikon Laser Forestry Pro to prevent damage and for safety reasons.
  To keep your Nikon Laser Forestry Pro in excellent condition, Nikon Vision recommends regular servicing by an authorized dealer.
  ** The battery chamber is water resistant, not waterproof. Water may enter the device if the Nikon Laser Forestry Pro is submerged in water. If water enters the battery chamber, wipe out any moisture and allow time for the chamber to dry.

External display

[Power On]

Nikon Sport Optics

After the power is turned on, the internal and external LCDs are illuminated until either the POWER or MODE button is pressed.

[Power off notice]

POWER OFF

If 30 seconds pass without operation, the power turns off. Approx. one second before power turns off, this screen is displayed.

1 Point Measurement [Results]

[⑤m] ⑧45.2 ④[2.7°] 206.0 201.0

After measurement, all data "linear distance, horizontal distance, height and angle" are displayed. Units can be shown in meters, yards or feet. Angles are indicated by °(degree).

[ YD ] : yards

ft : feet

① Linear distance Horizontal distance
Height Angle Unit

[While measuring]

[ m ] * * * * * * * * * * * * * * * * * *

When the target is upward

When the target is downward

[Measurement unsuccessful or unable to measure]

[ m ] 12.7°

When the target is upward

[ m ] 12.7°

When the target is downward With negative values, the “− (minus)” symbol is not shown.

[Measurement complete]

[ m ] 45.2 206.0 201.0 12.7°

When the target is upward

[ m ] 45.2 12.7° 201.0 206.0

When the target is downward

External display

Vertical separation (height between two points) mode [Results]

[⑤ m] ③ 21.4 ④ 24.7° ① 51.0 ② 49.0

After measuring two points, "Linear distance to two points" and "Vertical separation (height) and angle between two points" are displayed. Units can be shown in meters, yards or feet. Angles are indicated by °(degree).

① Linear distance (1st point)
② Linear distance (2nd point)
③ Vertical separation (height between two points)
④ Angle of two points
⑤ Unit

[Measuring 1st point]

[ m ] * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * ******

[Failed to measure 1st point]

[ m ] 17.4°

Angle measurements never fail.

[Results of 1st point]

[ m ] 15.2 51.0 48.6 17.4°

[Measuring 2nd point]

Although the point is located downward, display shows the upward position.

[Failure to measure 2nd point]

[ m ] 7.3°

Angle measurements never fail.

[Display of results for vertical separation (height between two points) and 2nd point]

[ m ] 21.4 51.0 24.7° 49.0

Vertical separation (height between two points)

[ m ] 48.6 6.2 7.3° 49.0

After displaying vertical separation (height between two points), pressing MODE button displays the result of the 2nd point.

Three-point measurement (height between two points) mode

[Results]

[⑧m] ①17.4 ②37.8°

After measuring horizontal distance and two angles and its height, "vertical separation (height) and angle between two points" are displayed. Units can be shown in meters, yards or feet. Angles are indicated by °(degree).

⑪ Vertical separation (height between two points)
② Angle of two points
③ Unit

[Measuring 1st point]

[ m ] * * * * *

[Failed to measure 1st point]

Pure mechanical diagram showing a shaft and horizontal beam with no text or symbols

[Results of 1st point]

[ m ] 24.4

Displays the horizontal distance.

[Measuring 2nd point]

[ m ] ***** 24.4 *****

[Results of 2nd point]

[ m ] 3.4 24.4 7.8°

When measuring 2nd and 3rd points, please note that angles should be between -75^ and +75^ from the horizontal level. If measurement fails, the angle is beyond ±75^ .

[Measuring 3rd point]

[Results of 3rd point]

[ m ] 17.4 37.8°

When measuring 2nd and 3rd points, please note that angles should be between -75^ and +75^ from the horizontal level. If measurement fails, the angle is beyond ±75^ .

Operation and internal display

[1·2] Power On/Off and mode settings

	Operation/Results Work	Button Display			Display examples
1	Power On Measurement standby		Initial screen	POWER	All symbols (while pressing)	88.8
			Measurement standby Last Use mode	symbol
2	Selecting and setting modes	(1) Linear distance 【3】		Act	n/a
		(2) Horizontal distance 【4】	MODE	Hor	n/a
		(3) Height (from horizontal) 【5】	MODE	Hgt	n/a
		(4) Angle (from horizontal) 【6】 MODE		Ang	n/a
		(5) Vertical separation (height between two points) 【7】	MODE	blinks	n/a
		(6) Three-point measurement 【8】 (height between two points)	MODE	blinks	n/a
			Return to 2-(1) Linear distance, then repeat.		Act	n/a

See the relevant section in this manual for each mode setting and display.

9

Power off

Regardless of process, after 30 seconds since your last operation, power turns off.

30 seconds without operation

[3] Linear distance mode

	Operation/Results Work	Button Display				Display examples
						meter yards feet
						Elevation (°)	Depression (°)
3 Measurement with Linear distance mode
3-1	Seeking your target(Align the reticle with target)		Linear distance
3-2	Measurement(Laser irradiate symbol isdisplayed.)		With the POWER button depressed,continuous measurement is possible forup to 20 seconds.(When done, 3-3 display appears.)	POWER
3-3	Failure to measure Repeat step	3-1.				[8770]
3-4	Measurement OK		Linear distanceFollow by 3-1.		Act
9 Power off			Regardless of process, after 30 secondssince your last operation, power turns off.	30 secondswithoutoperation

Operation and internal display

[4] Horizontal distance mode

	Operation/Results Work	Button Display				Display examples
						meter yards feet
						Elevation (°)	Depression (°)
4 Measurement with Horizontal distance mode
4-1	Seeking your target(Align the reticle with target)		Horizontal distance
4-2	Measurement(Laser irradiate symbol isdisplayed.)		With the POWER button depressed,continuous measurement is possible forup to 20 seconds.(When done, 4-3 display appears.)	POWER
4-3	Failure to measure Repeat step	4-1.				[A2ND]
4-4	Measurement OK		Horizontal distanceFollow by 4-1.		Hor	20 1220	660
9 Power off			Regardless of process, after 30 secondssince your last operation, power turns off.	30 secondswithoutoperation

[5] Height mode

	Operation/Results Work	Button Display				Display examples
						meter yards feet
						Elevation (°)	Depression (°)
5 Measurement with Height mode
5-1	Seeking your target(Align the reticle with target)		Height (from horizontal)
5-2	Measurement(Laser irradiate symbol isdisplay.)		With the POWER button depressed,continuous measurement is possible forup to 20 seconds.(When done, 5-3 display appears.)	POWER
5-3	Failure to measure Repeat step 5-1.					[204Y]
5-4	Measurement OK		Height (from horizontal)Follow by 5-1.		Hgt	45.249.4	148
9 Power off			Regardless of process, after 30 secondssince your last operation, power turns off.	30 secondswithoutoperation

Operation and internal display

[6] Angle mode

	Operation/Results Work	Button Display				Display examples
						meter yards feet
						Elevation (°)	Depression (°)
6 M	measurement with Angle mode
6-1	Seeking your target(Align the reticle with target)		Angle (from horizontal)		—|—Ang|
6-2	Measurement(Laser irradiate symbol isdisplay.)		With the POWER button depressed,continuous measurement is possible forup to 20 seconds.(When done, 6-3 display appears.)	POWER	××	≡
6-3	Failure to measure Repeat step	6-1.				···
6-4	Measurement OK		Angle (from horizontal)Follow by or 6-1.		Ang	13
9 P	Power off		Regardless of process, after 30 secondssince your last operation, power turns off.	30 secondswithoutoperation

[7] Vertical separation (height between two points) mode

	Operation/Results Work	Button Display				Display examples
						meter yards feet
						Elevation (°)	Depression (°)
7 Measurement with Vertical separation (height between two points) mode
7-1	Seeking your target(Align the reticle with target)		Vertical separation(height between two points) (1st target)		[IMAGE] blinks
7-2	Measurement(Laser irradiate symbol isdisplay.)			POWER	[KDSZ]	≡
7-3	Failure to measure		Follow by 7-1Repeat 7-1, 7-2, 7-3 until measurement iscomplete.		[>641] blinks	---
7-4	Measurement OK Height of 1st target (from Horizontal)				[20972] · blinks	15.2 16.650.0
7-5	Aiming (2nd target)(Align the reticle withtarget)		Vertical separation (height between twopoints) (2nd target)(Result shown is the height of the 1st target)		blinks	15.2 16.650.0
7-6	Measurement(Laser irradiate symbol isdisplayed)			POWER		≡
7-7	Failure to measure		Follow by 7-5Repeat 7-5,7-6 and 7-7 until measurementis complete		[784C] blinks	---
7-8	Measurement OK		Vertical separation(height between two points)After 2 seconds, move to7-1			21.423.4		70.0
9 Power off			Regardless of process, after 30 secondssince your last operation, power turns off.	30 secondswithoutoperation

Operation and internal display

En
[8] Three-point measurement (height between two points) mode

	Operation/Results Work	Button Display			Display examples
					meter yard	ds feet
					Elevation (°)	Depression (°)
8 Measurement with Three-point measurement (height between two points) mode
8-1	Seeking your target(Align the reticle with target)		Horizontal distance (1st target)		blinks
8-2	Measurement(Laser irradiate symbol isdisplayed.)			POWER	×	=
8-3 Failure to measure			Follow by 8-1Repeat 8-1, 8-2, 8-3 until measurement iscomplete.		Hor blinks	---
8-4 Measurement OK			Horizontal distanceFollowed by 8-5.		HsptHgt	24.4 26.8 80.5
8-5	Aiming (2nd target)(Align the reticle withtarget)		Vertical separation(height from horizontal level to 2nd point).		Hor blinks	24.4 26.8 80.5
8-6	Measurement(Laser irradiate symbol isdisplayed)			POWER	×	=
8-7 Measurement OK			Vertical separation(height from horizontal level to 2nd point).		Hor Hgt+Hgt2	3.4 3.8	11.0
8-8	Aiming (3rd target)(Align the reticle withtarget)		Vertical separation(height between 2nd target and 3rd target)		Hor Hgt+Hgt2blinks	3.4 3.8	11.0
8-9	Measurement(Laser irradiate symbol isdisplayed)			POWER	×	=
8-10 Measurement OK			Vertical separation(height between 2nd target and 3rd target)After 2 seconds, follow by 8-1		Hor Hgt+Hgt2	17.4	19.0
9	Power off		Regardless of process, after 30 seconds sinceyour last operation, power turns off.	30 secondswithoutoperation

Others

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and to EU EMC directive. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

The Forestry Pro is a simplified laser rangefinder. Results obtained should not be used for official records.

Troubleshooting/Repair

If your Nikon Laser Forestry Pro should require repair, please contact your local dealer for details regarding where to send it. Before doing so, you are advised to consult the Troubleshooting Table below.

Symptom Check Points
Unit does not turn on — LCD fails to illuminate	• Depress POWER button.• Check and replace batteries if necessary.
Target range cannot be obtained	• Be sure that nothing, such as your hand or finger, is blocking the laser emission aperture and laser detector.• Be sure that the laser emission aperture and laser detector are clean. Clean them if necessary.• Be sure that the target shape and condition is appropriate to reflect the laser beam.• Replace battery.
[---] (“Cannot measure”) appears	• Be sure to hold the unit steady while depressing the POWER button.• Be sure the target is within measuring range (10-500m/11-550 yards/33-999 feet)
Closer target cannot be measured	• Be sure that nothing, such as leaves or grass, is between the Nikon Laser Forestry Pro and the target.
Target beyond a certain distance cannot be measured	• Be sure that nothing, such as leaves or grass, is between the Nikon Laser Forestry Pro and the target.
Symptom Check Points
Measurement result is unstable	Replace battery.Be sure that the target shape and condition is appropriate to reflect the laser beam.Be sure to hold the unit steady while depressing the POWER button.Be sure that nothing, such as leaves or grass, is between the Nikon Laser Forestry Pro and the target.
Incorrect result is displayed	Replace battery.Be sure that the target shape and condition is appropriate to reflect the laser beam.Be sure that nothing, such as leaves or grass, is between the Nikon Laser Forestry Pro and the target.

If problems persist after consulting the Troubleshooting Table, please contact your local dealer to check/repair the Nikon Laser Forestry Pro. Never let anyone than the official representative of the product manufacturer check or repair the Nikon Laser Forestry Pro. Failure to follow this instruction could result in injury, or damage to the product.

How to use the Rangefinder case

Regular case

Upper flap Lower flap

Case with belt loop

Belt Upper flap Lower flap

Diagram showing three labeled steps of a mechanical or electrical component with arrows indicating motion direction.

1) Open the lower flap and divide into its two parts. ①
2) Attach the tip of the upper flap to the lower flap. ②
3) Secure the upper flap by clipping together the two parts of the lower flap. ③

Deutsch

INHALT

Forestry Pro ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬

Zusammensetzung

Körper x1

Soft-Tragetasche (CCN).....x1

Trageriemen .....x1

Lithiumbatterie (CR2) .....x1

Act Hor Hgt+Hgt2 88.8m YD Ang 1st Dst

5. [Act HanzügelgözAng

Nikon Sport Optics

[ m ] 12.7°

[ m ] 12.7°

[⑤ m] ③ 21.4 ④ 24.7° ① 51.0 ② 49.0

[ m ] 15.2 51.0 48.6 17.4°

[ m ] 7.3°

[ m ] 48.6 6.2 7.3° 49.0

[⑩m] ⑪17.4 ②37.8°

[ m ] * * * * *

[ m ]

[ m ] 24.4

m 24.4 3.4 7.8°

[ m ] *****

[ m ] 17.4 37.8°

Diagram showing three labeled steps of a mechanical or electrical component with arrows indicating motion direction.

1,0 mètre/yard, 1 pied

1,0 mètre/yard, 1 pied

Forestry Pro ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬

Composition

Corps ......x1

Courroie ....x1

Housse souple (CCN)....x1

Pile au lithium (CR2) .....x1

Act Hor Hgt+Hgt2 88.8m YD Ang 1st Dst

5. [Act Hymot+Hof2 Ang Modes affiches

Nikon Sport Optics

[ m ] 12.7°

[ m ] 12.7°

[⑤ m] ③ 21.4 ④ 24.7° ① 51.0 ② 49.0

[ m ] 15.2 51.0 48.6 17.4°

[ m ] 7.3°

[ m ] 6.2 48.6 7.3° 49.0

[③m] ① 17.4 ② 37.8°

[ m ] * * * * *

[ m ] 24.4

Affiche la distance horizontale.

[ m ] 3.4 24.4 7.8°

[ m ] 17.4 37.8°

Diagram showing three labeled steps of a mechanical or electrical component with directional arrows indicating motion.

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ Forestry Pro

Componentes

Cuerpo....x1

Caja de transporte

flexible (CCN)....x1

IEC60825-1 CLASS 1M LASER PRODUCT DO NOT EXPOSE USERS OF TELESCOPIC OPTICS. FDA CLASS 1 LASER PRODUCT THIS PRODUCT COMPLIES WITH 21CFR1040.10 (C)(D)AND (E) MADE IN CHINA NIKON VISION CO., LTD.

Act Hor Hgt+Hgt2 88.8m YD Ang 1st Dst
Nikon Sport Optics

[ m ] 12.7°

[ m ] 12.7°

[⑤ m] ③ 21.4 ④ 24.7° ① 51.0 ② 49.0

[ m ] 15.2 51.0 48.6 17.4°

[ m ] 7.3°

[ m ] 6.2 48.6 7.3° 49.0

[③m] ①17.4 ②37.8°

[ m ] * * * * *

[ m ]

[ m ] 24.4

m 24.4 3.4 7.8°

[ m ] * * * * * * * * * *

[ m ] 17.4 37.8°

Diagram showing three labeled steps of a mechanical or electrical component with arrows indicating motion direction.

Forestry Pro ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬

Act Hor Hgt+Hgt2 88.8 m YD Ang 1st Dst

Nikon Sport Optics

[ m ] 12.7°

[ m ] 12.7°

[⑤ m] ① 51.0 ③ 21.4 ④ 24.7° ② 49.0

[ m ] 15.2 51.0 48.6 17.4°

[ m ] 7.3°

[ m ] 6.2 48.6 7.3° 49.0

[③m] ①17.4 ②37.8°

[ m ] * * * * *

[ m ] 24.4

[ m ] 3.4 24.4 7.8°

[ m ] 17.4 37.8°

Diagram showing three labeled steps of a mechanical or electrical component with directional arrows indicating motion.

Labeled diagram of a Forestry Pro device with numbered parts for identification

Состав

Корпус ......x1

OPTICS. FDA CLASS I LASER PRODUCT

THIS PRODUCT COMPLIES WITH

21CFR1040.10 (c)(d)AND (e)

MADE IN CHINA

Act Hor Hgt+Hgt2 88.8m YD Ang 1st Dst

Nikon Sport Optics

[ m ] 12.7°

[ m ] 12.7°

[⑤ m] ① 51.0 ② 21.4 ③ 49.0 ④ 24.7°

[ m ] 15.2 51.0 48.6 17.4°

[ m ] 7.3°

[ m ] 48.6 6.2 7.3° 49.0

[③m] ① 17.4 ② 37.8°

[ m ] * * * * *

[ m ]

[ m ] 24.4

m 3.4 24.4 7.8°

[ m ] 17.4 37.8°

Diagram showing three labeled steps of a mechanical or electrical component with directional arrows indicating motion.

STELL OG VEDLIKEHOLD

Objektiv

1,0 meter/yard, 1 fot

1,0 meter/yard, 1 fot

Forestry Pro ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬

Sammensetning

Hus....x1

Nakkestropp ....x1

Mykt etui (CCN)....x1

Lithium-batteri (CR2) .....x1

Act Hor Hgt+Hgt2 88.8 m YD Ang 1st Dst

5. [Act Hvis High StadUser]

Nikon Sport Optics

Når strømmen slås på, lyser det interne og eksterne LCD-displayet til du trykker på på/av-knappen eller MODE-knappen.

[ m ] 12.7°

[ m ] 12.7°

[⑤ m] ① 51.0 ② 21.4 ③ 24.7° ④ 49.0

[ m ] 15.2 51.0 48.6 17.4°

[ m ] 7.3°

[ m ] 6.2 48.6 7.3° 49.0

③m ①17.4 ②37.8°

[ m ] * * * * *

[ m ]

[Resultater for 1. punkt]

[ m ] 24.4

Viser horizontal avstand.

[Måle 2. punkt]

[ m ] ***** 24.4 *****

[Resultater for 2. punkt]

m 3.4 24.4 7.8°

[ m ] 17.4 37.8°

Diagram showing three labeled steps of a mechanical or electrical component with directional arrows indicating motion.

1) Åpne den nedre klaffen og del den i sine to deler. ①
2) Fest tuppen på den øvre klaffen til den nedre klaffen. ②
3) Fest den øvre klaffen ved å klipse sammen de to delene av den nedre klaffen. ③

Svenska

INNEHÅLL

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ Forestry Pro

IEC60825-1CLASS 1M LASER PRODUCT DO NOT EXPOSE USERS OF TELESCOPIC OPTICS, FDA CLASS 1 LASER PRODUCT THIS PRODUCT COMPLIES WITH 21CFR1040.10 (CI(d)AND (e) MADE IN CHINA NIKON VISION CO., LTD.

⑬ Laservarningsetikett

Sammansättning

Hus ....x1 Halsrem ....x1

Mjukt fodral (CCN)....x1 Litiumbatteri (CR2) ....x1

Byta batterier

• Typ av batteri: 3V CR2 litiumbatteri

Act Hor Hgt+Hgt2 88.8m YD Ang 1st Dst

Nikon Sport Optics

[ m ] 12.7°

[ m ] 12.7°

[⑤ m] ③ 21.4 ④ 24.7° ① 51.0 ② 49.0

[ m ] 15.2 51.0 48.6 17.4°

[ m ] 7.3°

[ m ] 6.2 48.6 7.3° 49.0

③m ①17.4 ②37.8°

[ m ] * * * * *

Simple line drawing of a mechanical or structural component with no text or symbols

[ m ] 24.4

[ m ] 3.4 24.4 7.8°

[ m ] 17.4 37.8°

Diagram showing three labeled steps of a mechanical or electrical component with arrows indicating motion direction.

Forestry Pro ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬

OPTICS. FDA CLASS I LASER PRODUCT THIS PRODUCT COMPLIES WITH

THIS PRODUCT COMPLIES WITH 21CER104010 /pV/dAND (a)

210P A 1040.15 (6)(8)AND (6) MADE IN CHINA

Act Hor Hgt+Hgt2 88.8 m YD Ang 1st Dst

5. Act HoaytGott2 Ang

Nikon Sport Optics

[ m ] 12.7°

[ m ] 12.7°

[⑤ m] ① 51.0 ② 21.4 ③ 49.0 ④ 24.7°

[ m ] 15.2 51.0 48.6 17.4°

[2. pisteen mittaus] [2. pisteen mittaus

epäonnistui]

[ m ] * * * * * * * * * * * * * * * * * * * * *

[ m ] 7.3°

[ m ] 6.2 48.6 7.3° 49.0

③m ①17.4 ②37.8°

[ m ] * * * * *

[ m ] 24.4

m 24.4 3.4 7.8°

[ m ] * * * * * * * * * *

[ m ] 17.4 37.8°

Diagram showing three labeled steps of a mechanical or electrical component with directional arrows indicating motion.

Act Hor Hgt+Hgt2 88.8m YD Ang 1st Dst

5. [Act HwEhgaHg20Adig

Nikon Sport Optics

[ m ] 12.7°

[ m ] 12.7°

[⑤m] ③21.4 ④24.7° 51.0 49.0

[ m ] 15.2 51.0 48.6 17.4°

[Meten van 2e punt]

[ m ] * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * ***

[ m ] 7.3°

[ m ] 6.2 48.6 7.3° 49.0

[m] ①17.4 ②37.8°

[ m ] * * * * *

[ m ] 24.4

[ m ] 3.4 24.4 7.8°

m 17.4 37.8°

Diagram showing three labeled steps of a mechanical or electrical component with directional arrows indicating motion.

Forestry Pro ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬

OPTICS. FDA CLASS I LASER PR

THIS PRODUCT COMPLIES WITH

21CFR1040.10 (c)(d)AND (e)

MADE IN CHINA

ER PRODUCT F TELESCOPIC ER PRODUCT WITH CE 10 Fc EAC

⑬ Laser advarselsetikette

Komponenter

Hus x1

Nakkerem ....x1

Act Hor Hgt+Hgt2 88.8m YD Ang 1st Dst

5. [Act HDrsHgtyFlgt2tAnger

Nikon Sport Optics

[ m ] 12.7°

Når målet er opad

[ m ] 12.7°

Når målet er nedad

[⑤ m] ③ 21.4 ④ 24.7° ① 51.0 ② 49.0

[ m ] 7.3°

[ m ] 15.2 51.0 48.6 17.4°

[ m ] 48.6 6.2 7.3° 49.0

③m ①17.4 ②37.8°

[ m ] * * * * *

Simple line drawing of a mechanical part with no text or symbols

[Resultater for 1. punkt]

[ m ] 24.4

Viser vandret afstand.

[Måler 2. punkt] [Resultater for 2. punkt]

[ m ] ***** 24.4 *****

m 24.4 3.4 7.8°

[ m ] 17.4 37.8°

Diagram showing three labeled steps of a mechanical or electrical component with arrows indicating motion direction.

1,0 metri/yarzi, 1 picior

1,0 metri/yarzi, 1 picior

Toc moale (CCN)....x1

IEC60825-1 CLASS 1M LASER PRODUCT DO NOT EXPOSE USERS OF TELESCOPIC OPTICS, FDA CLASS I LASER PRODUCT THIS PRODUCT COMPLIES WITH 21CFR1040.10 (C)(D)AND (E) MADE IN CHINA NIKON VISION CO., LTD.

Act Hor Hgt+Hgt2 88.8m YD Ang 1st Dst

5. [Adt Modat-DataFare

Nikon Sport Optics

[ m ] 12.7°

[ m ] 12.7°

[⑤m] ③21.4 ④24.7° ①51.0 ②49.0

[ m ] 15.2 51.0 48.6 17.4°

[Măsurare al doilea punct]

[ m ] * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

[ m ] 7.3°

[ m ] 48.6 6.2 7.3° 49.0

[ m ] 24.4

[ m ] 3.4 24.4 7.8°

[ m ] 17.4 37.8°

Diagram showing three labeled steps of a mechanical or electrical component with arrows indicating motion direction.

1,0 metr/jard, 1 stopa

1,0 metr/jard, 1 stopa

Forestry Pro ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭

IEC60825-1 CLASS 1M LASER PRODUCT DO NOT EXPOSE USERS OF TELESCOPIC OPTICS. FDA CLASS [LASER PRODUCT THIS PRODUCT COMPLIES WITH 21CFR1040.10 (C)(D)AND (E) MADE IN CHINA NIKON VISION CO., LTD.

Act Hor Hgt+Hgt2 88.8m YD Ang 1st Dst

5. [Adt HryHgtwYwWtArlania

6. 1st Tryb priorytetu planu

Nikon Sport Optics

[ m ] 12.7°

[ m ] 12.7°

[⑤ m] ③ 21.4 ④ 24.7° ① 51.0 ② 49.0

[ m ] 15.2 51.0 48.6 17.4°

[Pomiar drugiego punktu]

[ m ] 7.3°

[ m ] 48.6 6.2 7.3° 49.0

[③m] ①17.4 ②37.8°

[ m ] * * * * *

[ m ]

[ m ] 24.4

[ m ] 3.4 24.4 7.8°

[ m ] 17.4 37.8°

Diagram showing three labeled steps of a mechanical or electrical component with directional arrows indicating motion.

Forestry Pro ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭

Act Hor Hgt+Hgt2 88.8m YD Ang 1st Dst

Nikon Sport Optics

[ m ] 12.7°

[ m ] 12.7°

[5m] ① 51.0 ② 21.4 ③ 49.0 ④ 24.7°

[ m ] 15.2 51.0 48.6 17.4°

[A 2. pont mérése]

[ m ] * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *

[ m ] 7.3°

[ m ] 48.6 6.2 7.3° 49.0

[③m] ⑪ 17.4 ⑫ 37.8°

[ m ] * * * * *

[ m ]

[ m ] 24.4

m 24.4 3.4 7.8°

17.4 37.8°

Diagram showing three labeled steps of a mechanical or electrical component with directional arrows indicating motion.

Forestry Pro ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬

Act Hor Hgt+Hgt2 88.8m YD Ang 1st Dst

5. [Act Hæzhty Hobrazeni

Nikon Sport Optics

[ m ] 12.7°

Když je cíl nahoře

[ m ] 12.7°

Když je cíl dole

[⑤ m] ③ 21.4 ④ 24.7° ① 51.0 ② 49.0

[ m ] 15.2 51.0 48.6 17.4°

[Měření 2. bodu]

[ m ] * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * +

[ m ] 7.3°

[ m ] 6.2 48.6 7.3° 49.0

[③m] ⑪ 17.4 ⑫ 37.8°

[ m ] * * * * *

[ m ]

[ m ] 24.4

[ m ] 3.4 24.4 7.8°

[ m ] 17.4 37.8°

Diagram showing three labeled steps of a mechanical or electrical component with directional arrows indicating motion.

Printed in China (233K)3E/1603
