Product type	Domestic high-pressure cleaner
Brand	Husqvarna
Model	PW 450
Intended use	Domestic cleaning in vertical position
Automatic stop	Yes, when the trigger is released
Thermal protection	Yes, automatic reset
Hydraulic safety valve	Integrated, protects against excessive pressure
Locking device	On the trigger handle
Electrical connection	Must comply with standard IEC 60364-1
Recommended residual current device	30 mA, 30 ms
Recommended fuse type	Time-delay fuse type D (IEC 947-2)
Minimum operating temperature	0 °C
Water connection	Garden hose 10-25 m, possible suction from tank
Recommended detergent	Only Husqvarna detergents
Required protective equipment	Safety shoes, FFP2 mask, hearing protection, goggles, protective clothing
Storage	Frost-free, horizontal on its back
Daily maintenance	Drain water, inspect for damage
Spare parts	Use only original Husqvarna parts
Repairs	By an authorized Husqvarna workshop
Manual available in	Multiple languages (see website)

Frequently Asked Questions - PW 450 HUSQVARNA

How to start the Husqvarna PW 450 high-pressure cleaner?

Make sure the machine is properly connected to water and electricity. Plug in the power cord, open the water supply, then press the trigger to start. The machine stops automatically when you release the trigger.

What to do if the machine does not start?

First check the power supply and the fuse. Make sure the water supply is open and the hose is not kinked. If the thermal protection has cut the power, wait for the machine to cool down. If the problem persists, consult an authorized Husqvarna workshop.

Can I use detergents other than Husqvarna?

No, using non-recommended detergents may affect the reliability of the machine. Use exclusively Husqvarna detergents designed for this model.

How to maintain the machine after use?

After each use, turn off the machine, unplug the cable and drain the water. Carefully coil the hose and cable. Store the machine frost-free. Regularly inspect hoses and connections for any damage.

What are the essential safety rules?

Never direct the jet at people, animals, electrical equipment or the machine itself. Always wear protective equipment: safety shoes, FFP2 mask, goggles and protective clothing. Do not allow children to use the machine.

Can I connect the machine to a water tank?

Yes, you can use a rainwater, river or cistern tank in suction mode. Follow the illustrations in part C of the manual for connection.

How to store the machine during winter?

Completely drain the water from the machine and accessories to prevent frost damage. Store the machine horizontally on its back, away from frost and moisture.

What does the orange or green indicator on the handle mean?

On R series models, the orange indicator flashes when searching for the machine for pairing. Once paired, the indicator turns off. The green indicator indicates power regulation.

Where can I find spare parts?

Use only original Husqvarna parts ordered from an authorized dealer. Visit www.husqvarna.com to find a retailer.

What to do in case of water leak?

Immediately stop the machine and unplug it. Check the hoses, connections and trigger handle. Do not attempt to repair yourself; contact an authorized Husqvarna workshop.

USER MANUAL PW 450 HUSQVARNA

PW 125 PW 235 PW 235R PW 345C PW 350 PW 360 PW 450 PW 460

C E E A C

EN PART 1:3 SAFETY INSTRUCTIONS 3
DA DEL 1:3 SIKKERHEDSINSTRUKTIONER 6
NO DEL 1:3 SIKKERHETSANVISNINGER 9
SV DEL 1:3 SAKERHETSFORESKRIFTER 12
FI OSA 1:3 TURVAOHJEET 15
DE TEIL 1:3 SICHERHEITSHINWEISE 18
FR PARTIE 1:3 CONSIGNES DE SECURITE 21
NL DEEL 1:3 VEILIGHEIDSINSTRUCTIES 24
IT PARTE 1:3 ISTRUZIONI DI SICUREZZA 27
ES PARTE 1:3 INSTRUCCIONES DE SEGURIDAD
PT PARTE 1:3 INSTRUÇOES DE SEGURANÇA 33
EL MEPO2 1:3 OdHΓIe Σ A Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ Σ ο
TR BOLUM 1:3 GUVENLIK TALIMATLARI 39
CS CAST 1:3 BEZPECNOSTNI POKNY 42
HU 3/1. RÉSZ: BIZTONSÁGI ELOÍRÁSOK 45
PL CZESc 1:3 INSTRUKCJBEBZPIECZENsTWA 48
HR DIO1:3 SIGURNOSNE UPUTE 51
RS DEO 1:3 BEZBEDNOSNA UPUTSTVA 54
SL 1.DEL:3 VARNOSTNA NAVODILA 57
SK CAST 1:3 BEZPECNOSTNÉ POKNY 60
LV DALA 1:3 NORADIJUMI PAR DROSTBU 63
LT 1:3 DALIS. SAUGOS INSTRUKCIJOS 66
ET OSA 1:3 OHUTUSJUHISED 69
RU YACTb 1:3 YKA3AHNIO TEXHNIKE BE3OPIACHOCTN72
UA YACTHHA 1:3 INPABNJA TEXHIK N E3NEKN 75
RO PARTEA 1:3 INSTRUCTION DE SECURITATE 78
BG YACT 1:3 INHCTPYKUIN 3A BE3OJACHOCT 81
JA 八一卜1:3安全性取拔説明書 84
87 1:3 AR

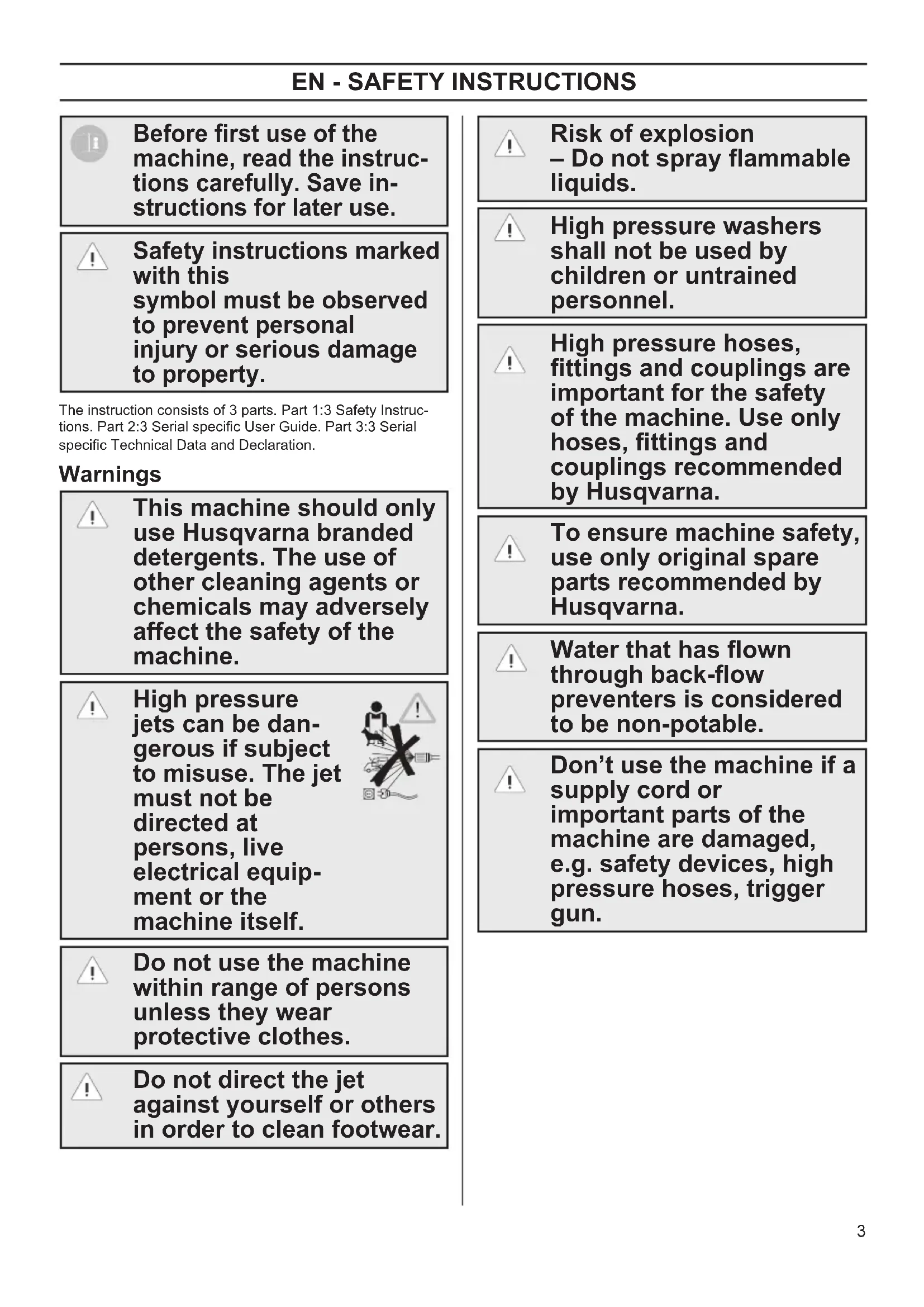

Before first use of the machine, read the instructions carefully. Save instructions for later use.
! Safety instructions marked with this symbol must be observed to prevent personal injury or serious damage to property.

The instruction consists of 3 parts. Part 1:3 Safety Instructions. Part 2:3 Serial specific User Guide. Part 3:3 Serial specific Technical Data and Declaration.

Warnings

This machine should only use Husqvarna branded detergents. The use of other cleaning agents or chemicals may adversely affect the safety of the machine.
High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment or the machine itself.
Do not use the machine within range of persons unless they wear protective clothes.
Do not direct the jet against yourself or others in order to clean footwear.

Risk of explosion - Do not spray flammable liquids.
High pressure washers shall not be used by children or untrained personnel.
High pressure hoses, fittings and couplings are important for the safety of the machine. Use only hoses, fittings and couplings recommended by Husqvarna.
To ensure machine safety, use only original spare parts recommended by Husqvarna.
Water that has flow through back-flow preventers is considered to be non-potable.
Don't use the machine if a supply cord or important parts of the machine are damaged, e.g. safety devices, high pressure hoses, trigger gun.

Inadequate extension cords can be dange rous. If an extension cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommended that this is accomplished by a cord reel which keeps the socket at least 60~mm above the ground.

Switch off and unplug the machine when leaving it unattended, when finished using it or when converting it to another function, when doing repair and maintenance.

During use of high pressure washers, aerosols may be formed. Inhalation of aerosols can be hazardous to health, for the protection against aerosols a respiratory mask of class FFP 2 or equivalent may be needed, depending on the cleaning environment.

Intended use and terms of liability

The 100, 200, 300 and 400 series have been developed for domestic cleaning pur poses only and for use in an upright position. Any other use is considered as improper use.

A high pressure washer operates with different levels of pressure and cleaning detergents for various cleaning tasks and results. Always follow instructions on detergents for use, emergency and disposal.

Do not operate the machine at temperatures below 0^ . Never start a frozen machine, never use it indoor and never cover it during use. This is considered improper and wrongful use. Use of wrongful pressure, detergent and/or applications may cause damage to machine, surfaces, material and devices. All of the above is considered improper and wrongful use. Husqvarna accepts no liability for any damage

resulting from any improper or wrongful use. Please refer to our website at www.husqvarna.com for further instructions and information on use, emergency and disposal.

Safety devices and their functioning

The machine automatically stops when releasing the trigger. The machine will start again when reactivating the trigger. The spray handle features a locking device. When activated, the spray handle cannot be operated. The machine has an automatic self-resetting thermal protector. If the machine is overheated, the thermal protector will cut the power supply. In this case, wait for the machine to cool down. An integrated hydraulic safety valve protects the system from excessive pressure.

Precautions

The electric supply connection shall be made by a qualified electrician and comply with IEC 60364-1. It is recommended that the electric supply to this machine should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30mA for 30ms or a device that will prove earth circuit.

Use motor start/delayed fuses with characteristic D according to IEC 947-2 or corresponding standards outside IEC.

If the supply cord is damaged, it must be replaced by an authorized Husqvarna distributor or similar qualified person in order to avoid a hazard.

No actions needed for adjusting machines marked with dual voltage and frequency.

Supervise children not to play with the machine.

The operator and any one in the immediate vicinity of the site for cleaning should take action to protect oneself from being struck by debris dislodged during operation.

Always wear safety boots, respiratory mask, ear protection, goggles and protective clothing during operation.

The high pressure generated by the machine is a particular source of danger. Hold the spray lance firmly with both hands. The spray lance is affected by a kickback force and a sudden torque during operation.

See PART 3:3 for the actual size of the kickback force.

During transportation: Position the machine horizontally on the backside and secure with straps.

Valid for model PW 235R

Batteries may not be discarded together with household waste, but must be collected separately in accordance with local laws and regulations.

CENELEC countries

(AT, BE, BG, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, ML, MT, NL, NO, PL, PT, RO, ES, SK, SI, SE, CH, TR, GB)

This appliance can be used by children aged from 8 years up and persons with reduced physi

cal, sensory or mental capabilities or lack of experience, if they are supervised or instructed how to use the appliance in a safe way, and if they understand the hazards involved.

Children shall be supervised to make sure that they do not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Outside CENELEC countries

• Appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Part 2:3

Part 2:3 provides a general overview of the machine and operation elements along with illustrated sections on preparation, operation, water connection, storage, and user maintenance.

A Unpacking and preparing for use

Follow illustrations in A.

B_Connection to potable water mains

High pressure washers are not suitable for connection to the potable water mains. Always check national regulations before connecting the machine to potable water mains and use a back-flow preventer if required.

Use 12 garden hose, 10-25 m.

Follow illustrations in B.

C Connection to other water sources

You can connect the machine to e.g. rain water vessels, rivers, lakes and cisterns etc. and operate it in suction mode. Follow illustrations in C.

D Pairing of spray handle and machine

R-models only. After battery insert, D1, you have 2 min. to pair spray handle and machine. The light will flash orange when searching for the machine. When paired, the light will turn off. Follow illustrations D2. If pairing aborts, do pairing according to illustrations D3. Power regulation is indicated by green light, see illustration D5.

E Leaving the machine unattended >5min

See listed warnings. Follow the illustrations in E.

F After use and storage

After use always:

• Turn off the machine.
• Empty machine and accessories of water to avoid frost damage.
• Remove the plug from socket.
• Disconnect water inlet hose.
• Wind up electrical cable and high pressure hose to avoid damage of cable, high pressure hose and fittings.

Storage of machine shall be frost free.

Follow illustrations in F.

G Maintenance, inspection and repair

Maintenance of the machine should always be done when starting up after long time of storage.

Before use, always inspect the machine and equipment for damages. In case of damages, act according to listed warnings.

Do not attempt any maintenance not described in the instructions. If the machine refuses to start, stops, pulsates, pressure fluctuates, motor buzzes, fuse blows or no water comes out, check the trouble shooting diagram at our website www.husqvarna.com.

Any repair should always be made in Husqvarna authorized workshop with original Husqvarna spare parts.

User maintenance according to illustrations in G.
