Brand	Husqvarna
Model	HH42
Product Type	Engine-driven pressure washer
Maximum Pressure	4200 PSI (290 bar)
Maximum Flow Rate	4.0 GPM (15.1 L/min)
Water Supply Temperature	41°F - 100°F (5°C - 38°C)
Minimum Water Supply Flow Rate	5.0 GPM (18.9 L/min)
Minimum Water Supply Pressure	20 PSI (1.38 bar)
Pump Type	Ceramic coated stainless steel plungers, triplex pump
Pump Oil Capacity	10 oz (0.3 L) SAE 30
Automatic Cool Down System	Yes, discharges warm water to ground
Pressure Control	Adjustable pressure control knob
Spray Tips	0° (red), 15° (yellow), 25° (green), 40° (white), black (detergent)
Detergent Siphon Tube	Yes, for applying pressure washer detergent
Spray Gun	With trigger and trigger lock
High Pressure Hose Length	Not specified (typical ~50 ft)
Power Source	Gasoline engine (refer to engine manual)
Safety Features	Trigger lock, safety alerts, carbon monoxide warnings, kickback protection
Common Service Parts	Pump Saver, O-ring kit, water inlet screen, engine oil
Warranty (Consumer)	24 months for equipment, 36 months for frame
Warranty (Commercial)	3 months for equipment and engine
Product Registration	Online at www.onlineproductregistration.com

Frequently Asked Questions - HH42 HUSQVARNA

How do I start the Husqvarna HH42 pressure washer?

Ensure the water supply is connected and turned on. Level the product. Position yourself to avoid kickback, then start the engine according to the engine operator's manual. Always wear safety goggles and protective clothing.

What type of detergent can I use?

Only use detergents specifically marketed for pressure washers. Follow the chemical manufacturer's instructions. Never use acids or flammable liquids. Use the black low-pressure spray tip to apply detergent.

Why is my pressure washer not building pressure?

Possible causes: a low-pressure spray tip is installed (use a high-pressure tip), the pressure control knob is set too low, inadequate water supply, clogged inlet screen, obstructed spray tip, or leaking connections. Check and resolve accordingly.

How do I maintain the pump?

Change pump oil every 50 hours of use. Use SAE 30 weight oil (approximately 10 oz). Also, lubricate O-rings regularly and use Pump Saver during storage to protect against mineral deposits and freezing.

Can I use an extension cord?

This pressure washer is engine-driven and does not require an electrical outlet for the pump. However, the engine has a recoil starter. No extension cord is needed.

What safety precautions should I take?

Always operate outdoors away from windows, doors, and vents to avoid carbon monoxide poisoning. Wear safety goggles and protective clothing. Never point the spray at people or pets. The spray gun traps high pressure even after shutdown - always relieve pressure by squeezing the trigger after turning off the engine.

How do I store the pressure washer?

Flush detergent from the system, treat or drain fuel, and protect the pump with Pump Saver or RV antifreeze. Store in a clean, dry area. Do not place a cover on a hot machine.

What is the warranty period?

For consumer use: 24 months on equipment, 36 months on the frame, and 24 months on the engine (Briggs & Stratton). For commercial use: 3 months on all components. Proof of purchase is required.

Can I repair the high-pressure hose?

No. If the hose is damaged and exposing the inner mesh, it must be replaced immediately. Do not attempt to repair it with sealant. Use genuine parts for replacement.

How do I clean a clogged spray tip?

After shutting down the engine and relieving pressure, remove the spray tip from the wand. Use a paper clip or similar tool to dislodge any debris from the tip orifice.

USER MANUAL HH42 HUSQVARNA

Line drawing of a pressure washer with hoses and control panel (no text or symbols)

Model Number ____

Revision

Serial Number

Date Purchased ____

Copyright © 2019. Briggs & Stratton Corporation

Milwaukee, WI, USA. All rights reserved.

Husqvarna® is a registered trademark of Husqvarna AB.

Used under license.

Table of Contents

Symbols and Meanings ...... 2

Equipment Description 3

Features and Controls .... 4

Operation....6

Maintenance....12

Storage 15

Troubleshooting 16

Warranty 18

Register Your Product

To ensure prompt and complete warranty coverage, register your product online at www.onlineproductregistration.com.

Symbols and Meanings

Signal Meaning
DANGER	Indicates a hazard which, if not avoided, will result in death or serious injury.
WARNING	Indicates a hazard which, if not avoided, could result in death or serious injury.
CAUTION	Indicates a hazard which, if not avoided, could result in minor or moderate injury.
NOTICE	Indicates information considered important, but not hazard-related.

Symbol	Name Explanation
	Safety Alert Symbol	Indicates a potential personal injury hazard.
	Read Operator's Manual	Failure to follow warnings, instructions and operator's manual could result in death or serious injury.
	Toxic Fumes	Engine exhaust contains carbon monoxide, a poisonous gas that could kill you in minutes. You cannot smell it or see it.
	Fire	Fuel and its vapors are extremely flammable which could cause burns or fire resulting in death or serious injury.Engine exhaust could cause fire resulting in death or serious injury.

Symbol	Name Explanation
	Fluid Injection	High-pressure water could cut through skin resulting in serious injury and possible amputation.
	Spray, Flying Objects	Risk of eye injury. Spray could splash back or propel objects resulting in serious injury.
	Hot Surface	Contact with muffler area could cause burns resulting in serious injury.
	Electric Shock	Contact with power source could cause electrical shock resulting in death or serious injury.
	Kickback	Recoil starter kickback will pull hand and arm toward engine faster than you can let go which could cause broken bones, sprains or bruises resulting in serious injury.
	Chemical Burn	Chemicals could cause burns resulting in death or serious injury.
	Slippery Surface/Fall	Slippery wet surfaces could cause you to fall resulting in death or serious injury.
	Fall	Kickback from spray gun could cause you to fall resulting in death or serious injury.

WARNING! This product can expose you to chemicals including gasoline engine exhaust, which is known to the State of California to cause

cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov.

WARNING! This product contains lead and lead compounds, known to the state of California to cause birth defects or other reproductive harm.

Wash your hands after handling this product. Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Equipment Description

Read this manual carefully and become familiar with your product. Know its applications, its limitations, and any hazards involved. Save these instructions for future reference.

To aid in outdoor cleaning projects, this engine-driven, high-pressure cleaning machine uses a variety of spray tips and detergent.

Know how to stop the product and reduce pressure quickly. Keep operating area clear and do not allow children to operate pressure washer.

Stay alert—watch what you are doing. Do not operate pressure washer when fatigued or under the influence of alcohol or drugs.

Every effort has been made to ensure that information in this manual is accurate and current. However, we reserve the right to change, alter, or otherwise improve the product and this document at any time without prior notice.

NOTICE If you have questions about intended use, contact an authorized service dealer. This equipment is designed to be used with Briggs & Stratton® authorized parts only.

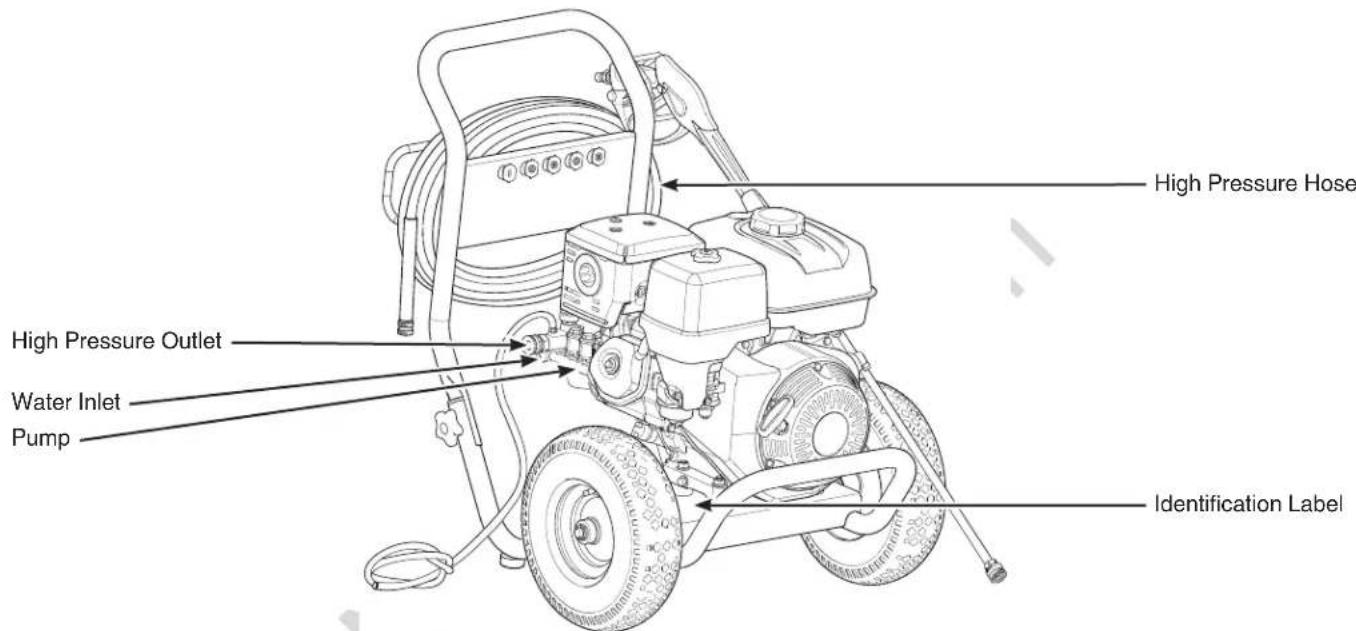

High Pressure Hose — Connect one end to water pump and the other end to spray gun.

High Pressure Outlet — Connection for high pressure hose.

Identification Label — Provides model and serial number of pressure washer.

Pump — Ceramic coated stainless steel plungers, triplex pump that develops high pressure.

Water Inlet — Connection for garden hose.

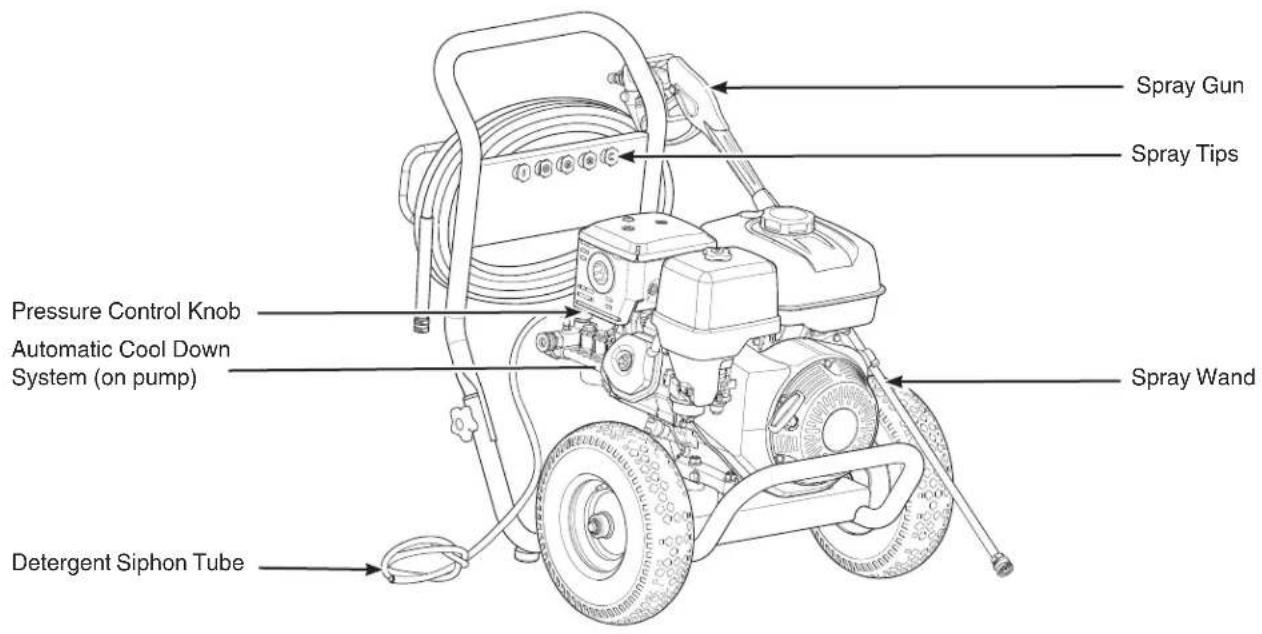

Features and Controls

Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and product warnings.

WARNING

Failure to read and follow the operator's manual, all warnings and operating instructions could result in death or serious injury.

Engine exhaust contains carbon monoxide, a poisonous gas that could kill you in minutes. You cannot see or smell it. Only use outside far away from windows, doors and vents.

Gasoline is flammable. Allow engine to cool at least 2 minutes before refueling. Do not spray flammable liquids.

High pressure could cut through skin. Never spray people. Spray gun traps high water pressure, even after engine is shut down and water is disconnected. Squeeze trigger, to release high pressure, every time engine stops.

Rapid retraction of starter cord (kickback) could pull hand and arm toward engine faster than you can let go. Pull starter cord slowly until resistance is felt and then pull rapidly to avoid kickback. Gun kicks back — Hold with both hands.

Spray could splash back or propel objects. Wear safety goggles and protective clothing. Safety glasses do not provide full protection.

Muffler could cause burns. Do not touch hot parts. Avoid hot exhaust gases.

Do Not Remove This Tag

See reverse side for operating instructions.

Line drawing of a power plant with hoses and wheels, no text or symbols present

WARNING

Fire Hazard. Operation of this equipment may create sparks that can start fires around dry vegetation. A spark arrestor may be required. The operator should contact local fire agencies for laws or regulations relating to fire prevention requirements. 80008183

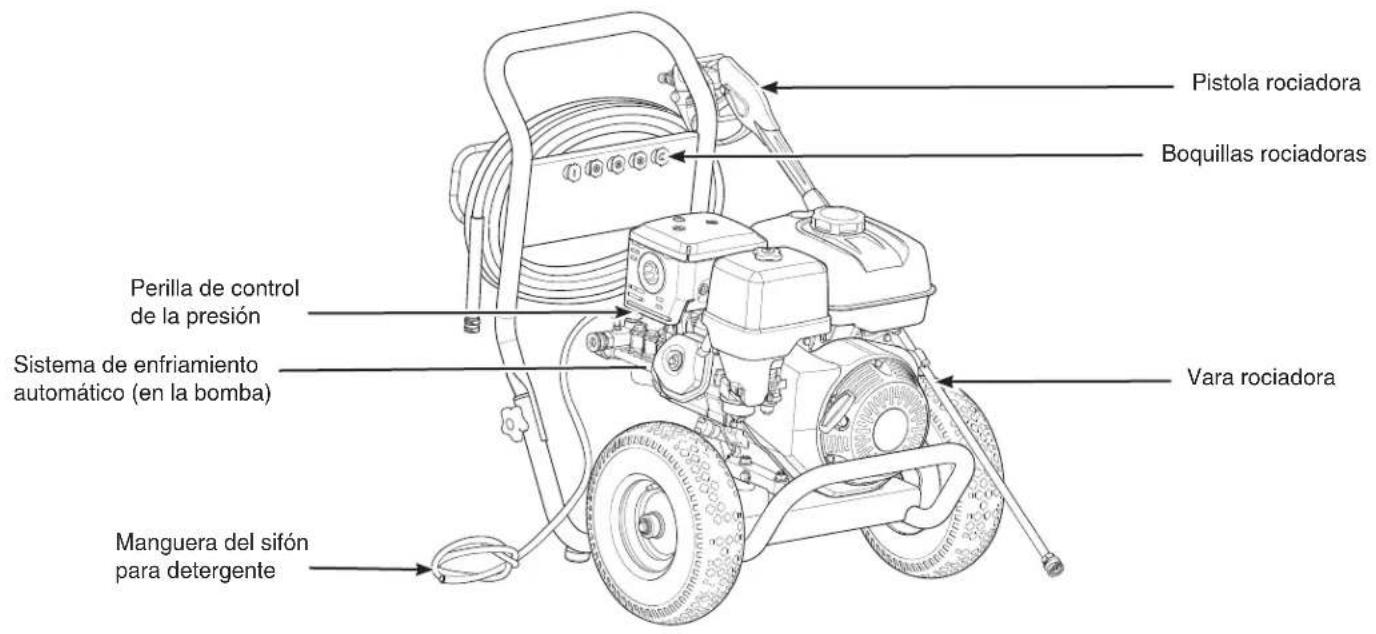

Automatic Cool Down System — Prevents internal pump damage by discharging warm water to the ground.

Detergent Siphon Tube — Use to siphon pressure washer safe detergent into the low pressure stream.

Pressure Control Knob — Varies pressure of high pressure spray.

Spray Gun — Controls spray using trigger. Includes trigger lock.

Spray Tips — Multiple patterns for various cleaning applications.

Spray Wand — Allows you to switch between spray tips.

Operation

Step 1: Safe Location

Before starting the pressure washer, there are two equally important safety concerns regarding carbon monoxide poisoning and fire that must be addressed.

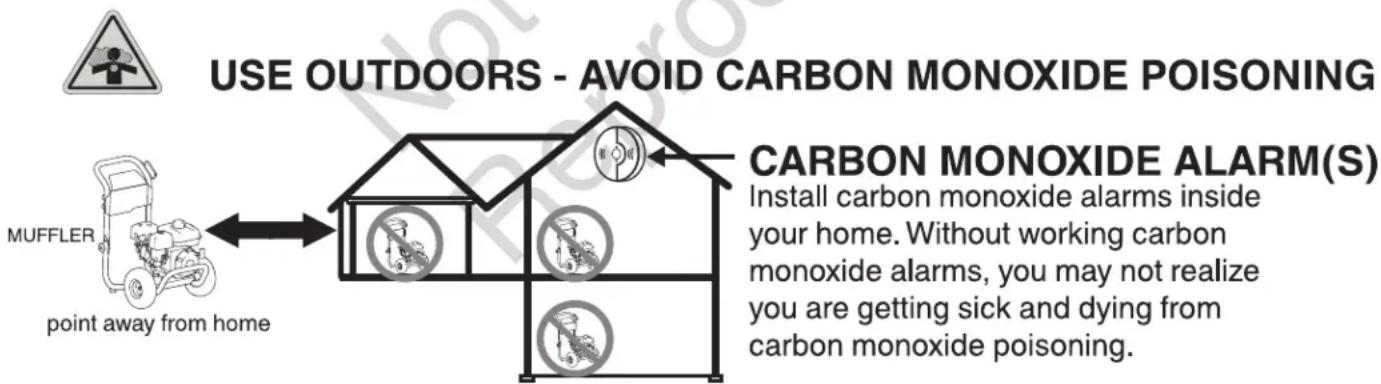

Operation Location to Reduce the Risk of Carbon Monoxide Poisoning

The engine exhaust of all fossil fuel burning equipment, such as a pressure washer, contains carbon monoxide, a poisonous gas that could kill you in minutes. You cannot smell it, see it, or taste it. Even if you do not smell exhaust fumes, you could still be exposed to carbon monoxide gas.

By law, it is required in many states to have a carbon monoxide alarm in operating condition in your home. A carbon monoxide alarm is an electronic device that detects hazardous levels of carbon monoxide. When there is a buildup of carbon monoxide, the alarm will alert the occupants by flashing a visual indicator light and an alarm. Smoke alarms cannot detect carbon monoxide gas.

WARNING! Engine exhaust contains carbon monoxide, a poisonous gas that could kill you in minutes. You cannot smell it, see it, or taste it.

Even if you do not smell exhaust fumes, you could still be exposed to carbon monoxide gas.

• Operate this product only outdoors, far away from windows, doors and vents to reduce the risk of carbon monoxide gas accumulating and the potential of being drawn towards occupied spaces.

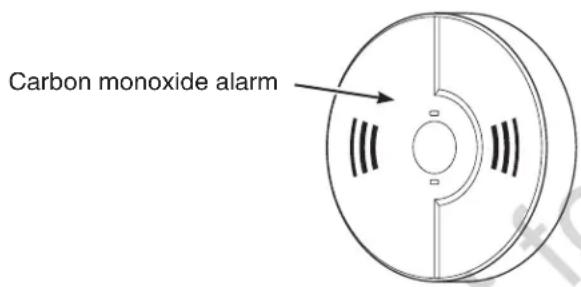

• Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with battery back-up according to the manufacturer's instructions. Smoke alarms cannot detect carbon monoxide gas.
• Do not run this product inside homes, garages, basements, crawlspaces, sheds, or other partially-enclosed spaces even if using fans or opening doors and windows for ventilation. Carbon monoxide can quickly build up in these spaces and can linger for hours, even after this product has shut off.
• Point exhaust away from all homes and occupied spaces.
• If you start to feel sick, dizzy, or weak while using this product, get to fresh air right away. See a doctor. You may have carbon monoxide poisoning.

Operation Location to Reduce the Risk of Fire

WARNING! Exhaust heat/gases could ignite combustibles, structures or damage fuel tank causing a fire, resulting in death or serious injury.

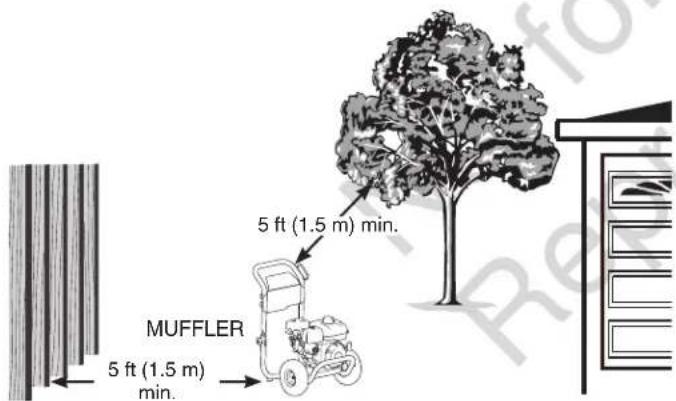

• Pressure washer must be at least 5 ft. (1.5 m) from any structure, overhang, trees, windows, doors, and any wall opening, shrubs, or vegetation over 12 in. (30.5 cm) in height.
• Do not place pressure washer under a deck or other type of structure that may confine airflow. Smoke alarm(s) must be installed and maintained indoors according to the manufacturer's instructions /recommendations.
  • Carbon monoxide alarms cannot detect smoke.
• It is a violation of California Public Resource Code Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may have similar laws, reference Federal Regulation 36 CFR Part 261.52.
• Contact the original equipment manufacturer, retailer, or dealer to obtain a spark arrester designed for the exhaust system installed on this engine.
• Replacement parts must be the same and installed in the same position as the original parts.

Step 2: Oil and Fuel

Check Oil Level

1. Make sure pressure washer is on a level surface.
2. Refer to engine operator's manual and follow oil and fuel recommendations and instructions.

Transporting

Do not tip engine or equipment at an angle which causes fuel to spill.

Step 3: Set Up

Clean Debris

Clean any accumulated debris. Keep area around muffler free from any debris.

• Use a soft bristle brush to loosen caked on dirt or oil.
• Use a damp cloth to wipe exterior surfaces clean.

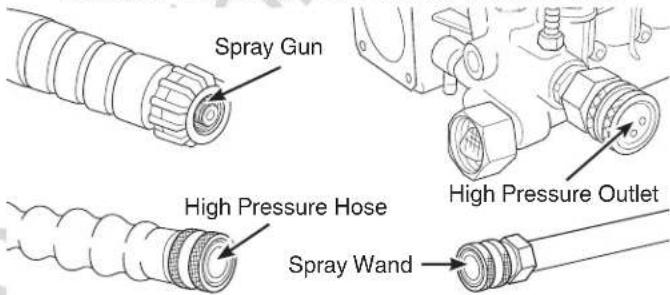

Lubricate O-rings

Lubricate all connections shown to extend the life of the o-rings.

1. Inspect and clean connecting surfaces prior to lubrication and assembly. Replace o-rings that are damaged or missing. See Common Service Parts.

NOTICE Never repair leaking connections with sealant of any kind. Replace o-ring.

1. Use a small brush or cotton swab to apply a light coating of grease directly to o-rings.

Check / Connect Gun and Hose

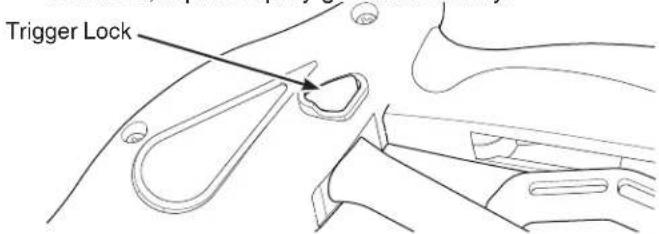

1. If spray gun trigger depresses without pressing trigger lock or if spray gun remains depressed when released, replace spray gun immediately.

1. If high pressure hose is damaged, exposing inner mesh, replace immediately.

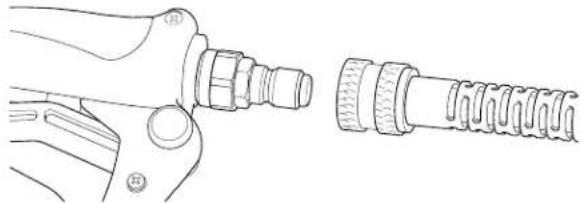

2. Pull high pressure hose quick connect collar back, slide onto spray gun and release. Tug on hose to ensure it is secure.

Technical line drawing of a mechanical tool and its coiled spring component (no text or symbols)

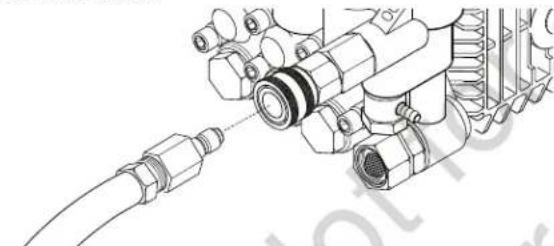

1. Pull high pressure outlet quick connect collar back, insert high pressure hose and release. Tug on hose to ensure it is secure.

Technical line drawing of a mechanical assembly with hoses and connectors (no text or symbols)

WARNING! The high pressure fluid could cut through skin and its underlying tissues, resulting in serious injury and possible amputation. Never

attach spray wand directly to high pressure hose.

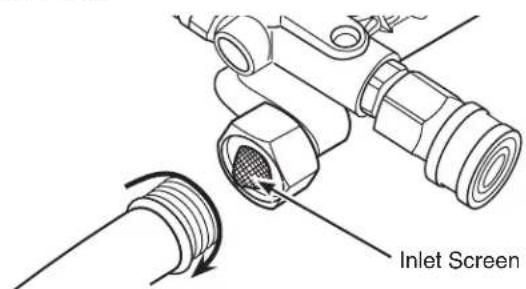

Check Water Inlet Screen / Connect Garden Hose

1. Inspect inlet screen. Remove debris or replace if damaged.

1. Run water through garden hose (not to exceed 50 ft (15 m) to clean out debris, then connect to water inlet.

NOTICE There must be at least 10 ft (3 m) of unrestricted garden hose between the pressure washer inlet and any device, such as a vacuum breaker, to prevent pump damage.

1. Turn on water, point spray gun in safe direction, press trigger lock and depress trigger to purge pump system of air.

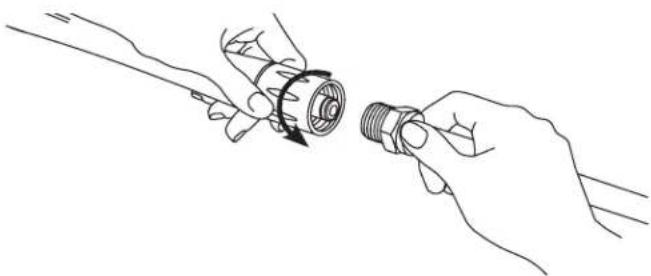

2. Attach spray wand to spray gun. Tighten by hand.

Line drawing of two hands holding a connector with a rotating knob (no text or symbols)

Step 4: Spray Tips

1. Select desired spray tip:

	Low Pressure Black Soap Use to apply detergent		Delicate Rinse White, 40° Green, 25° Cars / Vans / Trucks / Outdoor Furniture
	General Rinse Yellow, 15° Siding / Patios Decks Driveways / Garage Floors		Maximum Rinse Red, 0° Paint Removal / Oil Stains / Rust Removal

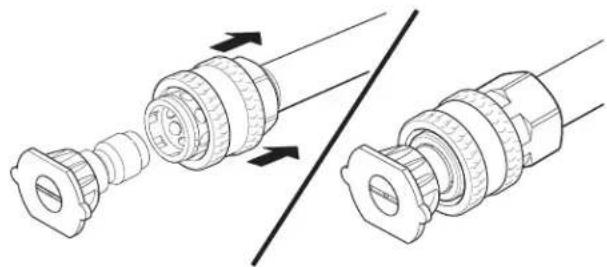

1. Pull spray wand quick connect collar back, insert spray tip and release. Tug spray tip to ensure it is secure.

Technical illustration of a mechanical component with two views showing internal assembly (no text or symbols)

Step 5: Start Up

NOTICE Do not start engine without water supply connected and turned on.

1. Level product before starting.

WARNING! Risk of eye injury. Spray could splash back or propel objects, resulting in serious injury.

• Always wear indirect vented (chemical splash) safety goggles when using or near this product. (Safety glasses do not provide full protection).
  • Always wear protective clothing such as long-sleeved shirts, long pants and closed-toed shoes.

WARNING! Recoil starter kickback (rapid retraction) will pull hand and arm toward engine faster than you can let go, which could cause

broken bones, fractures, bruises, or sprains and result in serious injury.

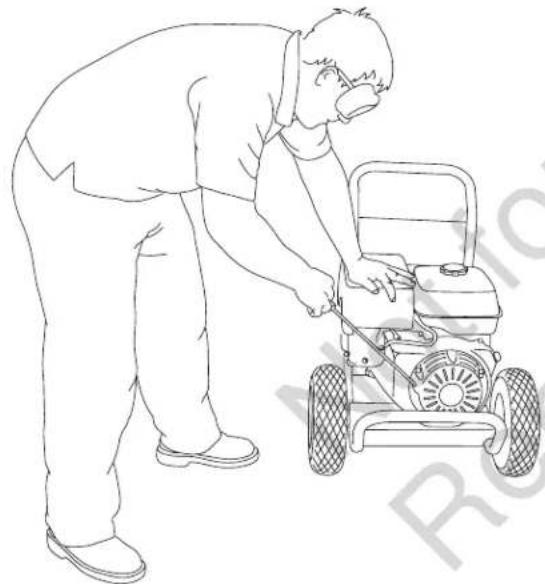

1. Position yourself as shown below, and start engine according to instructions given in engine operator's manual.

Line drawing of a person using a lawn mower to adjust equipment (no text or symbols)

WARNING! High-pressure water could cut through skin resulting in serious injury and possible amputation.

• Do not direct discharge at self or others.
• Call physician immediately if cut by fluid. Do not treat as a simple cut.
• Do not touch spray tips while spraying.

WARNING! Use of pressure washer could create slippery surfaces causing you to fall, resulting in death or serious

injury. Kickback from spray gun could cause you to fall resulting in death or serious injury. Operate pressure washer from a stable surface.

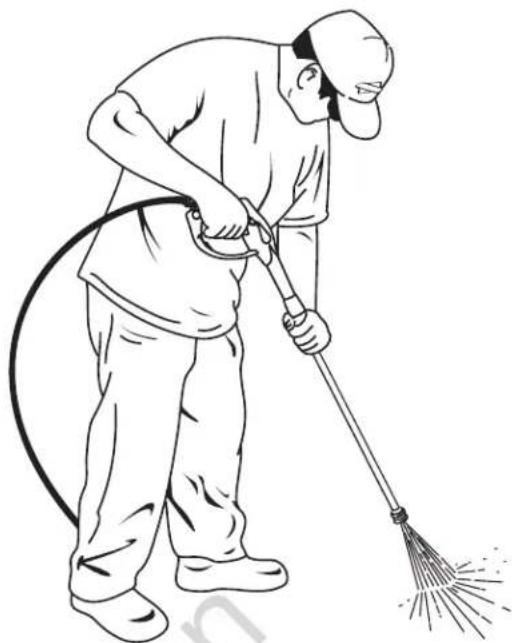

1. Firmly grasp spray gun with both hands, point spray gun in safe direction, press trigger lock and depress trigger to begin spraying.

Line drawing of a worker sweeping a surface with a broom (no text or symbols)

1. Apply high pressure spray to a small area first, then check the surface for damage. If no damage is found, it is okay to continue cleaning.

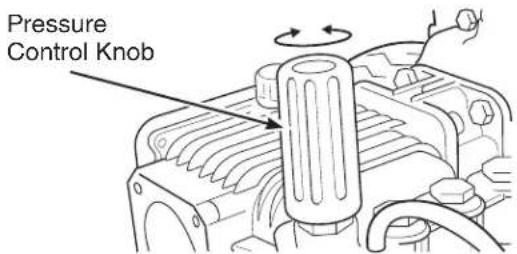

2. Increase (decrease) spray pressure by turning pressure control knob clockwise (counterclockwise). Use lower pressure to wash items such as a car or boat. Use higher pressure to strip paint and degrease driveways.

WARNING! Risk of electrocution. Contact with power source could cause electric shock or burn resulting in death or serious injury. Never spray

near power source.

Usage Tips

• For most effective cleaning, keep spray tip 8 to 24 in (20 to 61 cm) away from cleaning surface.
• Do not use high pressure spray tips closer than 6 in (15 cm) to prevent damage to the cleaning surface.
• Start at the top of the area to be rinsed, working down with long, even, overlapping strokes.

Step 6: Applying Detergent

WARNING! Chemicals could cause burns resulting in death or serious injury.

• Follow chemical manufacturer's label instructions for proper use and handling of the chemical.
• Only use products marketed for use with pressure washers.
• Never spray acids or flammable liquids.

Check Detergent Siphoning Tube

Clean detergent tube if clogged or replace if leaking.

To apply detergent, follow these steps:

1. Prepare detergent per pressure washer detergent manufacturer's instructions.
2. Insert detergent siphon tube into pressure washer detergent.
3. Install black detergent spray tip. See Spray Tips.
4. Apply per manufacturer's instructions.

NOTICE Detergent cannot be applied with the high pressure spray tips (White, Green, Yellow or Red).

Step 7: Shut Down

1. Release spray gun trigger and let engine idle for one minute.
2. Turn engine off according to instructions given in engine operator's manual.

WARNING! Spray gun traps high water pressure, even after engine shut down and water disconnection, which could result in serious

injury.

1. Point spray gun in safe direction. Press trigger lock and depress trigger to relieve high water pressure.

Step 8: Clean Up

1. Turn off water and purge system.
2. Disconnect and drain all hoses, spray gun and spray wand.
3. Empty pump of all liquids by pulling recoil handle about six times.

NOTICE If storing in freezing temperatures or more than 30 days, see Storage.

Maintenance

Maintenance Schedule

Follow the hourly or calendar intervals, whichever occurs first. See the engine operator's manual for instructions on how to properly maintain the engine.

Every 8 Hours or Daily (see Operation Section)

Check engine oil level

Clean debris

Lubricate o-rings

Check spray gun

Check high pressure hose

Check / clean water inlet screen

Check detergent siphoning tube

Every 50 Hours

Change pump oil

General Recommendations

Regular maintenance will improve the performance and extend the life of the pressure washer. See any authorized dealer for service.

Pump Oil Maintenance

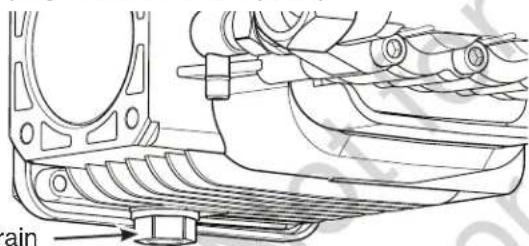

1. Clean around oil drain plug at bottom of pump, remove plug and drain oil completely.

Technical line drawing of a mechanical component with no visible text or symbols

Pump Oil Drain

1. Reinstall oil drain plug and tighten firmly.
2. Clean area around pump oil dipstick and remove dipstick. Fill pump with SAE 30 weight oil (approximately 10 oz. (0.3 liters)) to the point of overflowing.
3. Install pump oil dipstick and wipe up any spilled oil.

Detergent Siphoning Check Ball

The check ball in detergent siphoning system may become stuck from dried soap or minerals in water. The check ball can be freed by performing the following:

WARNING! Chemical Burn Hazard. Chemicals could cause burns resulting in death or serious injury. Follow chemical manufacturer's label

instructions for proper use and handling of the chemical. Following Shut Down, remove detergent siphoning hose from barbed fitting on pump.

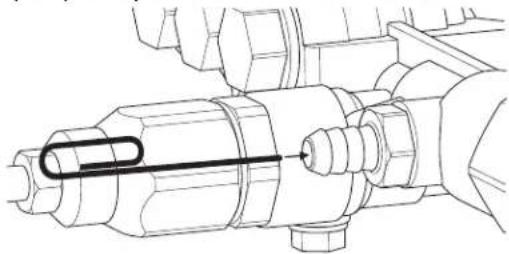

1. Insert paper clip, or similar device, into barbed fitting on pump and push down until ball moves.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Reinstall detergent siphoning hose.

Spray Tip Maintenance

Clean an obstructed spray tip to correct a pulsing sensation when squeezing the spray gun trigger.

1. Following Shut Down, remove spray tip from spray wand.
2. Use a paper clip, or similar device, to free foreign material.

Engine Maintenance

See the engine operator's manual for instructions on how to properly maintain the engine.

Common Service Parts

Pump Saver™ 6039

O-ring Maintenance Kit 705001

Water Inlet Screen.... B2384GS

Engine Oil Bottle 100005 or 100028

Contact an authorized service dealer or BRIGGSandSTRATTON.com for a full list of parts and diagrams.

Storage

WARNING! Fuel and its vapors are extremely flammable, which could cause burns or fire, resulting in death or serious injury. Do not store

fuel near ignition source.

1. Place detergent siphon tube in water and flush detergent from system by running pressure washer with black spray tip.

Protecting Fuel System

1. Treat or drain fuel from pressure washer as fuel can become stale when stored over 30 days.

Stale fuel causes acid and gum deposits to form in the fuel system or on essential carburetor parts. To keep fuel fresh, use a fuel stabilizer.

There is no need to drain gasoline from the engine if a fuel stabilizer is added according to instructions. Run the engine for 2 minutes to circulate the stabilizer throughout the fuel system before storage.

If gasoline in the engine has not been treated with a fuel stabilizer, it must be drained into an approved container. Then run the engine until it stops from lack of fuel. The use of a fuel stabilizer in the storage container is recommended to maintain freshness.

Protecting the Pressure Washer

1. Turn off water and purge system.
2. Disconnect and drain all hoses, spray gun and spray wand.
3. Empty pump of all liquids by pulling recoil handle about six times.

NOTICE Store spray gun indoors and keep from freezing.

Protecting the Pump

1. Treat pump with Pump Saver.

Use Pump Saver to protect pump from damage caused by mineral deposits and freezing. It also lubricates pistons and seals. See Common Service Parts.

Read and follow all Pump Saver warnings and instructions.

If Pump Saver is not available, connect a 3 ft. (1 m) section of garden hose to water inlet. Pour RV-antifreeze (antifreeze without alcohol) into hose. Pull recoil handle twice. Disconnect hose.

NOTICE You must protect your product from freezing temperatures. Failure to do so will permanently damage your pump and spray gun rendering your product inoperable.

1. Store unit in a clean and dry area.

WARNING! Storage covers could cause a fire resulting in death or serious injury. Do not place a storage cover over a hot pressure washer. Let

product cool before installing cover.

Troubleshooting

Problem Cause Correction
Pump has following problems: failure to produce pressure, loss of pressure, low water volume.	1. Low pressure spray tip installed.2. Pressure control knob is turned to low spray pressure setting.3. Inadequate water supply.4. Clogged inlet hose screen.5. Spray tip is obstructed.6. Connections leak.7. High pressure hose or spray gun leaks.	1. Replace with high pressure spray tip.2. Turn pressure control knob clockwise to increase spray pressure.3. Provide adequate water flow.4. Check and clean inlet hose screen.5. Clean spray tip. See Spray Tip Maintenance.6. Tighten connections or replace o-rings.7. Replace.
Detergent fails to mix with spray.	1. High pressure spray tip installed.2. Check ball stuck in detergent siphoning system.3. Detergent siphoning tube is clogged or cracked.	1. Replace with low pressure black spray tip.2. Free check ball. See Detergent Siphoning Check Ball.3. Clean or replace detergent siphoning tube.
Engine will not start; starts and runs rough or shuts down during operation.	1. Out of fuel.2. Flooded with fuel.3. Dirty air filter.4. Spark plug wire not connected to spark plug.	1. Fill fuel tank.2. Wait 5 minutes before starting.3. Clean or replace air filter.4. Connect wire to spark plug.

For all other issues, see an authorized dealer.

Specifications

Pressure and Flow 4200 PSI (290 bar) @ 4.0 GPM (15.1 L/min)*

Water Supply Temperature 41°F (5°C) - 100°F (38°C)

min Water Supply Flow Rate 5.0 GPM (18.9 L/min)

min Water Supply Pressure 20 PSI (1.38 bar)

Pump Oil Capacity 10 oz (0.3 Liters)

*This pressure washer is rated in accordance to the Pressure Washer Manufacturers' Association (PWMA) standard PW101-2010 (Testing and Rating Performance of Pressure Washers).

HUSQVARNA WARRANTY POLICY

LIMITED WARRANTY

Husqvarna® is a registered trademark of Husqvarna AB and is used under license to Briggs & Stratton Corporation. Briggs & Stratton warrants that, during the warranty period specified below, it will repair or replace, free of charge, any part that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for and is subject to the time periods and conditions stated below. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at BRIGGSANDSTRATTON.COM. The purchaser must contact the Authorized Service Dealer, and then make the product available to the Authorized Service Dealer for inspection and testing.

There is no other express warranty. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to the warranty period listed below, or to the extent permitted by law. Liability for incidental or consequential damages are excluded to the extent exclusion is permitted by law. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or country to country. ^**

WARRANTY PERIOD

Item Consumer Use Commercial Use

Equipment 24 months 3 months

Engine* 24 months 3 months

Frame 36 months 3 months

* Applies to Briggs & Stratton engines only. Warranty coverage of non-Briggs & Stratton engines is provided by that engine manufacturer. Emissions-related components are covered by the Emissions Warranty Statement.
** In Australia - Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at BRIGGSandSTRATTON.COM, or by calling 1300 274 447, or by emailing or writing to [e-mail], Briggs & Stratton Australia Pty Ltd, 1 Moorebank Avenue, NSW, Australia, 2170.

The warranty period begins on the date of purchase by the first retail or commercial consumer. “Consumer use” means personal residential household use by a retail consumer. “Commercial use” means all other uses, including use for commercial, income producing or rental purposes. Once a product has experienced commercial use, it shall thereafter be considered as a commercial use product for purposes of this warranty.

Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the product will be used to determine the warranty period. Product registration is not required to obtain warranty service on Briggs & Stratton products.

ABOUT YOUR WARRANTY

Warranty service is available only through Briggs & Stratton Authorized Service Dealers. This warranty covers only defects in materials or workmanship. It does not cover damage caused by improper use or abuse, improper maintenance or repair, normal wear and tear, or stale or unapproved fuel.

Improper Use and Abuse - The proper, intended use of this product is described in the Operator's Manual. Using the product in a way not described in the Operator's Manual or using the product after it has been damaged will not be covered under this warranty. Warranty coverage will also not be provided if the serial number on the product has been removed or the product has been altered or modified in any way, or if the product has evidence of abuse such as impact damage or water/chemical corrosion damage.

Improper Maintenance or Repair - This product must be maintained according to the procedures and schedules provided in the Operator's Manual, and serviced or repaired using genuine Briggs & Stratton parts or equivalent. Damage caused by lack of maintenance or use of non-original parts is not covered by warranty.

Normal Wear and Tear - Like most mechanical devices, your unit is subject to wear even when properly maintained. This warranty does not cover repairs when normal use has exhausted the life of a part or the equipment. Maintenance and wear items such as filters, belts, cutting blades, and brake pads (except engine brake pads) are not covered by warranty due to wear characteristics alone, unless the cause is due to defects in material or workmanship.

Stale or Unapproved Fuel - In order to function correctly, this product requires fresh fuel that conforms to the criteria specified in the Operator's Manual. Engine or equipment damage caused by stale fuel or the use of unapproved fuels (such as E15 or E85 ethanol blends) is not covered by warranty.

Other Exclusions - This warranty excludes damage due to accident, abuse, modifications, alterations, improper servicing, freezing or chemical deterioration.

Attachments or accessories that were not originally packaged with the product are also excluded. There is no warranty coverage on equipment used for primary power in place of utility power or on equipment used in life support applications. This warranty does not include used, reconditioned, second-hand, or demonstration equipment or engines. This warranty also excludes failures due to acts of God and other force majeure events beyond the manufacturer's control.

80081746_EN Rev -

Husqvarna®

Line drawing of a pressure cooker with hoses and wheels (no text or symbols)

Copyright © 2019. Briggs & Stratton Corporation

Failure to read and follow the operator's manual, all warnings and operating instructions could result in death or serious injury.

Engine exhaust contains carbon monoxide, a poisonous gas that could kill you in minutes. You cannot see or smell it. Only use outside far away from windows, doors and vents.

Gasoline is flammable. Allow engine to cool at least 2 minutes before refueling. Do not spray flammable liquids.

High pressure could cut through skin. Never spray people. Spray gun traps high water pressure, even after engine is shut down and water is disconnected. Squeeze trigger, to release high pressure, every time engine stops.

Rapid retraction of starter cord (kickback) could pull hand and arm toward engine faster than you can let go. Pull starter cord slowly until resistance is felt and then pull rapidly to avoid kickback. Gun kicks back — Hold with both hands.

Spray could splash back or propel objects. Wear safety goggles and protective clothing. Safety glasses do not provide full protection.

Muffler could cause burns. Do not touch hot parts. Avoid hot exhaust gases.

Do Not Remove This Tag

See reverse side for operating instructions.

Line drawing of a power plant with hoses and wheels, no text or symbols present

WARNING

Fire Hazard. Operation of this equipment may create sparks that can start fires around dry vegetation. A spark arrestor may be required. The operator should contact local fire agencies for laws or regulations relating to fire prevention requirements. 80008183

Technical line drawing of a mechanical tool and a coiled spring component (no text or symbols)

Technical line drawing of a mechanical assembly with hoses and connectors (no text or symbols)

Line drawing of two hands holding a connector with a circular arrow indicating rotation (no text or symbols)

1. Conecte la vara rociadora a la pistola rociadora. Ajuste a mano.

Paso 4: boquillas rociadoras

Technical illustration of a mechanical connector assembly showing two views of the internal structure (no text or symbols present)

Line drawing of a person using a lawn mower to adjust equipment (no text or symbols)

Line drawing of a worker sweeping the floor with a broom (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols
