USER MANUAL KLIPPO LB 453S HUSQVARNA

KLIPPO LB 448S, KLIPPO LB 453S, KLIPPO LB 448SQ, KLIPPO LB 453SQ, KLIPPO LB 548SQe

EAC

EN Operator's manual 8-21

Diagram of a rope buckle with two clips and directional arrows indicating movement (no text or symbols)

Mechanical diagram showing a linkage mechanism with arrows indicating force or movement (no text or symbols)

17

Diagram showing a wheel assembly and its rotation direction (no text or labels)

Line drawing of a lawn mower with handle and wheels (no text or symbols)

19

Mechanical assembly diagram showing a gear and cam mechanism with an arrow indicating motion (no text or symbols)

Technical line drawings of a car's rear wheel and side panel assembly (no text or symbols)

21

Mechanical diagram showing a vehicle's suspension system with three arrows indicating motion direction (no text or labels)

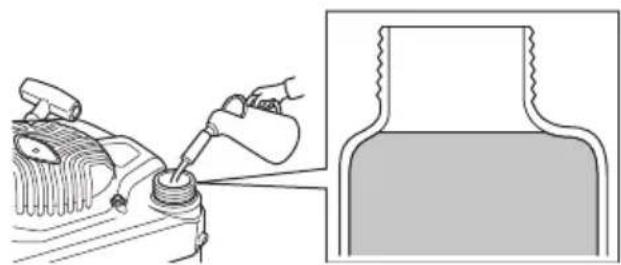

Illustration of a car engine being pumped to a bottle, with a magnified view of the bottle's side profile (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand holding a U-shaped pipe with attached clamps (no text or symbols)

Mechanical component diagram showing a lever mechanism with an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

27

Technical line drawing of a mechanical assembly with gears and pulleys (no text or symbols)

Diagram of a hand pulling a wheel with a black arrow indicating the wheel's direction (no text or symbols)

Mechanical assembly diagram showing gear and pulley components (no text or labels)

Mechanical assembly diagram showing gear and pulley components (no text or labels)

Technical line drawing of a mechanical clamp or bracket assembly with a wrench (no text or symbols)

Technical diagram of a mechanical linkage or lever mechanism with directional arrows indicating movement (no text or symbols present)

Mechanical gear assembly diagram showing a cam mechanism with no text or symbols

Diagram of a circular mechanical or electrical component with internal rotation arrows and a wooden block, no text or symbols present.

Technical line drawing of a mechanical assembly with a bolt and shaft (no text or symbols)

Diagram showing a tool interacting with grass under an arch, with arrows indicating direction (no text or symbols)

Technical line drawing showing a mechanical assembly with a bolt and pipe connection (no text or symbols)

39

Mechanical assembly diagram showing a rotating component with mounting holes and a circular housing (no text or symbols)

Diagram of a mechanical gear or wheel assembly with concentric circles and a central rotating arrow, no text or symbols present.

41

Diagram of a mechanical or electrical component with circular elements and internal components, no visible text or symbols

42

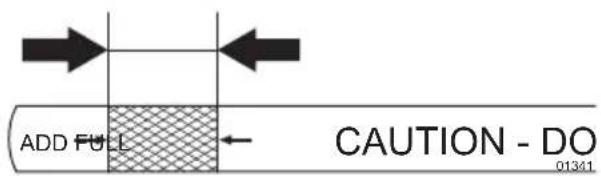

ADD FUL CAUTION - DO 01341

43

44

Diagram showing labeled parts of an air conditioner unit with components A, B, and C, including a close-up view of the internal structure.

45

Diagram of an electrical switchgear with labeled components A, B, C, D, and E, showing connections to a device.

46

Diagram of an electrical component with labeled parts A, B, C, D, and E, showing internal wiring connections.

47

Technical line drawing of a mechanical component with threaded body and shaft (no text or symbols)

Diagram of a mechanical component with rotational arrows indicating motion (no text or symbols)

49

Technical diagram showing a mechanical assembly with arrows indicating motion or force direction (no text or symbols present)

Contents

Introduction......8

Safety....9

Assembly.... 12

Operation.... 12

Maintenance.... 13

Transportation, storage and disposal.... 17

Technical data.... 17

Declaration of Conformity.... 20

Introduction

Product description

The product is a pedestrian-controlled rotary lawn mower that uses BioClip® to cut the grass into fertilizer.

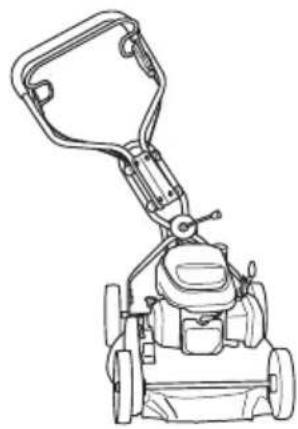

Product overview

(Fig. 1)

1. Handle / handlebar

2. Engine brake handle

3. Drive lever

4. Starter rope handle

5. Oil cap

6. Belt guard

7. Muffler

8. Spark plug

9. Belt guard

10. Fuel tank

11. Lever for angle adjustment of the handle

12. Vibration damping system

13. Clutch wire adjustment

14. Cutting height lever

15. Fuel valve

16. Air filter

17. Cutting cover

18. Spring washer

19. Blade bolt

20. Blade

21. Blade support

22. Mulch plug KLIPPO LB 448S, KLIPPO LB 448SQ, KLIPPO LB 548SQe

23. Operator's manual

Symbols on the product

(Fig. 2) WARNING: Careless or incorrect use can result in injury or death to the operator or others.

(Fig. 3) Please read the operator's manual carefully and make sure that you understand the instructions before use.

(Fig. 4) Look out for thrown objects and ricochets.

Intended use

Use the product to cut grass. Do not use the product for other tasks.

(Fig. 5) Keep persons and animals at a safe distance from the work area.

(Fig. 6) Stop the engine and remove the ignition cable before repairs or maintenance.

(Fig. 7) Warning: Keep hands and feet away from rotating parts.

(Fig. 8) Warning: Keep hands and feet away from the rotating blade.

(Fig. 9) This product is in accordance with applicable EC directives.

(Fig. 10) This product conforms to applicable UK regulations.

(Fig. 11) Noise emission to the environment label as per EU and UK directives and regulations, and New South Wales legislation "Protection of the Environment Operations (Noise Control) Regulation 2017". The guaranteed sound power level of the product is specified in Technical data on page 17 and on the label.

(Fig. 12) Scannable code.

Note: Other symbols/decals on the product refer to market specific legal requirements.

Decal on the product, for Australia and New Zealand only

(Fig. 13)

Keep hands and feet away from the rotating blade.

WARNING: Tampering with the engine voids the EU type-approval of this product.

Product liability

As referred to in the product liability laws, we are not liable for damages that our product causes if:

• the product is incorrectly repaired.
- the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.
- the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
- the product is not repaired at an approved service center or by an approved authority.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

• This product is dangerous if used incorrectly or if you are not careful. Injury or death can occur if you do not obey the safety instructions.
• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.
  • Always be careful and use your common sense. If you are not sure how to operate the product in a special situation, stop and speak to your Husqvarna dealer before you continue.
• Keep in mind that the operator will be held responsible for accidents that involve other persons or their property.

• Keep the product clean. Make sure that you can clearly read signs and decals.

• Do not let a person use the product unless you make sure that they read and understand the contents of the operator's manual.

• Do not let a child operate the product.
• Keep children away from the work area. A responsible adult must be there at all times.
• Do not let a person, without knowledge of the instructions, operate the product.
  • Always monitor a person, with decreased physical capacity or mental capacity, that uses the product. A responsible adult must be there at all times.
• Do not use the product if you are tired, ill, or under the influence of alcohol, drugs or medicine. This has a negative effect on your vision, alertness, coordination and judgment.
• Do not use the product if it is defective.
• Do not change this product or use it if it is possible that it has been changed by others.
• Do not change the adjustment for the engine speed control.

Work area safety

WARNING: Read the warning instructions that follow before you use the product.

• Remove objects such as branches, twigs and stones from the work area before you use the product.
• Objects that hit against the cutting equipment can eject and cause damage to persons and objects. Keep bystanders and animals at a safe distance from the product.
• Never use the product in bad weather such as fog, rain, strong winds, intense cold and risk of lightning. To use the product in bad weather or in moist or wet locations is tiring. Bad weather can cause dangerous conditions, such as slippery surfaces.
• Look out for persons, objects and situations that can prevent safe operation of the product.
• Look out for obstacles, such as roots, stones, twigs, pits and ditches. Long grass can hide obstacles.

• To cut grass on slopes can be dangerous. Do not use the product on ground that slopes more than 15^ .

• Operate the product across the face of slopes. Do not move up and down.

• Be careful when you go near hidden corners and objects that prevent a clear view.

Work safety

WARNING: Read the warning instructions that follow before you use the product.

- Use this product to cut grass lawns only. It is not permitted to use it for other tasks.

- Use personal protective equipment. Refer to Personal protective equipment on page 10.

- Make sure that you know how to stop the engine quickly in an emergency.

- Never start the engine in a closed space or near flammable material. The exhaust fumes from the engine are hot and can contain sparks which can start a fire.

- Do not operate the product unless the blade and all covers are attached correctly. An incorrectly attached blade can come loose and cause personal injury.

- Make sure that the blade does not hit objects such as stones and roots. This can do damage to the blade and bend the engine shaft. A bent axle causes heavy vibration and a very high risk that the blade becomes loose.

- If the blade hits an object or if vibrations occur, stop the product immediately. Disconnect the ignition cable from the spark plug. Examine the product for damages. Repair damages or let an authorised service agent do the repair.

- Never attach the engine brake handle permanently to the handle when the engine is started.

- Put the product on a stable, flat surface and start it. Make sure that the blade does not hit the ground or other objects.

• Always stay behind the product when you operate it.

- Let all the wheels stay on the ground and keep 2 hands on the handle when you operate the product. Keep your hands and feet away from the rotating blades.

- Do not tilt the product when the engine is started.

- Be careful when you pull the product rearward.

- Never lift up the product when the engine is started. If you must lift the product, first stop the engine and disconnect the ignition cable from the spark plug.

- Do not walk rearward when you operate the product.

- Stop the engine when you move across areas without grass, for example paths made of gravel, stone and asphalt.

- Do not run with the product when the engine is started. Always walk when you operate the product.

• Stop the engine before you change the cutting height. Never make adjustments with the engine started.
• Never let the product stay out of view with the engine started. Stop the engine and make sure that the cutting equipment does not rotate.

Safety instructions for operation

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

• Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.
• Use hearing protection if the noise level is higher than 85 dB.
• Use heavy-duty slip-resistant boots or shoes. Do not use open shoes or go with bare feet.
• Use heavy, long pants.
• Use protective gloves when necessary, for example when you attach, examine or clean the cutting equipment.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

- Do not use a product with defective safety devices.

- Do a check of the safety devices regularly. If the safety devices are defective, speak to your Husqvarna service agent.

To do a check of the cutting cover

The cutting cover decreases vibrations in the product and decreases the risk of injury from the blade.

- Examine the cutting cover to make sure that there are no damages such as cracks.

To do a check of the belt guard

The belt guard decreases the risk of injury and makes sure that a broken drive belt does not eject.

- Make sure that the belt guard does not have damages and that it is correctly attached. (Fig. 14)

Engine brake handle

The engine brake handle stops the engine. When the engine brake handle is released, the engine stops.

To do an inspection of the engine brake, start the engine and then release the engine brake handle. If the engine

does not stop in 3 seconds, let an approved Husqvarna service agent adjust the engine brake.

(Fig. 15)

To do a check of the vibration damping system

WARNING: Overexposure to vibration can cause circulatory damage or nerve damage to persons with decreased blood circulation. Get medical aid if you have symptoms of overexposure to vibration. These symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin color or condition. These symptoms usually show in the fingers, hands or wrists.

The vibration damping system decreases vibration in the handle during operation.

The steel tube in the handlebar and the cutting cover decrease vibration. KLIPPO LB 548SQe also has 4 vibration damping units attached to the handlebar.

- Examine the handlebar and the vibration damping units to make sure that there are no damages. (Fig. 16)

Blade support

The blade support decreases the risk that the engine shaft bends. If the blade hits an object, the blade moves against the blade support. The movement causes wear on the surface of the blade support. The wear shows that the protection of the engine shaft functions correctly.

Muffler

The muffler keeps the noise levels to a minimum and sends the exhaust fumes away from the operator.

Do not use the product if the muffler is missing or defective. A defective muffler increases the noise level and the risk of fire.

WARNING: The muffler becomes very hot during and after use and when the engine operates at idle speed. Be careful near flammable materials and/or fumes to prevent fire.

To do a check of the muffler

- Examine the muffler regularly to make sure that it is attached correctly and not damaged.

Fuel safety

WARNING: Read the warning instructions that follow before you use the product.

• Do not start the product if there is fuel or engine oil on the product. Remove the unwanted fuel/oil and let the product dry.
• If you spill fuel on your clothing, change clothing immediately.
• Do not get fuel on your body, it can cause injury. If you get fuel on your body, use soap and water to remove the fuel.
• Do not start the product if the engine has a leak. Examine the engine for leaks regularly.
• Be careful with fuel. Fuel is flammable and the fumes are explosive and can cause injuries or death.
• Do not breathe in the fuel fumes, it can cause injury. Make sure that there is a sufficient airflow.
• Do not smoke near the fuel or the engine.
• Do not put warm objects near the fuel or the engine.
• Do not add the fuel when the engine is on.
• Make sure that the engine is cool before you refuel.
• Before you refuel, open the fuel tank cap slowly and release the pressure carefully.
• Do not add fuel to the engine in an indoor area. Not sufficient airflow can cause injury or death because of asphyxiation or carbon monoxide.
• Tighten the fuel tank cap fully. If the fuel tank cap is not tightened, there is a risk of fire.
• Move the product a minimum of 3m / 10 ft from the position where you filled the tank before a start.
• Do not fill the fuel tank fully. Heat causes the fuel to expand. Keep a space at the top of the fuel tank.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you use the product.

• The exhaust fumes from the engine contain carbon monoxide, an odourless, poisonous and very dangerous gas. Do not start the engine indoors or in closed spaces.
• Before you do the maintenance on the product, stop the engine and remove the ignition cable from the spark plug.
• Use protective gloves when you do maintenance on the cutting equipment. The blade is very sharp and cuts can easily occur.
• Accessories and changes to the product that are not approved by the manufacturer, can cause serious injury or death. Do not change the product. Always use accessories that are approved by the manufacturer.
• If the maintenance is not done correctly and regularly, the risk of injury and damage to the product increases.
• Only do the maintenance as given in this owner's manual. All other servicing must be done by an approved Husqvarna service agent.

Assembly

Introduction

WARNING: Before you assemble the product, you must read and understand the safety chapter.

WARNING: Remove the spark plug cable from the spark plug before you assemble the product.

To assemble and adjust the handle

1. Remove the handle nut and the washer from the plate on the upper handle.
2. Put the upper handle in position on top of the lower handle.

CAUTION: Make sure that the wires are not caught or become damaged.

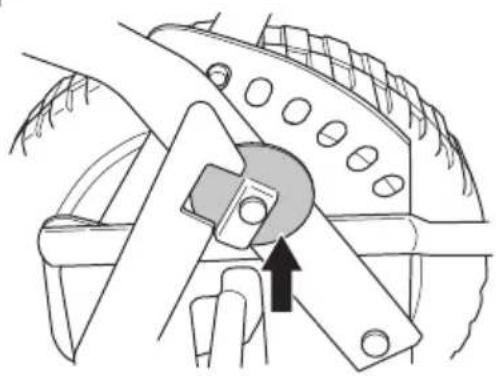

1. Attach the washer and the handle nut. (Fig. 17)
2. Turn the handle to the side for a good operation position when you operate the product near a wall. (Fig. 18)
3. Turn the adjustment wheels on the chassis to adjust the handle vertically. (Fig. 19)

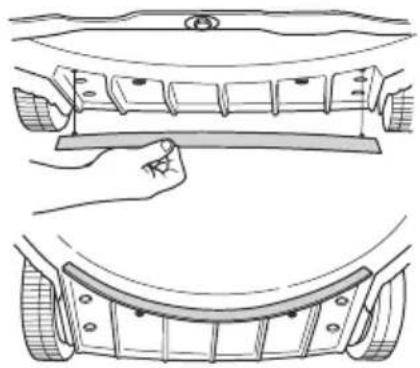

To assemble the mulch plug (KLIPPO LB 448S, KLIPPO LB 448SQ, KLIPPO LB 548SQe)

1. Tilt the product rearward with the spark plug up.
2. Put the pins of the mulch plug into the holes from the inner side of the cutting cover. (Fig. 20)

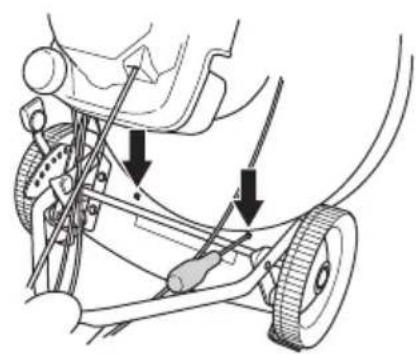

3. Attach the screws for the mulch plug from the outer side of the cutting cover. (Fig. 21)

Operation

Introduction

WARNING: Before you operate the product, you must read and understand the safety chapter.

Husqvarna Connect

Husqvarna Connect is a free app for your mobile device. The Husqvarna Connect app gives extended functions for your Husqvarna product:

• Extended product information.
  • Information about, and help with, product parts and servicing.

To start to use Husqvarna Connect

1. Download the Husqvarna Connect app on your mobile device.
2. Register in the Husqvarna Connect app.
3. Do the instruction steps in the Husqvarna Connect app to connect and register the product.

Before you operate the product

1. Read the operator's manual carefully and make sure that you understand the instructions.

2. Examine the cutting equipment to make sure that it is correctly attached and adjusted. See To examine the cutting equipment on page 15.

3. Fill the fuel tank. See To fill fuel on page 12.
4. Fill the oil tank and do a check of the oil level. See To do a check of the oil level on page 15.

To fill fuel

If available, use low-emission/alkylate gasoline. If low-emission/alkylate gasoline is not available, use good quality unleaded gasoline or leaded gasoline with octane number not less than 90.

CAUTION: Do not use gasoline with an octane number less than 90 RON (87 AKI). This can cause damage to the product.

1. Open the fuel tank cap slowly to release the pressure.
2. Fill slowly with a fuel can. If you spill fuel, remove it with a cloth and let remaining fuel dry off. (Fig. 22)
3. Clean the area around the fuel tank cap.
4. Tighten the fuel tank cap fully. If the fuel tank cap is not tightened, there is a risk of fire.
5. Move the product a minimum of 3 m (10 ft) from the position where you filled the tank before a start.

To set the cutting height

The cutting height can be adjusted in 6 levels.

1. Move the cutting height lever forward to increase the cutting height.
2. Move the cutting height lever rearward to decrease the cutting height.

CAUTION: Do not set the cutting height too low. The blades can hit the ground if the surface of the lawn is not level.

To start the product

1. Make sure that the ignition cable is connected to the spark plug.

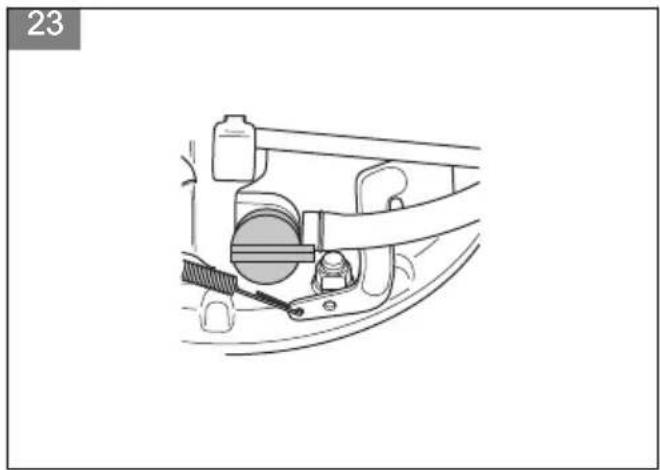

2. Open the fuel valve. (Fig. 23)
3. Stay behind the product.

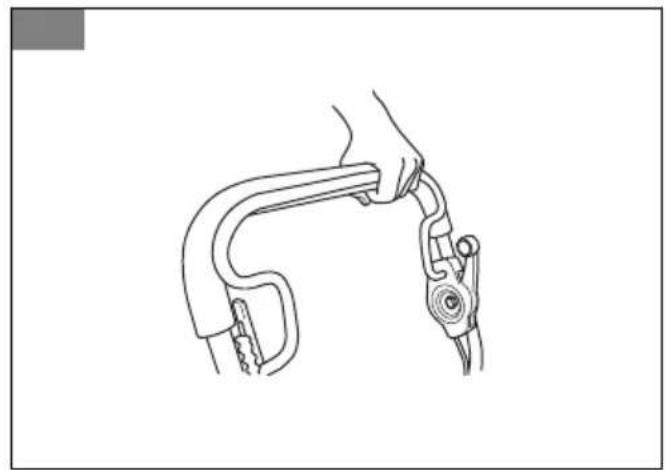

4. Hold the engine brake handle against the handlebar. (Fig. 24)
5. Hold the starter rope handle with your right hand.
6. Slowly pull out the starter rope until you feel some resistance.
7. Pull with force to start the engine.

WARNING: Do not twist the starter rope around your hand.

CAUTION: Do not extend the starter rope fully. Do not release the starter rope handle when the starter rope is extended.

To use the drive on the wheels

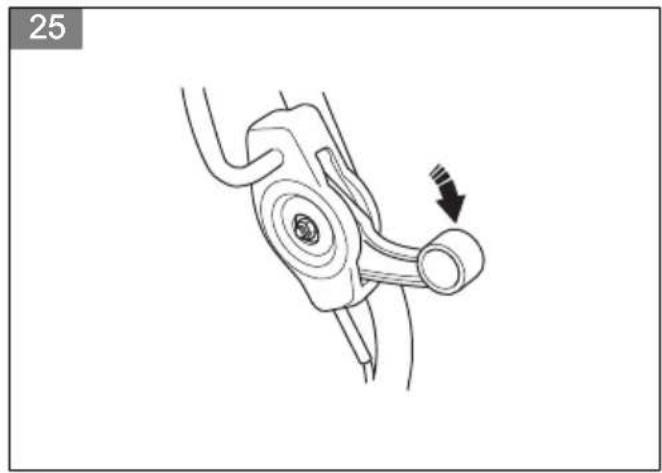

• Push the drive lever down. (Fig. 25)
• Before you pull the product rearward, disengage the drive and push the product forward approximately 10cm.
• Release the engine brake handle a small distance to disengage the drive, for example when you go near an obstacle.

To stop the product

• To stop the drive only, release the engine brake handle a small distance.
• To stop the engine, release the engine brake handle fully.
• Close the fuel valve. (Fig. 26)

To get a good result

• Always use a sharp blade. A blunt blade gives an irregular result and the cut surface of the grass becomes yellow. A sharp blade also uses less energy than a blunt blade.
- Do not cut more than 13 of the length of the grass. Cut first with the cutting height set high. Examine the result and lower the cutting height to an applicable level. If the grass is very long, drive slowly and cut 2 times if necessary.
- Cut in different directions each time to prevent stripes in the lawn.
- Keep the cutting cover clean. Buildup from grass and dirt on the inner side of the cutting cover can decrease the cutting result. Refer to To clean the product externally on page 14.

Maintenance

Introduction

WARNING: Before you do maintenance, you must read and understand the safety chapter.

For all servicing and repair work on the product, special training is necessary. We guarantee the availability of professional repairs and servicing. If your dealer is not a service agent, speak to them for information about the nearest service agent.

For more detailed information, refer to www.husqvarna.com.

Maintenance schedule

The maintenance intervals are calculated from daily use of the product. The intervals change if the product is not used daily.

For maintenance identified with * see instructions in Safety devices on the product on page 10.

Maintenance Daily Weekly Monthly
Do a general inspection X
Examine the oil level X
Clean the product X
Clean the air filter X
Examine the cutting equipment X
Examine the cutting cover* X
Examine the engine brake handle* X
Examine the muffler* X
Examine the spark plug X
Examine the drive belt for damages X
Clean the gear housing X
For KLIPPO LB 448S, KLIPPO LB 453S. Replace the oil (the first time after 5 h use, then after each 25 h use and yearly)			X
For KLIPPO LB 448SQ, KLIPPO LB 453SQ, KLIPPO LB 548SQe. Replace the oil (the first time after 5 h use, then after each 50 h use and yearly)			X
Replace the air filter X
Examine the fuel system X

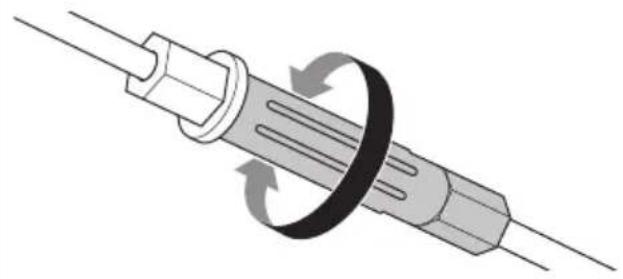

Examine and adjust the drive (clutch wire) X

To do a general inspection

- Make sure that all nuts and screws on the product are tightened correctly.

To clean the product externally

• Use a brush to remove leaves, grass and dirt.
• Make sure that the air intake on the top of the engine is not blocked.
• Do not use a high pressure washer to clean the product.
• If you use water to clean the product, do not flush water directly on the engine.

To clean the inner surface of the cutting cover

1. Put the product on its side with the muffler down.

CAUTION: If the product is put with the air filter down, the engine can become damaged.

1. Hose down the inner surface of the cutting cover with water.

To examine the drive belt and clean the gear housing

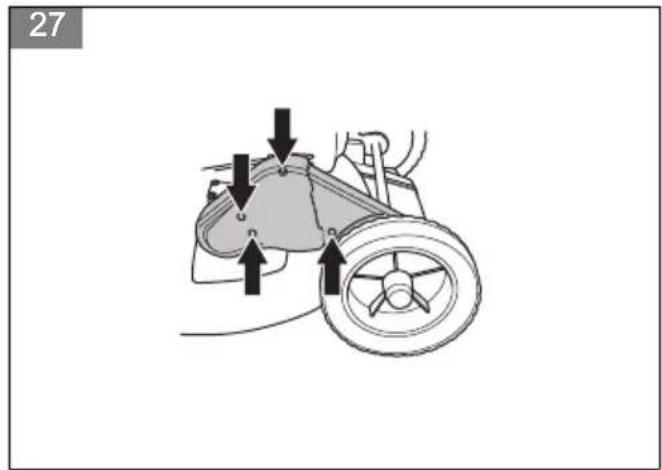

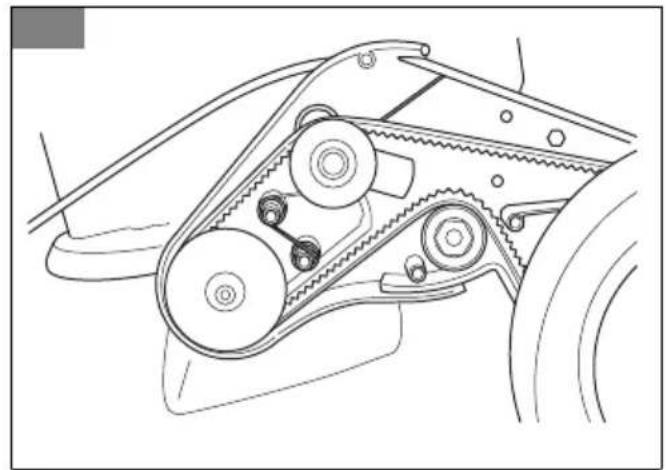

1. Remove the 4 screws on the belt guard and remove the belt guard. (Fig. 27)
2. Examine the drive belt and belt pulley for damages.
3. Use a brush to remove leaves, grass and dirt from the gear housing. (Fig. 28)

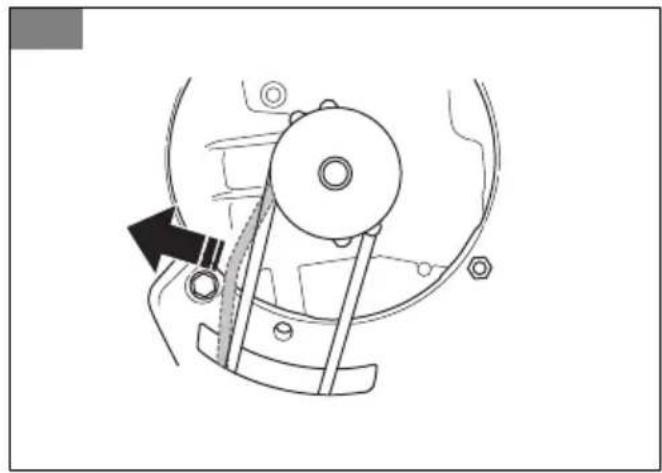

To replace and adjust the drive belt

1. Remove the 4 screws on the belt guard and remove the belt guard. (Fig. 27)
2. Put a flat screwdriver between the hubcap and the wheel on the right front wheel of the product.
3. Twist the screwdriver carefully to remove the hubcap.

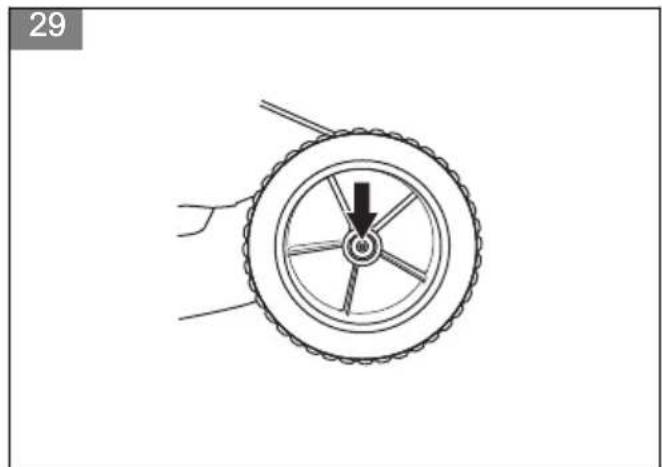

4. Remove the wheel bolt and remove the wheel. (Fig. 29)
5. Remove the drive belt from the belt pulleys.
6. Make sure that the belt pulleys move easily on the axle.
7. If it is necessary, spray penetrating oil between and behind the belt pulleys and lubricate the axle.

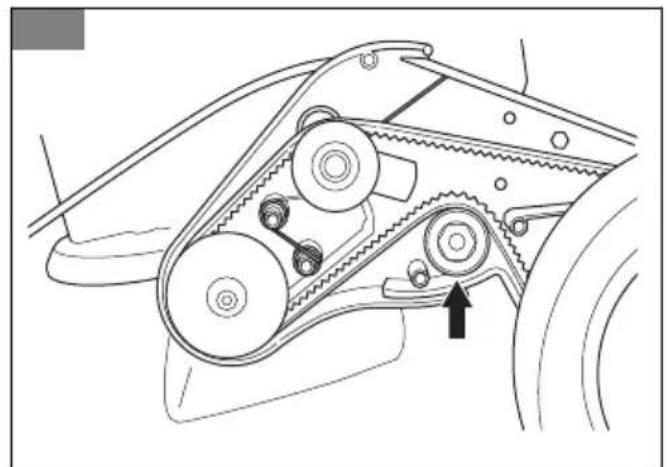

8. Install a new drive belt and attach it correctly at the ball bearing before you adjust the drive belt. (Fig. 30)

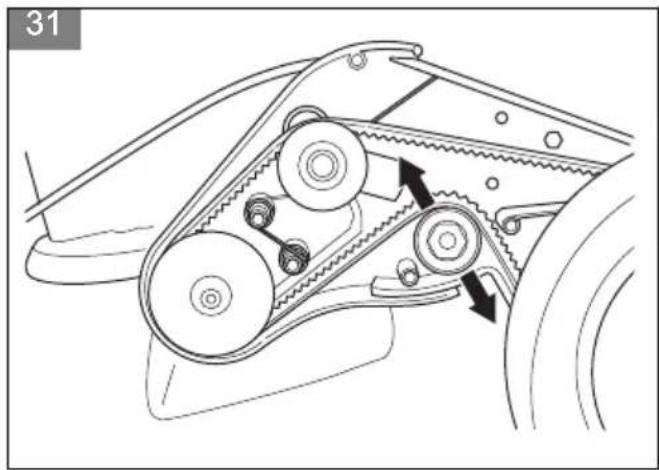

9. Move the ball bearing up or down to adjust the drive belt. (Fig. 31)

Note: A new drive belt becomes longer after use. Adjust the drive belt again after some hours of operation.

1. Attach the belt guard.
2. Operate the product to make sure that the drive belt is correctly installed and adjusted.

To replace and adjust the center belt

1. Remove the blade.

Note: This step is not necessary when you only adjust the center belt.

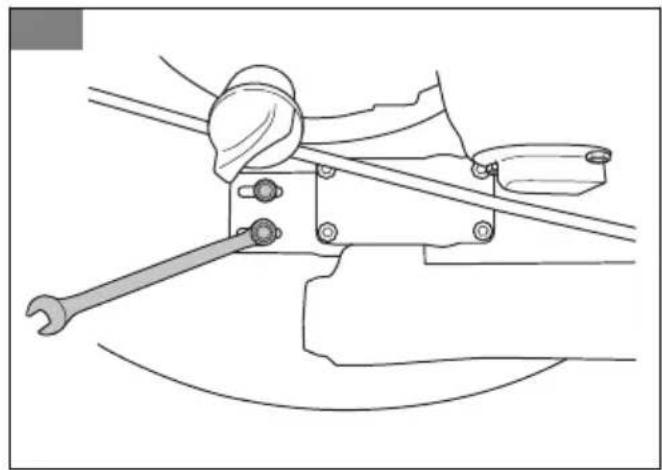

1. Loosen the adjustment screws some turns, but do not remove them. (Fig. 32)
2. Replace the center belt and moderately tighten the adjustment screws.

Note: This step is not necessary when you only adjust the center belt.

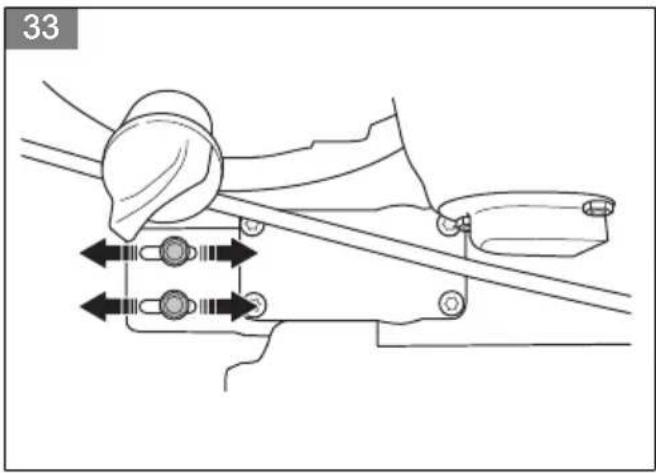

1. Move the gear forward or rearward to adjust the center belt. (Fig. 33)
2. Use a hook scale to examine the tension of the center belt. The belt has the correct tension when it can move 6–10 mm in the center. That is equal to a pull of 3 kg. (Fig. 34)
3. Tighten the adjustment screws fully with a torque of 3 Nm.
4. Operate the product to make sure that the drive belt is correctly installed and adjusted.

To examine the cutting equipment

WARNING: To prevent accidental start remove the ignition cable from the spark plug.

WARNING: Use protective gloves when you do maintenance on the cutting equipment. The blade is very sharp and cuts can easily occur.

1. Examine the cutting equipment for damage or cracks. Always replace a damaged cutting equipment.
2. Look at the blade to see if it is damaged or blunt.

Note: It is necessary to balance the blade after it is sharpened. Let a service center sharpen, replace and balance the blade. If you hit an obstacle that causes the product to stop, replace the damaged blade. Let the service center estimate if the blade can be sharpened or must be replaced.

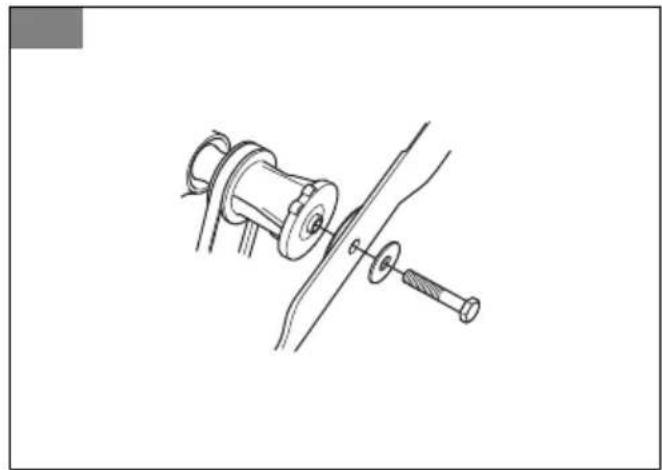

To replace the blade

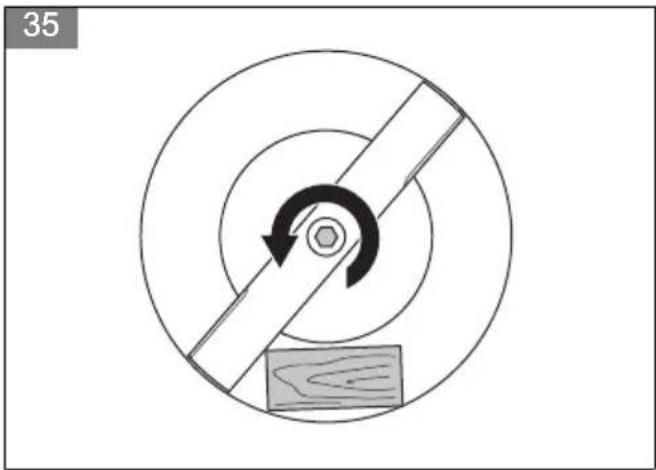

1. Lock the blade with a block of wood. (Fig. 35)
2. Remove the blade bolt, the spring washer and the blade. (Fig. 36)
3. Examine the blade support and blade bolt for damages.

a) If you replace the blade or the blade support, also replace the blade bolt, the spring washer and the friction washer.

1. Examine the engine shaft to make sure that it is not bent.

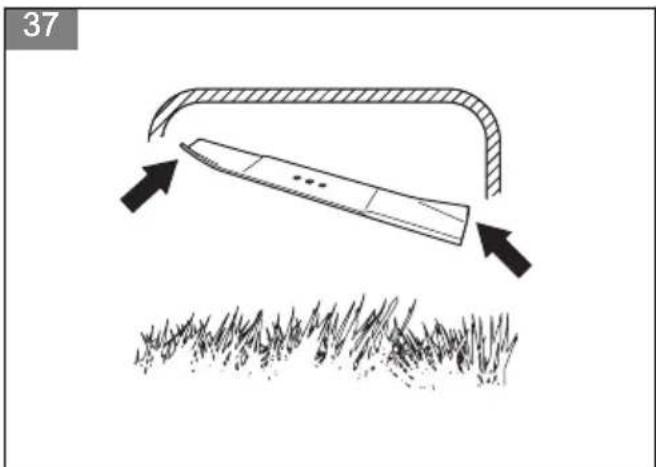

2. When you attach the new blade, make sure that the bent ends point in the direction of the cutting cover. (Fig. 37)

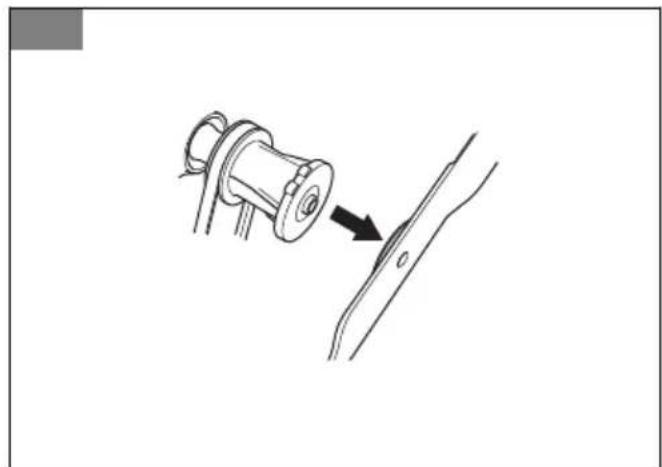

3. Put the friction washer and the blade against the blade support. (Fig. 38)
4. Make sure that the blade aligns with the center of the engine shaft. (Fig. 39)

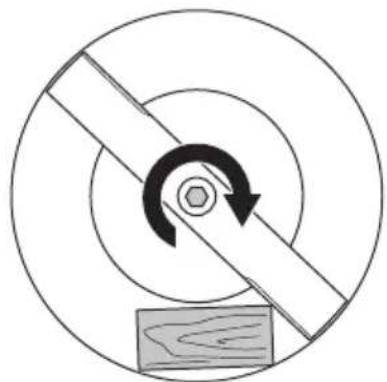

5. Lock the blade with a block of wood. (Fig. 40)

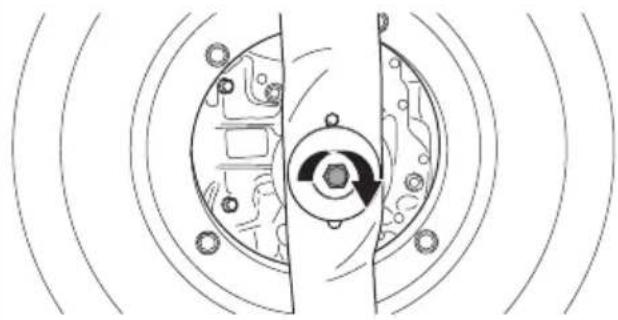

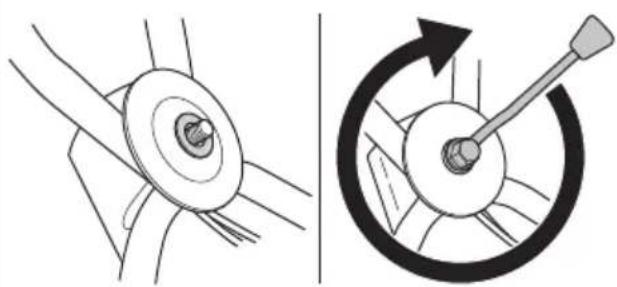

6. Attach the spring washer and tighten the bolt with a torque of 80 Nm. (Fig. 41)
7. Pull the blade around by hand and make sure that it turns freely.

WARNING: Use protective gloves. The blade is very sharp and cuts can easily occur.

1. Start the product to do a test of the blade. If the blade is not correctly attached, there is vibration in the product or the cutting result is unsatisfactory.

To do a check of the oil level

CAUTION: A too low oil level can do damage to the engine. Do a check of the oil level before you start the product.

1. Put the product on level ground.
2. Remove the oil tank cap with the attached dipstick.
3. Clean the oil from the dipstick.
4. Put the dipstick fully into the oil tank. Tighten the oil tank cap to make sure to give a correct picture of the oil level.
5. Remove the dipstick.
6. Examine the oil level on the dipstick.
7. If the oil level is low, fill with engine oil and do a check of the oil level again.

(Fig. 42)

Note: Use a funnel to prevent spill.

To replace the engine oil

WARNING: Engine oil is very hot directly after the engine is stopped. Let the engine become cool before you drain the engine oil. If you spill engine oil on your skin, clean with soap and water.

(Fig. 43)

1. Remove the ignition cable from the spark plug.

2. Remove the oil tank cap.

3. Drain the engine oil.

a) For models with an oil drain plug: Put a container below the oil drain plug, to collect the engine oil in.
b) For models without an oil drain plug or if it is not possible to put a container below the oil drain plug: Use an oil pump (accessory) to drain the engine oil from the oil tank.

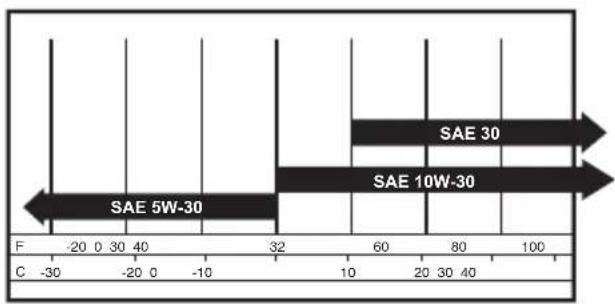

1. Fill with new engine oil of the type recommended in Technical data on page 17.
2. Do a check of the oil level. Refer to To do a check of the oil level on page 15.

Air filter

Note: An air filter that is used for a long time cannot be fully cleaned. Replace the air filter at regular intervals. Always replace a damaged air filter.

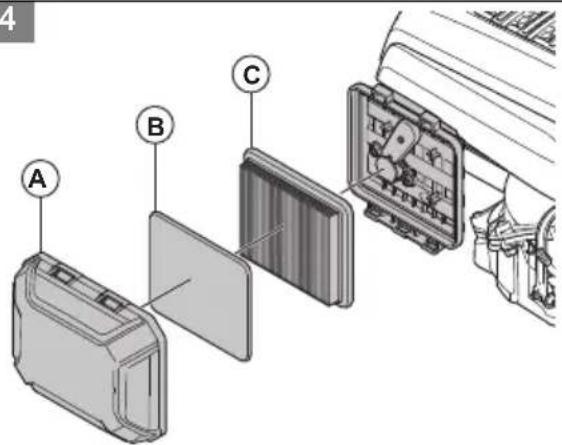

To remove and install the air filter (KLIPPO LB 488SQ, KLIPPO LB 453SQ, KLIPPO LB 548Qe)

WARNING: Use protective gloves.

1. Push the clips on the air filter cover.
2. Carefully remove the air filter cover (A) from the engine.
3. Remove the air filter (B) and the foam filter (C). (Fig. 44)
4. Examine the air filter for damages. Replace a damaged air filter.
5. Clean and examine the air filter. Refer to To clean the air filter (KLIPPO LB 448SQ, KLIPPO LB 453SQ, KLIPPO LB 548Qe) on page 16.
6. Install in the opposite sequence.

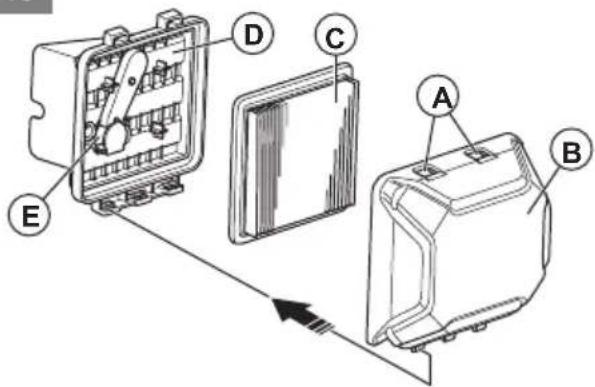

To clean the air filter (KLIPPO LB 448SQ, KLIPPO LB 453SQ, KLIPPO LB 548Qe)

CAUTION: Do not operate the engine without an air filter attached or if the air filter is dirty.

CAUTION: Replace the air filter if it cannot be fully cleaned or if it is damaged. A defective air filter causes damage to the engine.

1. Push the latch tabs (A), remove the air filter cover (B) and remove the air filter (C). (Fig. 45)

2. Hit the air filter against a hard surface or blow compressed air through the air filter from the clean side of the air filter.

CAUTION: Do not use a brush to remove dirt as this pushes the dirt into the air filter.

1. Clean the air filter holder (D) and the air filter cover with a moist cloth.

CAUTION: Make sure that no dirt goes into the air duct (E).

1. Install the air filter. Make sure that the air filter fully seals against the air filter holder.
2. Install the air filter cover with the bottom tabs first.

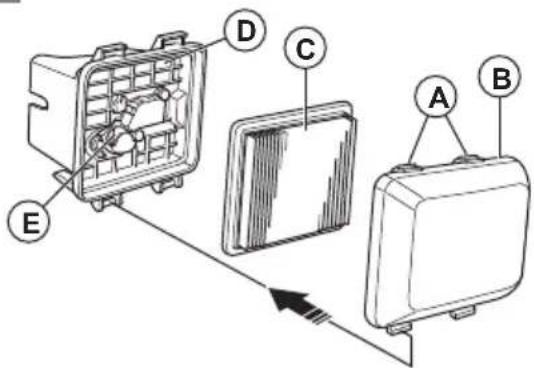

To clean the air filter (KLIPPO LB 448S, KLIPPO LB 453S)

CAUTION: Do not operate the engine without an air filter attached or if the air filter is dirty.

CAUTION: Replace the air filter if it cannot be fully cleaned or if it is damaged. A defective air filter causes damage to the engine.

1. Push the latch tabs (A), remove the air filter cover (B) and remove the air filter (C). (Fig. 46)
2. Hit the air filter against a hard surface or blow compressed air through the air filter from the clean side of the air filter.

CAUTION: Do not use a brush to remove dirt as this pushes the dirt into the air filter.

1. Clean the air filter holder (D) and the air filter cover with a moist cloth.

CAUTION: Make sure that no dirt goes into the air duct (E).

1. Install the air filter. Make sure that the air filter fully seals against the air filter holder.
2. Install the air filter cover with the bottom tabs first.

To examine the spark plug

CAUTION: Always use the recommended spark plug type. Incorrect spark plug type can cause damage to the product.

• Examine the spark plug if the engine is low on power, is not easy to start or does not operate correctly at idle speed.
• To decrease the risk of unwanted material on the spark plug electrodes, obey these instructions:

a) Make sure that the idle speed is correctly adjusted.
b) Make sure that the fuel mixture is correct.
c) Make sure that the air filter is clean.

• If the spark plug is dirty, clean it and make sure that the electrode gap is correct, refer to Technical data on page 17. (Fig. 47)
• Replace the spark plug if it is necessary.

To examine the fuel system

- Examine the fuel tank cap and the seal for the fuel tank cap to make sure that there are no damages.

- Examine the fuel hose to make sure that there are no leaks. If the fuel hose is damaged, let a service agent replace it.

To adjust the clutch wire

If the drive feels slow, it is necessary to adjust the clutch wire.
- Turn the adjuster screw. (Fig. 48)

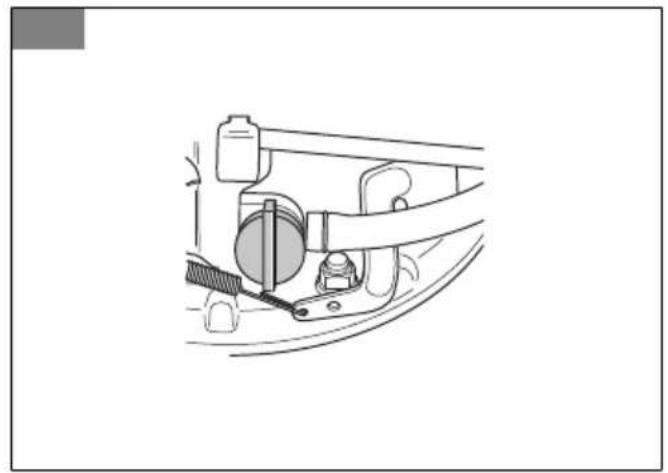

The clutch wire is correctly adjusted when the clutch wire bracket aligns with the nut.

(Fig. 49)

Transportation, storage and disposal

Transportation and storage

• For storage and transportation of the product and fuel, make sure that there are no leaks or fumes. Sparks or open flames, for example from electrical devices or boilers, can start a fire.
  • Always use approved containers for storage and transportation of fuel.
• Empty the fuel tank before you put the product in storage for a long period of time. Discard the fuel at an applicable disposal location

• Safely attach the product during transportation to prevent damage and accidents.

• Keep the product in a locked area to prevent access for children or persons that are not approved.

• Keep the product in a dry and frost free area.

Disposal

• Obey the local recycling requirements and applicable regulations.
• Discard all chemicals, such as engine oil or fuel, at a service center or at an applicable disposal location.
• When the product is no longer in use, send it to a Husqvarna dealer or discard it at a recycling location.

Technical data

Technical data

	KLIPPO LB 448S	KLIPPO LB 448SQ	KLIPPO LB 453S	KLIPPO LB 453SQ	KLIPPO LB 548SQe
Engine
Brand Honda Husqvarna Honda	Husqvarna Husqvarna
Model GCVX-145 HS 166AP GO	Vx-170 HS 166AP HS 166AP
Engine type	Single cylinder, 4-Stroke, Forced Air Cooling, OHV	Single cylinder, 4-Stroke, Forced Air Cooling, OHV	Single cylinder, 4-Stroke, Forced Air Cooling, OHV	Single cylinder, 4-Stroke, Forced Air Cooling, OHV	Single cylinder, 4-Stroke, Forced Air Cooling, OHV
Displacement, cm^3	145 166 166 166 166
Speed, rpm 2900 2900 2900 2900 2900	0 2900
Nominal engine output, kW ^1	2.7 2.75 3.3 2.75	2.75
Ignition system
Spark plug NGK BPR5ES		Husqvarna HQT-7	NGK BPR5ES	Husqvarna HQT-7	Husqvarna HQT-7
Electrode gap, mm 0.7–0.8 0.7–0.8	0.7–0.8 0.7–0.8	0.7–0.8
Fuel and lubrication system
Engine lubrication type Splash Splash	Splash Splash Splash	Splash
Fuel tank capacity, litre 0.9 1.5 0.9	1.5 1.5
Oil tank capacity, litre 0.5 0.5 0.5	0.5 0.5
Engine oil ^2	Husqvarna SAE 30	Husqvarna SAE 30	Husqvarna SAE 30/SAE 10W-30	Husqvarna SAE 30/SAE 10W-30	Husqvarna SAE 30/SAE 10W-30
Weight
With empty tanks, kg 30.5 32.5 33	33.5 34.5
Noise emissions ^3
Sound power level, measured dB (A)	90 93 91 94 92
Sound power level, guaranteed LWA dB (A)	91 93 94 95 93
Sound levels ^4
Sound pressure level at the operator's ear, dB (A)	77 79 78 81 79
Vibration levels, ahveq ^5
Handle, m/s ^2	4.5 4.2 5.3 6.4 4.0
Cutting equipment
Cutting height, mm 30–60 30–60	30–60 30–60 30–60
Cutting width, mm 480 480 530	530 480
Blade	Mulch - 48 cm5028813-10	Mulch - 48 cm5028813-10	Mulch - 53 cm5028814-10	Mulch - 53 cm5028814-10	Mulch - 48 cm5028813-10
Drive
Speed, km/h 4.5 4.5 4.5 4.5 4.5

Declaration of Conformity

EU Declaration of conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declare on our sole responsibility that the product:

Description Lawn mower
Brand Husqvarna
Type / Model	KLIPPO LB 448S, KLIPPO LB 453S, KLIPPO LB 448SQ, KLIPPO LB 453SQ, KLIPPO LB 548SQe
Identification Serial numbers dating from 2022 and onwards

complies fully with the following EU directives and regulations:

Directive/Regulation Description	Description
2006/42/EC "relating to machinery"	machinery"
2014/30/EU "relating to electromagnetic compatibility"	electromagnetic compatibility"
2000/14/EC "relating to the noise emissions in the environment"	the noise emissions in the environment"
2011/65/EU	"on the restriction of the use of certain hazardous substances in electrical and electronic equipment"

and that the following standards and/or technical specifications are applied: EN ISO 5395-1:2013/A1:2018, EN ISO 5395-2:2013/A1:2016/A2:2017, EN ISO 14982:2009, EN IEC 63000:2018.

Notified body: 0404, RISE SMP Svensk Maskinprovning AB, Box 4053, SE-904 03 Umeå, Sweden. has certified conformity with the council's directive 2000/14/EC, conformity assessment procedure: Annex VI.

For information relating to noise emissions, refer to Technical data on page 17.

Huskvarna, 2022-11-07

$$ \Delta \operatorname {d u} $$

Claes Losdal, Development Manager/Garden Products, Husqvarna AB

Responsible for technical documentation

UK Declaration of Conformity

We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel:

[phone], declare on our sole responsibility that

the product:

Description Lawn Mower
Brand Husqvarna
Type / Model	KLIPPO LB 448S, KLIPPO LB 453S, KLIPPO LB 448SQ, KLIPPO LB 453SQ, KLIPPO LB 548SQe
Identification Serial numbers dating from 2022 and onwards

complies fully with the following UK regulations:

Description

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

The Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016

The Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001, schedule 9

and that the following standards and/or technical specifications are applied: EN ISO 5395-1:2013/

A1:2018, EN ISO 5395-2:2013/A1:2016/A2:2017, EN

ISO 14982:2009, EN IEC 63000:2018

Notified Body: 0404, RISE SMP Svensk Maskinprovning AB, Box 4053, SE-904 03 Umeå, Sweden., has carried out certified conformity with the council's directive 2000/14/EC, conformity assessment procedure: Annex VI.

For information relating to noise emissions, refer to Technical data on page 17.

Huskvarna, 2022-11-07

UK Importer:

Husqvarna UK Ltd

Preston Road, Co. Durham

DL5 6UP

$$ \Delta \cdot 2 m $$

Claes Losdal, Development Manager/Garden Products Husqvarna AB

Responsible for technical documentation

Съдържание

Claes Losdal, Development Manager/Garden Products

De mulchplug monteren (KLIPPO LB 448S, KLIPPO LB 448SQ, KLIPPO LB 548SQe)

Claes Losdal, Development Manager/Garden Products, Husqvarna AB

• Extended product information.
  • Information about, and help with, product parts and servicing.

Montera mulchingpluggen (KLIPPO LB 448S, KLIPPO LB 448SQ, KLIPPO LB 548SQe)

Original instructions

Оригинални инструкции

Původní pokyny
