Product type	Battery-powered walk-behind rotary lawn mower
Brand and model	Husqvarna LE 322R
Cutting width	51.3 cm (20.2 inches)
Cutting height	7 adjustable positions from 3.3 to 11.4 cm (1.3 to 4.5 inches)
Weight (without battery, with bag)	34.3 kg (75.6 lb)
Power supply	Husqvarna BLi22 or BLi30 lithium-ion battery, 36 V
Maximum runtime (2 batteries 7.5 Ah)	75 minutes (Detection mode)
Cutting motor	Brushless 36 V, rated power 1.25 kW (1.7 hp), max 2.1 kW (2.9 hp)
Drive motor	Brushless, rated power 0.2-0.4 kW, speed 0-6.4 km/h, 9 speeds
Cutting modes	Mode 1 Detection, Mode 2 Mulching/High quality, Mode 3 Maximum power
Grass bag capacity	65 liters

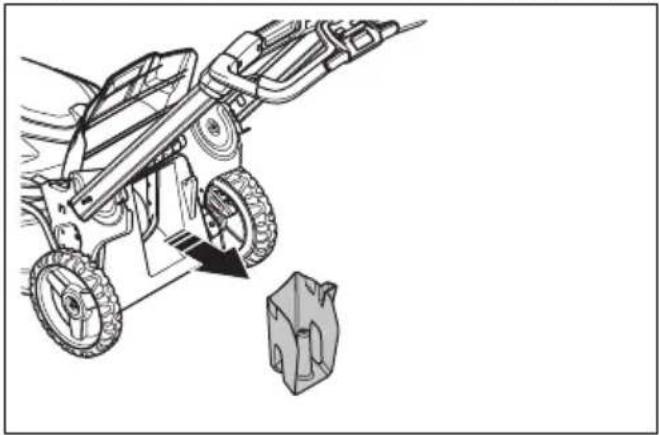

Additional features	Rear discharge, mulching, automatic wheel drive
Safety	Motor brake handle (stop in 3 s), cutting deck, grass collector, battery lock
Maintenance and cleaning	Clean dry, no water or pressure washer. Check and replace blade if necessary. Clean air filter with soapy water.
Spare parts and repairability	Mulching replacement blade ref. 5375821-41, BLi22/BLi30 batteries and QC250/40-C80 chargers. Repair by Husqvarna authorized dealer.
General information	Warranty and support via www.husqvarna.com or 1-800-487-5951. Battery operating temperature: -10 °C to 40 °C.

Frequently Asked Questions - LE 322R HUSQVARNA

How to adjust the cutting height on the Husqvarna LE 322R lawn mower?

Move the cutting height adjustment lever outward and backward to increase the height, or outward and forward to decrease it. There are 7 positions available. Do not set the height too low to avoid the blade hitting the ground.

Which battery is compatible with the LE 322R model?

The LE 322R model is compatible only with Husqvarna BLi22 (4.0 Ah) and BLi30 (7.8 Ah) batteries. Use only these batteries to avoid any risk of damage.

How to change the mower blade?

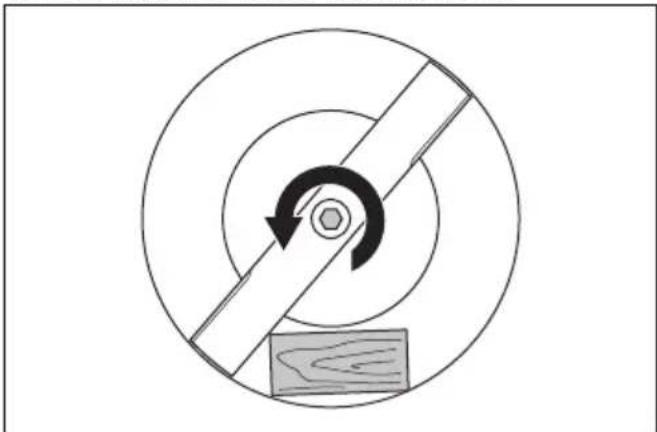

Remove the battery and wait 5 seconds. Lock the blade with a block of wood, unscrew the center bolt, remove the worn blade. Mount the new blade with the angled ends facing the deck. Tighten the bolt to a torque of 48-54 Nm. Check that the blade rotates freely.

What to do if the LED error light flashes on the control panel?

Possible causes: handle not locked, low battery, motor overload, or battery error. Fully unfold the handle, charge the battery, increase cutting height, or remove obstruction around the blade. After correction, press the On/Off button to turn off the light.

How to clean the Husqvarna LE 322R lawn mower?

Never use water or a pressure washer. Clean plastic parts with a dry cloth. Use a brush to remove leaves and grass. For the battery and charger, use a soft dry cloth. The air filter can be cleaned with soapy water.

What is the battery charging time?

Charging time depends on the charger used. With the QC250 charger, a BLi30 battery charges in about 45 minutes. With the 40-C80 charger, the time is longer. Wait until all 4 LEDs on the battery are lit for a full charge.

Can the mower be used on slopes?

Yes, but do not exceed a slope of 15 degrees. Always mow across the slope (diagonally), never up and down. Be careful and keep both hands on the handle.

How to store the mower for winter?

Remove the battery and charge it to between 30 and 50%. Store the battery between 5 and 25 °C away from sunlight. Clean the mower, fold the handle and store it in a dry, locked place. Disconnect the charger from the outlet.

Why does the mower stop while in use?

This may be due to a low battery (charge it), overheating (let it cool for 30 minutes) or blade obstruction (remove accumulated grass). Also check that the handle is properly locked.

Can I use the mower without the grass bag?

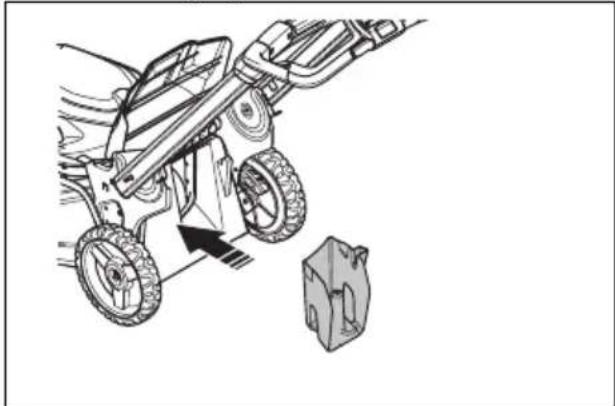

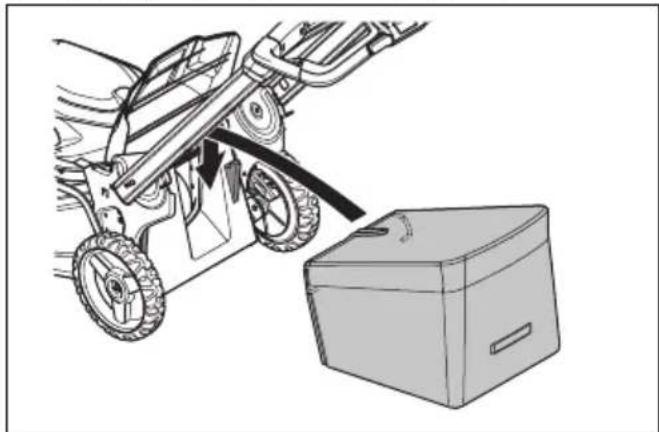

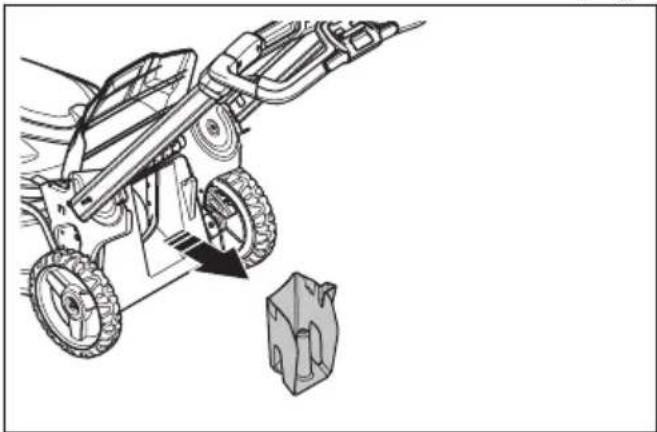

Yes, you can use the mower in rear discharge or mulching mode. For mulching mode, install the mulching plug and close the rear flap. For rear discharge, install the discharge chute.

USER MANUAL LE 322R HUSQVARNA

Two symbolic icons: a warning triangle with an exclamation mark and an open book with blank pages (no text or symbols present)

Husqvarna®

Silhouette of a lawn mower (no text or symbols)

LE 322R

EN Operator's manual 2-26

Transportation, storage and disposal.... 23

Technical data.... 24

Introduction

Product description

The product is a pedestrian-controlled rotary lawn mower. The grass is collected in a grass catcher. Remove the grass catcher to get rear discharge of the grass or attach a mulch blade to cut the grass into fertilizer.

Intended use

Use the product to cut grass. Do not use the product for other tasks.

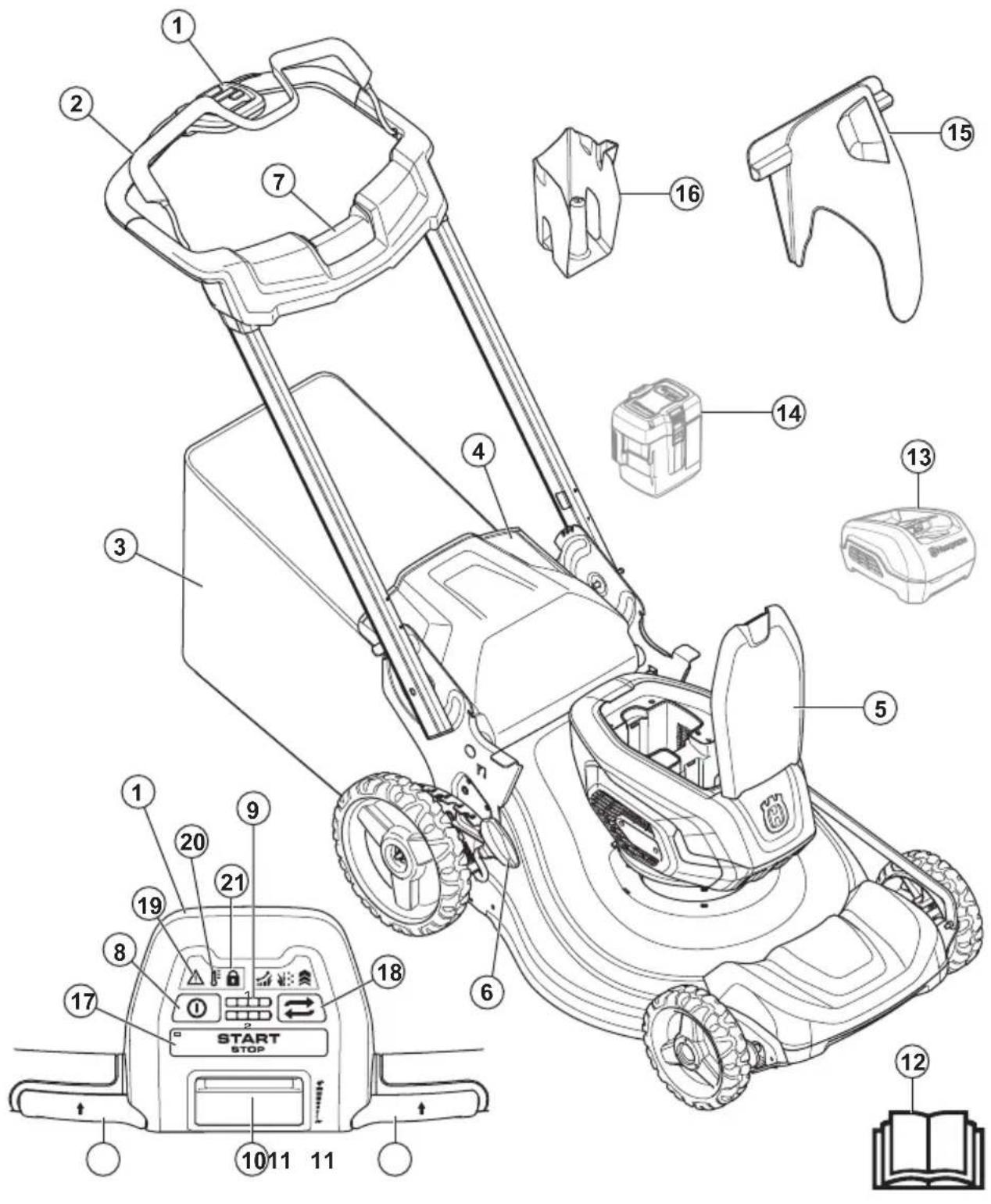

Technical diagram of a lawn mower with numbered parts and control panel labels

1. Control panel
2. Motor brake handle
3. Grass catcher
4. Rear cover

5. Battery cover

6. Cutting height control

7. Handle release button
8. ON/OFF button
9. Battery charge indicator

10. Speed adjustment control

11. Drive control button

12. Operator's manual
    13.Battery charger (if equipped)
    14.Battery 2X (if equipped)
    15.Discharge chute
    16.Mulch plug
    17.Blade start/stop button
    18.Cut mode button
    19.Error LED
13. High temperature indicator
14. Locked blade indicator

Symbols on the product

This product can be dangerous and cause serious injury or death to the operator or others. Be careful and use the product correctly.

Please read the operator's manual carefully and make sure that you understand the instructions before use.

Keep persons and animals at a safe distance from the work area.

Use approved hearing protection.

Look out for thrown objects and ricochets.

Keep hands and feet away from the rotating blade.

Be careful when you operate the product rearward. Look behind and down for small children, animals or other risks that can cause you to fall.

To operate the product on a slope can be dangerous.

Keep hands and feet away from rotating parts.

Do not expose to rain

Release motor brake handle to stop.

Slow

Fast

Scannable code.

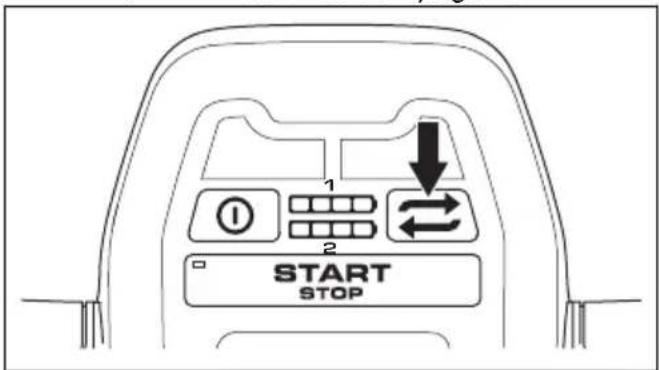

Cut mode.

Mode 1: Sensing.

Mode 2: Mulching / High quality.

Mode 3: Max power.

Note: Other symbols/decals on the product refer to certification requirements for some markets.

DANGER KEEP HANDS AND FEET AWAY GARDEZ LES MAINS ET LES PIEDS À DISTANCE MANTENGA LAS MANOS Y LOS PIES A DISTANCIA

WARNING

This product contains or emits a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.

AVOID SERIOUS INJURY OR DEATH

• Read the operator's manual. Go across slopes, not up and down. Do not mow when children or others are around.
• Look down and behind before and while moving. Remove objects that could be thrown by the blade.
• Keep safety devices (guards, shields, switches, etc.) in place and working.
• To reduce risk of electric shock, do not expose unit to water or operate unit on wet ground.
• Remove the batteries before opening, cleaning or changing accessories.
  · To reduce the risk of injury, do not operate without guards in place.
  · To reduce the risk of injury, inspect catcher assembly frequently and replace with recommended replacement if there are signs of wear or deterioration.
  Keep hands and feet away – rotating blade hazard. Keep bystanders and children away.
• Remove battery pack when not in use.
• For use only with Husqvarna BLi22 or BLi30 battery.

DANGER DE BLESSURES GRAVES OU MORTELLES

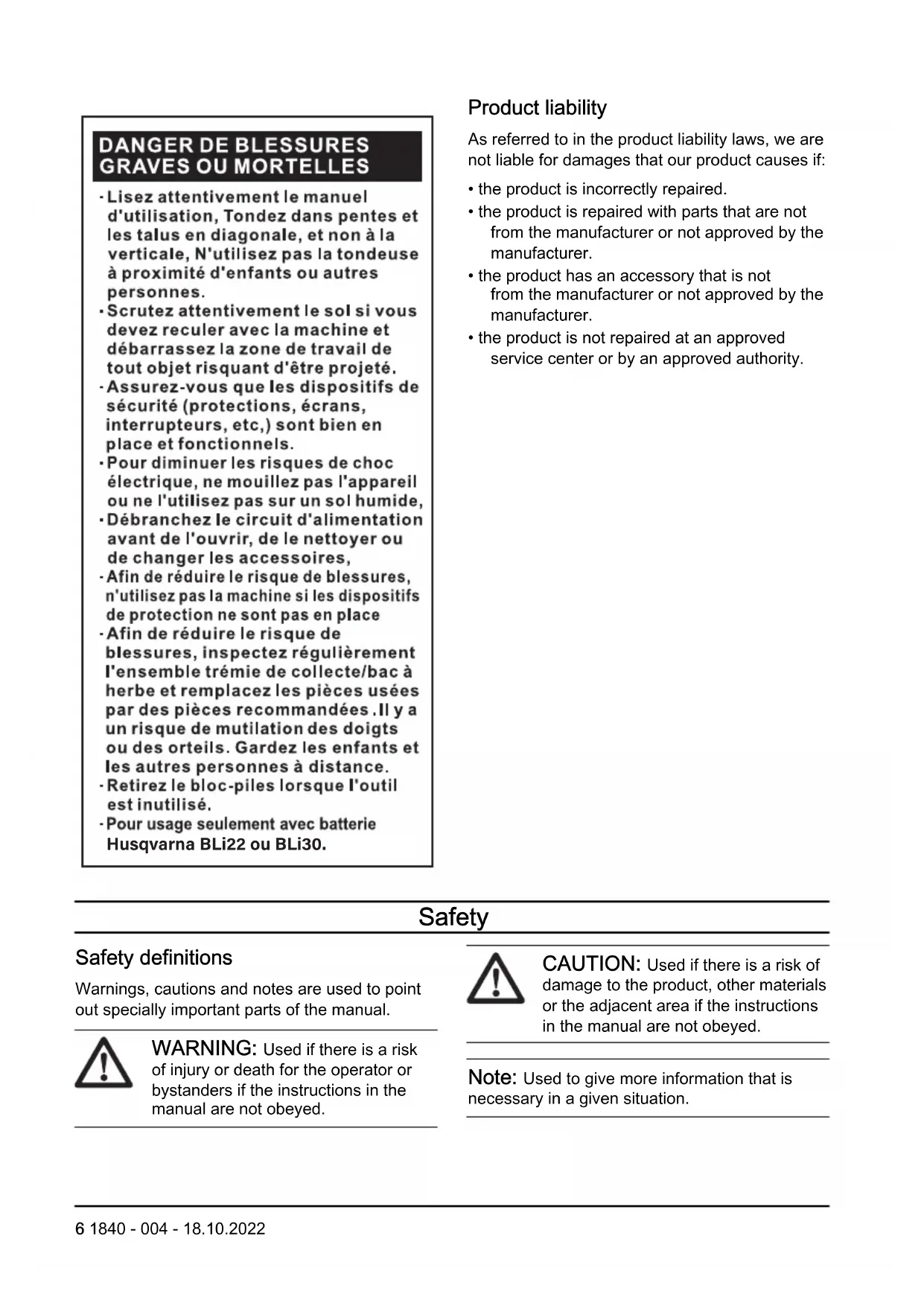

As referred to in the product liability laws, we are not liable for damages that our product causes if:

• the product is incorrectly repaired.
- the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.
• the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service center or by an approved authority.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

Safety instructions

WARNING: When using electric lawn mowers, basic safety precautions should always be followed to prevent electrical shock and personal injury, including the following:

• Read all instructions.
• Avoid dangerous environments. Do not operate the product in damp or wet locations.
• Do not operate the product in the rain.
• Keep children away. All visitors should be kept at a safe distance from the work area.
• Dress properly. Do not wear loose clothing or jewelry than can be caught in moving parts. Use rubber gloves and footwear when working outdoors.
• Use safety glasses. Always use a face mask or dust mask if operation is dusty.
• Do not use the product for any job except that for which it is intended.
• Do not force the product. It will do the job better and safer at the rate for which it was designed.
• Do not overreach. Keep proper footing and balance at all times.
• Stay alert. Watch what you are doing. Use common sense. Do not operate the product when you are tired.
• When not in use, the product should be stored in an indoor dry and locked-up place out of reach of children.
• Maintain the product with care. Keep the cutting edges sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories. Keep handles dry, clean, and free from oil and grease.
• Keep guards in place and in working order.
• Keep blades sharp.
• Keep hands and feet away from cutting area.
• Objects struck by the lawn mower blade can cause severe injuries to persons. The lawn should always be carefully examined and cleared of all objects prior to each mowing.

• If any foreign object is hit or if vibrations occur, obey these instructions: Switch off the motor and remove the battery. Inspect the product for damage. Repair any damage or contact an authorized service agent.

• Use identical replacement blades only.

• The product can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.
• Keep in mind that the operator is responsible for accidents or hazards occurring to other people or their property.
• The product must be kept clean. Signs and stickers must be fully legible.
• It is not possible to cover every conceivable situation you can face. Always exercise care and use your common sense. If you get into a situation where you feel unsafe, stop and seek expert advice. Contact your dealer, service agent or an experienced user. Do not attempt any task that you feel unsure of!
• Do not let a child operate the product.
• Do not let a person, without knowledge of the instructions, operate the product.
  • Always monitor a person, with decreased physical capacity or mental capacity, that uses the product. A responsible adult must always be there.
• Never use the product if you are fatigued, while under the influence of alcohol or drugs, medication or anything that could affect your vision, alertness, coordination or judgment.
• Unauthorized modifications and/or accessories may lead to serious injury or death to the user or others. Under no circumstances may the design of the product be modified without the permission of the manufacturer.
• Do not modify this product or use it if it appears to have been modified by others.
• Never use a product that is faulty. Carry out the safety checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. See instructions in the section Safety instructions for maintenance on page 10.
  • Always use original accessories.

Work area safety

• Remove branches, twigs, stones and other objects from the lawn before you start to cut.

• Keep persons, including children, and animals at a safe distance from the work area.

• Objects that hit against the cutting equipment can be ejected and cause damage to persons and objects.

• Do not use the product in bad weather, including fog, rain, moist or wet locations, strong winds, intense cold and risk of lightning. Doing work in bad weather can cause fatigue and dangerous conditions, such as slippery surfaces.
• Examine your work area to make sure that your control of the product cannot be prevented.
• Be careful of roots, stones, twigs, pits and ditches. High grass can conceal obstacles.
• Do not operate the product on slopes that are more than 15 degrees.
• Operate the product along slopes. Do not move up and down the slope.
• Be careful when you go near hidden corners and objects that can prevent your view.

Work safety

WARNING: Read the warning instructions that follow before you use the product.

• Use this product to cut grass lawns only. It is not permitted to use it for other tasks.
• Use personal protective equipment. See Personal protective equipment on page 8.
• Do not operate the product in rain or wet conditions. The risk of electrical shock increases if water enters the product.
• Do not operate the product unless the blade and all covers are attached correctly. An incorrectly attached blade can come loose and cause personal injury.
• Make sure that the blade does not hit objects such as stones and roots. This can do damage to the blade and bend the motor shaft. A bent axle causes heavy vibration and a very high risk that the blade becomes loose.
• If the blade hits an object or if vibrations occur, stop the product immediately. Stop the motor, turn the safety key to 0 and remove the battery. Examine the product for damages. Repair damages or let an authorised service agent do the repair.

• Never attach the motor brake handle permanently to the handle when the motor is started.

• Put the product on a stable, flat surface and start it. Make sure that the blade does not hit the ground or other objects.
  • Always stay behind the product when you operate it.

• Let all the wheels stay on the ground and keep 2 hands on the handle when you operate the product. Keep your hands and feet away from the rotating blades.
• Do not tilt the product when the motor is started.
• Be careful when you pull the product rearward.
• Never lift up the product when the motor is started. If you must lift the product, first stop the motor and remove the battery.
• Do not walk rearward when you operate the product.
• Stop the motor when you move across areas without grass, for example paths made of gravel, stone and asphalt.
• Do not run with the product when the motor is started. Always walk when you operate the product.
• Stop the motor before you change the cutting height. Never make adjustments with the motor started.
• Never let the product stay out of view with the motor started. Stop the motor and make sure that the cutting equipment does not rotate.

Safety instructions for operation

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

• Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.
• Use hearing protection if the noise level is higher than 85 dB.
• Use heavy-duty slip-resistant boots or shoes. Do not use open shoes or go with bare feet.
• Use heavy, long pants.
• Use protective gloves when necessary, for example when you attach, examine or clean the cutting equipment.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

• Do not use a product with defective safety devices.
• Do a check of the safety devices regularly. If the safety devices are defective, speak to your Husqvarna service agent.

To do a check of the cutting cover

The cutting cover decreases vibrations in the product and decreases the risk of injury from the blade.
- Examine the cutting cover to make sure that there are no damages such as cracks.

Grass catcher

The grass catcher prevents injury to the operator from the rotating blade. The grass catcher wears during operation of the product. Regularly examine the grass catcher and replace it if it has damages. Replace only with a grass catcher approved by the manufacturer.

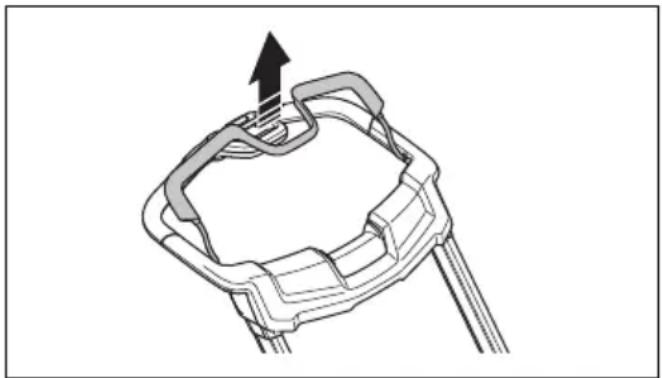

Motor brake handle

The motor brake handle stops the motor. When the motor brake handle is released, the motor stops.

To do a check of the motor brake, start the motor and then release the motor brake handle. If the motor does not stop in 3 seconds, let an approved Husqvarna service agent adjust the motor brake.

Diagram of a hand holding a device with a handle and arrow indicating upward motion (no text or symbols)

Battery and battery charger safety

Read the operator's manual for the battery and the battery charger and make sure that you understand the instructions before you use the product.

Battery safety

WARNING: Read the warning instructions that follow before you use the product.

• Use Husqvarna rechargeable batteries as a power supply for related Husqvarna products only. To prevent injury, do not use the battery as a power supply for other devices.
• Do not use non-rechargeable batteries.
• Risk of electrical shock. Do not connect the battery terminals to keys, coins, screws or other metal. This can cause a short circuit of the battery.
• Handle batteries carefully in order not to cause a short circuit with conducting materials such as rings, bracelets, and keys. The battery or conductor can overheat and cause burn injuries.
• Do not put objects into the air slots of the battery.
• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130 °C / 265 °F may cause explosion.
• Keep the battery away from sunlight, heat or open flame. The battery can explode and cause burns and/or chemical burns.
• Keep the battery away from rain and wet conditions.
• Keep the battery away from microwaves and high pressure.
• Do not try to disassemble or break the battery.
• Do not open or mutilate the battery. Released electrolyte is corrosive and can cause damage to the eyes or skin. It is poisonous if swallowed.
• If the battery leaks, do not let the liquid touch your body or eyes. If you have touched the liquid, clean the area with a large quantity of water and get medical aid.

• Use the battery in temperatures between -10 °C and 40 °C.

• Do not clean the battery or the battery charger with water. See To clean the battery and the battery charger on page 19.

• Do not use a defective or damaged battery.
• Keep batteries in storage away from metal objects such as nails, coins, jewelry.

Battery charger

The battery chargers, QC, are only used for charging of Husqvarna replacement batteries.

- Minimize the risk of electric shock or short circuit as follows: Never insert any object into the charger's cooling slots. Do not try to dismantle the battery charger. Never connect the charger terminals to metal objects. Use approved and intact wall sockets.

- This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

- Regularly check that the battery charger connection wire is intact and that there are no cracks in it.

- Never carry the battery charger using the cord and never pull out the plug by pulling the cord.

- Keep all cables and extension leads away from water, oil and sharp edges. Make sure the cable is not jammed in doors, fences or the like. Otherwise it can cause the charger to become live.

- Never clean the battery or the battery charger with water.

- The battery charger can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not charge non-rechargeable batteries in the battery charger.

• Do not use the battery charger close to corrosive or flammable materials. Do not cover the battery charger. Pull out the plug to the battery charger in the event of smoke or fire.
• Do not use a faulty or damaged battery charger or battery.
• Only charge the battery indoors and protected from direct sunlight and do not charge the battery in any wet conditions.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you use the product.

• To prevent accidental start during maintenance, remove the battery and wait a minimum of 5 seconds.
• Do the maintenance work correctly to increase the lifetime of the product and decrease the risk of accidents. Let an approved service agent do the professional repairs. Speak to your nearest service agent for more information.
• Only do the maintenance work written in this operator's manual. All other maintenance must be done by a service agent.
• Put on heavy duty gloves when you use the cutting equipment. The blade is sharp and cuts can easily occur.
• Keep the cutting edges sharp and clean for the best and safest performance.
• Let your service agent regularly examine the product and make necessary adjustments and repairs.
• Replace damaged, worn or broken parts.
• Obey the instructions of how to change accessories. Only use accessories from the manufacturer.
• When not in operation, keep the product, battery and battery charger apart in a dry, indoor and locked area. Make sure that children and persons that are not approved cannot get access to the product, battery or battery charger.

SAVE THESE INSTRUCTIONS

Assembly

Introduction

WARNING: Before you assemble the product, read the safety chapter.

WARNING: To prevent accidental start during assembly, remove the battery and wait at minimum 5 seconds.

To assemble the grass catcher

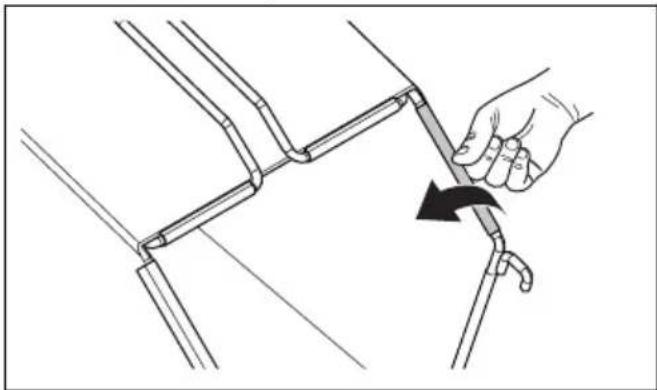

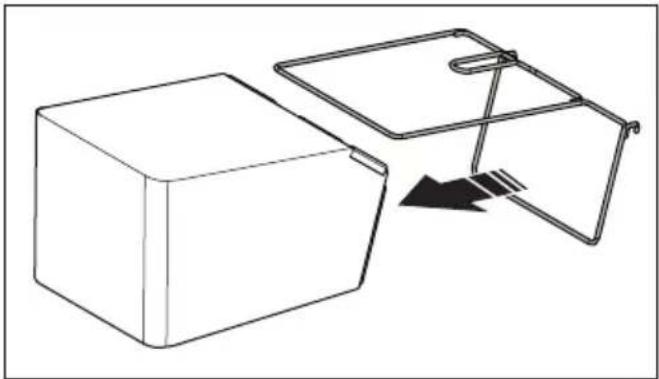

1. Attach the grass catcher frame to the grass bag with the rigid part of the bag on the bottom. Keep the handle of the frame on top of the grass bag.

2. Attach the grass bag to the grass catcher frame with the clips.

Illustration of a hand holding a cable or rod with a black arrow indicating rotation (no text or symbols)

Line drawing of a box and its open lid, showing internal structure with an arrow indicating motion (no text or symbols)

Operation

Introduction

WARNING: Before you operate the product, you must read and understand the safety chapter.

Battery

WARNING: Before you use the battery, you must read and understand the safety chapter. You must also read and understand the operator's manual for the battery and the battery charger.

Battery status

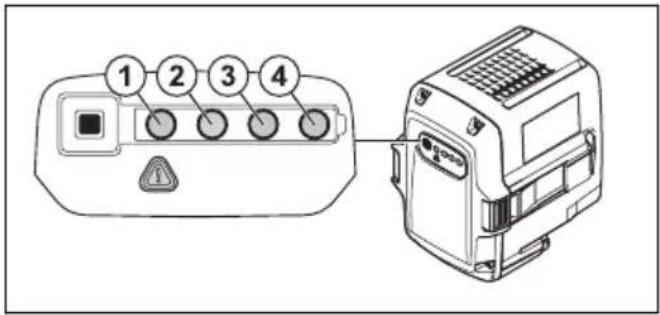

The display shows the remaining battery capacity and if there are problems with the battery. The battery capacity is shown for 5 seconds after the motor brake handle is released. The warning symbol on the battery is on when an error has

occurred. Refer to Battery LED indicator on page 12.

1 2 3 4

Battery LED indicator

The display shows the state of charge and if there are problems with the battery.

LED indicator Battery status (state of charge)
4 LED lights are on N/A The battery is 76% - 100% charged.		ed.
3 LED lights are on The battery is 76% - 100% charged.		The battery is 51% - 75% charged.
2 LED lights are on The battery is 51% - 75% charged. The battery is 26% - 50% charged.
1 LED light is on The battery is 26% - 50% charged. The battery is 6% - 25% charged.
1 LED light flashes The battery is 0% - 25% charged. The battery is 0% - 5% charged.

To install the battery charger on the wall

CAUTION: Do not use an electric screwdriver to install the battery charger to the wall. An electric screwdriver can cause damage to the battery charger.

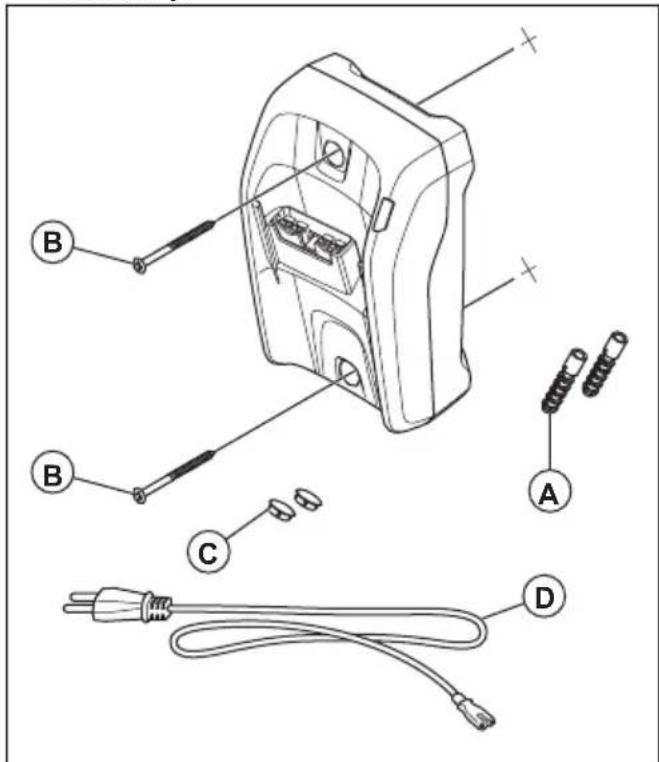

1. Install the battery charger on the wall with the 2 screws (B). Use wall plugs (A) if it is necessary.

Technical diagram of a device with labeled parts including power plug, cable, and terminal connectors

1. Install the 2 screw hole plugs (C).

2. Connect the power cord to the battery charger and a mains socket.

To charge the battery

CAUTION: Make sure that the battery, the battery charger and the terminals on the battery are clean and dry. Do not put the battery in the battery charger if it is dirty or wet.

1. Connect the battery charger to a power outlet. The charging LED flashes red 1 time and green 1 time.

CAUTION: Only connect the battery charger to a power outlet with the voltage and frequency specified on the rating plate.

1. Connect the battery to the battery charger. The charging LED comes on.
2. Remove the battery from the battery charger when it is fully charged. Push the battery indicator button for battery status. When all the LED indicators come on, the battery is fully charged.
3. Pull the power plug to disconnect the battery charger from the power outlet. Do not pull the power cord.

Battery charging status

A Husqvarna Li-ion battery can be charged or used at all charging levels. The battery is not damaged. A fully charged battery will not decrease its charge when the battery is left in the charger.

LED display Charging status
LED 1 flashes 0%-25%
LED 1 is lit, LED 2 flashes	25%-50%
LED 1, LED 2 are lit, LED 3 flashes	50%-75%
LED 1, LED 2, LED 3 are lit, LED 4 flashes	75%-100%
LED 1, LED 2, LED 3, LED 4 are lit	Fully charged

To set the product in operation position

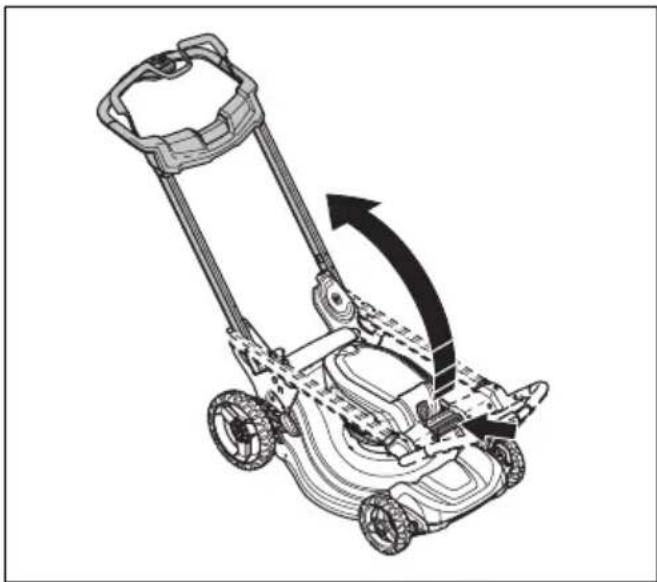

1. Push and hold the release button.

Technical line drawing of a lawn mower with directional arrow indicating motion (no text or symbols)

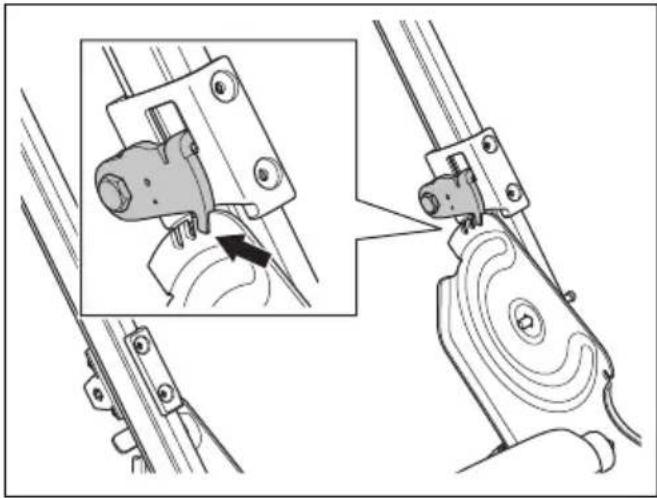

1. Lift the handle to upright position until the latches go into the one of the slots on the handle support.

Technical illustration of a mechanical clamp or bracket assembly with an inset showing a close-up of the component (no text or symbols present)

Note: Before use, please make sure that the latch is in the slot of the support plate.

1. Release the handle release button.

To set the cutting height

The cutting height can be adjusted in 7 levels.

1. Move the cutting height lever out and reward to increase the cutting height.

Mechanical assembly diagram showing a wheel, tire, and gear components (no text or labels)

1. Move the cutting height lever out and forward to decrease the cutting height.

CAUTION: Do not set the cutting height too low. The blades can hit the ground if the surface of the lawn is not flat.

To use the product with the grass catcher

WARNING: Do not operate the product without a grass catcher installed or without the rear cover closed. Objects can eject and cause injury to the operator.

1. Lift the rear cover and remove the mulch plug.

Technical line drawing of a mechanical tool with motion arrows indicating movement (no text or symbols)

1. Assemble the grass catcher, refer to To assemble the grass catcher on page 11.

2. Put the grass catcher on the bracket.

Line drawing of a manual lawn mower with a box nearby (no text or symbols)

1. Release the rear cover and put it on top of the grass bag frame.

To change the product to mulching mode

The mulching mode of the product makes grass clippings smaller. The grass clippings then fall onto the lawn and scatter across the grass. Mulched grass biodegrades quickly to give nutrients for the lawn.

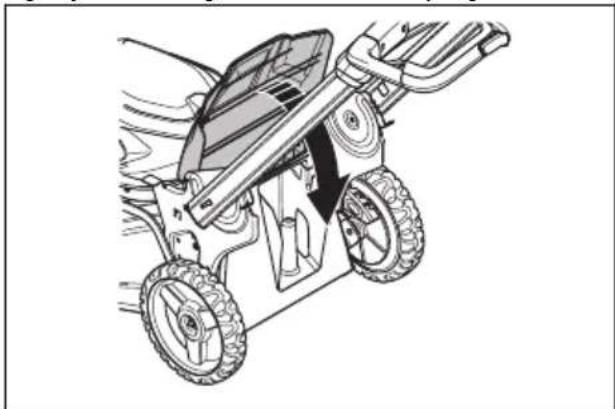

1. Lift the rear cover and remove the grass bag, if it is installed.
2. Put the mulch plug into the collector channel.

Technical line drawing of a mechanical assembly with wheels and a moving part (no text or symbols)

1. Let the rear cover close and make sure it tightly closes against the mulch plug.

Diagram of a lawn mower with visible blades and wheels, showing motion direction (no text or symbols)

To change the product to rear-side discharge mode

1. Lift the rear cover and remove the mulch plug.

Technical line drawing of a mechanical tool with motion arrows indicating movement (no text or symbols)

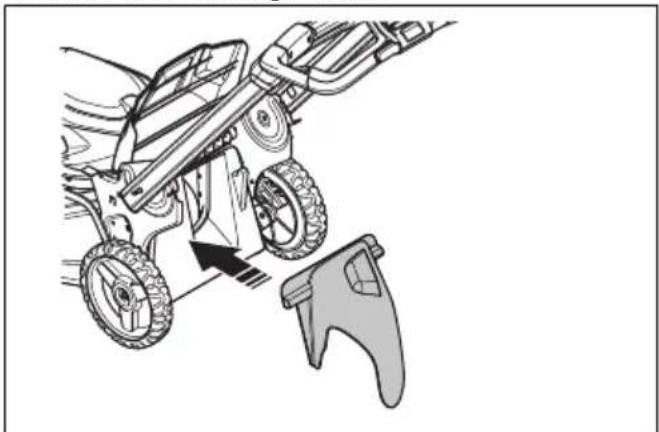

1. Install the discharge chute.

Technical line drawing of a mechanical device with wheels and a handle, showing no text or symbols

1. Release the rear cover and put it on top of the discharge chute.

To cut grass without a grass catcher or mulch plug attached

• Lift up the rear cover and remove the grass catcher.
• If a mulch plug is attached, remove it.
• Close the rear cover before you operate the product.

When you operate the product, the cut grass discharges below the rear cover.

To start the product

1. Put a charged battery in battery compartment number 1 below the battery cover. For longer operation time, put a second charged battery in battery compartment number 2.
2. Close the battery cover.

Note: Always keep the battery cover closed during operation.

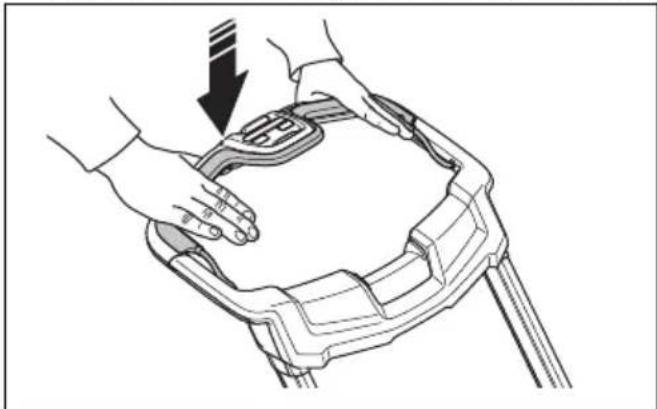

1. Stay behind the product.

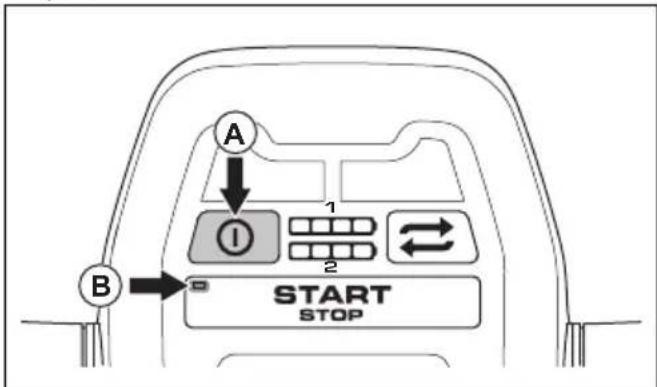

2. Push the ON/OFF button (A) on the control panel.

A B 1 2 START STOP

1. Push the motor brake handle in the direction of the handlebar. The green LED (B) flashes.

Illustration of hands holding a device with a downward arrow indicating motion (no text or symbols)

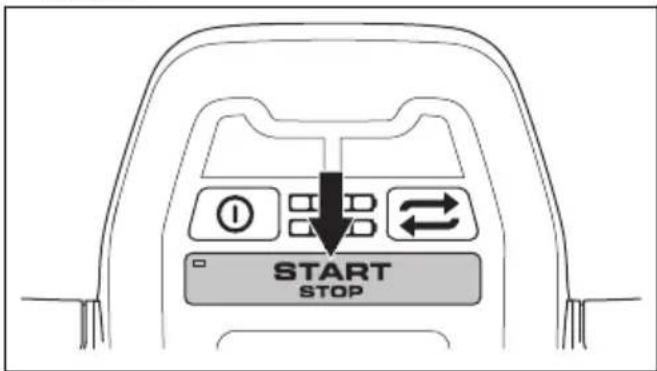

1. Push the blade start/stop button to start the blades.

START STOP

To use the drive on the wheels

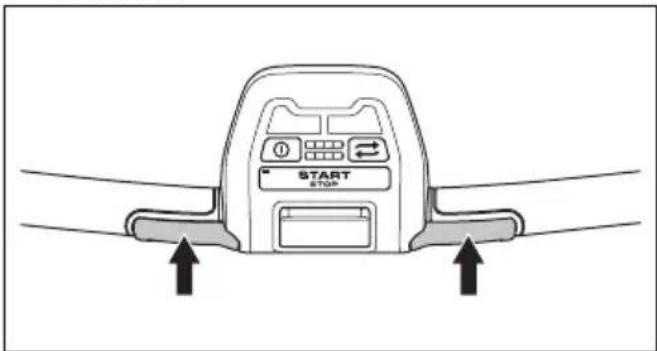

1. Push the drive control buttons on the handlebar.

START STOP

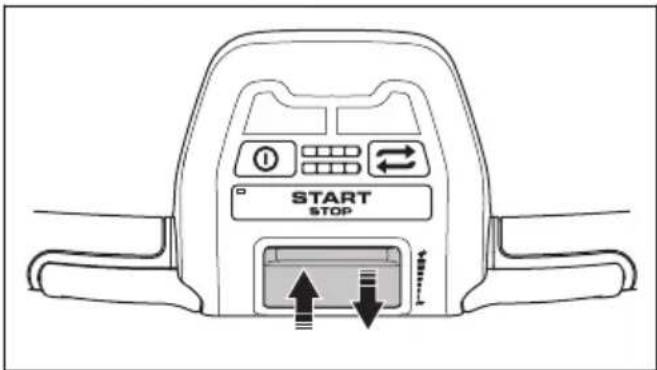

1. Move the drive speed control to set the drive speed. Move the drive speed control down for slower speed. Move the drive speed control up for faster speed.

START STOP

1. Release the drive control buttons to disengage the drive, for example when you go near an obstacle.

To stop the product

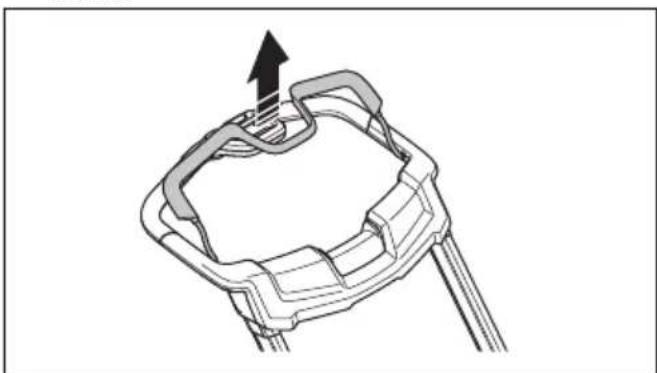

1. Release the motor brake handle to stop the motor.

Diagram of a mechanical component with an arrow indicating upward motion (no text or symbols present)

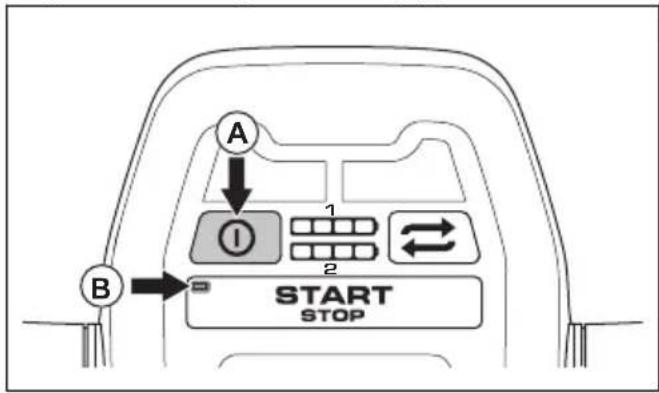

1. Press the ON/OFF button (A) on the control panel and the green LED (B) goes out.

A B 1 2 START STOP

Note: The control panel is automatically set to OFF if you do not operate the product or push buttons for 2 minutes.

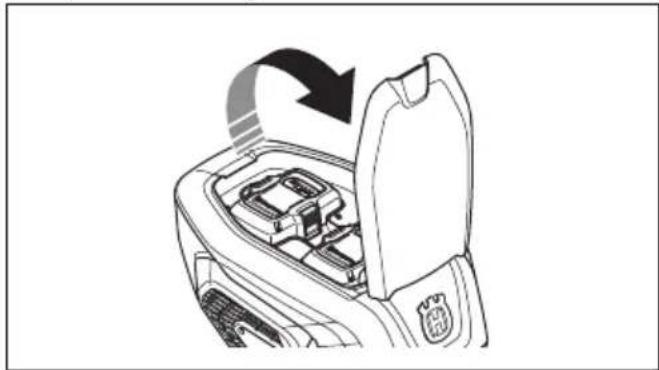

1. Open the battery lid.

Diagram of a car interior showing the seat, dashboard, and gear shift (no text or symbols)

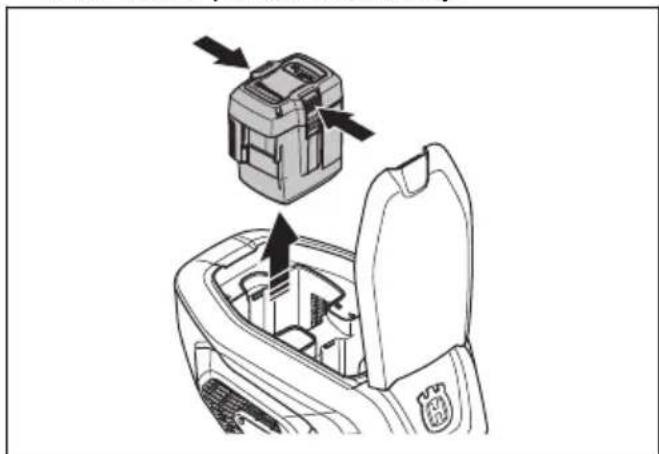

1. To remove the battery, push the 2 release buttons and pull out the battery.

Diagram of a car interior showing a device being inserted into a seatbelt, with no visible text or symbols.

1. Charge the battery if it is weak. For more information, refer to. To charge the battery on page 13.

To get a good result

• Always use a sharp blade. A blunt blade gives an irregular result and the cut surface of the grass becomes yellow. A sharp blade also uses less energy than a blunt blade.

• Do not cut more than 13 of the length of the grass. Cut first with the cutting height set high. Examine the result and lower the cutting height to an applicable level. If the grass is very long, drive slowly and cut 2 times if necessary.
• Cut in different directions each time to prevent stripes in the lawn.
• Keep the cutting cover clean. Buildup from grass and dirt on the inner side of the cutting cover can decrease the cutting result. Refer to To clean the product on page 19.

To set the cut mode

The product can be set to a cut mode. You can select between 3 cut modes for the product, refer to Symbols on the product on page 4.

Note: When the product is in operation, it is automatically set to Mulching/High quality mode.

Note: When the battery is weak, the product operates in Sensing mode.

1. Start the product, refer to To start the product on page 15.
2. Press the cut mode button to change the cut mode, refer to Cut mode on page 18

1 2 START STOP

Grass type	Cut Amount (cm/in)	Operation mode
		Mulch plug Discharge	ge chute Grass catcher	er
Thin or dry	< 2.54/1.00 Sensing	Sensing Sensing
	2.54/1.00	Mulching/High Qu- lity	Sensing Sensing
	3.81/1.50	Mulching/High Qu- lity	Sensing	Mulching/High Qu- lity
	5.08/2.00 Not recommended Sensing			Mulching/High Qu- lity
	> 5.08/2.00 Not recommended		Mulching/High Qu- lity	Not recommended
Thick or wet	< 2.54/1.00 Sensing	Sensing Sensing
	2.54/1.00	Mulching/High Qu- lity	Sensing	Mulching/High Qu- lity
	3.81/1.50 Max power Sensing			Mulching/High Qu- lity
	5.08/2.00 Not recommended		Mulching/High Qu- lity	Mulching/High Qu- lity
	> 5.08/2.00 Not recommended Max power		er Not recommended

Maintenance

Introduction

WARNING: Before you do maintenance, you must read and understand the safety chapter.

availability of professional repairs and servicing. If your dealer is not a service agent, speak to them for information about the nearest service agent.

For all servicing and repair work on the product, special training is necessary. We guarantee the

Maintenance schedule

The maintenance intervals are calculated from daily use of the product. The intervals change if the product is not used daily.

For maintenance identified with * refer to instructions in Safety on page 6.

	Each use	Monthly	Each season
Do a general inspection. X
Clean the product. X
Clean or replace the filter X
Make sure that the safety devices on the product are not defective. * X
Examine the cutting equipment. X
Examine the cutting cover * X
Do a check of the motor brake handle * X
Make sure that the ON/OFF button operates correctly and is not defective.	X
Examine the battery for damage. X
Do a check of the battery charge. X
Make sure that the release buttons on the battery operate correctly and that the battery locks into the product.	X
Examine the battery charger for damage and make sure that it operates correctly.		X
Examine the connections between the battery and the product. Also examine the connection between the battery and the battery charger.			X

To do a general inspection

• Make sure that the nuts and screws on the product are tightened.
• Make sure that the cables on the product are not in a position where they can get damaged.

To clean the product

• Clean plastic parts with a clean and dry cloth.
• Do not use water to clean the product. Water can enter the battery or the motor and cause short circuit or damage to the product.
• Do not use a high pressure washer to clean the product.
• Do not flush water directly on the motor.
• Use a brush to remove leaves, grass and dirt.

To clean the battery and the battery charger

WARNING: Do not clean the battery or the battery charger with water.

• Make sure that the battery and the battery charger are clean and dry before you put the battery into the battery charger.
• Clean the battery terminals with compressed air or use a soft and dry cloth.
• Clean the surfaces of the battery and the battery charger with a soft and dry cloth.

To examine the cutting equipment

WARNING: To prevent accidental start, remove the battery and wait a minimum 5 seconds.

WARNING: Use protective gloves when you do maintenance on the cutting equipment. The blade is sharp and cuts can easily occur.

1. Examine the cutting equipment for damage or cracks. Always replace a damaged cutting equipment.
2. Look at the blade to see if it is damaged or blunt.

Note: It is necessary to balance the blade after it is sharpened. Let a service center sharpen, replace and balance the blade. If you hit an obstacle that causes the product to stop, replace the damaged blade. Let the service center estimate if the blade can be sharpened or must be replaced.

To replace the blade

Refer to Technical data on page 24 for the correct type of blade.

WARNING: Lock the blade with a block of wood to prevent injury to fingers when you replace the blade. The blade can be moved when the motor is off and fingers can become trapped between the blade and stationary parts.

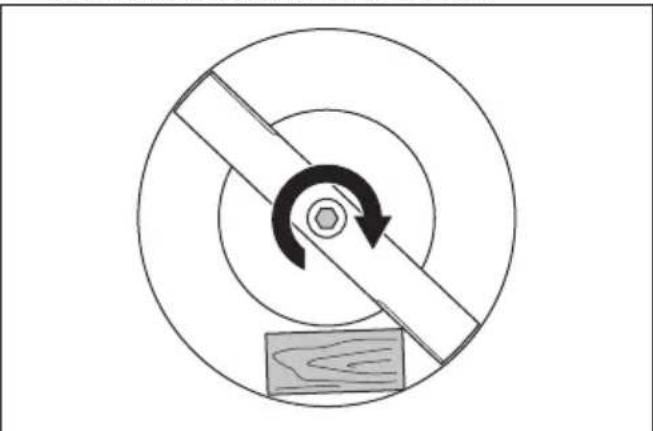

1. Lock the blade with a block of wood.

Diagram of a circular mechanical or electrical component with concentric rings and a central rotating arrow, featuring a wooden block at the base (no text or symbols)

1. Remove the blade bolt.

2. Remove the blade.

3. Examine the blade support and blade bolt to see if there are damages.
4. Examine the motor shaft to make sure that it is not bent.

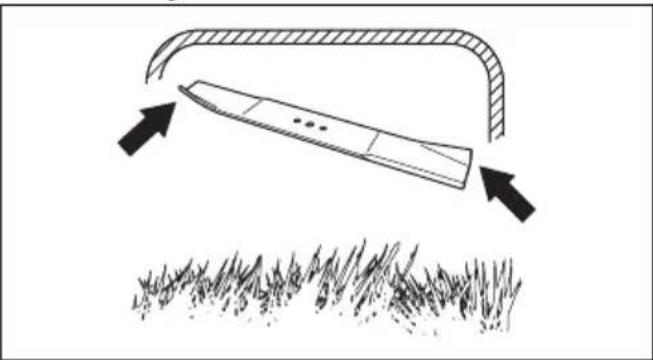

5. When you attach the new blade, point the angled ends of the blade in the direction of the cutting cover.

Diagram showing a blade cutting through a curved structure with arrows indicating direction, above grass (no text or symbols)

1. Make sure that the blade is aligned with the center of the motor shaft.
2. Lock the blade with a block of wood. Attach the spring washer and tighten the bolt and washer with a torque of 48-54 Nm.

Diagram of a circular mechanical or electrical component with a diagonal bar and circular arrow, featuring a wooden block at the base (no text or symbols)

1. Pull the blade around by hand and make sure that it turns freely.

WARNING: Use heavy duty gloves. The blade is very sharp and cuts can easily occur.

1. Start the product to do a test of the blade. If the blade is not correctly attached, there is vibration in the product or the cutting result is unsatisfactory.

To clean the air filter

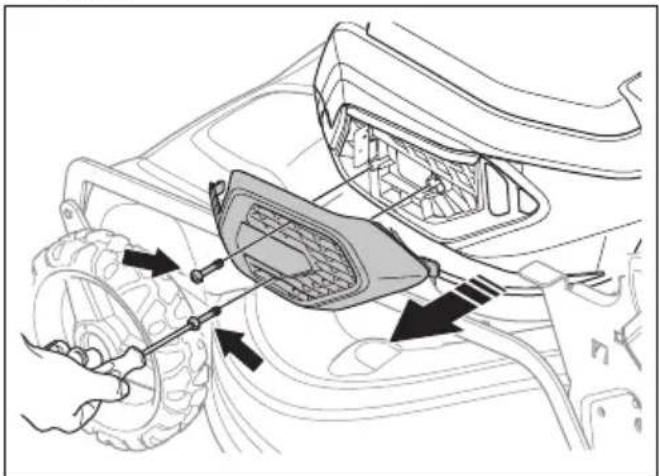

1. Remove the screws to remove the air filter cover.

Technical diagram of a car's internal components with arrows indicating assembly or repair (no text or symbols present)

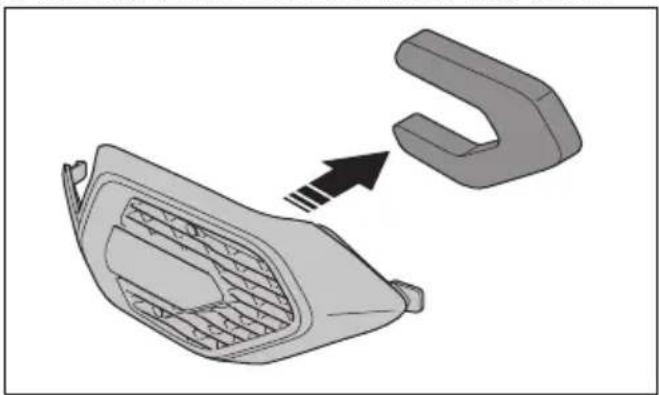

1. Remove the air filter from the air filter cover.

Diagram showing a car intake manifold being cut with an arrow indicating the cut (no text or symbols present)

1. Examine the air filter for damages. Replace a damaged air filter.

2. Wash the air filter with a warm soap water solution.

CAUTION: Do not use solvent or compressed air to clean the air filter.

1. Let the air filter dry fully.

2. Install the air filter and air filter cover.

Troubleshooting

Lawn mower

Problem Cause Solution
The drive on the wheels does not operate correctly.	The transmission is too hot. Put the product in a cool area away from open sunlight. Wait at minimum 30 minutes to let the product become cool before you start the product again.

Battery

LED on the battery Cause Solution
The green LED flashes.		The battery voltage is low. Charge the battery. Refer to battery on page 13. To charge the
LED on the battery Cause Solution
The error LED flash-es.	The battery is weak. Charge the battery. Refer to battery on page 13.
	The temperature in the work environment is too high or too low.	Use the battery in temperatures between -10°C and 40°C.
	Overvoltage. Make sure that the mains voltage is the same as on the rating plate on the product.
			Remove the battery from the battery charger. Wait 5 seconds and try again to charge the battery. If the problem continues, speak to an approved service agent.
The error LED is on.	The cell difference too much (1V).	Speak to an approved service agent.

Battery charger

LED on the battery charger	Cause Solution
The error LED flashes.	The temperature in the work environment is too high or too low.	Use the battery charger in temperatures between 5°C and 40°C.
The error LED is on.		Speak to an approved service agent.

Control panel

If you cannot find a solution to the problem, speak to your Husqvarna service agent.

Keypad Possible faults	Possible action
Error LED flashes The	handle is not fully expanded and locked in the operation position.	Fully extend the handle and lock it in the operation position. Refer toTo set the product in operation position on page 13 After this step, push the ON/OFF button to make the error LED go out.
	Low battery power. Charge the battery.	Refer toTo charge the battery on page 13 After this step, push the ON/OFF button to make the error LED go out.
	There is overload in the motor. In	Increase the cutting height. Refer toTo set the cutting height on page 13. After this step, push the ON/OFF button to make the error LED go out.
		Remove grass blockage around the blade. Remove the battery and manually remove the grass.
	Battery error or no signal from the battery.	Put the battery in the product correctly. Refer toTo start the product on page 15. After this step, push the ON/OFF button to make the error LED go out.
		Replace the battery. Refer toTo start the product on page 15. After this step, push the ON/OFF button to make the error LED go out.
Error LED stays on Servicing or repair of the product is necessary.		Stop the product immediately and speak to your Husqvarna service agent.
High temperature indicator	The motor control is too hot. Stop	the motor and wait until it has become cool.
The product stops The battery is weak. Charge the battery. Refer toTo charge the battery on page 13.

Transportation, storage and disposal

Introduction

WARNING: To prevent accidental start during transport, remove the battery and wait a minimum of 5 seconds.

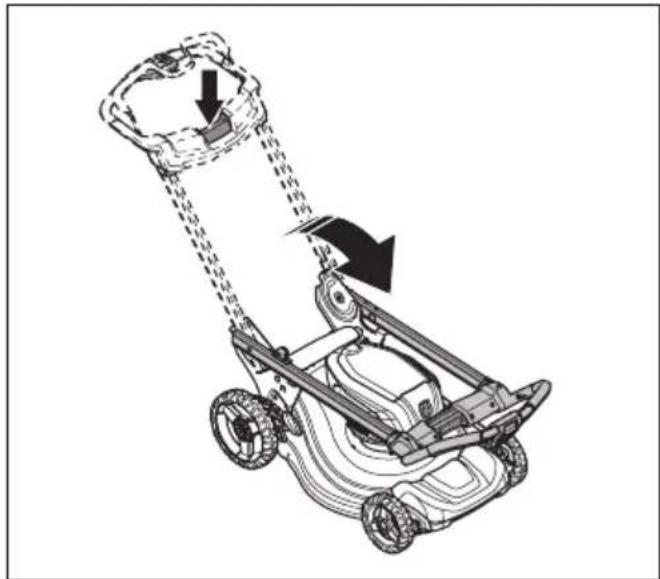

To set the product in transport position

1. Remove the grass catcher (if installed).

2. Push and hold the handle release button.

Line drawing of a lawn mower with motion arrows indicating movement (no text or symbols)

1. Fold the handle.

Transportation

• The Dangerous Goods Legislation requirements apply to the contained Li-ion batteries.
- For commercial transports special requirements on package and labels must be obeyed.
• Make sure that you obey the regulations for dangerous material when you prepare the product for transport. Local regulations can apply.
• Always remove the battery for transport.
- Put tape on the battery connectors and make sure that the battery cannot move around during transport.
- Attach the product during transport.

Storage

• Always remove the battery for storage.
• To prevent accidents, make sure that the battery is not connected to the product during storage.

• Keep the battery charger in a closed and dry space.
• Keep the battery and the battery charger in a dry space where there is no moisture or frost.
• Disconnect the battery from the battery charger during storage.
• Do not keep the battery where static electricity can occur. Do not keep the battery in a metal box.
• Keep the battery where the temperature is between 5^ and 25^ and out of sunlight.
• Keep the battery charger where the temperature is between 5^ and 45^ and out of sunlight.
  • Make sure that the battery is charged to 30% - 50% before you put it in storage for long periods.
• Keep the product, battery and battery charger in a locked area out of reach for children and not approved persons.
• Clean the product and do a complete servicing before you put the product in storage for a long time.

Disposal

The product must be submitted to an appropriate recycling station for the recovery of electrical and electronic equipment.

By ensuring that this product is taken care of correctly, you can help to counteract the potential negative impact on the environment and people that can otherwise result through the incorrect waste management of this product. For more detailed information about recycling this product, contact your municipality, your domestic waste service or the shop from where you purchased the product.

Technical data

Technical data
	LE 322R
Cutting motor
Motor type BLDC (brushless) 36V
Motor speed – Sensing mode, rpm 2600-2900	LE 322R
Motor speed – Mulching / high quality mode, rpm 3000-3300
Motor speed – Maximum power mode, rpm 3400
Motor output – max. kW (HP) 2.1 (2.9)
Motor output – Nominal, kW (HP) 1.25 (1.7)
Overcurrent limit – 1 battery, (Current limit: 900W-35A) 45A (+/-) 1A
Overcurrent limit – 2 batteries, (Current limit: 900W-35A) 75A (+/-) 1A
Drive motor
Motor output – Nominal, kW (HP) 0.2-0.4 (0.27-0.55)
Self walk speed, km/h (mph) 0–6.4 (0-4)
Speed adjustment levels 9
Weight
Weight without battery (Grass catcher included), kg (lb) 34.3 (75.6)
Battery ^2
Type of battery Husqvarna Battery Series
Battery runtime
Battery runtime, max, (free run) with Sensing mode activated, with two Husqvarna 7.5 Ah batteries (BLi30).	75
Cutting
Cutting height, in / cm 1.3-4.5 / 3.3-11.4
Cutting width, in / cm 20.2 / 51.3
Blade Mulch 5375821-41
Bagger capacity, litre 65

Approved batteries Type Battery capacity		ty, Ah	Voltage, V	Weight, lb/kg
BLi30	Lithium-ion	7.8	36	4.2/1.9
BLi22	Lithium-ion	4.0	36	2.65/1.2

Approved chargers for the specified batteries, BLi Input voltage, V	Frequency, Hz	Power, W
40-C80 100–240 50–60 80
QC250 100-240 50–60 250

Distributor

Husqvarna Professional Products, Inc.

Charlotte, NC 28269

Support / Help

If you require assistance or have questions concerning the application, operation, maintenance or parts for your product:

• Visit our website: www.husqvarna.com
  • Call Us Toll Free: 1-800-487-5951

Contenido

Introducción.... 27

Seguridad.... 31

Montaje.... 36

Technical diagram of a lawn mower with numbered parts and control panel labels

• Read the operator's manual. Go across slopes, not up and down. Do not mow when children or others are around.
• Look down and behind before and while moving. Remove objects that could be thrown by the blade.
• Keep safety devices (guards, shields, switches, etc.) in place and working.
• To reduce risk of electric shock, do not expose unit to water or operate unit on wet ground.
• Remove the batteries before opening, cleaning or changing accessories.
  · To reduce the risk of injury, do not operate without guards in place.
• To reduce the risk of injury, inspect catcher assembly frequently and replace with recommended replacement if there are signs of wear or deterioration. Keep hands and feet away – rotating blade hazard. Keep bystanders and children away.
• Remove battery pack when not in use.
• For use only with Husqvarna BLi22 or BLi30 battery.

DANGER DE BLESSURES GRAVES OU MORTELLES

Diagram of a mechanical component with an arrow indicating upward motion (no text or symbols present)

Line drawing of two 3D boxes with a handle and a separate open box, showing internal structure (no text or symbols)

Illustration of a hand holding a pipe fitting with a black arrow indicating rotation (no text or symbols)

Funcionamiento

Introducción

Diagram of a device with labeled parts including probes, connectors, and cable, marked with letters A, B, C, D.

Technical line drawing of a lawn mower with directional arrows indicating motion (no text or symbols)

Technical illustration of a mechanical clamp or bracket assembly with an inset showing a close-up of the component (no text or symbols present)

Mechanical assembly diagram showing a wheel, tire, and gear components (no text or labels)

Technical line drawing of a lawn mower with a gear shift and mounting bracket (no text or symbols)

Line drawing of a manual lawn mower with a box nearby (no text or symbols)

Technical line drawing of a wheeled cart with wheels and a moving box, no text or symbols present

Diagram of a lawn mower with visible blades and wheelbase, showing motion direction (no text or symbols)

Technical line drawing of a lawn mower with a gear shift and mounting bracket (no text or symbols)

Diagram of a manual lawn mower with a tool inserted, showing wheel and blade alignment (no text or symbols)

Illustration of hands holding a device on a vehicle chassis, with a downward arrow indicating motion (no text or symbols present)

START STOP

START STOP

START STOP

Diagram of a mechanical component with an arrow indicating upward motion (no text or symbols present)

Diagram of a car interior showing a door seat with an open lid and a curved arrow indicating rotation (no text or symbols)

Diagram of a car interior showing a device being inserted into a seatbelt, with no visible text or symbols.

Diagram of a circular mechanical or electrical component with internal rotation arrows and a wooden block, no text or symbols present.

Diagram showing a blade under an arch with arrows indicating direction, above grass (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Technical diagram showing mechanical assembly with tool and component labels (no readable text or symbols)

Diagram showing a car interior component with an arrow pointing to a 3D model (no text or symbols present)

Diagram of a lawn mower with motion arrows indicating movement (no text or symbols)

Husqvarna Professional Products, Inc.

Charlotte, NC 28269

Soporte/ayuda

Technical diagram of a lawn mower with numbered parts and control panel labels

• Read the operator's manual. Go across slopes, not up and down. Do not mow when children or others are around.
• Look down and behind before and while moving. Remove objects that could be thrown by the blade.
• Keep safety devices (guards, shields, switches, etc.) in place and working.
  · To reduce risk of electric shock, do not expose unit to water or operate unit on wet ground.
• Remove the batteries before opening, cleaning or changing accessories.
  · To reduce the risk of injury, do not operate without guards in place.
  · To reduce the risk of injury, inspect catcher assembly frequently and replace with recommended replacement if there are signs of wear or deterioration.
  Keep hands and feet away – rotating blade hazard. Keep bystanders and children away.
• Remove battery pack when not in use.
• For use only with Husqvarna BLi22 or BLi30 battery.

DANGER DE BLESSURES GRAVES OU MORTELLES

Diagram of a mechanical component with an arrow indicating upward motion (no text or symbols present)

Line drawing of a box with an open lid and a black arrow indicating a motion or force (no text or symbols)

Illustration of a hand holding a cable with a black arrow indicating rotation (no text or symbols)

Fonctionnement

Introduction

Technical diagram of a device with labeled parts including probes, connectors, and a power plug

Technical line drawing of a lawn mower with directional arrow indicating motion (no text or symbols)

Technical diagram showing mechanical assembly with a close-up inset of a component detail (no text or symbols)

Mechanical assembly diagram showing a wheel, tire, and gear mechanism (no text or labels)

Technical line drawing of a lawn mower with a gear shift and mounting bracket (no text or symbols)

Technical line drawing of a manual lawn mower with a box nearby (no text or symbols)

Mechanical diagram showing a cart with wheels and a moving component, no text or symbols present

Technical line drawing of a lawn mower with visible blades and wheels (no text or symbols)

Technical line drawing of a lawn mower with a gear shift and mounting bracket (no text or symbols)

Diagram of a mechanical device with wheels and a handle, showing motion direction (no text or symbols)

Illustration of hands holding a device on a chair, with a downward arrow indicating motion (no text or symbols)

START STOP

START STOP

Technical line drawing of a mechanical component with an arrow indicating upward motion (no text or symbols)

Diagram of a car interior showing the door seat and lid, with an arrow indicating rotation (no text or symbols present)

Diagram of a car interior showing a device being inserted into a seatbelt, with no visible text or symbols.

Diagram of a circular mechanical or electrical component with a central rotating shaft and base, no text or symbols present.

Diagram showing a blade cutting through a curved channel with arrows indicating direction, above a grassy field (no text or symbols)

Diagram of a mechanical or electrical component with concentric circles and a central rotating arrow, no text or symbols present.

Technical diagram of a car interior showing mechanical components and wiring (no text or labels)

3D diagram showing a car intake manifold with an arrow pointing to a U-shaped component (no text or symbols)

Diagram of a lawn mower with motion arrows indicating movement (no text or symbols)

Husqvarna Professional Products, Inc.

Charlotte, NC 28269 ÉTATS-UNIS

Soutien/aide

Original instructions
