USER MANUAL Foodi DZ300EU NINJA

ninjakitchen.eu DZ300EU INSTRUCTIONS

Model Number: Serial Number: Date of Purchase: (Keep receipt) Store of Purchase:

REGISTER YOUR PURCHASE

ninjakitchen.eu Scan QR code using mobile device ENGLISH This marking indicates this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmentally safe recycling.ninjakitchen.eu 3 4ninjakitchen.eu IMPORTANT SAFEGUARDS

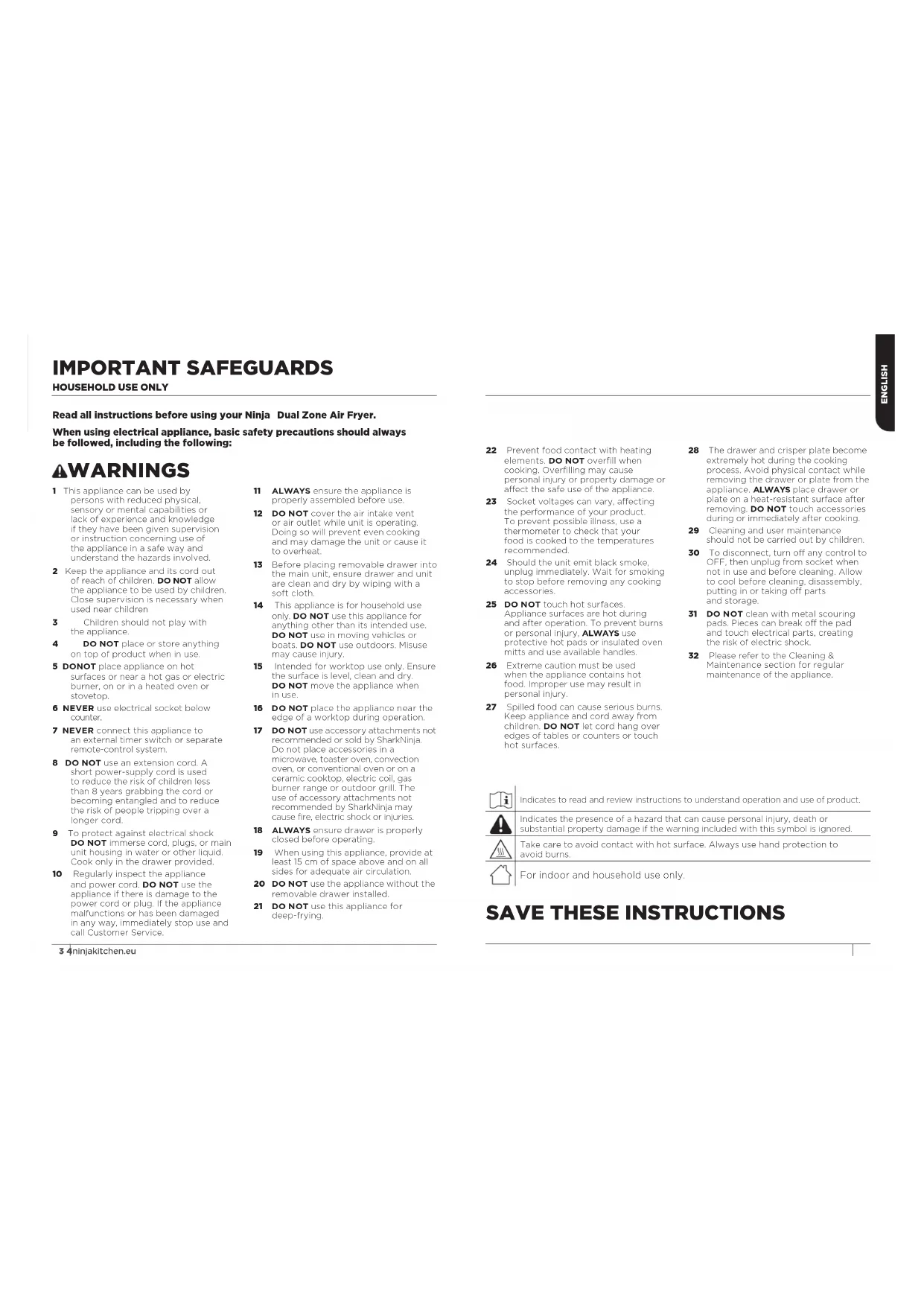

Read all instructions before using your Ninja Dual Zone Air Fryer. When using electrical appliance, basic safety precautions should always befollowed, including the following: WARNINGS 1 This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. 2 Keep the appliance and its cord out of reach of children. DO NOT allow the appliance to be used by children. Close supervision is necessary when used near children 3 Children should not play with theappliance. 4 DO NOT place or store anything ontop of product when in use. 5 DO NOT place appliance on hot surfaces or near a hot gas or electric burner, on or in a heated oven or stovetop. 6 NEVER use electrical socket below counter. 7 NEVER connect this appliance to an external timer switch or separate remote-control system. 8 DO NOT use an extension cord. A short power-supply cord is used to reduce the risk of children less than 8years grabbing the cord or becoming entangled and to reduce the risk of people tripping over a longer cord. 9 To protect against electrical shock DO NOT immerse cord, plugs, or main unit housing in water or other liquid. Cook only in the drawer provided. 10 Regularly inspect the appliance and power cord. DO NOT use the appliance if there is damage to the power cord or plug. If the appliance malfunctions or has been damaged in any way, immediately stop use and call Customer Service. 11 ALWAYS ensure the appliance is properly assembled before use. 12 DO NOT cover the air intake vent or air outlet while unit is operating. Doing so will prevent even cooking and may damage the unit or cause it to overheat. 13 Before placing removable drawer into the main unit, ensure drawer and unit are clean and dry by wiping with a soft cloth. 14 This appliance is for household use only. DO NOT use this appliance for anything other than its intended use. DO NOT use in moving vehicles or boats. DO NOT use outdoors. Misuse may cause injury. 15 Intended for worktop use only. Ensure the surface is level, clean and dry. DONOT move the appliance when inuse. 16 DO NOT place the appliance near the edge of a worktop during operation. 17 DO NOT use accessory attachments not recommended or sold by SharkNinja. Do not place accessories in a microwave, toaster oven, convection oven, or conventional oven or on a ceramic cooktop, electric coil, gas burner range or outdoor grill. The use of accessory attachments not recommended by SharkNinja may cause fire, electric shock or injuries. 18 ALWAYS ensure drawer is properly closed before operating. 19 When using this appliance, provide at least 15 cm of space above and on all sides for adequate air circulation. 20 DO NOT use the appliance without the removable drawer installed. 21 DO NOT use this appliance for deep-frying. 22 Prevent food contact with heating elements. DO NOT overfill when cooking. Overfilling may cause personal injury or property damage or affect the safe use of the appliance. 23 Socket voltages can vary, affecting the performance of your product. To prevent possible illness, use a thermometer to check that your food is cooked to the temperatures recommended. 24 Should the unit emit black smoke, unplug immediately. Wait for smoking to stop before removing any cooking accessories. 25 DO NOT touch hot surfaces. Appliance surfaces are hot during and after operation. To prevent burns or personal injury, ALWAYS use protective hot pads or insulated oven mitts and use available handles. 26 Extreme caution must be used when the appliance contains hot food. Improper use may result in personalinjury. 27 Spilled food can cause serious burns. Keep appliance and cord away from children. DO NOT let cord hang over edges of tables or counters or touch hot surfaces. 28 The drawer and crisper plate become extremely hot during the cooking process. Avoid physical contact while removing the drawer or plate from the appliance. ALWAYS place drawer or plate on a heat-resistant surface after removing. DO NOT touch accessories during or immediately after cooking. 29 Cleaning and user maintenance should not be carried out by children. 30 To disconnect, turn off any control to OFF, then unplug from socket when not in use and before cleaning. Allow to cool before cleaning, disassembly, putting in or taking off parts andstorage. 31 DO NOT clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating the risk of electric shock. 32 Please refer to the Cleaning & Maintenance section for regular maintenance of the appliance.

SAVE THESE INSTRUCTIONS

Indicates to read and review instructions to understand operation and use of product. Indicates the presence of a hazard that can cause personal injury, death or substantial property damage if the warning included with this symbol is ignored. Take care to avoid contact with hot surface. Always use hand protection to avoidburns. For indoor and household use only. ENGLISH6ninjakitchen.eu MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKESYNC MATCHSTART STOP

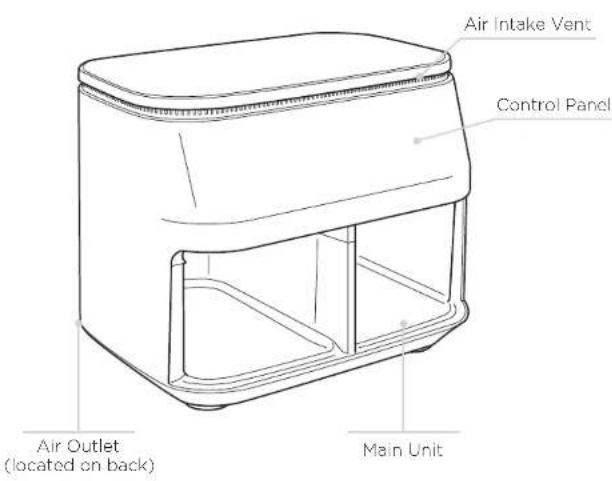

ninjakitchen.eu PARTS GETTING TO KNOW YOUR AIR FRYER 1 Remove and discard any packaging material, promotional labels, and tape from the unit. 2 Remove all accessories from the package and read this manual carefully. Please pay particular attention to operational instructions, warnings, and important safeguards to avoid any injury or property damage. 3 Wash the drawers and crisper plates in hot, soapy water, then rinse and dry thoroughly. The drawers and crisper plates are the ONLY dishwasher safe parts. However to extend the life of the drawers we recommend hand-washing. NEVER clean the main unit in the dishwasher. 4 When using this appliance, provide at least 15 cm of space above and on all sides for adequate air circulation.

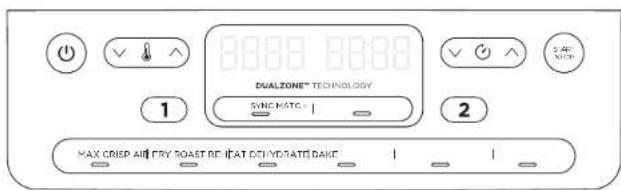

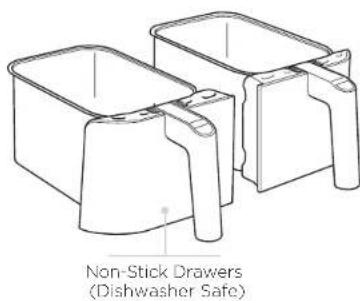

Control Panel Air Intake Vent Air Outlet (located on back) Non-Stick Drawers (Dishwasher Safe) Main Unit FUNCTION BUTTONS MAX CRISP: Best for frozen foods such asFrench fries and chicken nuggets. AIR FRY: Use this function to give your food crispiness and crunch with little to no oil. ROAST: Use the unit as an oven for tender meats and more. REHEAT: Revive leftovers by gently warming them, leaving you with crispy results. DEHYDRATE: Dehydrate meats, fruits andvegetables for healthy snacks. BAKE: Create decadent baked treats anddesserts. OPERATING BUTTONS

Control the output for the drawer onthe right (Zone 2). TEMP arrows: Use the up and down arrows to adjust the cook temperature before or during cooking. TIME arrows: Use the up and down arrows to adjust the cook time in any function before or during the cook cycle SYNC button: Automatically syncs the cook times to ensure both zones finish at the same time, even if if they have dierent cook times. MATCH button: Automatically matches zone 2 settings to those of zone 1 to cook a larger amount of the same food, or cook dierent foods using the same function, temperature, and time. START/STOP button: After selecting temperature and time, start cooking by pressing the START/STOP button. Power button: The button turns the unit on, and also shuts it o and stops all cooking functions. STANDBY MODE: After 10 minutes with no interaction with the control panel, the unit will enter standby mode. HOLD MODE: Hold will appear on the unit while in SYNC mode. One zone will be cooking, while the other zone will be holding until the times sync together. When setting time, the digital display shows HH:MM. Non-Stick Crisper Plates When cooking with the plate, always insert into the bottom of drawer. Dishwasher safe. ENGLISH7 8ninjakitchen.eu ninjakitchen.eu

COOKING WITH DUALZONE

TECHNOLOGY DualZone Technology utilises two cooking zones to increase versatility. The Sync feature ensures that, regardless of dierent cook settings, both zones will finish ready to serve at the same time. For detailed instructions on using each function, see pages 9-12. SYNC To finish cooking at the same time when foods have dierent cook times, temps, oreven functions: 1 Place ingredients in the drawers, then insert drawers in unit. 2 Zone 1 will remain illuminated. Select the desired cooking function. Use the TEMP arrows to set the temperature, and use the TIME arrows to set the time. 3 Select zone 2, then select the desired cooking function. Use the TEMP arrows to set the temperature, and use the TIME arrows to set the time. Starting both zones at the same time, butending at dierent times: 1 Select zone 1, then select the desired function. Use the TEMP arrows to set the temperature. 2 Use the TIME arrows to set the time. 3 Select zone 2 and repeat steps 1 and 2. 4 Press the START/STOP button to begin cooking in both zones. 5 When cooking is complete in each zone, the unit will beep and “End” will appear on the display. 6 Remove ingredients by tipping them out or using silicone-tipped tongs/utensils. MATCH To cook a larger amount of the same food, or cook dierent foods using the same function, temperature, and time: 1 Place ingredients in the drawers, then insert drawers in unit. 2 Zone 1 will remain illuminated. Select the desired cooking function. Use the TEMP arrows to set the temperature, and use the TIME arrows to set the time. 3 Press the MATCH button to copy the zone 1 settings to zone 2. Then Press START/STOP to begin cooking in bothzones. 4 “End” will appear on both screens when cooking ends at the same time. 5 Remove ingredients by tipping them out or using silicone-tipped tongs/utensils. 4 Press SYNC, then press the START/ STOP button to begin cooking in the zone with the longest time. The other zone will display Hold. The unit will beep and activate the second zone when both zones have the same time remaining. 5 When cooking is complete, the unit will beep and “End” will appear on the display. 6 Remove ingredients by tipping them out or using silicone-tipped tongs/utensils. DO NOT place drawer on top of unit.

COOKING IN YOUR AIR FRYER

REFERENCE QUICK START GUIDE FOR RECIPES AND COOKING CHARTS NOTE: If you decide the food in one of the zones is done cooking before the cook time is up, you can STOP A ZONE. Select that zone, then press START/STOP. See page 9 for further instructions. NOTE: You can select a dierent function for zone 2. NOTE: If you decide the food in one of the zones is done cooking before the cook time is up, you can STOP A ZONE. Select that zone, then press START/STOP. See page 9 for further instructions. ENGLISH MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE

ZONE (WHILE USING BOTH ZONES) 1 Select the zone you would like to stop. 2 Press START/STOP to end cooking. 3 “End” will appear on the display. Cooking will continue in the other zone. COOKING IN YOUR AIR FRYER – CONT.

COOKING IN A SINGLE ZONE

To turn on the unit, plug the power cord into a wall socket, then press the power button. Max Crisp 1 Install crisper plate in the drawer, then place ingredients in the drawer, and insert drawer in unit. 2 The unit will default to zone 1 (to use zone 2 instead, select zone 2). Select MAX CRISP. 3 Use the TIME arrows to set the time in 1-minute increments up to 30 minutes. Press the START/STOP button to begincooking. 4 When cooking is complete, the unit will beep and “End” will appear on the display. 5 Remove ingredients by tipping them out or using silicone-tipped tongs/utensils. PAUSING COOKING Cooking will automatically pause when a drawer is removed. Re-insert drawer to resume cooking. WHEN USING IN SYNC or MATCH MODE If you open a drawer, the other drawer will automatically pause so that cooking will still finish at the same time. Reinsert drawer to continue cooking in both zones. NOTE: If during cooking a drawer is removed for longer than 1 minute, then the unit will automatically switch o. You will need to re-program each zone to resume cooking. Air Fry 1 Install crisper plate in the drawer, then place ingredients in the drawer, and insert drawer in unit. 2 The unit will default to zone 1 (to use zone 2 instead, select zone 2). Select AIR FRY. 3 Use the TEMP arrows to set the desiredtemperature. 4 Use the TIME arrows to set the time in 1-minute increments up to 1 hour. Press the START/STOP button to begincooking. 5 When cooking is complete, the unit will beep and “End” will appear on the display. 6 Remove ingredients by tipping them out or using silicone-tipped tongs/utensils. NOTE: During cooking, you can remove the drawer and shake or toss ingredients for evening crisping. ENGLISH MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP11 12ninjakitchen.eu ninjakitchen.eu COOKING IN YOUR AIR FRYER – CONT. Roast 1 Install crisper plate in the drawer (optional), then place ingredients in the drawer and insert drawer in unit. 2 The unit will default to zone 1 (to use zone 2 instead, select zone 2). SelectROAST. 3 Use the TEMP arrows to set the desiredtemperature. 4 Use the TIME arrows to set the time in 1-minute increments up to 1 hour and in 5-minute increments from 1 to 4hours. Press the START/STOP button tobegincooking. 5 When cooking is complete, the unit will beep and “End” will appear on the display. 6 Remove ingredients by tipping them out or using silicone-tipped tongs/utensils. Reheat 1 Install crisper plate in the drawer (optional), then place ingredients in the drawer, and insert drawer in unit. 2 The unit will default to zone 1 (to use zone 2 instead, select zone 2). SelectREHEAT. 3 Use the TEMP arrows to set the desiredtemperature. 4 Use the TIME arrows to set the time in 1-minute increments up to 1 hour. Press the START/STOP button to beginreheating. 5 When reheating is complete, the unit will beep and “End” will appear on the display. 6 Remove ingredients by tipping themout or using silicone-tipped tongs/utensils. Bake 1 Install crisper plate in the drawer (optional), then place ingredients in the drawer and insert drawer in unit. 2 The unit will default to zone 1 (to use zone 2 instead, select zone 2). SelectBAKE. 3 Use the TEMP arrows to set the desiredtemperature. 4 Use the TIME arrows to set the time in 1-minute increments up to 1 hour and in 5-minute increments from 1 to 4hours. Press the START/STOP button to begincooking. 5 When cooking is complete, the unit will beep and “End” will appear on the display. 6 Remove ingredients by tipping them out or using silicone-tipped tongs/utensils. Dehydrate 1 Place a single layer of ingredients in the drawer. Then install the crisper plate in the drawer on top of the ingredients and place another layer of ingredients on the crisper plate. 2 The unit will default to zone 1 (to use zone 2 instead, select zone 2). Select DEHYDRATE. The default temperature will appear on the display. Use the TEMP arrows to set the desired temperature. 3 Use the TIME arrows to set the time in 15-minute increments from 1 to 12 hours. Press the START/STOP button tobegindehydrating. 4 When cooking is complete, the unit will beep and “End” will appear on the display. 5 Remove ingredients by tipping them out or using silicone-tipped tongs/utensils. ENGLISH MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP MAX CRISP AIR FRY ROAST REHEAT DEHYDRATE BAKE SYNC MATCH STA RT STOP13 14ninjakitchen.eu ninjakitchen.eu CLEANING & MAINTENANCE HELPFUL TIPS 1 For consistent browning, make sure ingredients are arranged in an even layer on the bottom of the drawer with no overlapping. If ingredients are overlapping, make sure to shake them halfway through the set cook time. 2 Cook temperature and time can be adjusted at any time during cooking. Simply select the zone you want to adjust, then press the TEMP arrows to adjust the temperature or the TIME arrows to adjust the time. 3 To convert recipes from your conventional oven, reduce the temperature by 10°C. Check food frequently to avoid overcooking. 4 Occasionally, the fan from the air fryer will blow lightweight foods around. To alleviate this, secure foods (like the top slice of bread on a sandwich) with cocktail sticks. 5 The crisper plates elevate ingredients in the drawers so air can circulate under and around ingredients for even, crisp results. 6 After selecting a cooking function, you can press the START/STOP button to begin cooking immediately. The unit will run at the default temperature and time. 7 For best results with fresh vegetables and potatoes, use at least 1 tablespoon of oil. Add more oil as desired to achieve the preferred level of crispiness. 8 For best results, check progress throughout cooking and remove food when desired level of brownness has been achieved. We recommend using an instant-read thermometer to monitor the internal temperature of meat & fish. After the cook time is complete, remove food immediately to avoid overcooking. 9 For best results, remove food immediately after the cook time is complete to avoid overcooking. The unit should be cleaned thoroughly after every use. Unplug the unit from the plug socket and wait until the unit is fully cooled before cleaning. Part/Accessory Cleaning Method Dishwasher Safe? Main Unit To clean the main unit and the control panel, wipe them clean with a damp cloth NOTE: NEVER immerse the main unit in water or any other liquid. NEVER clean the main unit or drawer in a dishwasher.

Drawers and Crisper Plates These can be washed in the dishwasher or by hand. If handwashed Air-dry or towel-dry all parts after use. To extend the life of the drawers we recommend hand-washing them. Yes If food residue is stuck on the crisper plates or drawers, place them in a sink filled with warm, soapy water and allow to soak. TROUBLESHOOTING GUIDE

• Why is there a ‘Shut’ message on the display screen? Ensure drawers are fully inserted in unit before selecting a program to cook with.

• How do I adjust the temperature or time while using a single zone? Select the active zone, then use the TEMP arrows to adjust the temperature or the TIME arrows to adjust the time.

• How do I adjust the temperature or time while using dual zones? Select the desired zone, then use the TEMP arrows to adjust the temperature or the TIME arrows to adjust the time.

• Does the unit need to pre-heat? The unit does not need to be pre-heated.

• Can I cook dierent foods in each zone and not worry about cross contamination? Yes, both zones are self-contained with separate heating elements and fans.

• How do I pause the countdown? The countdown timer will pause automatically when you remove the drawers from the unit. Reinsert drawer within 2 minutes to resume cooking or the unit will automatically switch o.

• How do I stop one zone when using both zones? To stop one zone, first press the zone button then press START/STOP. To stop both zones simply press the START/STOP button.

• Is the drawer safe to put on my worktop? The drawer will heat up during cooking. Use caution when handling, and place on heat resistant surfaces only.

• When should I use the crisper plate? Use the crisper plate when you want food to come out crispy. The plate elevates the food in the drawer so that air can flow under and around it to cook ingredients evenly.

• Why didn’t my food cook fully? Make sure the drawer is fully inserted during cooking. For consistent browning, make sure ingredients are arranged in an even layer on the bottom of the drawer with no overlapping. Shake drawer to toss ingredients for even crispiness. Cook temperature and time can be adjusted at any time during cooking. Simply use the TEMP arrows to adjust the temperature or the TIME arrows to adjust the time.

• Why is my food burned? For best results, check progress throughout cooking and remove food when desired level of brownness has been achieved. Remove food immediately after the cook time is complete to avoid overcooking.

• Why do some ingredients blow around when air frying? Occasionally, the fan from the air fryer will blow lightweight foods around. Use wooden cocktail sticks to secure loose lightweight food, like the top slice of bread on a sandwich.

• Can I air fry wet, battered ingredients? Yes, but use the proper breading technique. It is important to coat foods first with flour, then with egg, and then with bread crumbs. Press breading firmly onto the battered ingredients, so crumbs won’t be blown o by the fan.

• Why is the unit beeping? The food is done cooking or indicates that the other zone started cooking.

• Why did the display screen go black? The unit is in standby mode. Press the power button to turn it back on.

• Why is there an “E” message on the display screen? The unit is not functioning properly. You can find online support at ninjakitchen.eu. ENGLISH15 16ninjakitchen.eu ninjakitchen.eu ENGLISH When a consumer buys a product in Europe, they get the benefit of legal rights relating to the quality of the product (your statutory rights). You can enforce these rights against your retailer. We give you an additional manufacturer’s guarantee of two years. These terms and conditions relate to our manufacturer’s guarantee only – your statutory rights are unaected. The conditions below describe the prerequisites and scope of our guarantee. They do not aect your statutory rights or the obligations of your retailer and your contract with them. Ninja Guarantees Every Ninja machine comes with a free parts and labour guarantee. You’ll also find online support at www.ninjakitchen.eu How do I register my Ninja guarantee? You can register your guarantee online within 28 days of purchase. To save time, you’ll need the following information about your product.

• Date you purchased the unit (receipt or delivery note).

• To register online, please visit www.ninjakitchen.eu IMPORTANT:

• The guarantee will only cover your product from the date of purchase and in the country of purchase.

• Please keep your receipt at all times. Should you need to use your guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee. What are the benefits of registering my free Ninja guarantee? When you register your guarantee we’ll have your details to hand if we ever need to get in touch.You can also receive tips and advice on how to get the best out of your Ninja unit and hear the latest news about new Ninja technology and launches. If you register your guarantee online, you’ll get instant confirmation that we’ve received your details. What is covered by the free Ninja guarantee? Repair or replacement of your Ninja machine (at Ninja’s discretion), including all parts and labour. A Ninja guarantee is in addition to your legal rights as a consumer. What is not covered by the free Ninja guarantee?

1. Normal wear and tear of wearable parts (such

as accessories). Replacement parts are available for purchase at www.ninjakitchen.eu

2. Damage caused by misuse, abuse, negligent

handling, failure to perform required maintenance or damage due to mishandling in transit.

3. Damage caused by maintenance not authorised

by Ninja. Where can I buy genuine Ninja spares and accessories? You’ll find a full range of Ninja spares and replacement parts/accessories for all Ninja machines at www.ninjakitchen.eu Please remember that damage caused by the use of non-Ninja spares may not be covered under your guarantee.
