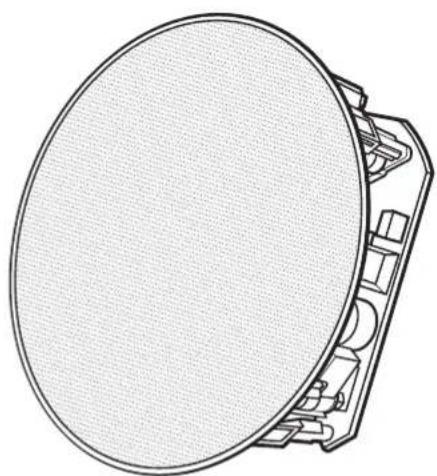

Bose® Virtually Invisible® 791 series II and 591 in-ceiling speakers

Owner's Guide - Brugervejledning - Bedienungsanleitung - Gebruikershandleiding
Guía del usuario - Käytöohje - Notice d'utilisation - Manuale di istruzioni - Kezelési utmutató Brukerveiledning - Podrcznik uzytkownika - Manual do propietario - Bruksanvisining

Please read this owner's guide carefully and save it for future reference.

WARNING:

• Do not place naked flame sources, such as lighted candles, on or near the product.
• AllBose® products must be used in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is preformed in accordance with applicable building codes, including local building codes and regulations.
• Unsafe mounting or overhead suspension of any heavy load can result in serious injury and equipment damage. It is the responsibility of the installer to evaluate the reliability of any mounting method used for application.

CAUTIONS:

• These speakers are not designed or recommended for installation in walls, in ceilings of masonry, or in drop ceilings.
• This product is not intended for use in Air-Handling Plenum Spaces.
• See product enclosures for safety-related markings.
• Make no modifications to the speakers or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and system performance.
• Be sure to keep all insulation away from speakers in accordance with the installation instructions in this guide.

WARNING: Contains small parts which may be a choking hazard. Not suitable for children under age 3.

WARNING: This product contains magnetic material. Contact your physician if you have questions on whether this might affect the operation of your implantable medical device.

NOTE: This product must be used indoors. It is neither designed nor tested for use outdoors, in recreational vehicles, or on boats.

Important safety instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Install in accordance with the manufacturer's instructions.
7. Do not install near any heat sources, such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
8. Only use attachments/accessories specified by the manufacturer.

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexava-lent (CR(VI))	Polybro-minated Biphenyl (PBB)	Polybro-minated diphenylether (PBDE)
PCBs	X O	O O O O
Metal parts	X O	O O O O
Plastic parts	O O	O O O O
Speakers	X O	O O O O
Cables	X O	O O O O
This table is prepared in accordance with the provisions of SJ/T 11364. O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Bose Corporation hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and all other applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance

China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Taiwan Importer: Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105

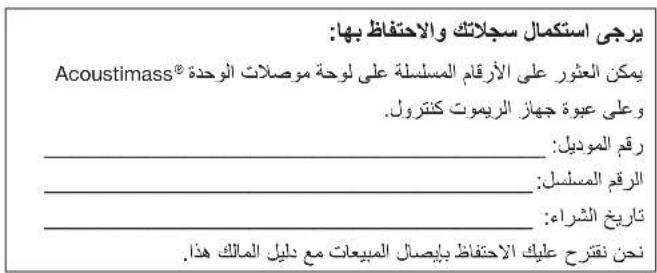

Please complete and retain for your records:

Model number:

Serial number:

Purchase date:

We suggest you keep your receipt with this owner's guide.

Date of manufacture:

The first bolded digit in the serial number indicates the year of manufacture; "5" is 2005 or 2015.

Introduction

About your Virtually Invisible® 791 series II or 591 in-ceiling speakers 4
Unpacking 4
Recommended tools 4
Speaker wire requirements. 4
Placement guidelines 4
Placement in unfinished construction. 4

Installing the Speakers

Cutting the speaker hole. 5
Connecting the speaker wire. 5
6
6

Care and Maintenance

Troubleshooting 7
Accessories 7
Customer service 7
Limited warranty 7
Technical information. 7

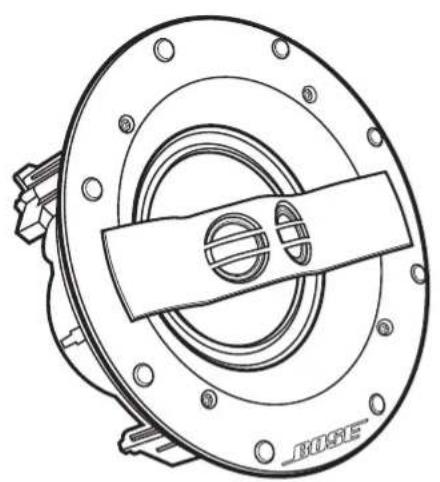

About your Virtually Invisible® 791 series II or 591 in-ceiling speakers

The Bose® Virtually Invisible® 791 series II or 591 in-ceiling speakers provide superior performance for built-in stereo music listening and home theater enjoyment.

Unpacking

Carefully unpack the carton and confirm that the following parts are included:

Virtually Invisible® 791 series II speakers	Virtually Invisible® 591 speakers
Two speakers Two speakers
Two speaker grillles Two speaker grillles
Template Template

Note: If part of the system is damaged, do not use it. Contact your authorized Bose dealer or Bose customer service. Refer to the contact sheet in the carton.

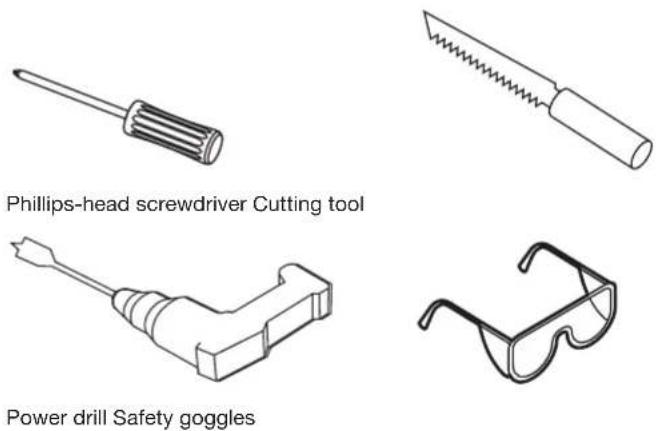

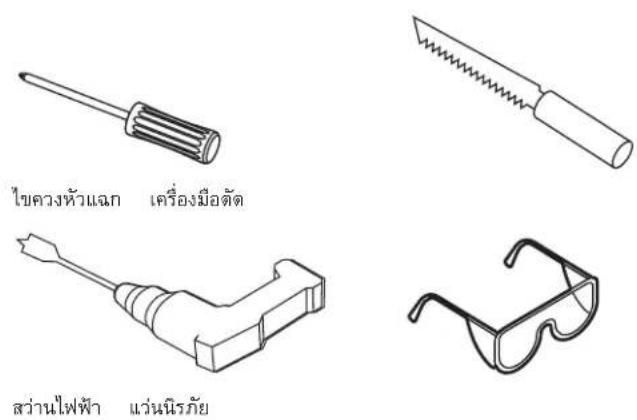

Recommended tools

You may need the following tools to complete installation:

Speaker wire requirements

Gauge Maximum Length
18 AWG (0.82 mm²) 20 ft. (6 m)
16 AWG (1.3 mm²) 30 ft. (9 m)
14 AWG (2.1 mm²) 50 ft. (15 m)
12 AWG (3.3 mm²) 90 ft. (27 m)

• Allow enough wire from the ceiling to wire the speakers before installing.
• Strip 12 in. (13 mm) of insulation at each end of both wires.
• Please check your local building codes and use only the correct type of wire required for in-ceiling installation.
• For information on installing speaker wire, consult a professional electrician or audio/video installer.

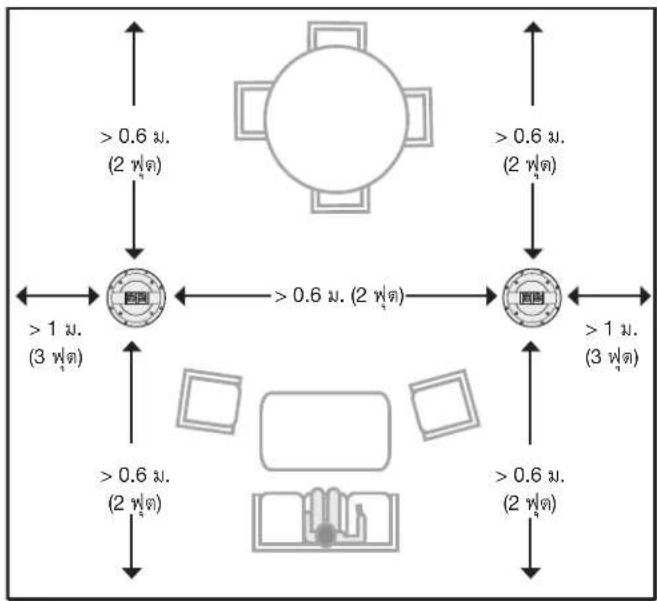

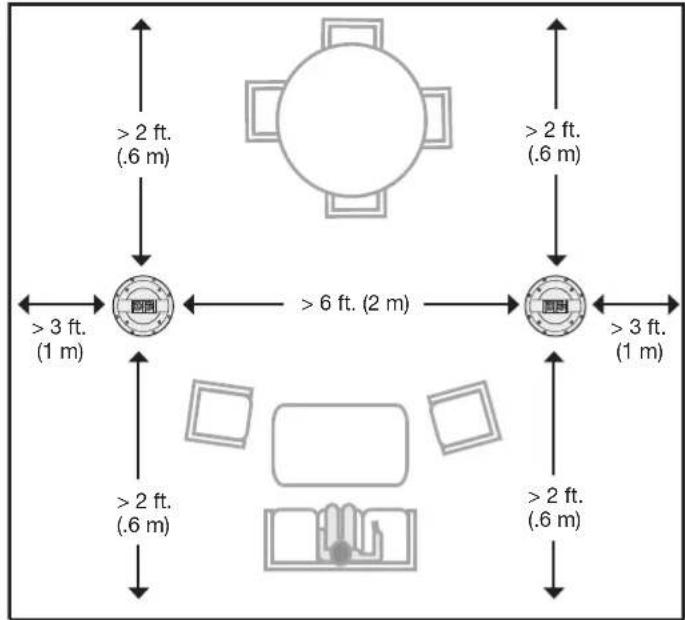

Placement guidelines

For optimal stereo performance, install the speakers in positions similar to the diagram below at a minimum of the suggested distances:

Notes:

• Use a stud finder to ensure the speaker hole is at least 4% in. (12 cm) away from a joist.
• Mount these speakers in wood frame or similar construction only. Bose recommends installing these speakers only in wood frame or similar construction with adequately spaced studs, as found in 2 × 6 construction.

Placement in unfinished construction

If you are planning installation in unfinished construction, purchase the Bose rough in kit. See "Accessories" on page 7.

Cutting the speaker hole

1. Trace the template in the speaker location.

WARNING: Do not cut into surfaces that have hazards concealed behind them such as electrical wiring or plumbing. If you are unsure of your ability to mount this speaker, contact a professional installer.

1. Drill a hole inside the template area large enough for your cutting tool.
2. Cut along the line you traced.

1. Remove the cutout section.
2. Clear away any torn or rough material from around the hole.

Connecting the speaker wire

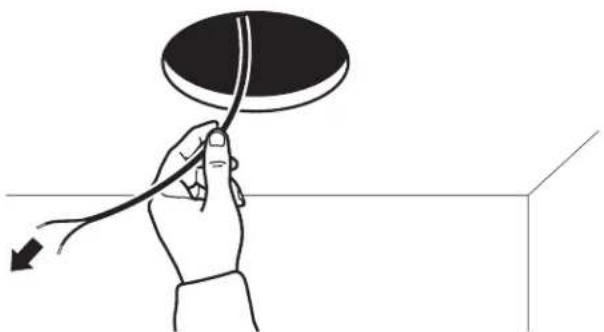

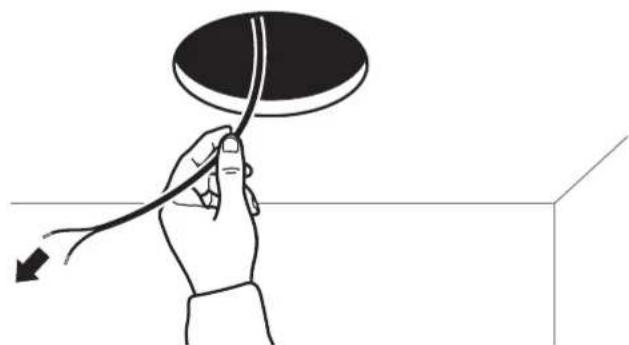

1.Pull out at least 14 in.36 cm) of the speaker wire. Allow enough wire to connect the speaker from where you are standing.

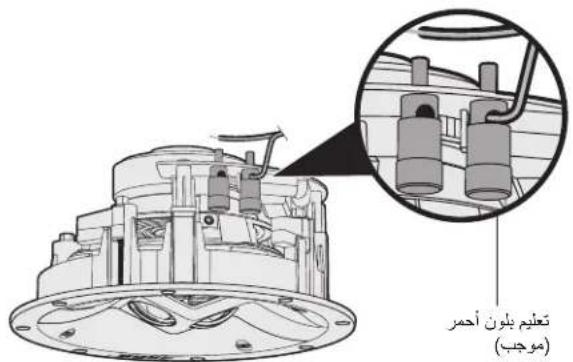

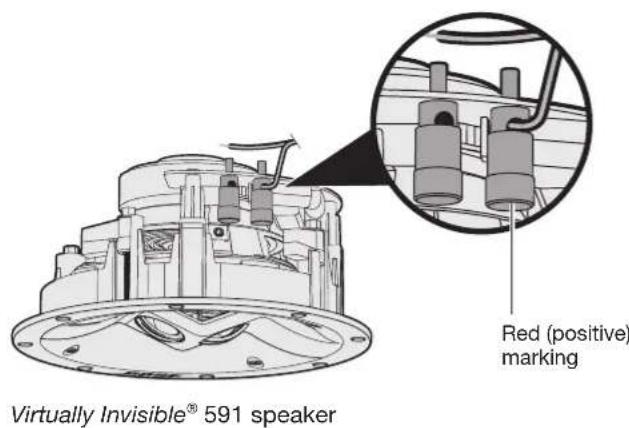

1. Connect the positive wire to the red marked terminal on the speaker.

Note: The terminal marking is located on the top of the terminal.

1. Connect the negative wire to the black marked terminal on the speaker.

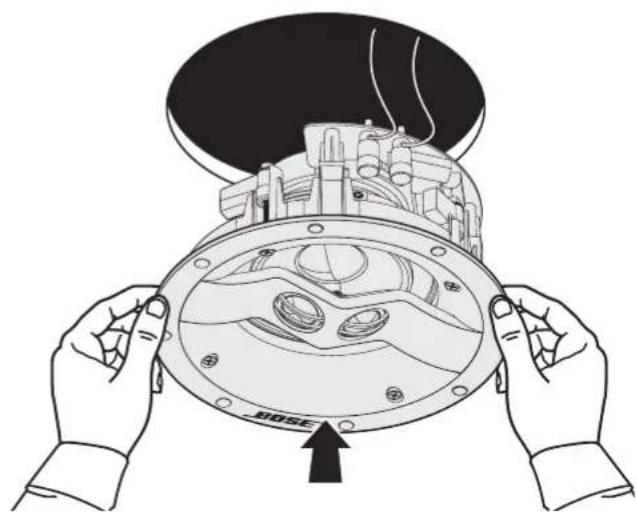

Installing the speaker

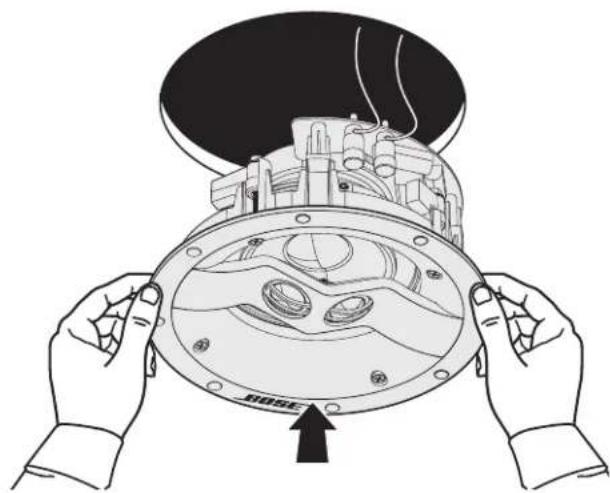

1. Holding the outside edges, insert the speaker into the hole.

Note: Do not press on the two small drivers on the face of the speaker. This may damage the speaker.

Virtually Invisible 591 speaker

CAUTION: Certain forms of insulation (such as horse hair plaster, newspaper, cellulose, or blown-in materials) may pose a risk of ignition. Be sure to keep all insulation away from the speakers.

1. Tighten all the clamp screws with a Phillips head screwdriver.

Note: If using a power drill, choose the lowest torque setting.

Virtually Invisible 591 speaker

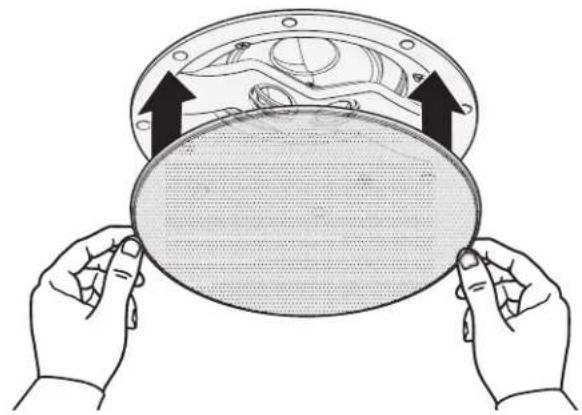

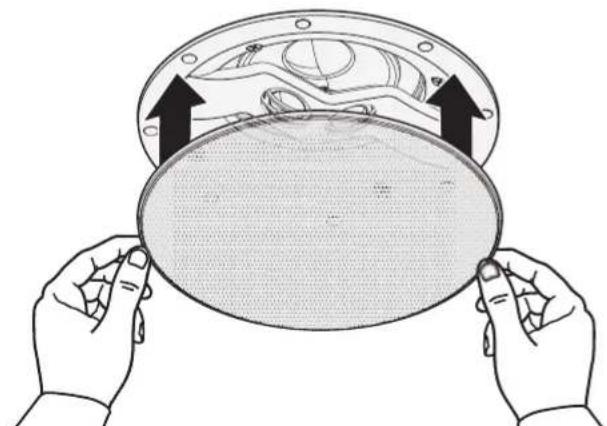

Attaching the grille

The grille magnetically attaches to the rim of the speaker.

Place the grille on speaker.

Virtually Invisible 591 speaker

Painting the grille

You can paint the speaker grilles before you attach them to the speaker. Bose is not responsible for the quality of adhesion or finish of non-factory-applied paints.

• Latex or oil-based architectural paint requires thinning for use with a siphon-feed spray gun. Refer to the owner's guide provided with your spray gun for guidelines.
• Be careful when using a sharp implement in the grille perforations to remove a paint clog, which can damage the grille.

Troubleshooting

Problem What to do
No sound from speakers	·Ensure the speaker wires did not disconnect from the speakers or the receiver/amplifier. ·Check the settings on your receiver/amplifier. Refer to the receiver/amplifier owner's guide for instructions on settings. ·If other stereo speakers are connected to a second set of audio outputs on your receiver/amplifier, select the proper A or B speaker setting to match the A or B outputs connected to your speakers.
Sound from one speaker only	·Center the balance control on your receiver/amplifier. ·Ensure no wires from the positive and negative terminals on the receiver/amplifier are touching. ·Disconnect the speaker wire from the receiver/amplifier channel and reconnect it to a different channel. ·Check that no wires from the positive and negative terminals are touching where the speaker wire connects to the speaker. ·Disconnect the speaker wire from the speaker and reconnect it to another speaker. If this speaker works, your speaker needs to be serviced. Refer to the contact sheet in the carton. ·Replace and re-install the speaker wire if these troubleshooting steps do not solve the problem.
Bass/treble is weak	·Adjust the tonal balance setting on your receiver/amplifier. ·Ensure there are no gaps between the speaker frame and the wall surface. ·Switch the wires connected to the positive and negative terminals on the receiver/amplifier. ·Disconnect the speaker wire from the receiver/amplifier channel and reconnect it to a different channel.
Static/noise from speaker	·Ensure the wires are in good condition, are firmly connected to the speaker and receiver/amplifier and are not touching across terminals. ·Connect the music source to the receiver/amplifier properly. ·See “Sound from one speaker only”.

Accessories

For unfinished construction, use the Bose® rough-in kit.

The kit contains parts for two speakers and is designed for installation after the joists are in place and before wallboard is added. When installed, the kit reserves a place for each speaker and indicates where to make the speaker hole in the wallboard.

For more information or to order accessories, contact Bose customer service. Refer to the contact sheet in the carton.

Customer service

For additional help using the system:

• Visit owners.Bose.com
• Contact Bose Customer Service. Refer to the contact sheet in the carton.

Limited warranty

Your system is covered by a limited warranty. Details of the limited warranty are provided on the product registration card that is in the carton. Please refer to the card for instructions on how to register. Failure to register will not affect your limited warranty rights.

The warranty information provided with this product does not apply in Australia and New Zealand. See our website at www.Bose.com.au/warranty or www.Bose.co.nz/warranty for details of the Australia and New Zealand warranty.

Technical information

Compatibility

Compatible with amplifiers or receivers rated

10-100W per channel/rated 4 to 8 ohms

Virtually Invisible ^® 791 series II: 50W IEC continuous power handling; rated 6 ohms

Virtually Invisible® 591: 50W IEC continuous power handling; rated 8 ohms

Virtually Invisible® 791 series II driver complement:

Two 1" (25.4 mm) dome tweeters configured in an array

One 7^ (178 mm) high-excursion woofer

Virtually Invisible 591 driver complement:

Two 3 / 4^n (19 mm) dome tweeters configured in an array

One 5^ (127 mm) high-excursion woofer

Virtually Invisible® 791 series II dimensions:

Diameter: 8.4" (214 mm)

Depth into ceiling: 4.14'' (105.2 mm)

Grille diameter: 10^ (254 mm)

Ceiling hole diameter : 8 ‰ '' (219 mm)

Virtually Invisible 591 dimensions:

Diameter: 6.5" (166 mm)

Depth into ceiling: 3.8'' (96.7 mm)

Grille diameter: 8.11" (206 mm)

Ceiling hole diameter required: 6.7" (170 mm) diameter

Weight

Virtually Invisible® 791 series II: 4.8 lb. (2.18 kg) each

Virtually Invisible 591:3.19 lb. (1.45kg) each

Importor i Kina: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importor i EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Holland

Importor i Taiwan: Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105

Virtually Invisible® 791 series II driver supplement:

To 25,4 mm dome-diskanthothjtalere konfigureret i et array

Virtually Invisible ^® 591 driver supplement:

To 19 mm dome-diskanthojtalere konfigureret i et array

Virtually Invisible® 791 series II dimensioner:

Diameter: 214 mm

Loftsdybe: 105,2 mm

Frontdiameter:254mm

Loftshuldiameter:219mm

Virtually Invisible 591 dimensioner:

Diameter: 166 mm

Loftsdybd:96,7 mm

Frontdiameter: 206 mm

Diameter i loftshul, der kraves: 170 mm diameter

Vægt

Virtually Invisible® 791 series II: 2,18 kg for haver

Virtually Invisible 591: 1,45 kg for haver

China-Import: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU-Import: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Niederlande

Taiwan-Import: Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105

Importeur in China: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone
Importeur in de EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland
Importeur in Taiwan: Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105

Virtually Invisible® 791 series II-drivers:

Virtually Invisible 591-drivers:

Importador en China: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importador en UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Paises Bajos

Importador en Taiwan: Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105

Maahantuoja Taiwanissa: Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105

Sailytã tiedot.

Mallinumero:

Sarjanumero:

Ostopävå:

Virtually Invisible® 791 series II: 2,18 kg / kaiutin

Virtually Invisible 591: 1,45 kg / kaiutin

Importateur pour Taiwan: Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105

Dimensioni Virtually Invisible 791 series II

Diametro: 214 mm

Kinai importor: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone EU importor: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Taiwani importor: Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105

Virtually Invisible 591: 50 W IEC polyamatos

teljesitmenykezeles; 8 ohm (nevleges)

Virtually Invisible® 791 series II hangsugárzó elementek:

Importer for Taiwan: Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105

Virtually Invisible® 791 series II driver:

To 25,4 mm (1") domediskanthooyttalere konfigurert i en matrise En 178 mm (7") basshoytaler

Virtually Invisible 591 driver:

To 19mm (^3 / 4^n) domediskanthoyttalere konfigurert i en matrise En 127~mm (5") basshoyttaler

Dimensjoner for Virtually Invisible® 791 series II:

Diameter: 214 mm (8,4")

Dybde i tak: 105,2 mm (4,14")

Front diameter: 254 mm (10")

Diameter for takhull: 219 mm (8%")

Importer — Chiny: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importer - UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Holandia

Importer-Tajwan: Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105

Prosimypwisacizachowacnastepujaceinformace:

Numer modelu:

Numer seryjny:

Data zakupu:

Importador da China: Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importador CE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Importador de Taiwan: Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105

Complemento do driver Virtually Invisible 591:

Taiwanimportor: Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105

HJ1000: HANNNNHNNAHINHNNNHNHNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

wunwnnnaaannnnnnae

1. 1
2. 1
3. lalalunl (n)
5. ouilouunlunnnn
7. anlnnnnaaannnnae nnne nnnnnae annnnae nnne nnnnnae nnne
8. lueiunlntuaia/guiuuniuaiyueyue

Bose Corporation 2013-07-09 15:46 PM
www.bose.com/compliance

Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Rying Road, China (Shanghai) Pilot Free Trade Zone

E EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Wuwei: Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105

Tnannanayaaauaunu

Aocustimass

wanlan 1

WANGYIANG

2

y

JH

n 2015

unU

Virtually Invisible 791 series II wio 591 in-ceiling . 4

4

1920s 4

4

4

mian mian nian anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan anan

n

5

5

6

6

muaa

muiuuiuui 7

7

7

7

7

Virtually Invisible 791 series II 591 in-ceiling

Bose Virtually Invisible 791 series II n50 591 in-ceiling
Lusuunnwnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

#

Virtually Invisible 791 series II	Virtually Invisible 591
2 2
zunsaon 2 2

nng: nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

aannnnn

n 1

yannnnnnae

18 AWG (0.82 mW.2) 6 m. (20 W)
16 AWG (1.3 mW.3) 9 m. (30 W)
14 AWG (2.1 mW.3) 15 m. (50 W)
12 AWG (3.3 mW.3) 27 m. (90 W)

·
- 100000000000000000000000000000000000000000000
-
-

nnnnnnnnnnnnn

wannnnnnaaunnnnnaanennnnae nannnnnnaaannnnnnaa

M

nssnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn
- 10000000000000000000000000000000000000000000000000000000000000000

nnaaahnnnnaaaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaananaanaraannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnnaaannnna

Wnnnunnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn

n

1.

aannn: aenennnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

1. 1
2. 前山

• LEEJWANL owners.Bose.com
• 150

nssnnnnnn

zuyuoyouyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyueyUE www.Bose.com.au/warranty

2aannnna

aannnnnnae

10-100W 4-8

Virtually Invisible 791 series II: 50W IEC

Virtually Invisible 591: 50W IEC 8

Virtually Invisible® 791 series II:

1" (25.4 w.) 7" (178 w.)

Virtually Invisible 591:

Jnunnnn 19 wu.

Virtually Invisible® 791 series II:

1998-2003: 8.4" (214 mm.)

nannnnnnnnnnn nn n: 4.14" (105.2 nn.)

Virtually Invisible 591:

Lnnnna: 6.5" (166 nn.)

wunwnnwn 3.8"(96.7 m.)

1.1.10:8.11" (206 m.)

170

wnnn

Virtually Invisible 791 series II: 2.18 nn. (4.8 Jauw)

Virtually Invisible 591: 1.45 nm. (3.19)

I sAongJAnlnteHtJi.

图：

• 委录和各一般用范性上型的，将到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到，到
• 我們の Bose® 制作は現在，請，連営及実際規定を適当應用。使用に広む。状態を制成、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定、規定。
• 木戦還凜鍾壺藥藻藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藥藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻

孕的：

中國國券報：Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No.353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU Suilmert-Be: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

[131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105]

日

多德贝回：

日

尹日：

云

制：

Virtually Invisible® 791 series II 莫过于591 전장 때일형스ophilia에 rated by

Virtually Invisible 591: 50W IEC 20000000000000000000000000000000000000000000

ArReIroUgErln25.4mmDcHrhTmTtRr2

178mm

Virtually Invisible 591 traii bur boan

ArReIyRnGx19mm

127mm凹槽木纹 1个

Virtually Invisible® 791 series II: 2.18kg

Virtually Invisible 591: 4.45kg

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs	X O O O O	O
Metal parts	X O O O O	O
Plastic parts	O O O O O	O
Speakers	X O O O O	O
Cables	X O O O O	O
This table is prepared in accordance with the provisions of SJ/T 11364. O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Bose Corporation hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and all other applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance

中国におる輸入元：Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EUにおはし输入元: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

台湾におけの輸入元：Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105

Virtually Invisible® 791 series II / 591 in-ceiling speakersにpine

Virtually Invisible 591 speaker

Virtually Invisible 591 speaker

Virtually Invisible 591 speaker

Grillerok

Virtually Invisible 591 speaker

GRII 1

Virtually Invisible® 791 series II: 1台たり約2.18 kg

Virtually Invisible 591: 1台あた約1.45kg

#

a 100000000000000000000000000000000000000000000000000000000000000000000

y www.Bose.co.nz/warranty 1 www.Bose.com.au/warranty 1 y

aiei iie

a

aaii 1

84 2010-100

6 6 IEC 50:Virtually Invisible791 series II

18 050:Virtually Invisible 591

: Virtually Invisible791 series II

25.4"1

(178) 77

:Virtually Invisible 591

a 10 24

(127) 5

: Virtually Invisible791 series II

(a214) "8.4: jbjail

(105.2)"4.14:

(註254) ^n = a1,a2,a_3

(219)"858:

:Virtually Invisible 591

(a16 166) "6.5 : jbiil

(96.7)"3.8:

(206)8.11

(170) "6.7 jall: jball

sJ 2.180.33:Virtually Invisible791 series II

J (1.45) 3.19:Virtually Invisible 591

LgUol g hsi 1

Virtually Invisible 591 a

-

clalall jai jali

2.

y

Virtually Invisible 591

aclawl sllw juaogj

aclawl

AeLd 36) 14

Ae 1

aalw g jyj yall yj yll lssy 2

y 1

Aa 1

2.

3.

Virtually Invisible 591 acuall

Aeall g 2y y bll 1y bll lll

4.

5.

Clewaildcluul Cuthio

Virtually Invisible 791 aaaa aee 591 series II

591 Bose Virtually Invisible791 series II a ccll lalw jy 1

i

aill 1 j 2 3 4 5 6 7 8 9 0

C11 = 50

(12) 434 aclal

Bose 456 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

Jaae

Bose 1999/5/EC www.Bose.com/compliance

:Jnnn nn nnnn

Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

a

Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

1

Bose Taiwan Branch, Room 905, 9F, Worldwide House, 131 Min Sheng East Rd, Section 3, Taipei, Taiwan, 105.

12015 2005
