Product type	Professional loudspeaker
Brand	Bose
Model	DesignMax DM6PE
Dimensions (bottom diameter)	308 mm
Dimensions (height)	374 mm
Dimensions (top diameter)	200 mm
Net weight (speaker only)	5.66 kg
Gross weight (pair)	15.01 kg
Available colors	Black (RAL 9005) or White (RAL 9003)
Power supply	70 V / 100 V
Available power taps (70 V)	2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W
Available power taps (100 V)	5 W, 10 W, 20 W, 40 W, 80 W
Nominal impedance	8 Ω (100 W)
Outdoor use	Yes, with IP55 protective cover
Protection rating	IP55 (with cover)
Temperature range	-25 °C to 65 °C
Suspension cable length	4.57 m (15 ft)
Enclosure material	Polypropylene (PP) plastic, ready to paint
Recommended paint	Special paint for polypropylene
Included accessories	Suspension cable, cable clamp, protective cover, Euroblock connector
Installation	By a professional technician only
Wiring type	18 AWG to 14 AWG (0.8 mm² to 2.1 mm²)
Secondary safety	Safety cable recommended (included can be used)
Warranty	Limited, see BoseProfessional.com/Warranty

Frequently Asked Questions - DesignMax DM6PE BOSE

What is the maximum power of the DesignMax DM6PE speaker?

The speaker can handle up to 100 W in low-impedance mode (8 Ω) or up to 80 W on 70 V/100 V lines.

How to choose the speaker power tap?

Use a flathead screwdriver to turn the transformer tap selector. The available values are indicated on the terminal strip: 2.5/5/10/20/40/80 W in 70 V and 5/10/20/40/80 W in 100 V.

Can the speaker be used outdoors?

Yes, it is designed for direct outdoor installation provided the supplied input protective cover is used, ensuring IP55 rating.

How to paint the DesignMax DM6PE speaker?

Choose a paint specially designed for polypropylene (PP). Remove the grille and logo if necessary, then paint evenly. Let dry completely before putting back into service.

What type of cable to use for wiring?

Use cables with cross-section from 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²). Strip 6 mm of wire for connection to the Euroblock connector.

Is an additional safety cable needed?

Yes, to comply with building codes, it is recommended to install a secondary attachment. The included suspension cable can serve as a safety cable.

What is the maximum suspension height?

The suspension cable length is 4.57 m. The maximum safe load (cable) is 45.36 kg, well above the speaker weight (5.66 kg).

Can the installation be done myself?

No, installation must be carried out by a professional technician in accordance with local regulations. Incorrect installation poses risks of falling and injury.

How to clean the speaker?

Use only a dry cloth. Do not use soap, detergent, alcohol or other chemicals that could damage the plastic.

Where to find the full datasheet?

The detailed datasheet is available on the BoseProfessional.com website, DesignMax DM6PE section. You will find additional specifications and mounting diagrams.

USER MANUAL DesignMax DM6PE BOSE

Simple line drawing of a conical container with a flat base and a small horizontal line at the bottom (no text or symbols)

Simple line drawing of a cylindrical object with a small internal mark, no text or symbols present.

DesignMax DM6PE

Pendant Loudspeaker

Installation Guide....2

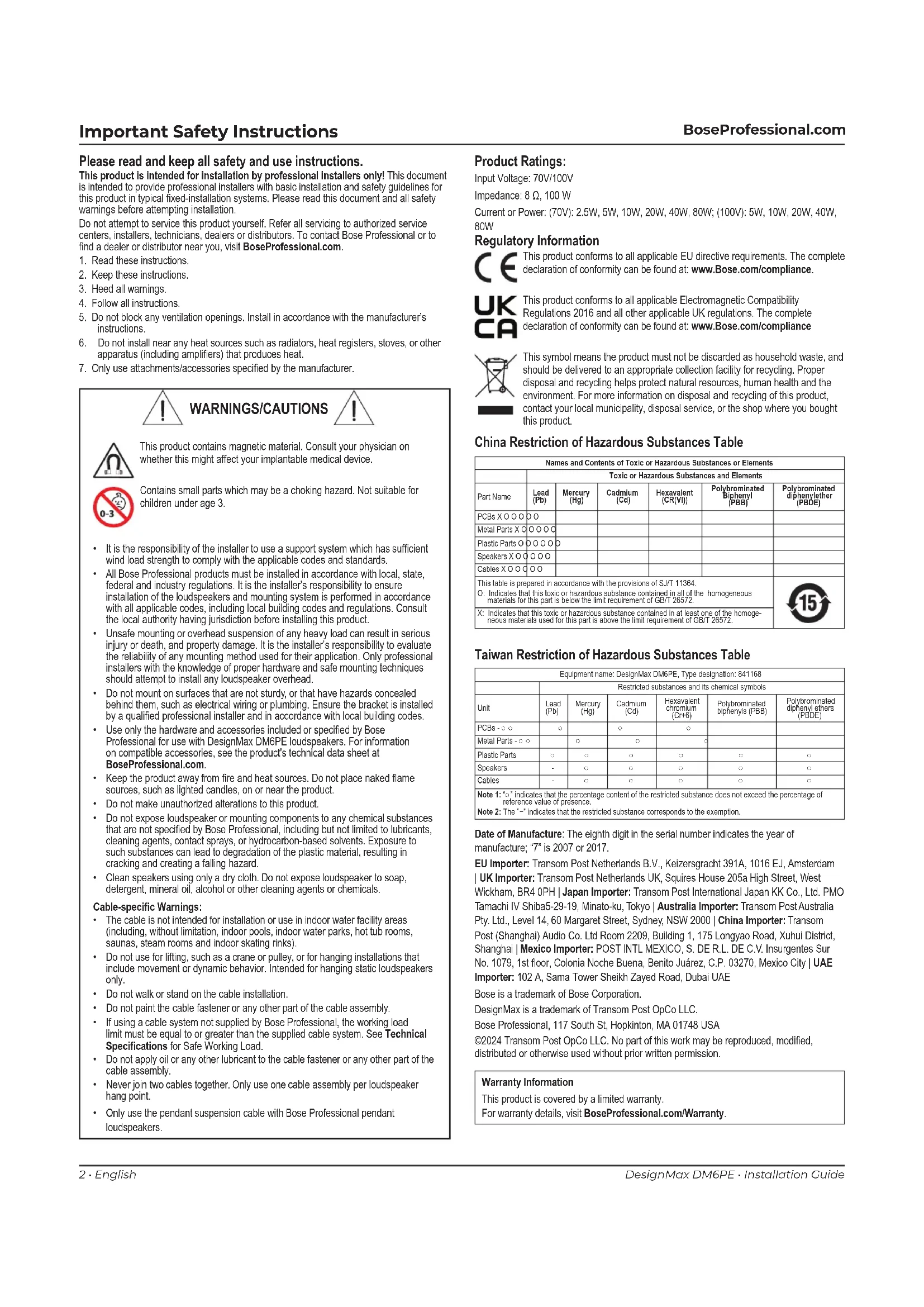

Please read and keep all safety and use instructions.

This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document and all safety warnings before attempting installation.

Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit BoseProfessional.com.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat.
7. Only use attachments/accessories specified by the manufacturer.

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

• It is the responsibility of the installer to use a support system which has sufficient wind load strength to comply with the applicable codes and standards.
• All Bose Professional products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
• Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.
• Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. Ensure the bracket is installed by a qualified professional installer and in accordance with local building codes.
• Use only the hardware and accessories included or specified by Bose Professional for use with DesignMax DM6PE loudspeakers. For information on compatible accessories, see the product's technical data sheet at BoseProfessional.com.
• Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.
• Do not make unauthorized alterations to this product.
• Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose Professional, including but not limited to lubricants, cleaning agents, contact sprays, or hydrocarbon-based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.
• Clean speakers using only a dry cloth. Do not expose loudspeaker to soap, detergent, mineral oil, alcohol or other cleaning agents or chemicals.

Cable-specific Warnings:

• The cable is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).
• Do not use for lifting, such as a crane or pulley, or for hanging installations that include movement or dynamic behavior. Intended for hanging static loudspeakers only.
• Do not walk or stand on the cable installation.
• Do not paint the cable fastener or any other part of the cable assembly.
• If using a cable system not supplied by Bose Professional, the working load limit must be equal to or greater than the supplied cable system. See Technical Specifications for Safe Working Load.
• Do not apply oil or any other lubricant to the cable fastener or any other part of the cable assembly.
• Never join two cables together. Only use one cable assembly per loudspeaker hang point.
• Only use the pendant suspension cable with Bose Professional pendant loudspeakers.

Product Ratings:

Input Voltage: 70V/100V

Impedance: 8 Ω, 100 W

Current or Power: (70V): 2.5W, 5W, 10W, 20W, 40W, 80W; (100V): 5W, 10W, 20W, 40W, 80W

Regulatory Information

CE This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

UK CA This product conforms to all applicable Electromagnetic Compatibility Regulations 2016 and all other applicable UK regulations. The complete declaration of conformity can be found at: www.Bose.com/compliance

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs X O O O	O O
Metal Parts X O	O O O O
Plastic Parts O	O O O O	O
Speakers X O O	O O O
Cables X O O O	O O
This table is prepared in accordance with the provisions of SJ/T 11364.O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: DesignMax DM6PE, Type designation: 841168
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
PCBs - ○ ○	○		○	○
Metal Parts - ○ ○		○	○	○
Plastic Parts	○	○	○	○	○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1: * Indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "7" is 2007 or 2017.

EU Importer: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam | UK Importer: Transom Post Netherlands UK, Squires House 205a High Street, West Wickham, BR4 0PH | Japan Importer: Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | Australia Importer: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | China Importer: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Mexico Importer: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | UAE Importer: 102 A, Sama Tower Sheikh Zayed Road, Dubai UAE

Bose is a trademark of Bose Corporation.

DesignMax is a trademark of Transom Post OpCo LLC.

Bose Professional, 117 South St, Hopkinton, MA 01748 USA

©2024 Transom Post OpCo LLC. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.

Warranty Information

This product is covered by a limited warranty.

For warranty details, visit BoseProfessional.com/Warranty.

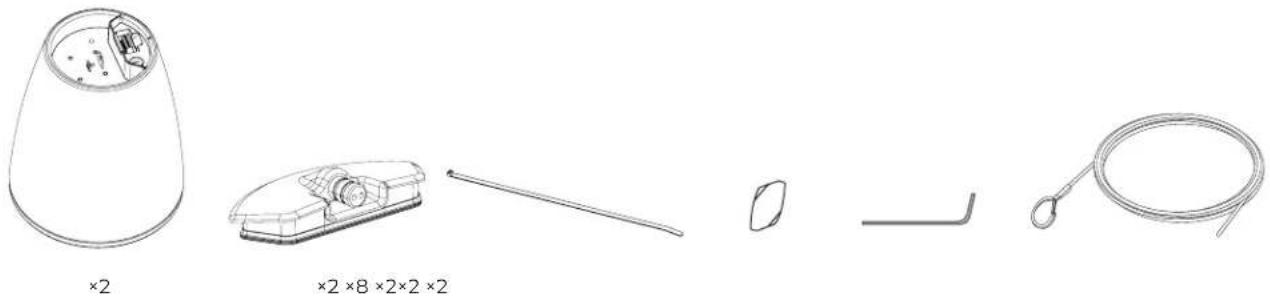

Package Contents

Line drawings of a medical device with labeled components (no text or symbols)

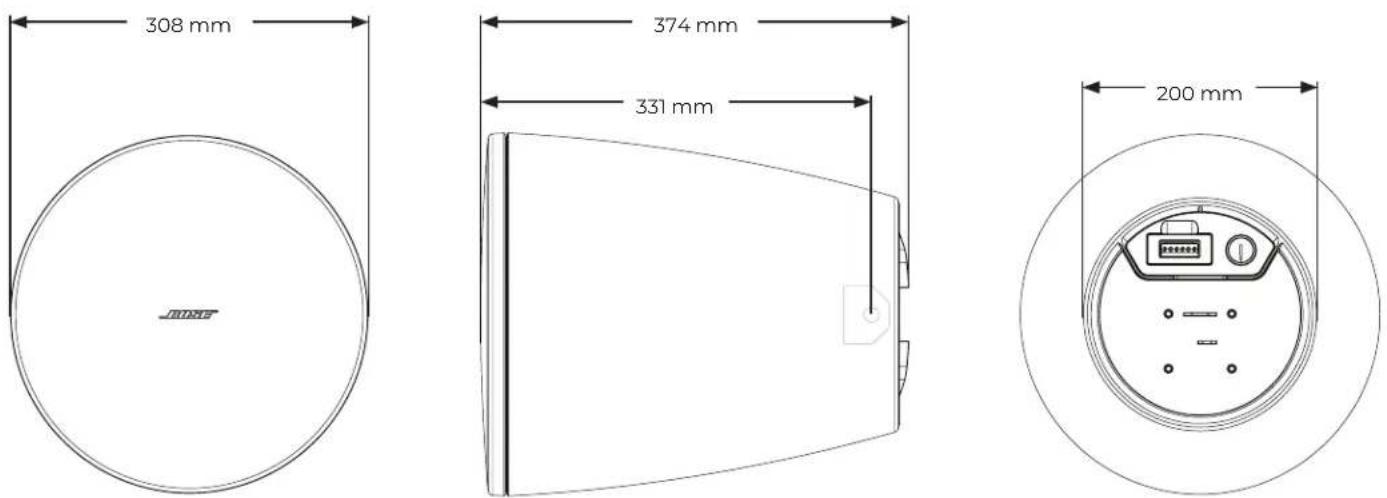

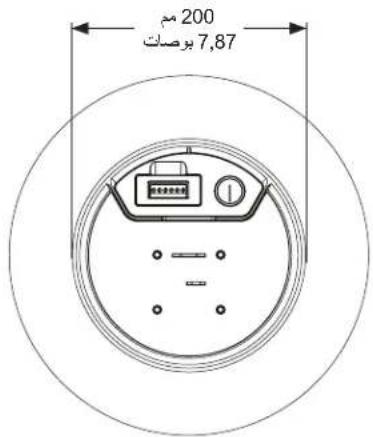

Product Dimensions

308 mm 12.13 in 374 mm 14.72 in 331 mm 13.03 in 200 mm 7.87 in

Technical Specifications

For additional specifications, see the DesignMax DM6PE technical data sheet at BoseProfessional.com.

Physical
Product Dimensions Bottom diameter: 308 mm(12.13 in)
	Height: 374 mm(14.72 in)
	Top diameter: 200 mm(7.87 in)
Cable Dimensions Length: 4.57 m	(15.00 ft)
	Diameter: 2 mm(0.08 in)
Max Load (Safe Working Load) ^1	45.36 kg (100.0 lb)
Net Weight, Loudspeaker (single) 5.66 kg (12.48 lb)
Shipping Weight (pair) 15.01 kg (33.09 lb)
Operating Temperature Range -25 °C to 65 °C (-13 °F to 149 °F)
Color Black (similar to RAL 9005);	White (similar to RAL 9003)
Paintable Choose a paint that is specifically designed for use with polypropylene (PP) plastics.
Environmental Rated for direct-exposure outdoor installations when used with included weather-resistant input cover (IP55 per EN60529).

1. Always use the cable within its stated Safe Working Load. The included suspension cable has a Safe Working Load of 100 lbs.

Important Installation Information

Before installing the loudspeaker, review Important Safety Instructions on page 2.

Safety and Regulatory Compliance

The DesignMax DM6PE loudspeaker has passed testing and complies with the following specifications and uses:

Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use
General-Purpose Use - UL Category UEAY, File Number S36835
The DesignMax DM6PE is suitable for use outdoors in wet locations
Suitable for installation using Class 1, Class 2, Class 3 wiring methods in accordance with NFPA 70, National Electrical Code, 2017, Article 640

Preparing the Input Cover

The input cover is designed for three different wiring scenarios. To change the configuration of the input cover to support your wiring scenario, cut along the perforation on the rubber conduit.

Note: Indoor-only applications do not require use of the input cover.

Single In In and Out Wide Open

Note: If using the wide open rubber conduit configuration, it is the installer's responsibility to seal against water ingress into the Euroblock connector. Use outdoor or marine-grade silicone to seal all wiring connections to ensure a tight seal.

Installation Options and Accessories

① Threaded Rod Adapter

The DesignMax DM6PE loudspeaker is designed to work with 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²) size wire only.

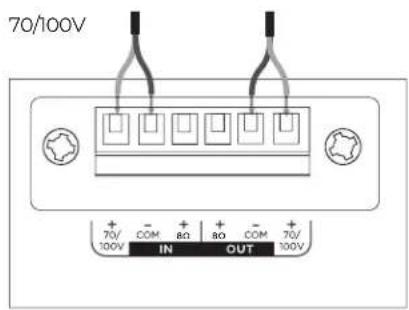

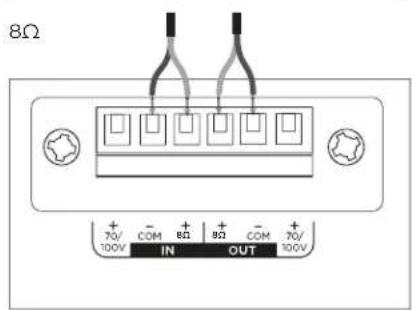

Connection Diagrams

Expose six millimeters ( 14 inch) of bare wire to attach to the terminals.

70/100V + - 70V COM + + 100V IN OUT 70V + - 80 + - COM 100V

8Ω + 70/- 100V IN OUT + 8Ω + 8Ω - COM + 70/ 100V

Technical line drawing of a mechanical component with no visible text or symbols

Loudspeaker Settings

10 20 20 40 40 80 80 5 10 5 5C U8

70V
2.5W 5W 10W 20W 40W 80W*						8Ω
5W 10W 20W 40W 80W NC**
100V

** NC: No Connection (do not use)* Factory defa

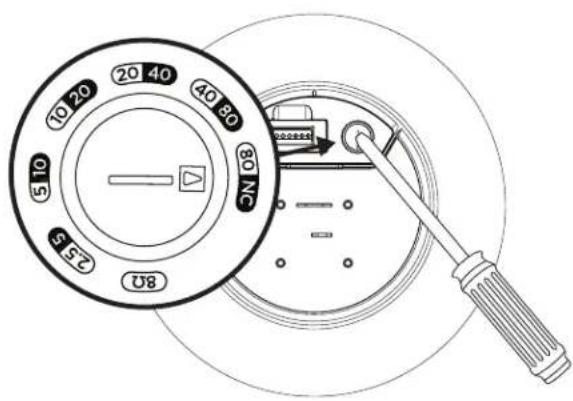

Transformer Tap Setting

Set tap by turning. Use a flat head screwdriver.

Preparing the Installation

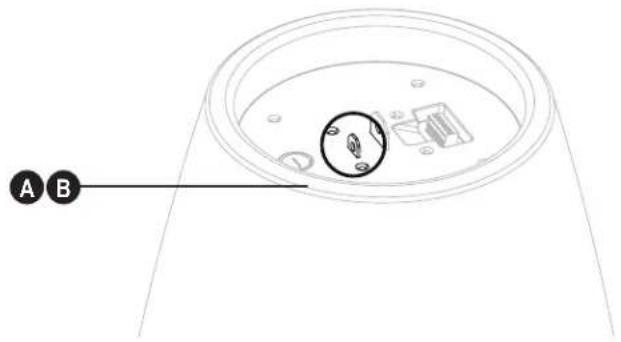

Using a Safety Cable

Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety. Choose a mounting position, method, and hardware consistent with local building codes and regulations.

Bose Professional recommends using (A) a safety wire or (B) a safety cable as a secondary securing mechanism (not included). See the diagram to the right for safety attachment points.

The included suspension cable can be used as a safety cable when using the Threaded Rod Adapter or Pendant Conduit Adapter accessories.

Follow the manufacturer's instructions for any secondary securing mechanism implemented.

A B

Mounting the Loudspeaker

Before beginning installation, be sure to adjust your loudspeaker tap setting.

1. Insert the included suspension cable through the cable fastener and wrap the cable around a support structure; secure the cable using the cable fastener. Note: Arrows on the cable fastener indicate the cable direction. A. To loosen the cable, insert the fastener tool into the release hole and adjust the cable.
2. Pull the loose end of the suspension cable to adjust the cable to the desired height.
3. Secure the cable clip to the center attachment point. Once you've reached the desired loudspeaker height, cutaway any excess cable. Note: Trim any frayed filaments with wire cutters after cutting to length.

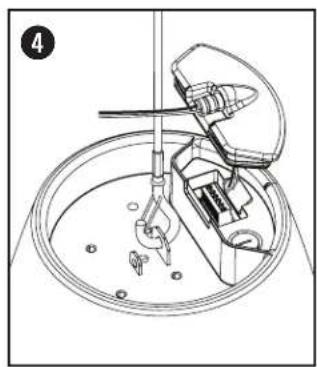

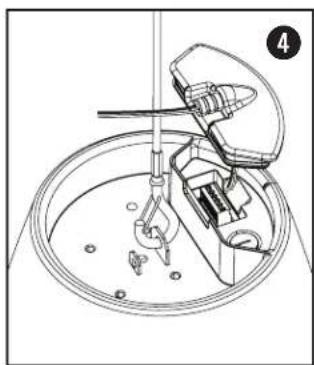

4. For installations where the loudspeaker may be exposed to water or condensation, insert the loudspeaker wiring through the rubber conduit of the input cover (see Preparing the Input Cover on page 4).

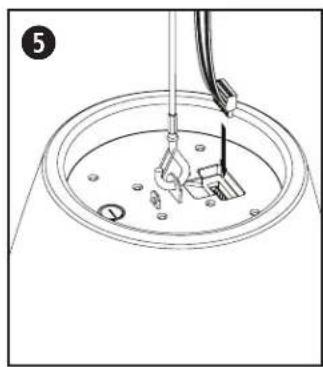

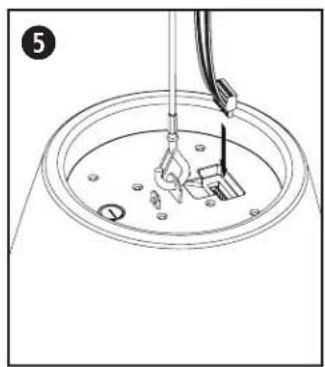

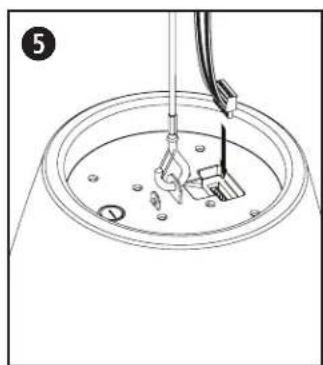

5. Remove the connector, wire the connector, and reinsert the connector into the loudspeaker. For wiring information, see Wiring the Loudspeaker on page 4.

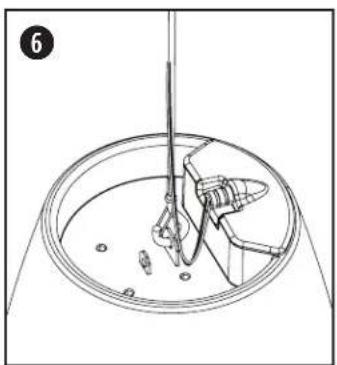

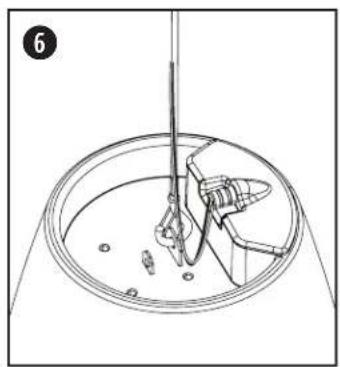

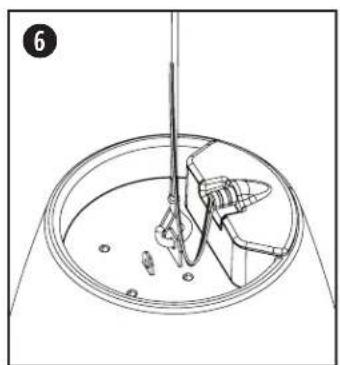

6. For installations where the loudspeaker may be exposed to water or condensation, place the input cover over the connector and press it firmly against the loudspeaker until fully seated into the input cover cavity to create a tight seal. Note: Be sure the loudspeaker wire reaches the bottom of the enclosure recess to prevent water from running down the loudspeaker wire into the input cover.

Use the included cable ties to secure the wiring to the suspension cable.

1. Rotate the grille so the logo is in an orientation suitable for your installation.

Note: Do not remove the grille unless painting. Logo can be removed from the grille by peeling away from grille surface.

1

Simple line drawing of a cable with a loop and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with an arrow indicating direction, no text or symbols present

Simple line drawing of a bucket with a hook and a hanging object, no text or symbols present

Technical line drawing of a mechanical device inside a circular basin, with no visible text or symbols.

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Technical line drawing of a mechanical component inside a circular basin, showing internal parts and alignment lines (no text or symbols)

Simple line drawing of a cylindrical object with an arrow indicating upward motion (no text or symbols)

Line drawings of five different medical or laboratory devices, including a conical device and a coiled tube, with no visible text or symbols.

Diagram illustrating the step-by-step assembly of scissors into a plastic component, with Chinese labels indicating each stage.

Technical line drawing of a mechanical component with no visible text or symbols

70 V 2.5 W 5 W 10 W 20 W 40 W 80 W* 5 W 10 W 20 W 40 W 80 W NC** 100 V 8 Ω

** NC: Sin conexión (no utilizar)* Predetern

Diagram showing fluid flow with labeled components and directional arrows, likely illustrating a physical or fluid dynamics concept.

Simple line drawing of a cable with a loop and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with a curved hook and a hanging object, no text or symbols present.

Simple line drawing of a bucket being lifted by a hook (no text or symbols)

Technical line drawing of a mechanical device inside a bowl, showing components like a tool and a container (no text or symbols)

Diagram of a mechanical device with a lever and base assembly, no text or symbols present

Technical line drawing of a mechanical component inside a circular housing (no text or symbols)

Simple line drawing of a cylindrical object with an arrow indicating upward motion (no text or symbols)

Diagram illustrating the step-by-step assembly of a sewing machine, showing cutting and rolling process with scissors and component details.

Technical line drawing of a mechanical component with no visible text or symbols

70 V 2,5 W 5 W 10 W 20 W 40 W 80 W* 5 W 10 W 20 W 40 W 80 W NC** 100 V 8 Ω

Simple line drawing of a cable with a loop and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with an arrow indicating direction, no text or symbols present

Simple line drawing of a bucket being lifted by a hook (no text or symbols)

Technical line drawing of a mechanical device inside a circular basin, with no visible text or symbols.

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Technical line drawing of a mechanical component inside a circular basin, showing internal parts and alignment lines (no text or symbols)

Simple line drawing of a cylindrical object with an arrow indicating upward motion (no text or symbols)

Line drawings of a medical device with labeled components (no text or symbols)

Produktabmessungen

308 mm 374 mm 331 mm 200 mm

Diagram illustrating the step-by-step assembly of scissors into a plastic component, with Chinese labels indicating each stage.

Technical line drawing of a mechanical component with no visible text or symbols

Diagram showing fluid flow with labeled components and directional arrows, likely illustrating a physical or fluid dynamics concept.

Simple line drawing of a cable with a loop and directional arrow (no text or symbols)

Simple line drawing of a rope or cable being inserted into a container, with an arrow indicating direction (no text or symbols)

Simple line drawing of a bucket being lifted by a hook (no text or symbols)

Line drawing of a mechanical device inside a bowl, showing components like a tool and a handle (no text or symbols)

Line drawing of a mechanical device inside a circular basin, showing a tool interacting with a component (no text or symbols)

Technical line drawing of a mechanical component inside a circular basin, showing internal parts and alignment lines (no text or symbols)

Simple line drawing of a cylindrical container with an arrow indicating upward motion (no text or symbols)

Simple line drawing of a dome-shaped container with internal components (no text or symbols)

2 pz.

2 pz. 8 pz. 2 pz. 2 pz. 2 pz.

Diagram illustrating the step-by-step assembly of scissors into a plastic component, with Chinese labels indicating each stage.

Technical line drawing of a mechanical component with no visible text or symbols

70 V 2,5 W 5 W 10 W 20 W 40 W 80 W* 5 W 10 W 20 W 40 W 80 W NC** 100 V 8 Ω

Simple line drawing of a cable with a loop and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with an arrow indicating direction, no text or symbols present

Simple line drawing of a bucket with a hook and handle, no text or symbols present

Line drawing of a mechanical device inside a bowl, with no visible text or symbols

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Technical line drawing of a mechanical component inside a circular housing (no text or symbols)

Simple line drawing of a cylindrical object with an arrow indicating upward motion, no text or symbols present.

Line drawings of a medical device with labeled components (no text or symbols)

Diagram illustrating the step-by-step assembly of scissors into a plastic component, with Chinese labels indicating each stage.

Technical line drawing of a mechanical component with no visible text or symbols

De luidspreker bekabelen

Bekabelingsdiameter

70 V
2,5 W 5	W 10 W 2	0 W 40 W	80 W*			8 Ω
5 W 10	W 20 W	40 W 80 W	NC**
100 V

Simple line drawing of a cable with a loop and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with an arrow indicating direction, no text or symbols present

Simple line drawing of a bucket with a hook and handle, no text or symbols present

Technical line drawing of a mechanical device inside a circular basin, with no visible text or symbols.

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Technical line drawing of a mechanical component inside a circular basin, showing internal parts and alignment lines (no text or symbols)

Simple line drawing of a cylindrical object with an arrow indicating upward motion (no text or symbols)

Australsk importør: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | Importør for Kina: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Importør for

Mexico: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | Importar for De forente arabiske emirater: 102 A, Sama Tower Sheikh Zayed Road, Dubai UAE

Bose er et varemerke for Bose Corporation.

DesignMax er et varemerke for Transom Post OpCo LLC.

Bose Professional, 117 South St, Hopkinton, MA 01748 USA

Diagram illustrating the step-by-step assembly of scissors into a plastic component, with Chinese labels indicating each stage.

Technical line drawing of a mechanical component with no visible text or symbols

Kable høyttaleren

Kabeldiameter

70 V 2,5 W 5 W 10 W 20 W 40 W 80 W* 5W 10 W 20 W 40 W 80 W NC** 100 V 8 Ω

Diagram showing a curved path with directional arrows and labeled point 1, likely illustrating fluid or water flow concepts.

Simple line drawing of a cable with a loop and a directional arrow (no text or symbols)

Simple line drawing of a rope or cable with a curved hook and directional arrow, no text or symbols present.

Simple line drawing of a bucket being lifted by a hook (no text or symbols)

Technical line drawing of a mechanical device inside a basin, showing tool and components (no text or symbols)

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Technical line drawing of a mechanical component inside a circular housing (no text or symbols)

Simple line drawing of a cylindrical container with an arrow indicating horizontal direction (no text or symbols)

| Importer — Australia: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | Importer — Chiny: Transom Post (Shanghai) Audio Co.

Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Importer — Meksyk: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor,

Colonia Noche Buena, Benito Juárez, C.P. 03270, Meksyk | Importer — ZEA: 102A, Sama Tower Sheikh Zayed Road, Dubaj, ZEA

Line drawings of a device with labeled components including a conical container, a mechanical switch, and a coiled cable (no text or symbols present)

Wymiary produktu

308 mm 12,13 cala 374 mm 14,72 cala 331 mm 13,03 cala 200 mm 7,87 cala

Dane techniczne

Diagram illustrating the step-by-step assembly of scissors into a plastic component, with Chinese labels indicating each step.

Technical line drawing of a mechanical component with no visible text or symbols

Grubość przewodu

70 V 2,5 W 5 W 10 W 20 W 40 W 80 W* 5 W 10 W 20 W 40 W 80 W NC** 100V

Diagram showing a curved path with directional arrows and labeled point 1, likely illustrating fluid or water flow concepts.

Simple line drawing of a cable with a loop and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with a curved hook and a hanging object, no text or symbols present.

Simple line drawing of a bucket being lifted by a hook (no text or symbols)

Line drawing of a mechanical device inside a bowl, showing a tool interacting with a surface (no text or symbols)

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Technical line drawing of a mechanical component inside a circular housing (no text or symbols)

Simple line drawing of a cylindrical object with an arrow indicating upward motion, no text or symbols present.

请阅读并保留所有安全和使用说明。

Technical line drawing of a mechanical component with no visible text or symbols

扬声器设置

10 20 20 40 40 80 5 10 5 5°C U8 908

70V
2.5W 5W 10W 20W 40W 80W*						8Ω
5W 10W 20W 40W 80W NC**
100V

Simple line drawing of a cable with a clip and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with a curved hook and an arrow indicating direction (no text or symbols)

Simple line drawing of a bucket being lifted by a hook (no text or symbols)

Technical line drawing of a mechanical device inside a circular basin, showing components like a lever and base (no text or symbols)

Diagram of a mechanical device with a tool and component inside a circular basin (no text or symbols)

Technical line drawing of a mechanical component inside a circular housing (no text or symbols)

Simple line drawing of a cylindrical container with an arrow indicating horizontal motion (no text or symbols)

請詳閱並妥善保管所有安全與使用指示。

歐盟進口商：Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam | 英國進口商：Transom Post Netherlands UK, Squires House 205a High Street, West Wickham, BR4 0PH | 日本進口商：Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | 澳洲進口商：Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | 中國進口商：Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | 墨西哥進口商：POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | 阿拉伯聯合大公國進口商：102 A, Sama Tower Sheikh Zayed Road, Dubai UAE

Technical line drawing of a mechanical component with no visible text or symbols

揚聲器設定

10 20 20 40 40 80 5 10 5 5°C U8 908

70V
2.5W 5W 10W 20W 40W 80W*						8Ω
5W 10W 20W 40W 80W NC**
100V

Simple line drawing of a cable with a clip and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with a curved hook and directional arrow, no text or symbols present.

Simple line drawing of a bucket being lifted by a hook (no text or symbols)

Technical line drawing of a mechanical device inside a circular basin, showing internal components and no text or symbols.

Diagram of a mechanical device with a tool and component inside a circular basin (no text or symbols)

Technical line drawing of a mechanical assembly inside a circular basin, showing internal components and alignment lines (no text or symbols)

Simple line drawing of a cylindrical container with an arrow indicating upward motion (no text or symbols)

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

www.Bose.com/compliance

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Line drawings of a medical device with labeled components (no text or symbols)

製品寸法

308 mm 374 mm 331 mm 200 mm

技術仕様

Technical line drawing of a mechanical component with no visible text or symbols

スピーカーの配線

ケーブルゲージ

Simple line drawing of a circular object with internal components and a highlighted circle (no text or symbols)

スピーカーの取り付け

Simple line drawing of a cable with a loop and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with an arrow indicating direction, no text or symbols present.

Simple line drawing of a bucket being lifted by a hook (no text or symbols)

Technical line drawing of a mechanical device inside a circular basin, showing components like a tool and valve (no text or symbols)

Diagram of a mechanical device with a tool and base, no visible text or symbols

Technical line drawing of a mechanical assembly inside a circular basin, showing internal components and alignment lines (no text or symbols)

Simple line drawing of a cylindrical container with an arrow indicating horizontal direction (no text or symbols)

التحذيرات/التنبيهات

Simple line drawing of a conical container with internal compartments (no text or symbols)

2×

أبعاد المنتج

200 بوصات 7,87

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a bucket with a handle and label '3' (no text or symbols on the diagram itself)

Simple line drawing of a rope or cable with a curved hook and directional arrow, no text or symbols present.

Simple line drawing of a cable with a loop and directional arrow (no text or symbols)

Simple line drawing of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a cylindrical object with an arrow indicating upward motion, no text or symbols present.

Technical line drawing of a mechanical assembly inside a circular basin, showing internal components and no text or symbols.

Diagram of a mechanical device interacting with a circular base, showing tool and components (no text or symbols)

Technical line drawing of a mechanical device inside a circular basin, with no visible text or symbols.

PROFESSIONAL
