Product type	Subwoofer speaker
Brand	Bose
Model	DesignMax DM10P-SUB
Dimensions (diameter)	400 mm
Height	383 mm
Depth	265 mm
Net weight	8.92 kg
Gross weight	12.65 kg
Impedance	8 Ω
Rated power	250 W
Input voltage	70 V / 100 V
Power taps (70 V)	20 W, 40 W, 80 W, 150 W
Power taps (100 V)	40 W, 80 W, 150 W
Built-in low-pass filter	100 Hz
Recommended high-pass protection	40 Hz
Enclosure material	Polypropylene (PP) plastic
Available colors	Black (RAL 9005) or White (RAL 9003)
Usage	Indoor only
Operating temperature	0 °C to 50 °C
Certifications	ANSI/UL 1480A-2016
Included accessories	Suspension cable (4.57 m), cable clamp, connector, cable ties
Installation	By a professional only
Warranty	Limited (see official website)

Frequently Asked Questions - DesignMax DM10P-SUB BOSE

How to adjust the subwoofer power?

Use a flathead screwdriver to turn the transformer tap selector. The available settings are indicated on the product: for 70 V: 20 W, 40 W, 80 W, 150 W; for 100 V: 40 W, 80 W, 150 W. The factory setting is 150 W.

What type of cable to use for connection?

Use a cable from 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²). Strip 6 mm of wire to connect to the terminals.

Can I paint the speaker?

Yes, the grille and enclosure are paintable. Use a paint specially designed for polypropylene (PP) plastic. You can remove the logo from the grille by peeling it off.

How to install the suspension cable?

Thread the cable through the cable clamp, wrap it around a support structure and secure it with the cable clamp. Use the locking tool to adjust the length. Cut the excess cable after adjusting the height.

What is the maximum load of the suspension cable?

The safety load of the included suspension cable is 90.72 kg (200 lb). Never exceed this limit.

Can the speaker be used outdoors?

No, this product is designed for indoor use only. Do not expose it to water or humidity.

How to connect the speaker in 70V or 100V mode?

Connect the positive wire to the +70/100V terminal and the negative wire to the COM terminal. For low impedance (8 Ω) use, use the +8Ω and COM terminals. Make sure the power selector is set correctly.

What to do if sound is weak or absent?

Check the transformer tap setting and impedance. Ensure the wiring is correct and the amplifier provides the appropriate power. Consult a professional installer if the problem persists.

Can I mount the speaker to the ceiling with a threaded rod?

Yes, use the threaded rod adapter (optional accessory). Follow the installation instructions provided with the adapter.

Where to find mounting accessories?

Compatible accessories are listed on the Bose Professional website (BoseProfessional.com). Contact an authorized dealer or refer to the product datasheet.

USER MANUAL DesignMax DM10P-SUB BOSE

Simple line drawing of a conical frustum (truncated cone) with no text or symbols

Simple line drawing of a cylindrical object with a small internal mark, no text or symbols present.

DesignMax DM10P-SUB

Pendant Loudspeaker

Installation Guide....2

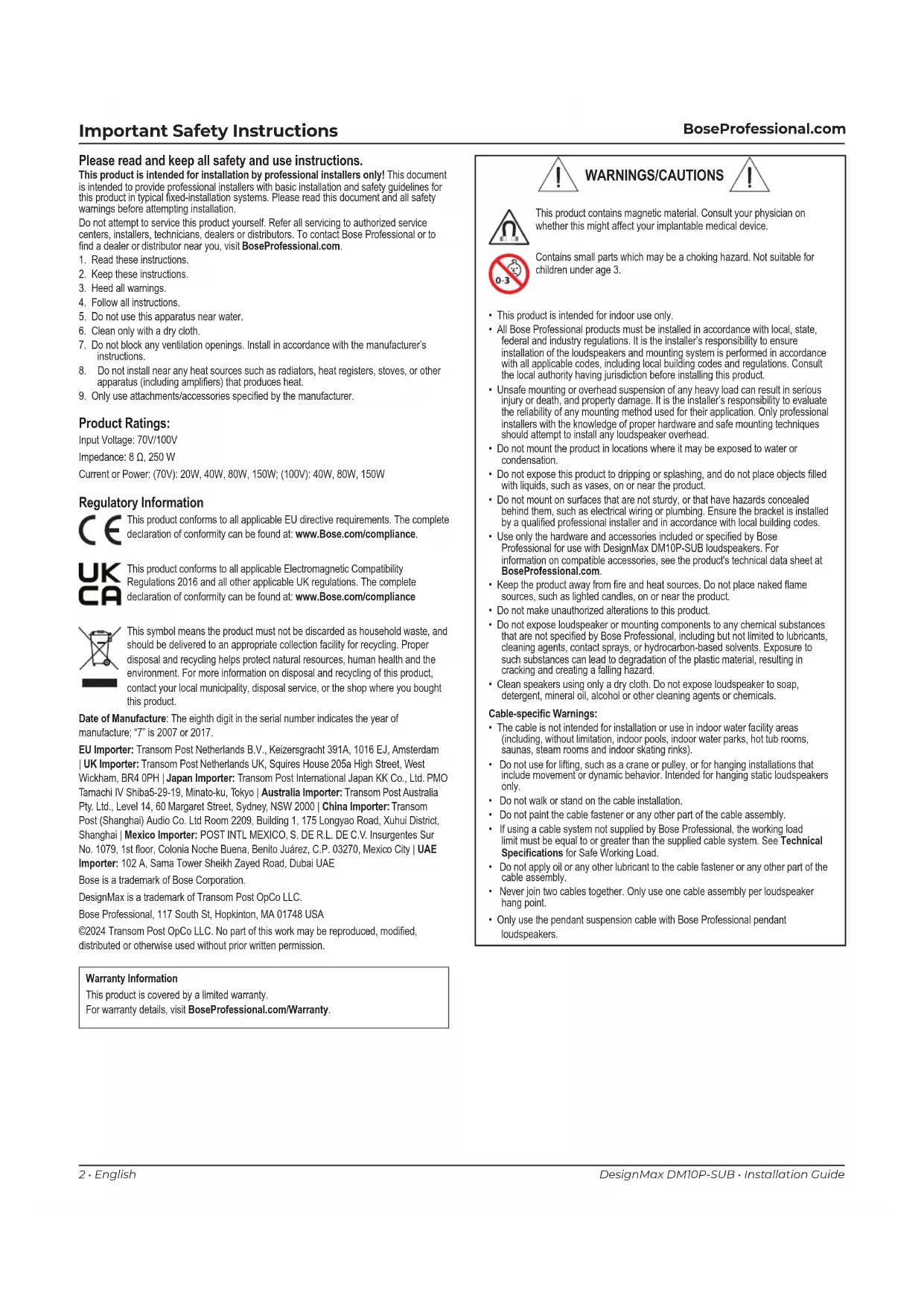

Please read and keep all safety and use instructions.

This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document and all safety warnings before attempting installation.

Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit BoseProfessional.com.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat.
9. Only use attachments/accessories specified by the manufacturer.

Product Ratings:

Input Voltage: 70V/100V

Impedance: 8 Ω, 250 W

Current or Power: (70V): 20W, 40W, 80W, 150W; (100V): 40W, 80W, 150W

Regulatory Information

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This product conforms to all applicable Electromagnetic Compatibility Regulations 2016 and all other applicable UK regulations. The complete declaration of conformity can be found at: www.Bose.com/compliance

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "7" is 2007 or 2017.

EU Importer: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam | UK Importer: Transom Post Netherlands UK, Squires House 205a High Street, West Wickham, BR4 0PH | Japan Importer: Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | Australia Importer: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | China Importer: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Mexico Importer: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | UAE Importer: 102 A, Sama Tower Sheikh Zayed Road, Dubai UAE

Bose is a trademark of Bose Corporation.

DesignMax is a trademark of Transom Post OpCo LLC.

Bose Professional, 117 South St, Hopkinton, MA 01748 USA

©2024 Transom Post OpCo LLC. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.

Warranty Information

This product is covered by a limited warranty.

For warranty details, visit BoseProfessional.com/Warranty.

WARNINGS/CAUTIONS

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

• This product is intended for indoor use only.
- All Bose Professional products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
- Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.
- Do not mount the product in locations where it may be exposed to water or condensation.
- Do not expose this product to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the product.
- Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. Ensure the bracket is installed by a qualified professional installer and in accordance with local building codes.
- Use only the hardware and accessories included or specified by Bose Professional for use with DesignMax DM10P-SUB loudspeakers. For information on compatible accessories, see the product's technical data sheet at BoseProfessional.com.
- Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.
- Do not make unauthorized alterations to this product.
- Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose Professional, including but not limited to lubricants, cleaning agents, contact sprays, or hydrocarbon-based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.
- Clean speakers using only a dry cloth. Do not expose loudspeaker to soap, detergent, mineral oil, alcohol or other cleaning agents or chemicals.

Cable-specific Warnings:

• The cable is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).
• Do not use for lifting, such as a crane or pulley, or for hanging installations that include movement or dynamic behavior. Intended for hanging static loudspeakers only.
• Do not walk or stand on the cable installation.
• Do not paint the cable fastener or any other part of the cable assembly.
• If using a cable system not supplied by Bose Professional, the working load limit must be equal to or greater than the supplied cable system. See Technical Specifications for Safe Working Load.
• Do not apply oil or any other lubricant to the cable fastener or any other part of the cable assembly.
• Never join two cables together. Only use one cable assembly per loudspeaker hang point.
• Only use the pendant suspension cable with Bose Professional pendant loudspeakers.

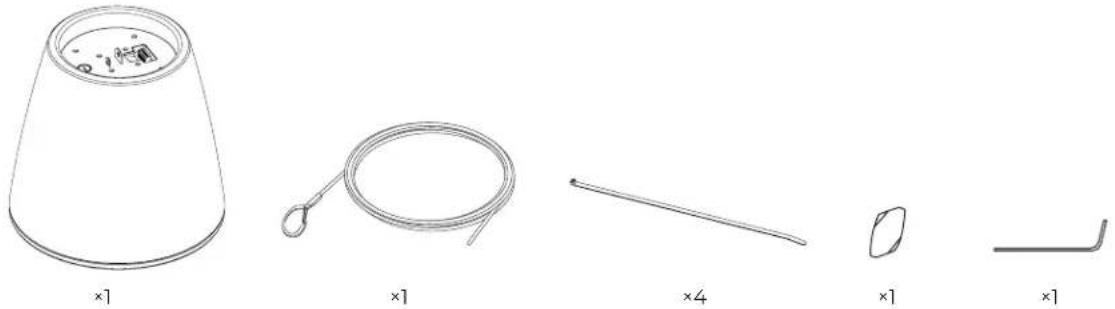

Package Contents

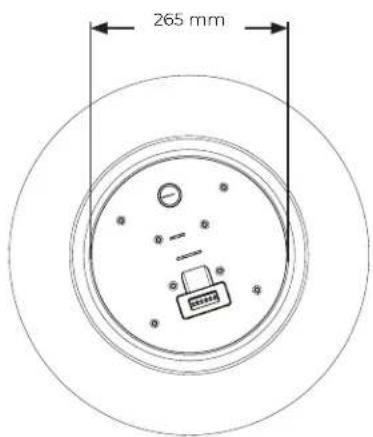

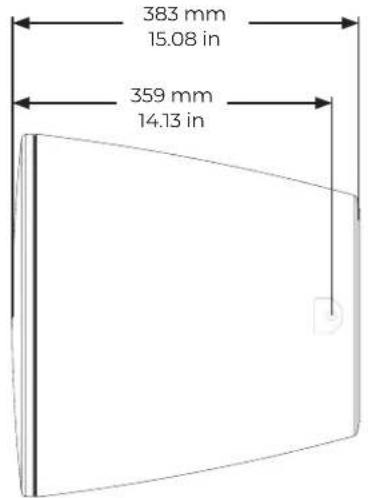

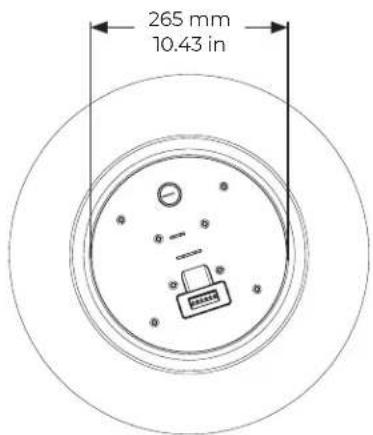

Product Dimensions

400 mm 15.75 in JUSSP

383 mm 15.08 in 359 mm 14.13 in

265 mm 10.43 in

Technical Specifications

For additional specifications, see the DesignMax DM10P-SUB technical data sheet at BoseProfessional.com.

Physical
Product Dimensions Bottom diameter: 400 mm(15.75 in)
Cable Dimensions Length: 4.57 m(15.00 ft)
Max Load (Safe Working Load) ^1	90.72 kg (200.0 lb)
Net Weight, Loudspeaker 8.92 kg (19.67 lb)
Shipping Weight 12.65 kg (27.89 lb)
Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
Recommended High-pass Protection 40 Hz
Low-pass Filter (Bose Professional Voicing)	100 Hz
Color Black (similar to RAL 9005); White(similar to RAL 9003)
Paintable Choose a paint that is specifically designed for use with polypropylene (PP) plastics.
Environmental Indoor Only

1. Always use the cable within its stated Safe Working Load. The included suspension cable has a Safe Working Load of 200 lbs.

Important Installation Information

Before installing the loudspeaker, review Important Safety Instructions on page 2.

Safety and Regulatory Compliance

The DesignMax DM10P-SUB loudspeaker has passed testing and complies with the following specifications and uses:

• Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use
- General-Purpose Use - UL Category UEAY, File Number S36835
- Suitable for installation using Class 1, Class 2, Class 3 wiring methods in accordance with NFPA 70, National Electrical Code, 2017, Article 640

Installation Options and Accessories

1 Threaded Rod Adapter

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

Wiring the Loudspeaker

Wire Gauge

The DesignMax DM10P-SUB loudspeaker is designed to work with 18 AWG (0.8 mm ^2 ) to 14 AWG (2.1 mm ^2 ) size wire only.

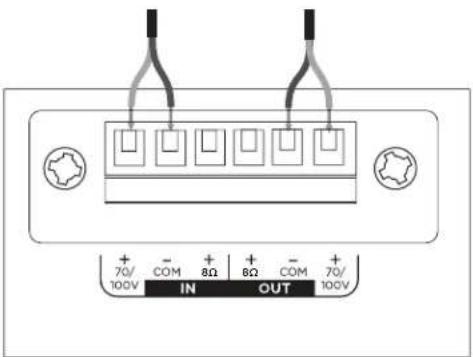

Connection Diagrams

Expose six millimeters ( 14 inch) of bare wire to attach to the terminals.

+ 70/- 100V IN + 8Ω OUT + 8Ω COM - 70/ 100V

70/100V 8Ω

+ 70/- 100V IN + 8Ω OUT + 8Ω COM - 70/ 100V

Loudspeaker Settings

20 40 40 80 80 150 150 NC Ω 38

70V
20W 40W	80W 150W*			8Ω
40W 80W	150W NC**
100V

** NC: No Connection (do not use)* Factory default

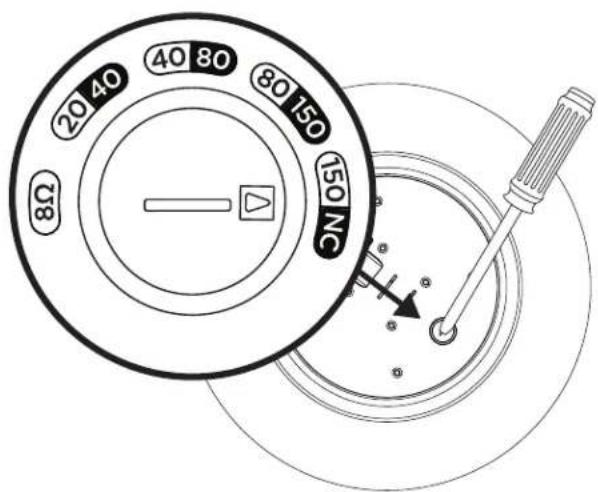

Transformer Tap Setting

Set tap by turning. Use a flat head screwdriver.

Preparing the Installation

Using a Safety Cable

Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety. Choose a mounting position, method, and hardware consistent with local building codes and regulations.

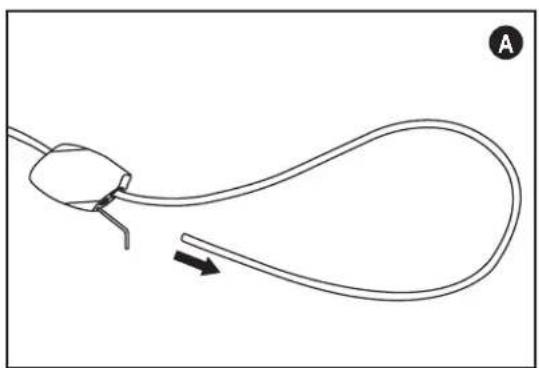

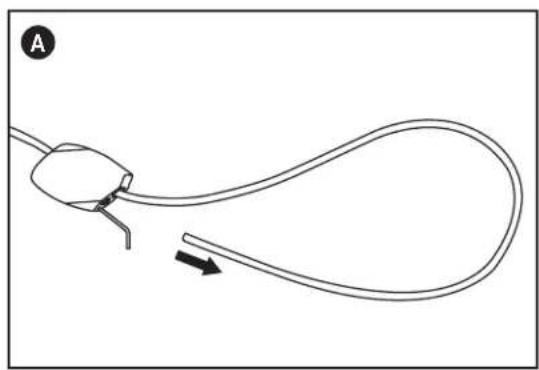

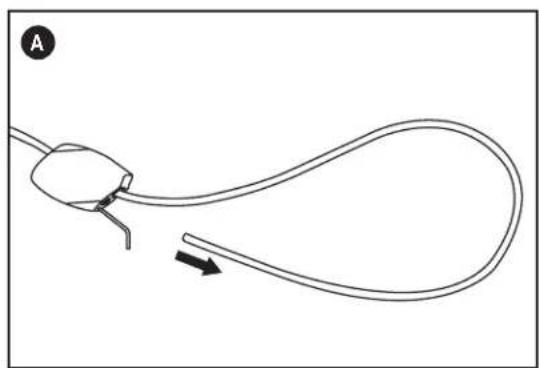

Bose Professional recommends using (A) a safety wire or (B) a safety cable as a secondary securing mechanism (not included). See the diagram to the right for safety attachment points.

The included suspension cable can be used as a safety cable when using the Threaded Rod Adapter or Pendant Conduit Adapter accessories.

Follow the manufacturer's instructions for any secondary securing mechanism implemented.

A B

Mounting the Loudspeaker

Before beginning installation, be sure to adjust your loudspeaker tap setting.

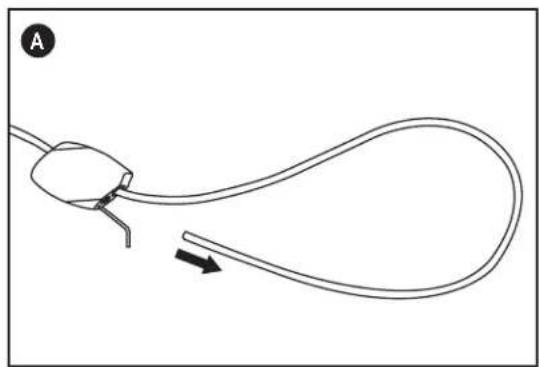

1. Insert the included suspension cable through the cable fastener and wrap the cable around a support structure; secure the cable using the cable fastener. Note: Arrows on the cable fastener indicate the cable direction. A. To loosen the cable, insert the fastener tool into the release hole and adjust the cable.

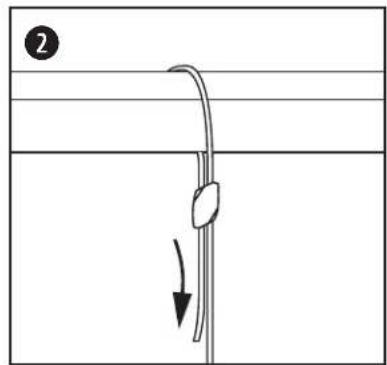

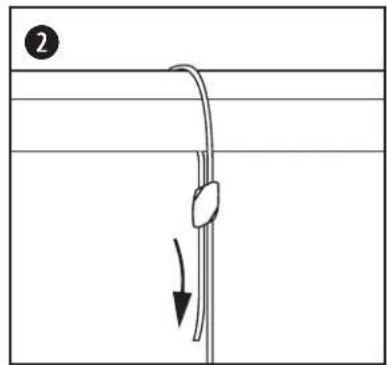

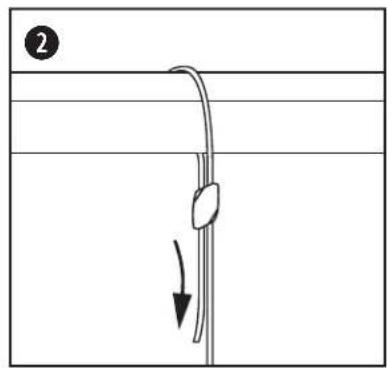

2. Pull the loose end of the suspension cable to adjust the cable to the desired height.
3. Secure the cable clip to the center attachment point. Once you've reached the desired loudspeaker height, cut away any excess cable. Note: Trim any frayed filaments with wire cutters after cutting to length.

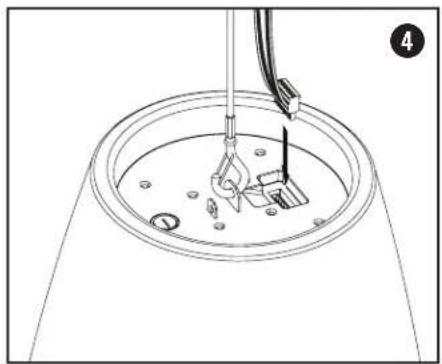

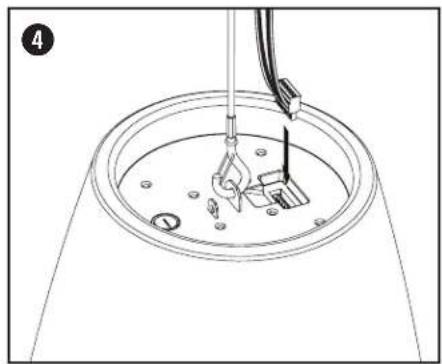

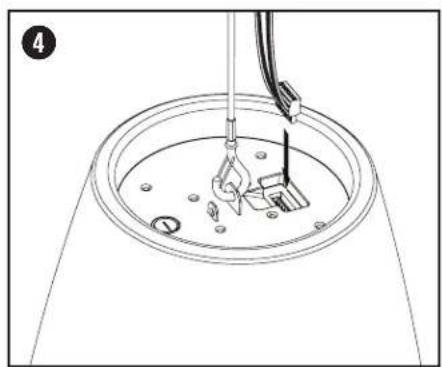

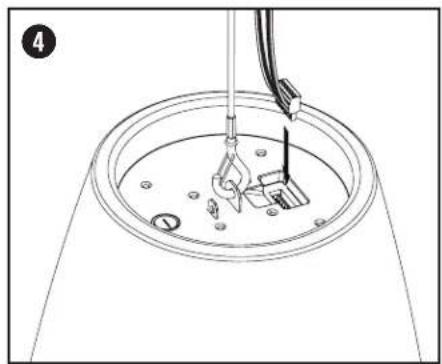

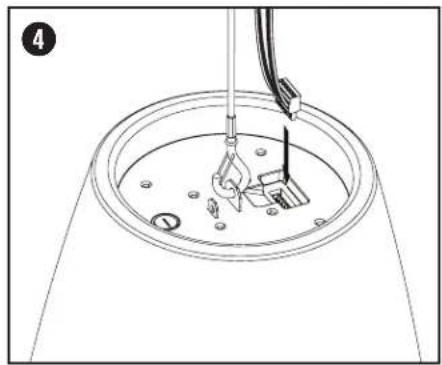

4. Remove the connector, wire the connector, and reinsert the connector into the loudspeaker. For wiring information, see Wiring the Loudspeaker on page 4. Note: If you intend to use a service loop, it can be stored in the loudspeaker recess at the top of the enclosure.
   Use the included cable ties to secure the wiring to the suspension cable.

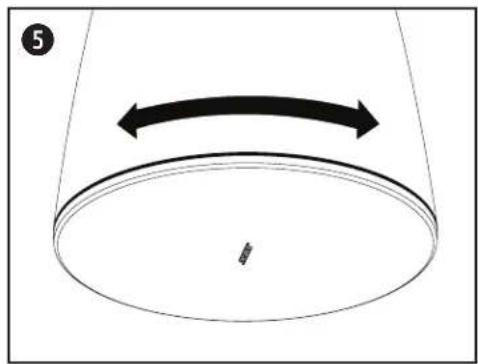

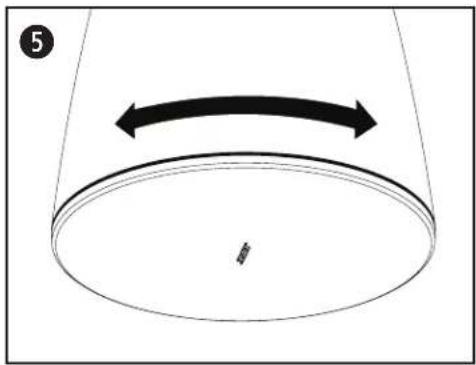

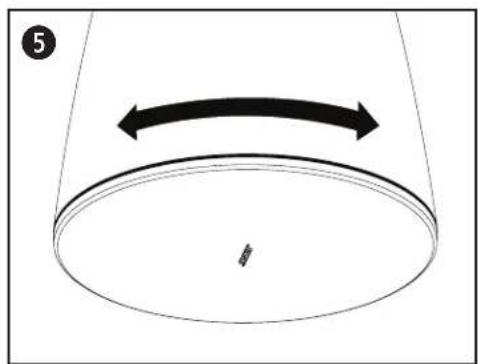

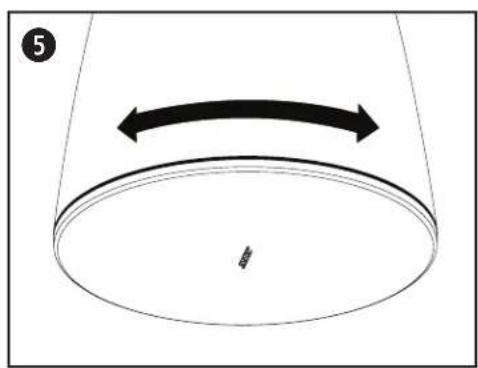

5. Rotate the grille so the logo is in an orientation suitable for your installation. Note: Do not remove the grille unless painting. Logo can be removed from the grille by peeling away from grille surface.

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with a hanging hook and directional arrow (no text or symbols)

Simple line drawing of a crane hook attached to a trapezoidal frame (no text or symbols)

Line drawing of a mechanical device inside a circular housing, showing a tool interacting with components (no text or symbols)

Diagram of a conical object with a double-headed arrow indicating upward motion, no text or symbols present

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable or wire with a clip and an arrow indicating direction (no text or symbols)

Simple line drawing of a rope or cable being pulled down by a hook, with no text or symbols present.

Simple line drawing of a crane hook above a trapezoidal object, no text or symbols present

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

Diagram of a cylindrical object with an arrow indicating upward motion, labeled with number 5 (no text or symbols on the object itself)

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

Simple line drawing of a curved object with directional arrows, no text or symbols present

Simple line drawing of a curved cable or wire with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable being lifted by a hook, with a directional arrow indicating motion (no text or symbols)

Simple line drawing of a crane hook attached to a trapezoidal object, no text or symbols present

Diagram of a mechanical device with a tool and component inside a circular basin (no text or symbols)

Diagram of a conical object with a double-headed arrow indicating upward motion, no text or symbols present

Simple line drawing of a conical container with a lid (no text or symbols)

×7

×7

×4

×7

×7

Produktabmessungen

400 mm JUSSE

383 mm 359 mm

265 mm

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

Simple line drawing of a fish-like shape with arrows indicating movement or direction (no text or symbols)

Simple line drawing of a curved cable or wire with a loop and a connector, no text or symbols present.

Simple line drawing of a rope or cable with a hanging hook and directional arrow (no text or symbols)

Simple line drawing of a crane hook above a trapezoidal frame (no text or symbols)

Technical line drawing of a mechanical assembly with a central component and surrounding components (no text or symbols)

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

400 mm JUSAR

383 mm 359 mm

265 mm

Specifiche tecniche

Technical line drawing of a mechanical component with hexagonal top and circular cutouts (no text or symbols)

Diagram of a curved line with directional arrows indicating movement or force, no text or symbols present

Simple line drawing of a curved cable or wire with an arrow indicating direction (no text or symbols)

Simple line drawing of a rope or cable with a hanging hook and directional arrow (no text or symbols)

Simple line drawing of a crane hook attached to a trapezoidal frame (no text or symbols)

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

Simple line drawing of a conical container with a lid (no text or symbols)

×7

×1

×4

×1

×1

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

De luidspreker bekabelen

Bekabelingsdiameter

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable or wire with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope being inserted into a container with an arrow indicating direction (no text or symbols)

Simple line drawing of a crane hook attached to a trapezoidal frame (no text or symbols)

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

Australsk importør: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | Importør for Kina: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Importør for Mexico: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | Importør for De

forente arabiske emirater: 102 A, Sama Tower Sheikh Zayed Road, Dubai UAE Bose er et varemerke for Bose Corporation.

DesignMax er et varemerke for Transom Post OpCo LLC.

Bose Professional, 117 South St, Hopkinton, MA 01748 USA

Simple line drawing of a conical container with a lid and spout (no text or symbols)

×7

×7

×4

×1

×1

Produktmål

400 mm JOURF

383 mm 359 mm

265 mm

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

Kable høyttaleren

Kabeldiameter

Diagram of a curved structure with directional arrows indicating movement or force (no text or symbols)

Simple line drawing of a curved tube with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable being pulled by a hook, with a directional arrow indicating motion (no text or symbols)

Simple line drawing of a crane hook attached to a trapezoidal frame (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

Line drawings of four different objects: a conical container, a coiled cable, a straight rod, and a simple wire (no text or symbols present)

Wymiary produktu

400 mm 15,75 cala 383 mm 15,08 cala 359 mm 14,13 cala 265 mm 10,43 cala

Dane techniczne

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable or wire with a loop and a small connector, no text or symbols present.

Simple line drawing of a rope or cable with a hanging hook and directional arrow (no text or symbols)

Simple line drawing of a crane hook attached to a trapezoidal frame (no text or symbols)

Line drawing of a mechanical device inside a circular component, showing a tool interacting with a bracket and base plate (no text or symbols)

Diagram of a conical container with a double-headed arrow indicating horizontal motion (no text or symbols)

请阅读并保留所有安全和使用说明。

Technical line drawing of a mechanical component with no visible text or symbols

扬声器接线

线规

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable or wire with an arrow indicating direction (no text or symbols)

Simple line drawing of a rope or cable being pulled down by a hook, with no text or symbols present.

Simple line drawing of a crane hook above a trapezoidal frame (no text or symbols)

Diagram of a robotic arm interacting with a circular mechanical component, no text or symbols present

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

請詳閱並妥善保管所有安全與使用指示。

歐盟進口商:Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam | 英國進口商:Transom Post Netherlands UK, Squires House 205a High Street, West Wickham, BR4 0PH | 日本進口商:Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | 澳洲進口商:Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | 中國進口商:Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | 墨西哥進口商:POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | 阿拉伯聯合大公國進口商:102 A, Sama Tower Sheikh Zayed Road, Dubai UAE

Technical line drawing of a mechanical component with no visible text or symbols

揚聲器接線

線規

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved tube with a loop and a connector, no text or symbols present

Simple line drawing of a rope or cable with a curved hook and directional arrow, no text or symbols present.

Simple line drawing of a crane hook attached to a trapezoidal frame (no text or symbols)

Diagram of a robotic arm interacting with a circular mechanical component, no text or symbols present

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

www.Bose.com/compliance

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Simple line drawing of a conical container with no text or symbols

×7

×7

×4

×7

×7

製品寸法

400 mm JUNN

383 mm 359 mm

265 mm

技術仕様

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

スピーカーの配線

ケーブルゲージ

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with a hanging hook and directional arrow (no text or symbols)

Simple line drawing of a crane hook attached to a trapezoidal frame (no text or symbols)

Diagram of a mechanical device with a tool interacting with a circular component (no text or symbols visible)

Diagram of a conical container with a double-headed arrow indicating horizontal motion (no text or symbols)

Technical line drawing of a mechanical component with hexagonal body and circular features (no text or symbols)

Simple line drawing of a rope or cable being pulled down by a hook, with no text or symbols present.

Simple line drawing of a curved cable or wire with an arrow indicating direction (no text or symbols)

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Simple line drawing of a bucket with a hook and handle, no text or symbols present

PROFESSIONAL
