Brand	Bose
Model	DesignMax DM5P
Product type	Professional fixed-installation loudspeaker
Dimensions (bottom diameter)	259 mm
Dimensions (height)	299 mm
Net weight (unit)	4.13 kg
Gross weight (pair)	11.00 kg
Nominal impedance	8 Ω
Power handling (8 Ω)	50 W
Input voltage	70 V / 100 V
Tapped power (70 V)	3, 6, 12, 25, 50 W
Tapped power (100 V)	6, 12, 25, 50 W
Operating temperature range	0 °C to 50 °C
Available colors	Black (RAL 9005), White (RAL 9003)
Paintable	Yes, with paint for polypropylene
Application	Indoor only
Suspension cable included	Yes, 4.57 m length
Maximum safe cable load	45.36 kg
Compliance	ANSI/UL 1480A-2016
Warranty	Limited (see BoseProfessional.com/Warranty)
Maintenance	Clean with a dry cloth
Repairability	Refer to a qualified professional technician

Frequently Asked Questions - DesignMax DM5P BOSE

How to install the DesignMax DM5P speaker?

Installation must be carried out by a professional technician. Use the supplied suspension cable by wrapping it around a load-bearing structure, then secure it with the cable clamp. Adjust the height and cut off the excess. Connect the connector and insert it into the speaker. Refer to the manual for details.

How to adjust the speaker power?

Turn the transformer tap with a flathead screwdriver to select the desired power: 3, 6, 12, 25 or 50 W for a 70 V line; 6, 12, 25 or 50 W for a 100 V line. The '8Ω' position is used in low-impedance mode.

What cable to use for wiring?

Use cables of gauge 18 (0.8 mm²) to 14 AWG (2.1 mm²). Strip 6 mm of wire for connection to the terminals. Follow the provided connection diagrams.

Can the speaker be painted?

Yes, the speaker is paintable. Use a paint specially designed for polypropylene (PP) plastic. You can remove the logo to paint it separately.

What is the maximum load of the suspension cable?

The maximum safe load for the included suspension cable is 45.36 kg (100 lb). Never exceed this limit.

Is the speaker suitable for outdoor use?

No, the DesignMax DM5P speaker is designed for indoor use only. Do not expose it to water, condensation, or extreme temperatures.

What to do if the grille logo needs to be oriented differently?

Turn the grille to orient the logo according to your installation. The logo is self-adhesive and can be removed if necessary. Only remove the grille to paint it.

How to clean the speaker?

Clean only with a dry cloth. Do not use soap, detergent, mineral oil, alcohol, or other chemicals that could damage the surface.

Where to find the declaration of conformity?

The full declaration of conformity is available at www.Bose.com/compliance for the EU and the United Kingdom.

How to contact technical support?

For any questions, visit BoseProfessional.com or contact an authorized dealer or distributor. Do not attempt to repair the device yourself.

USER MANUAL DesignMax DM5P BOSE

Simple line drawing of a conical container with a small arrow on the bottom (no text or symbols)

Simple line drawing of a cylindrical object with a small internal component, no text or symbols present.

DesignMax DM5P

Pendant Loudspeaker

Installation Guide....2

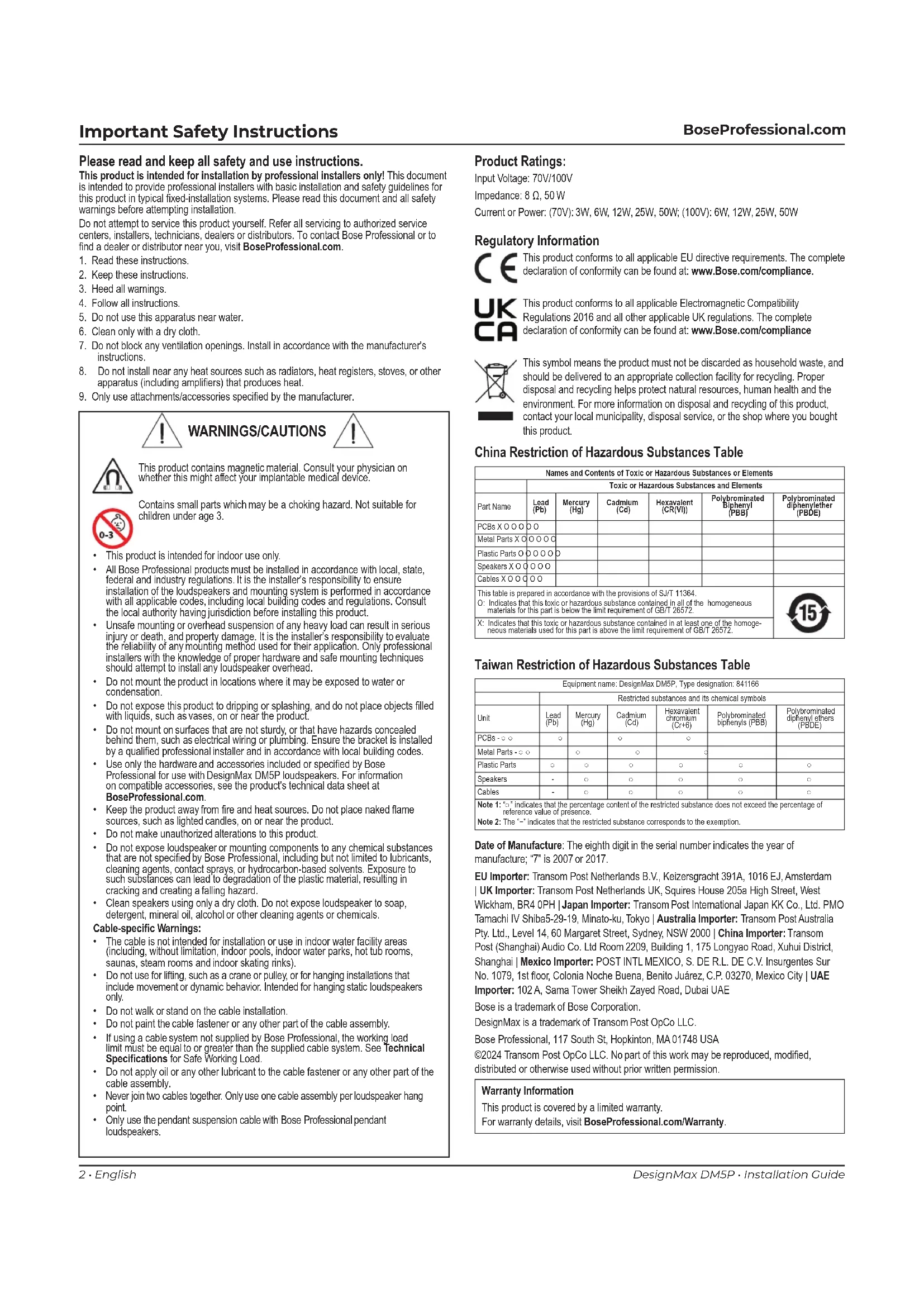

Please read and keep all safety and use instructions.

This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document and all safety warnings before attempting installation.

Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit BoseProfessional.com.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat.
9. Only use attachments/accessories specified by the manufacturer.

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

• This product is intended for indoor use only.
- All Bose Professional products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
- Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.
- Do not mount the product in locations where it may be exposed to water or condensation.
- Do not expose this product to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the product.
- Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. Ensure the bracket is installed by a qualified professional installer and in accordance with local building codes.
- Use only the hardware and accessories included or specified by Bose Professional for use with DesignMax DM5P loudspeakers. For information on compatible accessories, see the product's technical data sheet at BoseProfessional.com.
- Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.
- Do not make unauthorized alterations to this product.
- Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose Professional, including but not limited to lubricants, cleaning agents, contact sprays, or hydrocarbon-based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.
- Clean speakers using only a dry cloth. Do not expose loudspeaker to soap, detergent, mineral oil, alcohol or other cleaning agents or chemicals.

Cable-specific Warnings:

• The cable is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).
• Do not use for lifting, such as a crane or pulley, or for hanging installations that include movement or dynamic behavior. Intended for hanging static loudspeakers only.
• Do not walk or stand on the cable installation.
• Do not paint the cable fastener or any other part of the cable assembly.
• If using a cable system not supplied by Bose Professional, the working load limit must be equal to or greater than the supplied cable system. See Technical Specifications for Safe Working Load.
• Do not apply oil or any other lubricant to the cable fastener or any other part of the cable assembly.
• Never join two cables together. Only use one cable assembly per loudspeaker hang point.
• Only use the pendant suspension cable with Bose Professional pendant loudspeakers.

Product Ratings:

Input Voltage: 70V/100V

Impedance: 8 Ω, 50 W

Current or Power: (70V): 3W, 6W, 12W, 25W, 50W; (100V): 6W, 12W, 25W, 50W

Regulatory Information

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This product conforms to all applicable Electromagnetic Compatibility Regulations 2016 and all other applicable UK regulations. The complete declaration of conformity can be found at: www.Bose.com/compliance

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs X O O O	O O
Metal Parts X O	O O O O
Plastic Parts O	O O O O O
Speakers X O O	O O O
Cables X O O O	O O
This table is prepared in accordance with the provisions of SJ/T 11364.O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: DesignMax DM5P, Type designation: 841166
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
PCBs - ○ ○	○		○
Metal Parts - ○ ○		○	○
Plastic Parts	○	○	○	○	○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "7" is 2007 or 2017.

EU Importer: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam | UK Importer: Transom Post Netherlands UK, Squires House 205a High Street, West Wickham, BR4 0PH | Japan Importer: Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | Australia Importer: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | China Importer: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Mexico Importer: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | UAE Importer: 102 A, Sama Tower Sheikh Zayed Road, Dubai UAE

Bose is a trademark of Bose Corporation.

DesignMax is a trademark of Transom Post OpCo LLC.

Bose Professional, 117 South St, Hopkinton, MA 01748 USA

©2024 Transom Post OpCo LLC. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.

Warranty Information

This product is covered by a limited warranty.

For warranty details, visit BoseProfessional.com/Warranty.

Package Contents

Product Dimensions

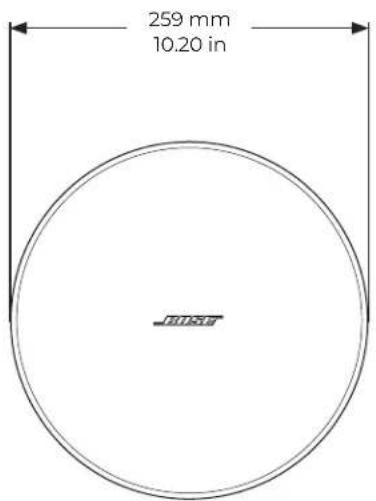

259 mm 10.20 in

299 mm 11.77 in 275 mm 10.83 in

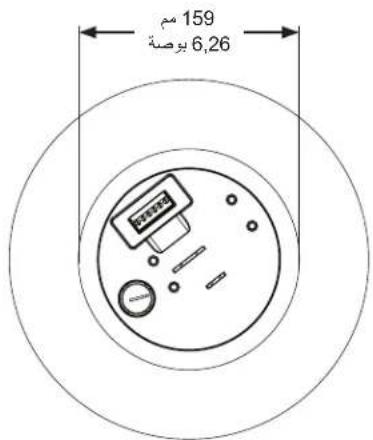

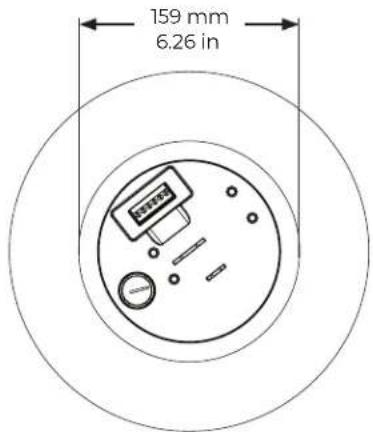

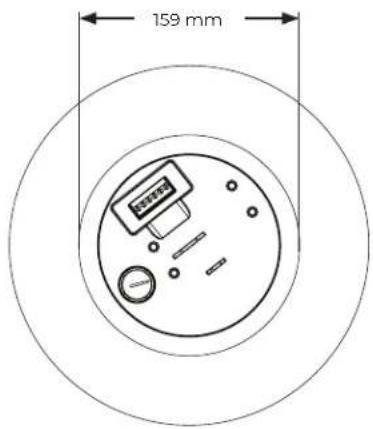

159 mm 6.26 in

Technical Specifications

For additional specifications, see the DesignMax DM5P technical data sheet at BoseProfessional.com.

Physical
Product Dimensions Bottom diameter: 259 mm(10.20 in)
	Height: 299 mm(11.77 in)
	Top diameter: 159 mm(6.26 in)
Cable Dimensions Length: 4.57 m(15.00 ft)
	Diameter: 2 mm(0.08 in)
Max Load (Safe Working Load) ^1	45.36 kg (100.0 lb)
Net Weight, Loudspeaker (single) 4.13 kg (9.11 lb)
Shipping Weight (pair) 11.00 kg (24.25 lb)
Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
Color Black (similar to RAL 9005);White (similar to RAL 9003)
Paintable Choose a paint that is specifically designed for use with Polypropylene (PP) plastics.
Environmental Indoor Only

1. Always use the cable within its stated Safe Working Load. The included suspension cable has a Safe Working Load of 100 lbs.

Important Installation Information

Before installing the loudspeaker, review Important Safety Instructions on page 2.

Safety and Regulatory Compliance

The DesignMax DM5P loudspeaker has passed testing and complies with the following specifications and uses:

• Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use
- General-Purpose Use - UL Category UEAY, File Number S36835
- Suitable for installation using Class 1, Class 2, Class 3 wiring methods in accordance with NFPA 70, National Electrical Code, 2017, Article 640

Installation Options and Accessories

1 Threaded Rod Adapter

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

Wiring the Loudspeaker

Wire Gauge

The DesignMax DM5P loudspeaker is designed to work with 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²) size wire only.

Connection Diagrams

Expose six millimeters ( 14 inch) of bare wire to attach to the terminals.

+ 70/- 100V IN + 8Ω OUT + 8Ω COM - 70/ 100V

70/100V 8Ω

+ 70/- 100V IN + 8Ω OUT + 8Ω COM - 70/ 100V

Loudspeaker Settings

8Ω 36 612 725 25 50 50 NC

70V
3W 6W	12W 25W 50W*				8Ω
6W	12W	25W	50W	NC**
100V

** NC: No Connection (do not use)* Factory default

Transformer Tap Setting

Set tap by turning. Use a flat head screwdriver.

Preparing the Installation

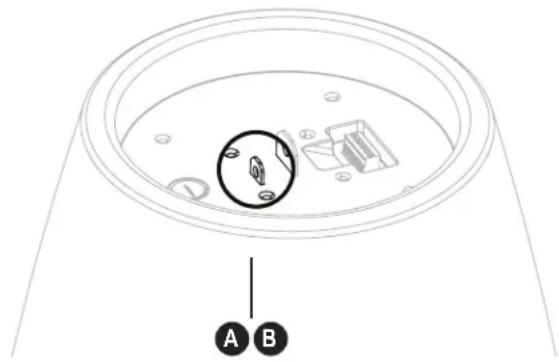

Using a Safety Cable

Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety. Choose a mounting position, method, and hardware consistent with local building codes and regulations.

Bose Professional recommends using (A) a safety wire or (B) a safety cable as a secondary securing mechanism (not included). See the diagram to the right for safety attachment points.

The included suspension cable can be used as a safety cable when using the Threaded Rod Adapter or Pendant Conduit Adapter accessories.

Follow the manufacturer's instructions for any secondary securing mechanism implemented.

A B

Mounting the Loudspeaker

Before beginning installation, be sure to adjust your loudspeaker tap setting.

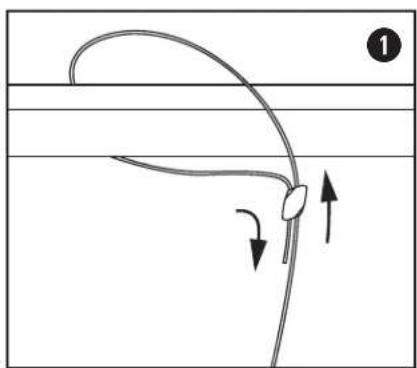

1. Insert the included suspension cable through the cable fastener and wrap the cable around a support structure; secure the cable using the cable fastener. Note: Arrows on the cable fastener indicate the cable direction.

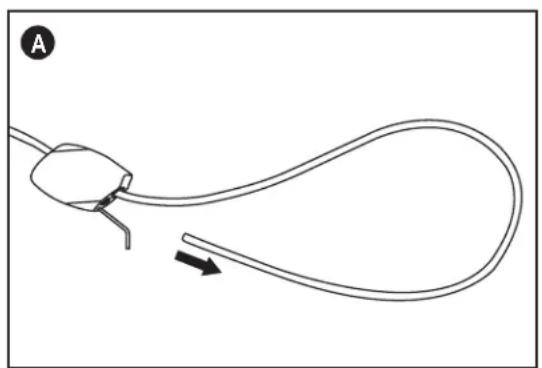

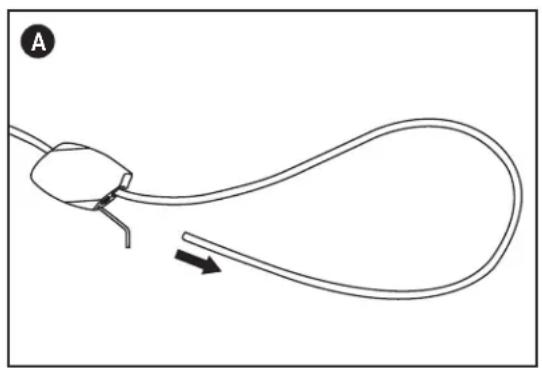

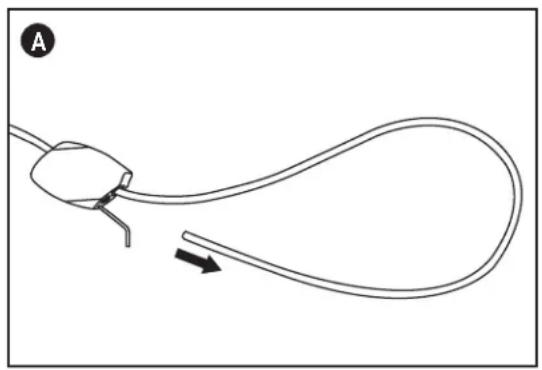

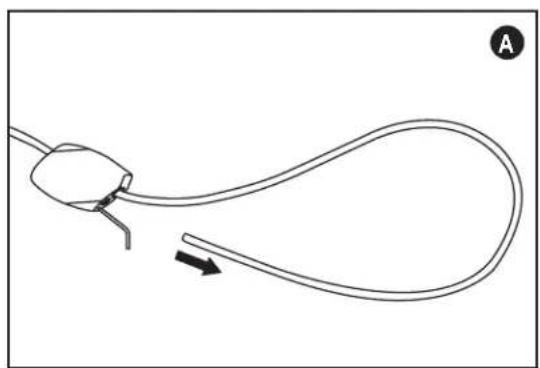

   A. To loosen the cable, insert the fastener tool into the release hole and adjust the cable.

2. Pull the loose end of the suspension cable to adjust the cable to the desired height.

3. Secure the cable clip to the center attachment point. Once you've reached the desired loudspeaker height, cut away any excess cable. Note: Trim any frayed filaments with wire cutters after cutting to length.

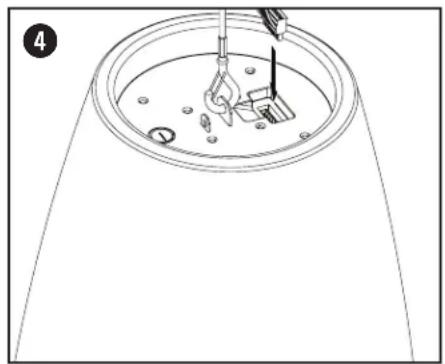

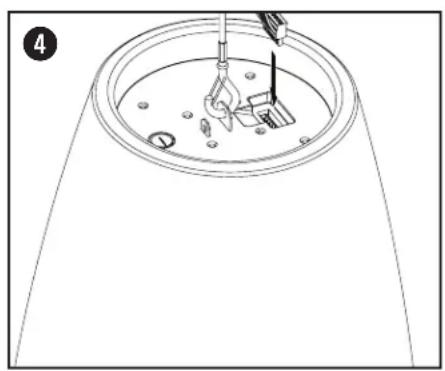

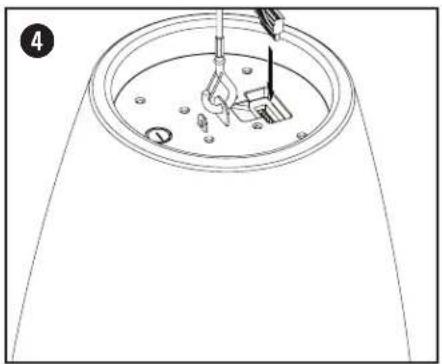

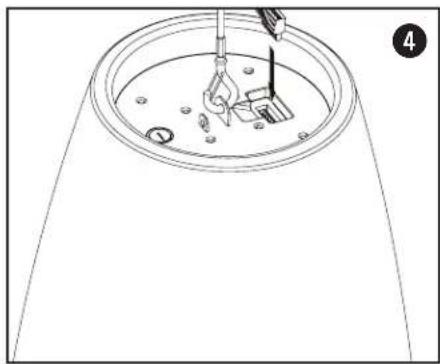

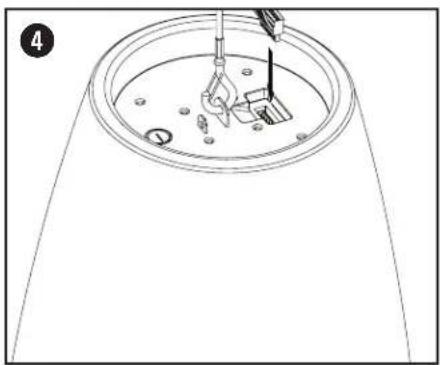

4. Remove the connector, wire the connector, and reinsert the connector into the loudspeaker. For wiring information, see Wiring the Loudspeaker on page 4. Note: If you intend to use a service loop, it can be stored in the loudspeaker recess at the top of the enclosure.

Use the included cable ties to secure the wiring to the suspension cable.

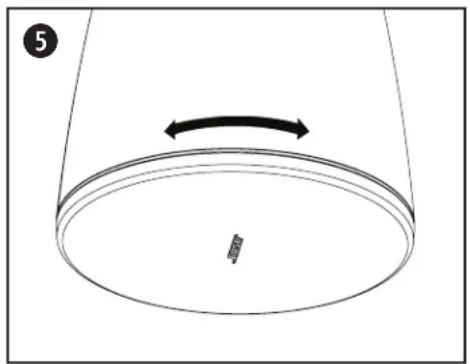

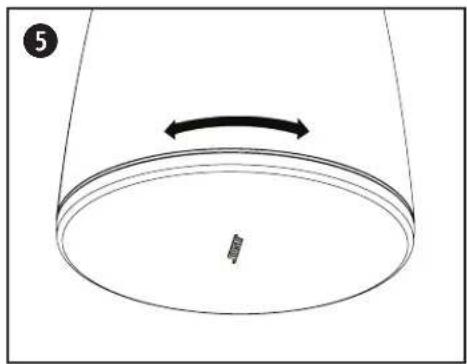

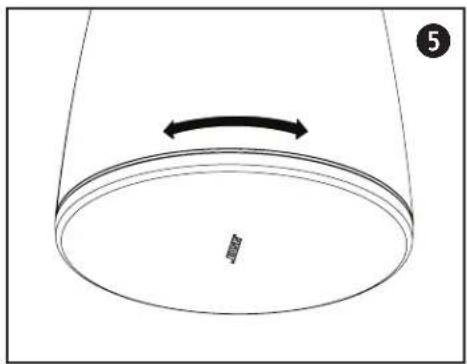

1. Rotate the grille so the logo is in an orientation suitable for your installation. Note: Do not remove the grille unless painting. Logo can be removed from the grille by peeling away from grille surface.

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable or wire with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with a hanging hook and directional arrow (no text or symbols)

Simple line drawing of a trapezoidal object with a hook and label '3' (no text or symbols on the object itself)

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

70 V 3 W 6 W 12 W 25 W 50 W* 6 W 12 W 25 W 50 W NC** 100 V 8 Ω

** NC: Sin conexión (no utilizar)* Predeterminir

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with a hanging hook and directional arrow (no text or symbols)

Simple line drawing of a trapezoidal object with a hook and label '3' (no text or symbols on the object itself)

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

70 V 3 W 6 W 12 W 25 W 50 W* 6 W 12 W 25 W 50 W NC** 100 V 8 Ω

Simple line drawing of a curved object with directional arrows indicating motion or movement (no text or symbols)

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope being pulled into a cable, with a curved guide and arrow indicating motion (no text or symbols)

Simple line drawing of a trapezoidal object with a hook and a hanging hook, no text or symbols present.

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Diagram of a cylindrical object with an arrow indicating upward motion, labeled with number 5 (no text or symbols on the object itself)

259 mm BUSE

299 mm 275 mm

159 mm

Technical line drawing of a mechanical component with no visible text or symbols

70 V 3 W 6 W 12 W 25 W 50 W* 6 W 12 W 25 W 50 W KA* 100 V 8 Ω

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable or wire with a loop and a connector, no text or symbols present.

Simple line drawing of a rope or cable with a hanging hook and directional arrow (no text or symbols)

Simple line drawing of a trapezoidal object with a suspended object above it, no text or symbols present.

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

Potenza: (70 V): 3W, 6W, 12W, 25W, 50W; (100 V): 6W, 12W, 25W, 50W

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

70 V 3 W 6 W 12 W 25 W 50 W* 6 W 12 W 25 W 50 W NC** 100 V 8 Ω

Diagram of a curved cable or wire with directional arrows indicating motion, no text or symbols present

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with a curved hook and directional arrow, no text or symbols present.

Simple line drawing of a trapezoidal object with a hook and label '3' (no text or symbols on the object itself)

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

Australië: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | Importeur in China: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Importeur in Mexico: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico-Stad | Importer in de VAE: 102 A, Sama Tower Sheikh Zayed Road, Dubai VAE

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

De luidspreker bekabelen

Bekabelingsdiameter

70 V 3 W 6 W 12 W 25 W 50 W* 6 W 12 W 25 W 50 W NC** 100 V 8 Ω

Simple line drawing of a fish being pulled into a boat, with no text or symbols present.

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope being inserted into a container with an arrow indicating direction (no text or symbols)

Simple line drawing of a trapezoidal object with a hanging hook, no text or symbols present

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Simple line drawing of a cylindrical object with an arrow indicating upward motion, labeled with number 5 (no text or symbols on the object itself)

Importor i EU: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam | Britisk importor: Transom Post Netherlands UK, Squires House 205a High Street, West Wickham, BR4 0PH | Importor for Japan: Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | Australsk importor: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | Importor for Kina: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Importor for Mexico: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | Importor for De forente arabiske emirater: 102 A, Sama Tower Sheikh Zayed Road, Dubai UAE

Bose er et varemerke for Bose Corporation.

DesignMax er et varemerke for Transom Post OpCo LLC.

Bose Professional, 117 South St, Hopkinton, MA 01748 USA

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

Kable høyttaleren

Kabeldiameter

70 V 3 W 6 W 12 W 25 W 50 W* 6 W 12 W 25 W 50 W NC** 100 V 8 Ω

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable or wire with an arrow indicating direction (no text or symbols)

Simple line drawing of a rope or cable with a hanging hook and directional arrow (no text or symbols)

Simple line drawing of a trapezoidal object with a hook and label '3' (no text or symbols on the object itself)

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

BoseProfessional.com/Warranty.

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

70 V 3 W 6 W 12 W 25 W 50 W* 6 W 12 W 25 W 50 W NC** 100 V 8 Ω

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with a hanging hook and directional arrow (no text or symbols)

Simple line drawing of a trapezoidal object with a hook and label '3' (no text or symbols on the object itself)

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

请阅读并保留所有安全和使用说明。

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

扬声器接线

线规

Diagram of a curved line with directional arrows indicating movement or force, no text or symbols present

Simple line drawing of a curved cable or wire with an arrow indicating direction (no text or symbols)

Simple line drawing of a rope or cable with a hanging hook and directional arrow (no text or symbols)

Simple line drawing of a trapezoidal object with a suspended object above it, no text or symbols present.

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

請詳閱並妥善保管所有安全與使用指示。

歐盟進口商: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam | 英國進口商: Transom Post Netherlands UK, Squires House 205a High Street, West Wickham, BR4 0PH | 日本進口商: Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | 澳洲進口商: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | 中國進口商: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | 墨西哥進口商: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | 阿拉伯聯合大公國進口商: 102 A, Sama Tower Sheikh Zayed Road, Dubai UAE

Technical line drawing of a mechanical component with no visible text or symbols

揚聲器接線

線規

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable or wire with an arrow indicating direction (no text or symbols)

Simple line drawing of a rope or cable with a hanging hook and directional arrow (no text or symbols)

Simple line drawing of a trapezoidal object with a suspended object above it, no text or symbols present.

Line drawing of a mechanical device inside a bowl, showing components like a tool and a small component (no text or symbols)

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Simple line drawing of a conical container with internal compartments (no text or symbols)

×2

×2

×8

×2

×2

製品寸法

259 mm BUSE

299 mm 275 mm

159 mm

技術仕様

Technical line drawing of a mechanical component with hexagonal top and circular features (no text or symbols)

スピーカーの配線

ケーブルゲージ

Simple line drawing of a curved structure with directional arrows, no text or symbols present

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with a hanging hook and directional arrow (no text or symbols)

Simple line drawing of a trapezoidal object with a hook and a hanging hook, no text or symbols present.

Line drawing of a mechanical assembly inside a circular basin, showing tool and component placement (no text or symbols)

Simple line drawing of a cylindrical object with an arrow indicating upward motion, no text or symbols present.

تصنيفات المنتج:

Simple line drawing of a conical container with internal compartments (no text or symbols)

2*
أبعاد المنتج

159 ب轮廓 6,26

Technical line drawing of a mechanical component with no visible text or symbols

1

Simple line drawing of a rope or cable with a hanging hook and directional arrow (no text or symbols)

Simple line drawing of a curved cable or wire with an arrow indicating direction (no text or symbols)

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Diagram of a cylindrical object with an arrow indicating rotation, no text or symbols present

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Simple line drawing of a trapezoidal object with a hook and label '3' (no text or symbols on the object itself)

PROFESSIONAL
