DesignMax DM3P - Speakers BOSE - Free user manual and instructions

Product Type	Professional loudspeaker for fixed installation
Brand	Bose
Model	DesignMax DM3P
Dimensions (bottom x height x top)	207 mm (8.15 in) x 248 mm (9.76 in) x 131 mm (5.16 in)
Net weight (speaker only)	2.51 kg (5.53 lb)
Gross weight (pair)	7.00 kg (15.43 lb)
Power	70 V / 100 V, 8 Ω impedance, adjustable power (70 V: 3, 6, 12, 25 W; 100 V: 6, 12, 25 W)
Available colors	Black (similar to RAL 9005), White (similar to RAL 9003)
Ready to paint	Yes, with paint for polypropylene (PP)
Usage	Indoor only
Operating temperature range	0 °C to 50 °C (32 °F to 122 °F)
Included suspension cable	Length 4.57 m (15 ft), diameter 2 mm, max load 45.36 kg (100 lb)
Power adjustment	Via rotary transformer tap (flathead screwdriver)
Compliance	ANSI/UL 1480A-2016, Class 1, 2, or 3 wiring
Maintenance and cleaning	Dry cloth only; do not use soap, detergent, alcohol, or other chemicals
Safety	Professional installation; secondary safety cable recommended; magnetic components (consult a physician for implants)
Repairability	Do not repair yourself; contact an authorized Bose Professional service center
Warranty	Limited warranty; details at BoseProfessional.com/Warranty
Optional accessories	Threaded rod adapter, suspended conduit adapter
Package contents	Pair of speakers, suspension cables, connectors, cable ties, mounting tool

Frequently Asked Questions - DesignMax DM3P BOSE

How to adjust the power of the DesignMax DM3P speaker?

Use a flathead screwdriver to turn the transformer tap on the back of the speaker. Available positions are: 70 V (3, 6, 12, 25 W) and 100 V (6, 12, 25 W). The factory setting is indicated on the product.

Can I paint the speaker?

Yes, the speaker is ready to paint. Use a paint specifically designed for polypropylene (PP) plastic. You can remove the logo by peeling it off the grille before painting.

How to install the speaker at height?

Installation must be performed by a professional. Use the included suspension cable: wrap it around a load-bearing structure, secure it with the cable clamp, then adjust the height. A secondary safety cable is recommended for local compliance.

What type of cable should be used for wiring?

Use cable gauge 18 (0.8 mm²) to 14 AWG (2.1 mm²). Strip 6 mm (1/4 in) of wire for the connector. Follow the connection diagrams for 70/100 V or 8 Ω modes.

Can I use the speaker outdoors?

No, the DesignMax DM3P is designed for indoor use only. Do not install it in places exposed to water or condensation.

How to clean the speaker?

Clean it only with a dry cloth. Do not use soap, detergent, alcohol, or other chemical agents that could damage the plastic.

What to do in case of technical issue?

Do not attempt to repair the speaker yourself. Take it to an authorized Bose Professional service center. To find a dealer, visit BoseProfessional.com.

Which accessories are compatible?

Bose Professional offers a threaded rod adapter and a suspended conduit adapter as optional accessories. Use only accessories specified by the manufacturer.

Is the speaker delivered with a suspension cable?

Yes, each speaker comes with a 4.57 m (15 ft) suspension cable and a maximum load of 45.36 kg (100 lb). Cable ties and a mounting tool are also provided.

How to orient the grille logo?

After installation, rotate the grille to align the logo as desired. The logo can be removed by peeling it off the grille surface.

USER MANUAL DesignMax DM3P BOSE

Simple line drawing of a conical container with a flat base (no text or symbols)

Simple line drawing of a cylindrical object with a small internal component, no text or symbols present.

DesignMax DM3P

Pendant Loudspeaker

Installation Guide....2

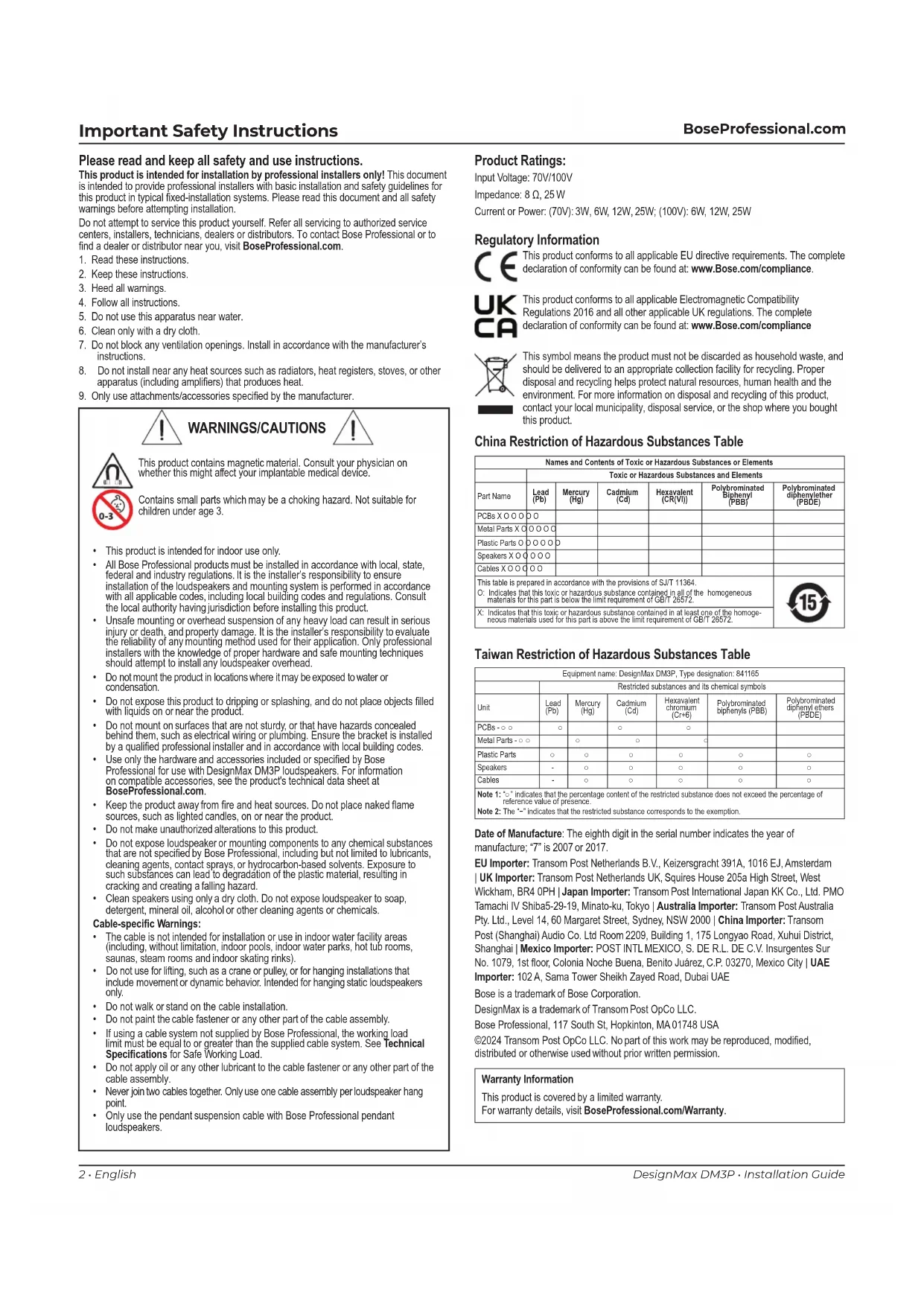

Please read and keep all safety and use instructions.

This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document and all safety warnings before attempting installation.

Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit BoseProfessional.com.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat.
9. Only use attachments/accessories specified by the manufacturer.

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

• This product is intended for indoor use only.
- All Bose Professional products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
- Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.
- Do not mount the product in locations where it may be exposed to water or condensation.
- Do not expose this product to dripping or splashing, and do not place objects filled with liquids on or near the product.
- Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. Ensure the bracket is installed by a qualified professional installer and in accordance with local building codes.
- Use only the hardware and accessories included or specified by Bose Professional for use with DesignMax DM3P loudspeakers. For information on compatible accessories, see the product's technical data sheet at BoseProfessional.com.
- Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.
• Do not make unauthorized alterations to this product.
- Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose Professional, including but not limited to lubricants, cleaning agents, contact sprays, or hydrocarbon-based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.
- Clean speakers using only a dry cloth. Do not expose loudspeaker to soap, detergent, mineral oil, alcohol or other cleaning agents or chemicals.

Cable-specific Warnings:

- The cable is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).

- Do not use for lifting, such as a crane or pulley, or for hanging installations that include movement or dynamic behavior. Intended for hanging static loudspeakers only.

- Do not walk or stand on the cable installation.

- Do not paint the cable fastener or any other part of the cable assembly.

- If using a cable system not supplied by Bose Professional, the working load limit must be equal to or greater than the supplied cable system. See Technical Specifications for Safe Working Load.

- Do not apply oil or any other lubricant to the cable fastener or any other part of the cable assembly.

- Never join two cables together. Only use one cable assembly per loudspeaker hang point.

- Only use the pendant suspension cable with Bose Professional pendant loudspeakers.

Product Ratings:

Input Voltage: 70V/100V

Impedance: 8 Ω, 25 W

Current or Power: (70V): 3W, 6W, 12W, 25W; (100V): 6W, 12W, 25W

Regulatory Information

CE This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

UK CA This product conforms to all applicable Electromagnetic Compatibility Regulations 2016 and all other applicable UK regulations. The complete declaration of conformity can be found at: www.Bose.com/compliance

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs X O O O	O O
Metal Parts X O	O O O O
Plastic Parts O	O O O O O
Speakers X O O	O O O
Cables X O O O	O O
This table is prepared in accordance with the provisions of SJ/T 11364.O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: DesignMax DM3P, Type designation: 841165
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
PCBs - ○ ○	○		○	○
Metal Parts - ○ ○		○	○	○
Plastic Parts	○	○	○	○	○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1: * indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.Note 2: The "-" indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "7" is 2007 or 2017.

EU Importer: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam | UK Importer: Transom Post Netherlands UK, Squires House 205a High Street, West Wickham, BR4 0PH | Japan Importer: Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | Australia Importer: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | China Importer: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Mexico Importer: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | UAE Importer: 102 A, Sama Tower Sheikh Zayed Road, Dubai UAE

Bose is a trademark of Bose Corporation.

DesignMax is a trademark of Transom Post OpCo LLC.

Bose Professional, 117 South St, Hopkinton, MA 01748 USA

©2024 Transom Post OpCo LLC. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.

Warranty Information

This product is covered by a limited warranty.

For warranty details, visit BoseProfessional.com/Warranty.

Package Contents

Line drawings of four different mechanical or electrical components with cross-sectional views (no text or symbols)

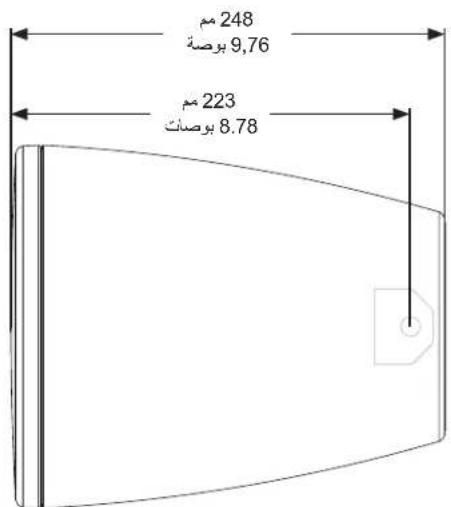

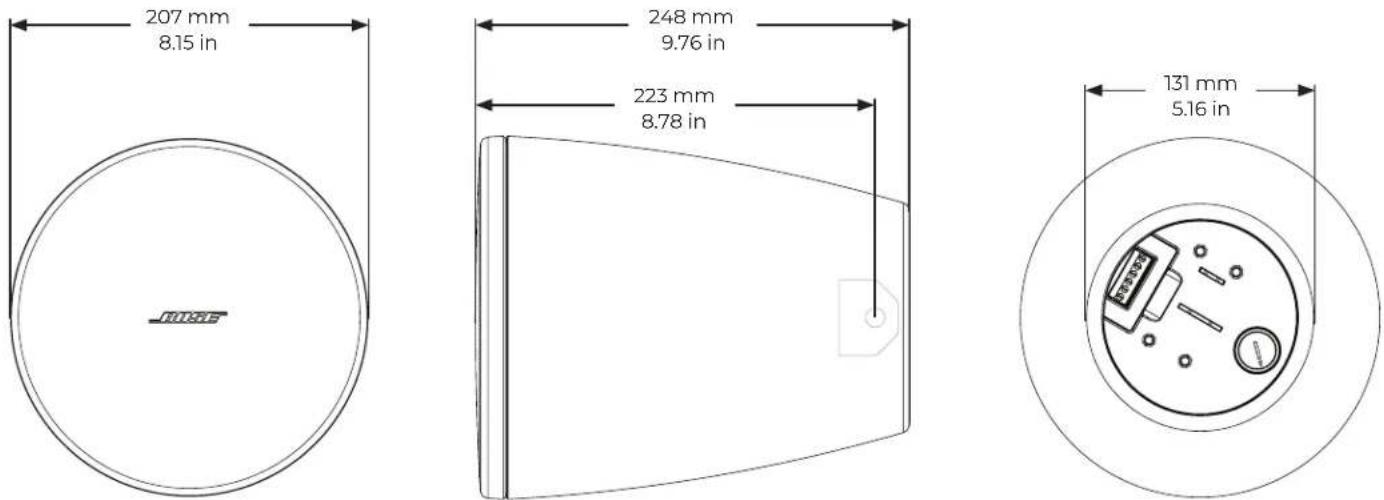

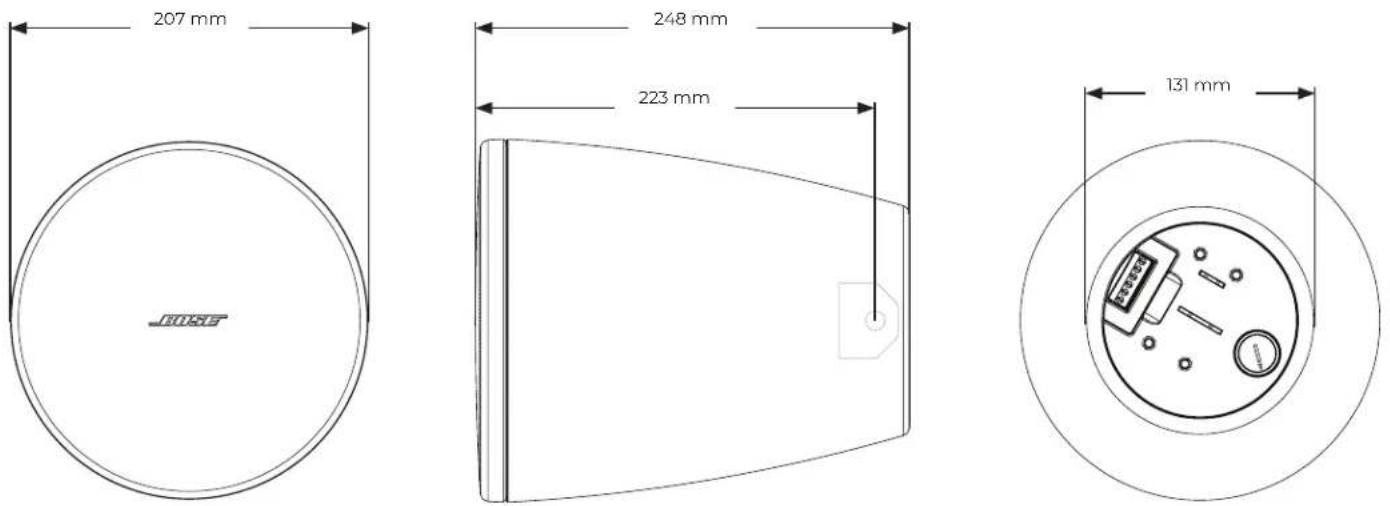

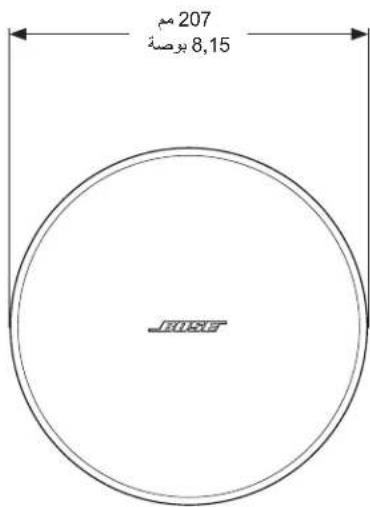

Product Dimensions

Technical Specifications

For additional specifications, see the DesignMax DM3P technical data sheet at BoseProfessional.com.

Physical

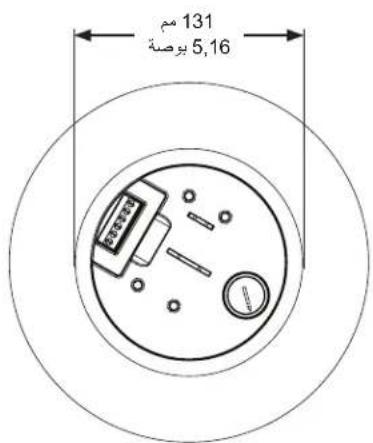

Product Dimensions Bottom diameter: 207 mm(8.15 in)
	Height: 248 mm(9.76 in)
	Top diameter: 131 mm(5.16 in)
Cable Dimensions Length: 4.57 m	(15.00 ft)
	Diameter: 2 mm(0.08 in)
Max Load (Safe Working Load) ^1	45.36 kg (100.0 lb)
Net Weight, Loudspeaker (single) 2.51 kg (5.53 lb)
Shipping Weight (pair) 7.00 kg (15.43 lb)
Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
Color Black (similar to RAL 9005);White (similar to RAL 9003)
Paintable Choose a paint that is specifically designed for use with Polypropylene (PP) plastics.
Environmental Indoor Only

1. Always use the cable within its stated Safe Working Load. The included suspension cable has a Safe Working Load of 100 lbs.

Important Installation Information

Before installing the loudspeaker, review Important Safety Instructions on page 2.

Safety and Regulatory Compliance

The DesignMax DM3P loudspeaker has passed testing and complies with the following specifications and uses:

• Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use
- General-Purpose Use - UL Category UEAY, File Number S36835
- Suitable for installation using Class 1, Class 2, Class 3 wiring methods in accordance with NFPA 70, National Electrical Code, 2017, Article 640

Optional Installation Accessories

① Threaded Rod Adapter
② Pendant Conduit Adapter

1

2

Technical line drawing of a mechanical component with hexagonal top and circular cutouts (no text or symbols)

Wiring the Loudspeaker

Wire Gauge

The DesignMax DM3P loudspeaker is designed to work with 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²) size wire only.

Connection Diagrams

Expose six millimeters ( 14 inch) of bare wire to attach to the terminals.

+ 70/- 100V IN + 8Ω OUT + 8Ω COM - 70/ 100V

70/100V 8Ω

+ 70/- 100V IN + 8Ω OUT + 8Ω COM - 70/ 100V

Loudspeaker Settings

36 612 12 25 25 NC 28

70V
3W 6W 12W 25W*				8Ω
6W 12W 25W NC**
100V

** NC: No Connection (do not use)* Factory default

Transformer Tap Setting

Set tap by turning. Use a flat head screwdriver.

Preparing the Installation

Using a Safety Cable

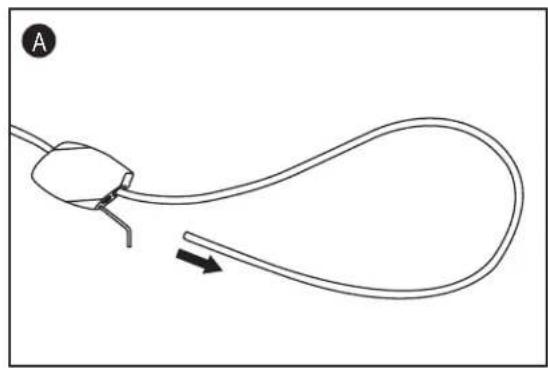

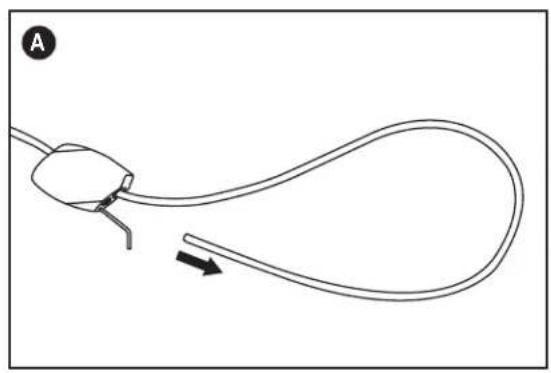

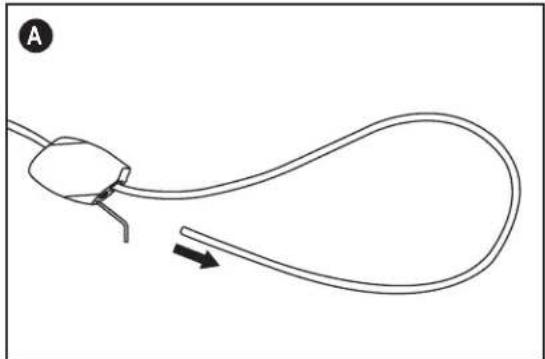

Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety. Choose a mounting position, method, and hardware consistent with local building codes and regulations.

Bose Professional recommends using (A) a safety wire or (B) a safety cable as a secondary securing mechanism (not included). See the diagram to the right for safety attachment points.

The included suspension cable can be used as a safety cable when using the Threaded Rod Adapter or Pendant Conduit Adapter accessories.

Follow the manufacturer's instructions for any secondary securing mechanism implemented.

Diagram of a ceiling-mounted device with labeled points A and B, showing internal components and mounting holes (no text or symbols beyond labels)

Mounting the Loudspeaker

Before beginning installation, be sure to adjust your loudspeaker tap setting.

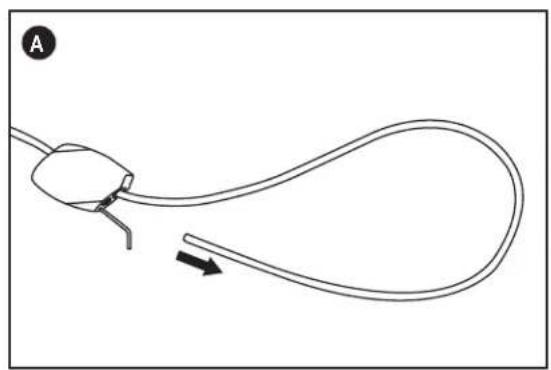

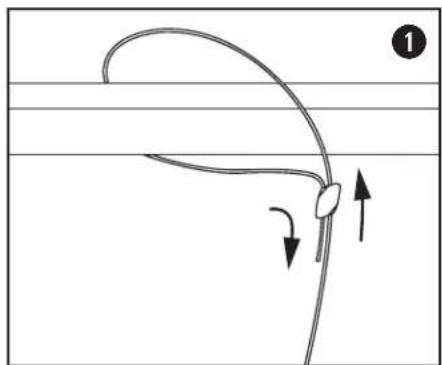

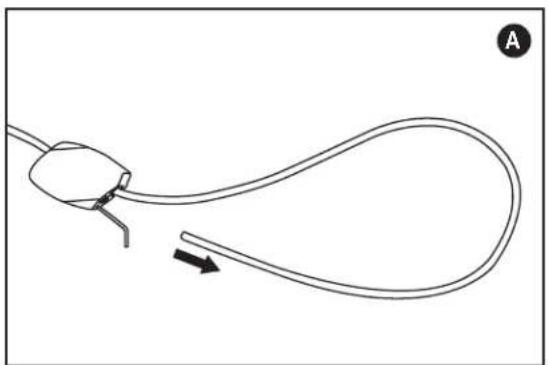

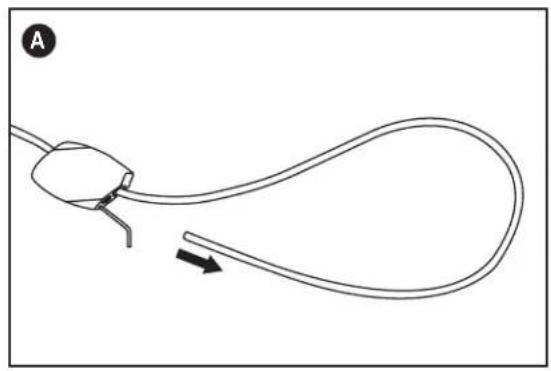

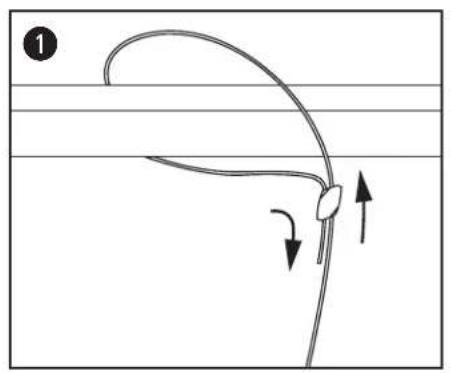

1. Insert the included suspension cable through the cable fastener and wrap the cable around a support structure; secure the cable using the cable fastener. Note: Arrows on the cable fastener indicate the cable direction. A. To loosen the cable, insert the fastener tool into the release hole and adjust the cable.
2. Pull the loose end of the suspension cable to adjust the cable to the desired height.
3. Secure the cable clip to the center attachment point. Once you've reached the desired loudspeaker height, cut away any excess cable. Note: Trim any frayed filaments with wire cutters after cutting to length.

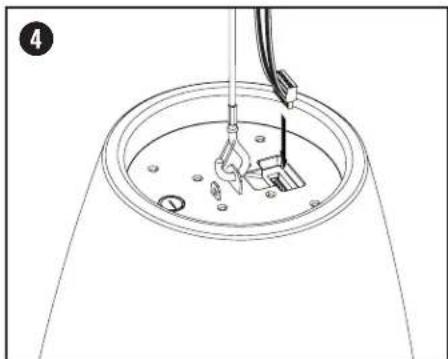

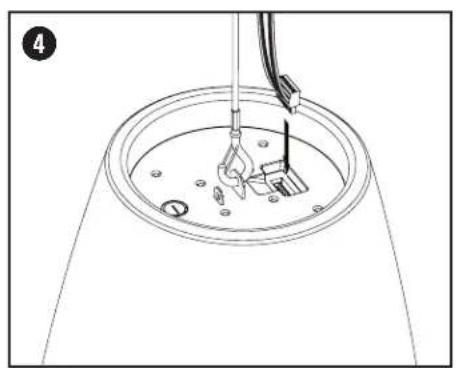

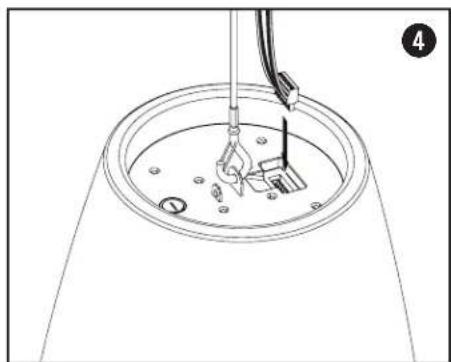

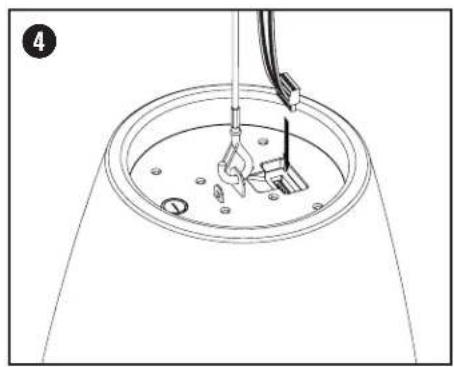

4. Remove the connector, wire the connector, and reinsert the connector into the loudspeaker. For wiring information, see Wiring the Loudspeaker on page 4. Note: If you intend to use a service loop, it can be stored in the loudspeaker recess at the top of the enclosure.

Use the included cable ties to secure the wiring to the suspension cable.

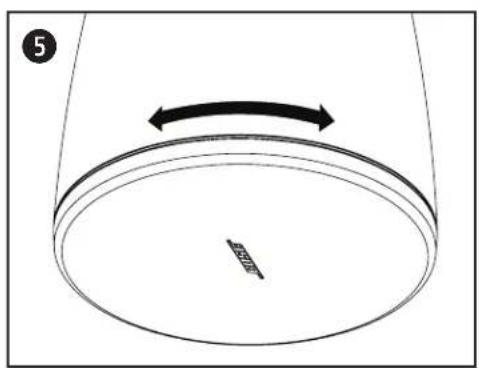

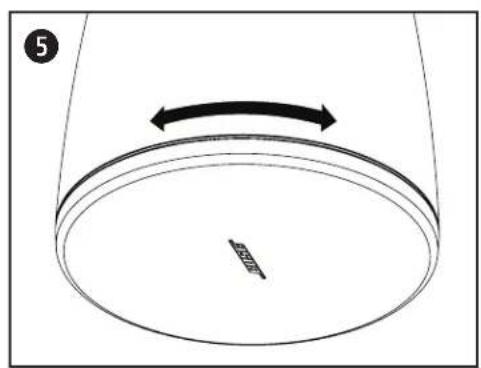

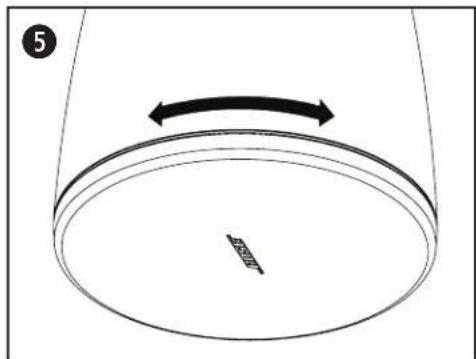

1. Rotate the grille so the logo is in an orientation suitable for your installation. Note: Do not remove the grille unless painting. Logo can be removed from the grille by peeling away from grille surface.

Diagram of a curved pipe or duct with directional arrows indicating flow or movement, no text or symbols present

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable being inserted into a container, with an arrow indicating direction (no text or symbols)

Simple line drawing of a bucket with a handle and label '3' (no text or symbols on the diagram itself)

Line drawing of a mechanical device interacting with a circular component (no text or symbols)

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

Line drawings of four different mechanical or electrical components with dimension annotations (×2, ×8×2, ×2×2)

Technical line drawing of a mechanical component with hexagonal top and circular cutouts (no text or symbols)

70 V
3 W 6 W	12 W 25 W*			8 Ω
6 W 12 W	25 W NC**
100 V

Diagram of a circular device with labeled points A and B, showing internal components (no text or symbols beyond labels)

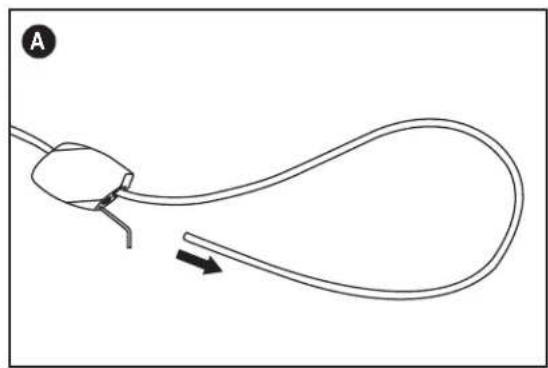

Montaje del altavoz

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable or wire with an arrow indicating direction (no text or symbols)

Simple line drawing of a rope or cable being pulled down by a hook, with no text or symbols present.

Simple line drawing of a trapezoidal object with a suspended hook and label '3' (no text or symbols on the object itself)

Line drawing of a mechanical device interacting with a circular component (no text or symbols)

Diagram of a cylindrical object with an arrow indicating direction, no text or symbols present

Technical line drawing of a mechanical component with hexagonal top and circular cutouts (no text or symbols)

70 V
3 W 6 W	12 W 25 W*			8 Ω
6 W 12 W	25 W NC**
100 V

Diagram of a ceiling-mounted device with labeled points A and B, showing internal components and mounting holes (no text or symbols beyond labels)

Simple line drawing of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with a loop and directional arrow, no text or symbols present.

Simple line drawing of a crane hook attached to a trapezoidal frame (no text or symbols)

Line drawing of a mechanical device interacting with a circular component, no text or symbols present

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

Line drawings of four different mechanical or electrical components with cross-sectional views (no text or symbols)

Produktabmessungen

207 mm 248 mm 223 mm 131 mm

Technical line drawing of a mechanical component with no visible text or symbols

70 V
3 W 6 W 12 W 25 W*				8 Ω
6 W 12 W 25 W KA##
100 V

Top-down diagram of a circular device with labeled points A and B, showing internal components (no text or symbols beyond labels)

Simple line drawing of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable being lifted by a hook, with a curved arrow indicating direction (no text or symbols)

Simple line drawing of a lampshade with a hanging hook and base (no text or symbols)

Line drawing of a robotic arm interacting with a circular mechanical component (no text or symbols)

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

Technical line drawing of a mechanical component with hexagonal top and circular cutouts (no text or symbols)

70 V
3 W 6 W	12 W 25 W*			8 Ω
6 W 12 W	25 W NC**
100 V

Diagram of a ceiling-mounted device with labeled points A and B, showing internal components and mounting holes (no text or symbols beyond labels)

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with an arrow indicating direction, no text or symbols present

Simple line drawing of a bucket with a handle and label '3' (no text or symbols on the diagram itself)

Line drawing of a mechanical device interacting with a circular component, no text or symbols present

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

Technical line drawing of a mechanical component with hexagonal top and circular cutouts (no text or symbols)

De luidspreker bekabelen

Bekabelingsdiameter

70 V
3 W 6 W	12 W 25 W*			8 Ω
6 W 12 W	25 W NC**
100 V

Diagram of a circular device with labeled points A and B, showing internal components (no text or symbols beyond labels)

Simple line drawing of a curved object with directional arrows indicating motion or movement (no text or symbols)

Simple line drawing of a curved cable or wire with an arrow indicating direction (no text or symbols)

Simple line drawing of a rope or cable being lifted by a hook, with a curved arrow indicating direction (no text or symbols)

Simple line drawing of a trapezoidal object with a suspended hook and label '3' (no text or symbols on the object itself)

Line drawing of a mechanical device interacting with a circular component (no text or symbols)

Diagram of a cylindrical object with an arrow indicating upward motion, labeled with number 5 (no text or symbols on the object itself)

Importor i EU: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam | Britisk importor: Transom Post Netherlands UK, Squires House 205a High Street, West Wickham, BR4 0PH | Importor for Japan: Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | Australsk importor: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | Importor for Kina: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | Importor for Mexico: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | Importor for De forente arabiske emirater: 102 A, Sama Tower Sheikh Zayed Road, Dubai UAE

Bose er et varemerke for Bose Corporation.

DesignMax er et varemerke for Transom Post OpCo LLC.

Bose Professional, 117 South St, Hopkinton, MA 01748 USA

Line drawings of four different mechanical or electrical components with cross-sectional views (no text or symbols)

Produktmål

207 mm 248 mm 223 mm 131 mm

Technical line drawing of a mechanical component with hexagonal top and circular cutouts (no text or symbols)

Kable høyttaleren

Kabeldiameter

70 V
3 W 6 W	12 W 25 W*			8 Ω
6 W 12 W	25 W NC**
100 V

Diagram of a ceiling-mounted device with labeled points A and B, showing internal components and mounting holes (no text or symbols beyond labels)

Montere høyttaleren

Simple line drawing of a curved object with directional arrows indicating motion or movement (no text or symbols)

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable being lifted by a hook, with a curved arrow indicating direction (no text or symbols)

Simple line drawing of a bucket with a handle and label '3' (no text or symbols on the diagram itself)

Line drawing of a mechanical device inside a circular basin, with no visible text or symbols

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

Line drawings of four different mechanical or electrical components with dimension annotations (×2, ×8×2, ×2×2)

Wymiary produktu

207 mm 8,15 cala 248 mm 9,76 cala 223 mm 8,78 cala 131 mm 5,16 cala

Dane techniczne

Technical line drawing of a mechanical component with hexagonal top and circular cutouts (no text or symbols)

70 V
3 W 6 W 12 W 25 W*				8 Ω
6 W 12 W 25 W NC**
100V

Diagram of a ceiling-mounted device with labeled points A and B, showing internal components and mounting holes (no text or symbols beyond labels)

Montaż głośnika

Diagram of a curved pipe or tube with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable being inserted into a container, with an arrow indicating direction (no text or symbols)

Simple line drawing of a lampshade with a handle and base, no text or symbols present

Line drawing of a robotic arm interacting with a circular mechanical component (no text or symbols)

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

请阅读并保留所有安全和使用说明。

Technical line drawing of a mechanical component with no visible text or symbols

扬声器接线

线规

Diagram of a ceiling-mounted device with labeled points A and B, showing internal components and mounting holes (no text or symbols beyond labels)

安装扬声器

Simple line drawing of a curved object with directional arrows indicating motion or movement (no text or symbols)

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with an arrow indicating direction, no text or symbols present

Simple line drawing of a trapezoidal object with a suspended hook and a small inset symbol (no text or labels)

Line drawing of a mechanical device interacting with a circular component, no text or symbols present

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

請詳閱並妥善保管所有安全與使用指示。

歐盟進口商: Transom Post Netherlands B.V., Keizersgracht 391A, 1016 EJ, Amsterdam | 英國進口商: Transom Post Netherlands UK, Squires House 205a High Street, West Wickham, BR4 0PH | 日本進口商: Transom Post International Japan KK Co., Ltd. PMO Tamachi IV Shiba5-29-19, Minato-ku, Tokyo | 澳洲進口商: Transom Post Australia Pty. Ltd., Level 14, 60 Margaret Street, Sydney, NSW 2000 | 中國進口商: Transom Post (Shanghai) Audio Co. Ltd Room 2209, Building 1, 175 Longyao Road, Xuhui District, Shanghai | 墨西哥進口商: POST INTL MEXICO, S. DE R.L. DE C.V. Insurgentes Sur No. 1079, 1st floor, Colonia Noche Buena, Benito Juárez, C.P. 03270, Mexico City | 阿拉伯聯合大公國進口商: 102 A, Sama Tower Sheikh Zayed Road, Dubai UAE

Technical line drawing of a mechanical component with hexagonal top and circular cutouts (no text or symbols)

揚聲器接線

線規

Diagram of a ceiling-mounted device with labeled points A and B, showing internal components and mounting holes (no text or symbols beyond labels)

安裝揚聲器

Simple line drawing of a curved object with directional arrows indicating motion or movement (no text or symbols)

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable with an arrow indicating direction, no text or symbols present

Simple line drawing of a trapezoidal object with a suspended hook and a small hanging object at the base (no text or symbols)

Line drawing of a mechanical device interacting with a circular component (no text or symbols)

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

www.Bose.com/compliance

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Technical line drawing of a mechanical component with hexagonal top and circular cutouts (no text or symbols)

スピーカーの配線

ケーブルゲージ

Diagram of a ceiling-mounted device with labeled points A and B, showing internal components and mounting holes (no text or symbols beyond labels)

スピーカーの取り付け

Simple line drawing of a curved object with directional arrows indicating motion or movement (no text or symbols)

Simple line drawing of a curved cable with a connector and directional arrow (no text or symbols)

Simple line drawing of a rope or cable being pulled into a container, with an arrow indicating direction (no text or symbols)

Simple line drawing of a trapezoidal object with a suspended hook and a small hanging object, no text or symbols present.

Line drawing of a mechanical device interacting with a circular component, no text or symbols present

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

تصنيقات المنتج:

.www.Bose.com/compliance :Malayan ikaml tolwafq on:

Simple line drawing of a conical container with internal components (no text or symbols)

2*

أبعاد المنتج

131 م 5,16

248 بRpسته 9,76 223 بRpسته 8.78

207 ب轮廓 8,15 ROSE

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a curved pipe or tube with an arrow indicating direction, no text or symbols present.

Simple line drawing of a curved cable or wire with an arrow indicating direction (no text or symbols)

Simple line drawing of a curved object with directional arrows indicating motion or force (no text or symbols)

Diagram of a cylindrical object with an arrow indicating upward motion, no text or symbols present

Line drawing of a mechanical device inside a circular component, with no visible text or symbols

Simple line drawing of a trapezoidal object with a hanging hook and a small symbol at the base (no text or labels)

PROFESSIONAL
