CYBERSHOT DSC-HX10V - Camera SONY - Free user manual and instructions

Product type	Compact digital camera
Dimensions (W×H×D)	104.7 × 59.7 × 33.8 mm
Weight (with battery and card)	Approx. 234 g
Power supply	Lithium-ion rechargeable battery NP-BG1 (3.6 V) or AC adapter AC-UB10/UB10B (5 V)
Sensor	CMOS Exmor R 1/2.3-inch, 18.9 megapixels (total), 18.2 megapixels (effective)
Lens	Sony G 16x zoom, f=4.28-68.48 mm (35 mm equivalent: 24-384 mm), F3.3-5.9
Image stabilization	Optical SteadyShot
LCD screen	7.5 cm (3.0-inch) TFT, 921,600 dots
Built-in flash	Range approx. 0.25-5.3 m (W) / 1.2-2.9 m (T)
Shooting modes	Intelligent Auto, Superior Auto, Program, Scene Selection, Manual, Panorama, 3D
Video recording	AVCHD (1080/50i or 60i) and MP4 (MPEG-4 AVC/H.264)
GPS	Built-in (DSC-HX10V model only)
Storage	Internal memory ~19 MB, Memory Stick Duo/Micro, SD/SDHC/SDXC, microSD/SDHC (sold separately)
Connectivity	Micro-USB (USB 2.0 Hi-Speed), mini HDMI
Battery life (CIPA)	Approx. 340 still images, 170 min of playback, 85 min of video
Operating temperature	0 °C to 40 °C
Maintenance and cleaning	Clean the exterior with a soft cloth slightly dampened with water; avoid chemicals, alcohol, benzene
Safety	Do not expose to moisture, do not disassemble, use only genuine Sony accessories
Spare parts and repairability	Battery NP-BG1, AC adapter AC-UB10/UB10B, micro-USB cable, wrist strap; see Sony support

Frequently Asked Questions - CYBERSHOT DSC-HX10V SONY

How do I charge the battery of my Sony Cyber-shot DSC-HX10V?

Use the supplied AC adapter AC-UB10/UB10B and micro-USB cable. Plug the adapter into a wall outlet, then connect the camera while it is off. The orange indicator lights up during charging and turns off when charging is complete (about 175 minutes for a full charge). You can also charge via a computer, but make sure the computer is turned on.

How do I insert a memory card in the camera?

1. Open the battery/memory card cover. 2. Insert the memory card (Memory Stick Duo, SD, etc.) with the notched corner oriented as shown, until it clicks. 3. Close the cover. To remove, push the card in slightly to eject it.

How do I set the date and time on the DSC-HX10V?

Turn on the camera. The first power-on displays the Date & Time setting. Follow the on-screen instructions to choose the language, geographic area, then set the date format, daylight saving time, and date/time. Confirm with the center button of the control wheel.

How do I take a photo with this Sony Cyber-shot?

Select the shooting mode (e.g., Intelligent Auto) with the mode dial. Frame your subject, then press the shutter button halfway to focus (a beep sounds). Press fully to take the photo.

How do I record a video?

In shooting mode, press the MOVIE button to start recording. Use the W/T lever to zoom. You can also take still photos during recording by pressing the shutter button. Press MOVIE again to stop. The maximum recording time per clip is about 29 minutes.

How do I delete an image?

In playback mode (press the ▶ button), display the image to delete. Press the ?/☑ (Delete) button, then select [This image] with the arrows and confirm with the center button.

What types of memory cards are compatible?

Compatible: Memory Stick Duo (PRO, PRO-HG, Duo, Micro), SD/SDHC/SDXC cards (Class 4 or higher for videos), and microSD/SDHC cards. For Memory Stick Micro and microSD, use an appropriate adapter.

What is the battery life?

Under CIPA conditions, you can take about 340 still images, view about 5200 images, or record about 85 minutes of video. Battery life may be lower depending on settings (GPS, screen brightness) and usage.

Is GPS available on all models?

GPS is only built into the DSC-HX10V model. To check, look at the name printed on the bottom of the camera. If you have this model, you can enable/disable GPS in the Settings menu, and use Airplane mode to disable transmissions during flights.

What if the camera does not turn on or does not charge?

Check that the battery is inserted correctly (the ejection lever should be locked). Clean the battery terminals with a soft cloth. Make sure the ambient temperature is between 10 °C and 30 °C for charging. If the indicator flashes, remove and reinsert the battery. If the problem persists, contact Sony support.

USER MANUAL CYBERSHOT DSC-HX10V SONY

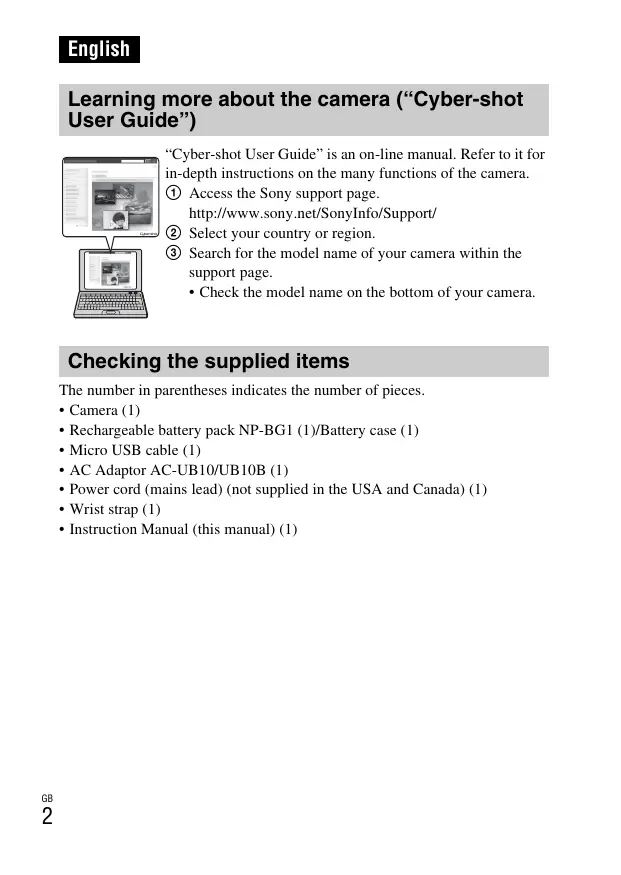

Learning more about the camera (“Cyber-shot User Guide”)

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

“Cyber-shot User Guide” is an on-line manual. Refer to it for in-depth instructions on the many functions of the camera.

① Access the Sony support page.
http://www.sony.net/SonyInfo/Support/
② Select your country or region.
③ Search for the model name of your camera within the support page.
- Check the model name on the bottom of your camera.

Checking the supplied items

The number in parentheses indicates the number of pieces.

• Camera (1)
• Rechargeable battery pack NP-BG1 (1)/Battery case (1)
• Micro USB cable (1)
  • AC Adaptor AC-UB10/UB10B (1)
• Power cord (mains lead) (not supplied in the USA and Canada) (1)
• Wrist strap (1)
• Instruction Manual (this manual) (1)

Owner's Record

The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product.

Model No. DSC-HX10/DSC-HX10V

Serial No. ____

Model No. AC-UB10/AC-UB10B

Serial No. ____

GB

WARNING

To reduce fire or shock hazard, do not expose the unit to rain or moisture.

IMPORTANT SAFETY INSTRUCTIONS -SAVE THESE INSTRUCTIONS DANGER TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS

If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.

CAUTION

Battery pack

If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.

• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery terminals.
• Do not expose to high temperature above 60^ (140°F) such as in direct sunlight or in a car parked in the sun.
• Do not incinerate or dispose of in fire.

• Do not handle damaged or leaking lithium ion batteries.

• Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.

• Keep the battery pack out of the reach of small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in the instructions.

AC Adaptor

Connect the AC Adaptor to the nearest wall outlet (wall socket).

If some trouble occurs while using the AC Adaptor, immediately shut off the power by disconnecting the plug from the wall outlet (wall socket).

The power cord (mains lead), if supplied, is designed specifically for use with this camera only, and should not be used with other electrical equipment.

For Customers in the U.S.A. and Canada

I RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable.

You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you.

For more information regarding recycling of rechargeable batteries, call toll free

1-800-822-8837, or visit http://www.rbrc.org/

RECYCLE RBRC Li-Ion 7.800.822.8837

Caution: Do not handle damaged or leaking Lithium-Ion batteries.

Battery pack

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

For Customers in the U.S.A.

UL is an internationally recognized safety organization. The UL Mark on the product means it has been UL Listed.

If you have any questions about this product, you may call: Sony Customer Information Center 1-800-222-SONY (7669). The number below is for the FCC related matters only.

Regulatory Information

Declaration of Conformity

Trade Name: SONY

Model No.: DSC-HX10V

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

I Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For Customers in Canada

This device complies with RSS-310 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference.

For Customers in Europe

CE

Hereby, Sony Corporation, declares that this DSC-HX10V Digital Still Camera is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/

Notice for the customers in the countries applying EU Directives

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

This product has been tested and found compliant with the limits set out in the EMC regulation for using connection cables shorter than 3 meters (9.8 feet).

Attention

The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit.

Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product,

please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste.

On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring these batteries are disposed of correctly, you will help prevent

potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely.

Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

Notice for customers in the United Kingdom

A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the supplied one and approved by ASTA or BSI to BS 1362, (i.e., marked with an ◇ or ▽ mark) must be used.

If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.

Identifying parts

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

1 Shutter button
2 Mode dial

i (Intelligent Auto)/

i ^+ (Superior Auto)/

(Background Defocus)/

P (Program Auto)/SCN (Scene

Selection)/M (Manual Exposure

Shooting)/i (iSweep

Panorama)/☐ (Movie Mode)/

3D (3D Shooting)

3 For shooting: W/T (Zoom) lever
For viewing: ☐ (Index) lever/
Q (Playback zoom) lever
4 Self-timer lamp/Smile Shutter
lamp/AF illuminator
5 ON/OFF (Power) button
6 Power/Charge lamp
7 Speaker
8 Flash

• Do not hold your fingers near the flash.
• When using the flash, the flash pops up automatically.
• The flash goes down automatically when the power is turned off, the camera is switched to playback mode or the shooting mode is changed.

9 Microphone
10 Lens
11 LCD screen
12 GPS sensor (built-in, DSC-HX10V only)
13 ▶ (Playback) button
14 MOVIE (Movie) button
15 HDMI mini jack
16 Hook for wrist strap
17 Control wheel

18 ?/☑ (In-Camera Guide/Delete) button
19 MENU button
20 Tripod receptacle

- Use a tripod with a screw less than 5.5 mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.

21 Micro USB connector
22 (TransferJetTM) mark
23 Memory card slot
24 Battery/memory card cover
25 Battery eject lever
26 Battery insertion slot
27 Access lamp

GB

Inserting the battery pack

① LOCK OPEN ②

Battery eject lever

Diagram showing airflow or fluid flow through a device with labeled components and directional arrows

1 Open the cover.
2 Insert the battery pack.

• While pressing the battery eject lever, insert the battery pack as illustrated. Make sure that the battery eject lever locks after insertion.
• Closing the cover with the battery inserted incorrectly may damage the camera.

Charging the battery pack

For customers in the USA and Canada

Power cord (Mains lead)

For customers in countries/regions other than the USA and Canada

Diagram of a digital camera module with control buttons and an external panel, shown from top and side (no text or symbols)

Power/Charge lamp
Lit: Charging
Off: Charging finished
Flashing:
Charging error
Charging paused due to overheating

1 Connect the camera to the AC Adaptor (supplied), using the micro USB cable (supplied).
2 Connect the AC Adaptor to the wall outlet (wall socket).

The Power/Charge lamp lights orange, and charging starts.

• Turn off the camera while charging the battery.
• You can charge the battery pack even when it is partially charged.
• When the Power/Charge lamp flashes and charging is not finished, remove and re-insert the battery pack.

Notes

• If the Power/Charge lamp on the camera flashes when the AC Adaptor is connected to the wall outlet (wall socket), this indicates that charging is temporarily stopped because the temperature is outside the recommended range. When the temperature gets back within the appropriate range, the charging resumes. We recommend charging the battery pack in an ambient temperature of between 10^ to 30^ ( 50^ to 86^ ).
• The battery pack may not be effectively charged if the terminal section of the battery is dirty. In this case, wipe any dust off lightly using a soft cloth or a cotton swab to clean the terminal section of the battery.
• Connect the AC Adaptor (supplied) to the nearest wall outlet (wall socket). If malfunctions occur while using the AC Adaptor, disconnect the plug from the wall outlet (wall socket) immediately to disconnect from the power source.
• When charging is finished, disconnect the AC Adaptor from the wall outlet (wall socket).
• Be sure to use only genuine Sony brand battery packs, micro USB cable (supplied) and AC Adaptor (supplied).

Charging time (Full charge)

The charging time is approximately 175 min. using the AC Adaptor (supplied).

Note

- The above charging time applies when charging a fully depleted battery pack at a temperature of 25^ (77°F). Charging may take longer depending on conditions of use and circumstances.

Charging by connecting to a computer

The battery pack can be charged by connecting the camera to a computer using a micro USB cable.

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol pointing to the device.

Note

- Note the following points when charging via a computer:

- If the camera is connected to a laptop computer that is not connected to a power source, the laptop battery level decreases. Do not charge for an extended period of time.

- Do not turn on/off or restart the computer, or wake the computer to resume from sleep mode when a USB connection has been established between the computer and the camera. The camera may cause a malfunction. Before turning on/off, or restarting the computer or waking the computer from sleep mode, disconnect the camera and the computer.

- No guarantees are made for charging using a custom-built computer or a modified computer.

Battery life and number of images that can be recorded and played back

	Battery life	Number of images
Shooting (still images)	Approx. 170 min.	Approx. 340 images
Viewing (still images)	Approx. 260 min.	Approx. 5200 images
Shooting (movies)	Approx. 85 min.	—

Notes

• The above number of images applies when the battery pack is fully charged. The number of images may decrease depending on the conditions of use.

• The number of images that can be recorded is for shooting under the following conditions:

• Using Sony “Memory Stick PRO Duo” (Mark2) media (sold separately)

• The battery pack is used at an ambient temperature of 25^ (77°F).
  – [GPS setting] is set to [Off] (DSC-HX10V only).
  – [Disp. Resolution] is set to [Standard].

- The number for “Shooting (still images)” is based on the CIPA standard, and is for shooting under the following conditions:

(CIPA: Camera & Imaging Products Association)

• DISP (Display Setting) is set to [ON].
  – Shooting once every 30 seconds.
• The zoom is switched alternately between the W and T ends.
  – The flash strobes once every two times.
  – The power turns on and off once every ten times.

- The battery life for movies applies shooting under the following conditions:

– Movie quality: AVC HD HQ
- When continuous shooting ends because of set limits (page 25), press the MOVIE (Movie) button again and continue shooting. Shooting functions such as the zoom do not operate.

GB

Supplying power

The camera can be supplied with power from the wall outlet (wall socket) by connecting to the AC Adaptor, using the micro USB cable (supplied).

You can import images to a computer without worrying about draining the battery pack by connecting the camera to a computer using the micro USB cable.

In addition, you can use the AC Adaptor AC-UD10 (sold separately) for shooting to supply power when shooting.

Notes

• Power cannot be supplied when the battery pack is not inserted in the camera.
• When the camera is connected directly to a computer or to a power outlet using the supplied AC Adaptor AC-UB10/UB10B, power supply is available only in playback mode. If the camera is in shooting mode or while you are changing the settings of the camera, power is not supplied even if you make a USB connection using the micro USB cable.
• If you connect the camera and a computer using the micro USB cable while the camera is in playback mode, the display on the camera will change from the playback screen to the USB connection screen. Press ▶ (Playback) button to switch to the playback screen.

Inserting a memory card (sold separately)

① LOCK OPEN ②

Diagram of a mechanical device with a lever and slide, showing directional arrows (no text or symbols)

Ensure the notched corner faces correctly.

1 Open the cover.
2 Insert the memory card (sold separately).

- With the notched corner facing as illustrated, insert the memory card until it clicks into place.

3 Close the cover.

■ Memory cards that can be used

	Memory card	For still images	For movies
A	Memory Stick PRO Duo	○	○ (Mark2 only)
	Memory Stick PRO-HG Duo	○	○
	Memory Stick Duo	○	—
B	Memory Stick Micro (M2)	○	—
	Memory Stick Micro (Mark2)	○	○
C	SD memory card	○	○ (Class 4 or faster)
	SDHC memory card	○	○ (Class 4 or faster)
	SDXC memory card	○	○ (Class 4 or faster)
D	microSD memory card	○	○ (Class 4 or faster)
	microSDHC memory card	○	○ (Class 4 or faster)

- In this manual, the products in the table are collectively referred to as follows:

A: "Memory Stick Duo" media
B: "Memory Stick Micro" media
C: SD card
D: microSD memory card

Note

- When using “Memory Stick Micro” media or microSD memory cards with this camera, make sure to use with the appropriate adaptor.

To remove the memory card/battery pack

Memory card: Push the memory card in once to eject the memory card.

Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.

Note

- Never remove the memory card/battery pack when the access lamp (page 8) is lit. This may cause damage to data in the memory card/internal memory.

Setting the clock

ON/OFF (Power) Power/Charge lamp (green) Control wheel DSP

Select items: ▲/▼/◄/►
Set the numeric value of date and
time: ↗/↓
Set: ●

1 Press the ON/OFF (Power) button.

Date & Time setting is displayed when you turn on the camera for the first time.

- It may take time for the power to turn on and allow operation.

2 Select a desired language.
3 Select a desired geographic location by following the on-screen instructions, then press ● on the control wheel.
4 Set [Date & Time Format], [Daylight Savings] or [Summer Time] and [Date & Time], then select [OK] → [OK].

- Midnight is indicated as 12:00 AM, and noon as 12:00 PM.

5 Follow the instructions on the screen.

• The battery pack will run out quickly when:
  – [GPS setting] is set to [On] (DSC-HX10V only).
  – [Disp. Resolution] is set to [High].

Shooting still images/movies

Mode dial

i: Intelligent Auto
Movie Mode

A Shutter button MOVIE W/T (Zoom) lever W/room exit

Do not cover the flash (A).

GB

Shooting still images

1 Press the shutter button halfway down to focus.

When the image is in focus, a beep sounds and the ● indicator lights.

2 Press the shutter button fully down to shoot an image.

Shooting movies

1 Press the MOVIE (Movie) button to start recording.

- Use the W/T (zoom) lever to change the zoom scale.

- Press the shutter button to shoot still images while continuing to record the movie.

2 Press the MOVIE button again to stop recording.

Notes

• Do not push down or pull up the flash manually. This may cause a malfunction.
• The sound of the lens and lever operating will be recorded when the zoom function operates while shooting a movie. The sound of the MOVIE button operating may also be recorded when movie recording is finished.
• Continuous shooting is possible for approximately 29 minutes at one time at the camera's default settings and when the temperature is approximately 25^ (77^) . When movie recording is finished, you can restart recording by pressing the MOVIE button again. Recording may stop to protect the camera depending on the ambient temperature.

Viewing images

W: zoom out T: zoom in Control wheel DISP Select images: ▶ (next)/◀ (previous) or turn the control wheel Set: ●

1 Press the ▶ (Playback) button.

- When images on a memory card recorded with other cameras are played back on this camera, the registration screen for the data file appears.

■ Selecting next/previous image

Select an image by pressing ▶ (next)/◀ (previous) on the control wheel or by turning the control wheel. Press ● in the center of the control wheel to view movies.

■ Deleting an image

① Press ?/ (Delete) button.
② Select [This Image] with ▲ on the control wheel, then press ●.

■ Returning to shooting images

Press the shutter button halfway down.

In-Camera Guide

This camera is equipped with a built-in instruction guide. This allows you to search the camera's functions according to your needs.

GB

MENU ? /面 (In-Camera Guide)

1 Press the MENU button.
2 Select the desired MENU item, then press the ?/☐ (In-Camera Guide) button.

The operation guide for the selected item is displayed.

- If you press the ?/☐ (In-Camera Guide) button when the MENU screen is not displayed, you can search the guide using keywords or icons.

Introduction of other functions

Other functions used when shooting or playing back can be operated using the control wheel or MENU button on the camera. This camera is equipped with a Function Guide that allows you to easily select from the functions. While displaying the guide, you can use various functions.

Control wheel DISP MENU

EASY 4.3 TOM 4.5 TOM 4.3 TOM 4.5 TOM 0 EV Hi i SCN Still Image Size 1.0M For prints up to A3(11x17°) Function Guide

Control wheel

DISP (Display Setting): Allows you to change the screen display.

/☐ (Cont. Shooting/Self-Timer): Allows you to use the self-timer and burst shooting mode.

(Photo Creativity): Allows you to change [Brightness], [Color],

[Vividness] and [Picture Effect] when shooting mode is set to [Intelligent Auto] or [Superior Auto].

(Flash): Allows you to select a flash mode for still images.

Center button (Tracking focus): The camera tracks the subject and adjusts focus automatically even when the subject is moving.

Menu Items

* DSC-HX10V only
Shooting

Movie shooting scene	Select movie recording mode.
3D Shooting	Select the 3D image shooting mode.
Picture Effect	Shoot a still image with an original texture according to the desired effect.
Scene Selection	Select pre-set settings to match various scene conditions.
Easy Mode	Shoot still images using minimal functions.
Defocus Effect	Set the level of background defocus effect when shooting in Background Defocus mode.
Still Image Size(Dual Rec)	Set the still image size shot while recording a movie.
Still Image Size/ Panorama Image Size/Movie Size/ Movie Quality	Select the image size and the quality for still images, panoramic images or movie files.
HDR Painting effect	When [HDR Painting] is selected in Picture Effect, sets the effect level.
Area of emphasis	When [Miniature] is selected in Picture Effect, sets the part to focus on.
Color hue	When [Toy camera] is selected in Picture Effect, sets the color hue.
Extracted Color	When [Partial Color] is selected in Picture Effect, selects the color to extract.
Watercolor Effect	When [Watercolor] is selected in Picture Effect, sets the effect level.
Illustration Effect	When [Illustration] is selected in Picture Effect, sets the effect level.
EV	Adjust the exposure manually.
ISO	Adjust the luminous sensitivity.
White Balance	Adjust color tones of an image.
Focus	Select the focus method.
Metering Mode	Select the metering mode that sets which part of the subject to measure to determine the exposure.
Cont. Shooting Interval	Select the number of images taken per second for Burst shooting.
Bracket Setting	Set the type of the bracket shooting.
Scene Recognition	Set to automatically detect shooting conditions.
Soft Skin Effect	Set the Soft Skin Effect and the effect level.
Smile Shutter	Set to automatically release the shutter when a smile is detected.
Smile Detection Sensitivity	Set the Smile Shutter function sensitivity for detecting smiles.
Face Detection	Select to detect faces and adjust various settings automatically.
Anti Blink	Set to automatically shoot two images and select image in which the eyes are not blinking.
Movie SteadyShot	Set the strength of SteadyShot in movie mode. If you change the setting for [Movie SteadyShot], the angle of view will change.
Position Information*	Check the GPS triangulating status and update the position information.
GPS Log REC*	Record the route taken while carrying the camera.
In-Camera Guide	Search the camera’s functions according to your needs.

Viewing

Slideshow	Select a method of continuous playback.
Send by TransferJet	Transfer data by closely aligning two products equipped with TransferJet.
Delete	Delete an image.
Retouch	Retouch an image using various effects.
Picture Effect	Add various texture on images.
3D Viewing	Set to play back images shot in 3D mode on a 3D TV.
View Mode	Select the display format for images.
Display Cont. Shooting Group	Select to display burst images in groups or display all images during playback.
Protect	Protect the images.
Print (DPOF)	Add a print order mark to a still image.
Rotate	Rotate a still image to the left.
In-Camera Guide	Search the camera's functions according to your needs.

If you press the MENU button while shooting or during playback,

(Settings) is provided as a final selection. You can change the defaults on the 📄 (Settings) screen.

Shooting Settings	Movie format/AF Illuminator/Grid Line/Clear Image Zoom/Digital Zoom/Wind Noise Reduct./Micref Level/Red Eye Reduction/Blink Alert/Write Date/Disp. Resolution
Main Settings	Beep/Panel Brightness/Language Setting/Display color/Demo Mode/Initialize/Function Guide/CTRL FOR HDMI/Eco Mode/USB Connect Setting/USB Power Supply/LUN Setting/Download Music/Empty Music/Airplane Mode*1/GPS setting*1/GPS assist data*1/Dlt.GPS Log Data*1/TransferJet/Eye-Fi/Version
Memory Card Tool*2	Format/Create REC.Folder/Change REC.Folder/Delete REC.Folder/Copy/File Number
Clock Settings	Area Setting/Date & Time Setting/Auto Clock ADJ*1/Auto Area ADJ*1

*1 DSC-HX10V only

*2 If a memory card is not inserted, (Internal Memory Tool) will be displayed and only [Format] can be selected.

GB

Install PC application (Windows)

The built-in software “PlayMemories Home” allows you to import still images and movies to your computer and use them.

You can shoot or play back images on this camera even if you do not install “PlayMemories Home”, however, “PlayMemories Home” is required to import AVCHD movies to your computer.

1 Connect the camera to a computer.
2 Windows 7: [Computer] → camera icon → media icon → Double-click [PMHOME.EXE]
Windows XP/Vista: [Computer] (in Windows XP, [My Computer]) → [PMHOME] → Double-click [PMHOME.EXE]
3 Follow the instructions on the screen to complete the installation.

Note

• “PlayMemories Home” is not compatible to Mac OS. If you play back images on a Mac, use the applications that are installed on your Mac.
  For details, see http://www.sony.co.jp/imsoft/Mac/

Features of "PlayMemories Home"

Below are examples of the functions available when you use “PlayMemories Home”. To take advantage of the various “PlayMemories Home” functions, connect to the Internet and install the “Expanded Feature”.

• You can import images shot with the camera to a computer and display them.
• You can display images stored on a computer by shooting date in a calendar display.
• You can correct (Red Eye Correction, etc.) still images, print the images, send images by e-mail, and change the shooting date and time.
• You can save and print images with the date.
• You can create a disc from AVCHD movies imported to a computer. (Expanded Feature)

Number of still images and recordable time of movies

The number of still images and recordable time may vary depending on the shooting conditions and the memory card.

GB

Still images

(Units: Images)

Size\Capacity	Internal memory	Memory card
	Approx. 19 MB	2 GB
18M	3	295
VGA	65	6400
16:9(13M)	3	330

Movies

The table below shows the approximate maximum recording times. These are the total times for all movie files. Continuous shooting is possible for approximately 29 minutes. The maximum size of an MP4-format movie file is up to approximately 2 GB.

(h (hour), m (minute))

Size\Capacity	Internal memory	Memory card
	Approx. 19 MB	2 GB
AVC HD 24M (FX)	—	10 m(10 m)
AVC HD 9M (HQ)	—	20 m(15 m)
MP4 12M	—	15 m
MP4 3M	—	1 h 5 m

The number in ( ) is the minimum recordable time.

• The recordable time of movies varies because the camera is equipped with VBR (Variable Bit Rate), which automatically adjusts image quality depending on the shooting scene. When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory is required for recording.
  The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings.

Notes on using the camera

Functions built into this camera

• This manual describes each of the functions of TransferJet compatible/incompatible devices, 1080 60i-compatible devices and 1080 50i-compatible devices.
• To determine whether your camera supports the GPS function, check the model name of your camera.
  GPS-compatible: DSC-HX10V
  GPS-incompatible: DSC-HX10

• To check if your camera supports the TransferJet function, and whether it is a 1080 60i-compatible device or 1080 50i-compatible device, check for the following marks on the bottom of the camera.
  TransferJet-compatible device: ↗ (TransferJet)
  1080 60i-compatible device: 60i
  1080 50i-compatible device: 50i

• While aboard an airplane, set [Airplane Mode] to [On] (DSC-HX10V only).

• Do not watch 3D images shot with this camera for extended periods of time on 3D-compatible monitors.
• When you view 3D images shot with this camera on a 3D-compatible monitor, you may experience discomfort in the form of eye strain, fatigue, or nausea. To prevent these symptoms, we recommend that you take regular breaks. However, you need to determine for yourself the length and frequency of breaks you require, as they vary according to the individual. If you experience any type of discomfort, stop viewing the 3D images until you feel better, and consult a physician as necessary. Also refer to the operating instructions supplied with the device or software you have connected or are using with this camera. Note that a child's eyesight is still at the development stage (particularly children below the age of 6). Consult a pediatrician or ophthalmologist before letting your child view 3D images, and make sure he/she observes the above precautions when viewing such images.

On GPS-compatible devices (DSC-HX10V only)

• Use GPS in accordance with regulations of countries and regions where you use it.
• If you do not record the direction or location information, set [GPS setting] to [Off].

On use and care

Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping, or stepping on the product. Be particularly careful of the lens.

Notes on recording/playback

• Before you start recording, make a trial recording to make sure that the camera is working correctly.
• The camera is neither dust-proof, nor splash-proof, nor water-proof.
• Avoid exposing the camera to water. If water enters inside the camera, a malfunction may occur. In some cases, the camera cannot be repaired.
• Do not aim the camera at the sun or other bright light. It may cause the malfunction of the camera.
• If moisture condensation occurs, remove it before using the camera.
• Do not shake or strike the camera. It may cause a malfunction and you may not be able to record images. Furthermore, the recording media may become unusable or image data may be damaged.

Do not use/store the camera in the following places

• In an extremely hot, cold or humid place
  In places such as in a car parked in the sun, the camera body may become deformed and this may cause a malfunction.
  • Under direct sunlight or near a heater
  The camera body may become discolored or deformed, and this may cause a malfunction.
• In a location subject to rocking vibration
• Near a location that generates strong radio waves, emits radiation or is strongly magnetic place. Otherwise, the camera may not properly record or play back images.
  • In sandy or dusty places
  Be careful not to let sand or dust get into the camera. This may cause the camera to malfunction, and in some cases this malfunction cannot be repaired.

On carrying

Do not sit down in a chair or other place with the camera in the back pocket of your trousers or skirt, as this may cause malfunction or damage the camera.

Notes on the screen and lens

The screen is manufactured using extremely high-precision technology so over 99.99% of the pixels are operational for effective use. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the screen. These dots are a normal result of the manufacturing process, and do not affect the recording.

Notes on the flash

• Do not carry the camera by the flash unit, or use excessive strength on it.
• If water, dust or sand get into the open flash unit, it may cause a malfunction.

On camera's temperature

Your camera and battery may get hot due to continuous use, but it is not a malfunction.

On the overheat protection

Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera.

A message will be displayed on the screen before the power turns off or you can no longer record movies. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool enough, the power may turn off again or you may be unable to record movies.

On charging the battery

If you charge a battery that has not been used for a long time, you may be unable to charge it to the proper capacity.

This is due to the battery characteristics, and is not a malfunction. Charge the battery again.

Warning on copyright

Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

No compensation for damaged content or recording failure

Sony cannot compensate for failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc.

Cleaning the camera surface

Clean the camera surface with a soft cloth slightly moistened with water, then wipe the surface with a dry cloth. To prevent damage to the finish or casing:

- Do not expose the camera to chemical products such as thinner, benzine, alcohol, disposable cloths, insect repellent, sunscreen or insecticide.

Specifications

Camera

[System]

Image device: 7.76 mm (1/2.3 type) Exmor R CMOS sensor

Total pixel number of camera: Approx. 18.9 Megapixels

Effective pixel number of camera: Approx. 18.2 Megapixels

Lens: Sony G 16× zoom lens f = 4.28 mm - 68.48 mm (24 mm - 384 mm (35 mm film equivalent)) F3.3 (W) - F5.9 (T)

While shooting movies (16:9):

25 mm - 400 mm*

While shooting movies (4:3):

31 mm - 496 mm*

* When [Movie SteadyShot] is set to [Standard]

SteadyShot: Optical

Exposure control: Automatic exposure, Manual exposure, Scene Selection (15 modes)

White balance: Automatic, Daylight, Cloudy, Fluorescent 1/2/3, Incandescent, Flash, One Push

Signal format: For 1080 50i: PAL color, CCIR standards HDTV 1080/50i specification For 1080 60i: NTSC color, EIA standards HDTV 1080/60i specification

File format:

Still images: JPEG (DCF, Exif, MPF Baseline) compliant, DPOF compatible

3D still images: MPO (MPF

Extended (Disparity Image)) compliant

Movies (AVCHD format):

AVCHD format Ver. 2.0 compatible

Video: MPEG-4 AVC/H.264

Audio: Dolby Digital 2ch, equipped with Dolby Digital Stereo Creator

• Manufactured under license from Dolby Laboratories.

Movies (MP4 format):

Video: MPEG-4 AVC/H.264

Audio: MPEG-4 AAC-LC 2ch

Recording media: Internal Memory (Approx. 19 MB), “Memory Stick Duo” media, SD cards, “Memory Stick Micro” media, microSD memory cards

Flash: Flash range (ISO sensitivity (Recommended Exposure Index) set to Auto):

Approx. 0.25 m to 5.3 m

(9 7/8 inches to 17 feet

4 3/4 inches) (W)

Approx. 1.2 m to 2.9 m

(3 feet 11 1/4 inches to 9 feet 6 1/4 inches) (T)

[Input and Output connectors]

Micro USB connector: USB communication

USB communication: Hi-Speed USB (USB 2.0)

[Screen]

LCD screen:

7.5 cm (3.0 type) TFT drive

Total number of dots: 921 600 dots

[Power, general]

Power: Rechargeable battery pack NP-BG1, 3.6 V

NP-FG1 (sold separately), 3.6 V

AC Adaptor AC-UB10/UB10B, 5 V

Power consumption (during shooting): 1.0 W

Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)

Storage temperature: -20 ^ to +60 ^ (-4 ^ to +140 ^)

Dimensions (CIPA compliant):

104.7 mm × 59.7 mm × 33.8 mm

(4 1/8 inches × 2 3/8 inches × 1 3/8 inches) (W/H/D)

Mass (CIPA compliant) (including NP-BG1 battery pack, “Memory Stick Duo” media):

Approx. 234 g (8.3 oz)

Microphone: Stereo

Speaker: Monaural

Exif Print: Compatible

PRINT Image Matching III: Compatible

AC Adaptor AC-UB10/UB10B

Power requirements: AC 100 V to 240 V, 50 Hz/60 Hz, 70 mA

Output voltage: DC 5 V, 0.5 A

Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)

Storage temperature: -20 ^ to +60 ^ (-4 ^ to +140 ^)

Dimensions:

Approx. 50 mm × 22 mm × 54 mm

(2 inches × 7/8 inches ×

2 1/4 inches) (W/H/D)

Mass:

For the USA and Canada: Approx. 48 g (1.7 oz)

For countries or regions other than the USA and Canada: Approx. 43 g (1.5 oz)

Rechargeable battery pack NP-BG1

Used battery: Lithium-ion battery

Maximum voltage: DC 4.2 V

Nominal voltage: DC 3.6 V

Maximum charge voltage: DC 4.2 V

Maximum charge current: 1.44 A

Capacity:

typical: 3.4 Wh (960 mAh)

minimum: 3.3 Wh (910 mAh)

Design and specifications are subject to change without notice.

Trademarks

• The following marks are trademarks of Sony Corporation.

Cyber-shot, “Cyber-shot,” “Memory Stick PRO Duo,” “Memory Stick PRO-HG Duo,” “Memory Stick Duo,” “Memory Stick Micro”

• “AVCHD” and “AVCHD” logotype are trademarks of Panasonic Corporation and Sony Corporation.
• Windows is registered trademark of Microsoft Corporation in the United States and/or other countries.
  • Mac is registered trademark of Apple Inc.
• SDXC logo is a trademark of SD-3C, LLC.
• “” and “PlayStation” are registered trademarks of Sony Computer Entertainment Inc.
• In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or manufacturers. However, the ^TM or ^® marks are not used in all cases in this manual.

Works with PlayStation®3

• Add further enjoyment with your PlayStation 3 by downloading the application for PlayStation 3 from PlayStation Store (where available.)
• The application for PlayStation 3 requires PlayStation Network account and application download. Accessible in areas where the PlayStation Store is available.

Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.

GB

http://www.sony.net/

Printed on 70% or more recycled paper using VOC (Volatile Organic Compound)-free vegetable oil based ink.

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

RECYCLE RBRC Li-Ion 7.800.822.8837

Responsible : Sony Electronics Inc.

Adresse : 16530 Via Esprillo, San Diego, CA 92127 É.-U.

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Labeled diagram of a digital camera with numbered parts for identification

Diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

5 Touche ON/OFF (Alimentation)

13 Touche ▶ (Lecture)

14 Touche MOVIE (Film)

① LOCK OPEN ②

Diagram showing airflow or fluid flow through a device with directional arrows and labeled components

Diagram of a digital camera with control panel and display screen, showing internal components (no text or symbols)

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol pointing to the device's connector.

FR

Remarque

(CIPA : Camera & Imaging Products Association)

① LOCK OPEN ②

Diagram of a mechanical device with a knob and lever mechanism, showing no text or symbols

(h (heures), m (minutes))

Taille\Capacité	Mémoire interne	Carte mémoire
	Environ 19 Mo	2 Go
AVC HD 24M (FX)	—	10 m(10 m)
AVC HD 9M (HQ)	—	20 m(15 m)
MP4 12M	—	15 m
MP4 3M	—	1 h 5 m

Films (format MP4) :

Communication USB: Hi-Speed USB

(USB 2.0)

[Ecran]

Écran LCD :

Matrice active TFT 7,5 cm (type 3,0)

Works with PlayStation®3

Diagram showing a laptop connected to a webpage with a child, displayed on a screen and labeled 'Cyber-advice' in the top section.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

① LOCK OPEN ②

Diagram showing a device with a valve and directional arrows, likely illustrating a mechanical or fluid system component.

Illustration of a digital camera with two circular buttons and a screen (no text or symbols)

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol pointing to the device's connector.

Nota

(CIPA: Camera & Imaging Products Association)

① LOCK OPEN ②

Diagram of a mechanical device with a lever and handle, showing an arrow indicating direction (no text or symbols present)

A: "Memory Stick Duo"
B: "Memory Stick Micro"
C: Scheda SD
D: Scheda memoria microSD

Nota

Close-up of a camera module with a circular dial indicator (no text or symbols visible)

Manopola del modo

i: Intelligente autom.

: Modo filmato

Circa 50 mm × 22 mm × 54 mm

(L/A/P)

Peso:

Works with PlayStation®3

Diagram showing a laptop connected to a webpage with a child, displayed on a screen and labeled 'Cyber-advice' in the top section.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

① LOCK OPEN ②

Diagram of a device interior with labeled parts and directional arrows indicating movement or flow

1 Abra la tapa.

Illustration of a handheld electronic device with a cable and indicator lights, no text or symbols present.

Illustration of a desktop computer with ports and cables (no text or symbols)

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol and signal flow arrow.

Nota

(CIPA: Camera & Imaging Products Association)

① LOCK OPEN ②

Diagram of a mechanical device with a lever and handle, showing a component with an arrow indicating direction (no text or symbols present)

Close-up of a camera module with a circular dial indicator (no text or symbols visible)

Dial de modo

i: Inteligente Auto

: Modo película

A Botón del disparador MOVIE Palanca W/T (Zoom)

W: alejar con zoom

T: acercar con zoom

Cyber-shot, “Cyber-shot”, “Memory Stick PRO Duo”, “Memory Stick PRO-HG Duo”, “Memory Stick Duo”, “Memory Stick Micro”

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

① LOCK OPEN ②

Diagram showing a device with a dial indicator and labeled components, likely illustrating a mechanical or electrical assembly.

1 Abra a tampa.

2 Insira o pack de baterias.

Line drawing of a device with ports and a cable (no text or symbols)

Luz de Alimentação/

Carregamento

Acesa: Carregamento

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol pointing to the device.

Nota

(CIPA: Camera & Imaging Products Association)

① LOCK OPEN ②

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Certifique-se de que o canto recortado está virado correctamente.

1 Abra a tampa.
2 Insira o cartão de memória (vendido separadamente).

Diagram of a camera with a circular inset showing internal components (no text or symbols)

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

① LOCK OPEN ②

Akku-Auswurfhebel

Diagram showing airflow direction and component labels in a vehicle or device interior

Diagram of a digital camera with control panel and display screen, showing internal components (no text or symbols)

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol pointing to the device.

Hinweis

(CIPA: Camera & Imaging Products Association)

① LOCK OPEN ②

Diagram of a mechanical device with a lever and slide, showing no text or symbols

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

① LOCK OPEN ②

Accu-uitwerphendel

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

1 Open het deksel.

2 Steek de accu erin.

Diagram of a handheld device with control buttons and an arrow indicating rotation (no text or symbols present)

Aan-/oplaadlampje

Brandt: opladen

Uit: opladen klaar

Knippert:

laadfout

opladen onderbroken als

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol pointing to the device.

Opmerking

(CIPA: Camera & Imaging Products Association)

① LOCK OPEN ②

Diagram of a mechanical device with a lever and slide, showing no text or symbols

Ong. 50 mm × 22 mm × 54 mm (b×h×d)

Gewicht:

Cyber-shot, "Cyber-shot", "Memory Stick PRO Duo", "Memory Stick PRO-HG Duo", "Memory Stick Duo", "Memory Stick Micro"

Works with PlayStation®3

Diagram showing a laptop connected to a screen displaying a video call interface and a person's photo, with 'Cyberatrol' label indicating the system.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

① LOCK OPEN ②

Diagram of a device with a scroll wheel and a battery pack, showing no text or symbols

1 Otwórz osłone.

2 Włóż akumulator.

Diagram of a handheld device with control buttons and a scroll, shown from top and side (no text or symbols)

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol pointing to the device's connector.

Uwaga

(CIPA: Camera & Imaging Products Association)

① LOCK OPEN ②

Diagram of a mechanical device with a lever and handle, showing no text or symbols

(MPF Extended (Disparity Image))

Filmy (Format AVCHD):

Zgodny z formatem AVCHD wer. 2.0

Wideo: MPEG-4 AVC/H.264

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a separate image of a person in a photo frame.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

① ② LOCK OPEN

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

CZ

1 Otevřete kryt.

Diagram of a device with labeled ports and control buttons, shown from top and side views (no text or symbols present)

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol pointing to the device.

Poznámka

(CIPA: Camera & Imaging Products Association)

① LOCK OPEN ②

Diagram of a mechanical device with a lever and handle, showing an arrow indicating direction (no text or symbols present)

Asi 50 mm × 22 mm × 54 mm

(Š/V/H)

Hmotnost:

Pro USA a Kanadu: Asi 48 g

Works with PlayStation®3

Diagram showing a laptop connected to a webpage with a person, alongside a separate image of a video call interface.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

① LOCK OPEN ②

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

HU

1 Nyissa fel a fedelet.

Diagram of a handheld device with control buttons and an arrow indicating rotation (no text or symbols present)

Diagram showing connection between a laptop and an electronic device with signal input and output ports

Megjegyzés

(CIPA: Camera & Imaging Products Association)

① LOCK OPEN ②

Diagram of a mechanical device with a lever and handle, showing a directional arrow (no text or symbols)

Works with PlayStation®3

Diagram showing a laptop connected to a webpage with a person, alongside a separate image of a video call interface.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

1 Spúšť
2 Otočný prepínač režimov
i (Intelligent Auto)/
i ^+ (Superior Auto)/
(Background Defocus)/
P(Program Auto)/
SCN (Scene Selection)/
M (Manual Exposure
Shooting)/i (iSweep
Panorama)/☐ (Movie
Mode)/3D (3D Shooting)

① LOCK OPEN ②

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

1 Otvorte kryt.

Diagram of a device with labeled ports and directional arrows, showing top and side views (no text or symbols)

Diagram showing a laptop connected to an oscilloscope via cable, with a sensor icon pointing to the device.

Poznámka

(CIPA: Camera & Imaging Products Association)

- DISP (Display Setting) je nastavené na [ON].

① LOCK OPEN ②

Diagram of a mechanical device with a lever and handle, showing an arrow indicating direction (no text or symbols present)

Diagram of a camera with a circular dial indicator (no text or symbols on the device itself)

Otočný prepínač režimov
i: Intelligent Auto
Movie Mode

Shooting Settings	Movie format/AF Illuminator/Grid Line/Clear Image Zoom/Digital Zoom/Wind Noise Reduct./Micref Level/Red Eye Reduction/Blink Alert/Write Date/Disp. Resolution
Main Settings	Beep/Panel Brightness/Language Setting/Display color/Demo Mode/Initialize/Function Guide/CTRL FOR HDMI/Eco Mode/USB Connect Setting/USB Power Supply/LUN Setting/Download Music/Empty Music/Airplane Mode*1/GPS setting*1/GPS assist data*1/Dlt. GPS Log Data*1/TransferJet/Eye-Fi/Version
Memory Card Tool*2	Format/Create REC.Folder/Change REC.Folder/Delete REC.Folder/Copy/File Number
Clock Settings	Area Setting/Date & Time Setting/Auto Clock ADJ*1/Auto Area ADJ*1

^*1 Len DSC-HX10V
*2 Ak nie je vo fotoaparáte vložená pamätová karta, zobrazí sa (Internal Memory Tool), pričom bude možné zvolit len [Format].

Works with PlayStation®3

Diagram showing a laptop connected to a webpage with a child, displayed on a screen and labeled 'Cyberatire' in the top section.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

① LOCK OPEN ②

Batteriutmatningsknapp

Diagram showing a device with a dial indicator and labeled components, likely illustrating a mechanical or electrical system.

SE

1 Öppna locket.

2 Sätt i batteripaketet.

Diagram of a digital camera with control panel and display screen, shown from top and side views (no text or symbols)

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol and signal flow arrow.

Observera

(CIPA: Camera & Imaging Products Association)

① LOCK OPEN ②

Diagram of a mechanical device with a lever and slide, showing no text or symbols

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

① LOCK OPEN ②

Akun poistovipu

Diagram showing a device with a magnified view and directional arrows, likely illustrating a mechanical or electrical component.

FI

1 Avaa kansi.

Line drawing of a desktop computer case with two circular buttons and ventilation slots (no text or symbols)

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol pointing to the device's connector.

Huomaa

(CIPA: Camera & Imaging Products Association)

① LOCK OPEN ②

Mechanical assembly diagram showing a lever and handle mechanism with an arrow indicating motion (no text or symbols)

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a separate image of a person in a photo frame.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Dette symbolet på batteriet eller på forpakningen betyr at batteriet ikke skal behandles som vanlig husholdningsavfall.

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

1 Lukkerknapp
2 Modusvelger

i (Intelligent auto)/
i ^+ (Fremragende auto)/
(Gjøre bakgrunnen uskarp)/
P(Program Auto)/
SCN (Scenevalg)/
M (Fotografering m/manuell
eksp.)/i (i-
Panoramafotografering)/
(VIDeomodus)/3D (3D-fotografering)

③ For opptak: W/T-spak (Zoomespak)

For visning: Spak for

① LOCK OPEN ②

Batteriutkaster

NO

1 Åpne dekselet.

2 Sett inn batteriet.

Diagram of a device with labeled ports and directional arrows, showing internal components (no text or symbols present)

Strøm-/ladelampe

Tent: Lading pågår

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol pointing to the device.

Merk

(CIPA: Camera & Imaging Products Association)

① LOCK OPEN ②

Diagram of a mechanical device with a lever and handle, showing a component with an arrow indicating direction (no text or symbols present)

(h (time), m (minutt))

Størrelse\Kapasitet	Internminne	Minnekort
	Ca. 19 MB	2 GB
AVC HD 24M (FX)	—	10 m(10 m)
AVC HD 9M (HQ)	—	20 m(15 m)
MP4 12M	—	15 m
MP4 3M	—	1 h 5 m

Strømadapter AC-UB10/UB10B, 5 V

Strømadapter AC-UB10/UB10B

Strømbehov: AC 100 V til 240 V, 50 Hz/60 Hz, 70 mA

Utgangsspenning: DC 5 V, 0,5 A

Works with PlayStation®3

Screenshot showing a laptop and a webpage with a child, alongside a webpage with images and text.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

① LOCK OPEN ②

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

DK

1 Åbn dækslet.

2 Indsæt batteriet.

Line drawing of a desktop computer with ports and screen (no text or symbols)

Strøm-/Opladelampe

Tændt: Oplader

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol pointing to the device's connector.

Bemærk

(CIPA: Camera & Imaging Products Association)

① LOOK OPEN ②

Diagram of a mechanical device with a lever and slide, showing an arrow indicating direction (no text or symbols present)

(h (timer), m (minutter))

Størrelse\Kapacitet	Intern hukommelse	Hukommelseskort
	Ca. 19 MB	2 GB
AVC HD 24M (FX)	—	10 m(10 m)
AVC HD 9M (HQ)	—	20 m(15 m)
MP4 12M	—	15 m
MP4 3M	—	1 h 5 m

Works with PlayStation®3

Diagram showing a laptop connected to a screen displaying a video call interface and a person photo, with 'Cyberatrol' label indicating the system.

»Korisnički priručnik za Cyber-shot« je online priručnik. Konzultirajte ga za detaljne upute o mnogim funkcijama fotoaparata.

① Pristupite stranici za Sony podršku. http://www.sony.net/SonyInfo/Support/
② Odaberite svoju zemlju ili regiju.
③ Potražite naziv modela svog fotoaparata na stranici podrške.
- Naziv modela provjerite na donjem dijelu fotoaparata.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Ova oznaka na bateriji ili na ambalaži označava da se baterija ne smije zbrinjavati kao ostali kućni otpad.

Na nekim baterijama se uz ovaj simbol može nalaziti kemijski simbol. Kemijski simboli za živu (Hg) ili olovo (Pb) dodaju se ako baterija sadrži više od 0,0005% žive ili 0,004% olova.

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

① Okidač ② Birač moda i (Inteligentno automatsko)/i+ (Superior automatsko)/ (Defokusiranje pozadine)/P (Programska automatika)/SCN (Odabir scene)/M (Snim. s ruč. određ. ekspozicije)/ i (i-Panoramsko snimanje)/[1] (Snimanje filma)/3D (3D snimanje)
③ Za snimanje: Poluga W/T (zum) Za pregledavanje: Poluga 📄 (Indeks)/poluga 🔒 (Zum pri reprodukciji)
4 Svjetlo samookidača/indikator snimanja osmijeha/AF svjetlo
5 Tipka ON/OFF (napajanje)
6 Svjetlo napajanja/punjenja
7 Zvučnik
8 Bljeskalica

• Prste nemojte držati blizu bljeskalice.
• Kad koristite bljeskalicu, ona se izvlači automatski.
• Bljeskalica se automatski uvlači kad se napajanje isključi, fotoaparat se prebaci u način reprodukcije ili se promijeni način snimanja.

9 Mikrofon
10 Objektiv
11 LCD zaslon
12 GPS senzor (ugrađeni, samo DSC-HX10V)
13 Tipka ▶ (reprodukcija)

14 Tipka MOVIE (Videozapis)
15 Mini priključnica HDMI
16 Kukica za vrpcu za nošenje
17 Kotačić za upravljanje
18 Tipka ?/血 (Vodič kroz fotoaparat/Brisanje)
19 Tipka MENU
20 Navoj za stativ

- Koristite stativ s vijkom duljine manje od 5,5 mm. U protivnom fotoaparat nećete moći dobro učvrstiti i može se oštetiti.

21 Mikro USB priključak
22 Oznaka ↗ (TransferJet™)
23 Utor za memorijsku karticu
24 Poklopac baterije/memorijske kartice
25 Polugica za vađenje baterije
26 Utor za umetanje baterije
27 Svjetlo pristupa podacima

Umetanje baterijske jedinice

1 LOCK OPEN ②

Polugica za vađenje baterije

Technical diagram showing a device with directional arrows and a magnified view of the internal components.

HR

1 Otvorite poklopac.

2 Umetnite baterijsku jedinicu.

• Dok pritišćete polugu za vađenje baterije, umetnite baterijsku jedinicu kako je prikazano. Osigurajte da se poluga za vađenje baterije nakon umetanja zaključa.
• Zatvaranjem poklopca kad je baterija nepravilno umetnuta možete oštetiti fotoaparat.

Punjenje baterijske jedinice

Diagram of a digital camera module with control buttons and an external sensor, shown from top and side (no text or symbols)

Svjetlo napajanja/punjenja
Svijetli: Punjenje
Ugašeno: Punjenje dovršeno
Trepće:
Pogreška pri punjenju
Punjenje zaustavljeno zbog pregrijavanja

1 Mikro USB kabelom (isporučeno) spojite fotoaparat na AC ispravljač (isporučeno).
2 Spojite AC ispravljač u zidnu utičnicu.

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol pointing to the device's connector.

Napomena

(CIPA: Camera & Imaging Products Association)

• DISP (Postavljanje prikaza) je postavljena na [UKLJUČENO].
  – Jedno okidanje svakih 30 sekundi.
  – Zum se uključuje/isključuje pritiskom na W odnosno T stranu.
  – Bljeskalica će se aktivirati svaki drugi put.
  – Uređaj će se uključiti i isključiti svaki deseti put.

① LOCK OPEN ②

Diagram of a device with a scroll wheel and directional arrow, no text or symbols present

Birac moda

i: Inteligentno automatsko : Snimanje filma

Works with PlayStation®3

- Dodajte više užitka sa svojim PlayStation 3 preuzimanjem aplikacije za PlayStation 3 s PlayStation Store (gdje je dostupna).

Diagram showing a laptop connected to a webpage with a person, alongside a separate image of a video call interface.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

Introducerea accumulatorilor

① LOCK OPEN

Diagram of a device with a dial indicator and directional arrows, no readable text or symbols present.

RO

1 Deschideti capacul.

Line drawing of a device with two circular ports and a ventilation grille (no text or symbols)

Diagram showing connection between a laptop and an electronic device with signal input and output ports

Observatie

① LOCK OPEN ②

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Diagram of a camera with a circular inset showing internal components (no text or symbols)

[24 mm – 384 mm (echivalent film 35 mm)]

F3,3 (W) - F5,9 (T)

Audio: Dolby Digital 2 canale, include Dolby Digital Stereo Creator

Works with PlayStation®3

Diagram showing a laptop connected to a screen displaying a photo and text, with 'Cyber-ethyl' label pointing to the screen.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

① LOCK OPEN ②

Pil çıkarma düğmesi

Technical diagram showing a device with labeled parts and directional arrows indicating movement or flow.

Line drawing of a device with two circular ports and a ventilation grille (no text or symbols)

Güç/Şarj lambası

Diagram showing a laptop connected to an electronic device via cable, with a USB symbol pointing to the device.

Not

(CIPA: Camera & Imaging Products Association)

① LOCK OPEN ②

Diagram of a mechanical device with a lever and slide, showing no text or symbols

Diagram of a camera with a circular dial indicator (no text or symbols present)

Mod kadrani
i: Akıllı otomatik
Film modu

A Deklanşör MOVIE W/T (Zum) düğmesi W/U kürk

(Yaklaşık 19 MB), “Memory

Cyber-shot, “Cyber-shot”, “Memory Stick PRO Duo”, “Memory Stick PRO-HG Duo”, “Memory Stick Duo”, “Memory Stick Micro”

Works with PlayStation®3

1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan

Türkiye İrtibat Numaraları: Tel: [phone] Faks: 0216-632 70 30 e-mail: [e-mail]

Diagram showing a laptop connected to a screen displaying a video call interface and a person's photo, with 'Cyberatrol' label indicating the system.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Labeled diagram of a digital camera with numbered parts for identification

Labeled diagram of a digital camera with numbered parts for identification

20 21 22 23 24 25 26 27

① LOCK OPEN ②

Diagram showing a device with a magnified view and directional arrows indicating movement or force, labeled 'SOTY' at the bottom.

Illustration of a handheld electronic device with ports and cables, no text or symbols present

Line drawing of a digital camera with two circular domes and ventilation slots (no text or symbols)

Diagram showing connection between a laptop and an electronic device with signal input and output ports

Παρατήρηση

① LOCK OPEN ②

Diagram of a mechanical device with a lever and handle, showing a left-hand rule and an arrow indicating direction (no text or symbols present)

Diagram of a camera with a circular dial indicator (no text or symbols on the dial itself)

Καντράν λειτουργιών

i: Ευφυές αυτόματο

Works with PlayStation®3
