USER MANUAL PW 460 HUSQVARNA

Line drawing of a mechanical tool with a long-handled edge, showing no text or symbols.

GB Original Instructions

GB IMPORTANT INFORMATION Read before use and retain for future reference

Technical diagram of a hairpin with numbered parts labeled 1 through 6

GB - CONTENTS

1. Switch levers
2. Handguard
3. Blade cover
4. Instruction Manual
5. Warning Label
6. Product Rating Label

DE - INHALT

Illustration of a person using a tool to adjust a metal ruler, with an arrow indicating motion (no text or symbols present)

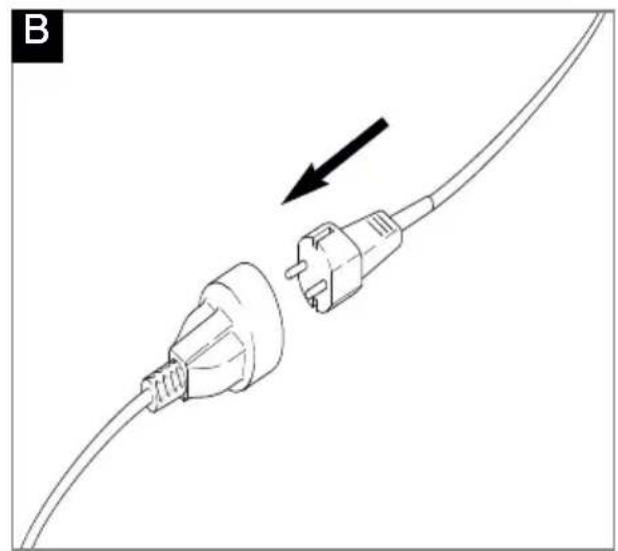

Diagram of a cable with two connected plug connectors, one being twisted and the other lying on it (no text or symbols)

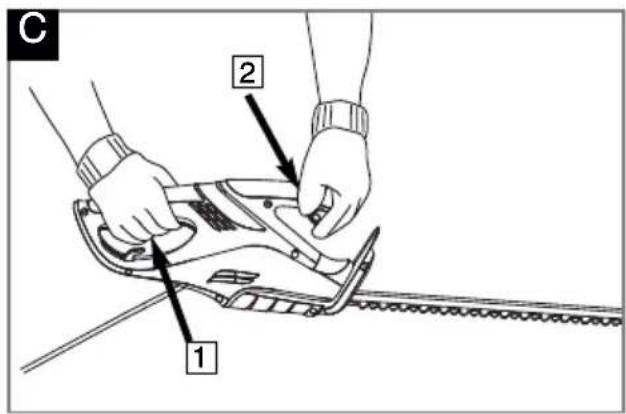

C 1 2

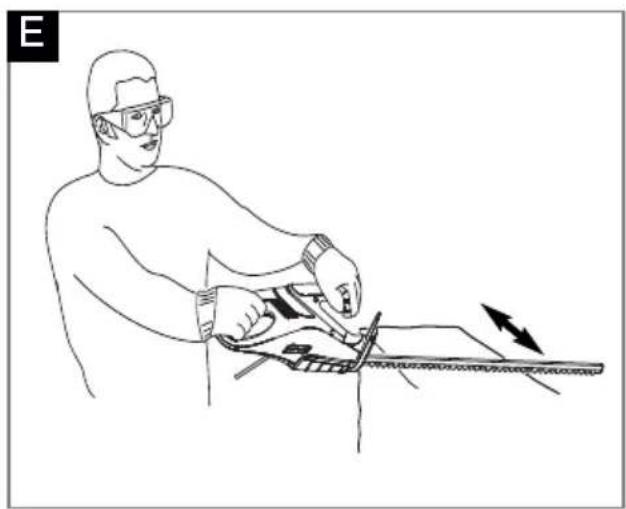

Line drawing of hands operating a manual power shaver or saw (no text or symbols present)

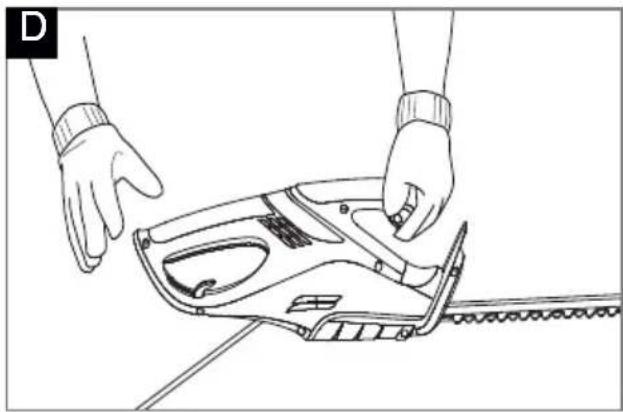

Line drawing of a person using a tool on a mechanical device, with an arrow indicating motion (no text or symbols)

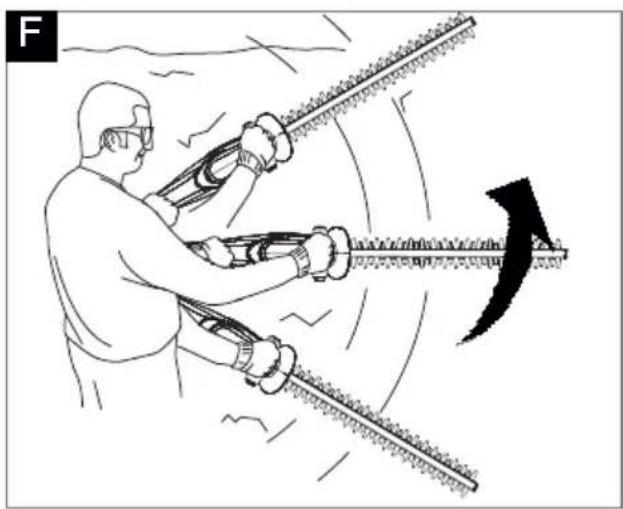

Illustration of a person using a mechanical tool to interact with chains, showing motion and force direction (no text or symbols)

Line drawing of hands using a tool to clean or install a mechanical component, no text or symbols present

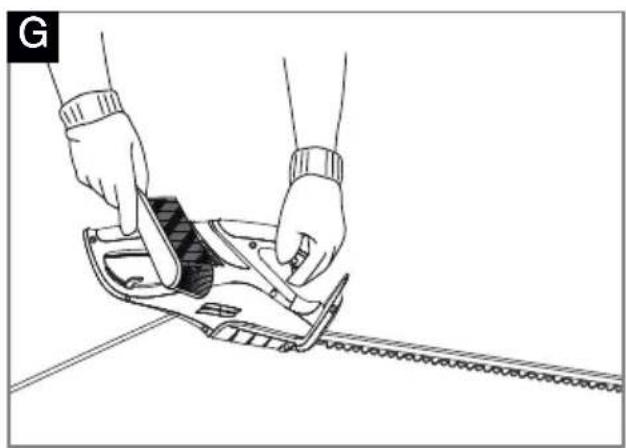

Illustration of hands using a tool to cut a diagonal groove (no text or symbols present)

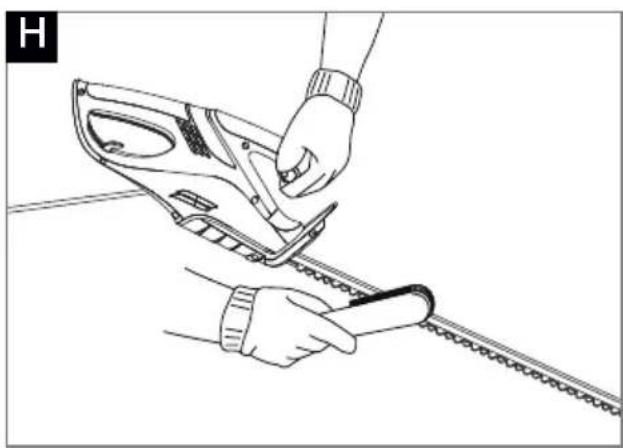

Line drawing of hands using a tool to cut a diagonal groove (no text or symbols)

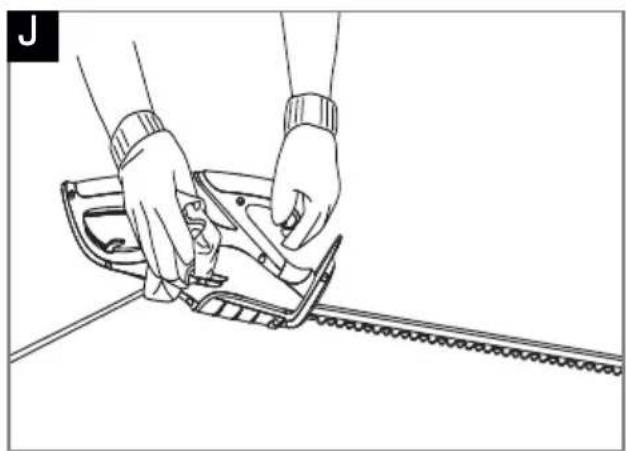

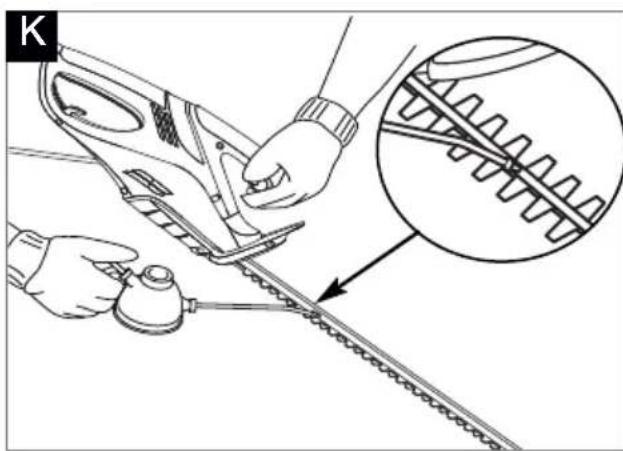

Illustration of hands using a tool to adjust a mechanical part, with an inset showing the close-up of the component (no text or symbols present)

GB DO NOT use liquids for cleaning.	ES NO utilice líquidos para la limpieza.	HR NEMOJTE koristiti tekućine za čišćenje.
DE Zur Reinigung KEINE Flüssigkeiten verwenden.	PT NÃO use líquidos para limpar.	LT Nenaudokite skysčių valymui.
FR NE PAS utiliser de produit liquide pour le nettoyage.	IT NON usare liquidi per la pulizia.	RU HE используйте жидкости для очистки.
NL Voor het reinigen NOOIT vloeistoffen gebruiken.	HU NE használjon folyadékokat tisztításra.	EE ÄRGE kasutage puhastamiseks vedelikke.
NO Flytende midler Mų IKKE brukes til rengjøring.	PL NIE używać płynów do czyszczenia.	LV Tīrīšanai NEIZMANTOJIET škīdrumus.
FI ÄLÄ käytä nesteitä puhdistamiseen.	CZ K čištění NEPOUŽÍVEJTE kapaliny.	RO NU utilizați pentru curățire lichide.
SE ANVÄND INTE vätskor för rengöring.	SK NEPOUŽÍVAJTE na čistenie tekuté materiály.	TR Temizleme için sivilar KULLANMAYIN.
DK BRUG IKKE væske til rengöring.	SI NE uporabljajte raznih tekočin za čiščenje.	GR MHN қαθαρίζετε με υγρά.

GB	For further advice or repairs, contact your local dealer.		contacte con su distribuidor local.	LT	Norint sužinoti daugiau patarimų dėl remonto, susisiekite su vietiniu prekiautoju.
DE	Für weitere Empfehlungen oder Reparaturarbeiten setzen Sie sich bitte mit Ihrem örtlichen Händler in Verbindung.	PT	Para orientação adicional ou reparações, contacte o seu agente local.	RU	Для получения дальнейших консультаций или для ремонта свяжитесь с Вашим местным авторизованным дилером.
FR	Pour en savoir plus ou pour toute réparation, contacter votre revendeur local.	IT	Per ulteriori consigli o riparazioni contattare il rivenditore locale.
NL	Voor nadere informatie over reparaties kunt u contact opnemen met uw plaatselijke leverancier.	HU	További tanácsért vagy javítás szükségessége esetén forduljon a helyi forgalmazóhoz.	EE	Edasisteks nõuanneteks või hoolduseks põörduge kohaliku edasimüüja poole.
NO	Ta kontakt med din lokale forhandler angående ytterligere opplysninger eller reparasjoner.	PL	W sprawie porad lub napraw skontaktować się z miejscowym przedstawicielem.	LV	Lai uzzinātu vairāk par remontdarbu veikšanu, sazinieties ar savu vietējo izplatītāju.
FI	Tarkempia ohjeita tai tieto korjauksista saat paikalliselta jälleenmyyjältä.	CZ	O radu nebo opravu požádejte svého místního prodejce.	RO	Pentru mai multe sfaturi sau reparații, contactați reprezentantul local.
SE	För ytterligare rådgivning eller reparationer, kontakta din lokala återförsäljare.	SK	Ďalšie informácie a opravy zabezpečí váš lokálny predajca.	TR	Ayrıntılı bilgi veya onarımlar için, yerel saticinizla temas kurunuz..
DK	For yderlige vejledning eller reparation skal du kontakte din lokale forhandler.	SI	Za nadaljnja navodila ali popravila kontaktirajte vasega lokalnega prodajalca.	GR	Гіа пераɪτέρω συμβουλές э επισκευές, επικοινωνήστε με τον τοπικό σας αντιπρόσωπο.
ES	Si desea consejos adicionales o reparación,		Za daljnje savjete ili popravke, obratite se svom prodavaču.

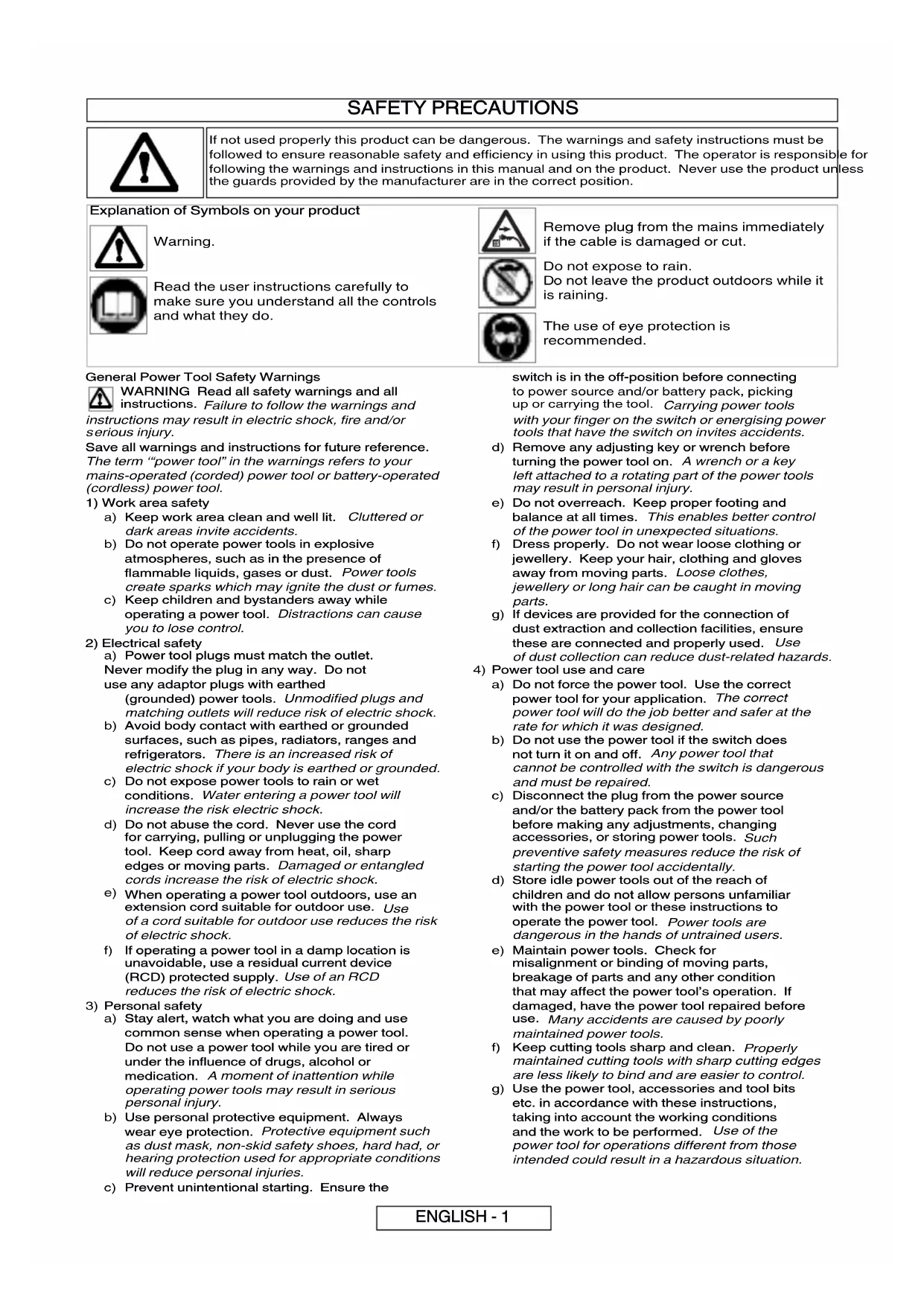

SAFETY PRECAUTIONS

If not used properly this product can be dangerous. The warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using this product. The operator is responsible for following the warnings and instructions in this manual and on the product. Never use the product unless the guards provided by the manufacturer are in the correct position.

Explanation of Symbols on your product

Warning.

Read the user instructions carefully to make sure you understand all the controls and what they do.

Remove plug from the mains immediately if the cable is damaged or cut.

Do not expose to rain. Do not leave the product outdoors while it is raining.

The use of eye protection is recommended.

General Power Tool Safety Warnings

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and

instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adaptor plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard had, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the

switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tools may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

SAFETY PRECAUTIONS

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Hedge trimmer safety warnings:

• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
• Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
• Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring or its own cord. Cutter blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• Keep cable away from the cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the blade.

Additional Safety Recommendations

Work area safety

1. Never allow children or people unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator.
2. Only use the product in the manner and for the functions described in these instructions.
3. The operator or user is responsible for accidents or hazards occurring to other people or their property.

Electrical safety

1. The British Standards Institute recommend the use of a Residual Current Device (R.C.D.) with a tripping current of not more than 30mA. Even with a R.C.D. installed 100% safety cannot be guaranteed and safe working practice must be followed at all times. Check your R.C.D. every time you use it.

2. Before use, examine the cable for signs of damage or ageing. If the cable is found to be defective, take the product to an Authorised Service Centre and have the cable replaced.

3. Do not use the product if the electric cables are damaged or worn.

4. Immediately disconnect from the mains electricity supply if the cable is cut, or the insulation is damaged. Do not touch the electric cable until the electrical supply has been disconnected. Do not repair a cut or damaged cable, replace it with a new one. If replacement of the cable is necessary, this must only be done by an Approved Service Centre in order to avoid a safety hazard.

5. Your electric cable must be untangled, tangled cables can overheat and reduce the efficiency of your product

6. Always switch off at the mains before disconnecting any plug, cable connector or extension cable.

7. Switch off, remove plug from mains and examine electric supply cable for damage or ageing before winding cable for storage.

8. Always wind cable carefully, avoiding kinking.

9. Use only on AC mains supply voltage shown on the product rating label.

10. Our products are double insulated to EN60745. Under no circumstances should an earth be connected to any part of the product.

Cables

If you want to use an extension cable when operating your product, only the following cable dimensions should be used.

- 1.0 ~mm^2 : max length 40 ~m

- 1.5 mm² : max length 60 m

- 2.5 mm ^4 : max length 100 m

Minimum rating:

1.00mm ^2 size cable 10 amps 250 volts AC

1. Mains cables and extensions are available from your local Approved Service Centre.

2. Only use extension cables specifically designed for outdoor use and which conform to one of the following specifications: Ordinary rubber (60245 IEC 53), Ordinary PVC (60227 IEC 53) or Ordinary PCP (60245 IEC 57)

3. If the short connection lead is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Personal safety

1. Always wear suitable clothing, gloves, and stout shoes.

2. Thoroughly inspect the area where the product is to be used and remove all wires and other foreign objects.

3. Before using the machine and after any impact, check for signs of wear or damage and repair as necessary.

4. Always ensure the hand guard supplied is fitted before using the hedge trimmer. Never attempt to use an incomplete product or one with an unauthorised modification.

Power tool use and care

1. Know how to stop the product quickly in an emergency.

2. Never hold the product by the guard.

3. Never operate the product with damaged guards or without guards in place.

4. Do not use stepladders whilst operating the product.

5. Remove the plug from the mains :-

- before leaving the product unattended for any period;

- before clearing a blockage;

- before checking, cleaning or working on the appliance;

- if you hit an object. Do not use your product until you are sure that the entire product is in a safe operating condition;

- if the product starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury.

- before passing to another person.

Maintenance and storage

1. Keep all nuts, bolts and screws secure to be sure the hedge trimmer is in safe working condition.

2. Replace worn or damaged parts for safety.

3. Be careful during adjustment of the product to prevent entrapment of the fingers between moving blades and fixed parts of the machine.

4. Store in a cool dry place and out of reach of children. Do not store outdoors.

5. Allow the product to cool for at least 30 minutes before storing.

Environmental Information

• Awareness of the environment must be considered when disposing of ‘end-of-life’ product.
• If necessary, contact your local authority for disposal information.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical

and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council office, your household waste disposal service or the shop where you purchased the product.

Service Recommendations

• Your product is uniquely identified by a silver and black product rating label.
• We strongly recommend that your product is serviced at least every twelve months, more often in a professional application.

Guarantee and Guarantee Policy

If any part is found to be defective due to faulty manufacture the guarantee period, Husqvarna UK Ltd., through its Authorised Service Repairers will effect the repair or replacement to the customer free of charge providing:

(a) The fault is reported directly to the Authorised Repairer.
(b) Proof of purchase is provided.
(c) The fault is not caused by misuse, neglect or faulty adjustment by the user.
(d) The failure has not occurred through fair wear and tear.
(e) The machine has not been serviced or repaired, taken apart or tampered with by any person not authorised by Husqvarna UK Ltd..
(f) The machine has not been used for hire.
(g) The machine is owned by the original purchaser.
(h) The machine has not been used commercially.
*This guarantee is additional to, and in no way diminishes the customers statutory rights.
Failures due to the following are not covered, therefore it is important that you read the instructions contained in this Operator's Manual and understand how to operate and maintain your machine:

Failures not covered by guarantee

*Replacing Cutting Line.
*Failures as a result of not reporting an initial fault.
*Failures as a result of sudden impact.
*Failures as a result of not using the product in accordance with the instructions and recommendations contained in this Operator's Manual.
*Machines used for hire are not covered by this guarantee.
*The following items listed are considered as wearing parts and their life is dependent on regular maintenance and are, therefore not normally subject to a valid warranty claim: Blades, Electric Mains cable,
* Caution!

Husqvarna UK Ltd. does not accept liability under the warranty for defects caused in whole or part, directly or indirectly by the fitting of replacement parts or additional parts that are not either manufactured or approved by Husqvarna UK Ltd., or by the machine having been modified in any way

EC DECLARATION OF CONFORMITY

Husqvarna AB, S-561 82 Huskvarna, Sweden

Declare under our sole responsibility that the product(s);

Designation......Hedge trimmer

Designation ofType(s)......EasiCut 460, EasiCut520

Identification of Series......See Product Rating Label

Year of Construction......See Product Rating Label

Conforms to the essential requirements & provisions of the following EC Directives:

2006/42/EC, 2004/108/EC, 2000/14/EC, 2011/65/EU

based on the following EU harmonized standards applied:

EN60745-1, EN60745-2-15, EN50366, EN55014-1, EN61000-3-2, EN61000-3-3

The maximum A weighted sound pressure level L_pA at the work station, measured according to EN60745-2-15, is given in the table.

The maximum hand / arm vibration weighted value a_h , measured according to EN60745-2-15, on a sample of the above product(s) is given in the table.

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another.

The declared vibration total value may also be used in a preliminary assessment of exposure.

Warning:

The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used

Operators should identify safety measures to protect themselves that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

2000/14/EC: The Measured Sound Power L_WA & Guaranteed Sound Power L_WA values are according to the tabulated figures.

Conformity Assessment Procedure...... Annex V

Huskvarna 21/10/2016

J. Thompson

Product & Marketing Director

Keeper of technical documentation

Type	EasiCut 460	EasiCut 520
Blade length (cm)	45	50
Power (kW)	0.45	0.5
Measured Sound Power L_WA (dB(A))	95.8	96.69
Guaranteed Sound Power L_WA (dB(A))	96	97
Sound Pressure L_pA (dB(A))	82.4	84.3
Uncertainty K_pA (dB(A))	3.0	3.0
Hand / arm vibration a^h ( m/s^2 )	3.050	2.669
Uncertainty K_ah ( m/s^2 )	1.5	1.5
Weight (Kg)	3.1	3.27

EC DÉCLARATION DE CONFORMITÉ

Husqvarna AB, S-561 82 Huskvarna, Sweden

WAARSCHUWING Lees alle

DEKLARACJA ZGODNOŚCI WE

Husqvarna AB, S-561 82 Huskvarna, Sweden
